Article transfer apparatus

Published
Permanent URL
Classification
Material Handling › Conveying Systems
Inventors
MAHONEY DONALD SIMSON
Assignee
BECFAB EQUIPMENT PTY LTD
Original source
US-2001046436-A1, the United States Patent and Trademark Office, 29 November 2001
Document SHA-256
19d480f934f78d7a9b49958f3cc461475fc5b30cac5522686f3e80eff0594778

A transfer apparatus for articles is provided comprising: (a) a support; and (b) an arm, engaging or connecting to the support and movable between a first and second position vertically displaced relative to one another, the arm being rotatable about the support in a substantially vertical plane from a first side of the support to a second side of the support opposite the first side, the arm comprising; (i) a connector having a releasable attachment for engaging an article, wherein the connector is located distant from the support; and (ii) a rotation device to rotate the connector relative to the arm to re-orient the article attached to the connector from an attachment position on the first side of the support to a detachment position on the second side of the support.

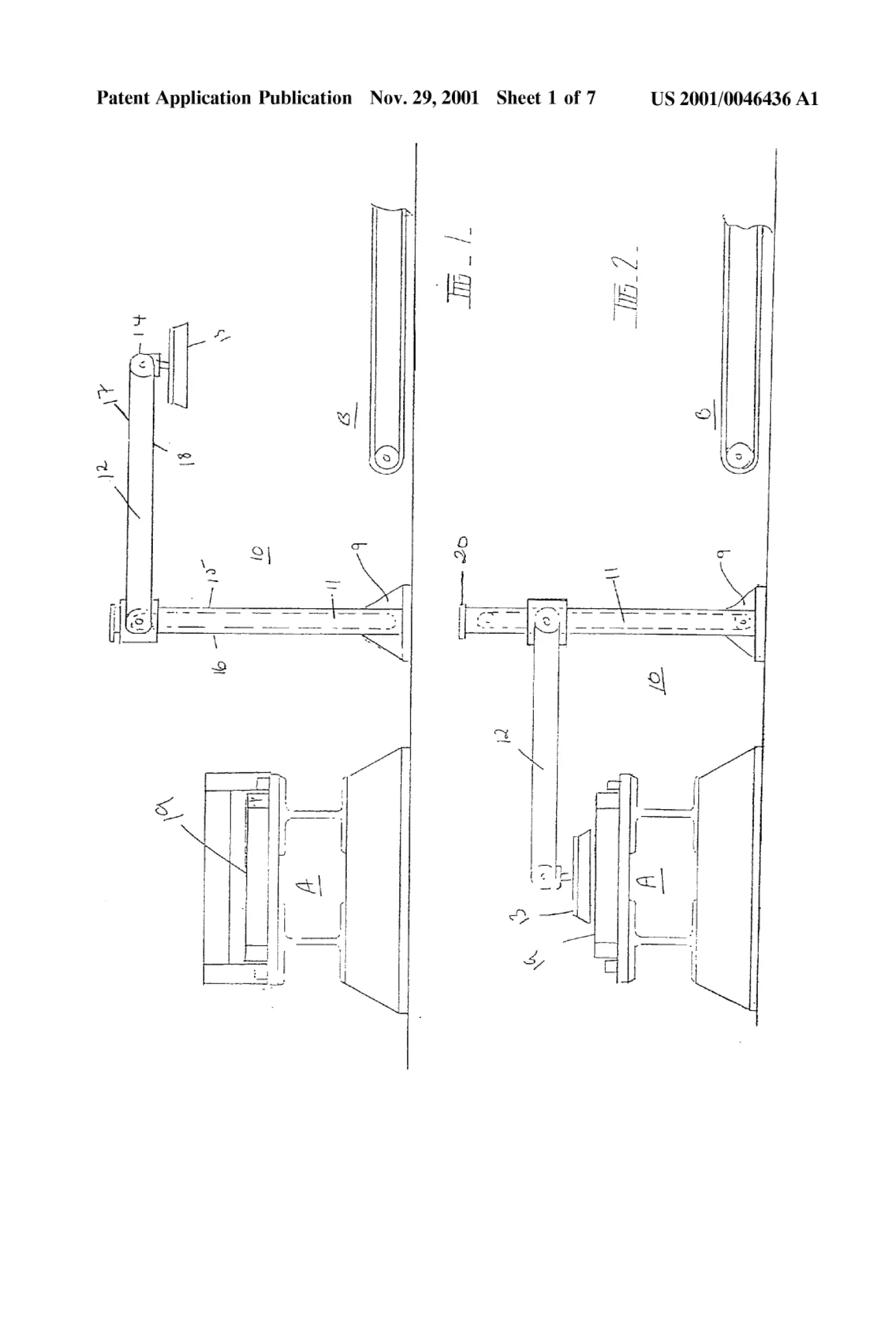

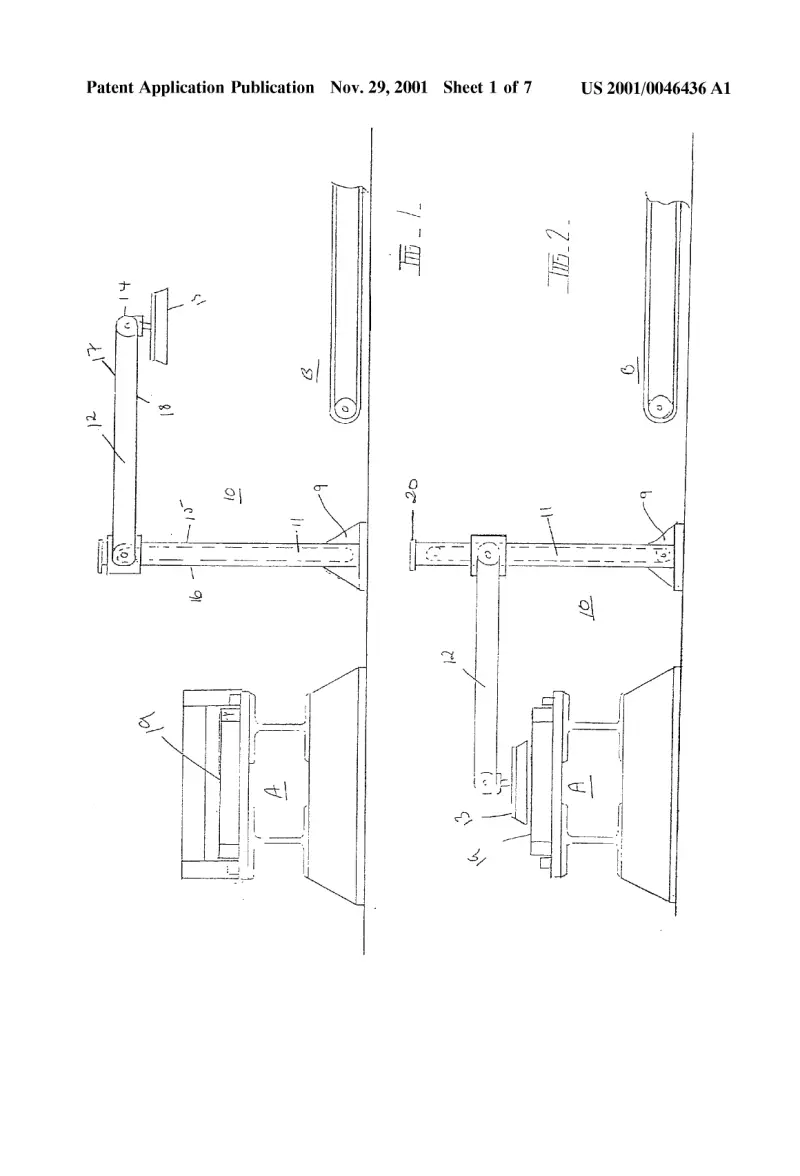

Sheet 1
Sheet 1

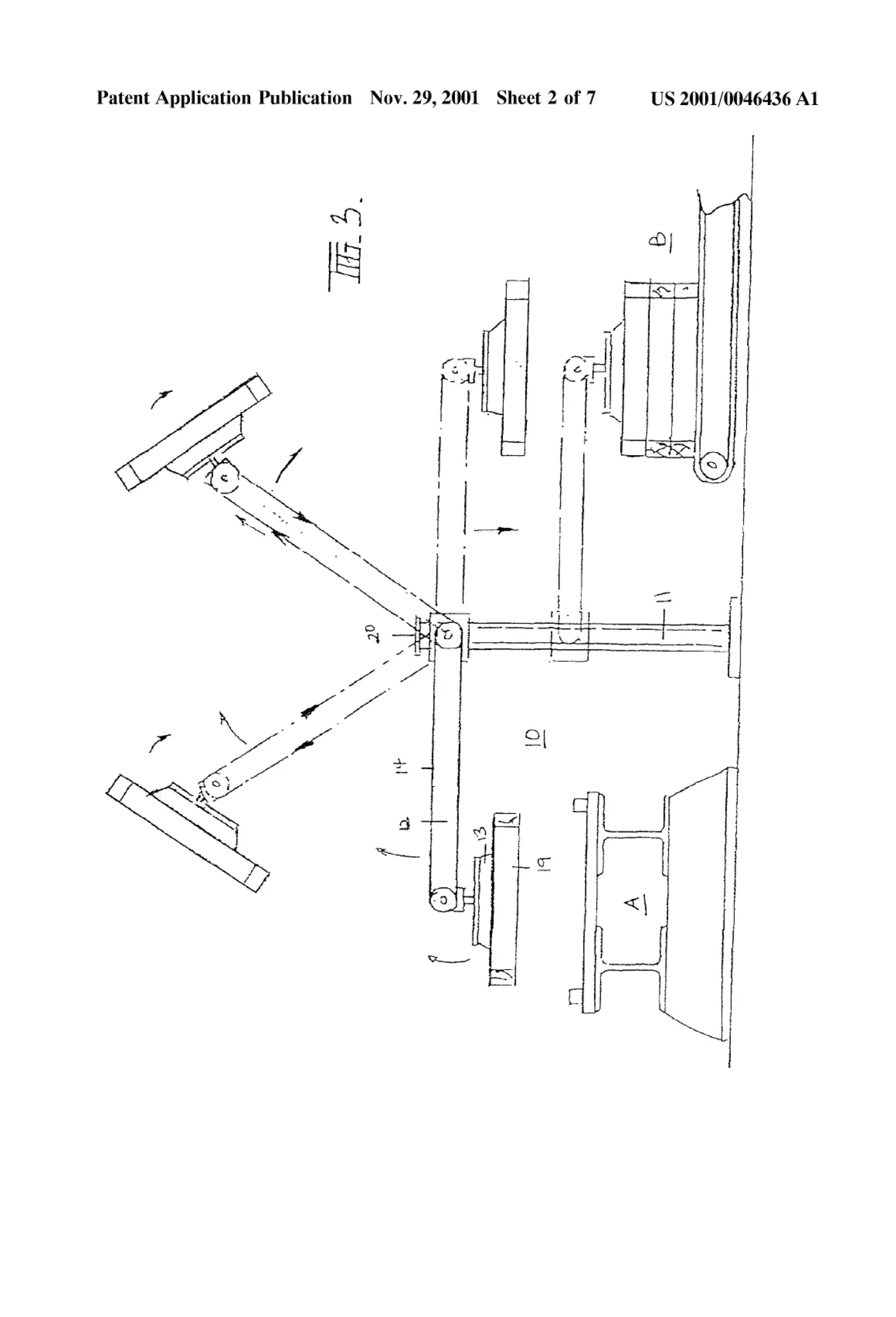

Sheet 2
Sheet 2

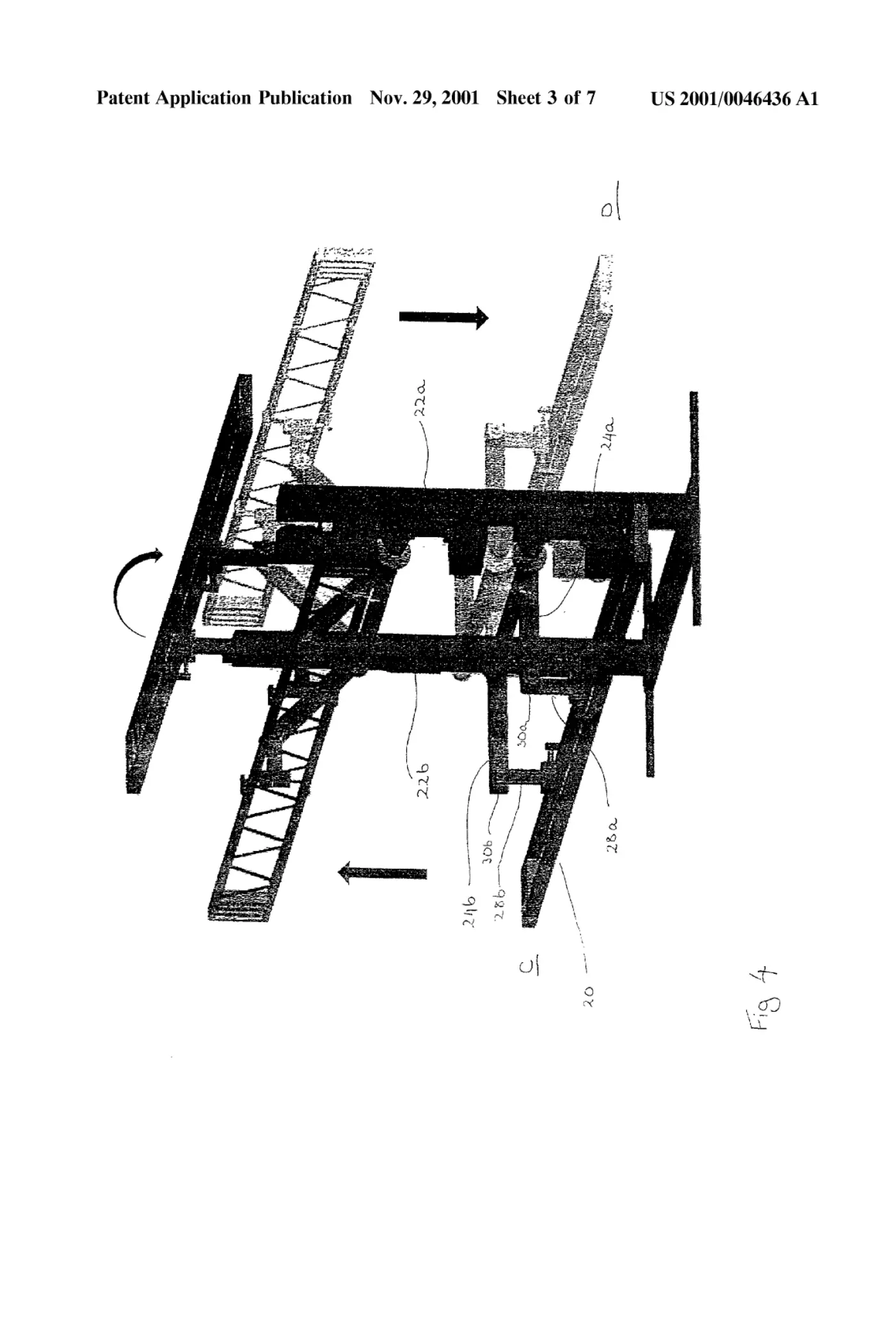

Sheet 3
Sheet 3

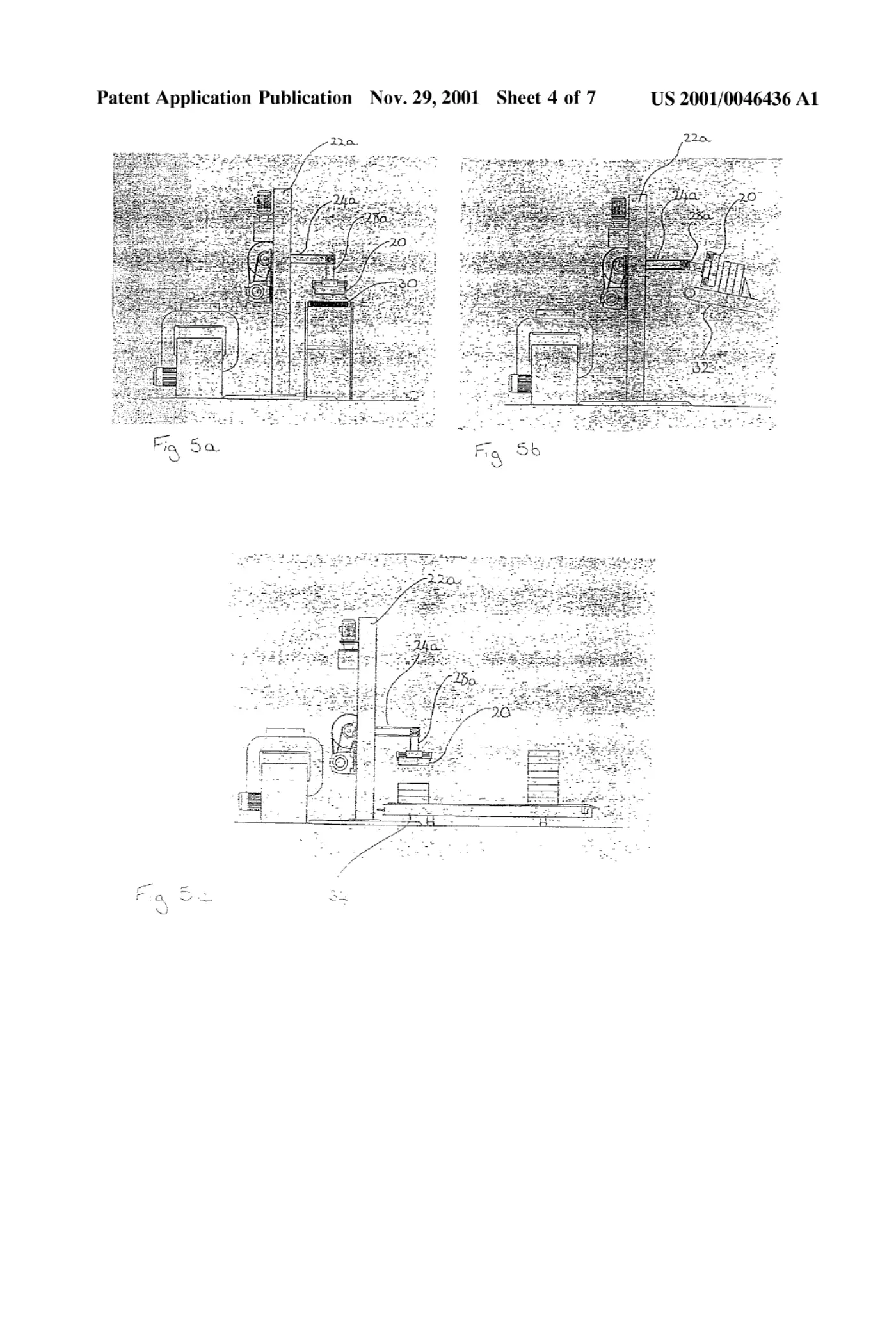

Sheet 4
Sheet 4

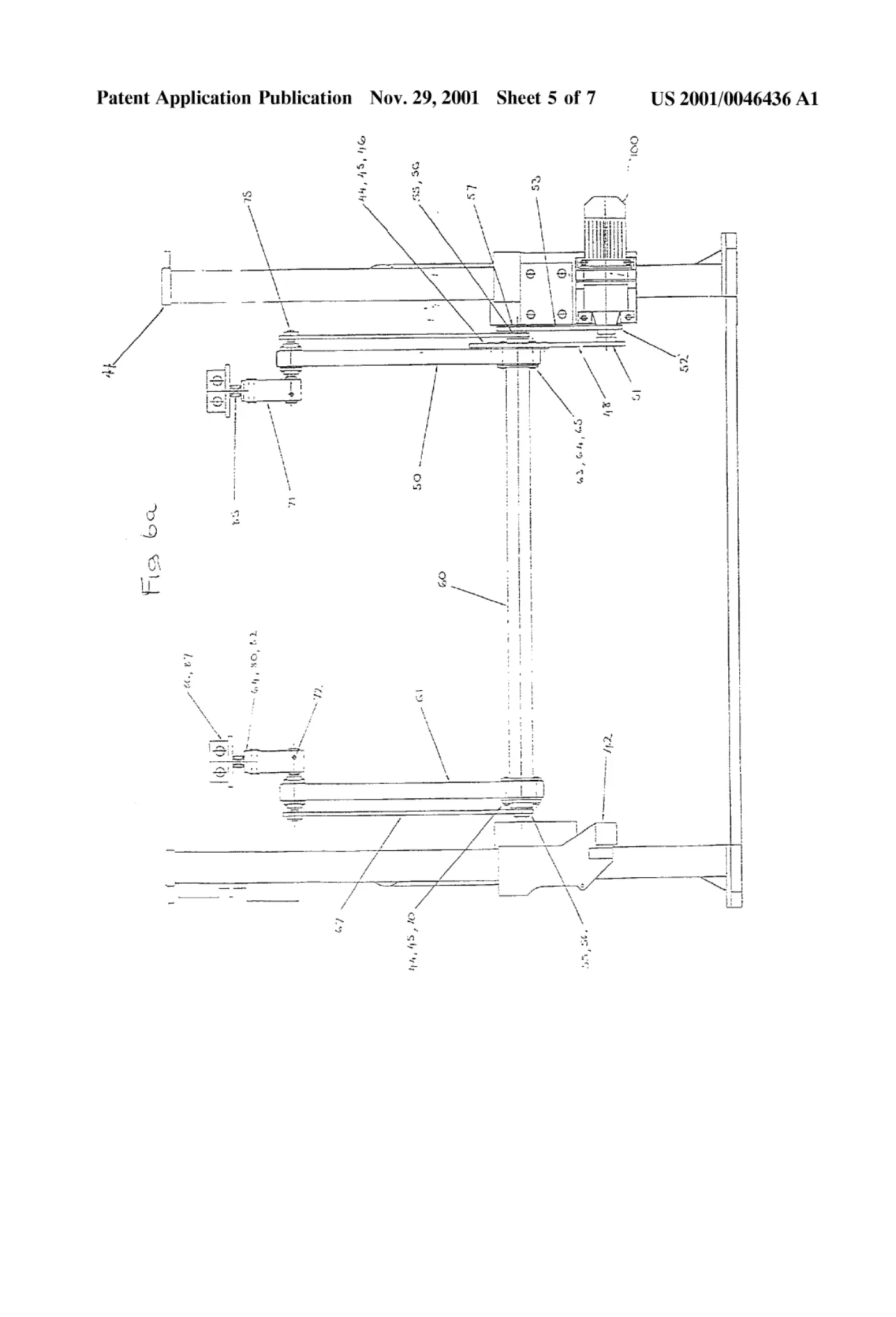

Sheet 5
Sheet 5

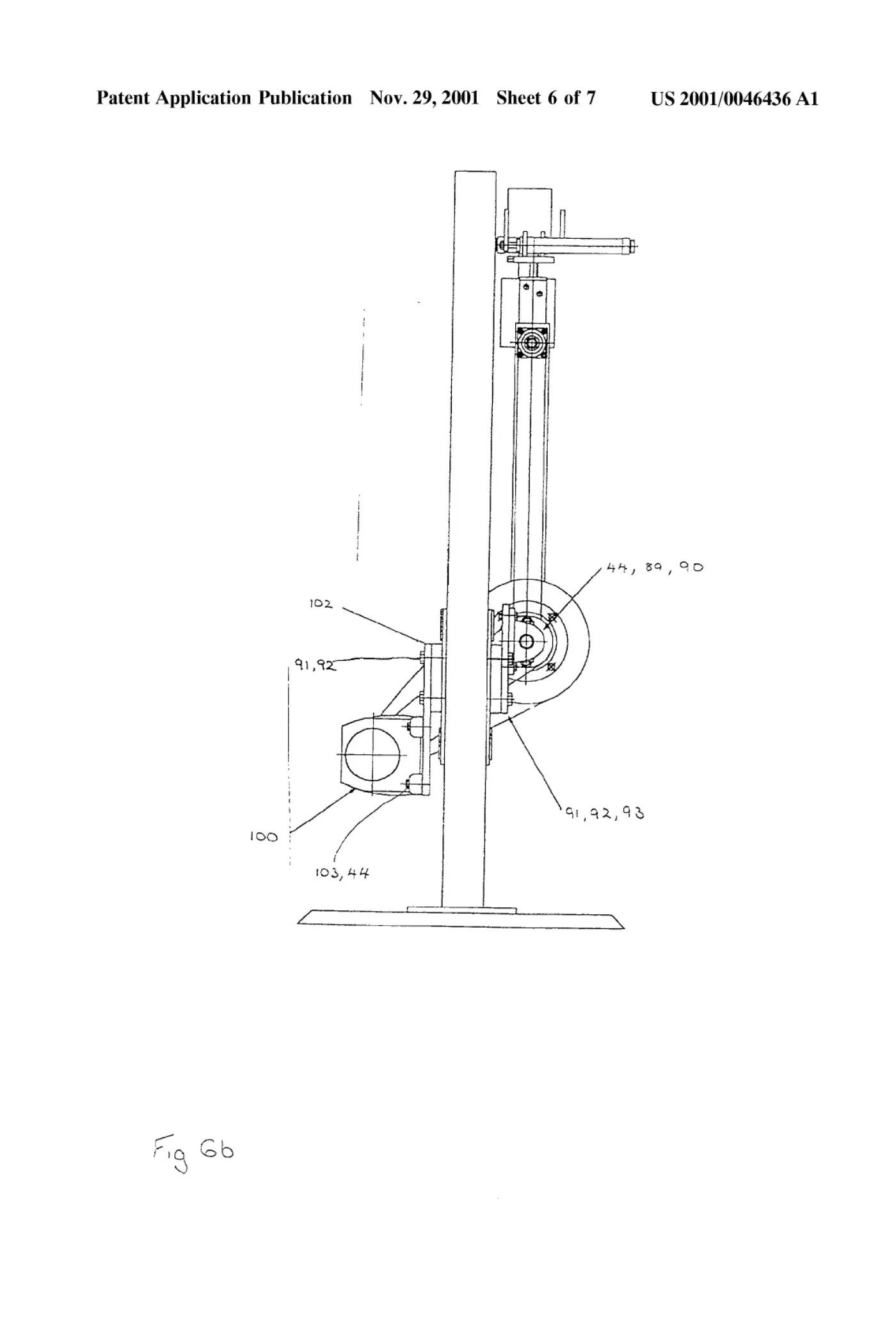

Sheet 6
Sheet 6

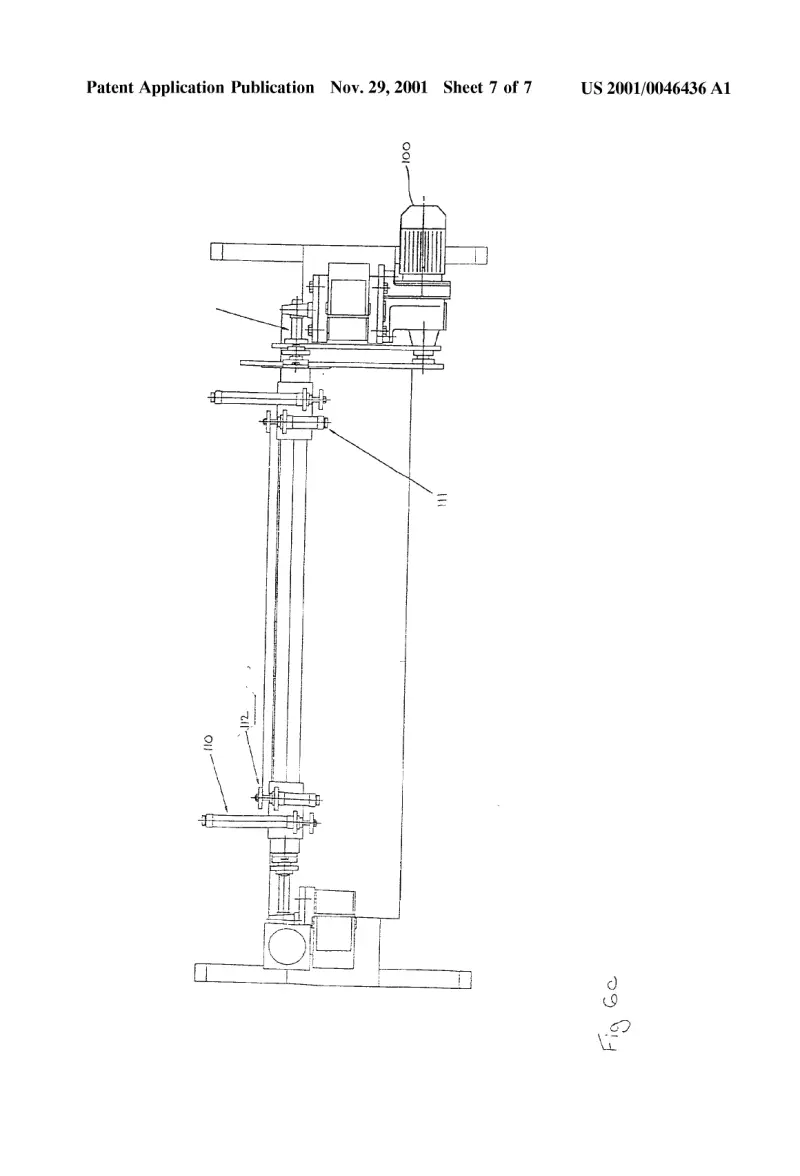

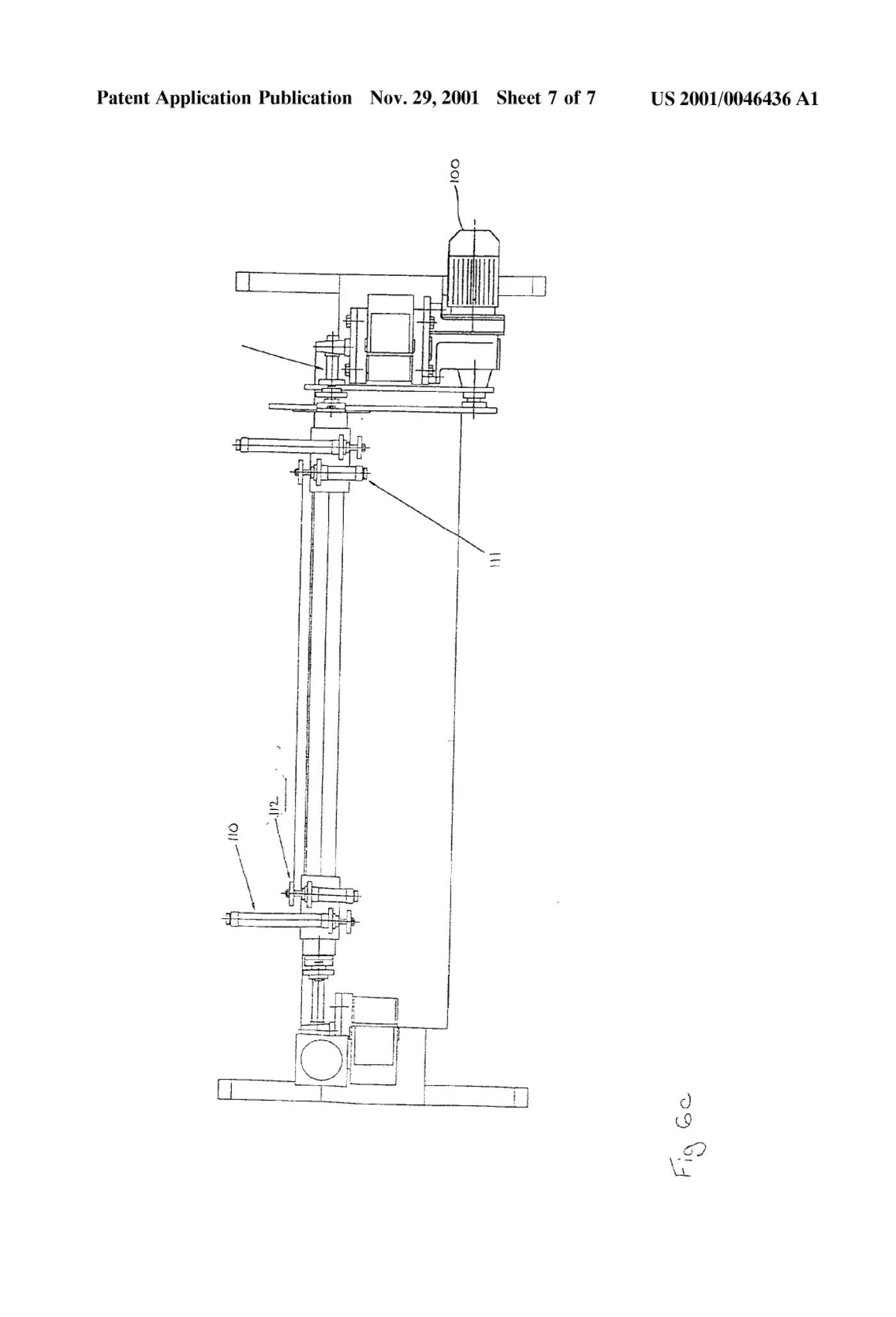

Sheet 7
Sheet 7

Abstract

A transfer apparatus for articles is provided comprising: (a) a support; and (b) an arm, engaging or connecting to the support and movable between a first and second position vertically displaced relative to one another, the arm being rotatable about the support in a substantially vertical plane from a first side of the support to a second side of the support opposite the first side, the arm comprising; (i) a connector having a releasable attachment for engaging an article, wherein the connector is located distant from the support; and (ii) a rotation device to rotate the connector relative to the arm to re-orient the article attached to the connector from an attachment position on the first side of the support to a detachment position on the second side of the support.
