Reduced vibration lathe

Published
Permanent URL
Classification
Manufacturing & Assembly Equipment › Machining Systems
Assignee
SHEEHAN
Original source
US-2001042424-A1, the United States Patent and Trademark Office, 22 November 2001
Document SHA-256
7494b2017c559aba658de5afe617d49bc6b08861ff83fdd601f69ff640cf67a8

A lathe base assembly is disclosed that decreases vibration and increases thermal stability in a lathe utilizing either a cast iron or composite base. Two separate pairs of rails mounted offset from each other are provided for mounting a secondary spindle and a tool turret, respectively. Vibration from the tool turret caused by the machining operation is thus isolated from the secondary spindle (and vice-versa). If a second tool turret is provided with the lathe, a third separate pair of rails can also be provided for mounting the second tool turret to increase vibration isolation. If a cast iron base is provided, cavities can be provided in the base for filling with a vibration damping material, such as a polymer composite. Alternatively, the base can be constructed from a composite material, and especially a polymer composite.

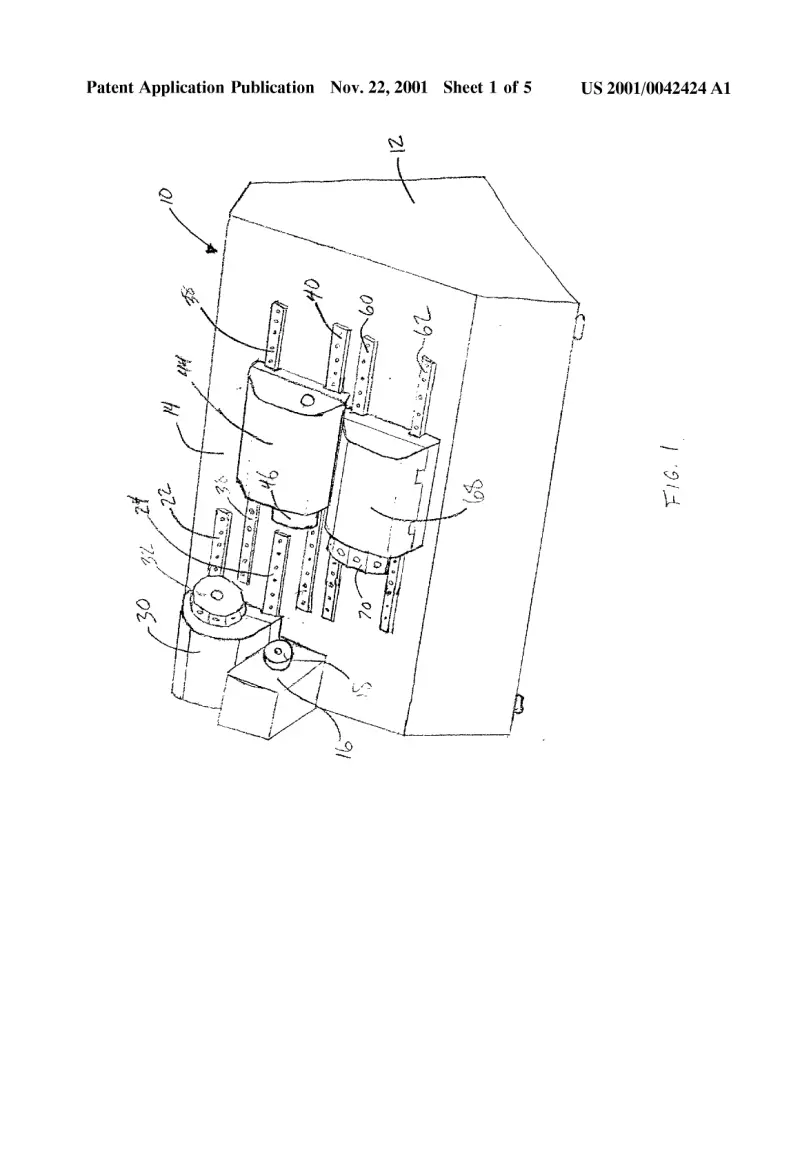

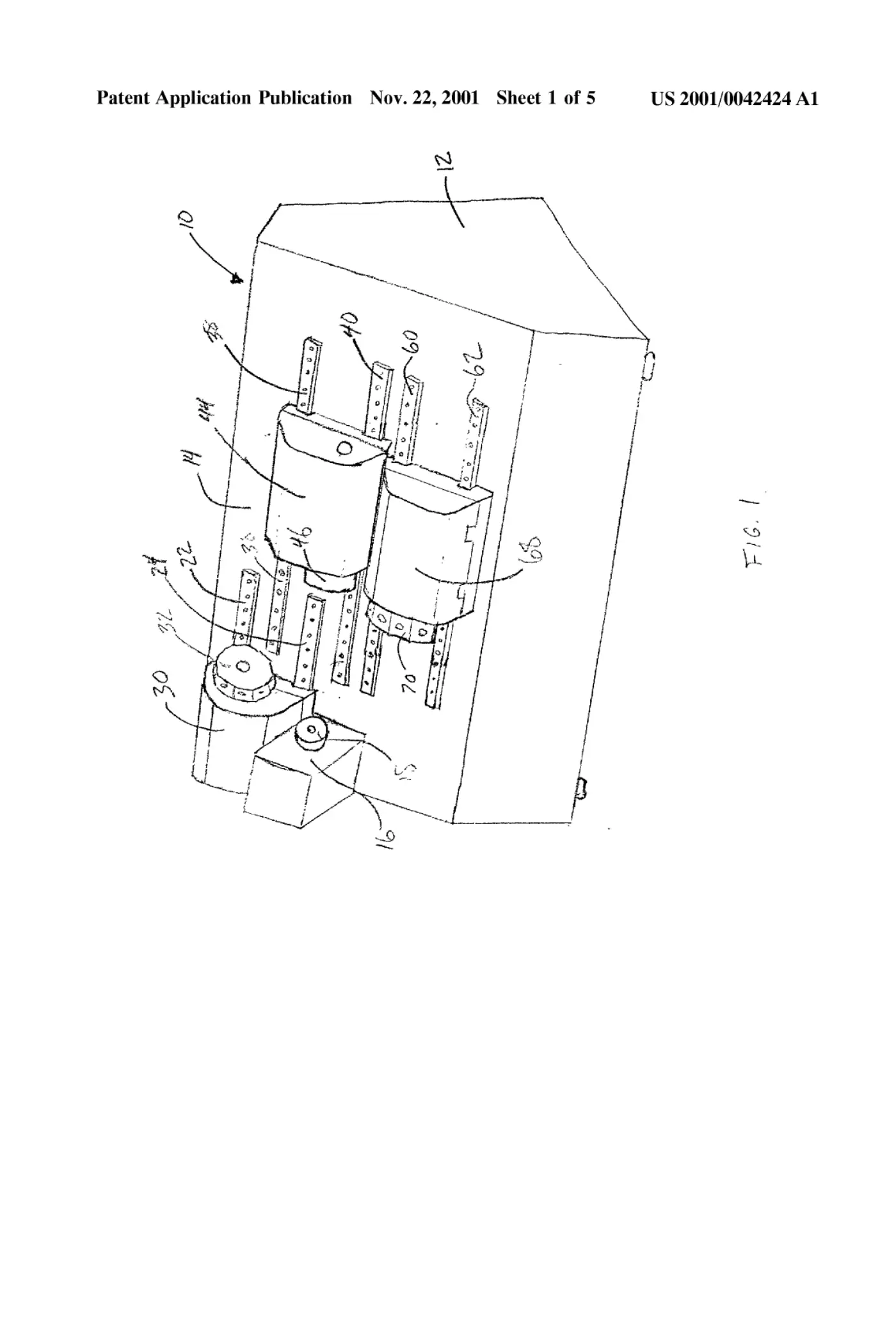

Sheet 1
Sheet 1

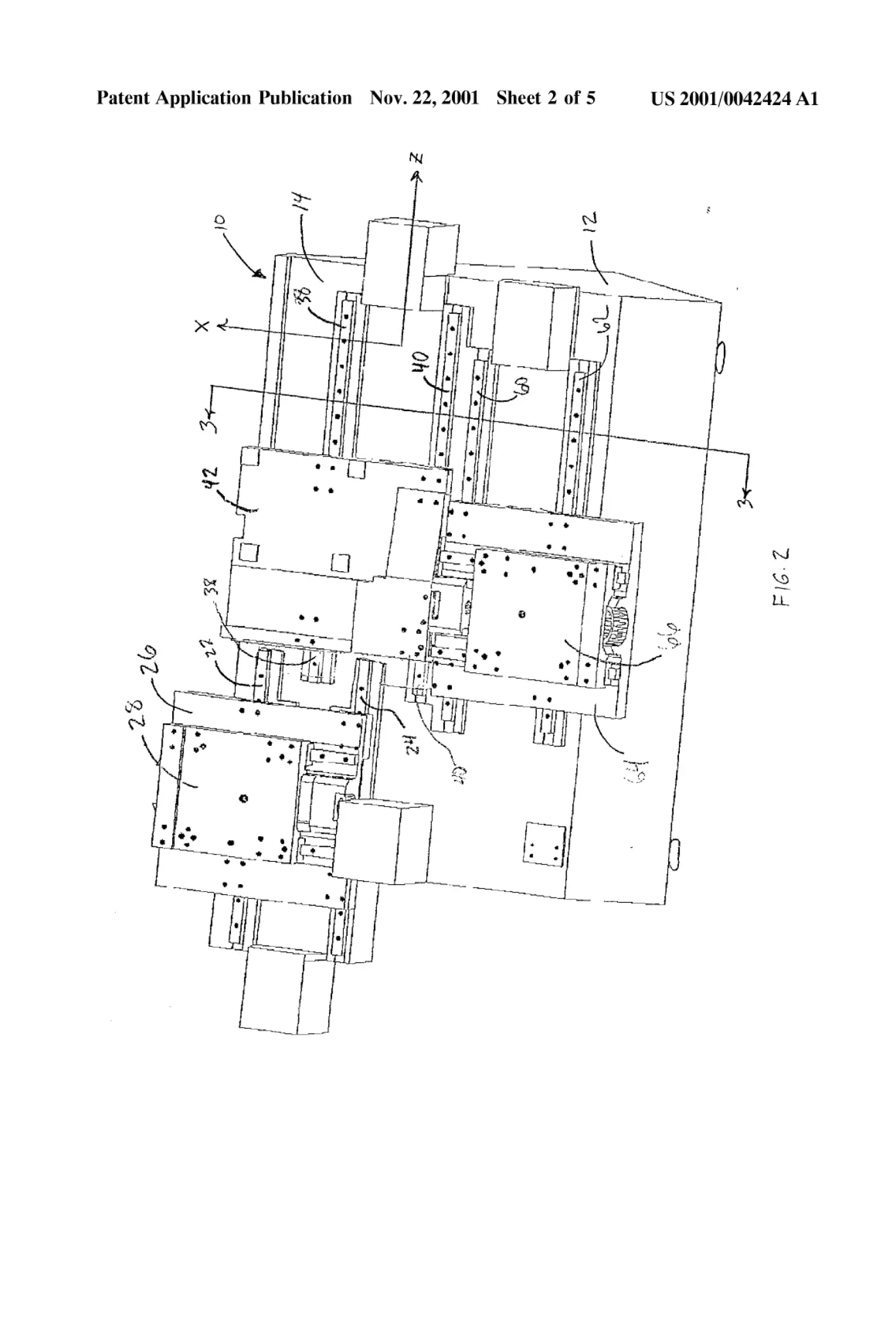

Sheet 2
Sheet 2

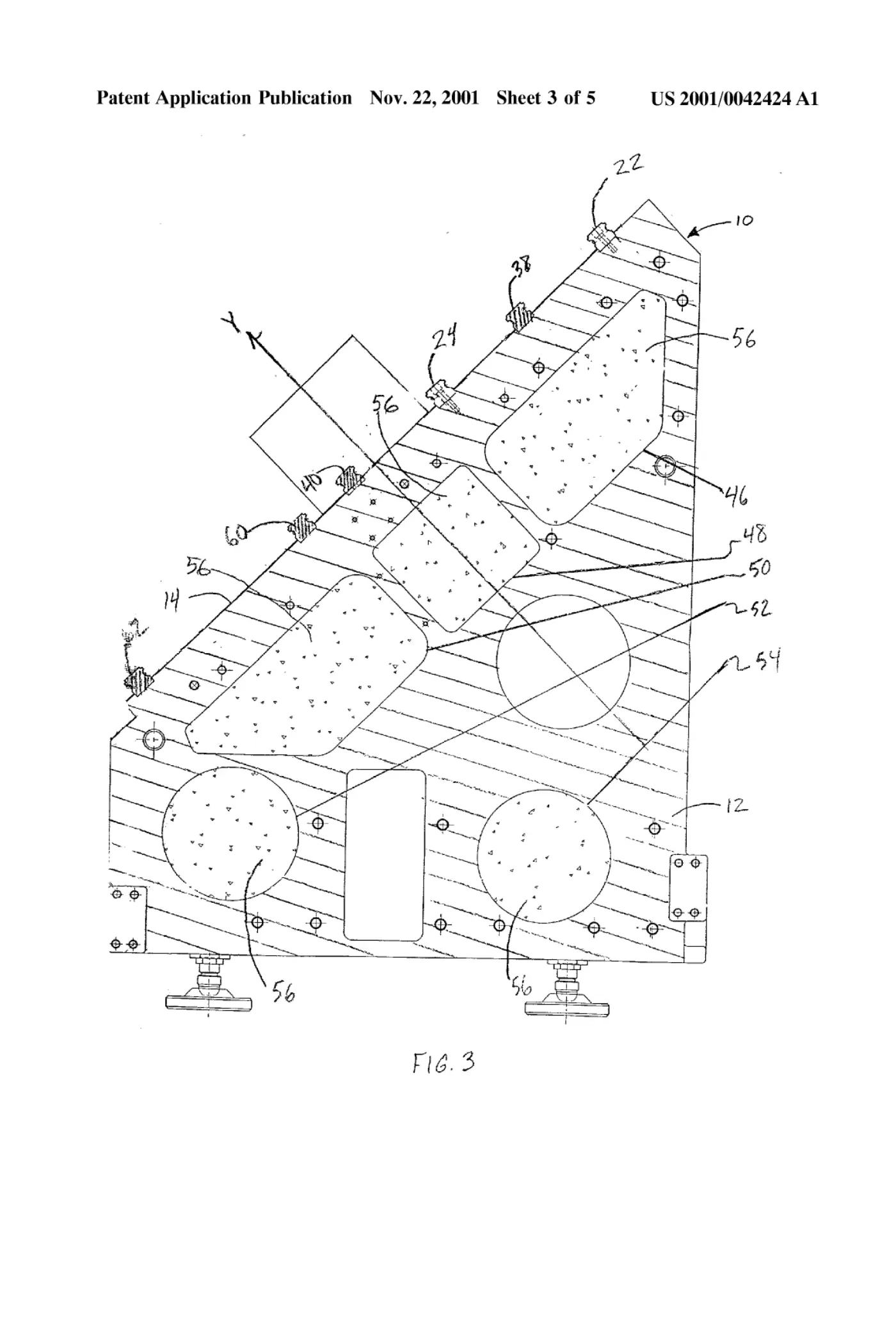

Sheet 3
Sheet 3

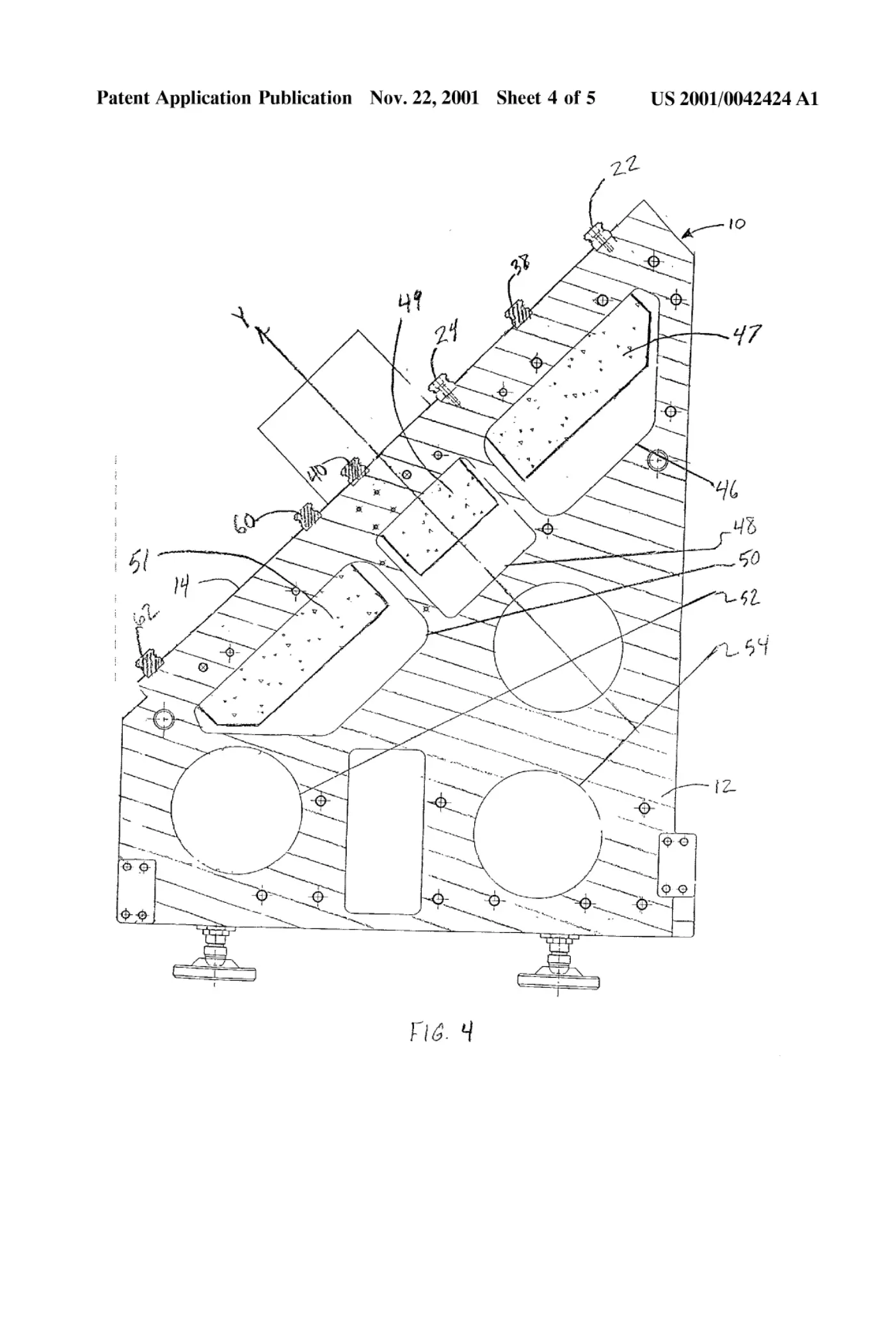

Sheet 4
Sheet 4

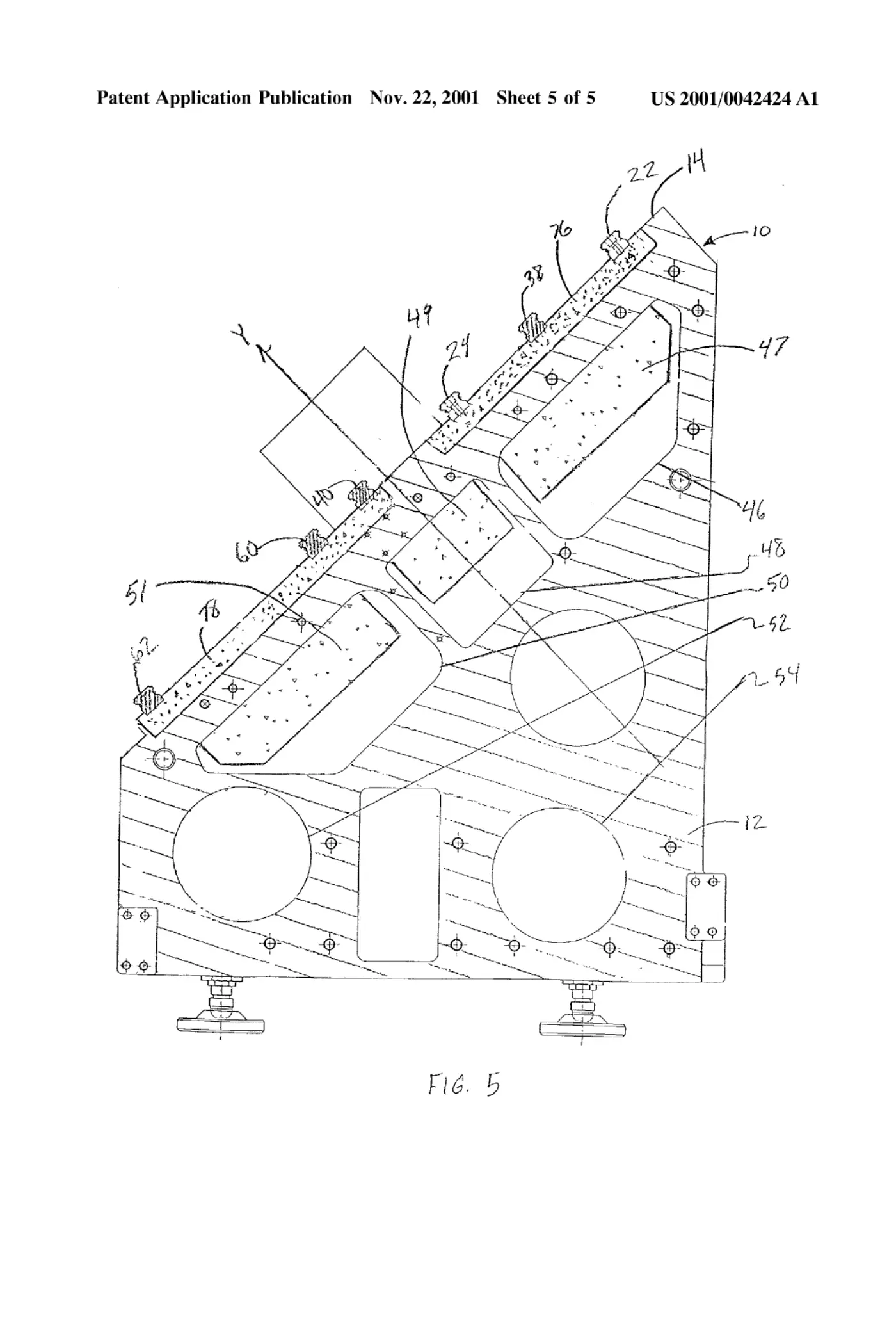

Sheet 5
Sheet 5

Abstract

A lathe base assembly is disclosed that decreases vibration and increases thermal stability in a lathe utilizing either a cast iron or composite base. Two separate pairs of rails mounted offset from each other are provided for mounting a secondary spindle and a tool turret, respectively. Vibration from the tool turret caused by the machining operation is thus isolated from the secondary spindle (and vice-versa). If a second tool turret is provided with the lathe, a third separate pair of rails can also be provided for mounting the second tool turret to increase vibration isolation. If a cast iron base is provided, cavities can be provided in the base for filling with a vibration damping material, such as a polymer composite. Alternatively, the base can be constructed from a composite material, and especially a polymer composite.

1. Drawings

[0001]Sheet 1.

[0002]Sheet 2.

[0003]Sheet 3.

[0004]Sheet 4.

[0005]Sheet 5.
