Adhesive element with a suction cup

Published
Permanent URL
Classification
Lifting, Positioning & Manipulation › Vacuum Lifting
Inventors
HUBER BEAT
Assignee
UNILEVER PATENT HOLDINGS
Original source
US-6318685-B1, the United States Patent and Trademark Office, 20 November 2001
Document SHA-256
bacc7069e9e3f59ce05f9c8db0aa2be650b270fcd36a0ed8db028d5f26029282

An adhering element ( 10 ) has a sucker ( 12 ) made of an elastomeric plastic and a connecting element ( 14 ) made of a more rigid plastic. The connecting element ( 14 ), which has a flange border ( 24 ), is connected non-releasably to the sucker ( 12 ) by virtue of the two parts ( 12 ), ( 14 ) being produced preferably by two-component injection moulding. This increases the stability of the adhering element ( 10 ), in particular when the latter is connected to an elongate object, for example a self-supporting toothbrush.

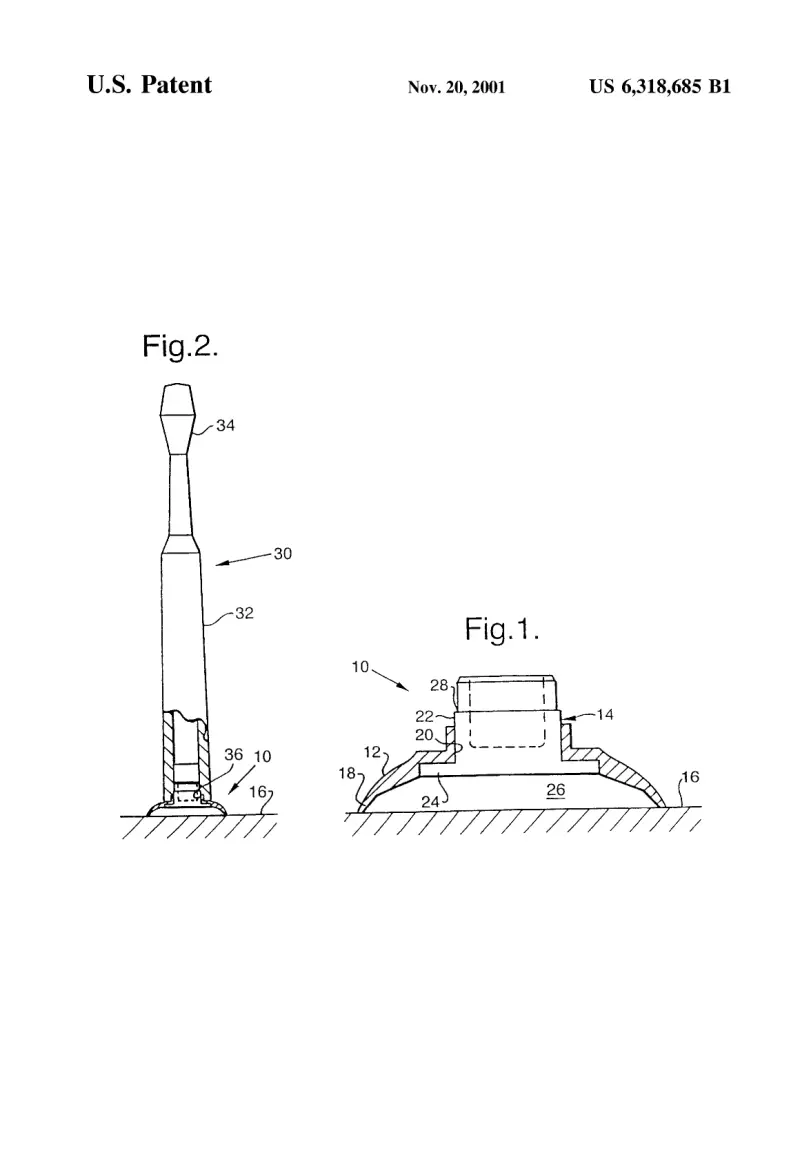

Sheet 1
Sheet 1

Abstract

An adhering element ( 10 ) has a sucker ( 12 ) made of an elastomeric plastic and a connecting element ( 14 ) made of a more rigid plastic. The connecting element ( 14 ), which has a flange border ( 24 ), is connected non-releasably to the sucker ( 12 ) by virtue of the two parts ( 12 ), ( 14 ) being produced preferably by two-component injection moulding. This increases the stability of the adhering element ( 10 ), in particular when the latter is connected to an elongate object, for example a self-supporting toothbrush.

1. Drawings

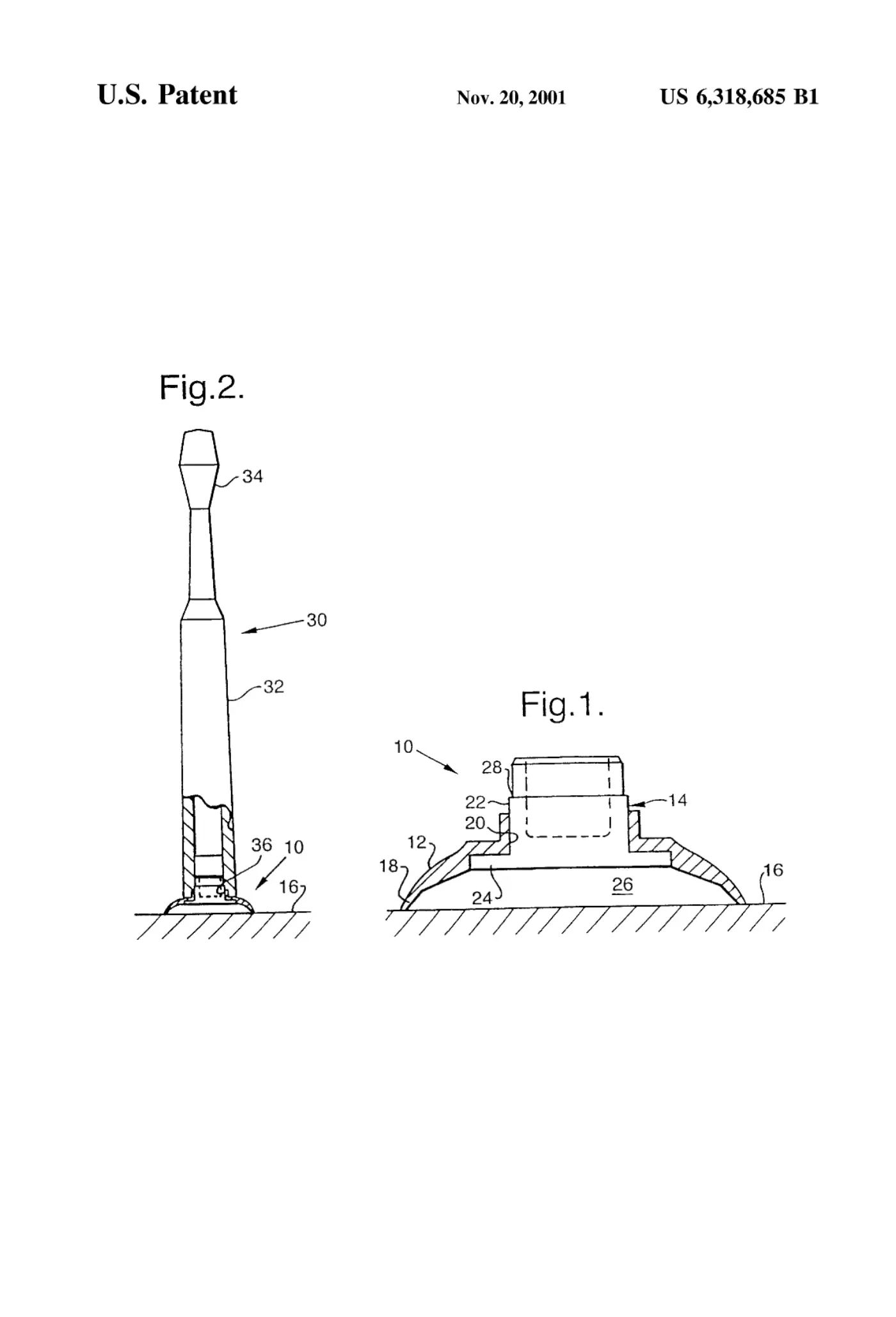

[0001]Sheet 1.
