Suction support assembly

Published
Permanent URL
Classification
Lifting, Positioning & Manipulation › Vacuum Lifting
Inventors
HOWARD HERMAN S
Original source
US-6308923-B1, the United States Patent and Trademark Office, 30 October 2001
Document SHA-256
b01d19800d1460e9a5cd9cb7e6c418306f93368e53df5a0b2eecca89b1d254bd

A suction support assembly includes a deformable membrane connected to a fulcrum displaceable by a lever which is formed with a cam surface pivotal between engaging and disengaging position. The lever is displaceable to the engaging position of the suction support assembly, wherein it contacts only the suction cover, and has an enlarged end portion adapted to lengthen a hanging surface that receives a load.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3
Sheet 4
Sheet 4
Sheet 5
Sheet 5

Abstract

A suction support assembly includes a deformable membrane connected to a fulcrum displaceable by a lever which is formed with a cam surface pivotal between engaging and disengaging position. The lever is displaceable to the engaging position of the suction support assembly, wherein it contacts only the suction cover, and has an enlarged end portion adapted to lengthen a hanging surface that receives a load.

1. Drawings

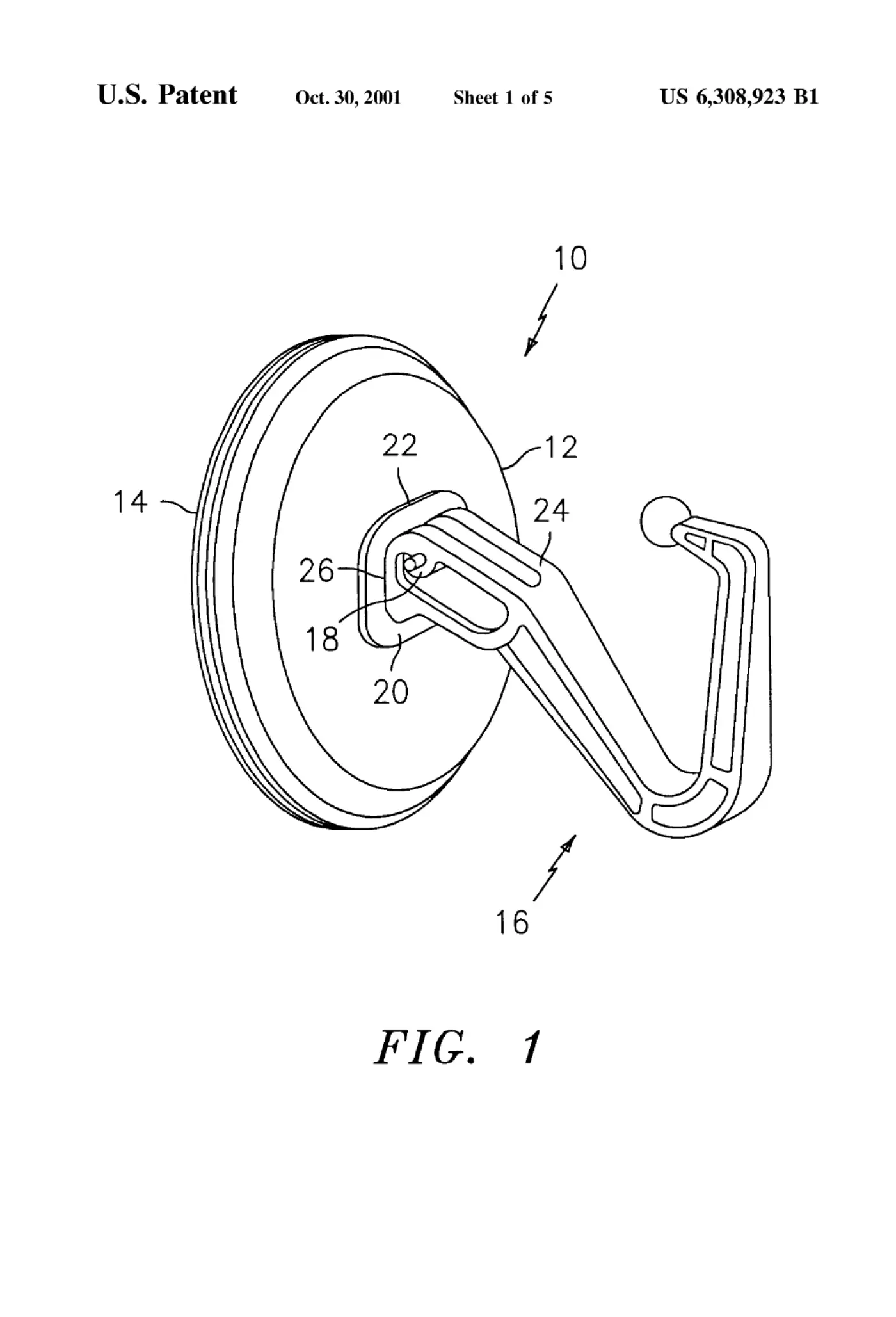

[0001]Sheet 1.

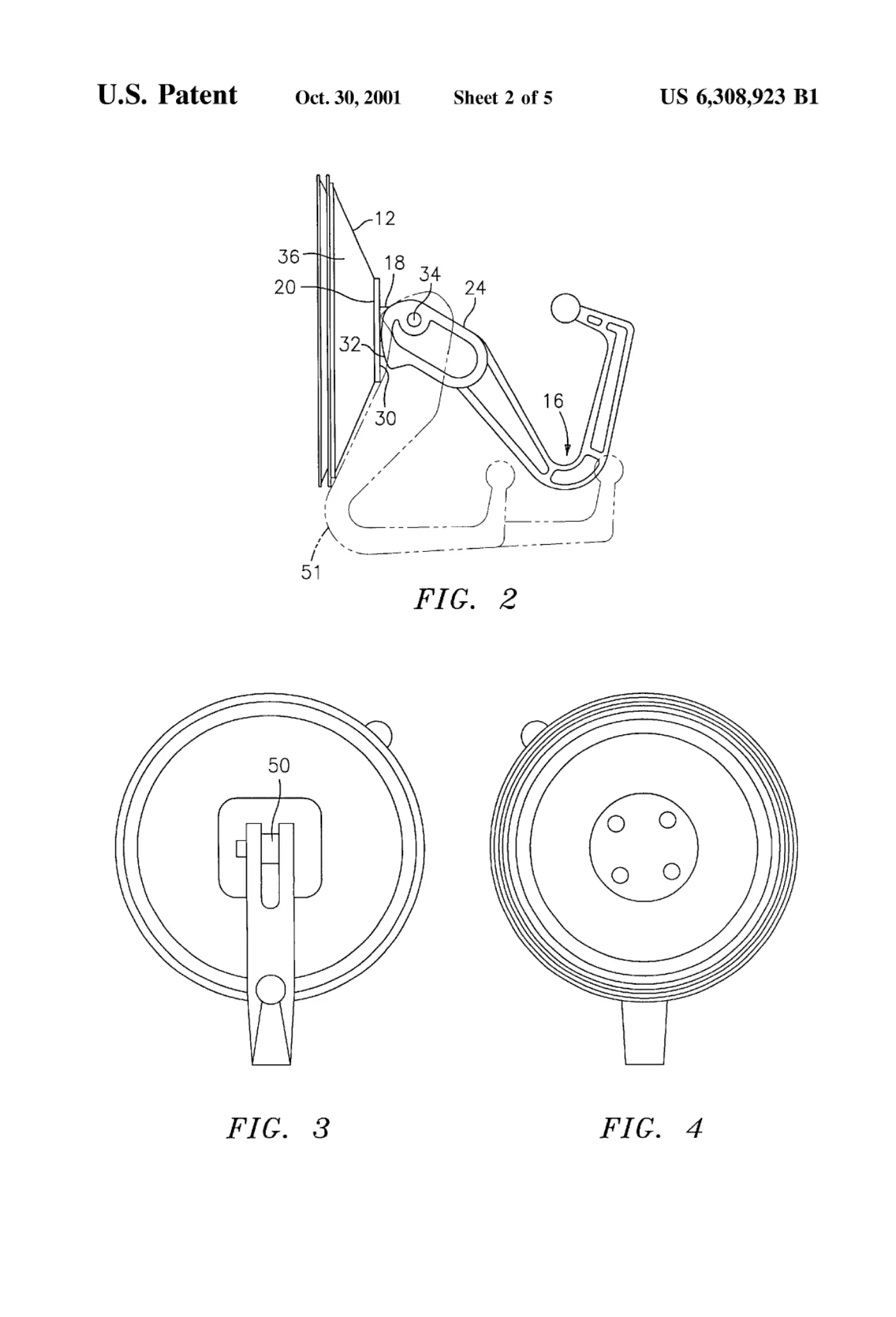

[0002]Sheet 2.

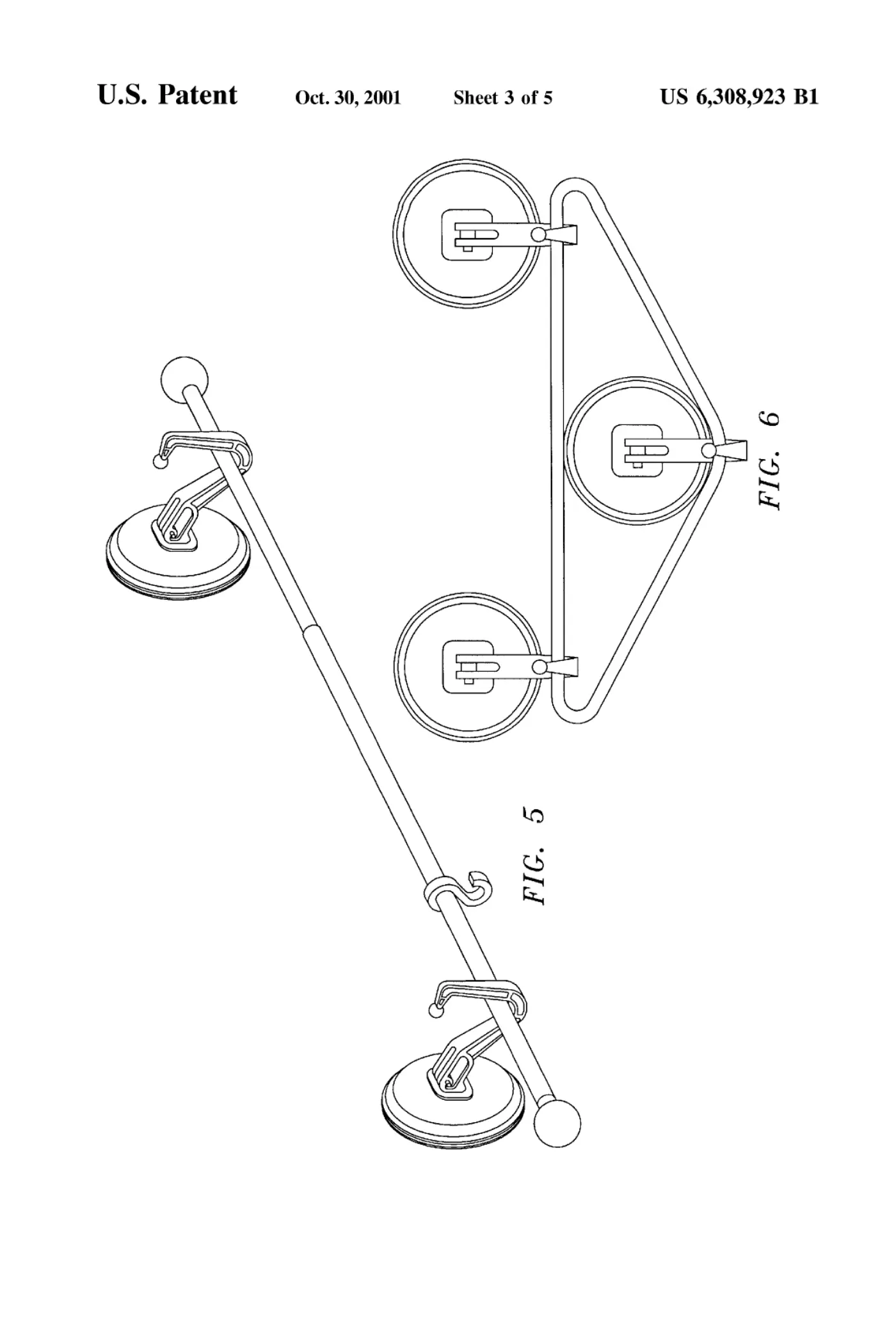

[0003]Sheet 3.

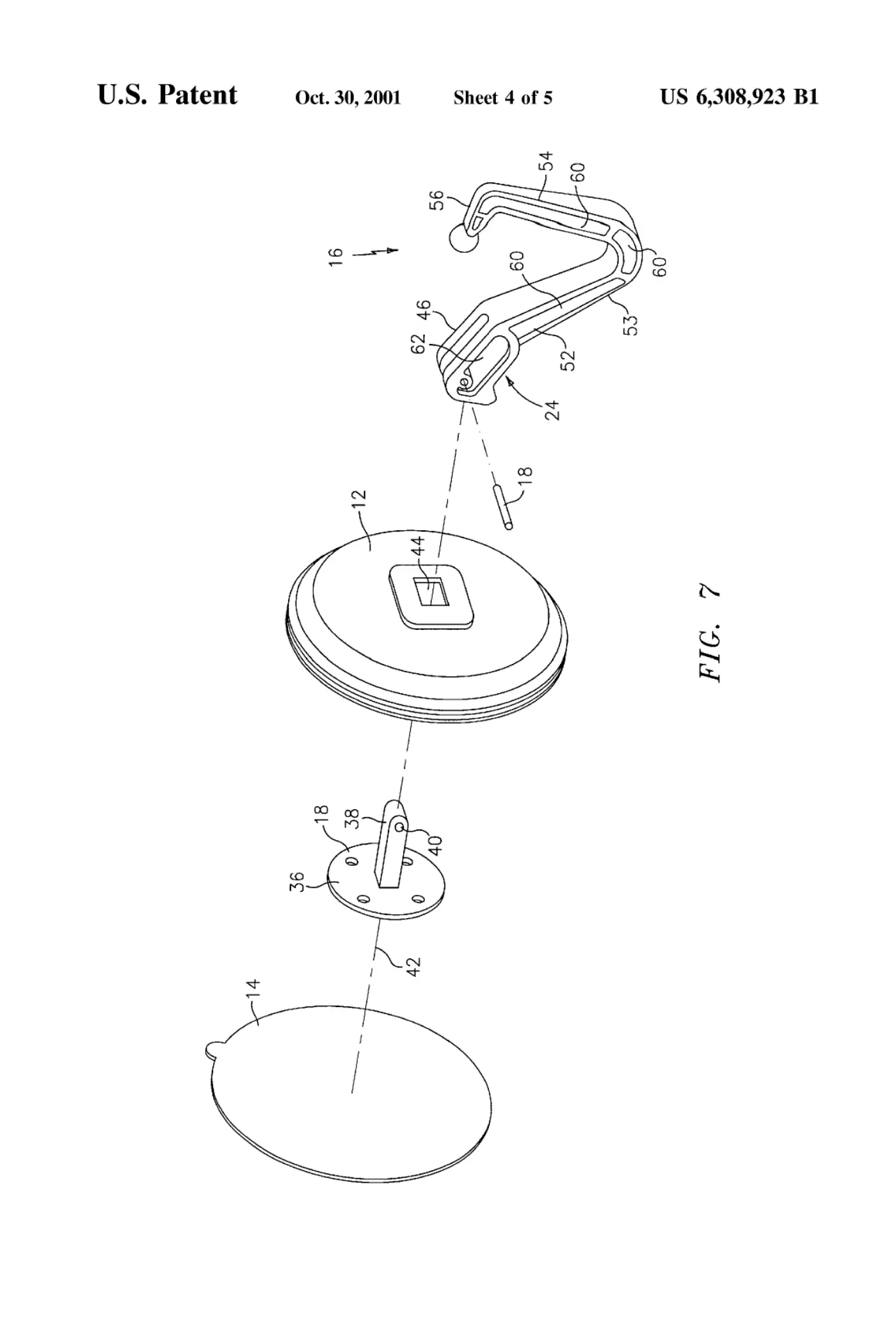

[0004]Sheet 4.

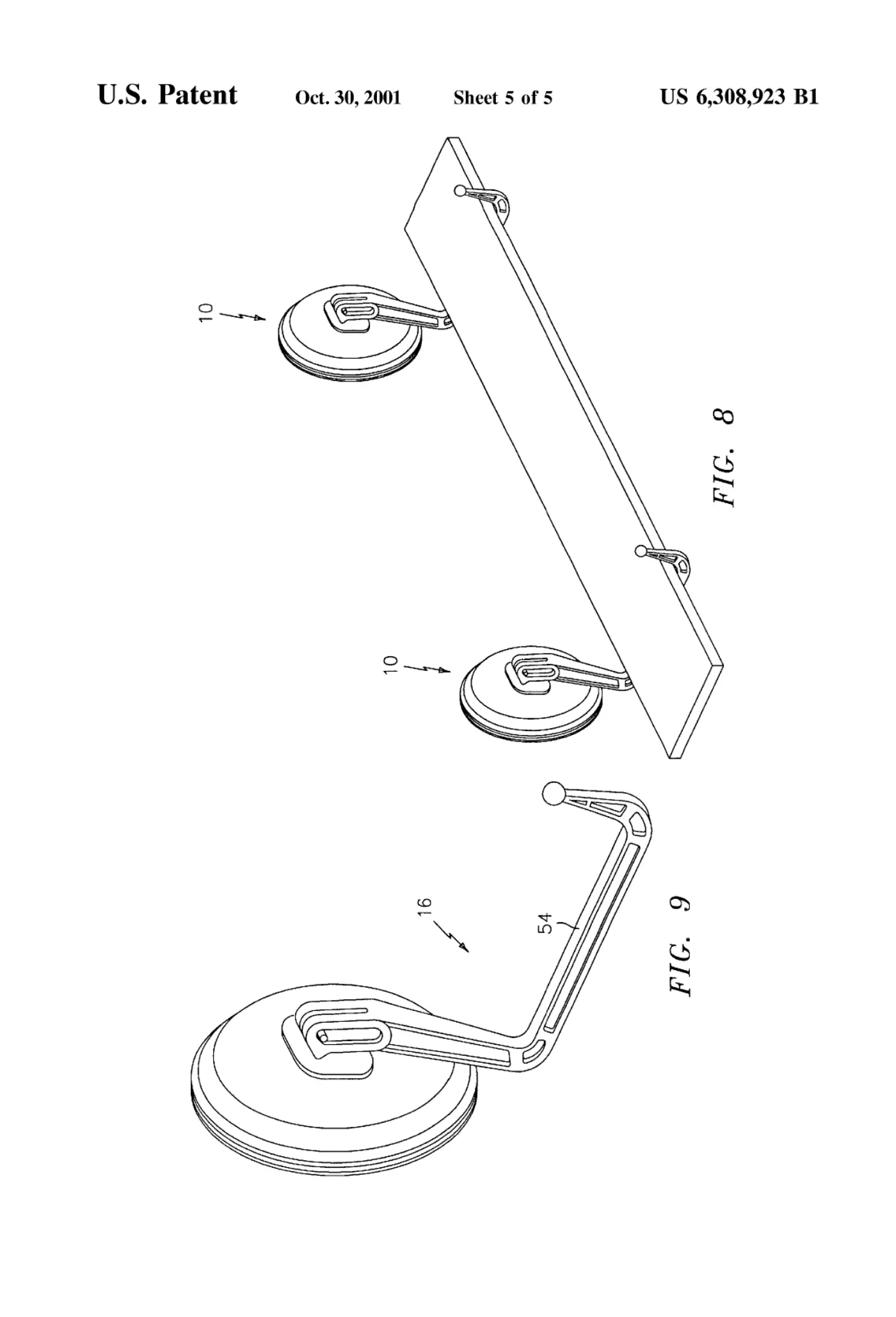

[0005]Sheet 5.
