High-torque resorbable screws

Published
Permanent URL
Classification
Tools & Tooling › Clamping Tools
Inventors
AMIS JAMES PETER
Assignee
MACROPORE INC
Original source
US-6269716-B1, the United States Patent and Trademark Office, 7 August 2001
Document SHA-256
6500c2b3b379ce7d8d4ca5a1a82347163fbe0e6ef9ccb15f9677cb39e4bfae01

A high-torque fastener having a threaded shaft and a star-shaped head is disclosed. The high-torque fastener is made of a resorbable or other non-magnetic material. A mating driver snugly fits around the star-shaped head of the fastener, to thereby apply torque to the perimeter of the star-shaped head. The driver can be made disposable, and the driver and fastener packaged together in a single, disposable, assembly. Additionally, the driver can be color coded to indicate the size of the fastener which is pre-attached to the driver in the packaging.

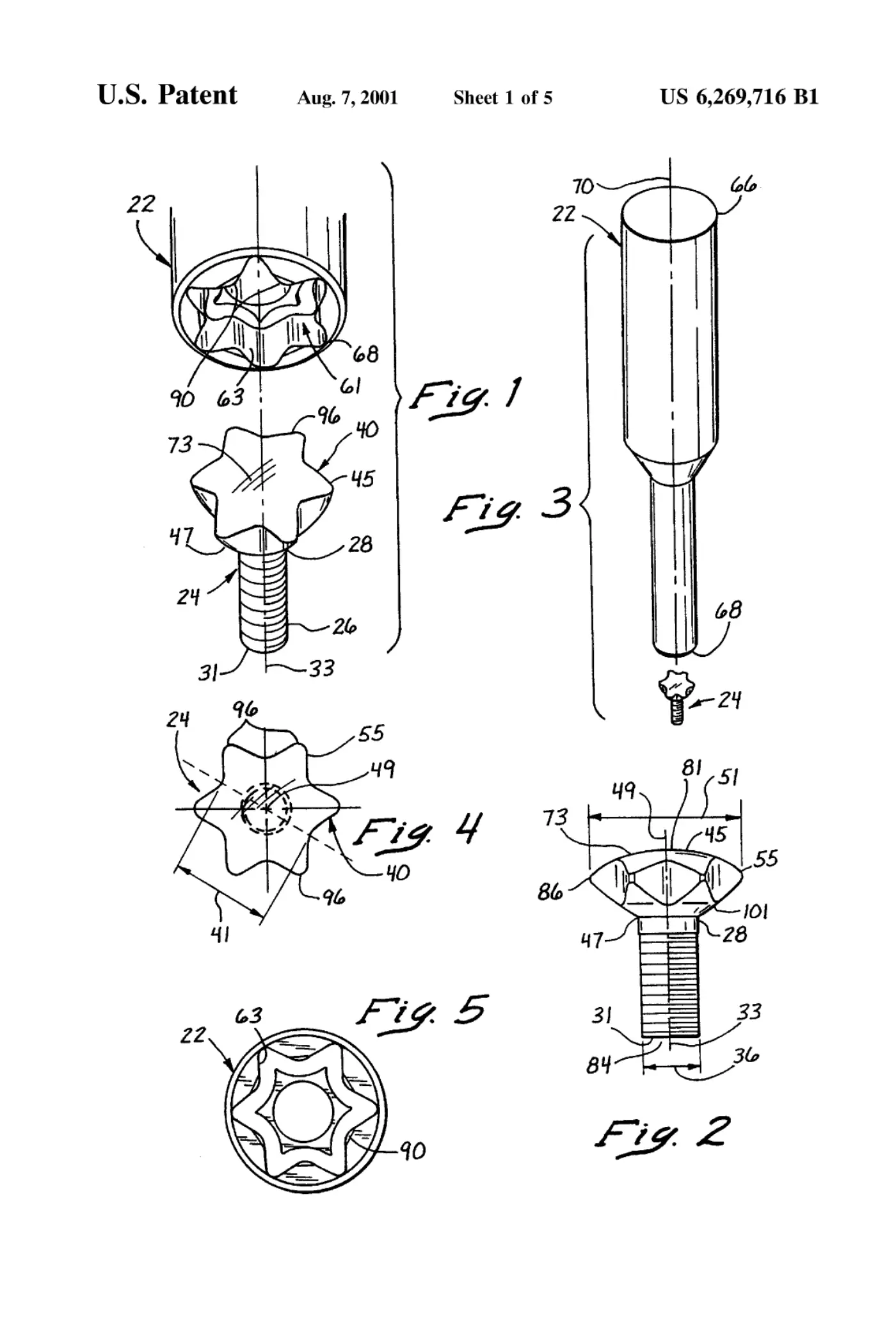

Sheet 1
Sheet 1

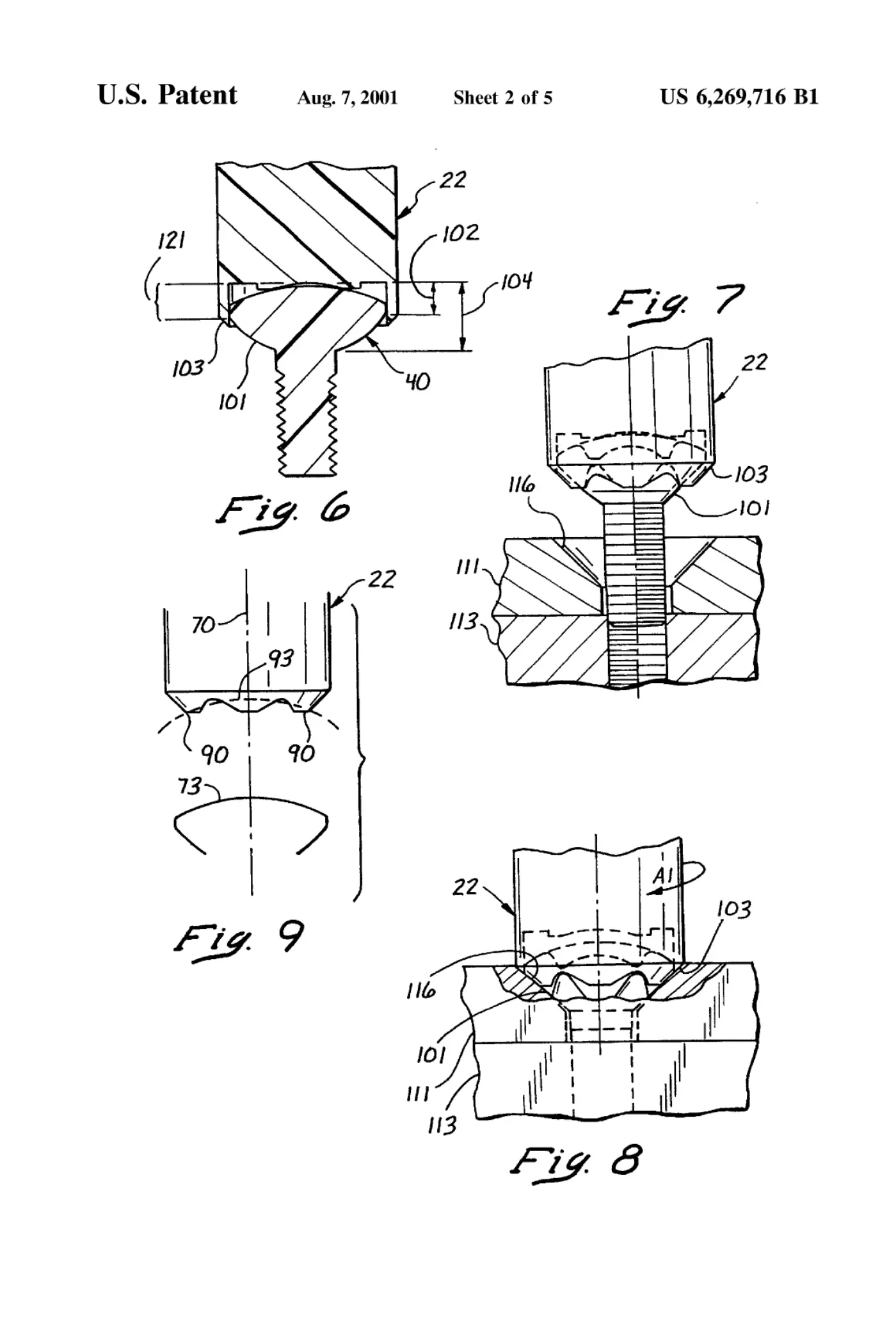

Sheet 2
Sheet 2

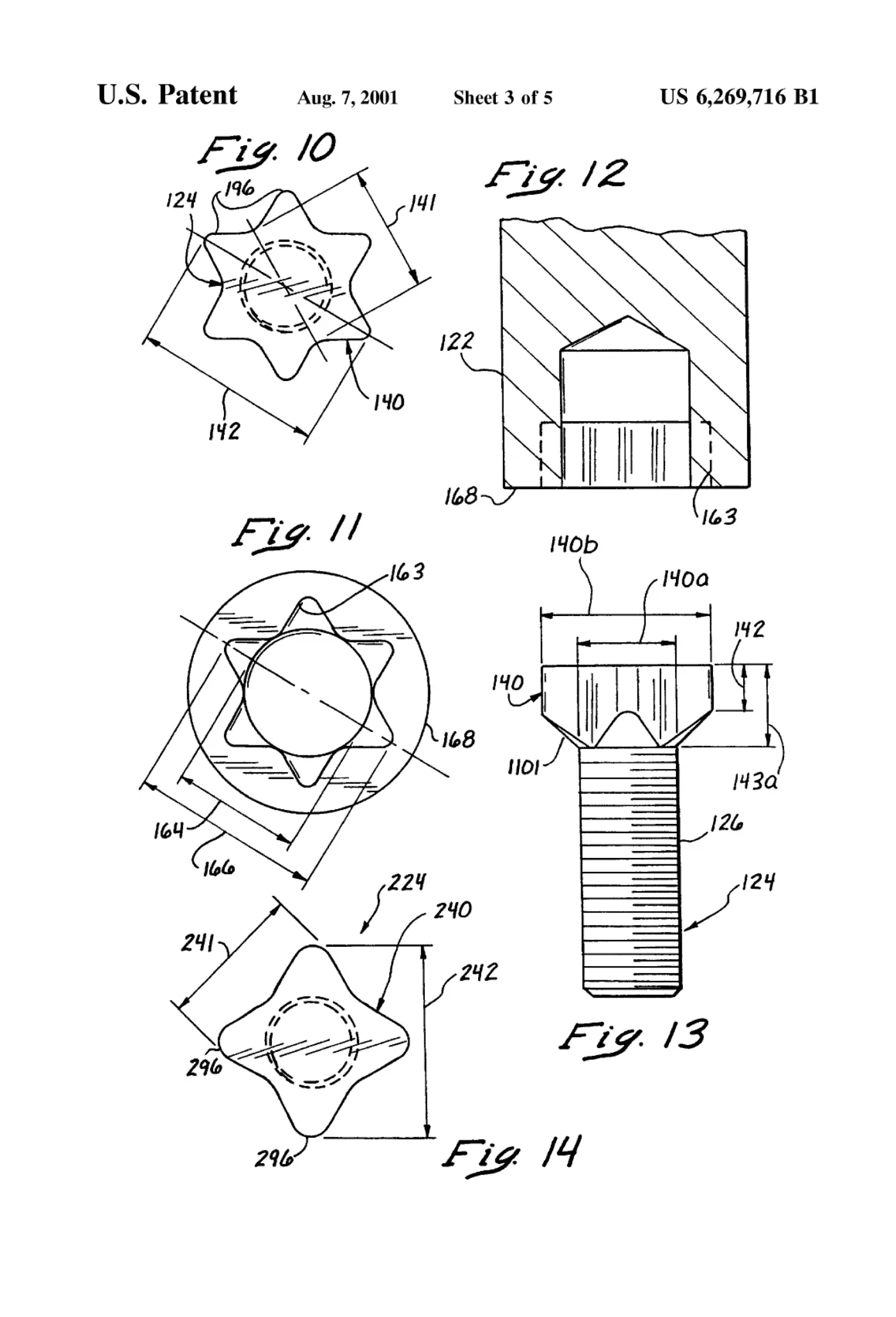

Sheet 3
Sheet 3

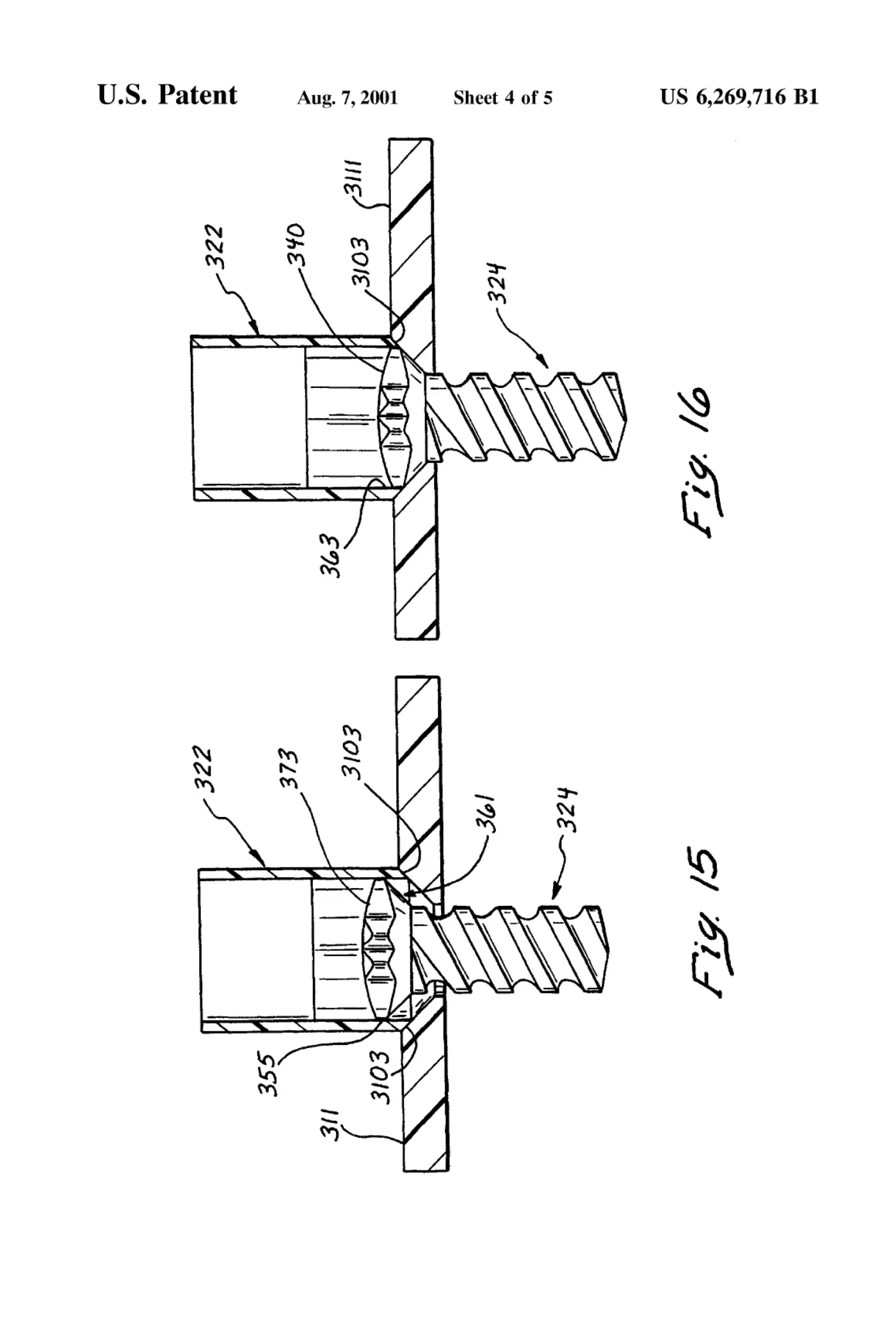

Sheet 4
Sheet 4

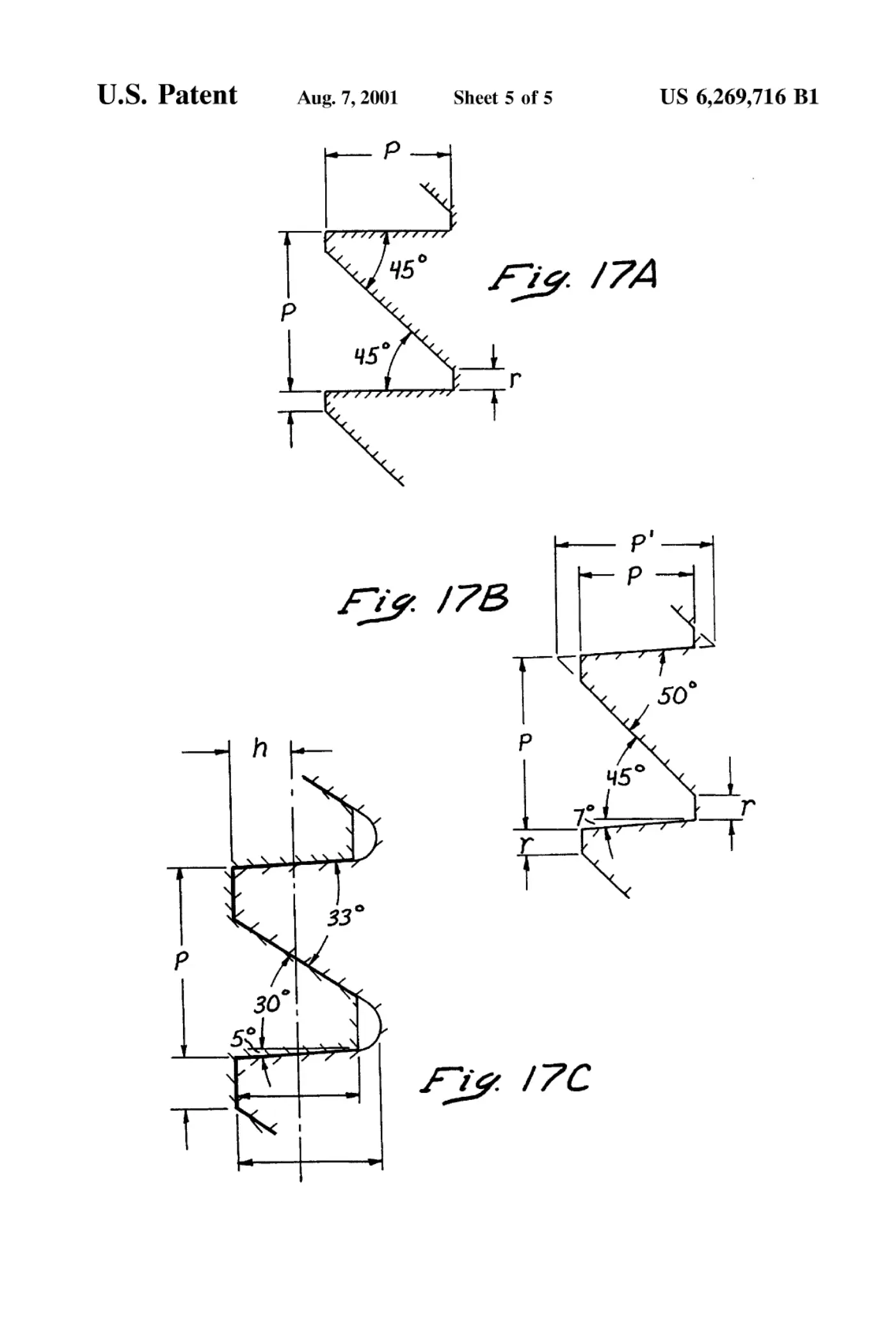

Sheet 5
Sheet 5

Abstract

A high-torque fastener having a threaded shaft and a star-shaped head is disclosed. The high-torque fastener is made of a resorbable or other non-magnetic material. A mating driver snugly fits around the star-shaped head of the fastener, to thereby apply torque to the perimeter of the star-shaped head. The driver can be made disposable, and the driver and fastener packaged together in a single, disposable, assembly. Additionally, the driver can be color coded to indicate the size of the fastener which is pre-attached to the driver in the packaging.

1. Drawings

[0001]Sheet 1.

[0002]Sheet 2.

[0003]Sheet 3.

[0004]Sheet 4.

[0005]Sheet 5.
