Hand held multicycle vacuum pump pickup tool

Published
Permanent URL
Classification
Tools & Tooling › Clamping Tools
Original source
US-6264259-B1, the United States Patent and Trademark Office, 24 July 2001
Document SHA-256
6559c7f66293bc355cb9fb9613008ba7e76978efac5d786d2b66a28fee2e4a54

A compact hand held suction cup type pickup tool is disclosed having a self contained, finger actuated vacuum pump that can be repeatedly cycled to maintain a very strong holding action for an indefinite period of time. The multicycling is achieved by automatic, unidirectional valving associated with the pump.

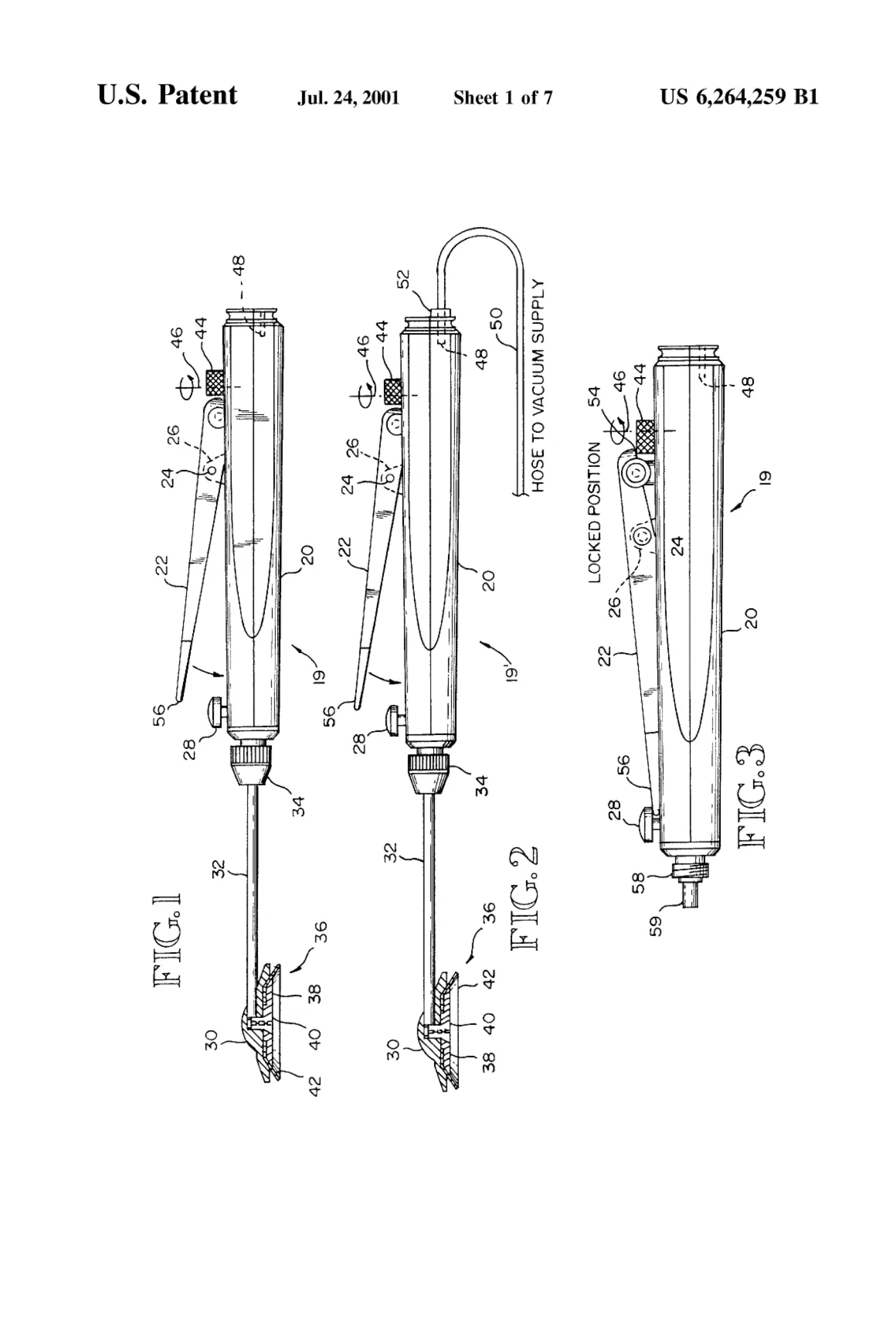

Sheet 1
Sheet 1

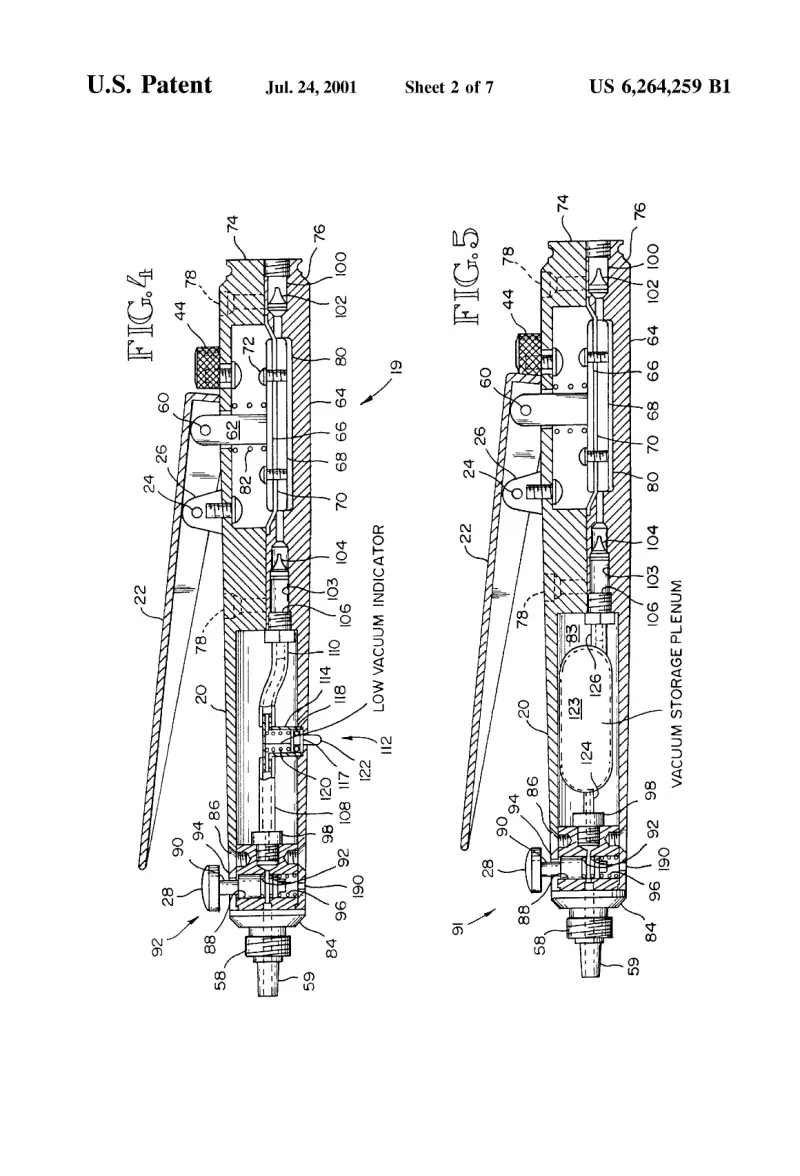

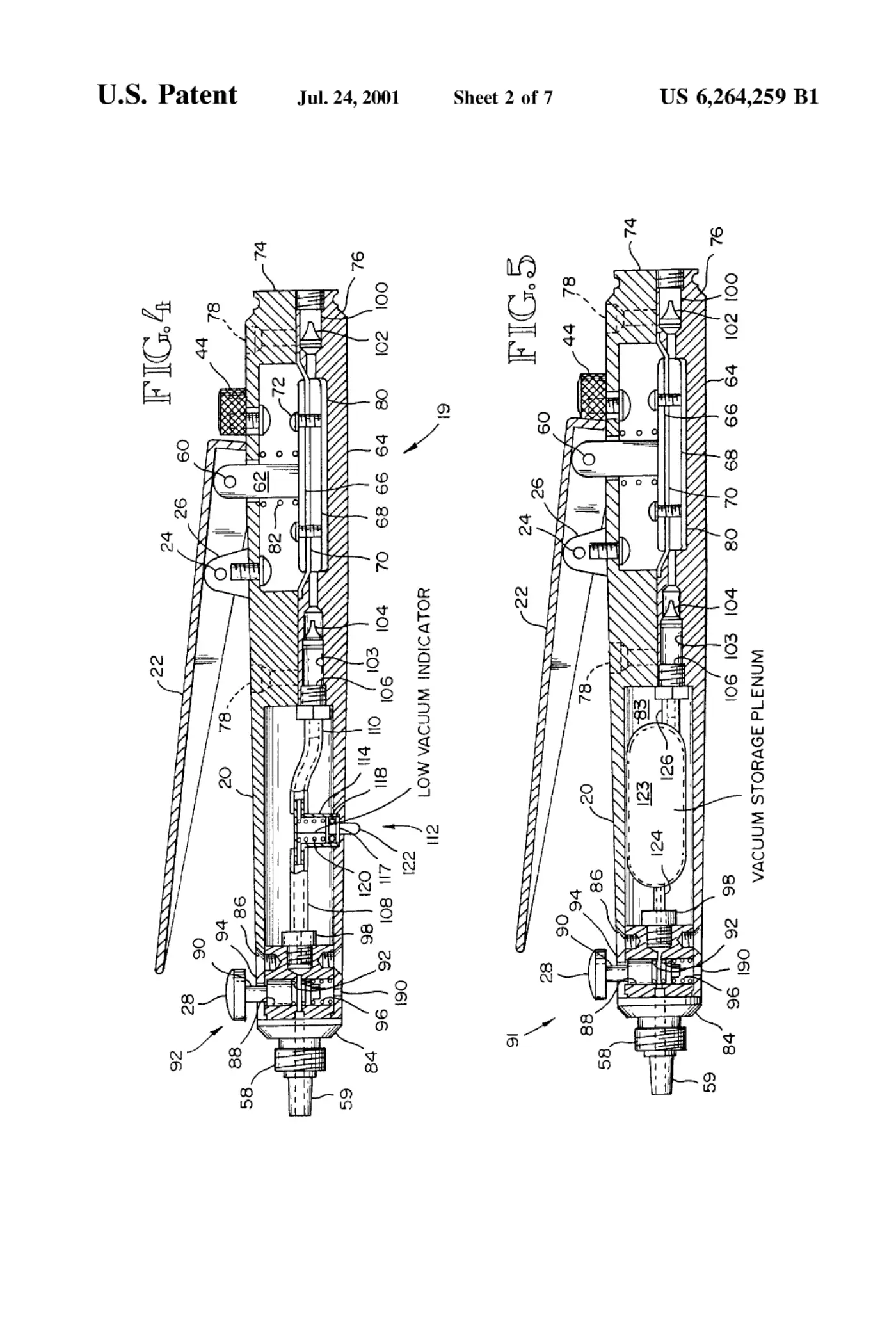

Sheet 2
Sheet 2

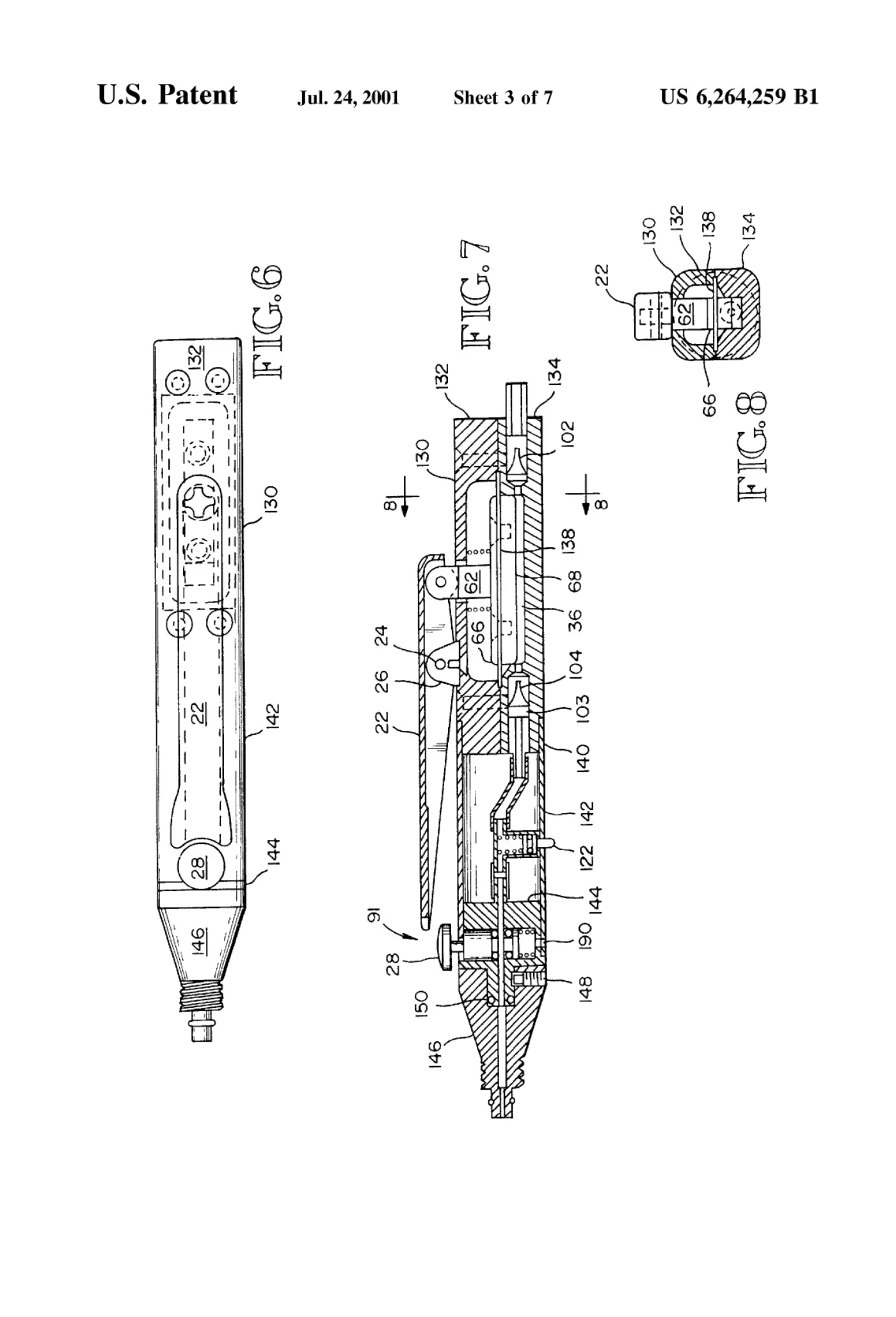

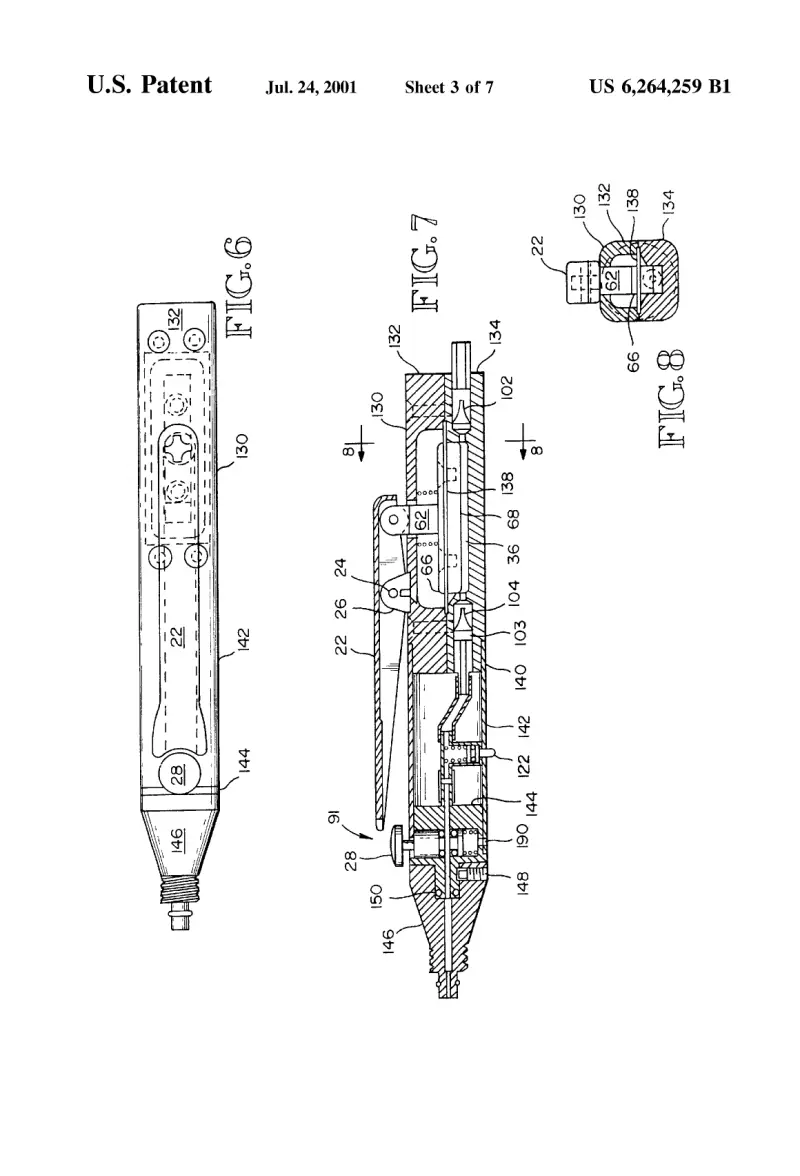

Sheet 3
Sheet 3

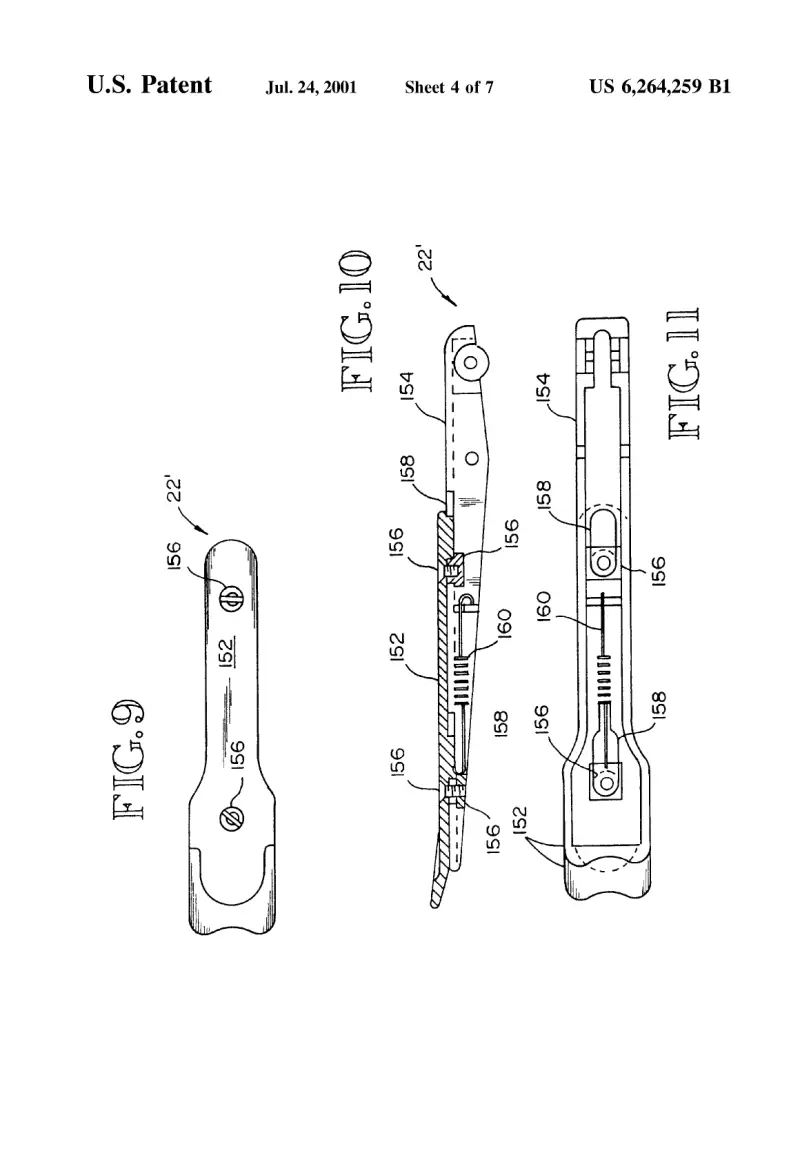

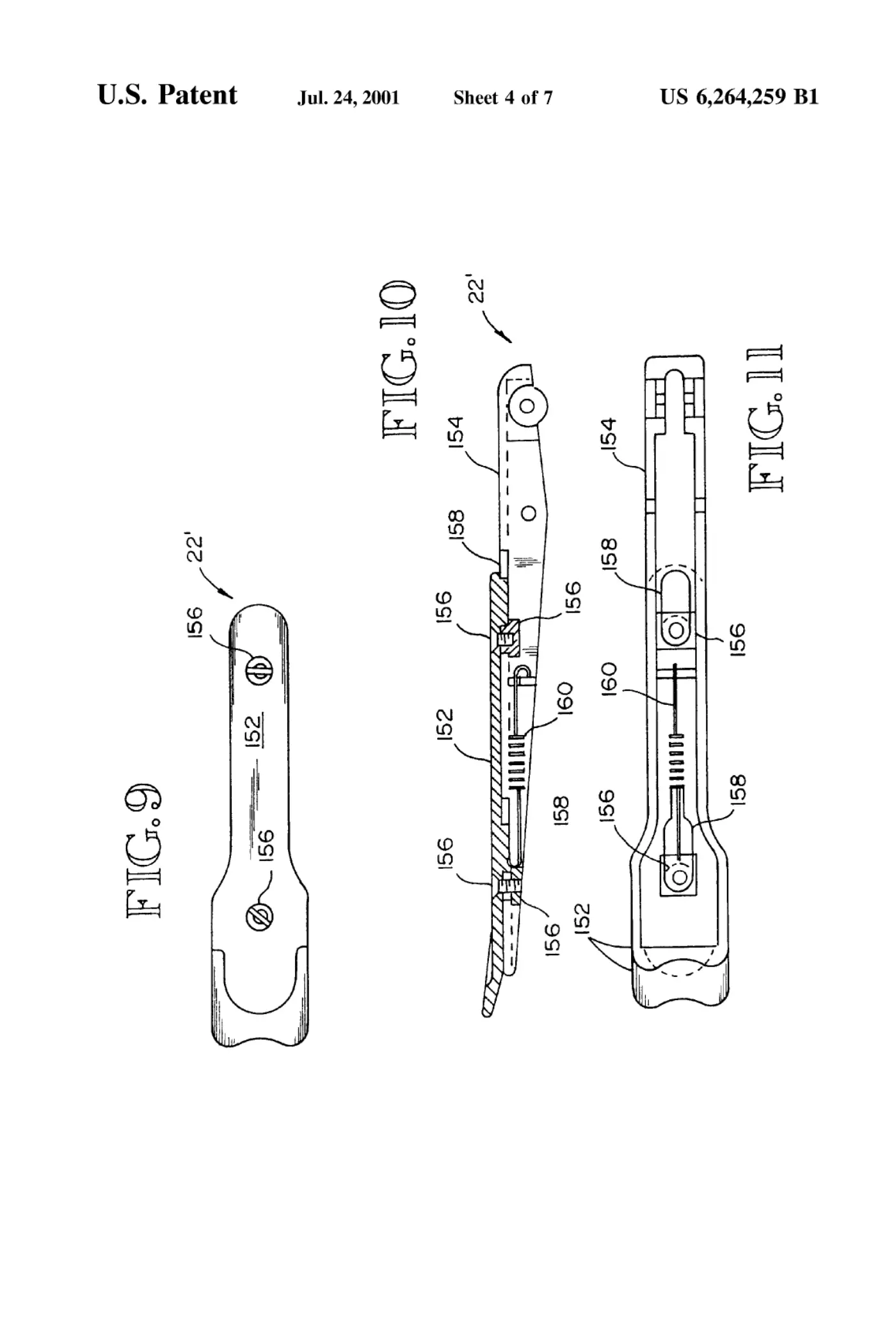

Sheet 4
Sheet 4

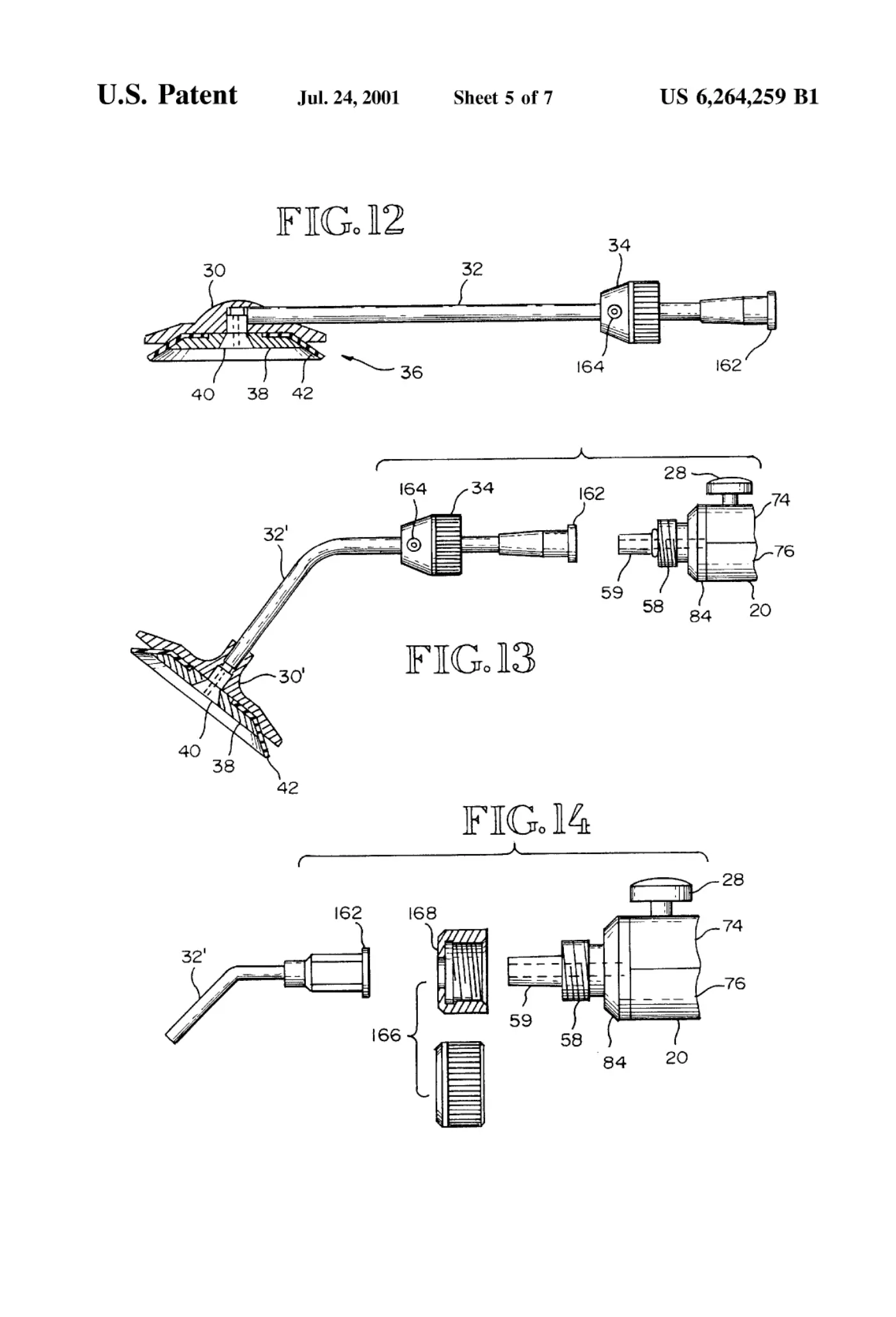

Sheet 5
Sheet 5

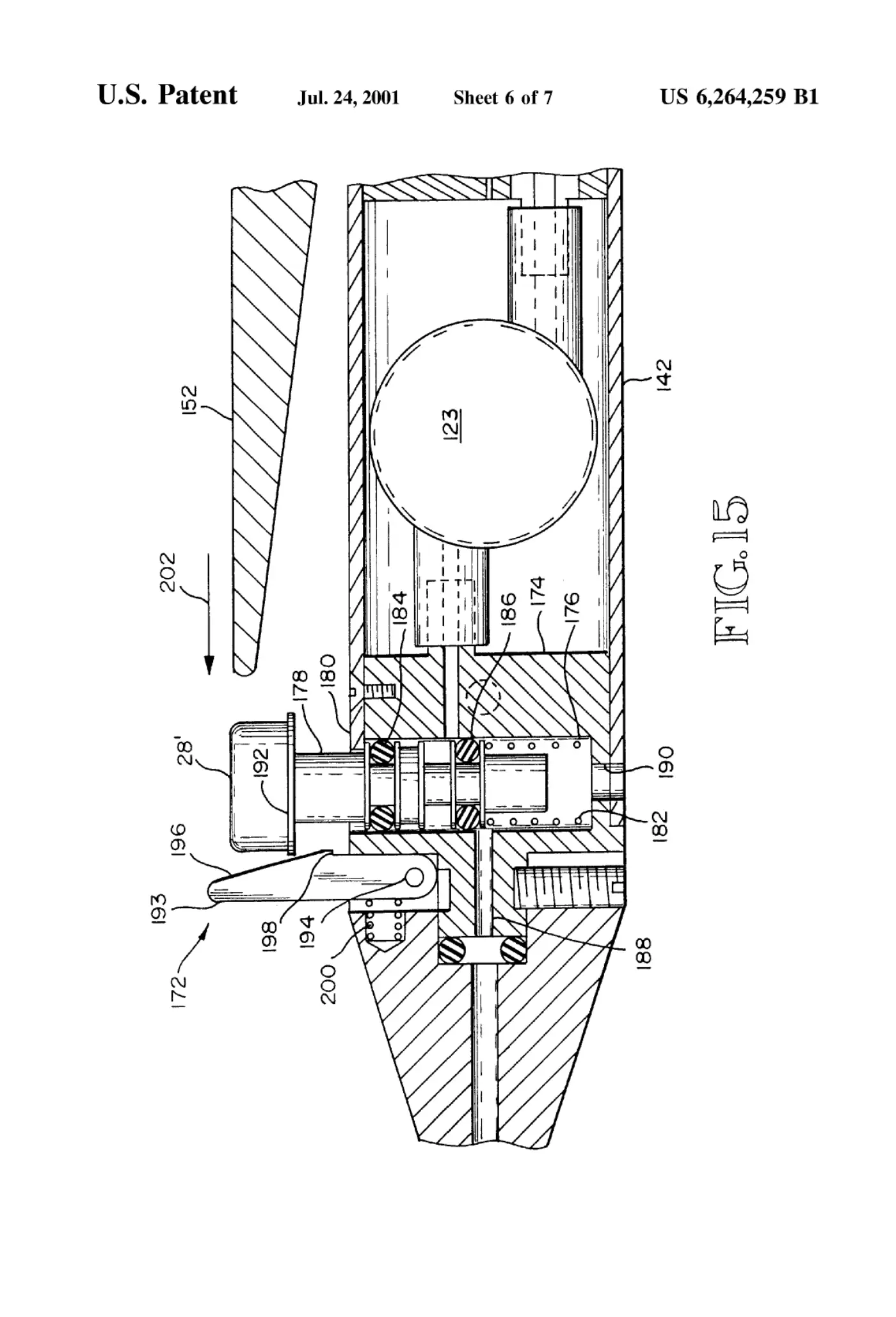

Sheet 6
Sheet 6

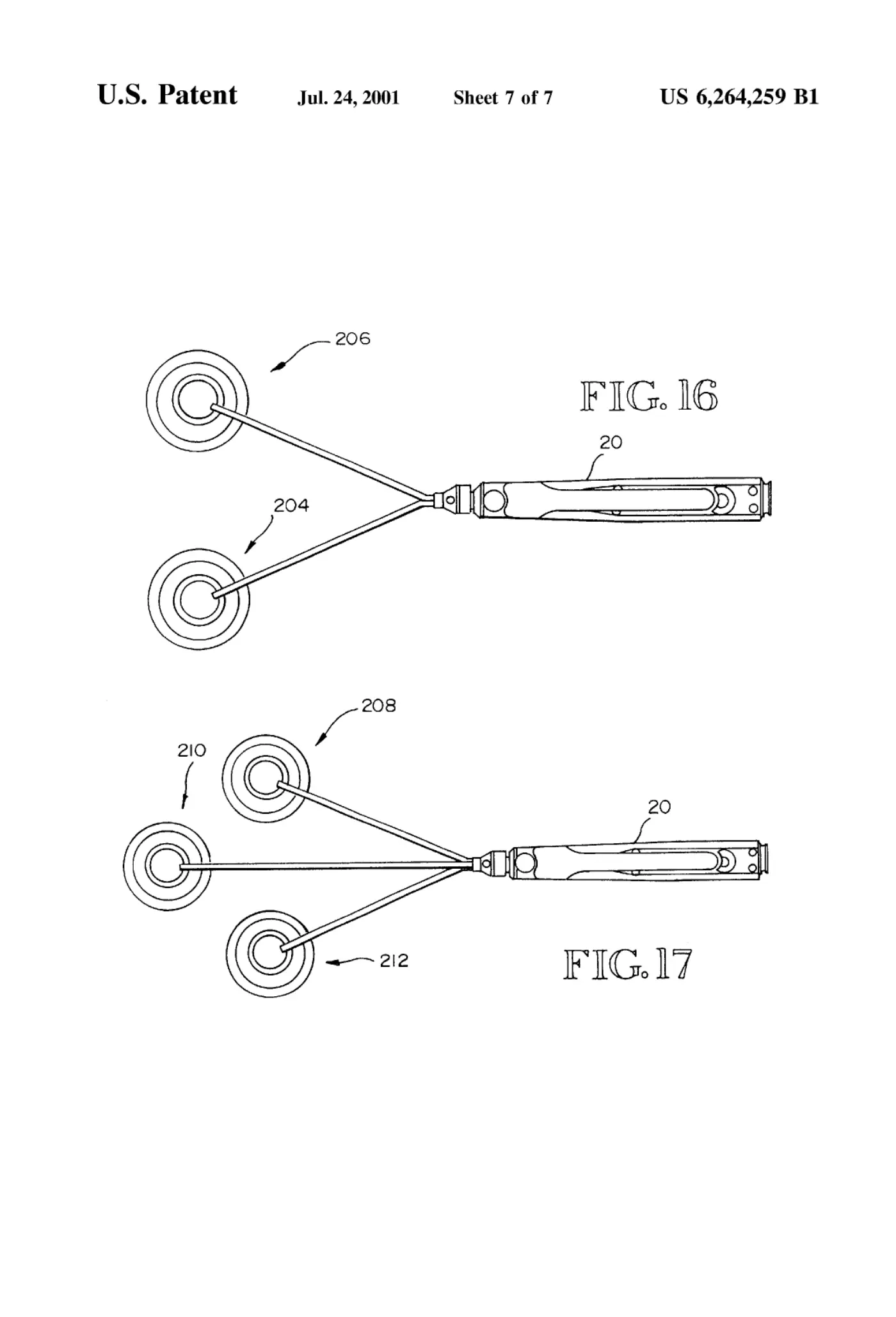

Sheet 7
Sheet 7

Abstract

A compact hand held suction cup type pickup tool is disclosed having a self contained, finger actuated vacuum pump that can be repeatedly cycled to maintain a very strong holding action for an indefinite period of time. The multicycling is achieved by automatic, unidirectional valving associated with the pump.
