Mobile lifting platform

Published
Permanent URL
Classification
Lifting, Positioning & Manipulation › Lift Tables and Positioners
Inventors
BARTSCH MARIUS
Assignee
BISON STEMATEC MASCHB UND HUBA
Original source
US-6250423-B1, the United States Patent and Trademark Office, 26 June 2001
Document SHA-256
a184df9c392ea50fcaa5ae2986d8ecbce5ff26a8bbaa489b764f9f42032ac38e

A mobile lifting platform with a chassis and supports for a platform. Mounted on the platform is a first live ring whose vertical axis is approximately centered on the platform. The first live ring carries a horizontal boom which is pivotally movable about the axis and has an axis offset therefrom on which a second live ring is mounted which carries a swivel structure terminating in a boom, on the distal end of which a work platform or basket is mounted. The swivel structure is pivotally movable about a vertical axis of the second live ring. The swivel structure is connected to the horizontal boom in such a manner that they counterrotate.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3

Abstract

A mobile lifting platform with a chassis and supports for a platform. Mounted on the platform is a first live ring whose vertical axis is approximately centered on the platform. The first live ring carries a horizontal boom which is pivotally movable about the axis and has an axis offset therefrom on which a second live ring is mounted which carries a swivel structure terminating in a boom, on the distal end of which a work platform or basket is mounted. The swivel structure is pivotally movable about a vertical axis of the second live ring. The swivel structure is connected to the horizontal boom in such a manner that they counterrotate.

1. Drawings

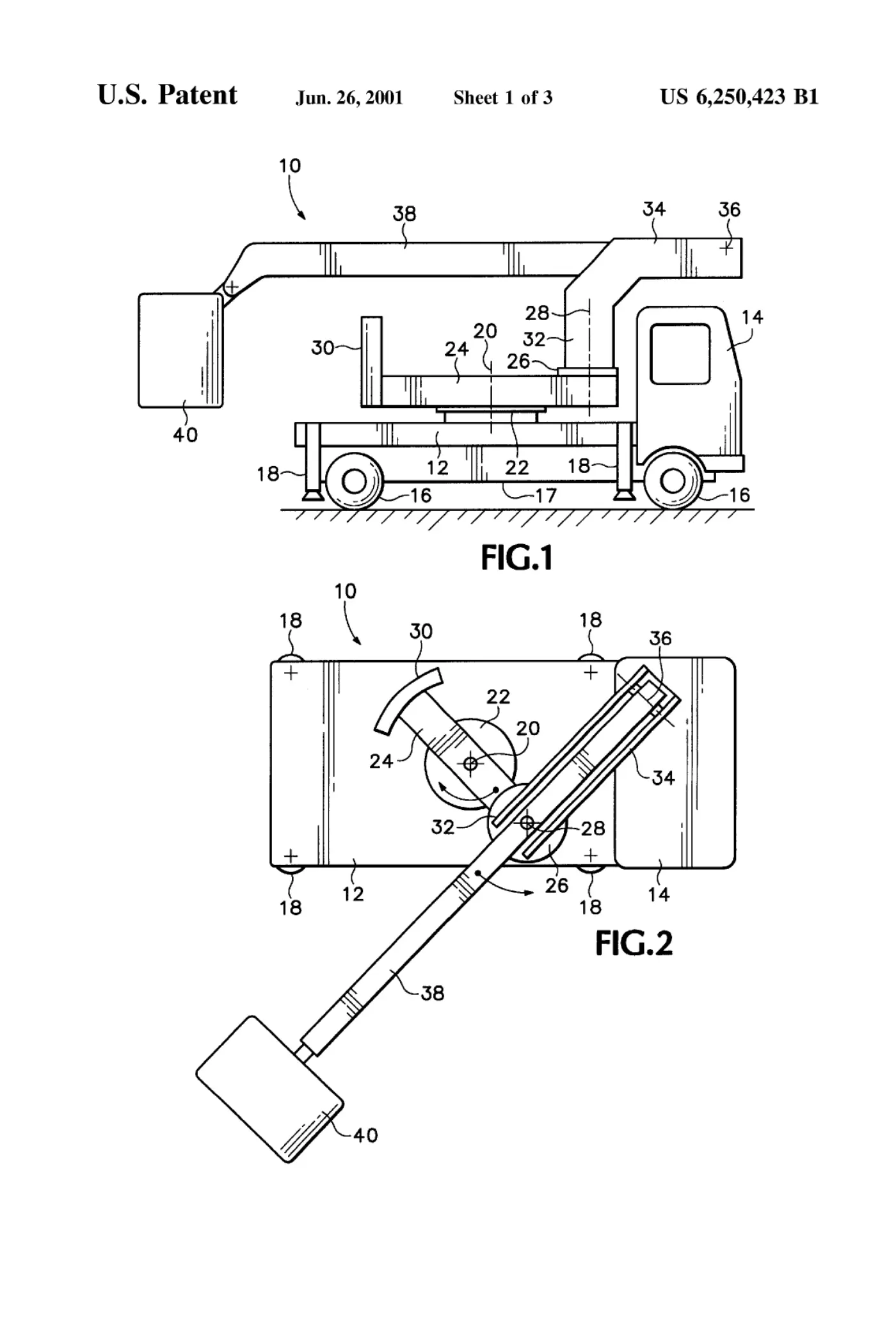

[0001]Sheet 1.

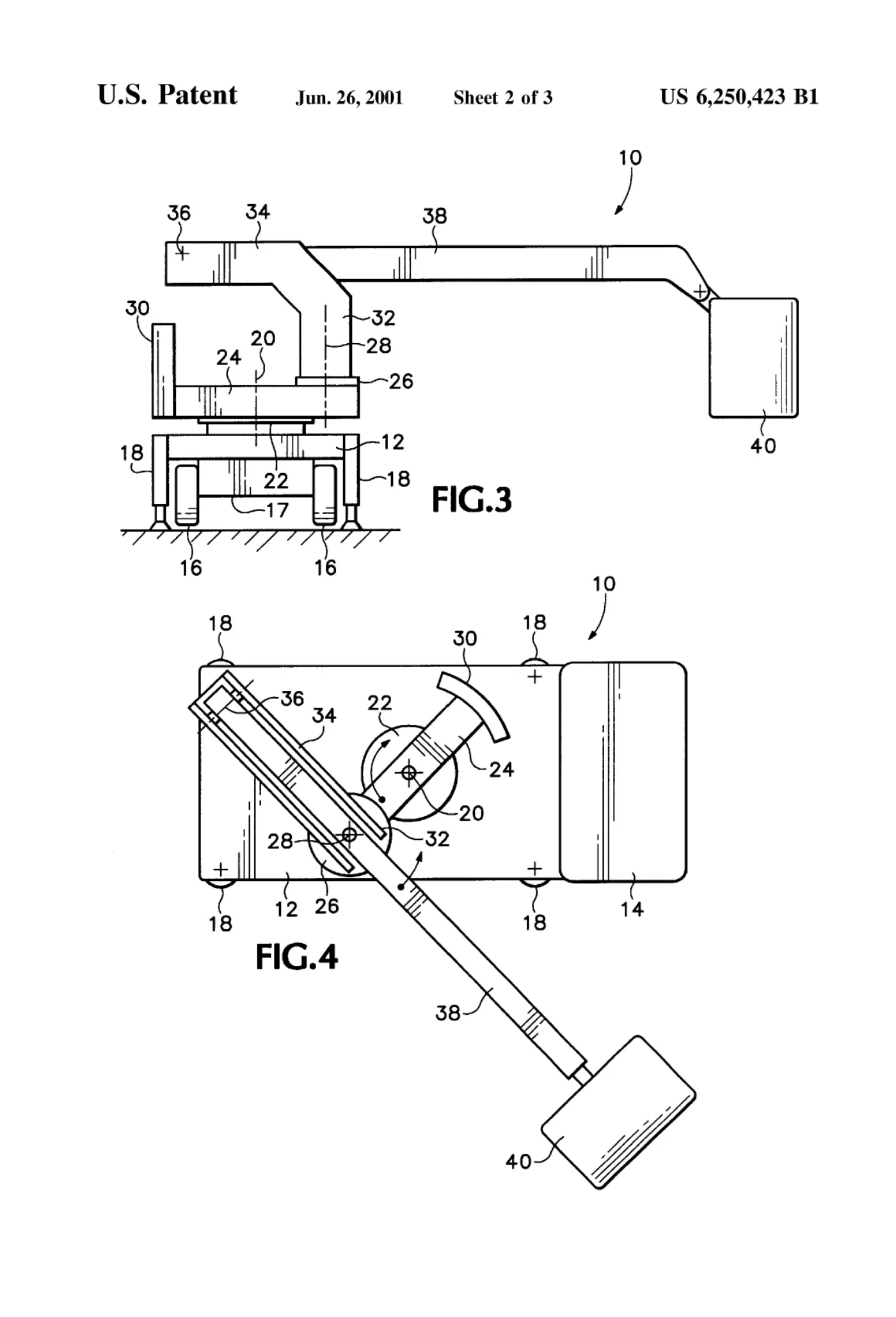

[0002]Sheet 2.

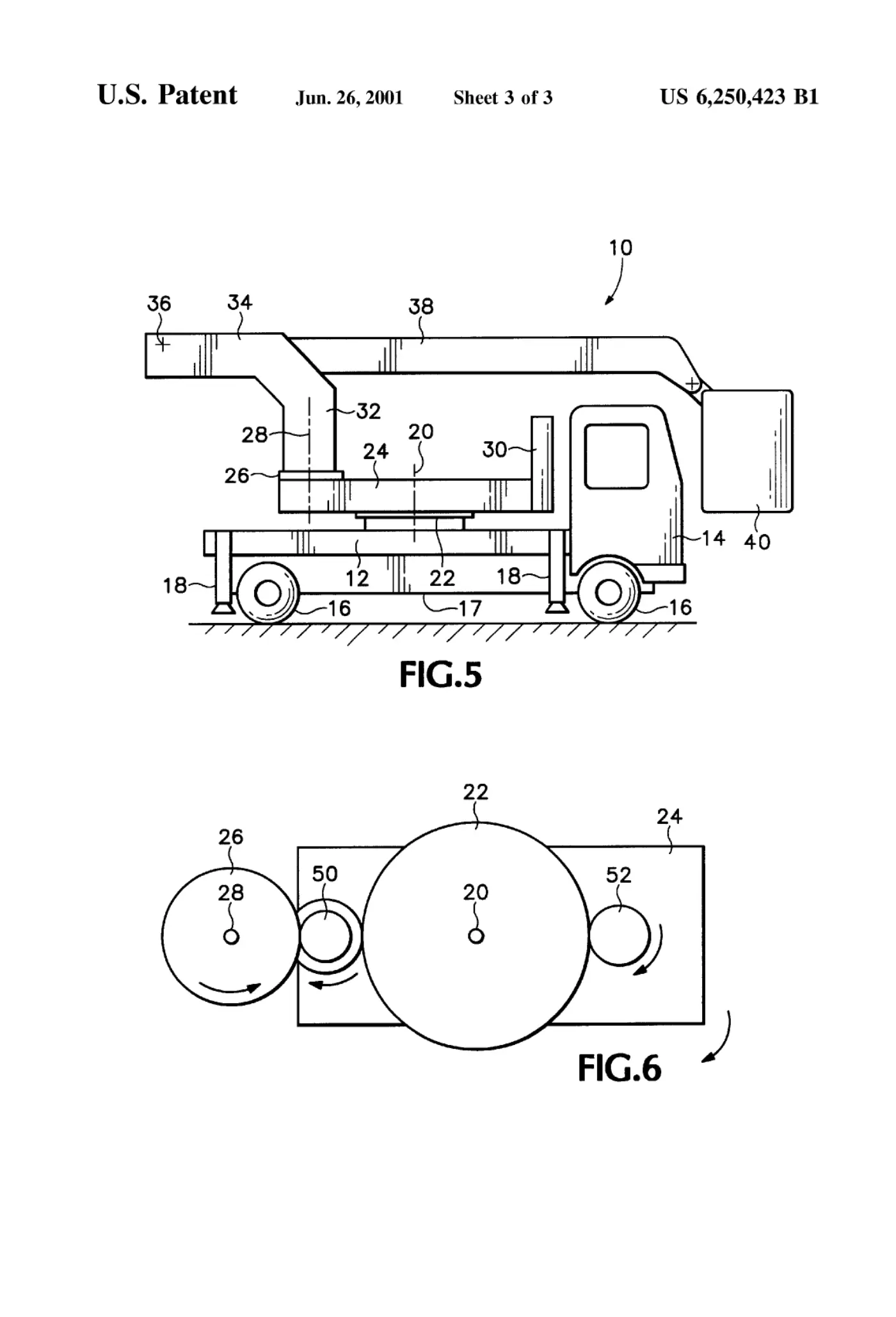

[0003]Sheet 3.
