Vacuum cup

Published
Permanent URL
Classification
Material Handling › Conveying Systems
Inventors
BIJLOO JAN A, HUFKEN GERARDUS L C, SEGERS JOHANNES A P W
Assignee
PHILIPS CORP
Original source
US-6213528-B1, the United States Patent and Trademark Office, 10 April 2001
Document SHA-256
b80dbeb1ce6fc82f8bc9e7edefacef6eb5245f4d9345ca92c447bbae092a9f2d

The invention relates to a vacuum cup ( 1 ) that is able to ensure a very silent release of an object that is being held by the vacuum cup ( 1 ). The vacuum cup ( 1 ) comprises a channel ( 7 ) that allows a fast passage of ambient air into a vacuum chamber ( 3 ) to bring the vacuum chamber ( 3 ) to atmospheric pressure. Preferably, the channel ( 7 ) comprises openings ( 9, 9′, 13 ) that have surface area's being large compared to the surface area of a top ( 10 ) of the vacuum chamber ( 3 ) in order to obtain a fast release.

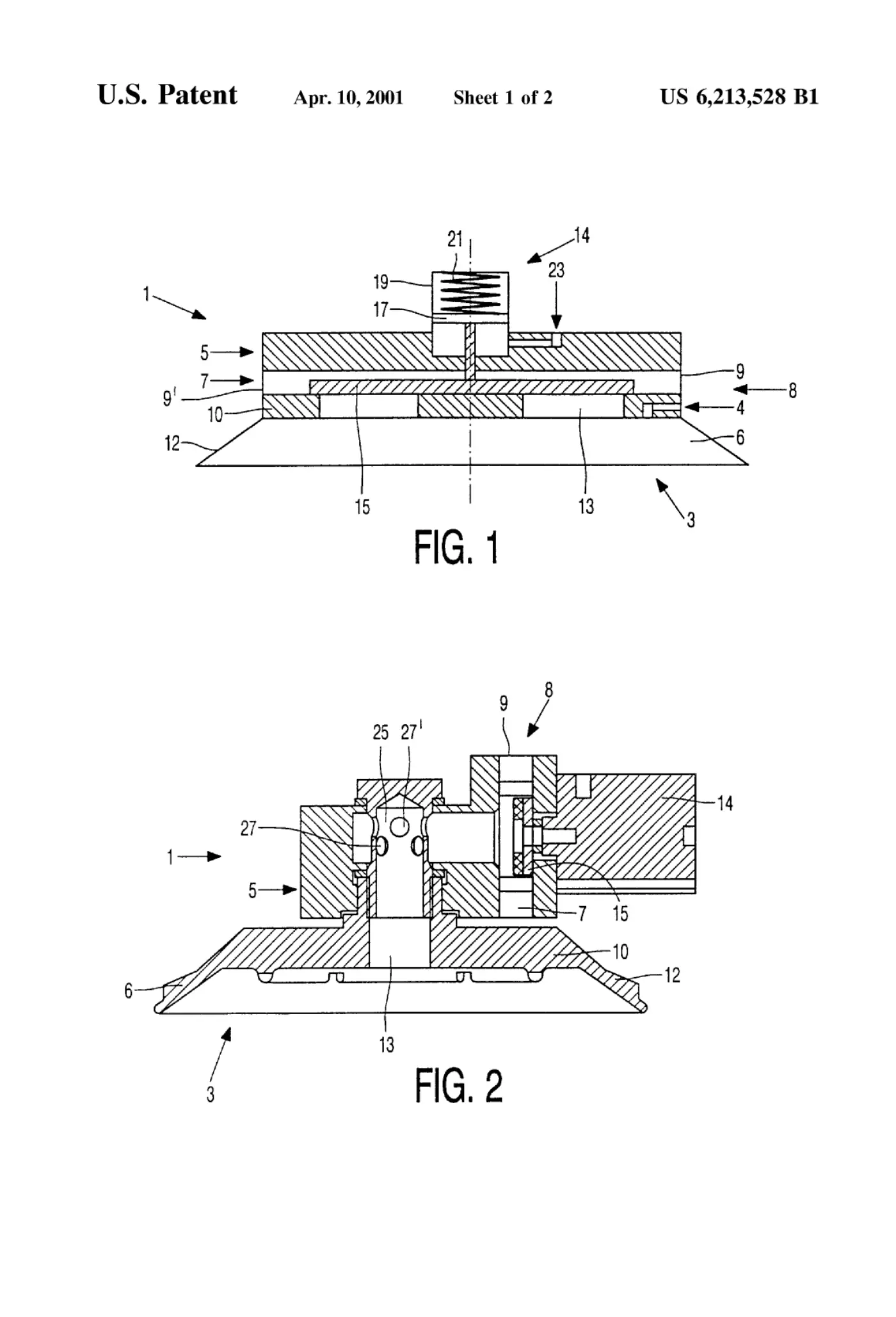

Sheet 1
Sheet 1

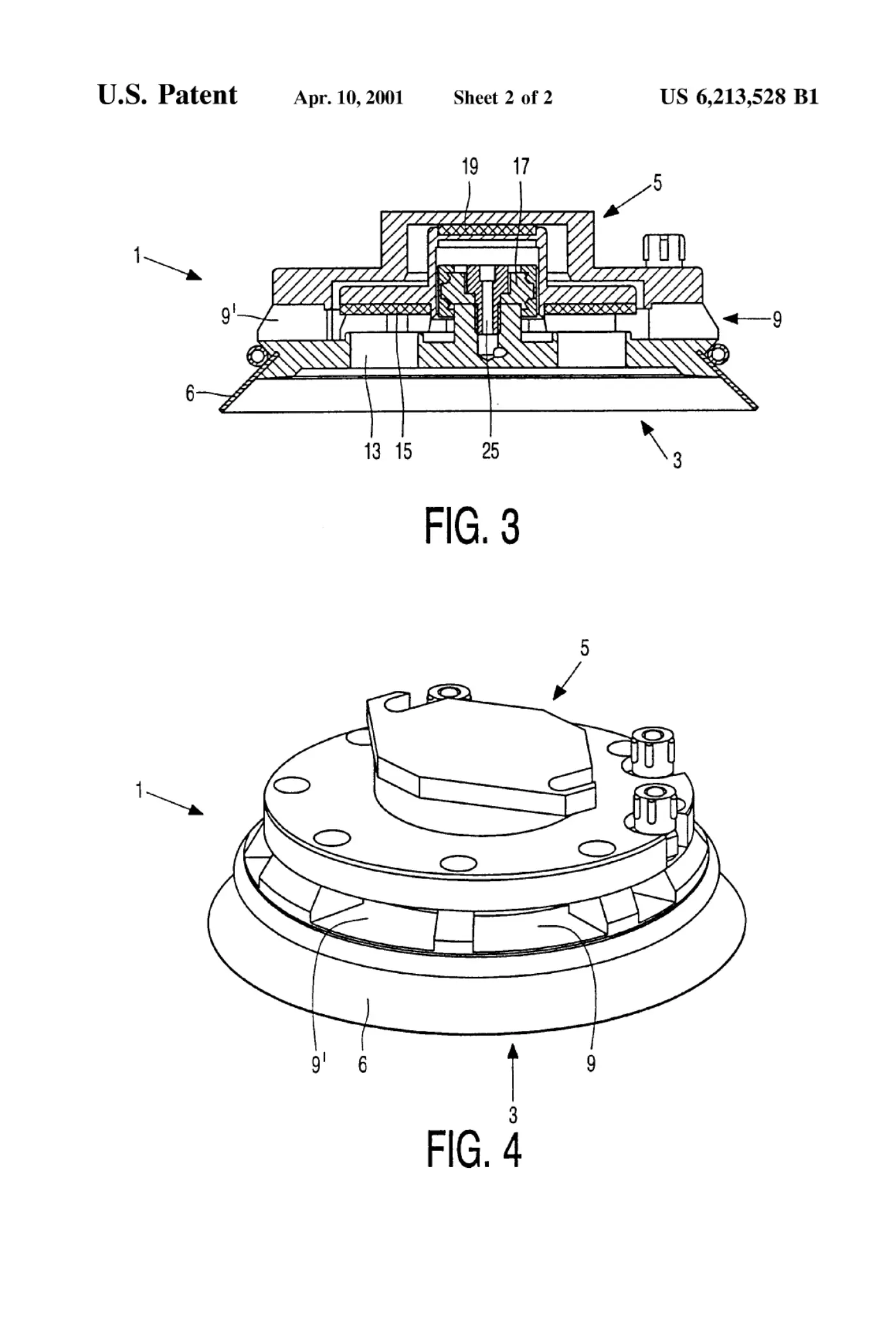

Sheet 2
Sheet 2

Abstract

The invention relates to a vacuum cup ( 1 ) that is able to ensure a very silent release of an object that is being held by the vacuum cup ( 1 ). The vacuum cup ( 1 ) comprises a channel ( 7 ) that allows a fast passage of ambient air into a vacuum chamber ( 3 ) to bring the vacuum chamber ( 3 ) to atmospheric pressure. Preferably, the channel ( 7 ) comprises openings ( 9, 9′, 13 ) that have surface area's being large compared to the surface area of a top ( 10 ) of the vacuum chamber ( 3 ) in order to obtain a fast release.
