Switch-over device

Published
Permanent URL
Classification
Tools & Tooling › Clamping Tools
Original source
US-6173729-B1, the United States Patent and Trademark Office, 16 January 2001
Document SHA-256
0308c41de974be6c0473256eaf47064c35504f2cfc98c5c2dabdeb6d985070e9

A switch-over device which is useful for a gas insufflation device using liquid gas includes at least two inflow channels each blockable by a valve and at least one outflow channel for alternate removal of a fluid medium from a plurality of containers. The device has a switch-over piston movably mounted in a housing and comprising a base member which has at each end a valve closure member in a form of a body of rotation. The switch-over piston is driven by a pressure difference between the fluid media and connects one of the inflow channels to the outflow channel in each of two switching positions. A working chamber accommodates the switch-over piston, with sealing elements being provided for closing off the inflow channels in a pressure tight manner when the switch-over piston is in the correspondingly closed position and for dividing the working chamber into two portions sealed off from each other. The switch-over piston and/or the working chamber is constructed so that at least one sealing element can be arranged selectively in different positions. The size of the areas of the switch-over piston which are acted upon by the fluid media and determined the switch-over point is determined by the position of the sealing element.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3
Sheet 4
Sheet 4
Sheet 5
Sheet 5
Sheet 6
Sheet 6
Sheet 7
Sheet 7

Abstract

A switch-over device which is useful for a gas insufflation device using liquid gas includes at least two inflow channels each blockable by a valve and at least one outflow channel for alternate removal of a fluid medium from a plurality of containers. The device has a switch-over piston movably mounted in a housing and comprising a base member which has at each end a valve closure member in a form of a body of rotation. The switch-over piston is driven by a pressure difference between the fluid media and connects one of the inflow channels to the outflow channel in each of two switching positions. A working chamber accommodates the switch-over piston, with sealing elements being provided for closing off the inflow channels in a pressure tight manner when the switch-over piston is in the correspondingly closed position and for dividing the working chamber into two portions sealed off from each other. The switch-over piston and/or the working chamber is constructed so that at least one sealing element can be arranged selectively in different positions. The size of the areas of the switch-over piston which are acted upon by the fluid media and determined the switch-over point is determined by the position of the sealing element.

1. Drawings

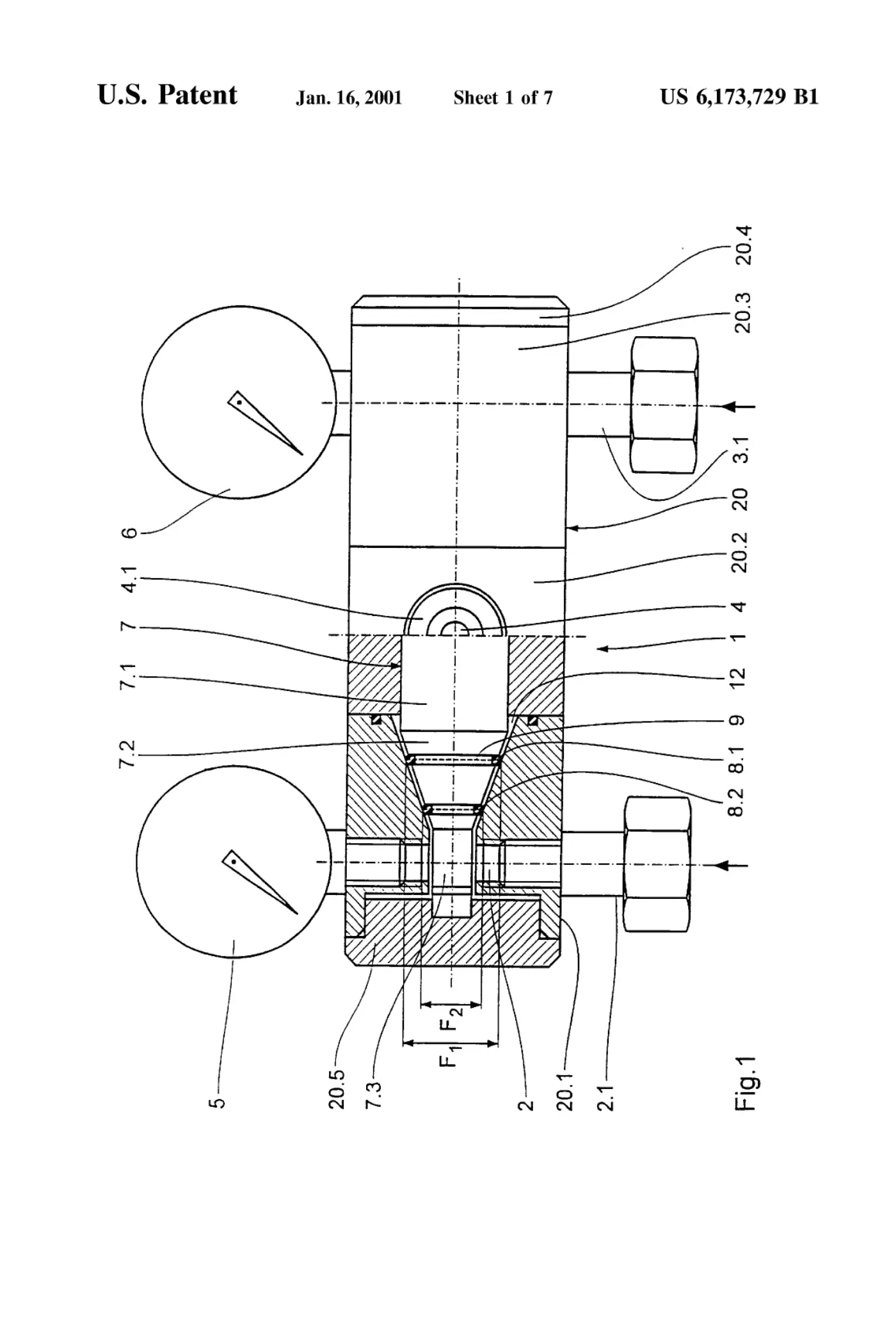

[0001]Sheet 1.

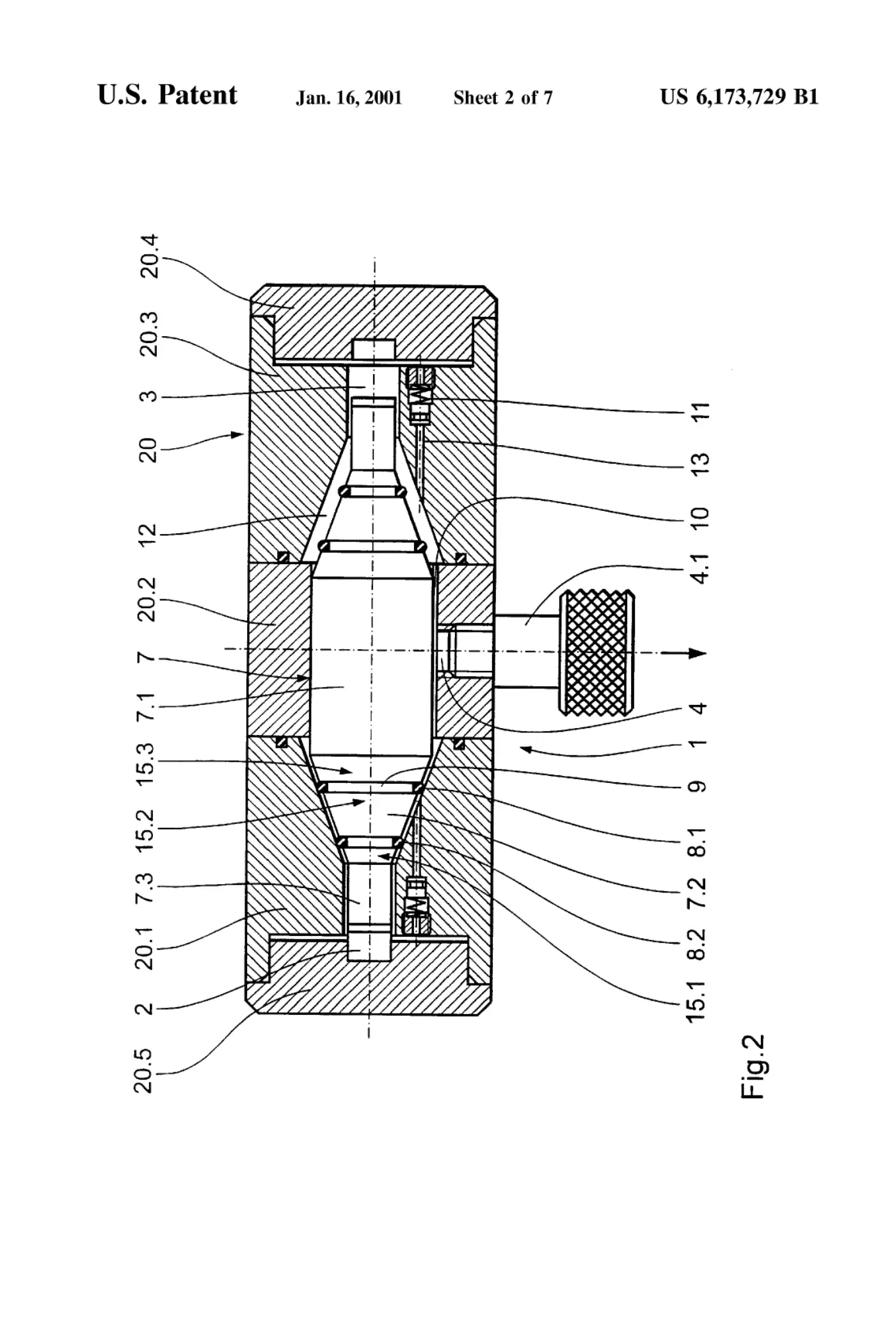

[0002]Sheet 2.

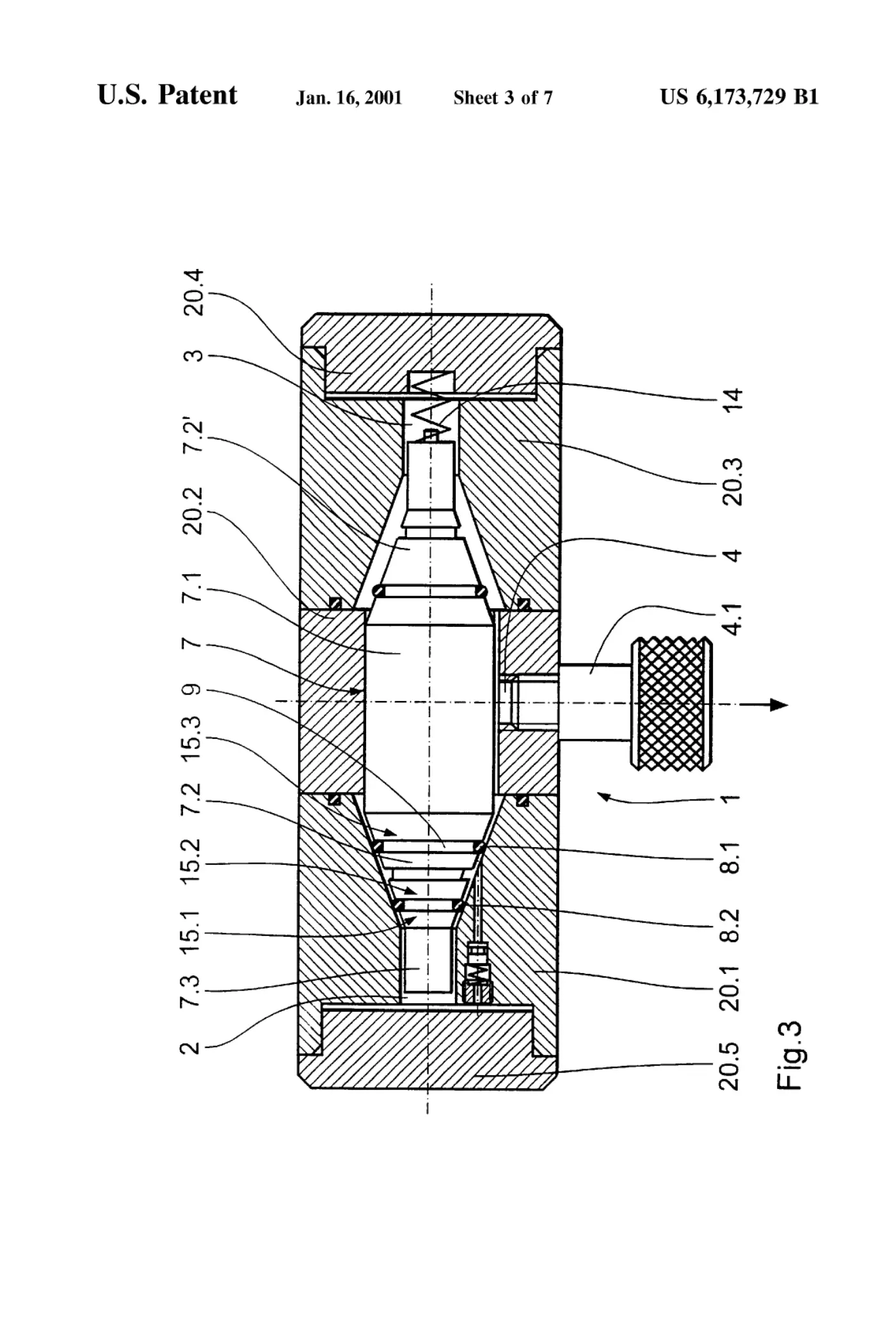

[0003]Sheet 3.

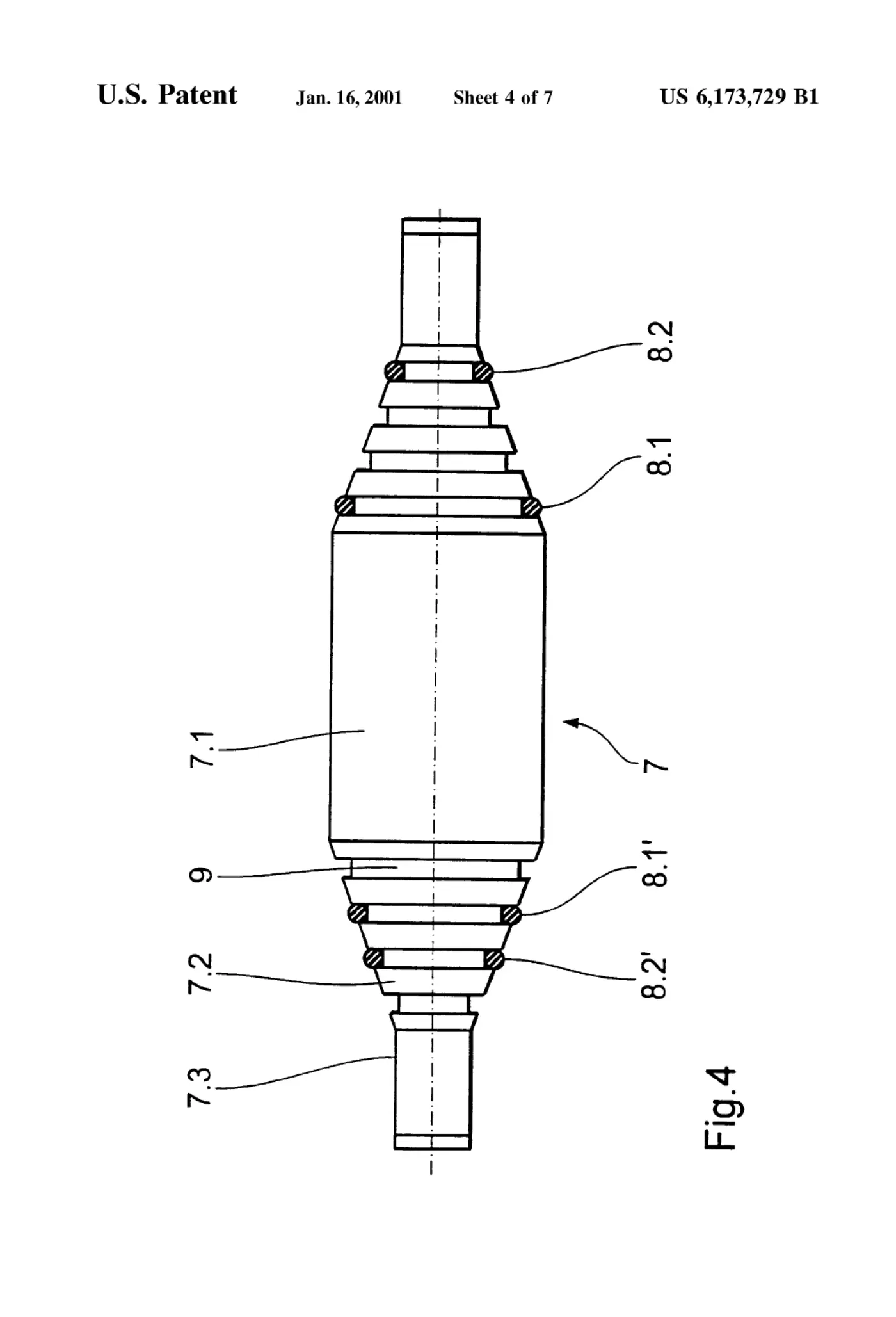

[0004]Sheet 4.

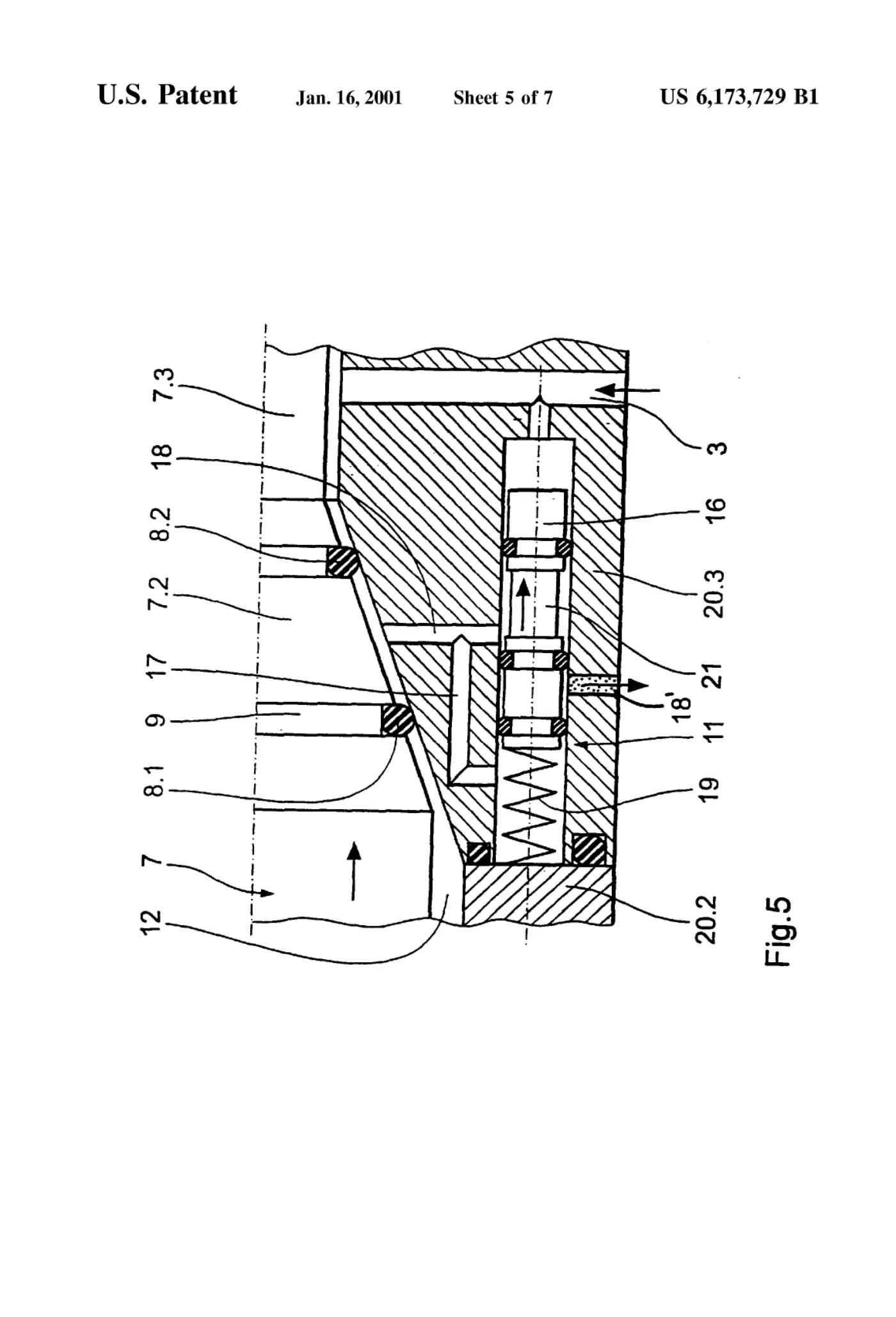

[0005]Sheet 5.

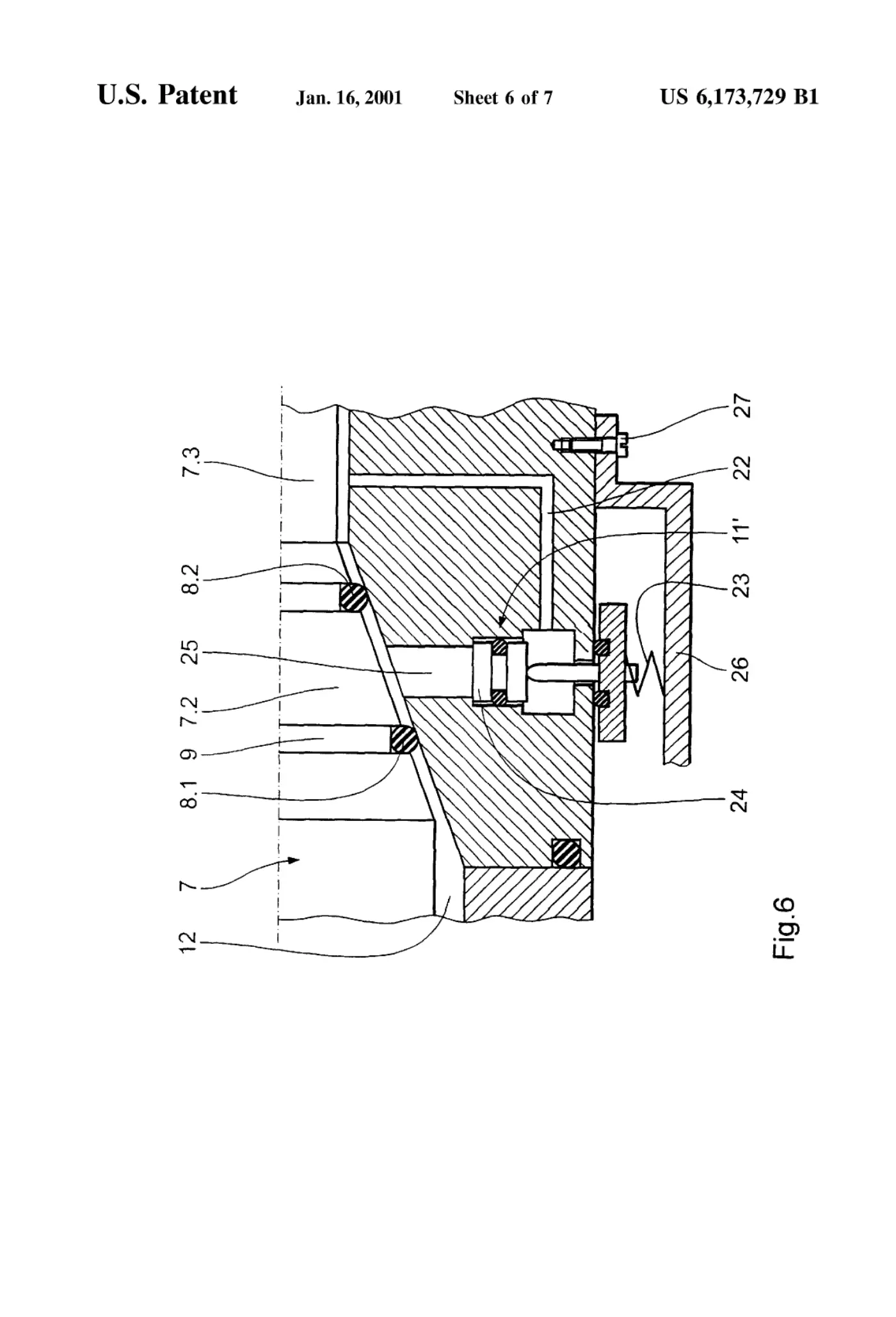

[0006]Sheet 6.

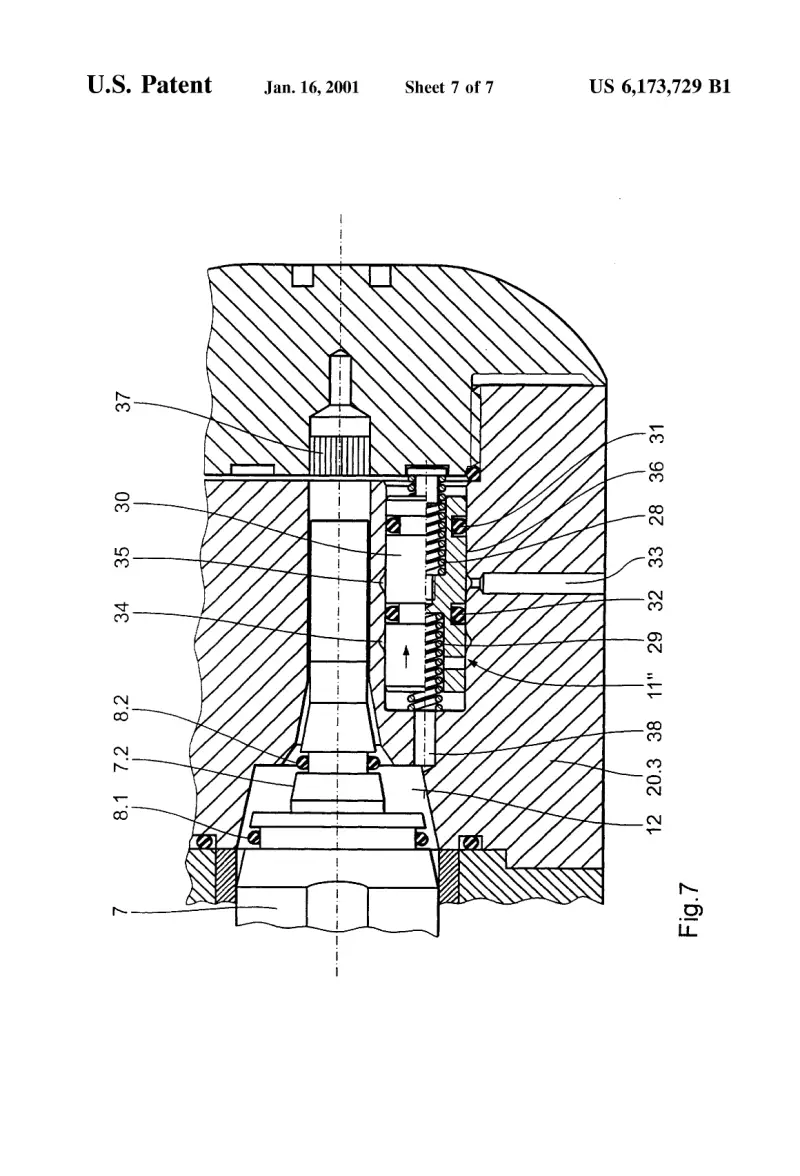

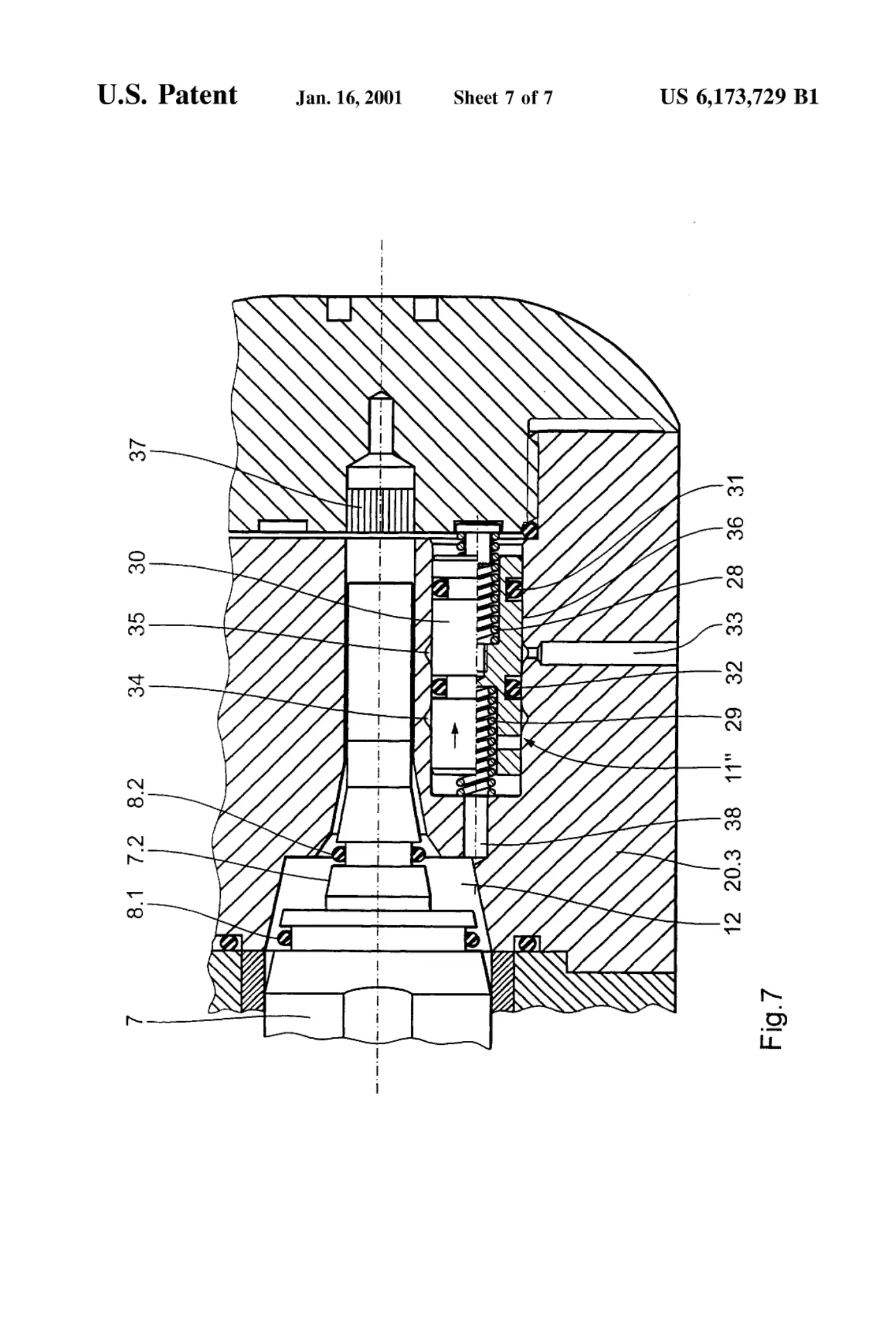

[0007]Sheet 7.
