Method and device for receiving, orientating and assembling of components

Published
Permanent URL
Classification
Tools & Tooling › Clamping Tools
Assignee
ALPHASEM AG
Original source
US-6171049-B1, the United States Patent and Trademark Office, 9 January 2001
Document SHA-256
b45cb0156a03da2a59d4bae773ccd571d4f10c3e47318176fb6463520c457942

Workpieces such as chips are removed from a receiving plane by a transfer unit, which carries them to a delivery plane. The workpieces are transported in two segments during two phases, each workpiece being deposited between the phases on an intermediate station arranged in the region of the feed path. The transfer unit has two working heads, which simultaneously transport one workpiece from the receiving plane to the intermediate station, and another workpiece from the intermediate station to the delivery plane. The workpiece can be pivoted or rotated at the intermediate station so that its lower surface can be grasped by the depositing head.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3
Sheet 4
Sheet 4
Sheet 5
Sheet 5

Abstract

Workpieces such as chips are removed from a receiving plane by a transfer unit, which carries them to a delivery plane. The workpieces are transported in two segments during two phases, each workpiece being deposited between the phases on an intermediate station arranged in the region of the feed path. The transfer unit has two working heads, which simultaneously transport one workpiece from the receiving plane to the intermediate station, and another workpiece from the intermediate station to the delivery plane. The workpiece can be pivoted or rotated at the intermediate station so that its lower surface can be grasped by the depositing head.

1. Drawings

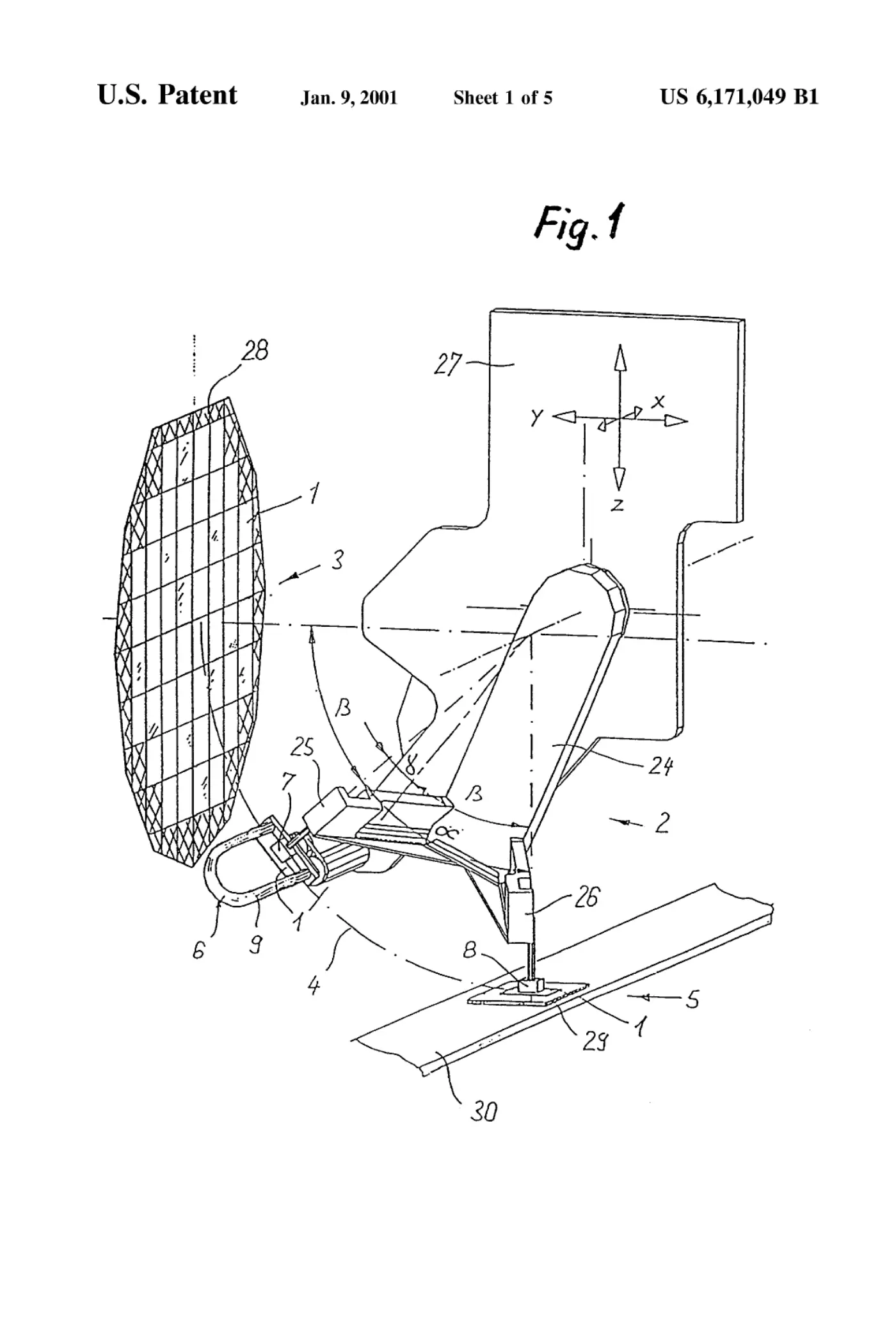

[0001]Sheet 1.

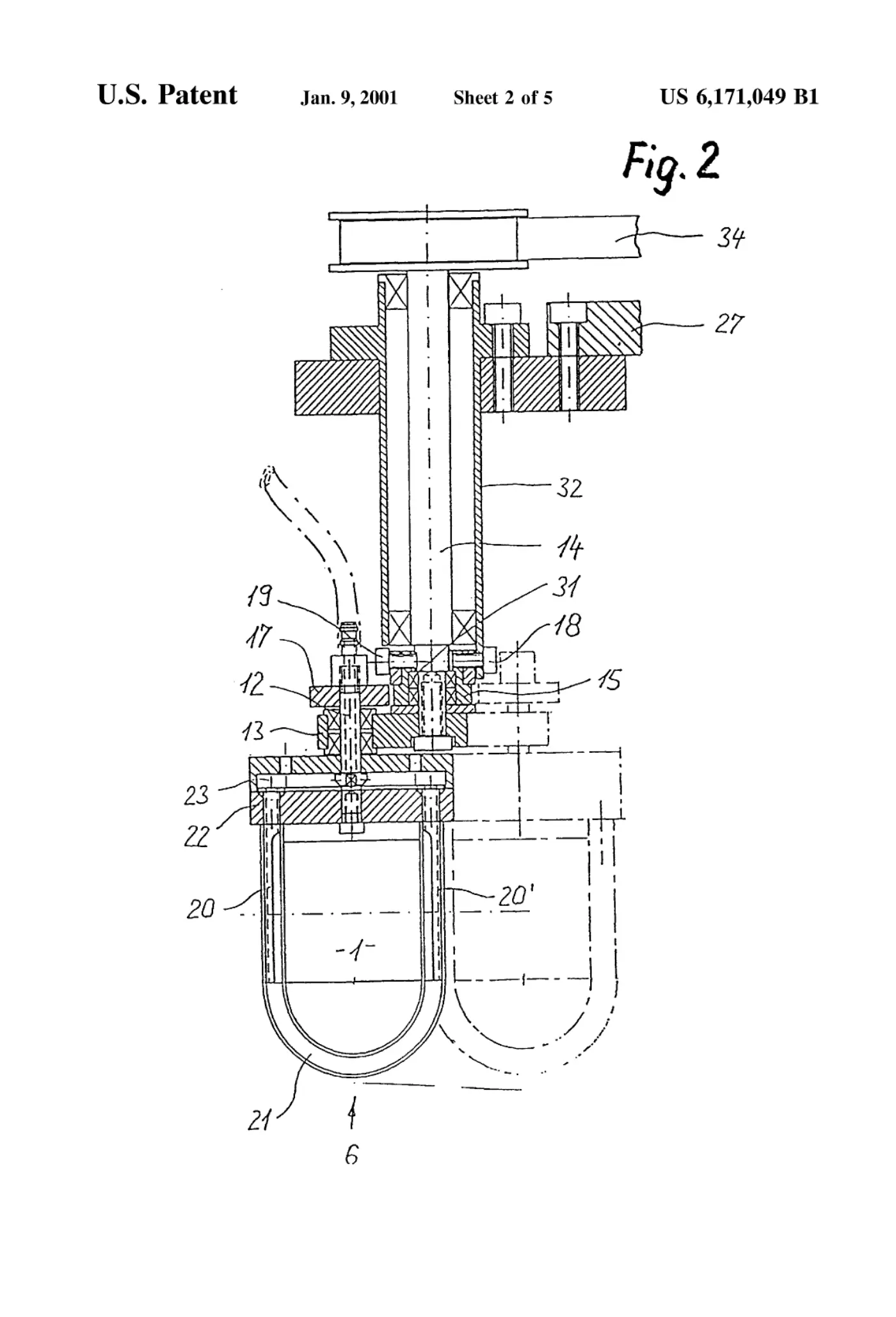

[0002]Sheet 2.

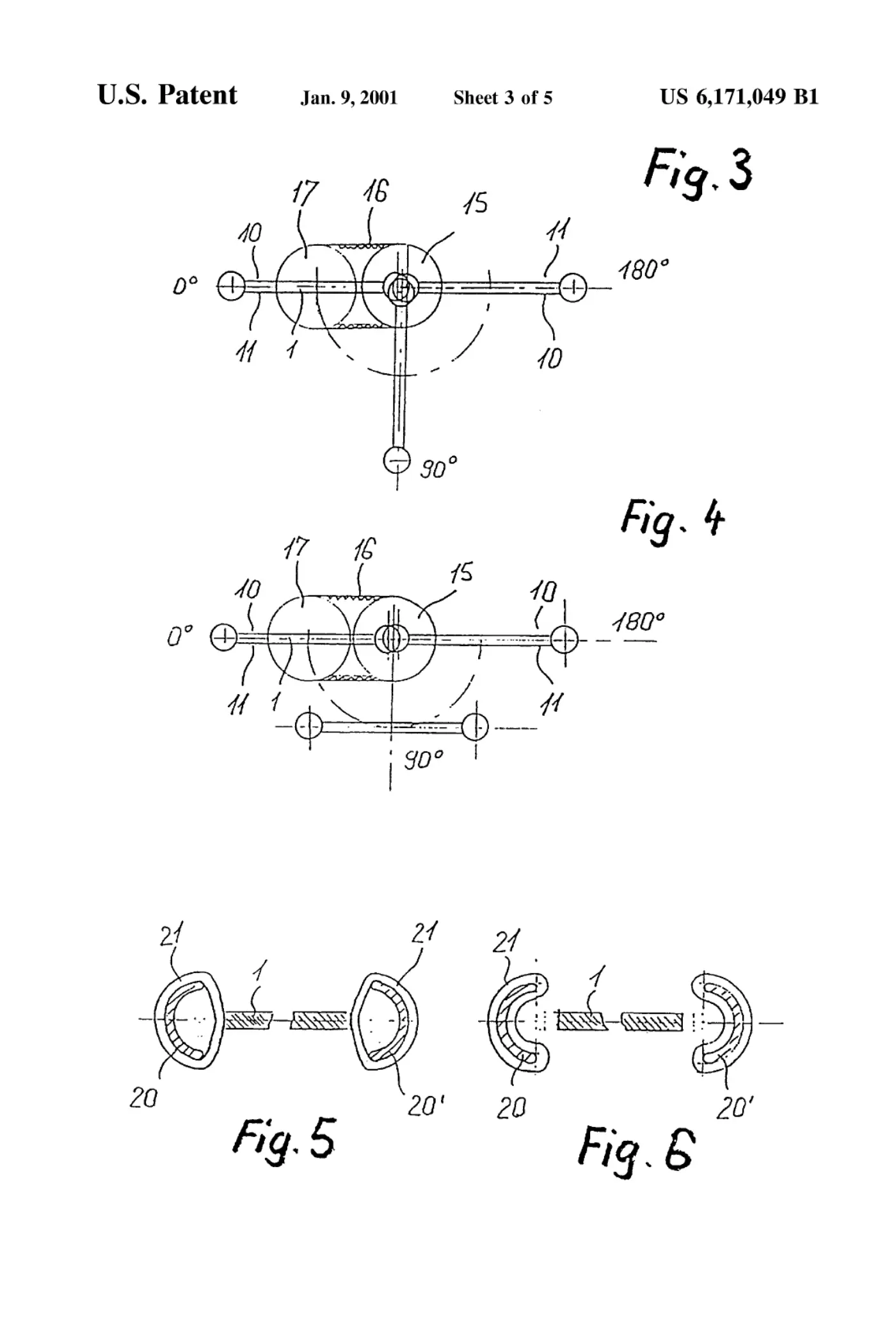

[0003]Sheet 3.

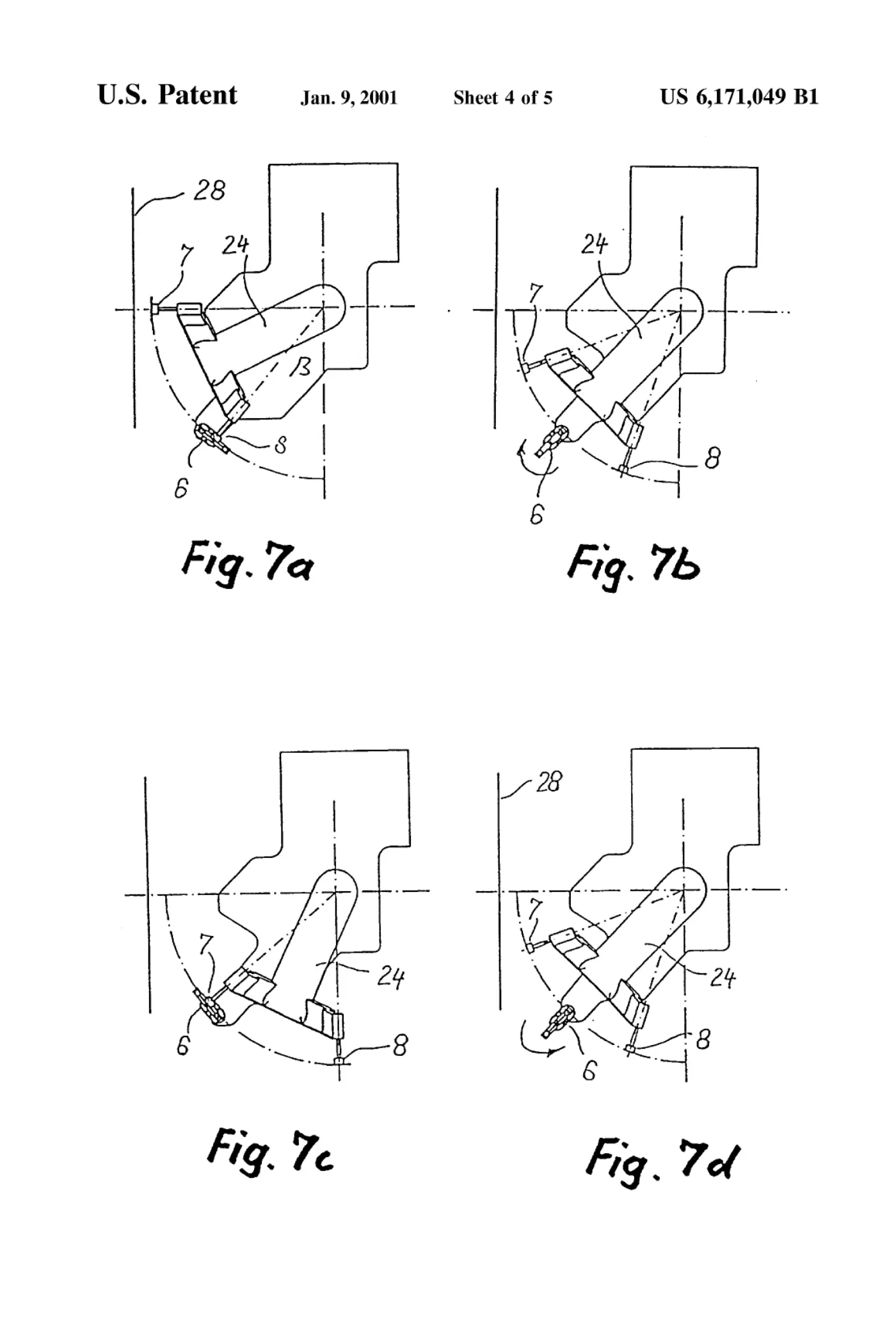

[0004]Sheet 4.

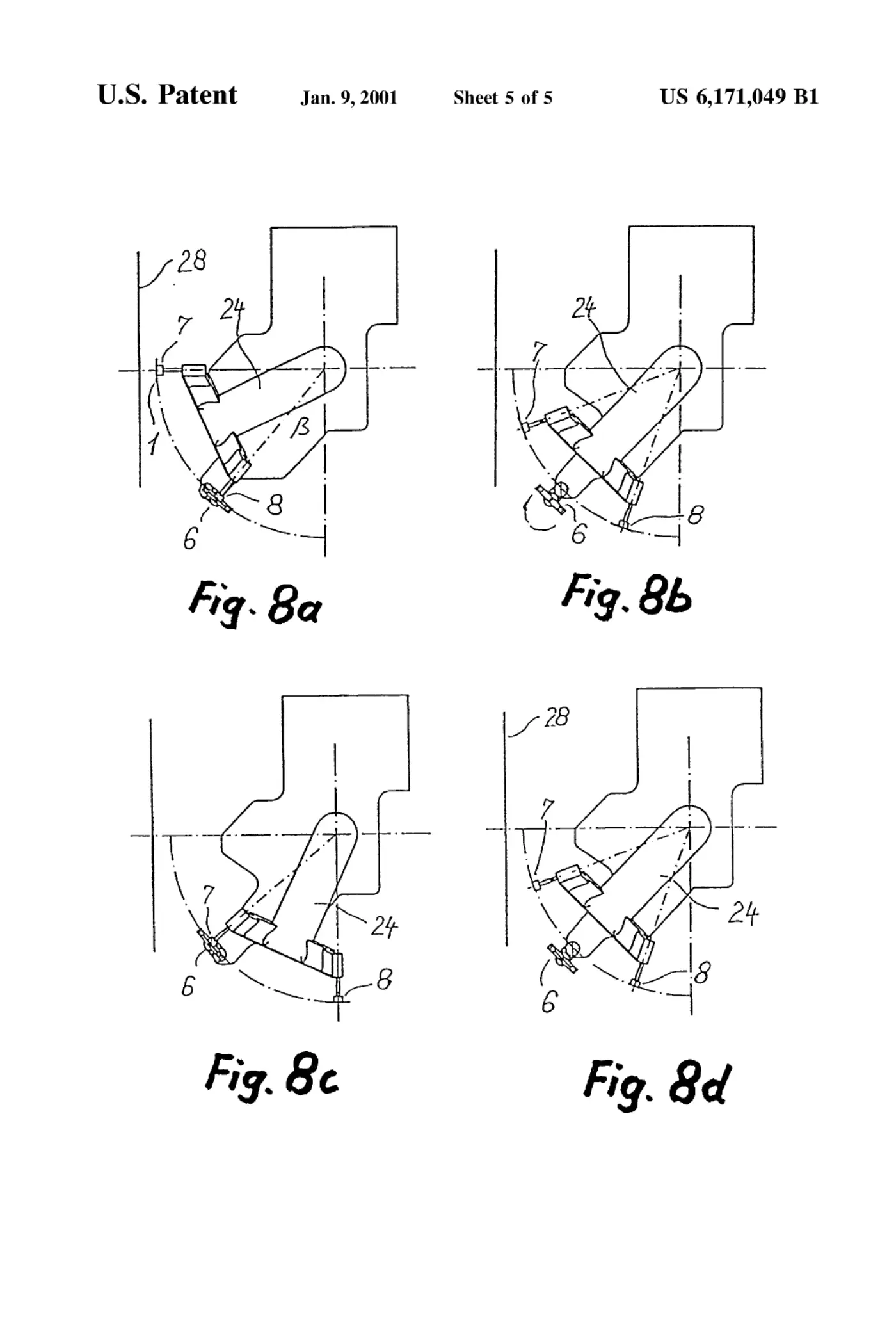

[0005]Sheet 5.
