Magnetic carrier

Published
Permanent URL
Classification
Robotics & Automation › Robot Architectures
Inventors
CARRUTH CARY, MODRAK RONALD P
Assignee
DAIMLER CHRYSLER CORP
Original source
US-6168221-B1, the United States Patent and Trademark Office, 2 January 2001
Document SHA-256
483cfe17c9ee7516999de841d99685edcc90ccdfd699d1f8020a19c1a75c0161

A magnetic carrier includes a housing having an interior ledge. First and second levers are pivotally mounted within the housing such that the ledge limits the angular position of the levers with respect to the housing. First and second permanent magnets are connected with the respective first and second levers for attracting a workpiece. A pneumatic piston actuator is provided on the housing for pivoting the levers with respect to the housing to selectively pivot the magnets into and out of magnetic engagement with the workpiece.

Sheet 1
Sheet 1
Sheet 2
Sheet 2

Abstract

A magnetic carrier includes a housing having an interior ledge. First and second levers are pivotally mounted within the housing such that the ledge limits the angular position of the levers with respect to the housing. First and second permanent magnets are connected with the respective first and second levers for attracting a workpiece. A pneumatic piston actuator is provided on the housing for pivoting the levers with respect to the housing to selectively pivot the magnets into and out of magnetic engagement with the workpiece.

1. Drawings

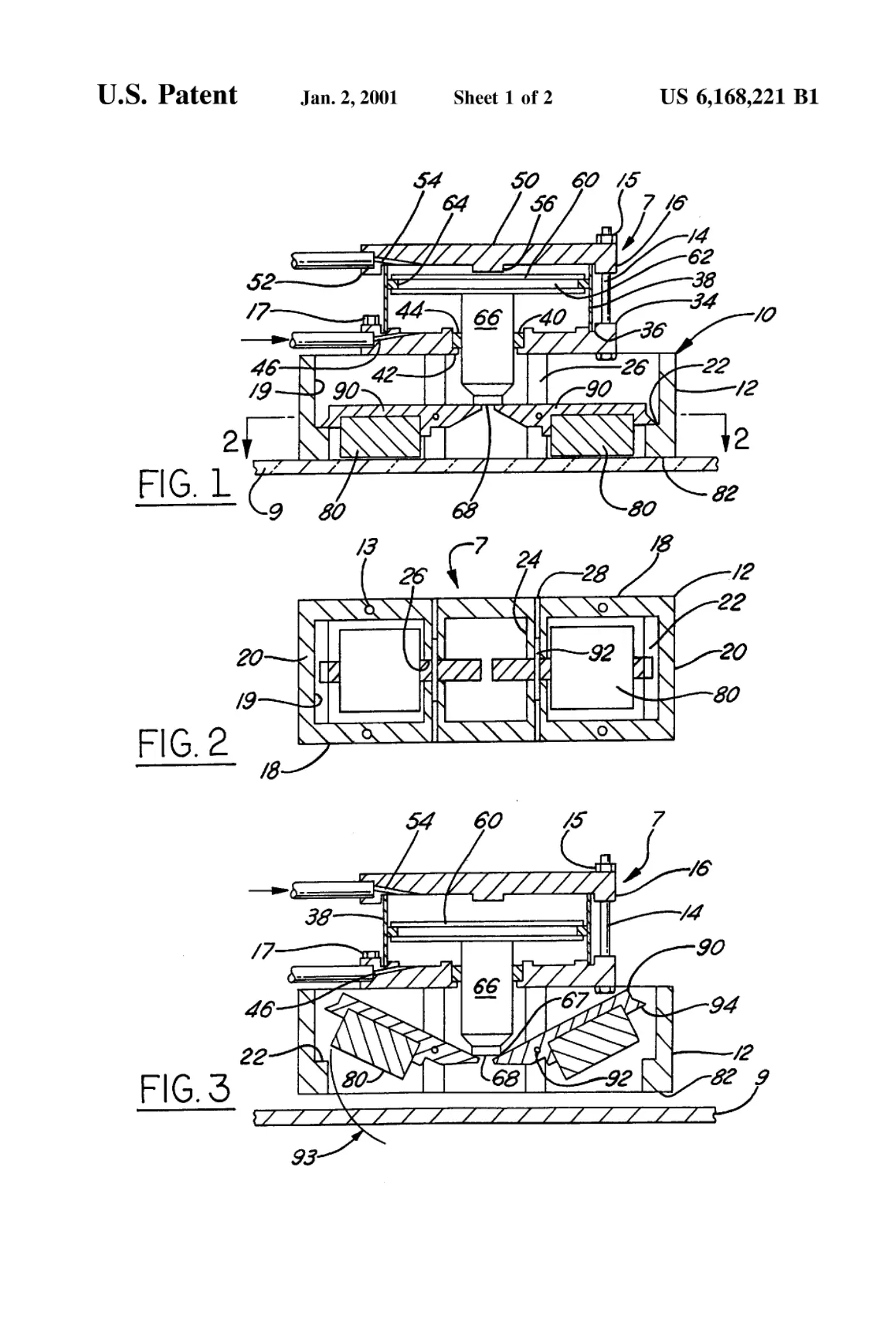

[0001]Sheet 1.

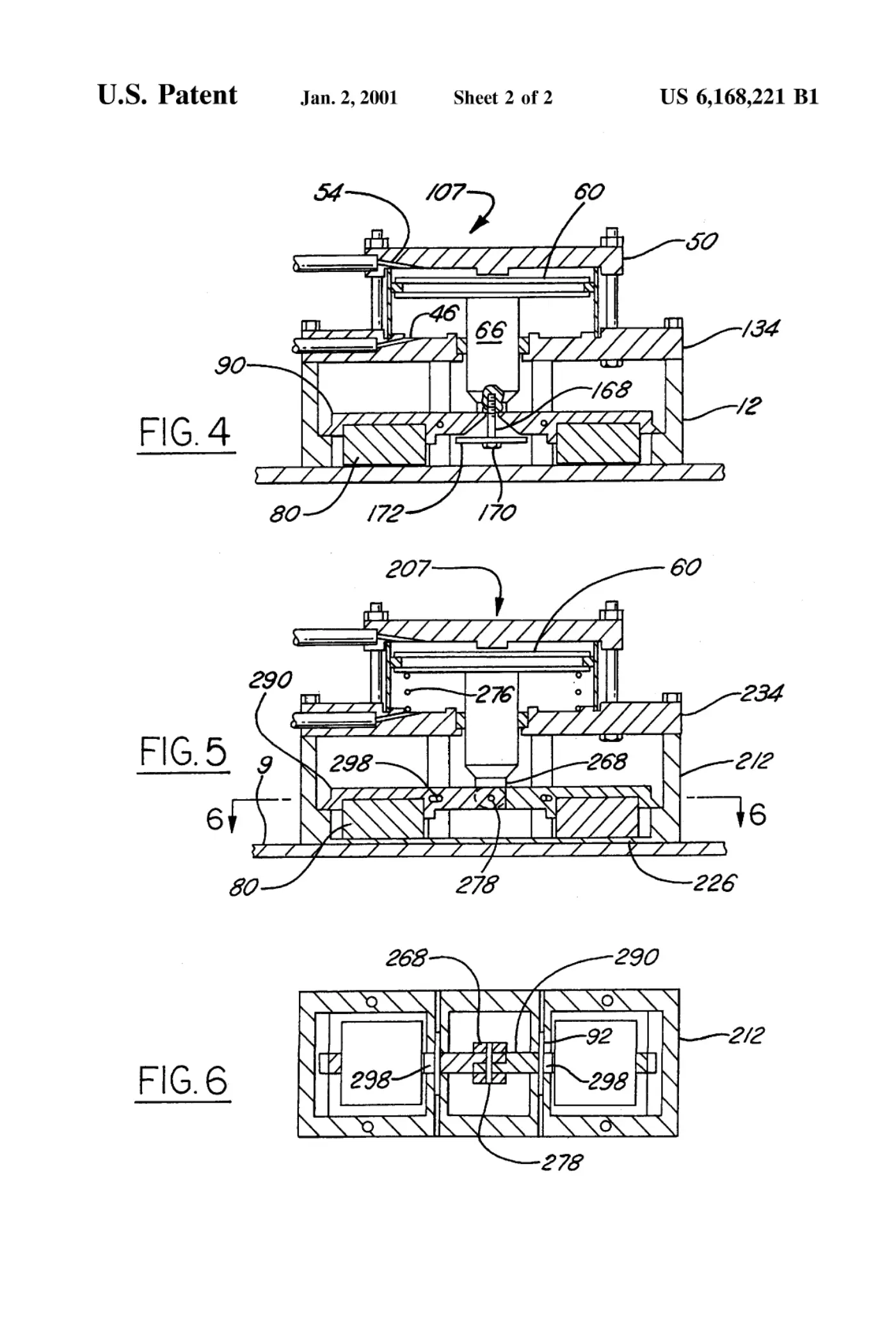

[0002]Sheet 2.
