Conveying device for thin disk-like articles

Published
Permanent URL
Classification
Material Handling › Conveying Systems
Inventors
PIRKER WILLIBALD
Assignee
SEZ SEMICONDCUTOR EQUIPMENT ZU
Original source
US-6152507-A, the United States Patent and Trademark Office, 28 November 2000
Document SHA-256
f94a7e17bcda42f1fc504be4131ffad53ac0d60253c3a620aaeb870fe17db827

A conveying device for thin disk-like articles (60), characterized by the llowing features: a support (10) having a plain surface (12), in the support (10) there is formed at least one gas channel (20) which channel, in running towards the plain surface in outwardly slanting manner, terminates at one of its ends in at least one gas outlet opening in the plain surface (12), the at least one gas channel being connectable to a gas supply pipe (28) at its other end, wherein at least three guiding arms (30) are disposed adjacent the at least one gas outlet opening(s) outside the at least one gas outlet opening and wherein the at least three guiding arms project beyond the plain surface (12) of the support (10) and are adjustable radially with respect to the plain surface (12).

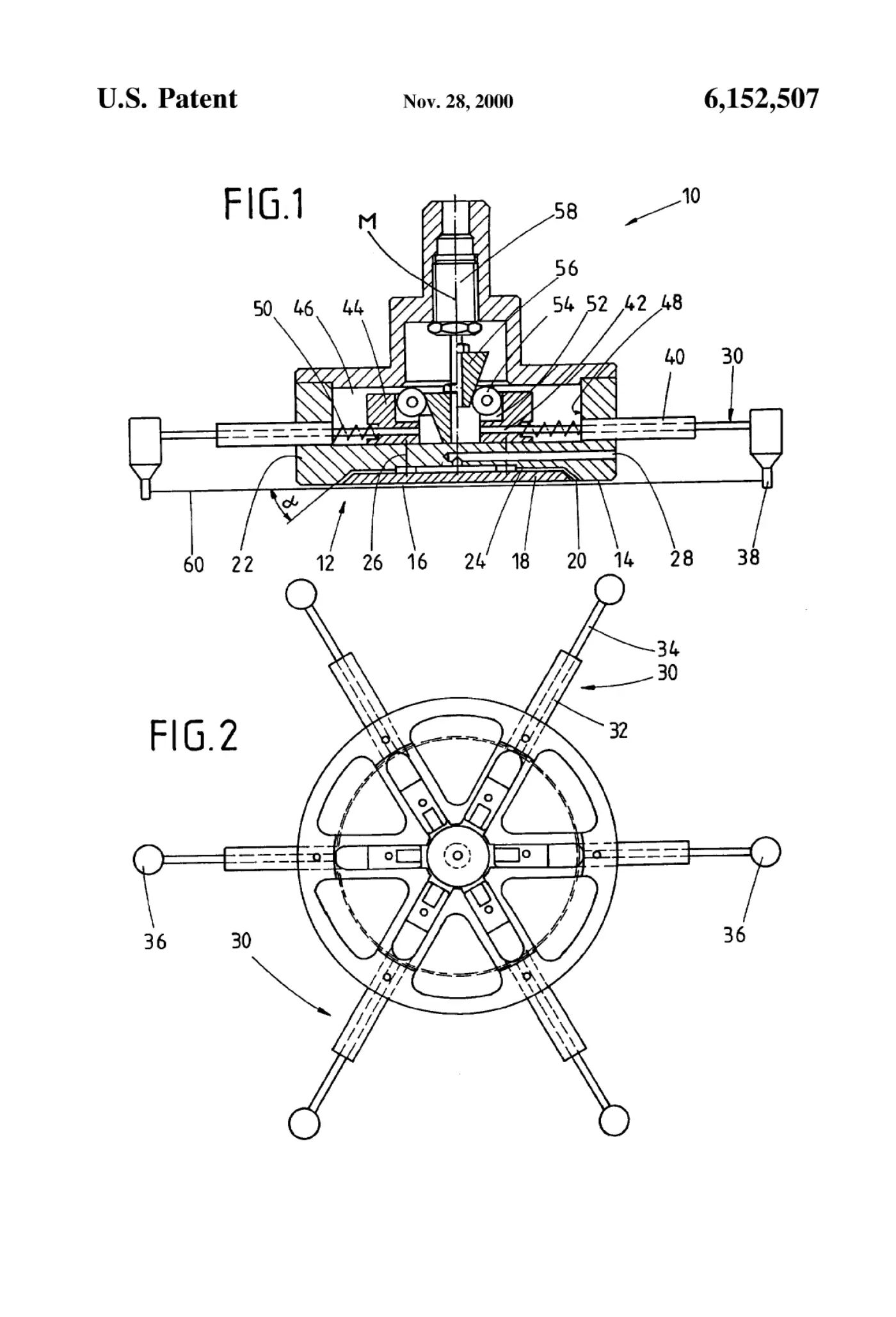

Sheet 1
Sheet 1

Abstract

A conveying device for thin disk-like articles (60), characterized by the llowing features: a support (10) having a plain surface (12), in the support (10) there is formed at least one gas channel (20) which channel, in running towards the plain surface in outwardly slanting manner, terminates at one of its ends in at least one gas outlet opening in the plain surface (12), the at least one gas channel being connectable to a gas supply pipe (28) at its other end, wherein at least three guiding arms (30) are disposed adjacent the at least one gas outlet opening(s) outside the at least one gas outlet opening and wherein the at least three guiding arms project beyond the plain surface (12) of the support (10) and are adjustable radially with respect to the plain surface (12).

1. Drawings

[0001]Sheet 1.
