Pole alarm system

A Pole Alarm System including an electromagnetic field sensor and collision sensors for detecting overhead power lines and physical obstructions within the intended path of a telescoping mast or utility boom device is disclosed. The present alarm system includes a mast-mounted housing containing the sensors and a microprocessor-based control unit which interprets the output signals of the sensors and provides both audible and. control feedback to a safety control module in the vehicle to alert the operator of impending contact and to automatically stop the movement of the mast. The alarm housing also features a light source which provides illumination in the direction of movement of the mast to assist in positioning thereof. The light source also functions as a heating element to prevent the accumulation of ice on the housing which would detrimentally affect the performance of the system. The alarm housing also includes a plurality of Tilt sensors which monitor the orientation of the mast to prevent mast extension if the device deviates from an acceptable range of operation. A system integrated safety control module mounted in the vehicle provides self-test functions and an error code display to alert the operator to the cause of an alarm signal.

Abstract

A Pole Alarm System including an electromagnetic field sensor and collision sensors for detecting overhead power lines and physical obstructions within the intended path of a telescoping mast or utility boom device is disclosed. The present alarm system includes a mast-mounted housing containing the sensors and a microprocessor-based control unit which interprets the output signals of the sensors and provides both audible and. control feedback to a safety control module in the vehicle to alert the operator of impending contact and to automatically stop the movement of the mast. The alarm housing also features a light source which provides illumination in the direction of movement of the mast to assist in positioning thereof. The light source also functions as a heating element to prevent the accumulation of ice on the housing which would detrimentally affect the performance of the system. The alarm housing also includes a plurality of Tilt sensors which monitor the orientation of the mast to prevent mast extension if the device deviates from an acceptable range of operation. A system integrated safety control module mounted in the vehicle provides self-test functions and an error code display to alert the operator to the cause of an alarm signal.

1. Drawings

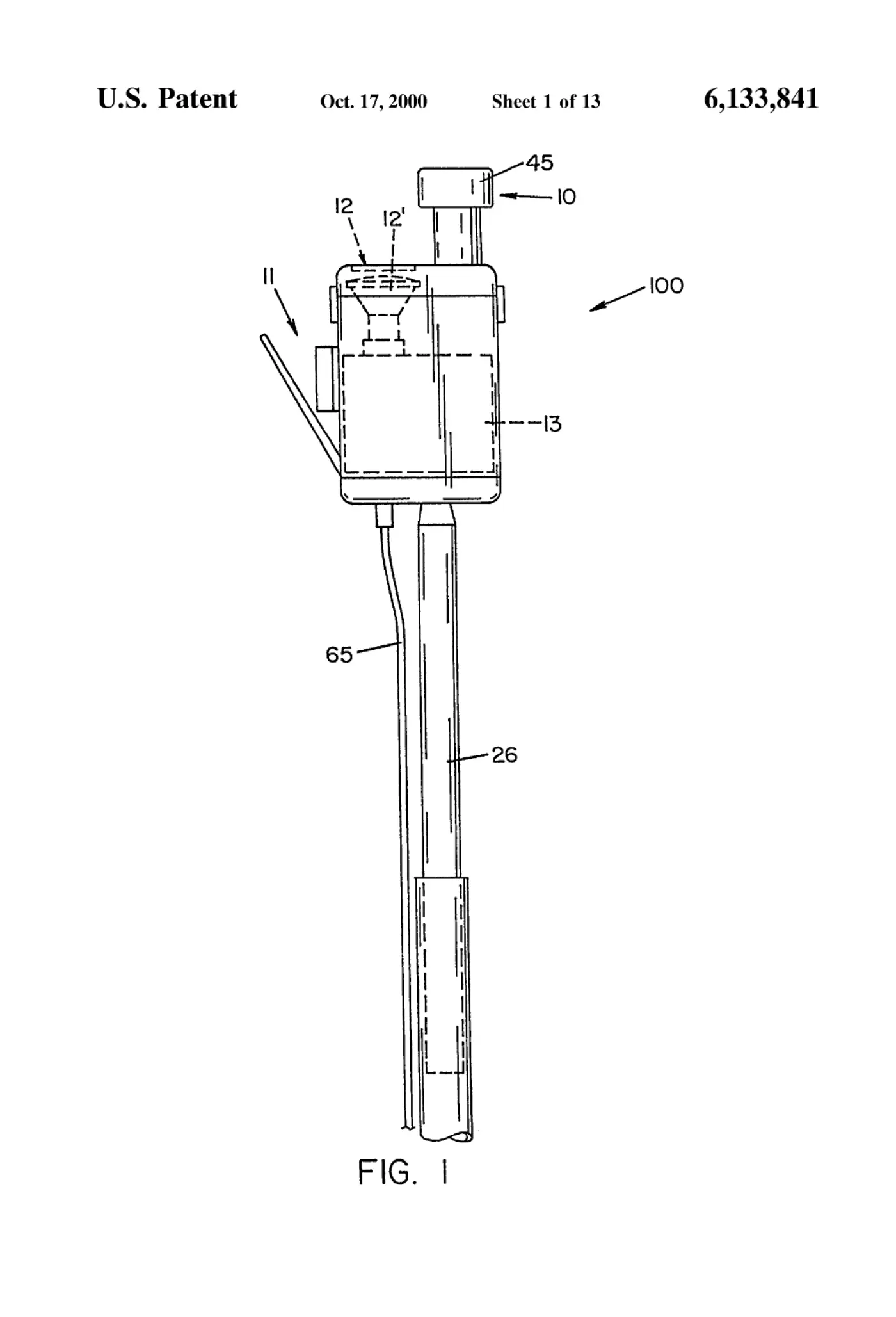

[0001]Sheet 1.

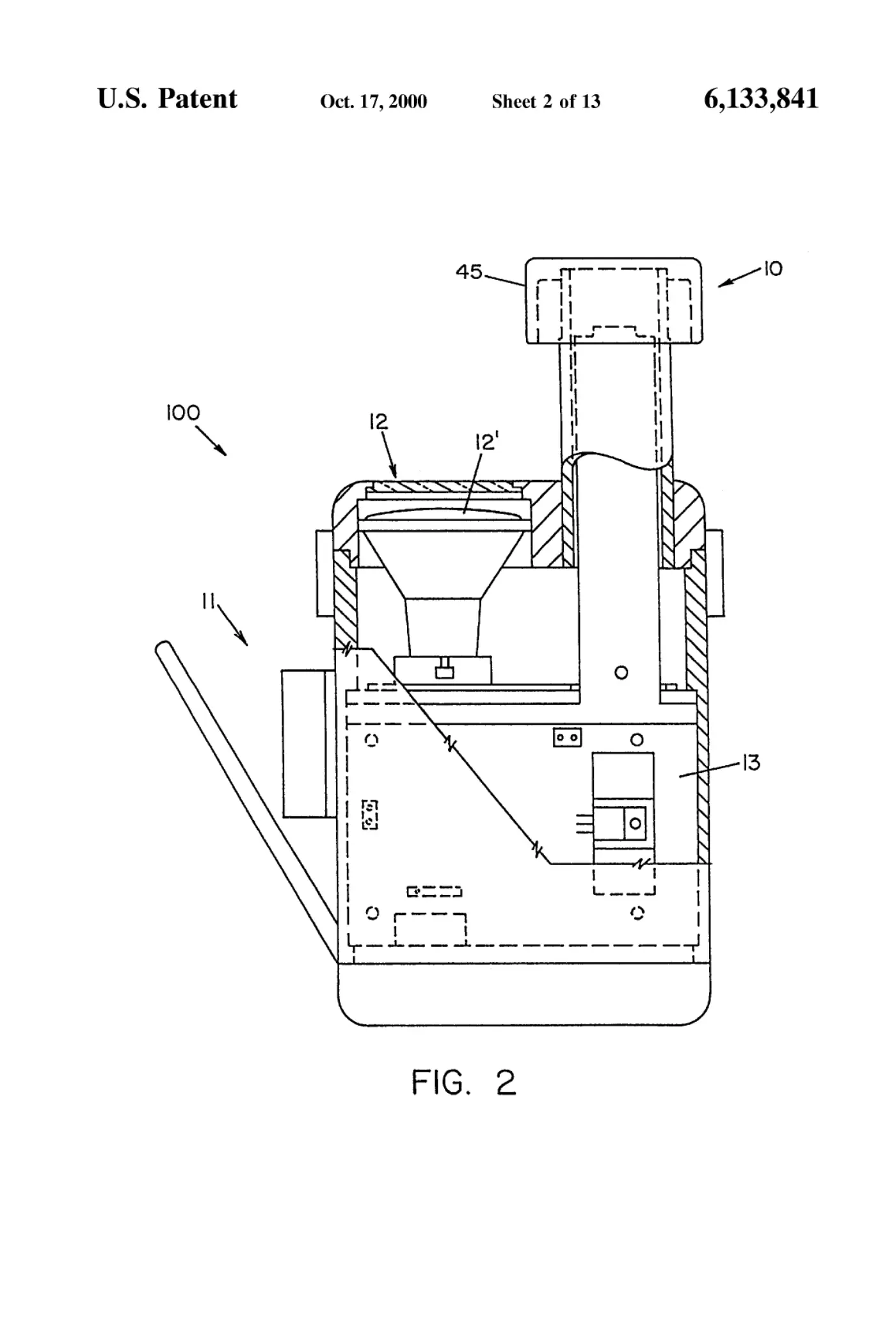

[0002]Sheet 2.

[0003]Sheet 3.

[0004]Sheet 4.

[0005]Sheet 5.

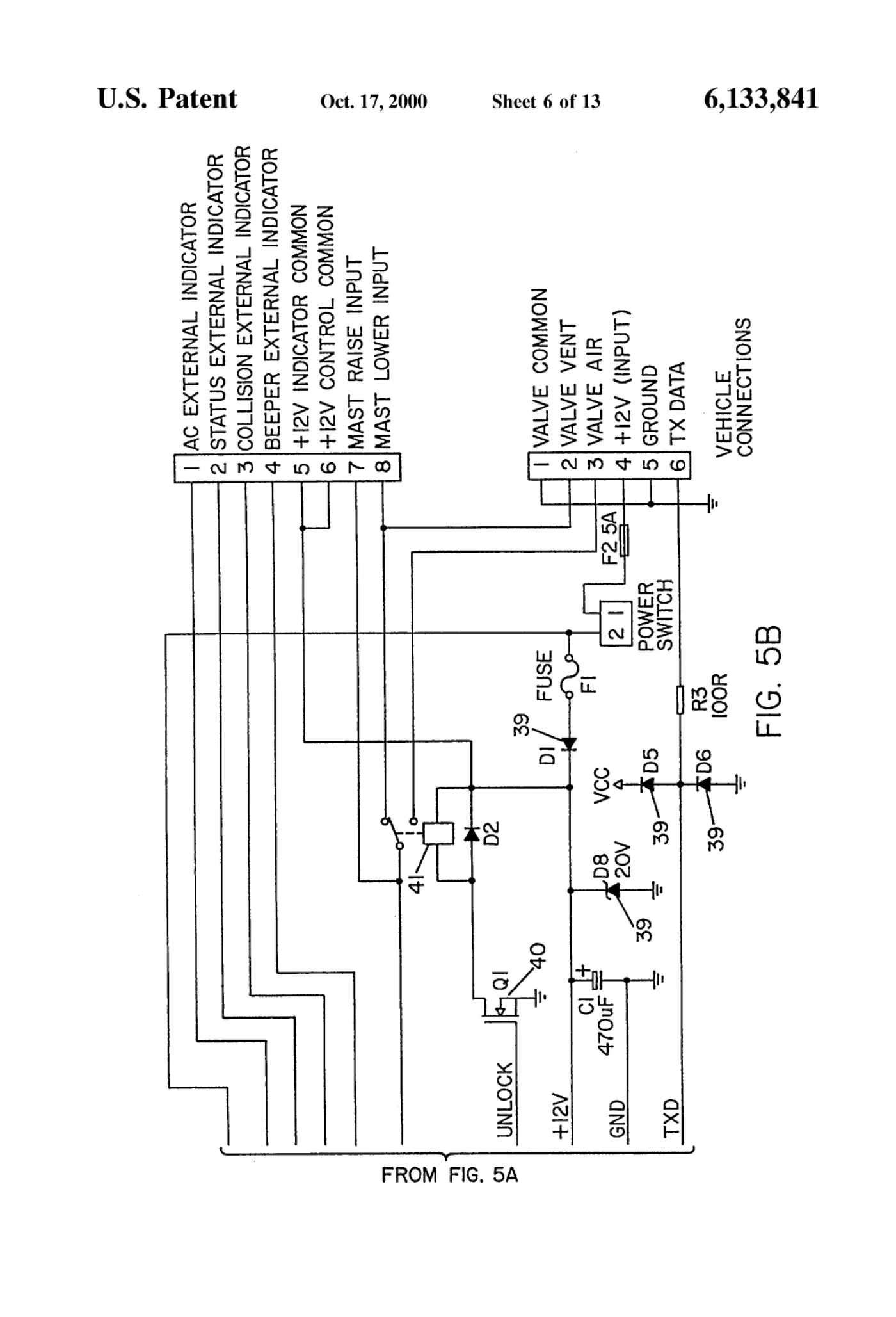

[0006]Sheet 6.

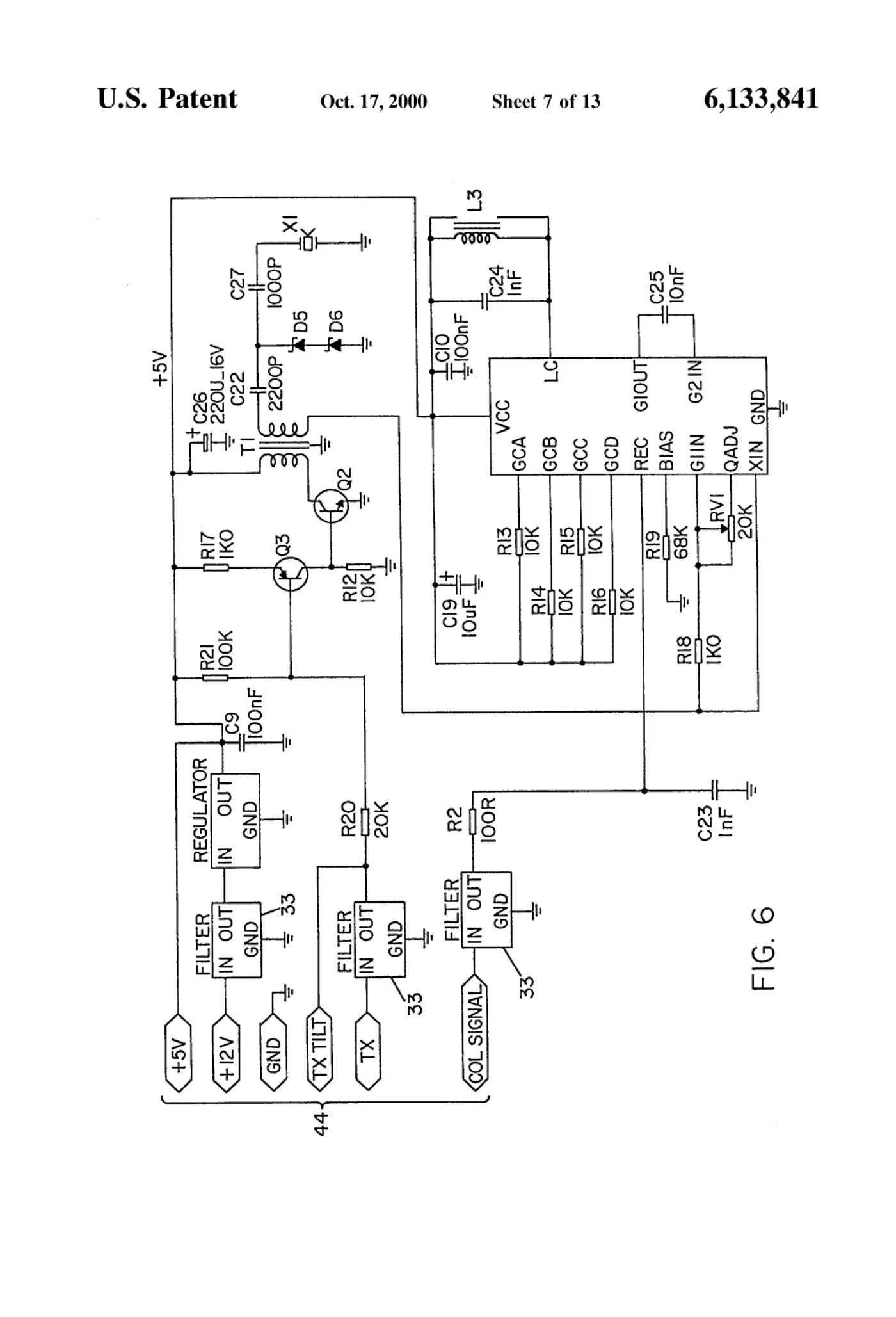

[0007]Sheet 7.

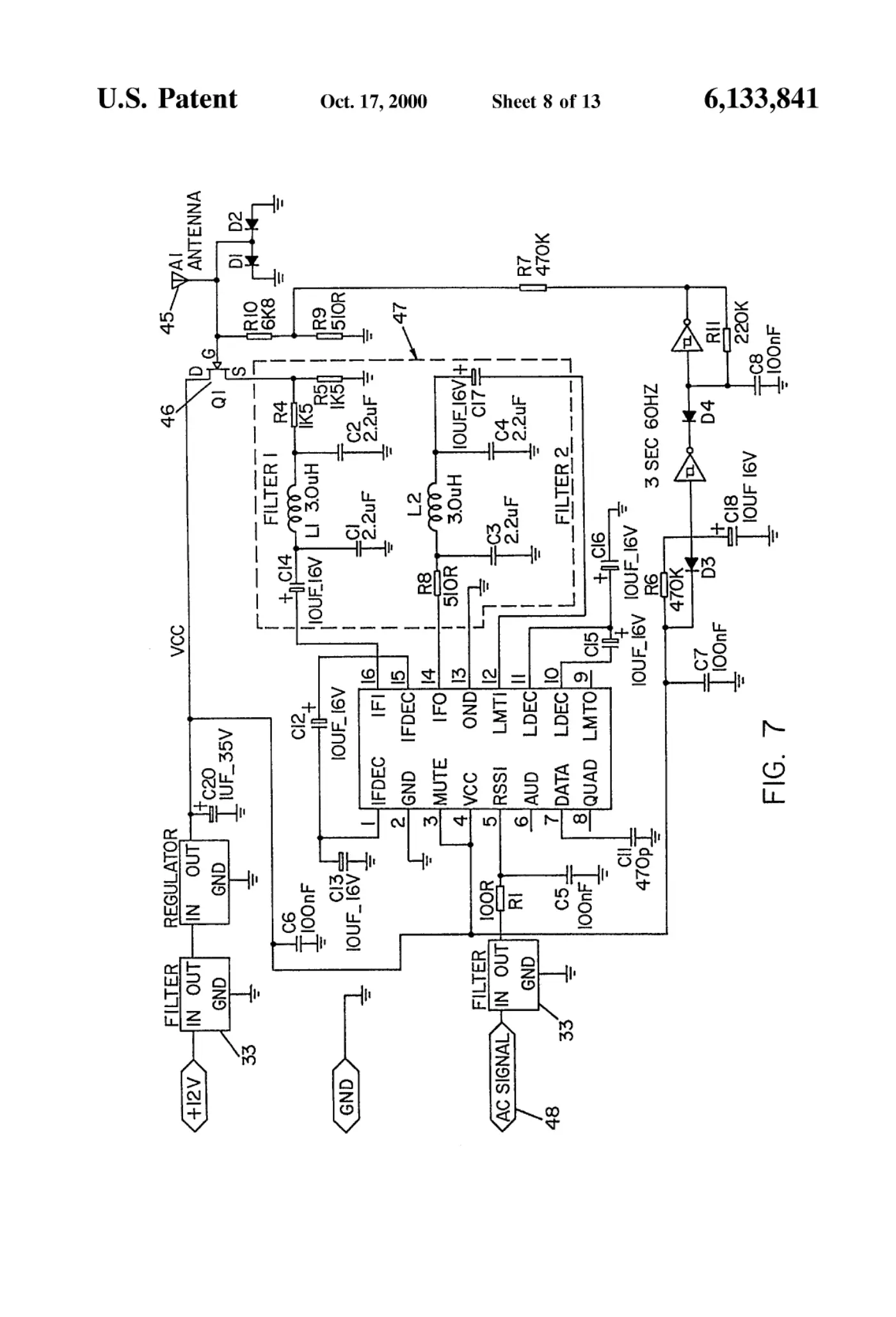

[0008]Sheet 8.

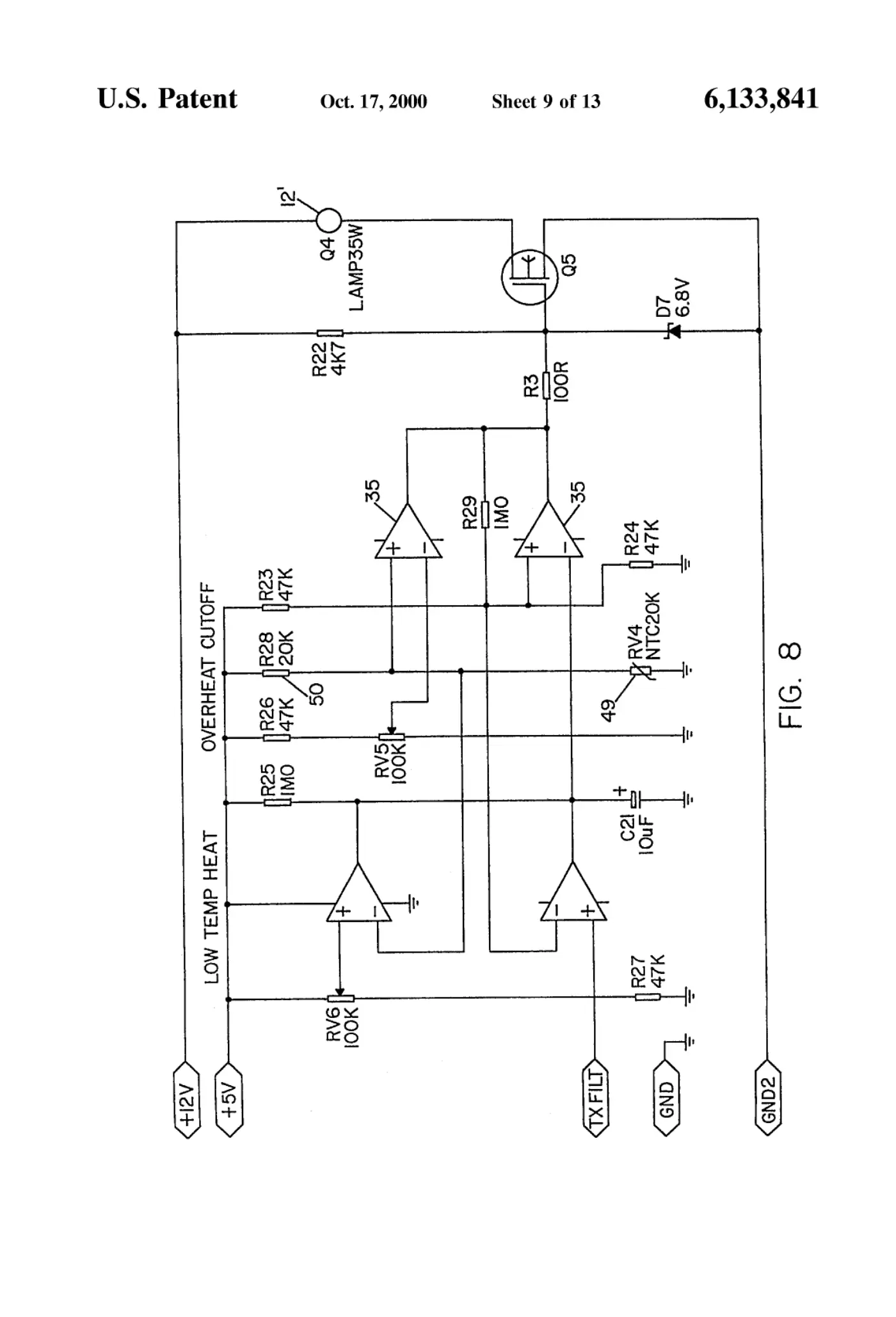

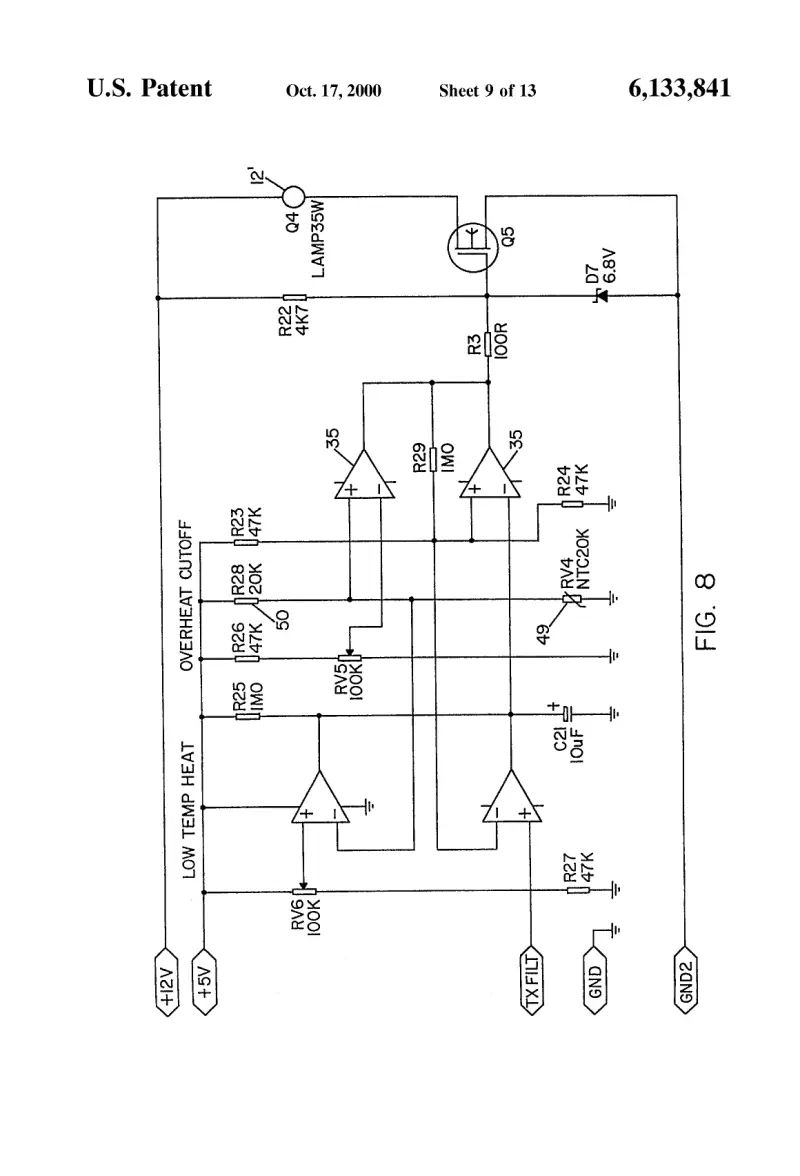

[0009]Sheet 9.

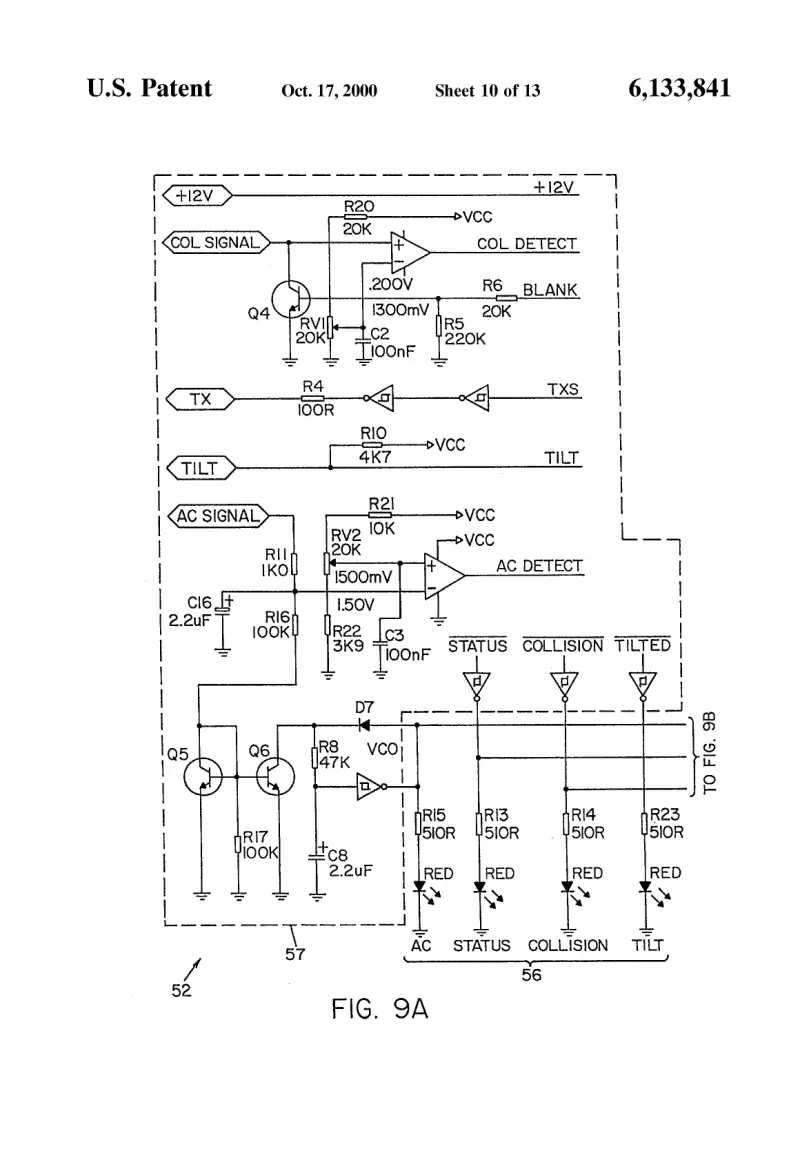

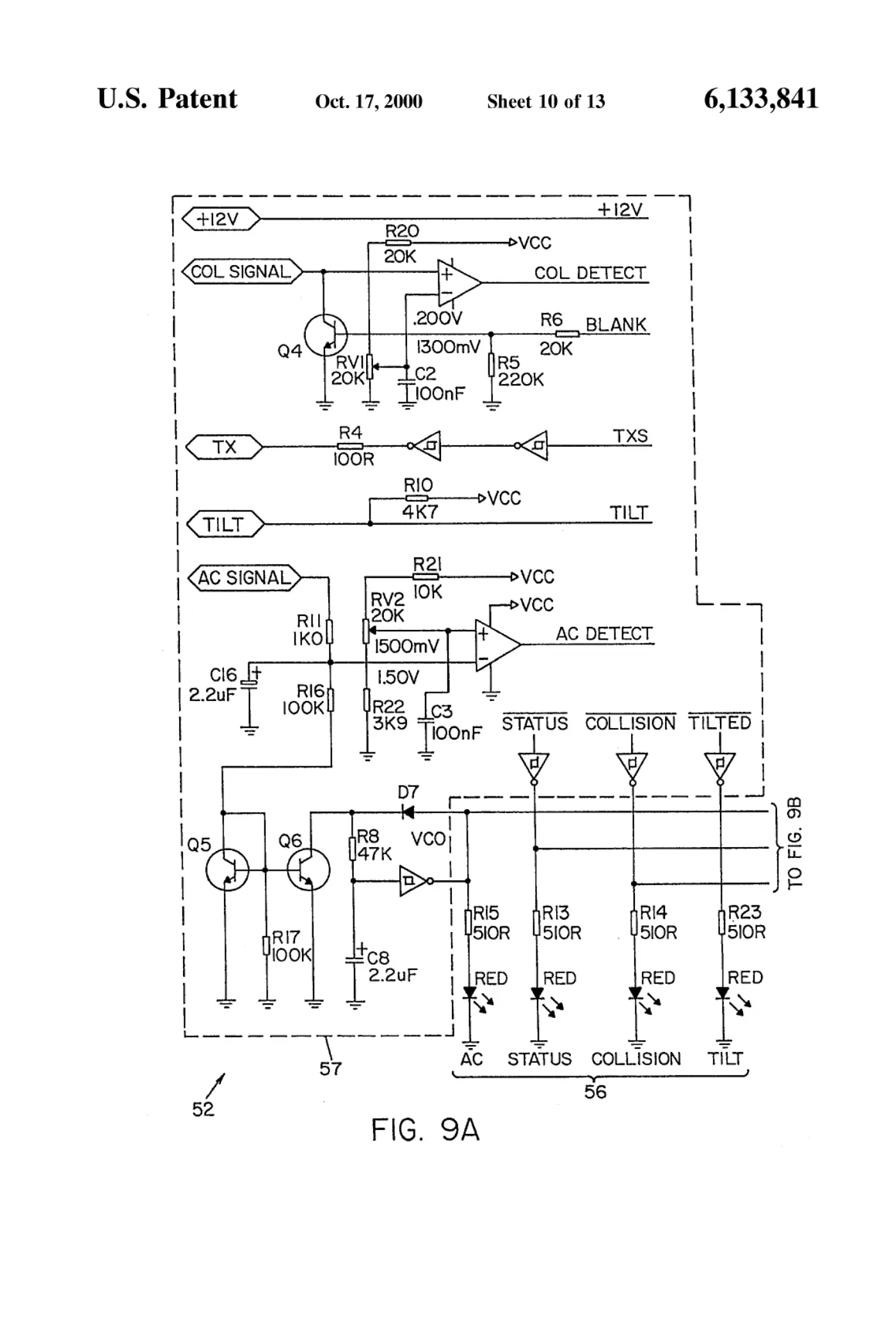

[0010]Sheet 10.
