Gripper for linear voice coil actuator

Published
Permanent URL
Classification
Robotics & Automation › Robot Architectures
Inventors
CHEN CHIA-TUNG, NEFF EDWARD A, NGUYEN NINH, PORTEGIES HANS, SIMUNOVIC TOMAS T, VU TOAN
Assignee
SMC CORP
Original source
US-6076875-A, the United States Patent and Trademark Office, 20 June 2000
Document SHA-256
ea287a38ca43679e359ab2c11d2b321100a42cbcf311242338eff037839a3f91

The, present invention is a gripper for use in combination with a machine for repositioning a component. Structurally, the present invention includes a housing formed with a chamber. A fixed-pole housing magnet is positioned inside of the chamber. A pair of grips are slidingly mounted for movement relative to the housing. Each grip is partially contained in the chamber and partially projects from the housing. An electromagnetic coil is attached to each grip. Functionally, the gripper is positioned with an assembly component between the grips. A separate electric current is then passed through each of the electromagnetic coils mounted on each of the respective grips. The electric current causes each electromagnetic coil to generate a magnetic field which interacts with the housing magnet. The interaction between the magnetic fields generated by the electromagnetic coils and the housing magnet creates a force on each grip, causing each grip to move translationally to hold, or squeeze, the component. The machine may then be utilized to reposition the gripper and the component.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3
Sheet 4
Sheet 4

Abstract

The, present invention is a gripper for use in combination with a machine for repositioning a component. Structurally, the present invention includes a housing formed with a chamber. A fixed-pole housing magnet is positioned inside of the chamber. A pair of grips are slidingly mounted for movement relative to the housing. Each grip is partially contained in the chamber and partially projects from the housing. An electromagnetic coil is attached to each grip. Functionally, the gripper is positioned with an assembly component between the grips. A separate electric current is then passed through each of the electromagnetic coils mounted on each of the respective grips. The electric current causes each electromagnetic coil to generate a magnetic field which interacts with the housing magnet. The interaction between the magnetic fields generated by the electromagnetic coils and the housing magnet creates a force on each grip, causing each grip to move translationally to hold, or squeeze, the component. The machine may then be utilized to reposition the gripper and the component.

1. Drawings

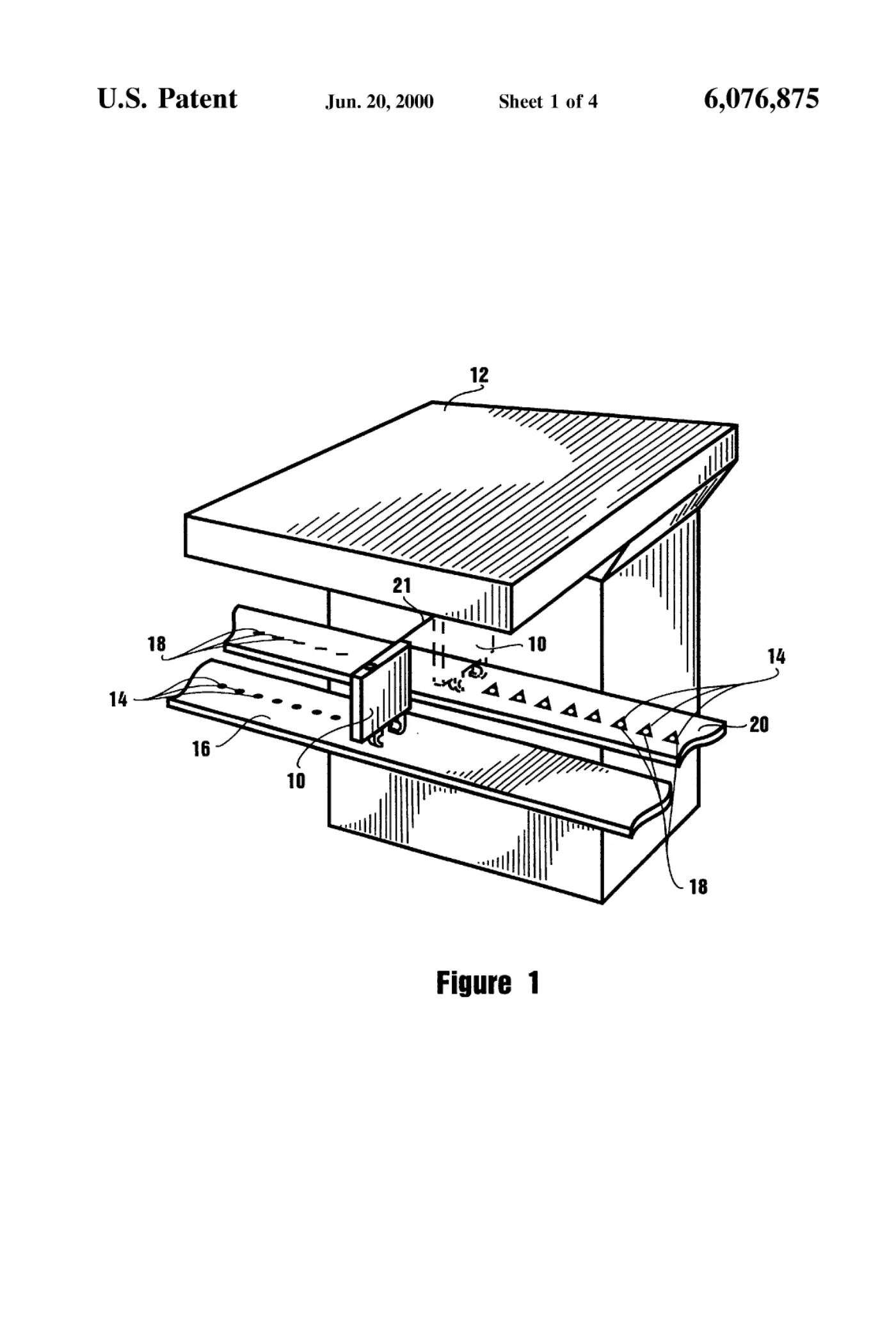

[0001]Sheet 1.

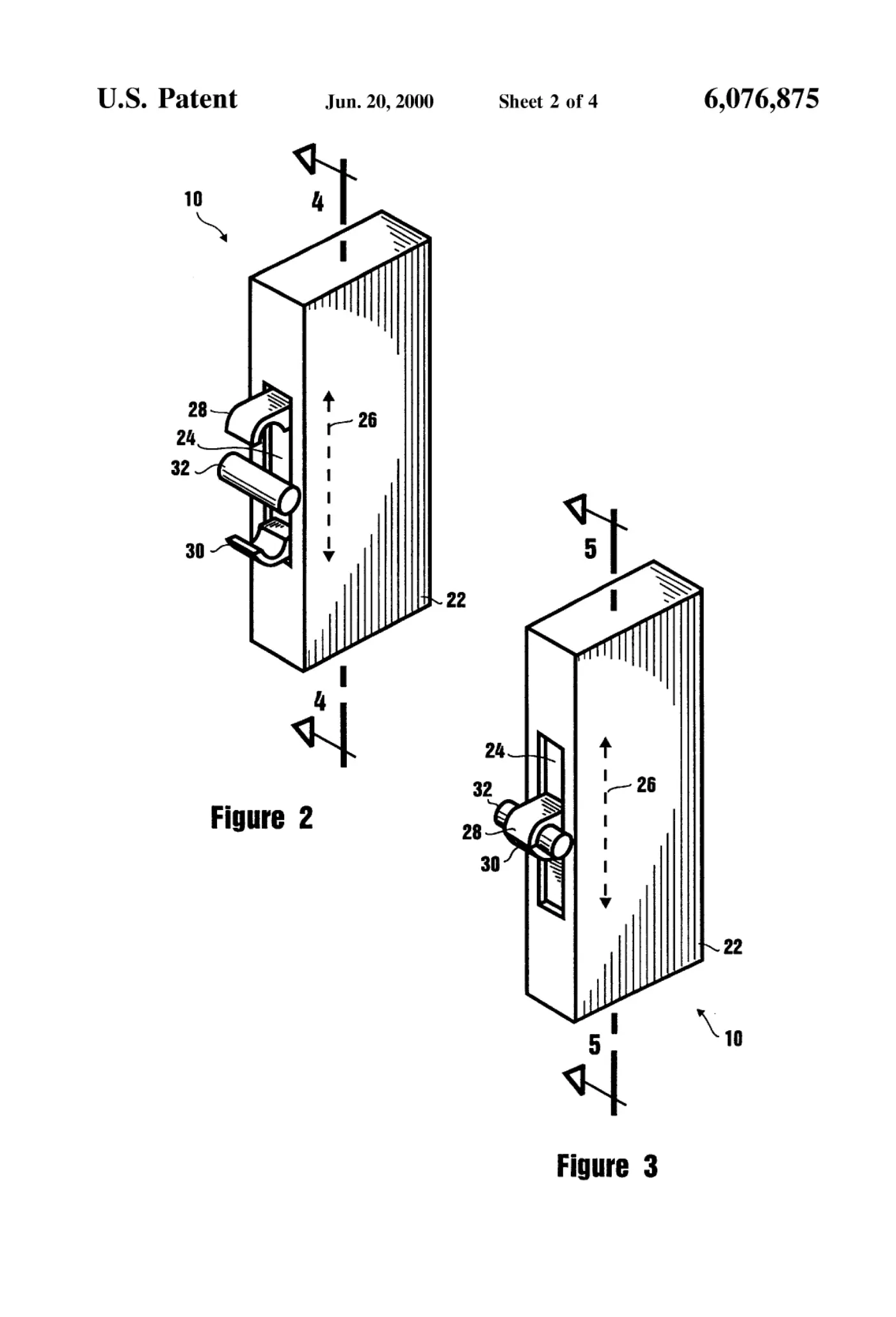

[0002]Sheet 2.

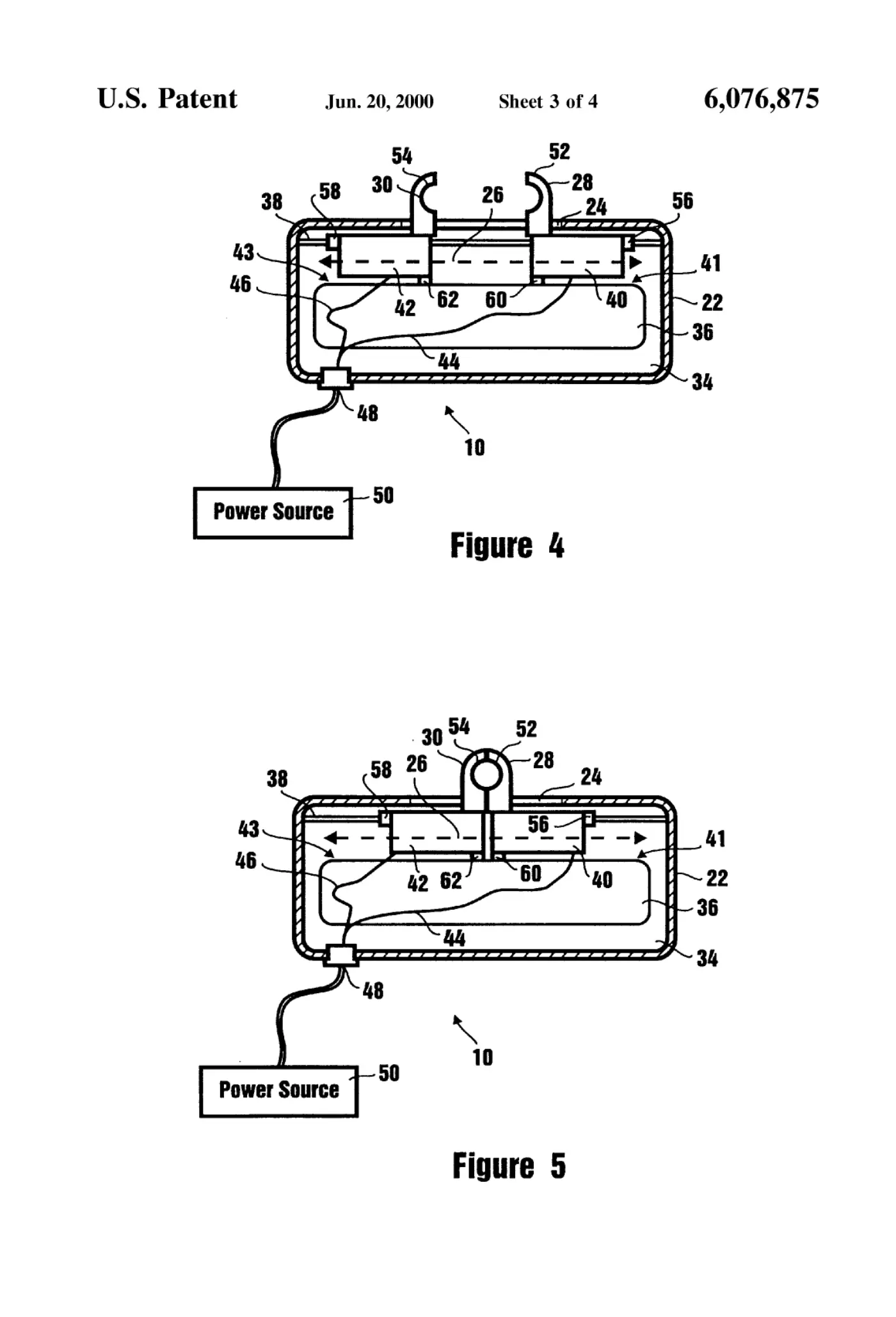

[0003]Sheet 3.

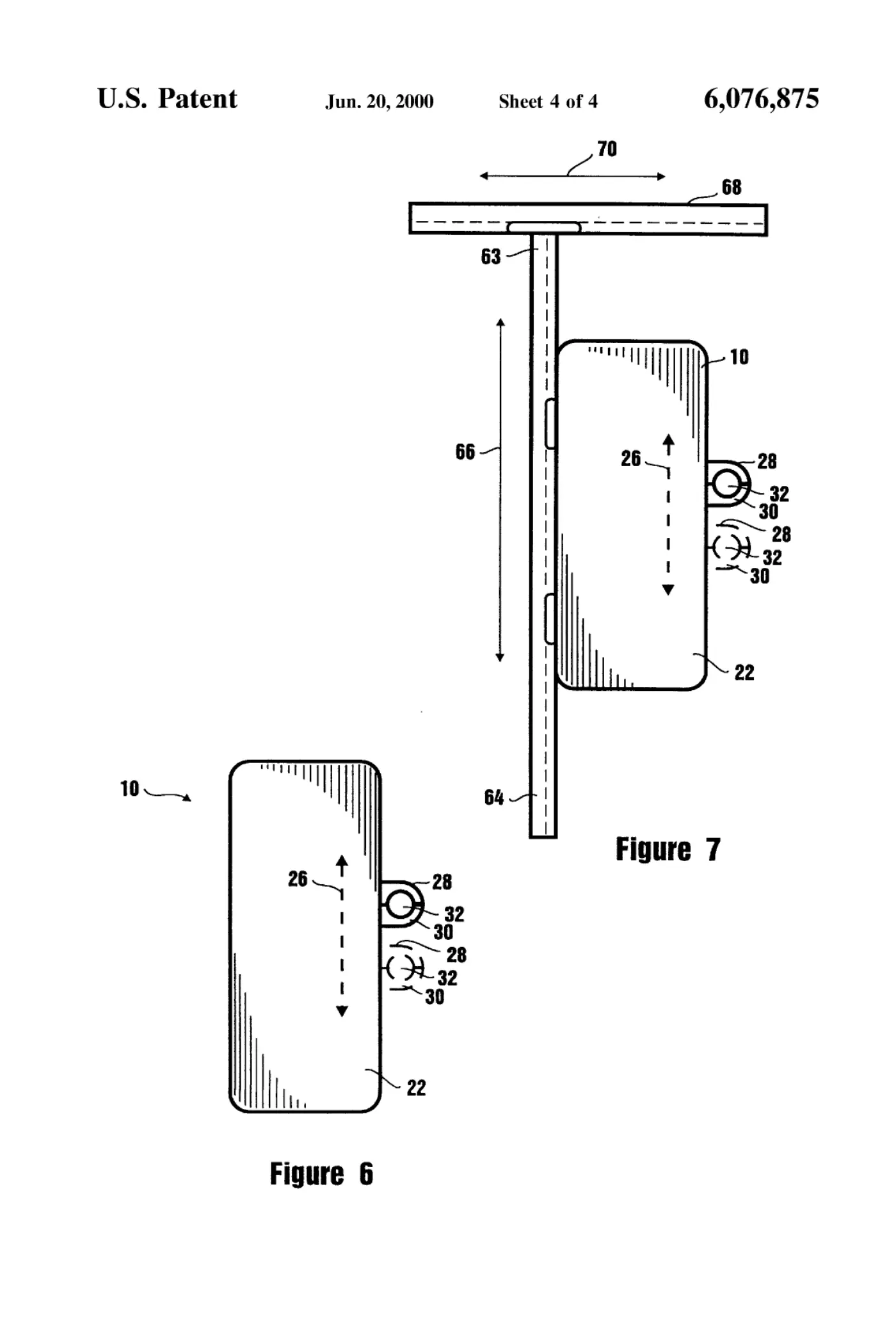

[0004]Sheet 4.
