Vacuum based lifter device for displacement of an article

Published
Permanent URL
Classification
Lifting, Positioning & Manipulation › Lift Tables and Positioners
Assignee
HEGNA LIFT AS
Original source
US-6024529-A, the United States Patent and Trademark Office, 15 February 2000
Document SHA-256
98fe0e25e768370feb1e39a6c63e62f17e22205330483d7680b250ed5d955747

A vacuum based lifter device is provided for displacement of an article. At least one suction plate or suction cup is designed for connection to and disconnection from a vacuum source. The suction plate or suction cup is secured to equipment in order to be able to move it together with or relative to the article which is to be displaced. The device has a pallet-like structure into which fork members mounted on a fork-lift truck can be inserted. Parts of the structure define a vacuum chamber, a vacuum source having an electrically driven vacuum pump provided on the pallet-like structure and pneumatically connected to the vacuum chamber, and a mechanically or electrically controllable stop and release valve. The release valve is pneumatically coupled between the vacuum chamber and the suction plate or suction cup.

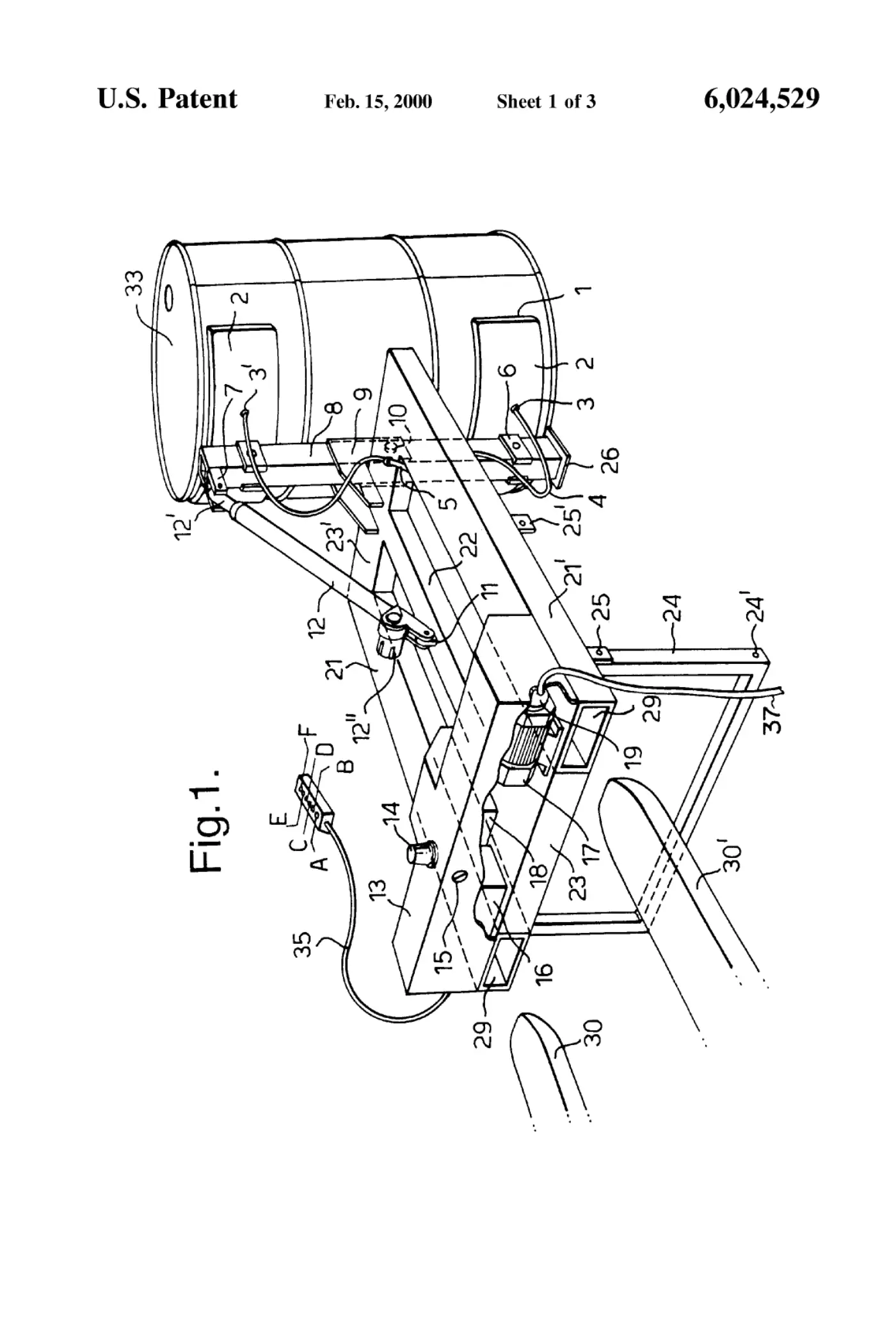

Sheet 1
Sheet 1

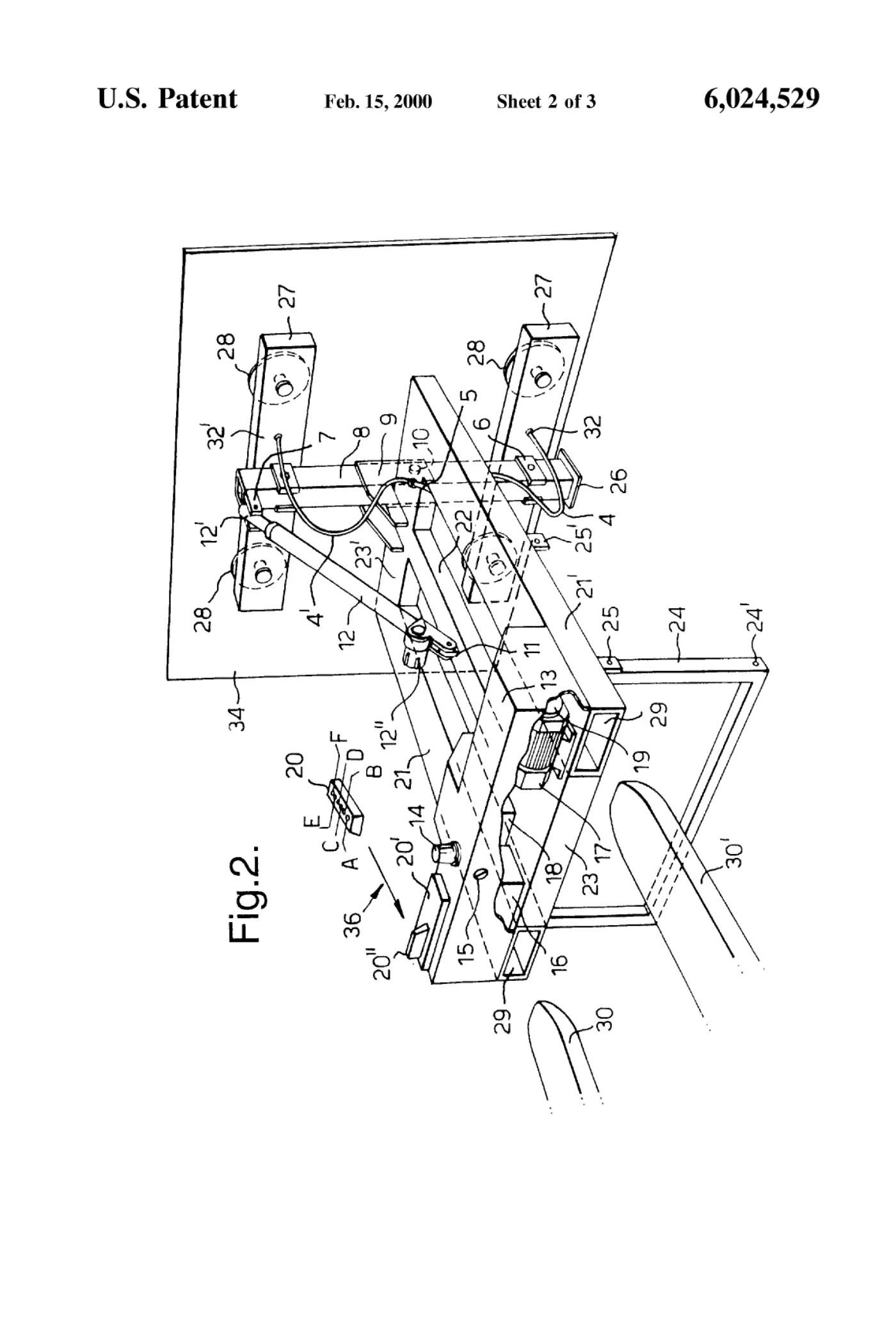

Sheet 2
Sheet 2

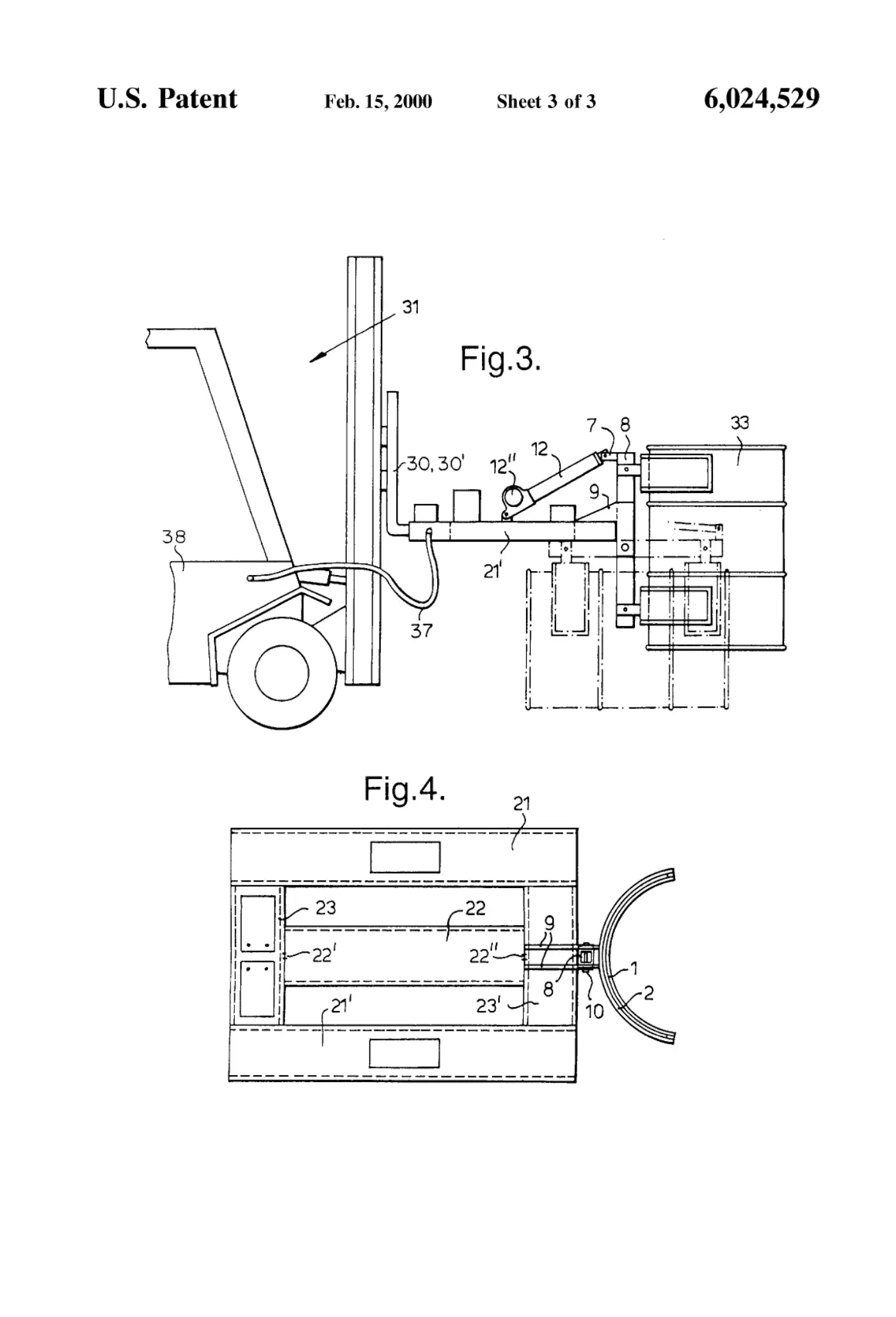

Sheet 3
Sheet 3

Abstract

A vacuum based lifter device is provided for displacement of an article. At least one suction plate or suction cup is designed for connection to and disconnection from a vacuum source. The suction plate or suction cup is secured to equipment in order to be able to move it together with or relative to the article which is to be displaced. The device has a pallet-like structure into which fork members mounted on a fork-lift truck can be inserted. Parts of the structure define a vacuum chamber, a vacuum source having an electrically driven vacuum pump provided on the pallet-like structure and pneumatically connected to the vacuum chamber, and a mechanically or electrically controllable stop and release valve. The release valve is pneumatically coupled between the vacuum chamber and the suction plate or suction cup.

1. Drawings

[0001]Sheet 1.

[0002]Sheet 2.

[0003]Sheet 3.
