Tractor hydraulic grabbing tool

Published
Permanent URL
Classification
Lifting, Positioning & Manipulation › Hoists and Cranes
Original source
US-6010294-A, the United States Patent and Trademark Office, 4 January 2000
Document SHA-256
612e2081b0e70bbc093a876c82ffc136a23d6b7409f9050bd1ef593d9076358d

The present invention comprises a tractor tool that attaches to and detaches from a tractor frame easily. In one embodiment, as few as four bolts and two actuator control couplings are used to mount the inventive tool to a tractor. The inventive tractor attachment tool is capable of grasping and lifting a heavy or awkward object, moving it to a new location, and setting it down without the tractor operator leaving the tractor controls. The object may be simply or oddly shaped, and it may be moved to a location that requires it to be lifted over a barrier like a wall. Small trees, bushes, piles of vegetative matter, or fence posts can be pulled from the ground and moved to a rubble or debris bin for hauling. The tool is comprised of a metal frame having two jaw members that open and close in a scissor-like fashion. The jaw members are opened and closed by jaw actuators, controlled by the tractor operator sitting on the tractor. Using the inventive attachment, a tractor operator can grab an item lying in a field, lift it, rotate it, and deposit it in a bin that is located, for example, behind a wall without the operator having to leave the tractor cab.

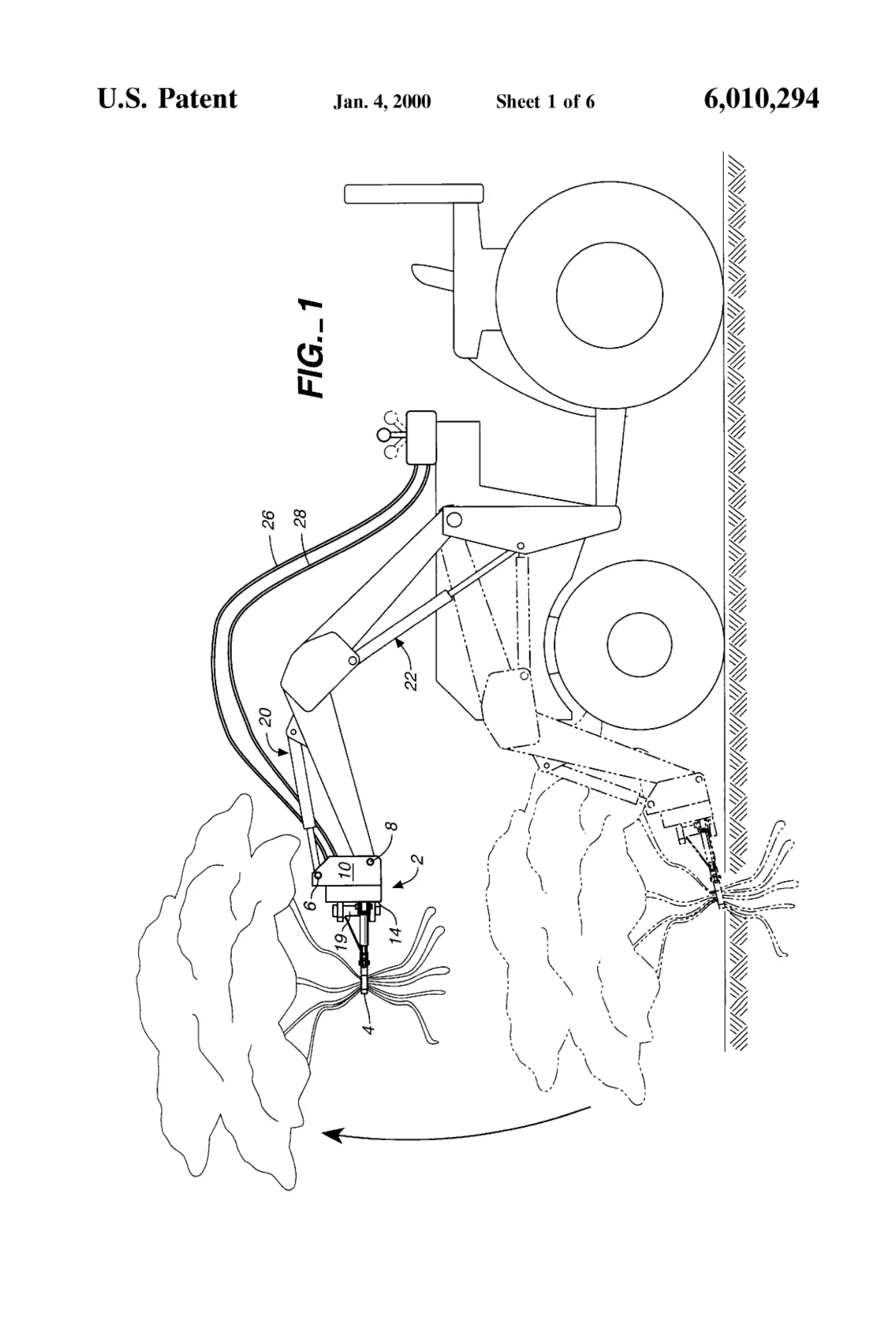

Sheet 1
Sheet 1

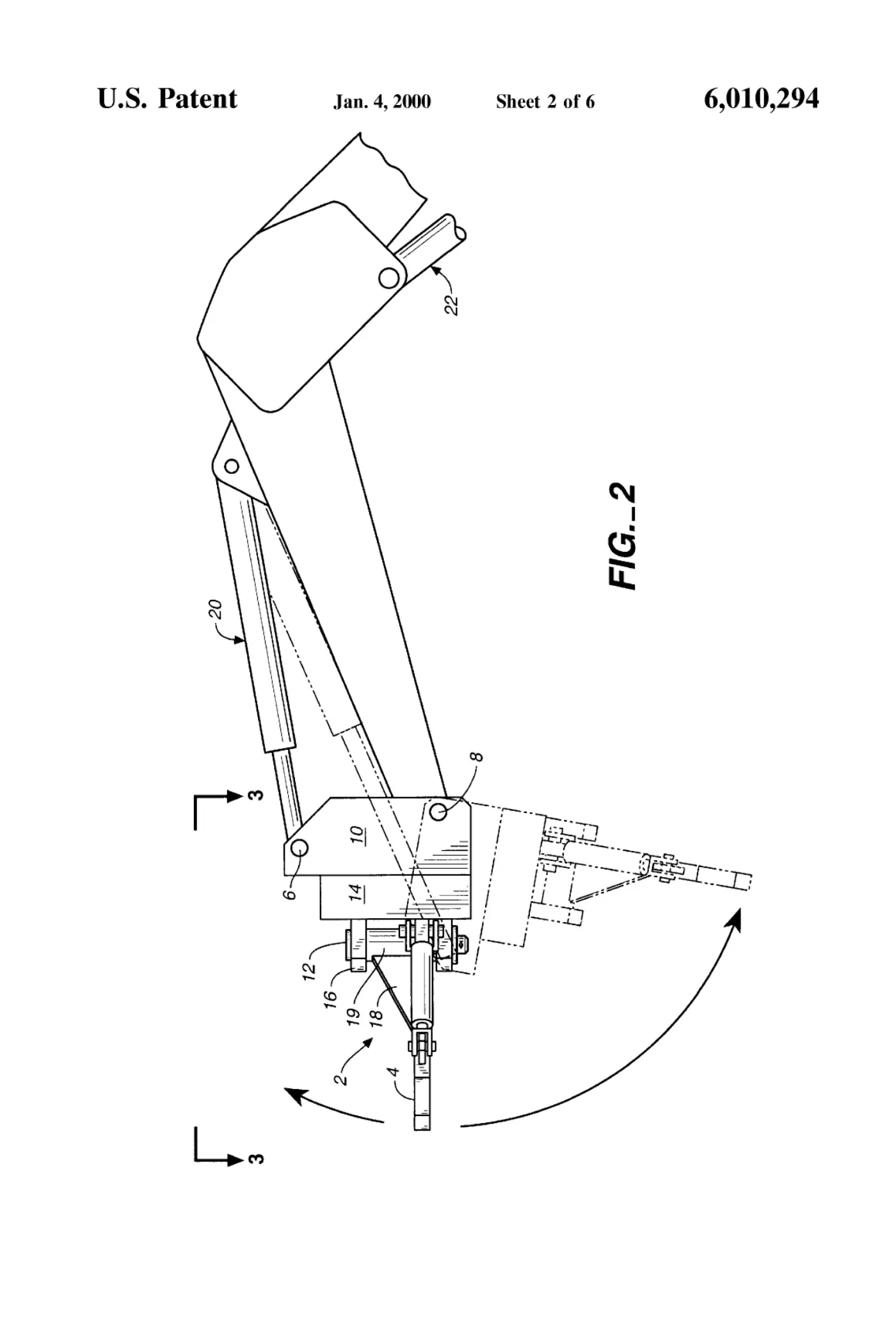

Sheet 2
Sheet 2

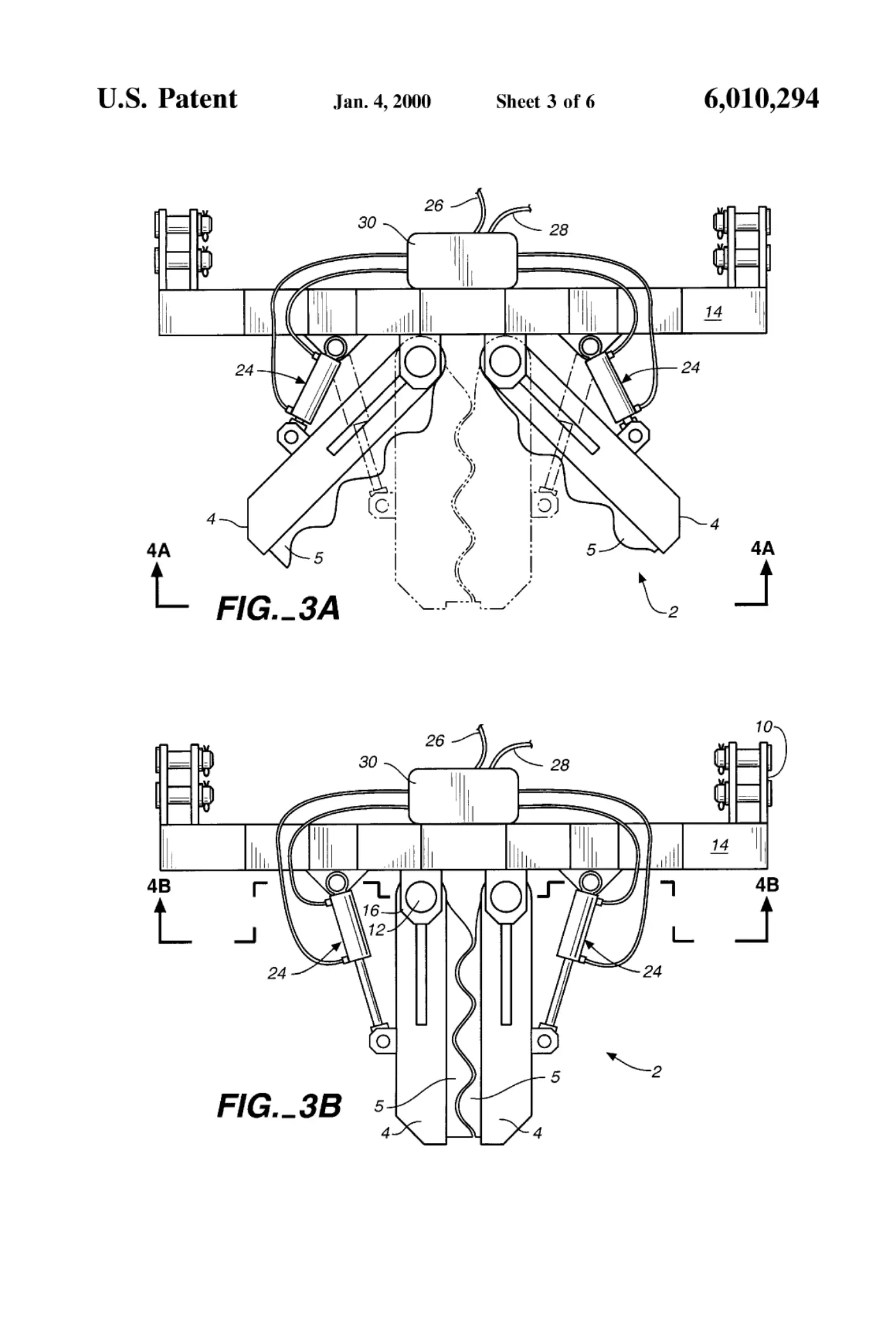

Sheet 3
Sheet 3

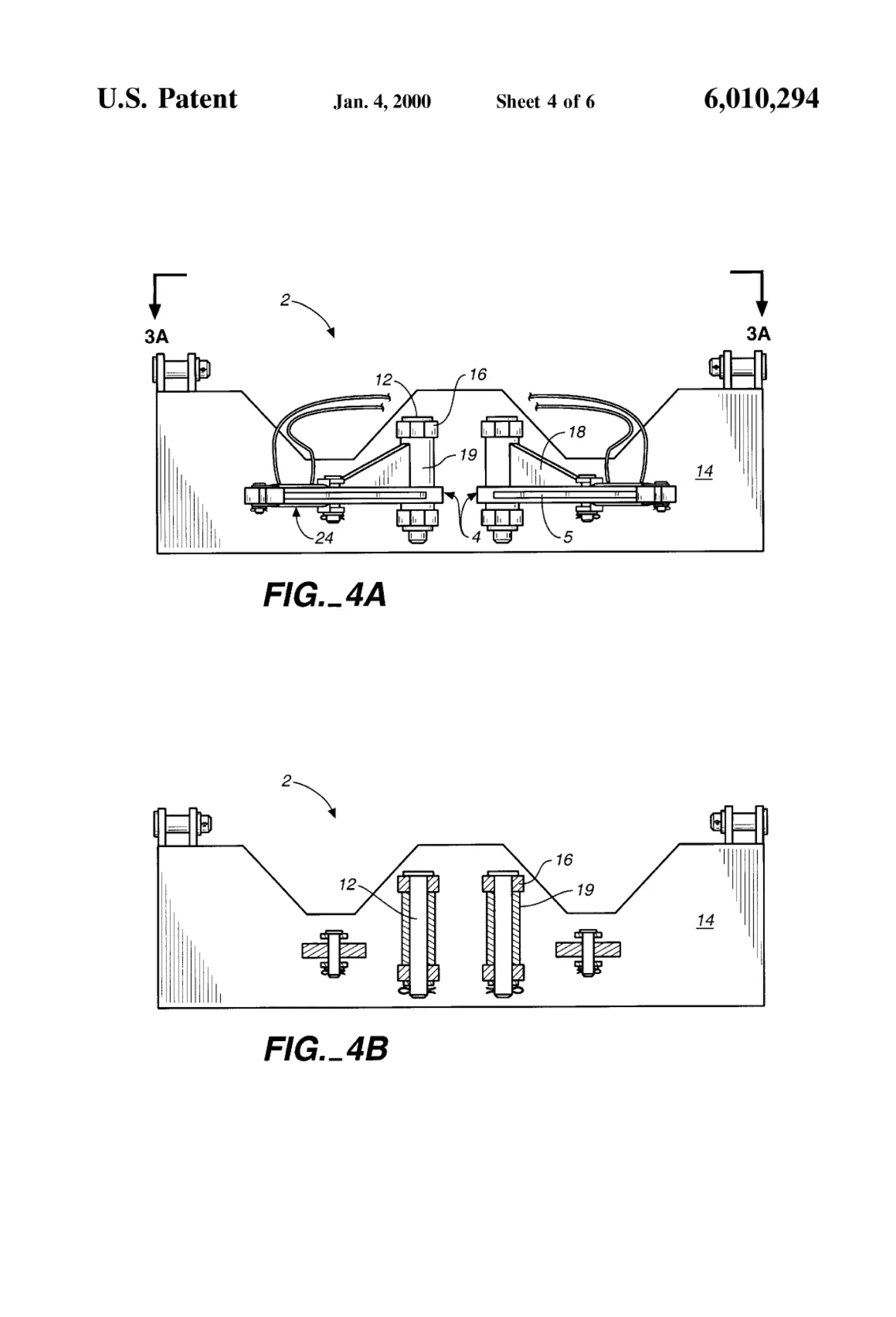

Sheet 4
Sheet 4

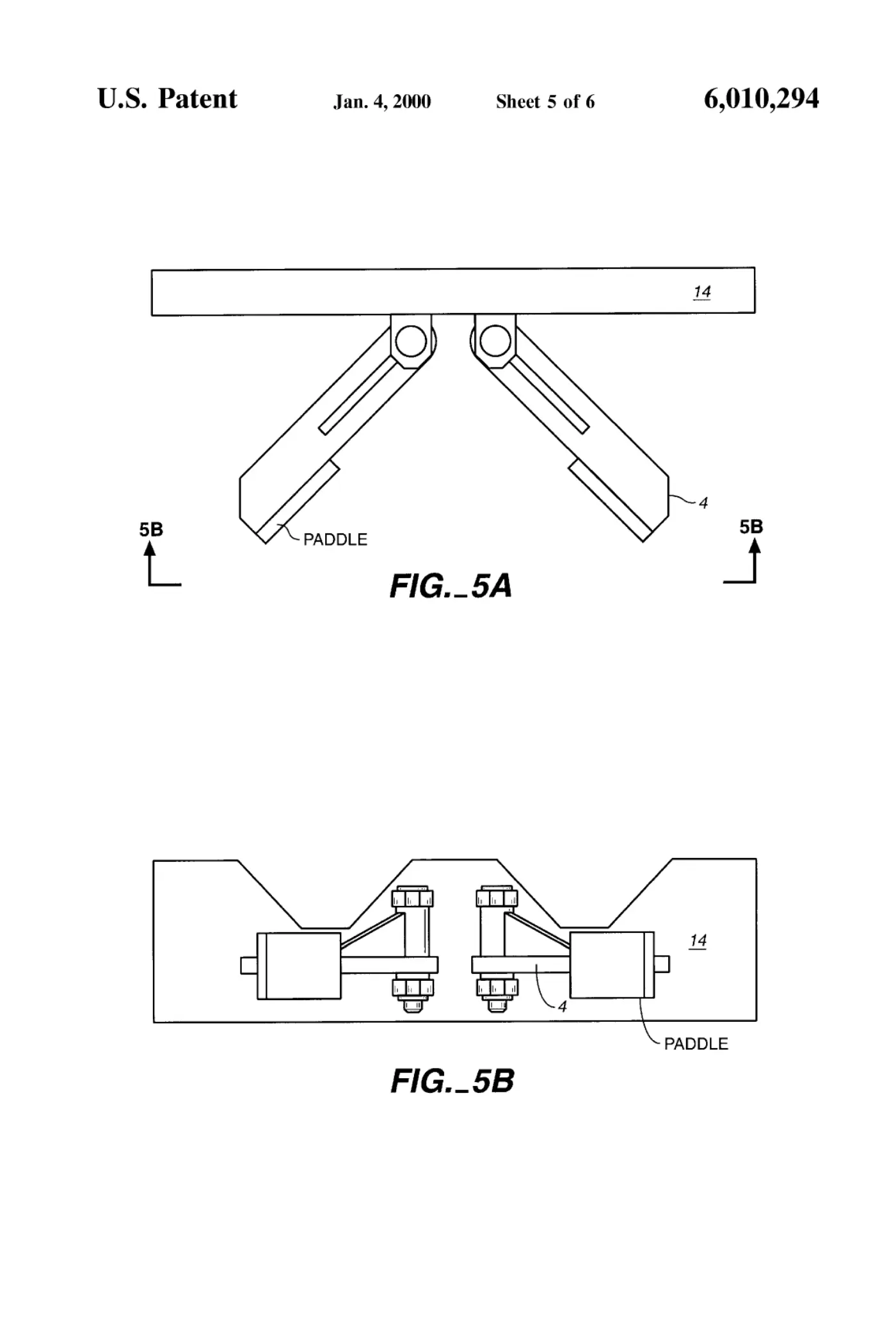

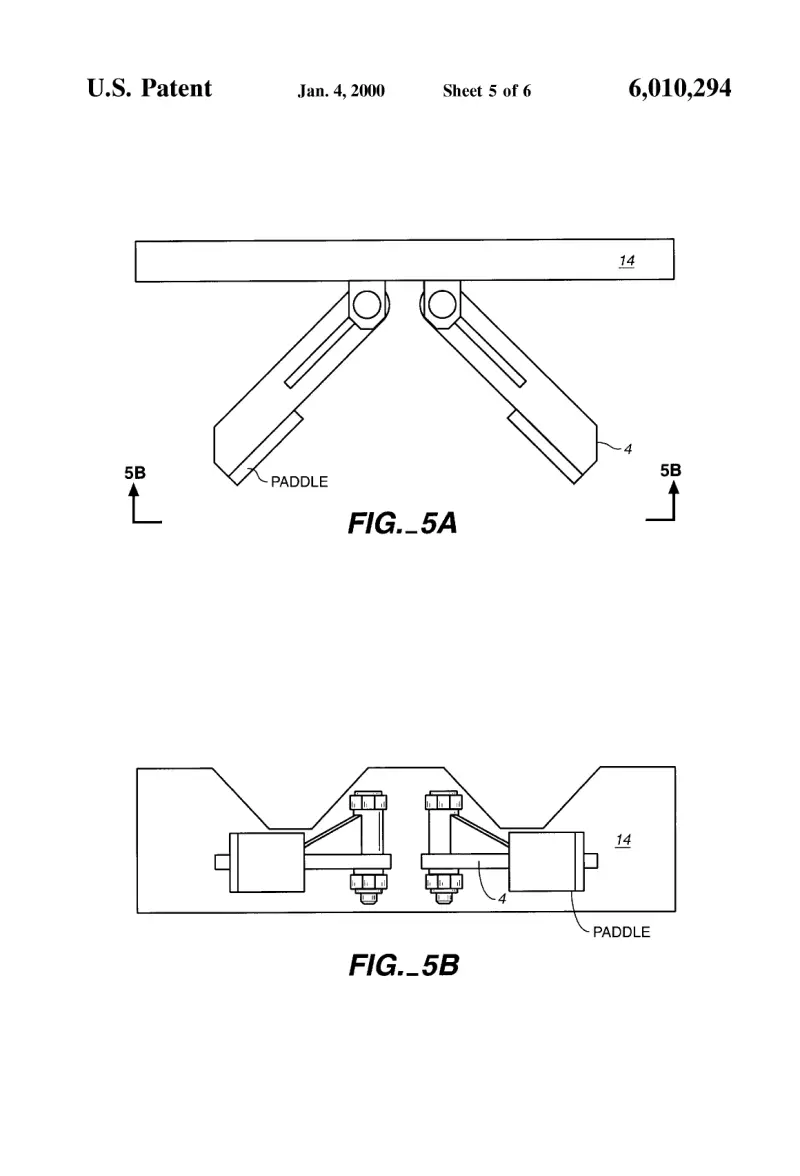

Sheet 5
Sheet 5

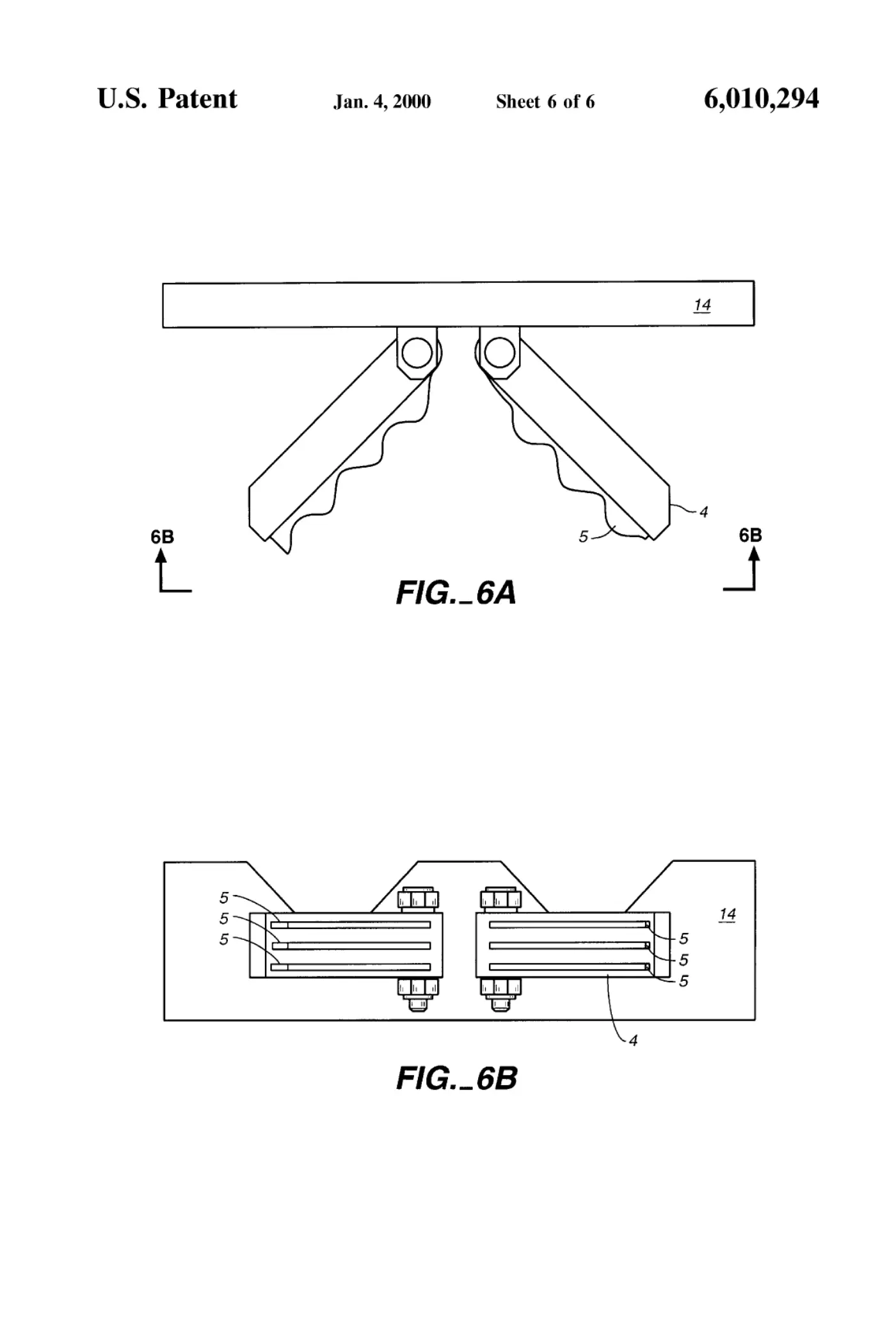

Sheet 6
Sheet 6

Abstract

The present invention comprises a tractor tool that attaches to and detaches from a tractor frame easily. In one embodiment, as few as four bolts and two actuator control couplings are used to mount the inventive tool to a tractor. The inventive tractor attachment tool is capable of grasping and lifting a heavy or awkward object, moving it to a new location, and setting it down without the tractor operator leaving the tractor controls. The object may be simply or oddly shaped, and it may be moved to a location that requires it to be lifted over a barrier like a wall. Small trees, bushes, piles of vegetative matter, or fence posts can be pulled from the ground and moved to a rubble or debris bin for hauling. The tool is comprised of a metal frame having two jaw members that open and close in a scissor-like fashion. The jaw members are opened and closed by jaw actuators, controlled by the tractor operator sitting on the tractor. Using the inventive attachment, a tractor operator can grab an item lying in a field, lift it, rotate it, and deposit it in a bin that is located, for example, behind a wall without the operator having to leave the tractor cab.

1. Drawings

[0001]Sheet 1.

[0002]Sheet 2.

[0003]Sheet 3.

[0004]Sheet 4.

[0005]Sheet 5.

[0006]Sheet 6.
