Supporting cross-beam for vacuum hold-down tables designed to hold in place panels, in particular wooden panels

Published
Permanent URL
Classification
Manufacturing & Assembly Equipment › Machining Systems
Inventors
GEMMANI GIUSEPPE
Assignee
SCM GROUP SPA
Original source
US-5971381-A, the United States Patent and Trademark Office, 26 October 1999
Document SHA-256
b9dd65da64f65ab6a9622a28247e18fec3c6e8fb4baef7800caff43446dc175a

A cross-beam for a vacuum hold-down table formed by a monoblock section upon which a vacuum hold-down table is fitted and movable on slides. The monoblock section houses a first tubular chamber which extends along its length and is connected to external vacuum source. A part of the first chamber has an opening on which a magnetic seal with a plurality of evenly distributed holes is placed and fitted over this seal on the outside of the monoblock section first chamber is a deformable strip of magnetic material which is movable from one position which closes the first chamber to another position which opens the said chamber during the passage of a deflector unit on the strip which is fixed to the vacuum hold-down table and connects the first chamber and vacuum hold-down table at any point on the monoblock section.

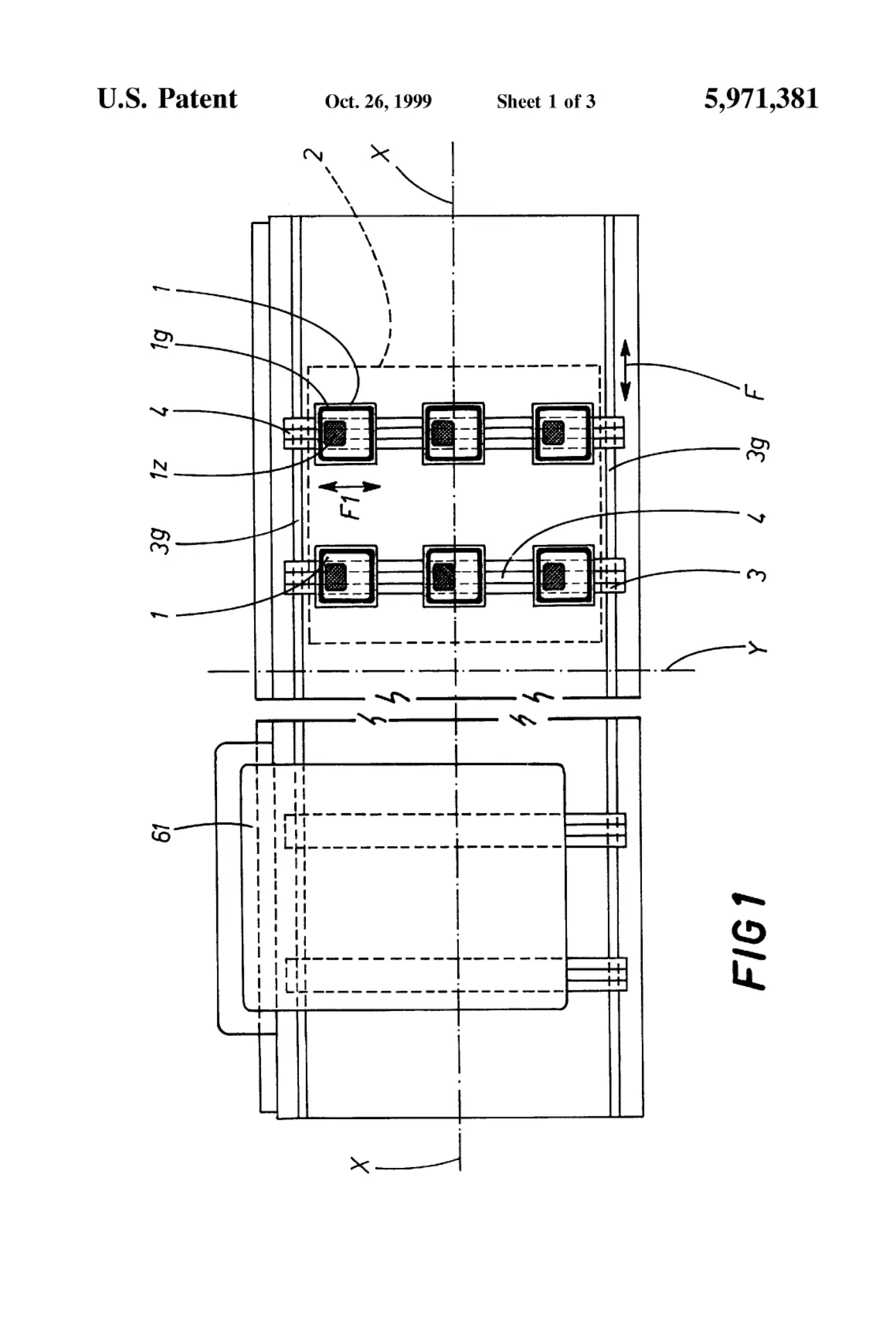

Sheet 1
Sheet 1

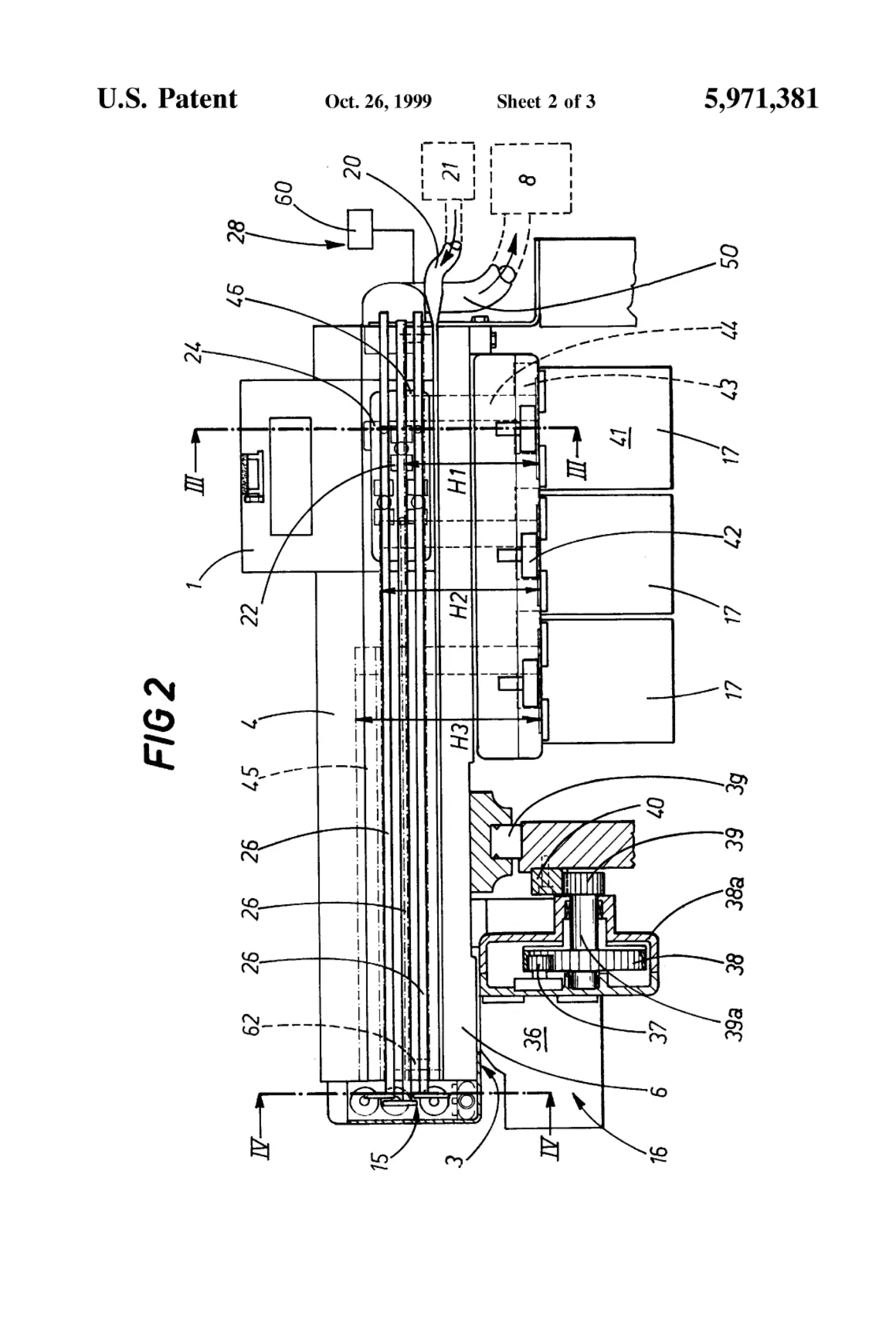

Sheet 2
Sheet 2

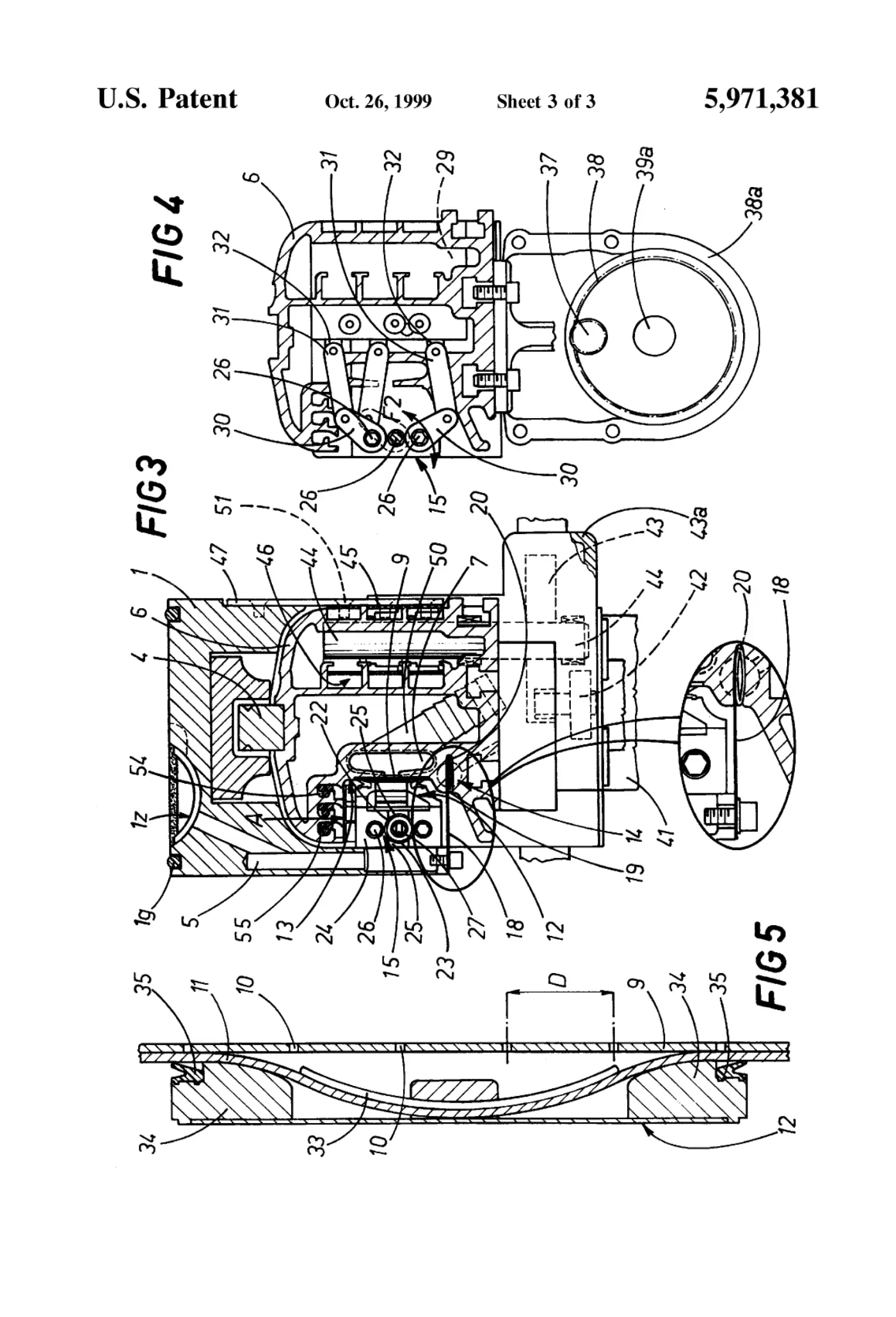

Sheet 3
Sheet 3

Abstract

A cross-beam for a vacuum hold-down table formed by a monoblock section upon which a vacuum hold-down table is fitted and movable on slides. The monoblock section houses a first tubular chamber which extends along its length and is connected to external vacuum source. A part of the first chamber has an opening on which a magnetic seal with a plurality of evenly distributed holes is placed and fitted over this seal on the outside of the monoblock section first chamber is a deformable strip of magnetic material which is movable from one position which closes the first chamber to another position which opens the said chamber during the passage of a deflector unit on the strip which is fixed to the vacuum hold-down table and connects the first chamber and vacuum hold-down table at any point on the monoblock section.
