Structure for joining impeller to rotatable shaft

Published
Permanent URL
Classification
Industrial Motion & Power Transmission › Rotary Motion
Assignee
ISHIKAWAJIMA HARIMA HEAVY IND
Original source
US-5961246-A, the United States Patent and Trademark Office, 5 October 1999
Document SHA-256
38fdd1da8b7e4a43618a5b015f2b7a852d160a29973bf2ea7da18c89dd9e519e

There is provided a structure for joining an impeller to a rotatable shaft, including (a) a bushing through which the impeller is joined to the rotatable shaft, the bushing including a hollow cylindrical portion which is to fit into a recess formed with the impeller and into which the rotatable shaft is to fit, (b) a first joint structure for joining the bushing to the impeller so that the bushing is positioned coaxially with the impeller, and (c) a second joint structure for joining the rotatable shaft to the bushing so that the rotatable shaft is positioned coaxially with the bushing. The structure provides a sufficient ability for transferring a torque between an impeller and a shaft, self-aligning performance between an impeller and a shaft, and good serviceability for assembling and disassembling, and further provides higher accuracy in axially positioning an impeller and a shaft and lower fabrication costs.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3
Sheet 4
Sheet 4

Abstract

There is provided a structure for joining an impeller to a rotatable shaft, including (a) a bushing through which the impeller is joined to the rotatable shaft, the bushing including a hollow cylindrical portion which is to fit into a recess formed with the impeller and into which the rotatable shaft is to fit, (b) a first joint structure for joining the bushing to the impeller so that the bushing is positioned coaxially with the impeller, and (c) a second joint structure for joining the rotatable shaft to the bushing so that the rotatable shaft is positioned coaxially with the bushing. The structure provides a sufficient ability for transferring a torque between an impeller and a shaft, self-aligning performance between an impeller and a shaft, and good serviceability for assembling and disassembling, and further provides higher accuracy in axially positioning an impeller and a shaft and lower fabrication costs.

1. Drawings

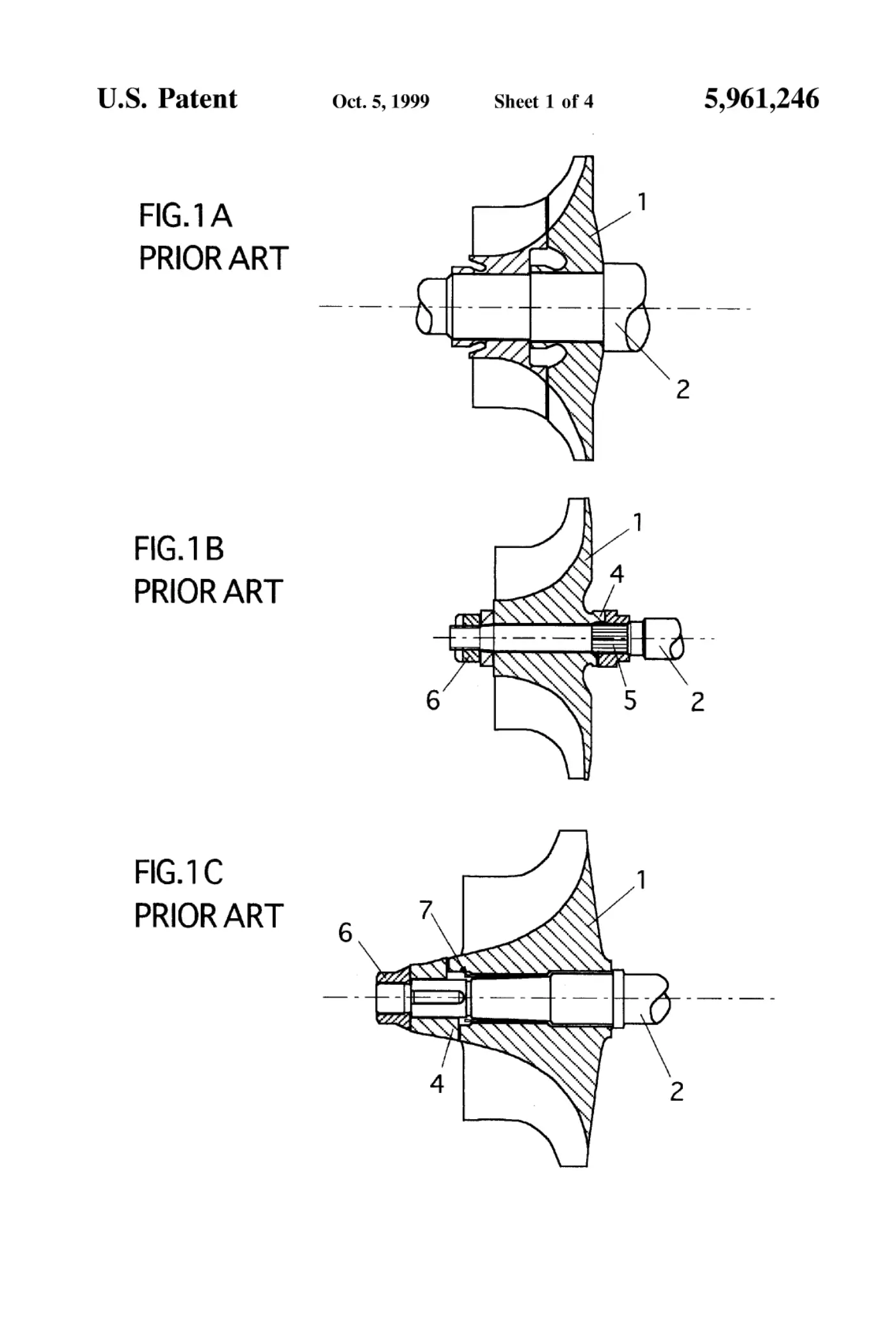

[0001]Sheet 1.

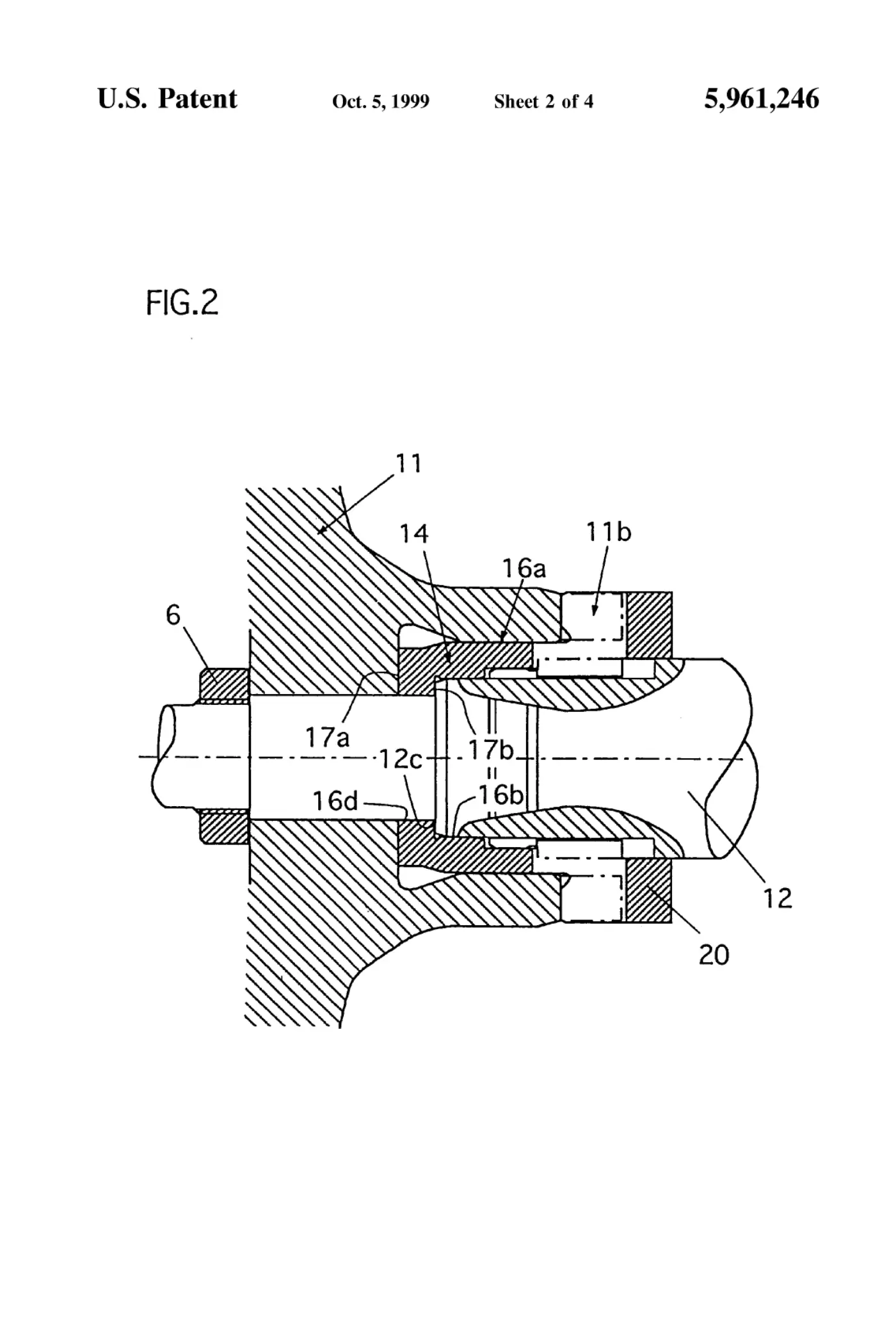

[0002]Sheet 2.

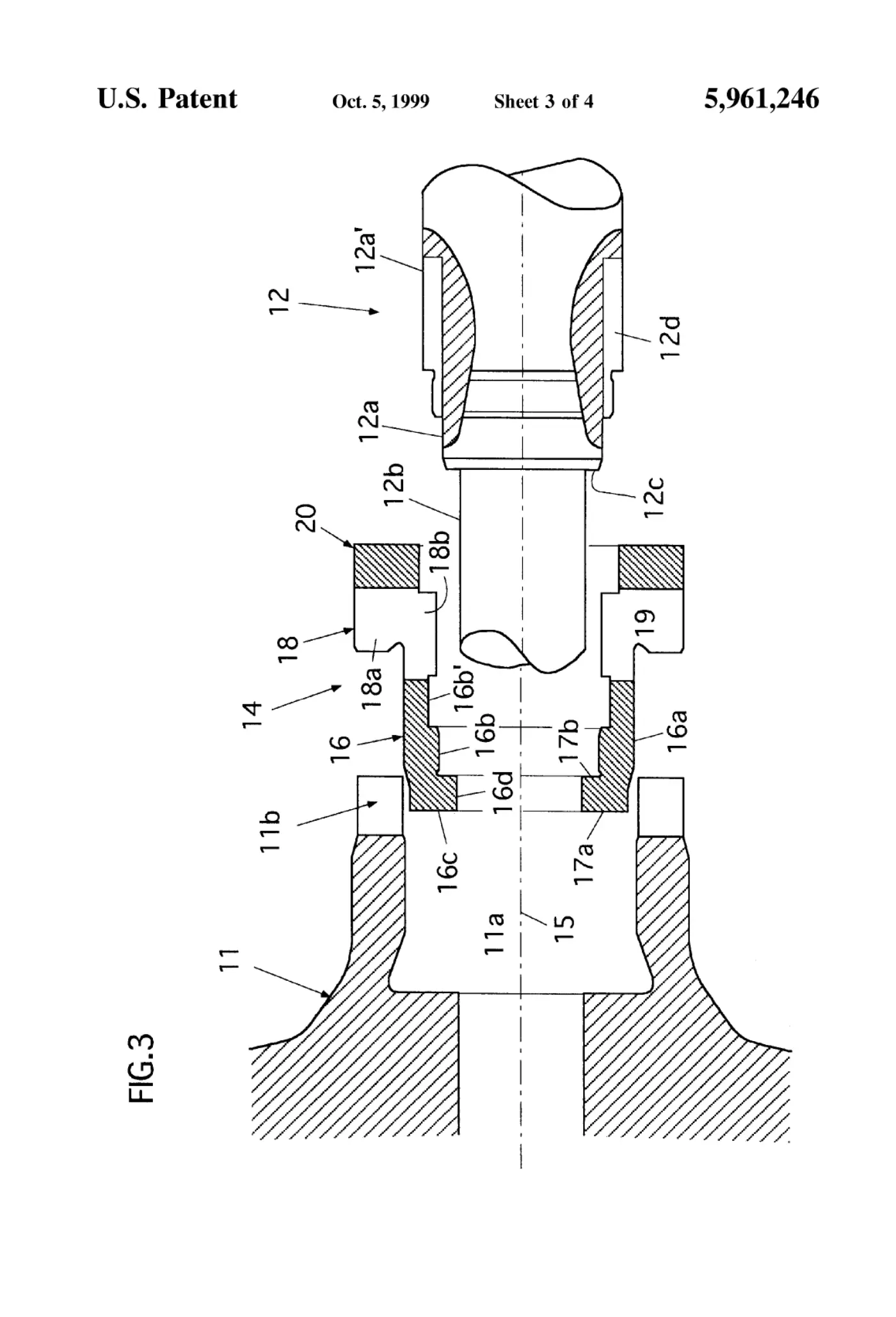

[0003]Sheet 3.

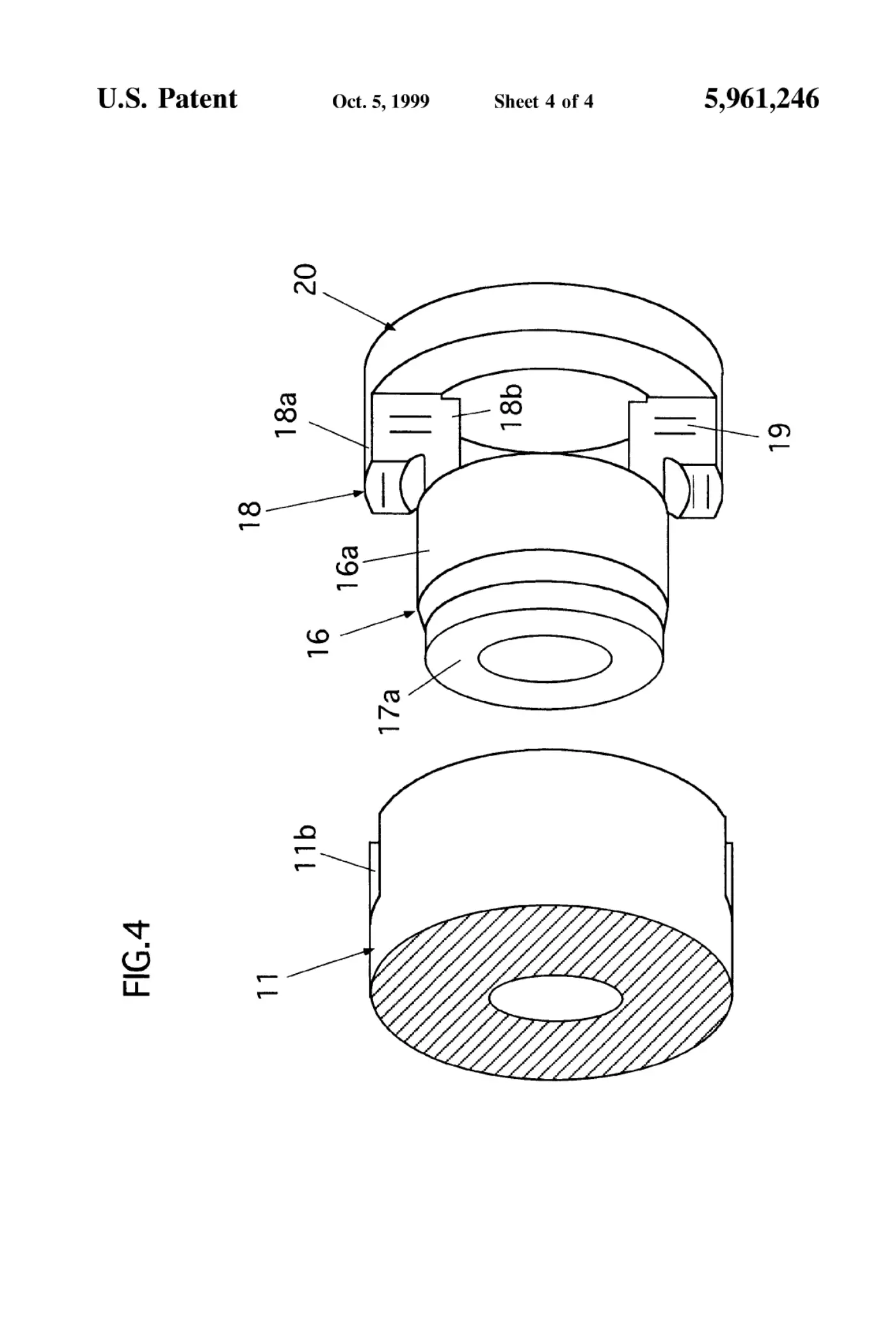

[0004]Sheet 4.
