Handle for a pneumatic power tool

Published
Permanent URL
Classification
Industrial Motion & Power Transmission › Fluid Power
Inventors
RAHM ERIK ROLAND
Assignee
ATLAS COPCO TOOLS AB
Original source
US-5954142-A, the United States Patent and Trademark Office, 21 September 1999
Document SHA-256
3ed16531debba57b79d34a94a19ea0c6f4e881aa244e9a456fd2a5b1c44ef22c

A pneumatic power tool includes a housing (10) with a pistol handle (11), a pneumatic motor provided in the housing (10), a pressure air inlet passage (13) and an exhaust air passage (14) extending substantially in parallel through the pistol handle (11), and a manually operable throttle valve (12) provided in the housing (10). The pistol handle (11) includes: (i) a tubular stem (20) rigidly secured to the housing (10) and forming a portion of the air inlet passage (13), (ii) a separate hollow grip element (30) surrounding at least partly the tubular stem (20) and defining together with the tubular stem (20) a portion of the exhaust air passage (14), and (iii) a clamping device (22-24,28,29) arranged to detachably secure the grip element (30) to the housing (10).

Sheet 1
Sheet 1
Sheet 2
Sheet 2

Abstract

A pneumatic power tool includes a housing (10) with a pistol handle (11), a pneumatic motor provided in the housing (10), a pressure air inlet passage (13) and an exhaust air passage (14) extending substantially in parallel through the pistol handle (11), and a manually operable throttle valve (12) provided in the housing (10). The pistol handle (11) includes: (i) a tubular stem (20) rigidly secured to the housing (10) and forming a portion of the air inlet passage (13), (ii) a separate hollow grip element (30) surrounding at least partly the tubular stem (20) and defining together with the tubular stem (20) a portion of the exhaust air passage (14), and (iii) a clamping device (22-24,28,29) arranged to detachably secure the grip element (30) to the housing (10).

1. Drawings

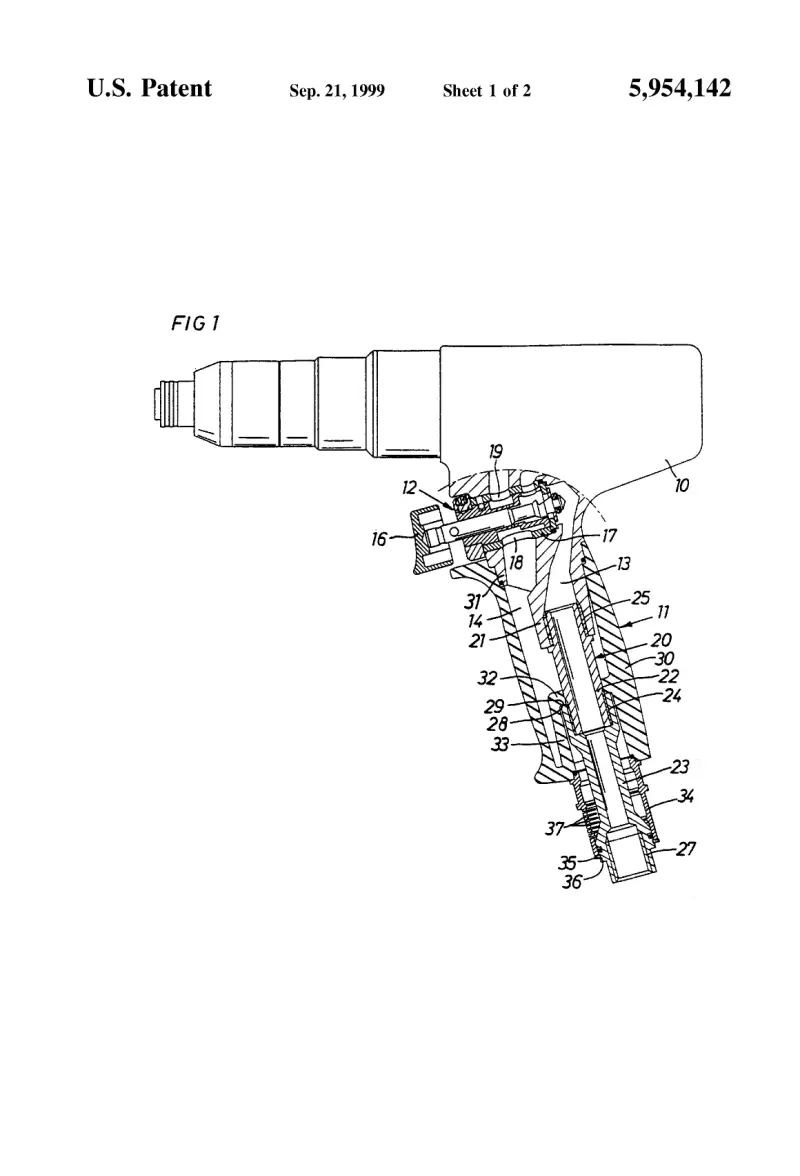

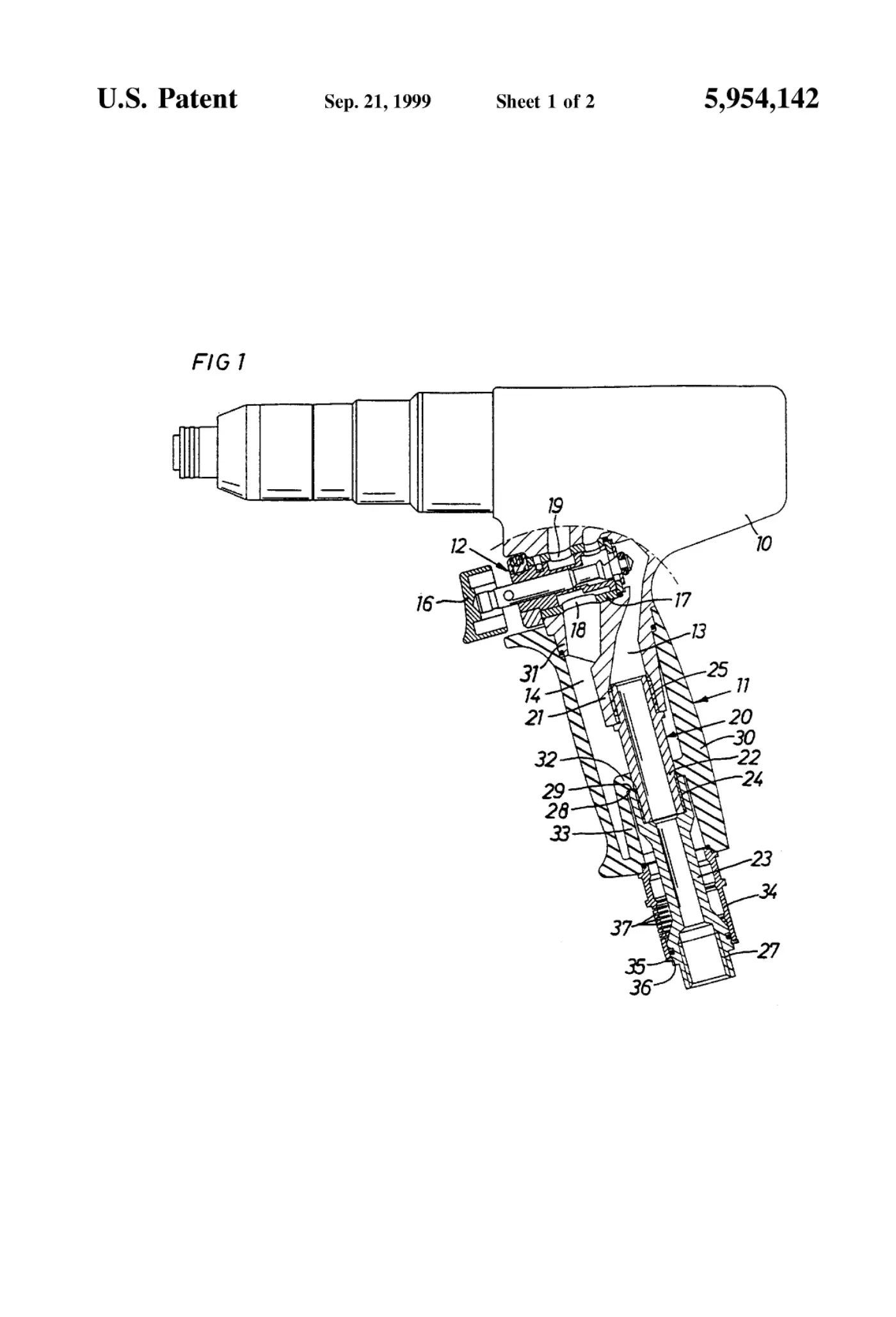

[0001]Sheet 1.

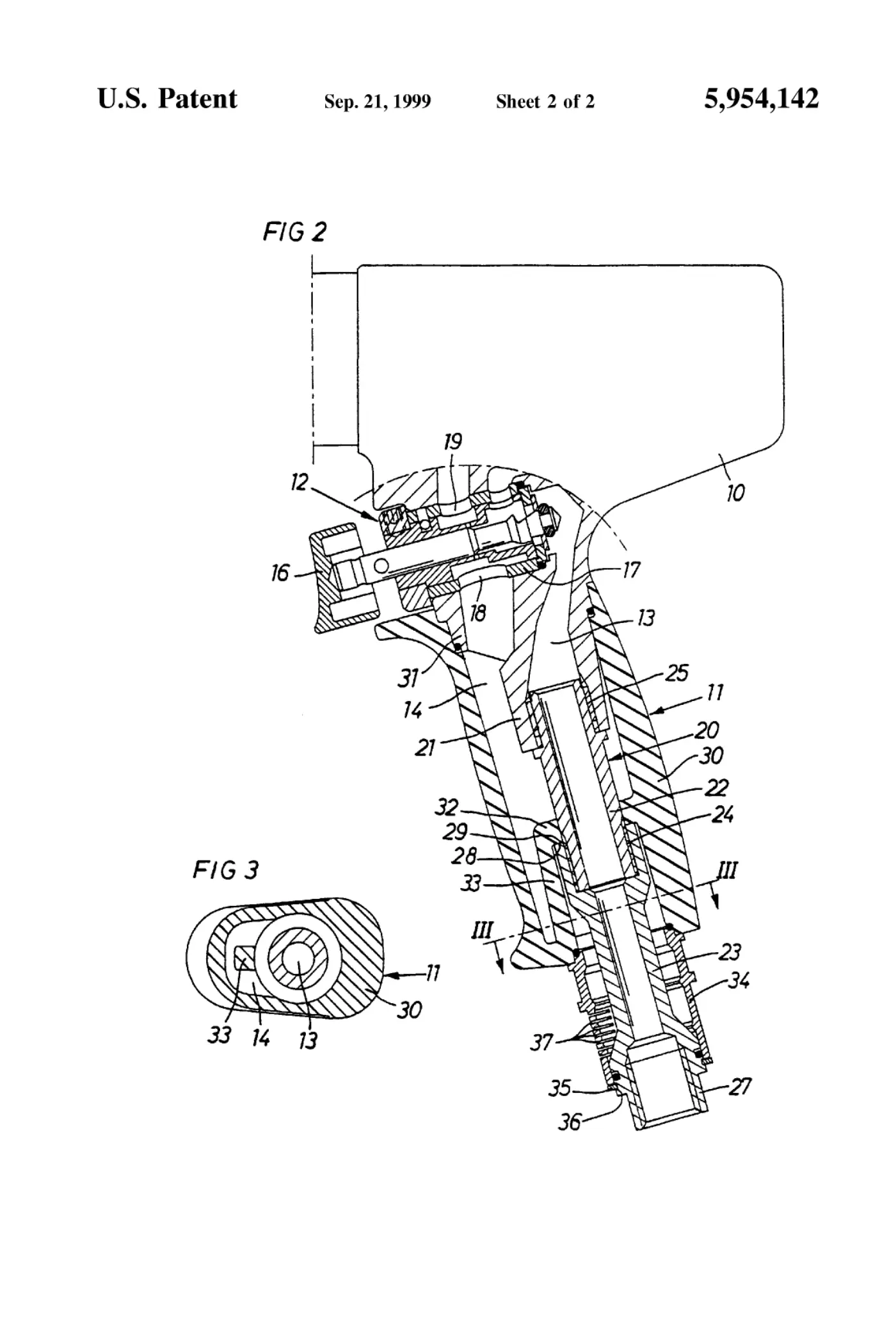

[0002]Sheet 2.
