Attachment for a power saw to make plumb cuts

Published
Permanent URL
Classification
Tools & Tooling › Cutting Tools
Original source
US-5887355-A, the United States Patent and Trademark Office, 30 March 1999
Document SHA-256
745afa9a18d100bb8cab5ceec7d4a5241250766063e1105a5b2f302aa114d821

A level indicator attachment for a power hand tool to indicate the angle of inclination of the tool for making cuts at a predetermined angle. In a preferred embodiment, the level indicator comprises a circular bubble level adjustably positioned in a housing and frame mounted to the tool by use of preexisting fasteners used in assembly of the tool. Adjustment of the bubble level in the housing enables the level indicator to be calibrated or adjusted for different angle cuts. The invention is particularly suitable for use in cutting plumb cuts on rafter tails during construction of a building.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3
Sheet 4
Sheet 4
Sheet 5
Sheet 5

Abstract

A level indicator attachment for a power hand tool to indicate the angle of inclination of the tool for making cuts at a predetermined angle. In a preferred embodiment, the level indicator comprises a circular bubble level adjustably positioned in a housing and frame mounted to the tool by use of preexisting fasteners used in assembly of the tool. Adjustment of the bubble level in the housing enables the level indicator to be calibrated or adjusted for different angle cuts. The invention is particularly suitable for use in cutting plumb cuts on rafter tails during construction of a building.

1. Drawings

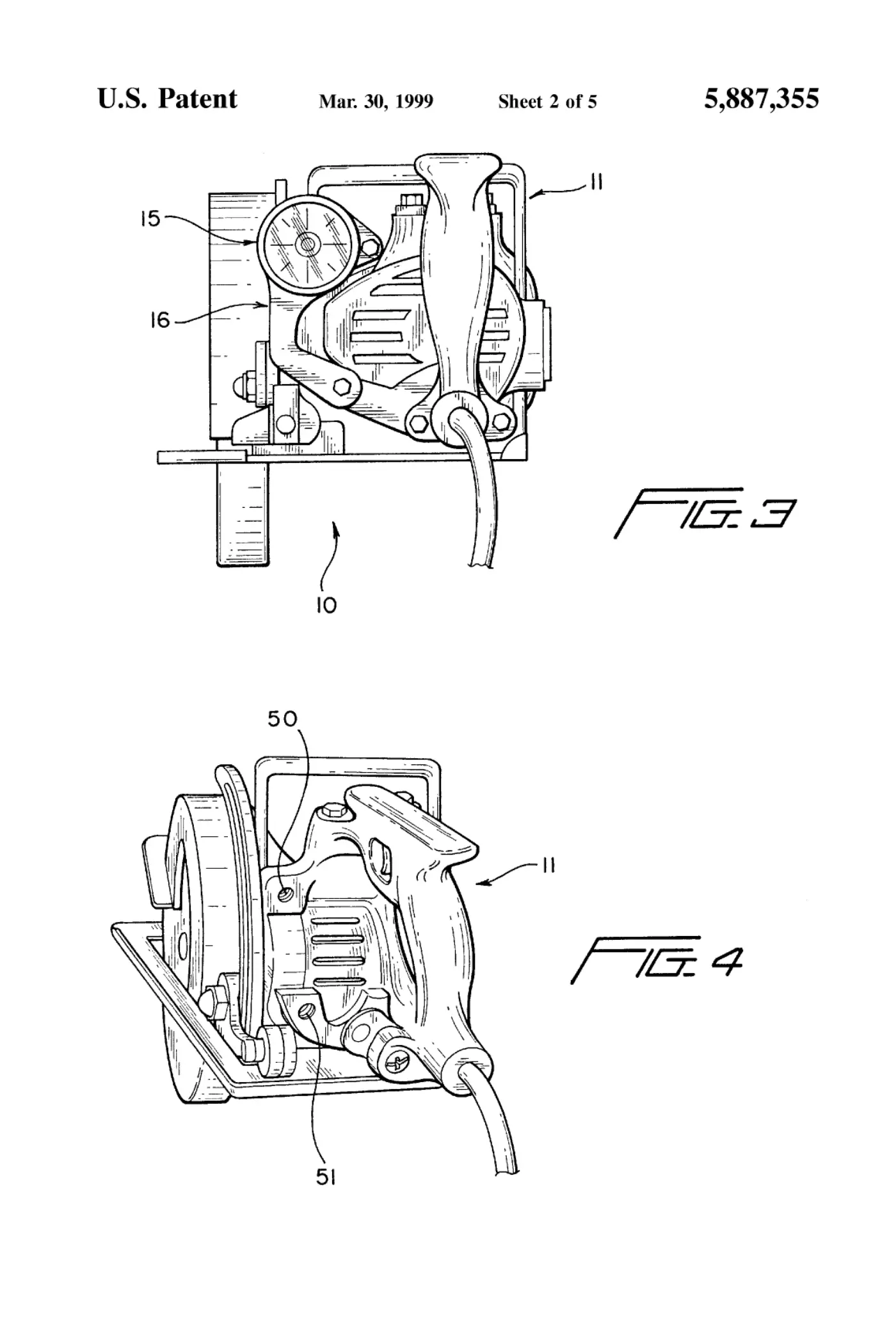

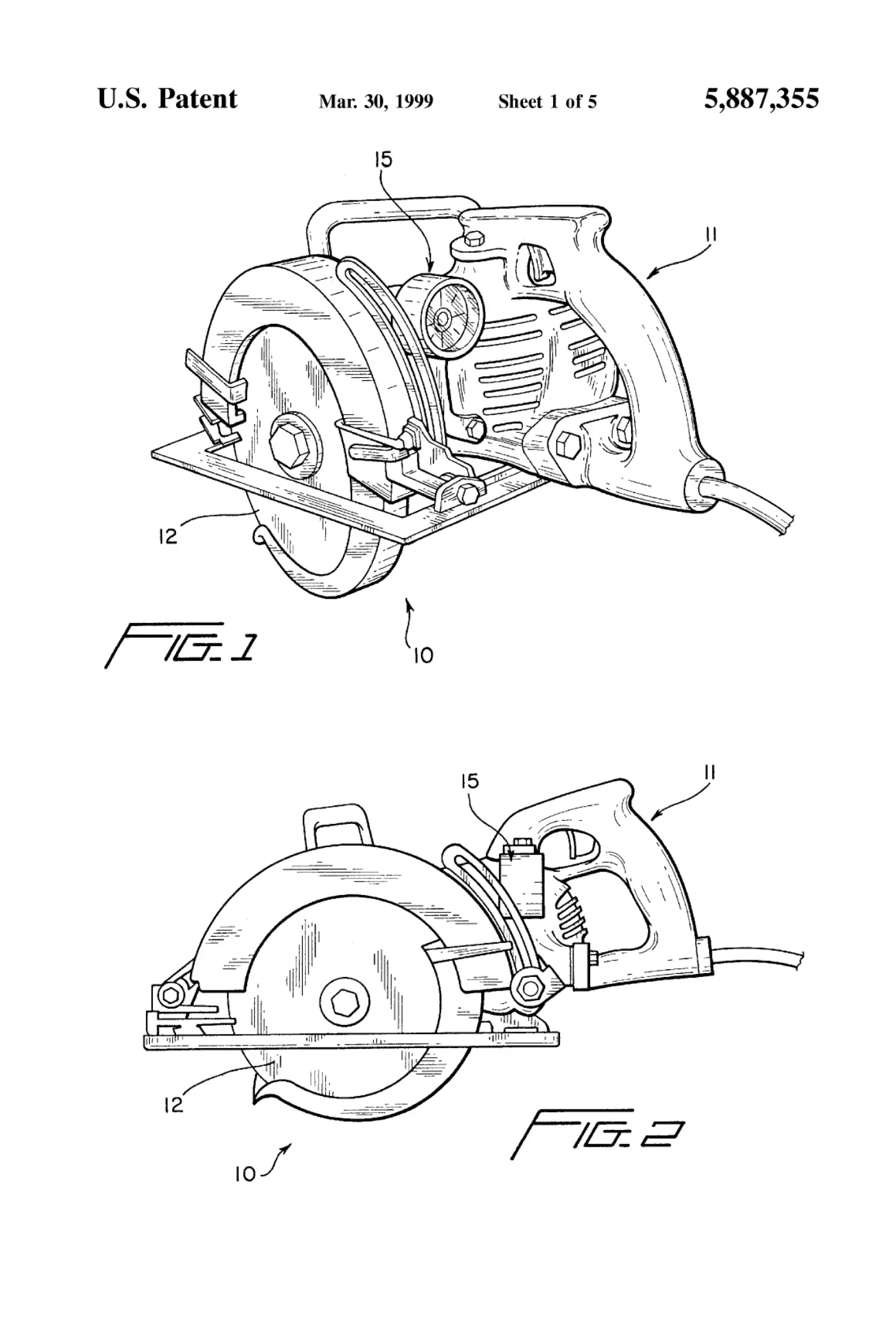

[0001]Sheet 1.

[0002]Sheet 2.

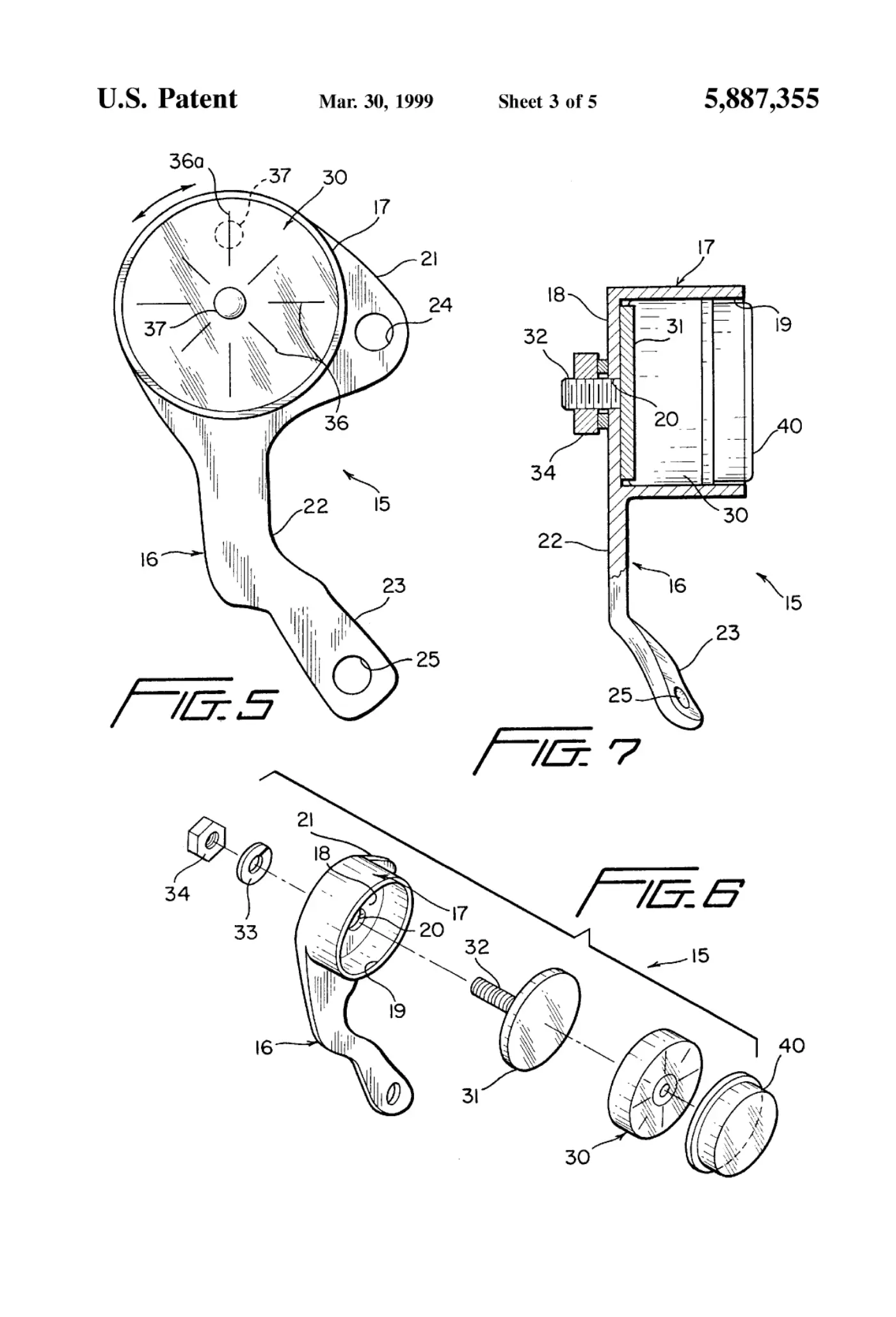

[0003]Sheet 3.

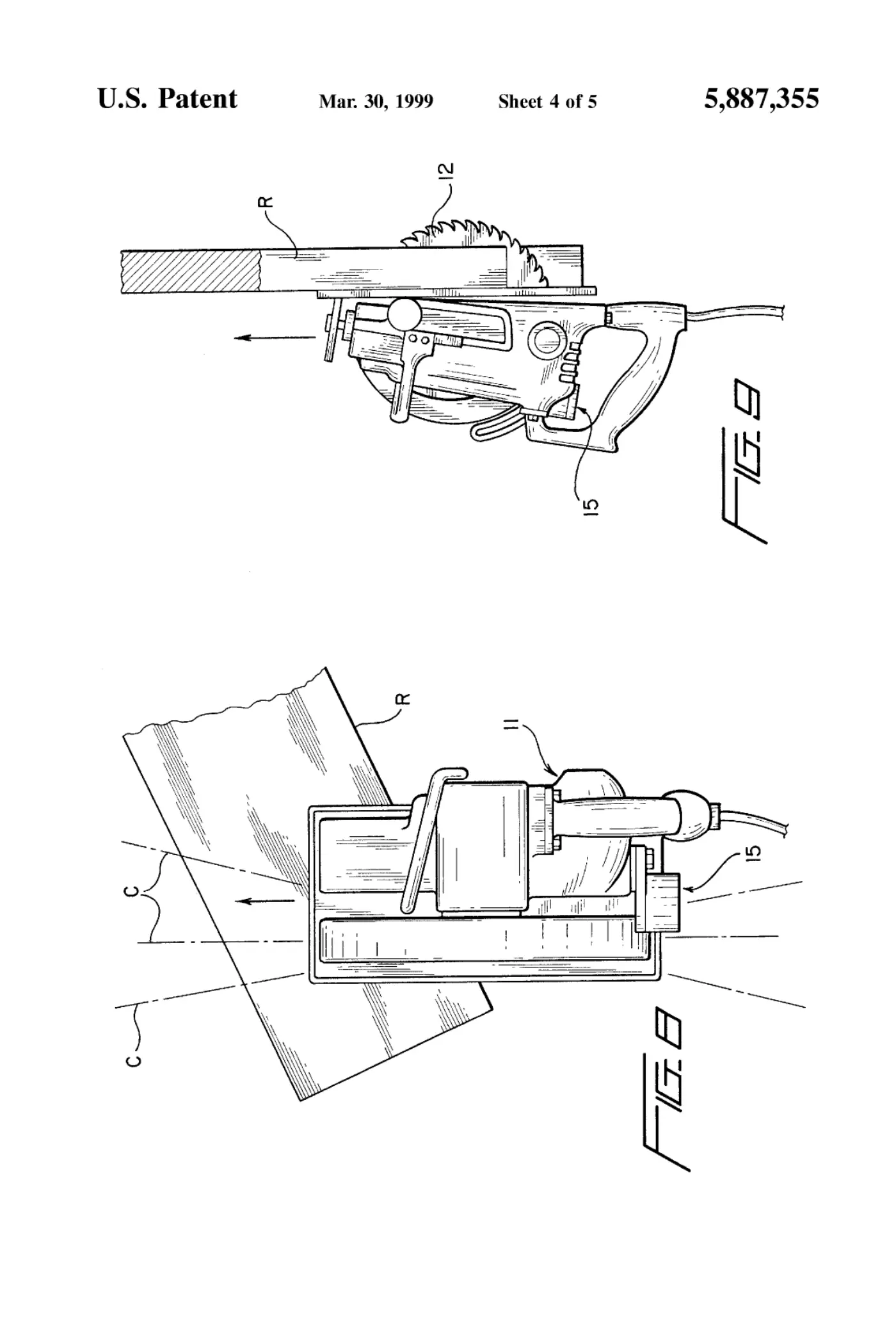

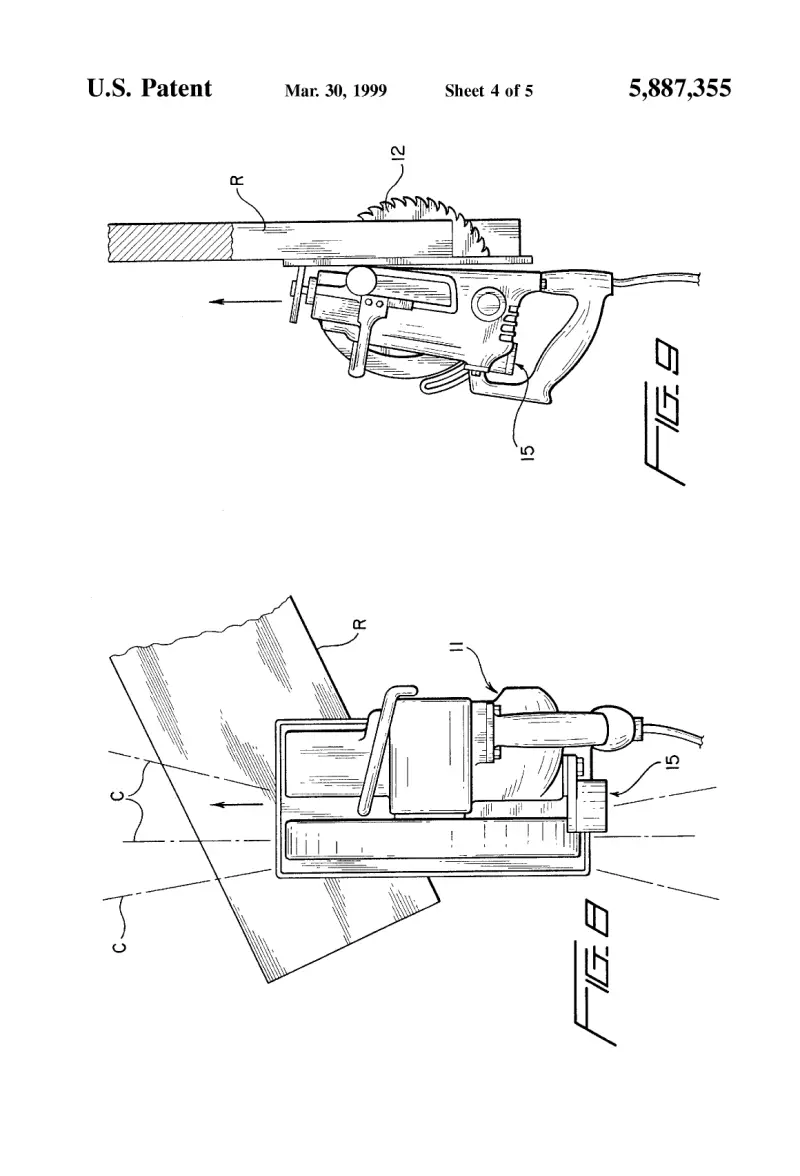

[0004]Sheet 4.
