Switching valve

Published
Permanent URL
Classification
Industrial Motion & Power Transmission › Fluid Power
Assignee
AISIN SEIKI
Original source
US-5878782-A, the United States Patent and Trademark Office, 9 March 1999
Document SHA-256
2273364c0e5c0991004c1fb01e0a8a49a4fe59d623f922905654a1d54cffbf44

A switching valve has a cylindrical housing including a bore, an inlet port, a first inlet-outlet port, and a second inlet-outlet port which open to the hollow. A valve member slidably disposed in the bore has a ringed groove around its periphery. The valve member can open or block a portion between the groove and the first inlet-outlet port and a portion between the groove and the second inlet-outlet port. The groove formed outside the valve member always communicates with the inlet port and can communicate with the first and second inlet-outlet ports. A single drain port is formed within the valve member so that the single drain port can communicate with the first and second inlet-outlet ports. The valve member is caused to slide by a solenoid.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3

Abstract

A switching valve has a cylindrical housing including a bore, an inlet port, a first inlet-outlet port, and a second inlet-outlet port which open to the hollow. A valve member slidably disposed in the bore has a ringed groove around its periphery. The valve member can open or block a portion between the groove and the first inlet-outlet port and a portion between the groove and the second inlet-outlet port. The groove formed outside the valve member always communicates with the inlet port and can communicate with the first and second inlet-outlet ports. A single drain port is formed within the valve member so that the single drain port can communicate with the first and second inlet-outlet ports. The valve member is caused to slide by a solenoid.

1. Drawings

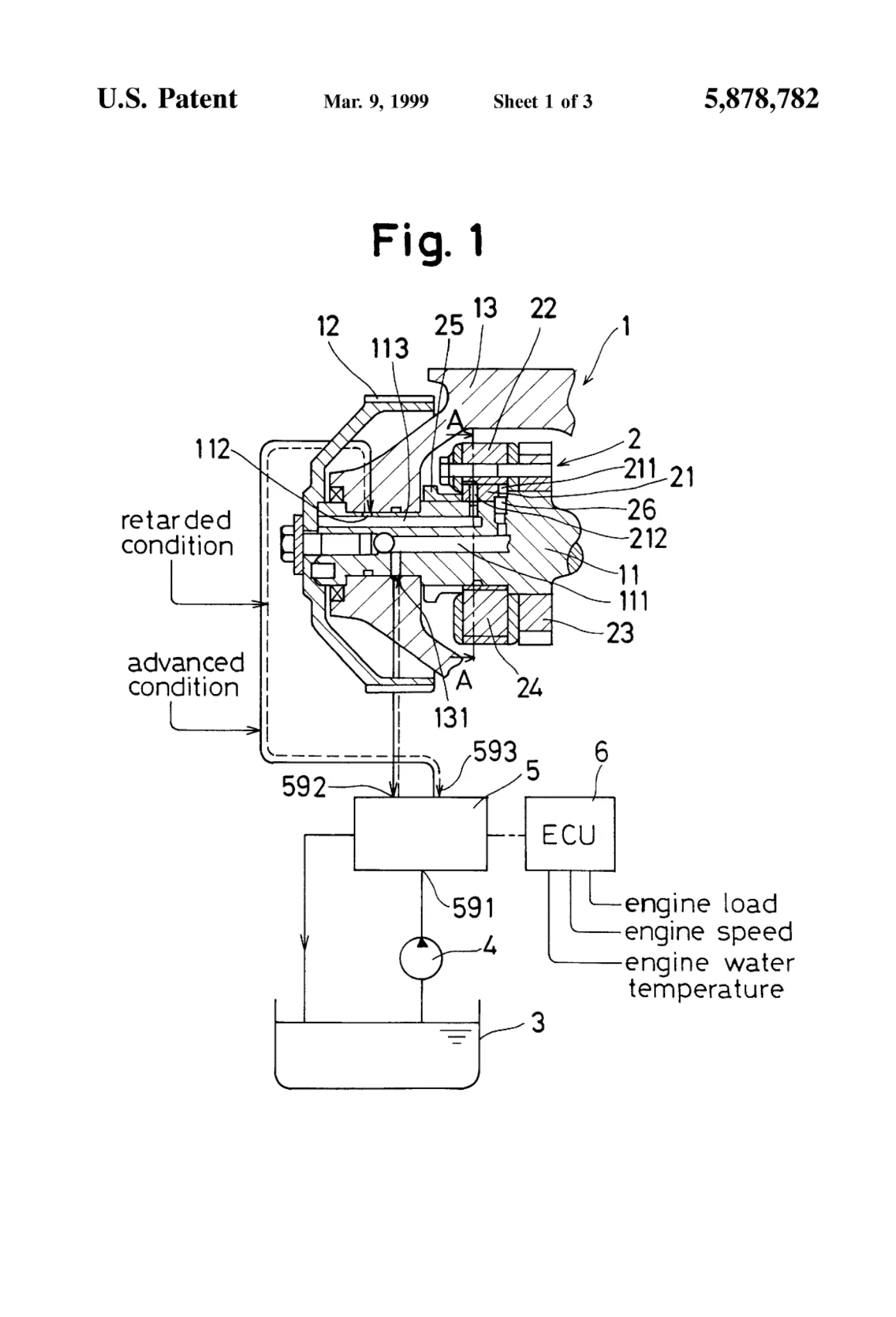

[0001]Sheet 1.

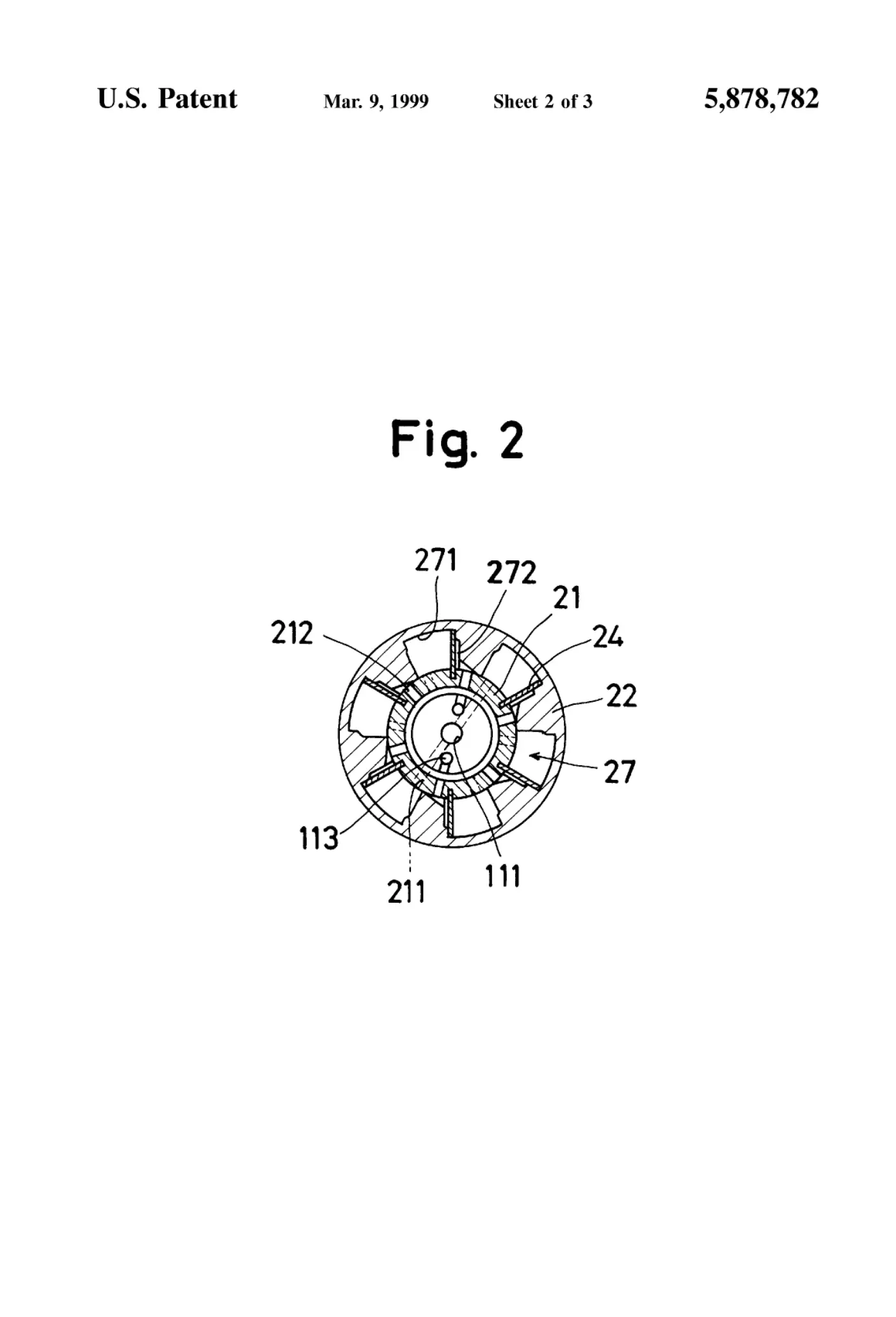

[0002]Sheet 2.

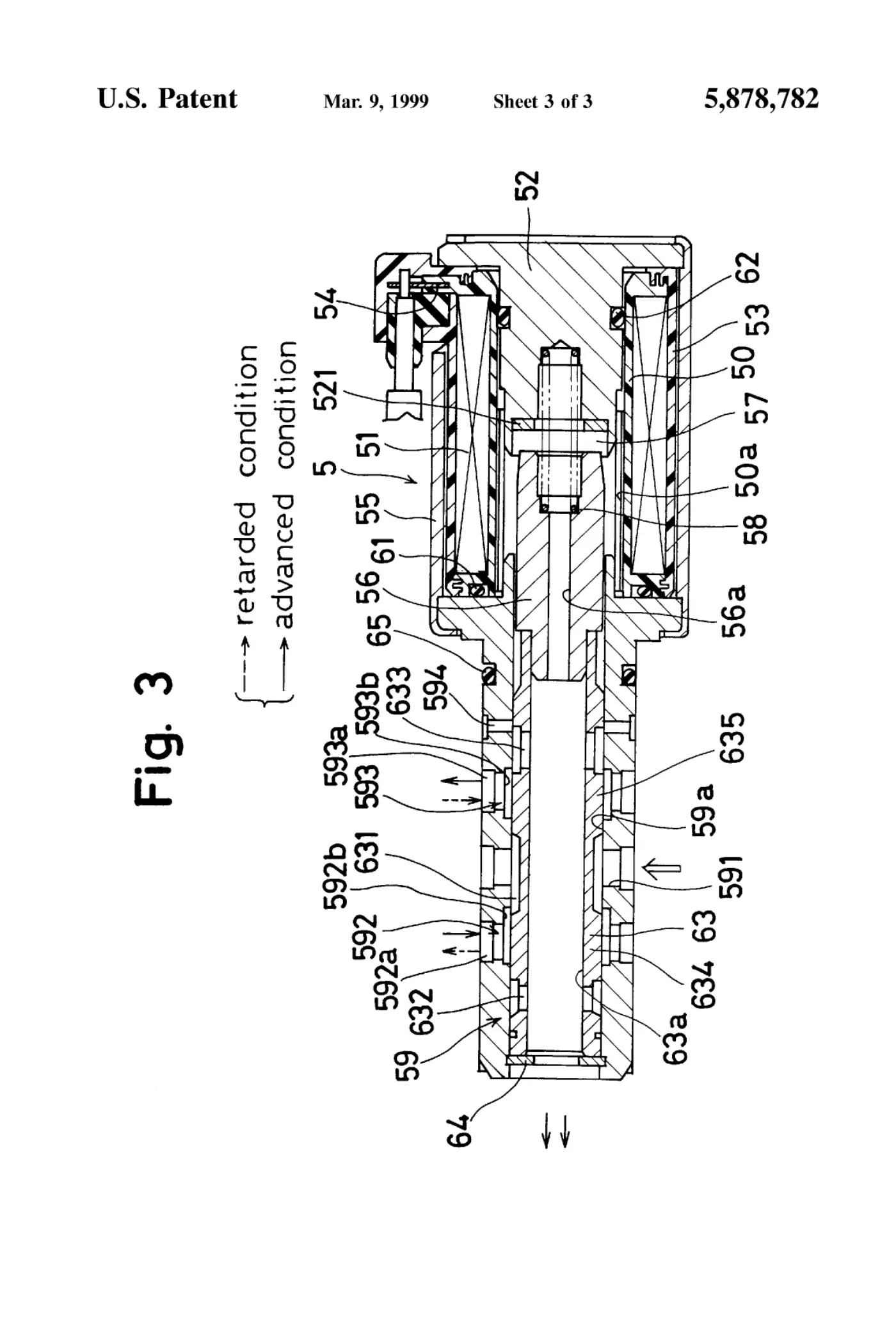

[0003]Sheet 3.
