Linear motor driven laser cutting machine

Published
Permanent URL
Classification
Manufacturing & Assembly Equipment › Joining and Welding
Assignee
CINCINNATI INC
Original source
US-5854460-A, the United States Patent and Trademark Office, 29 December 1998
Document SHA-256
9d770ee8dfcd9b9504092e7dc4544a7419b89636d36f9cb21663b52d001fa792

A gantry assembly and appurtenances therefor for a linear motor driven laser cutting machine. The gantry box is made of honey comb construction characterized by high strength, light weigh, high stiffness to weight ratio and vibration absorption. The gantry box is supported at each of its ends on a linear motor driven carriage by a torsion plate. The torsion plates are exteriorly flanked by protective panels which support a light weight cover for the upper part of the gantry assembly. The beam end of the gantry box is additionally attached to its gantry carriage by a snubber pin-snubber bushing assembly and by a gantry pin-carriage pin-link assembly. These last two assemblies, together with the torsion plates and gantry carriages, limit or restrain certain movements of the gantry box. The laser cutting machine is controlled by a high performance multi-axis motion controller. Each gantry carriage is provided with a wiper-seal assembly and bellows mounting assembly at each of its ends to prevent accumulation of foreign material between each gantry mounted linear motor and its respective magnet track.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3

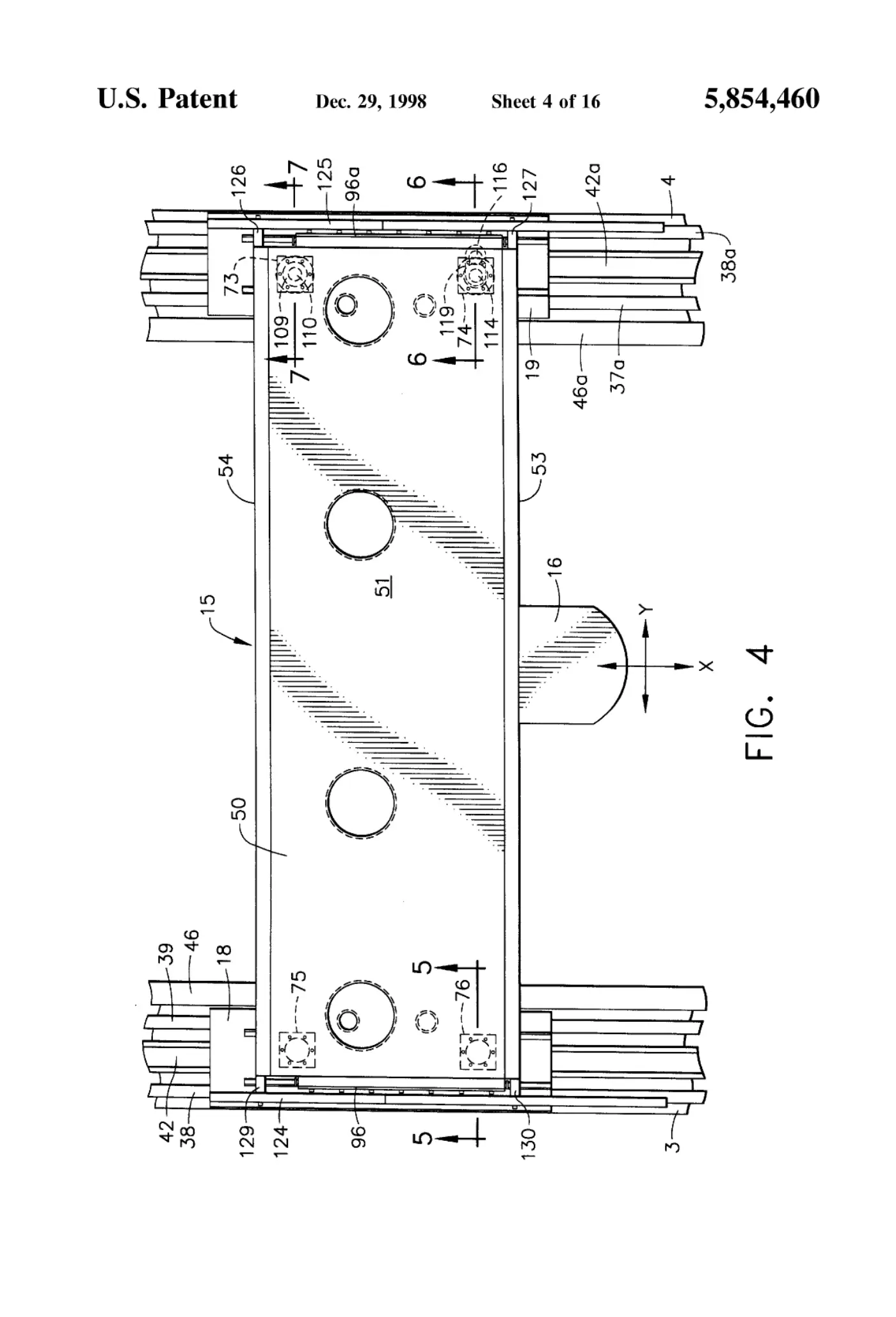

Sheet 4
Sheet 4
Sheet 5
Sheet 5
Sheet 6
Sheet 6
Sheet 7
Sheet 7

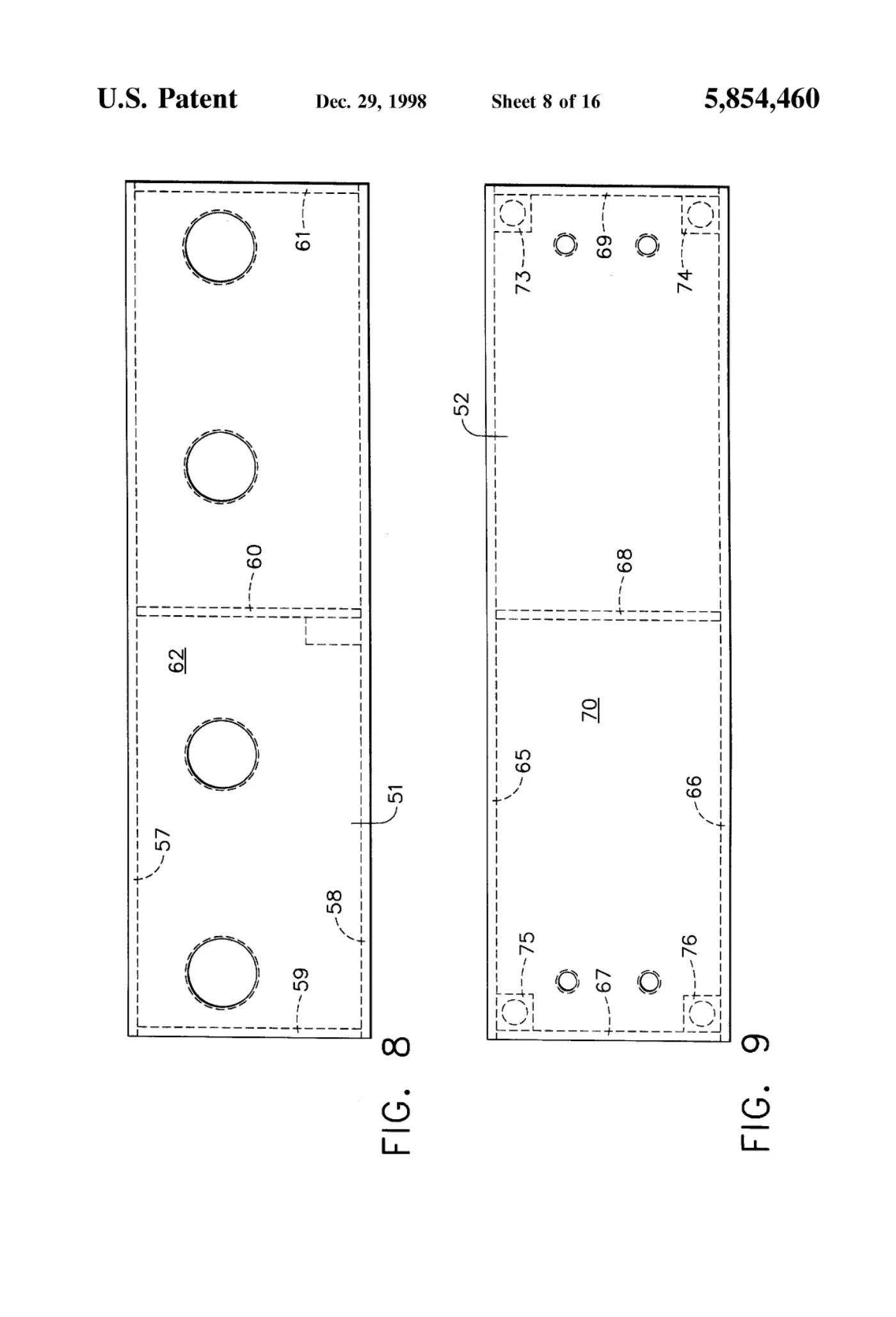

Sheet 8
Sheet 8
Sheet 9
Sheet 9
Sheet 10
Sheet 10

Abstract

A gantry assembly and appurtenances therefor for a linear motor driven laser cutting machine. The gantry box is made of honey comb construction characterized by high strength, light weigh, high stiffness to weight ratio and vibration absorption. The gantry box is supported at each of its ends on a linear motor driven carriage by a torsion plate. The torsion plates are exteriorly flanked by protective panels which support a light weight cover for the upper part of the gantry assembly. The beam end of the gantry box is additionally attached to its gantry carriage by a snubber pin-snubber bushing assembly and by a gantry pin-carriage pin-link assembly. These last two assemblies, together with the torsion plates and gantry carriages, limit or restrain certain movements of the gantry box. The laser cutting machine is controlled by a high performance multi-axis motion controller. Each gantry carriage is provided with a wiper-seal assembly and bellows mounting assembly at each of its ends to prevent accumulation of foreign material between each gantry mounted linear motor and its respective magnet track.

1. Drawings

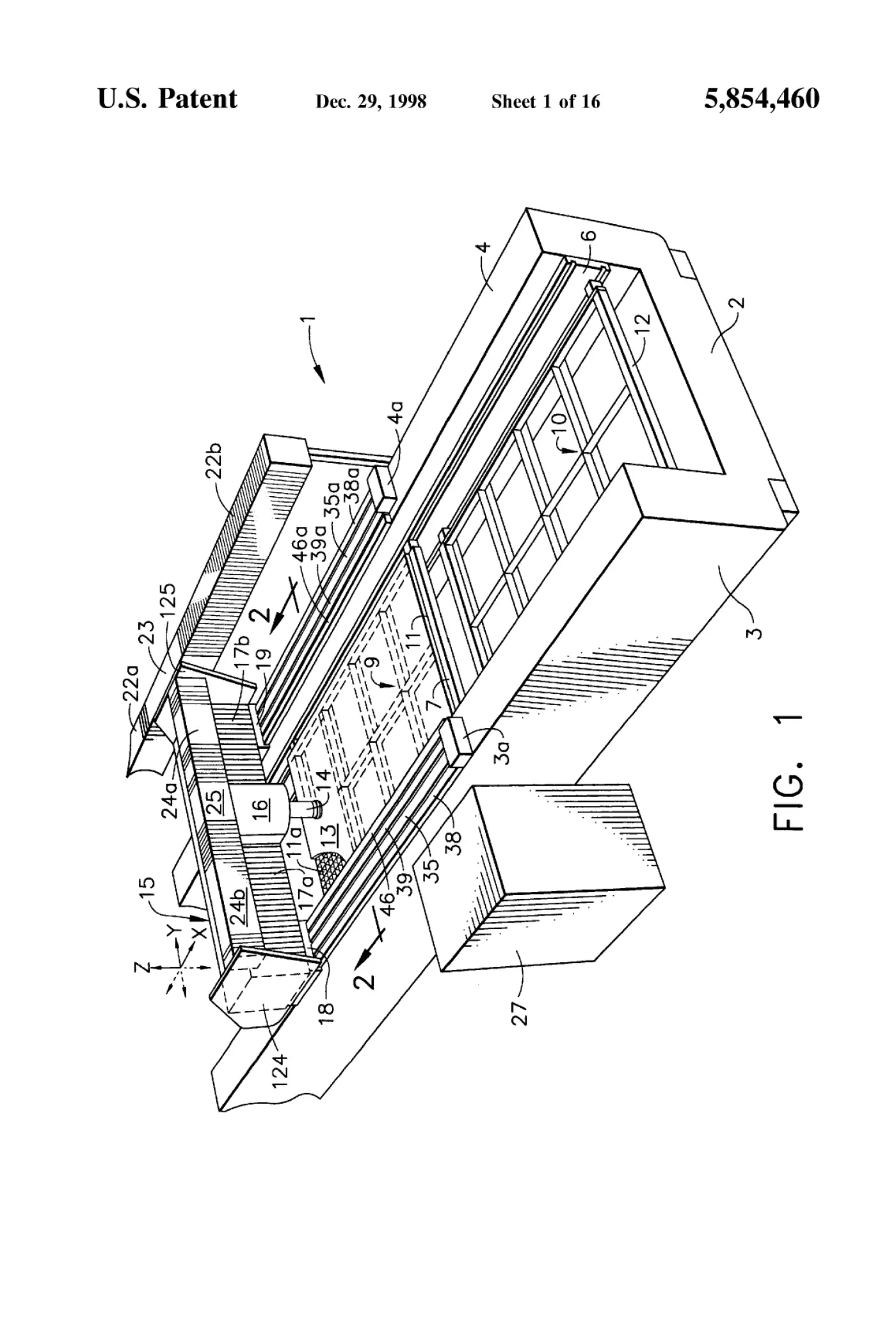

[0001]Sheet 1.

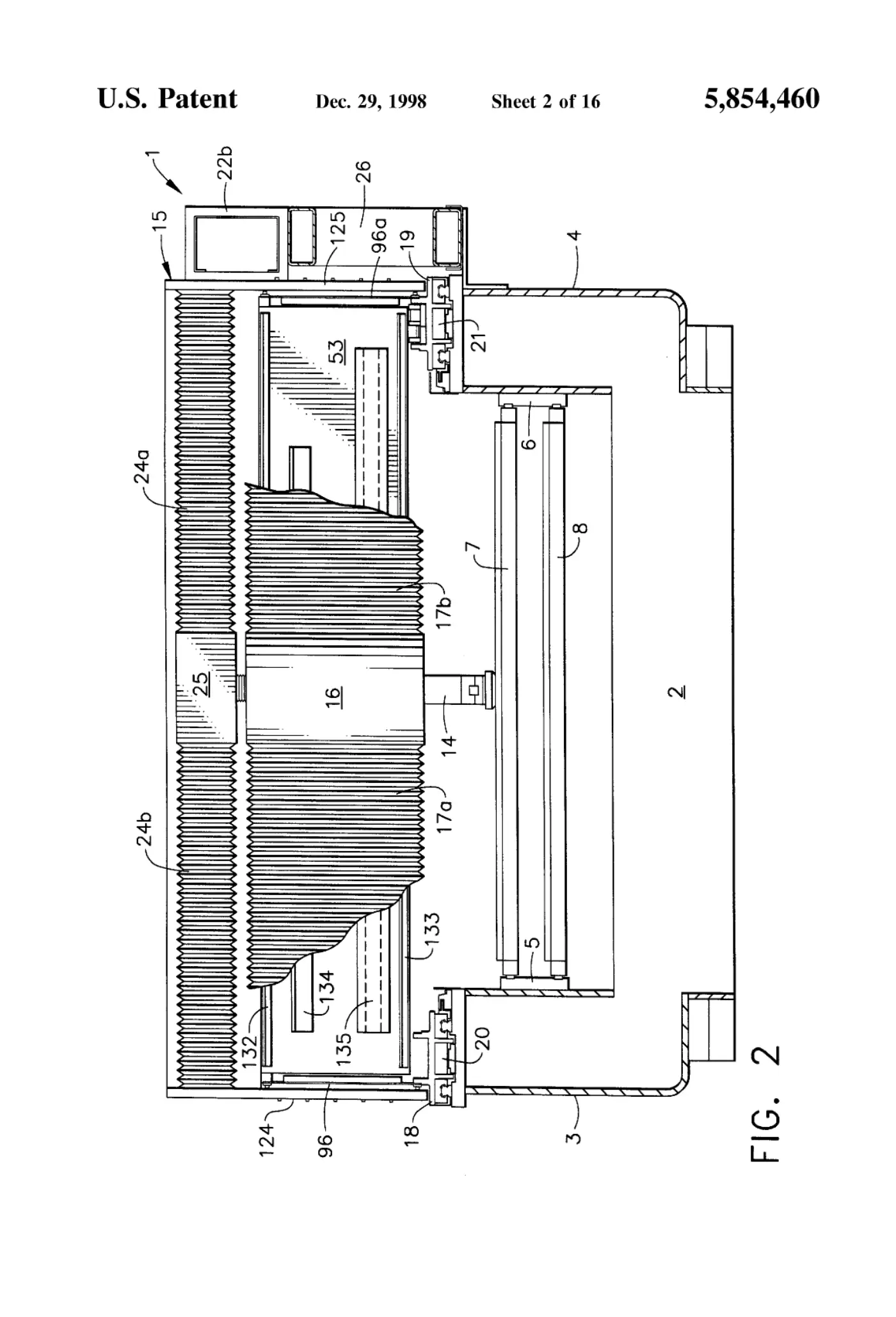

[0002]Sheet 2.

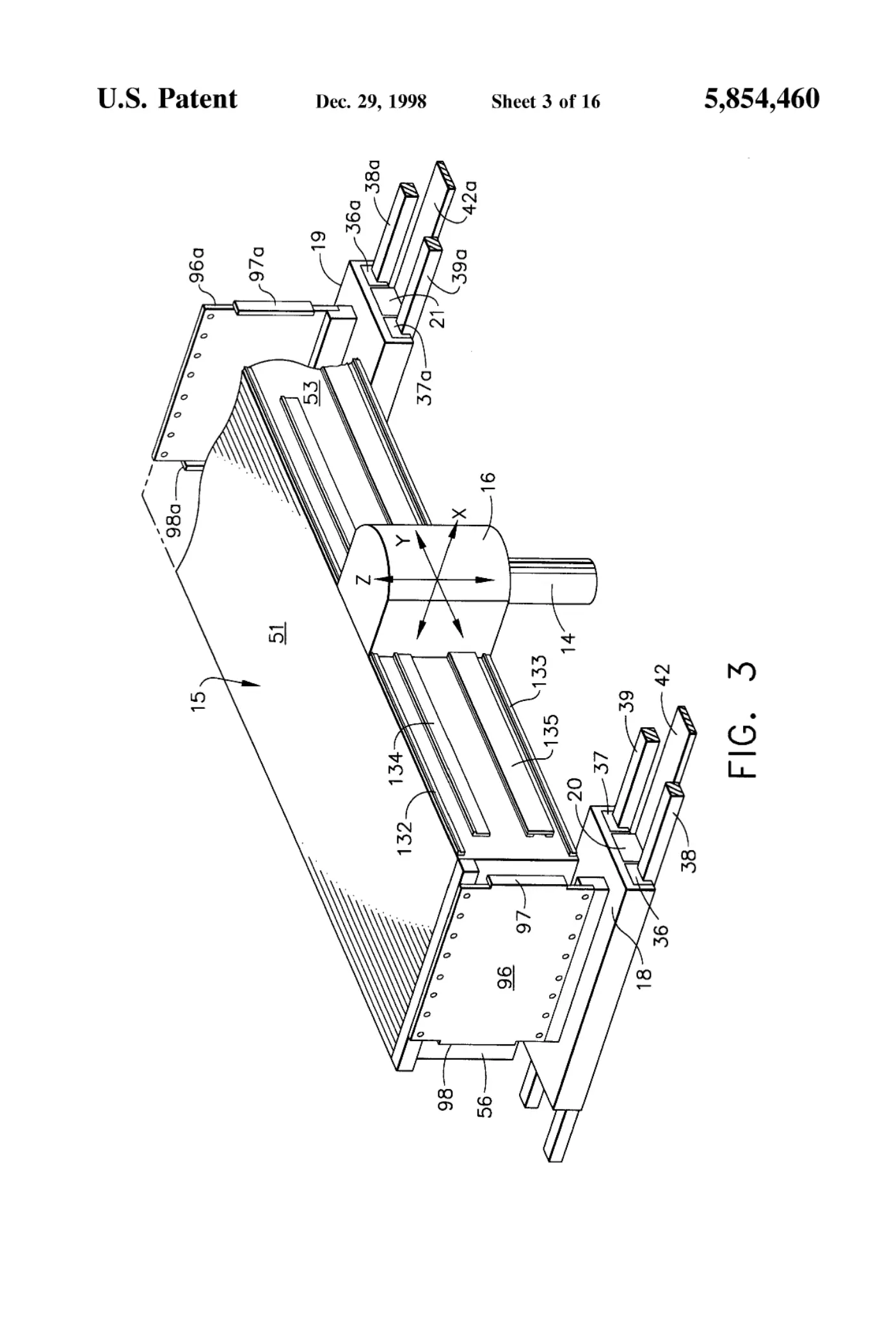

[0003]Sheet 3.

[0004]Sheet 4.

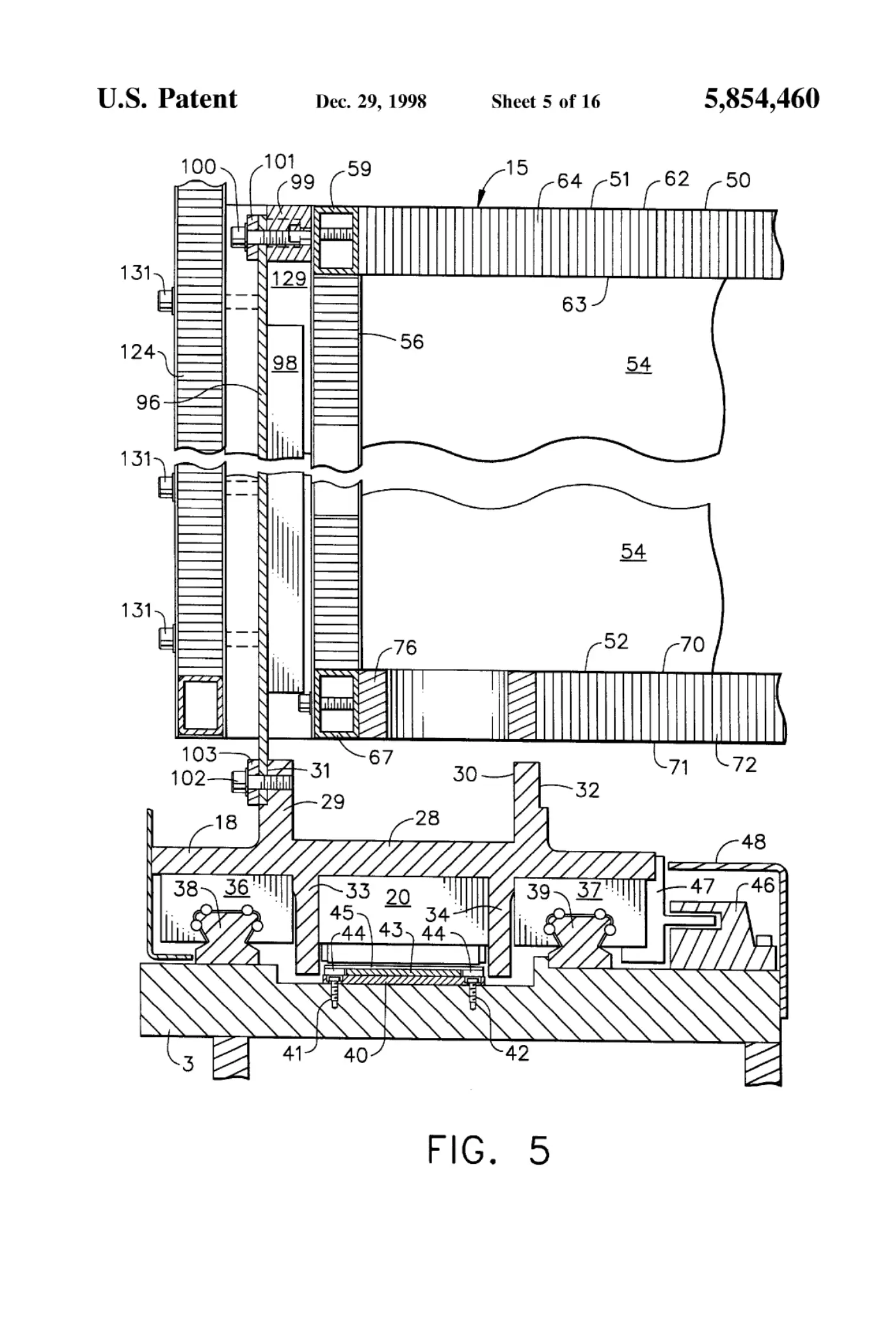

[0005]Sheet 5.

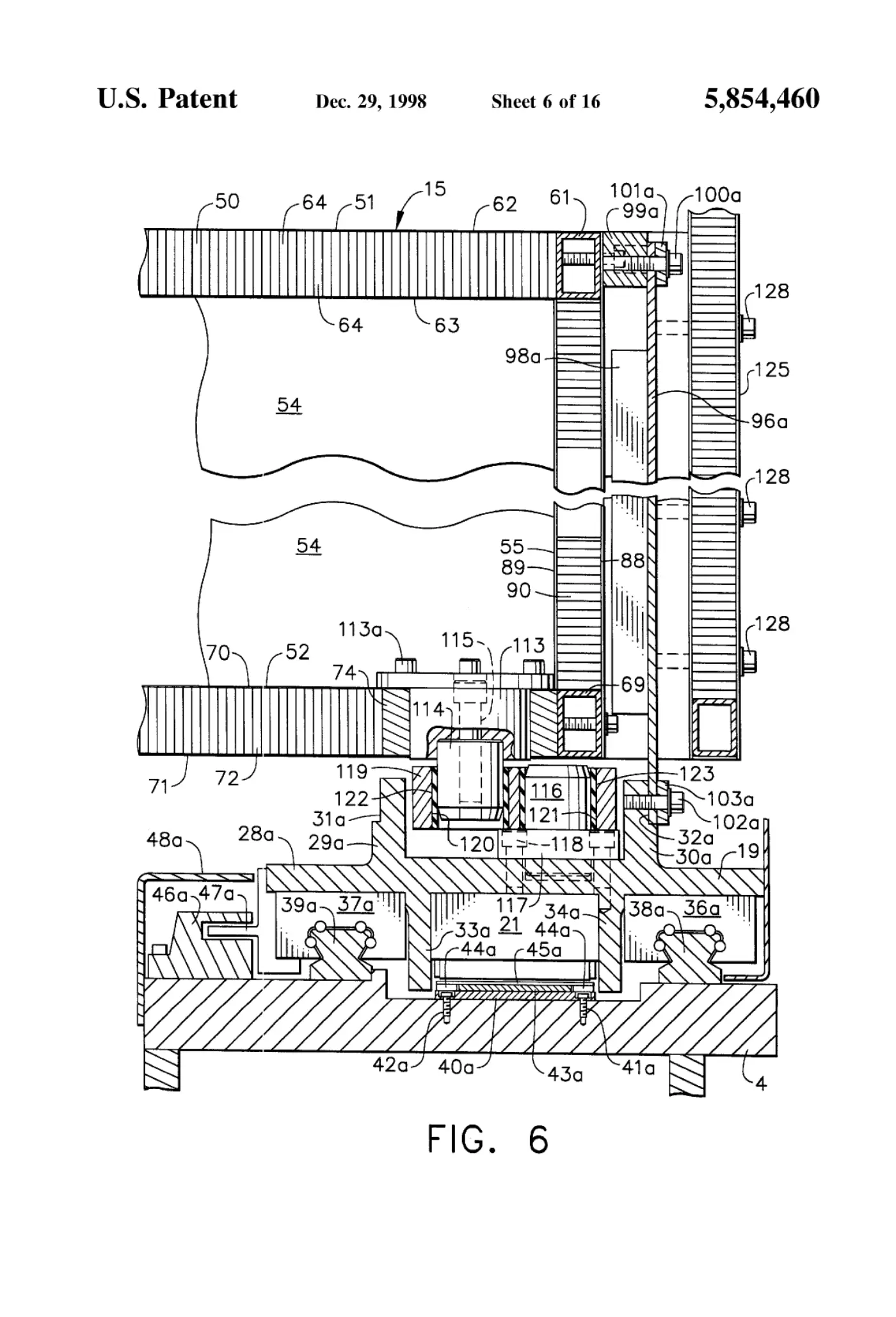

[0006]Sheet 6.

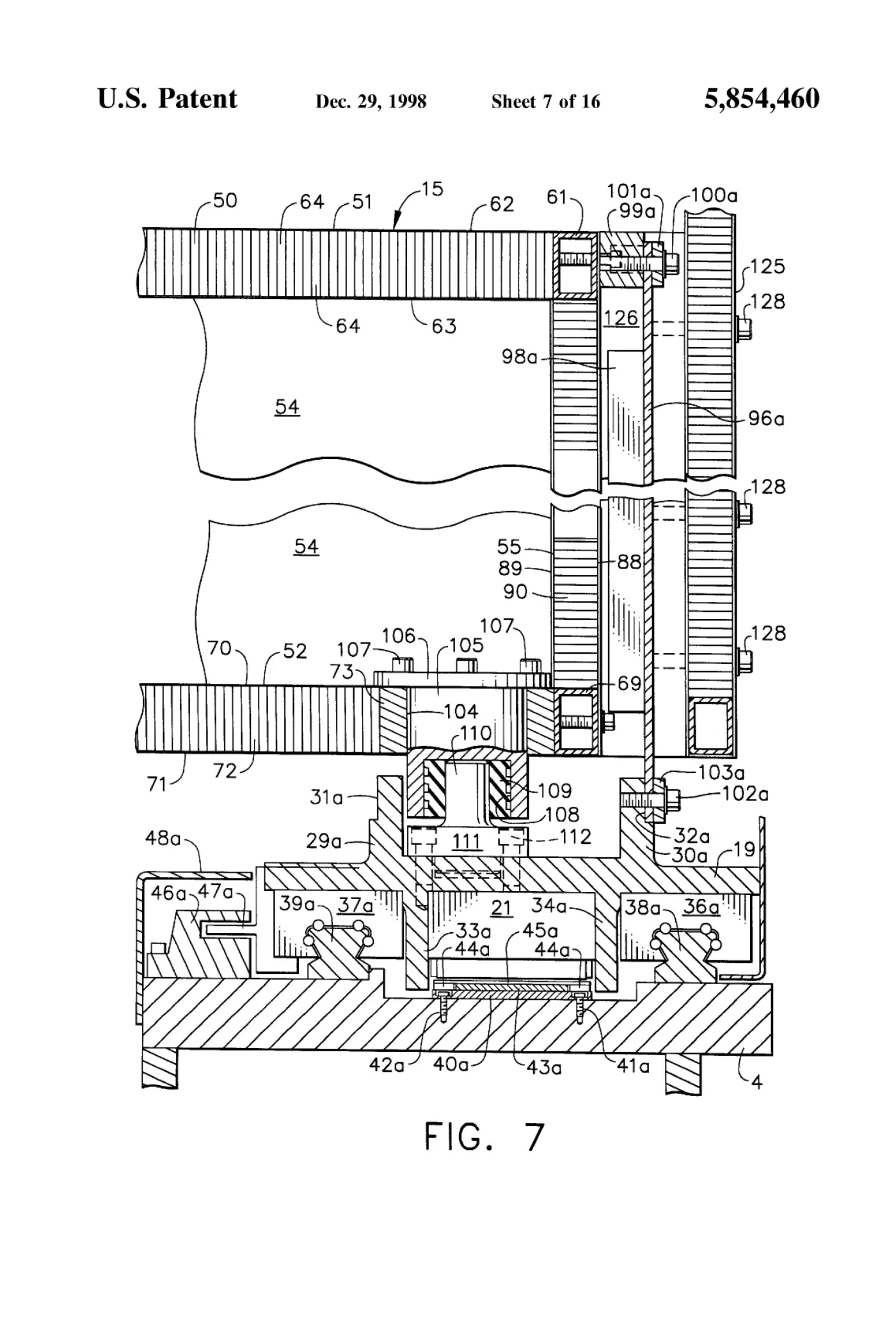

[0007]Sheet 7.

[0008]Sheet 8.

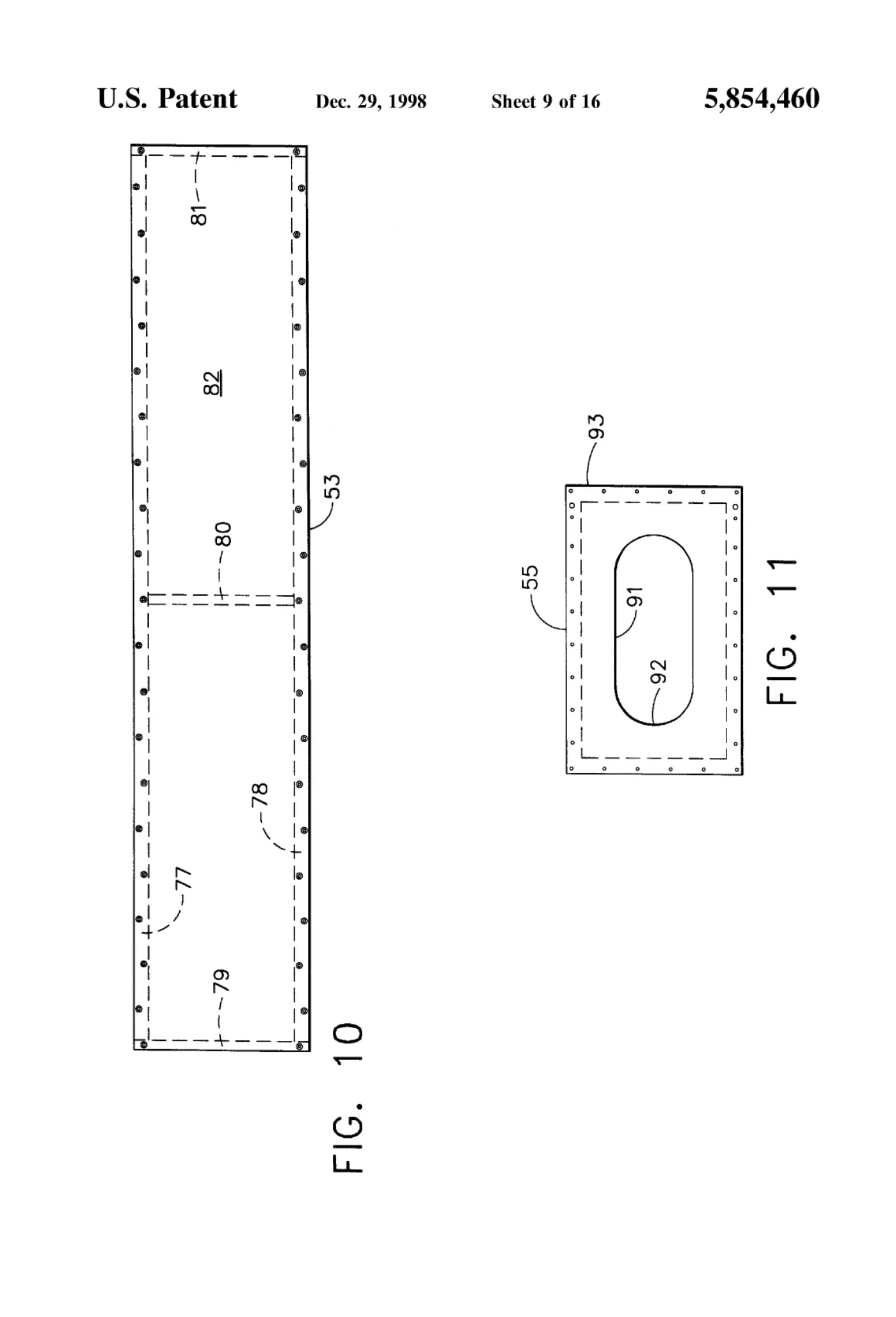

[0009]Sheet 9.

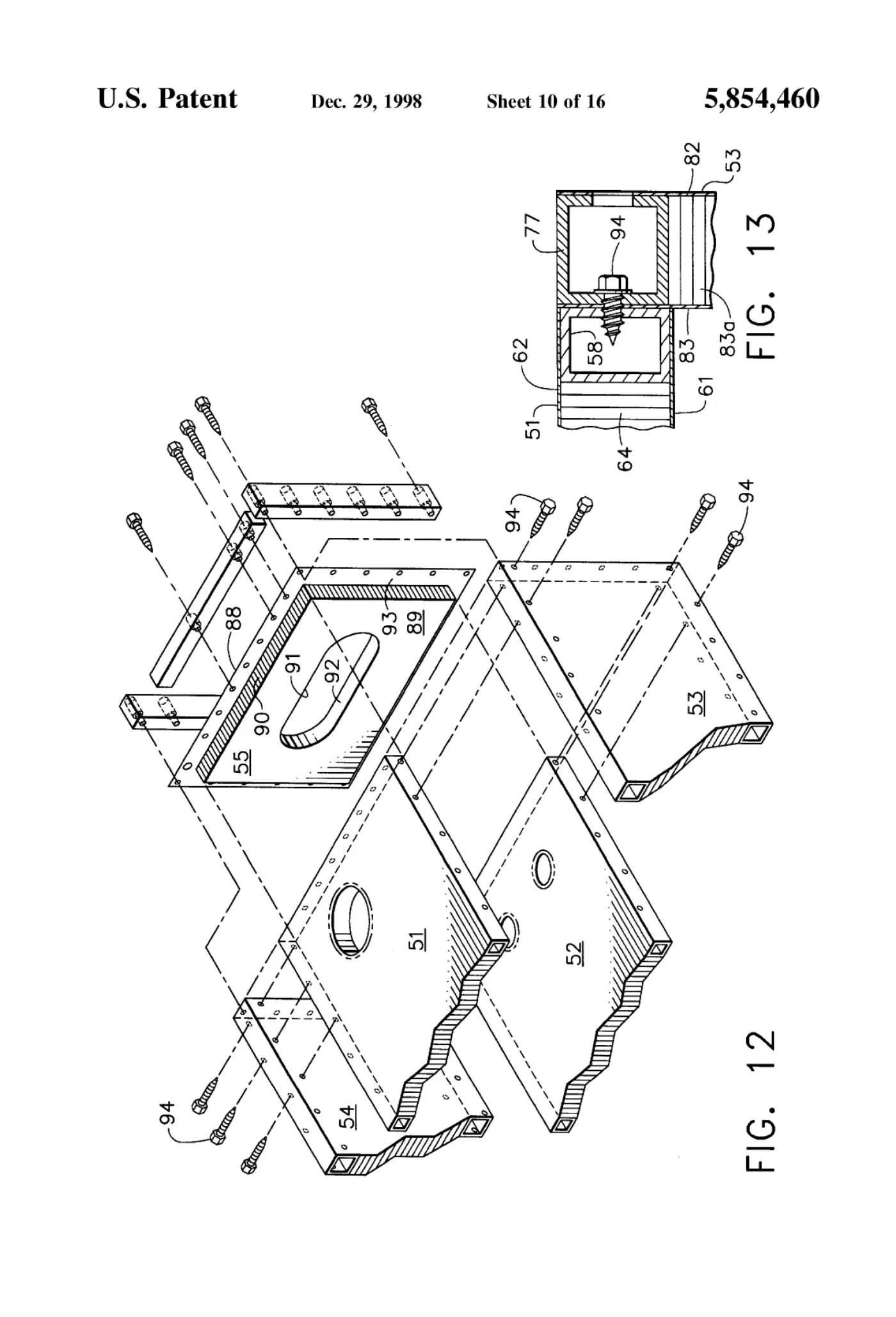

[0010]Sheet 10.
