Vacuum adherent face mask

Published
Permanent URL
Classification
Lifting, Positioning & Manipulation › Vacuum Lifting
Original source
US-5803076-A, the United States Patent and Trademark Office, 8 September 1998
Document SHA-256
3f039aba519c9d69068a64afa5e01f809edba4aec1b2adeae13fe70afd77e0db

A vacuum adherent face mask unit is provided having (a) a face mask for enclosing the nose and mouth of humans. The mask has (i) a mask body having a periphery and defining a chamber from and into which a person may inhale and exhale gases, and (ii) a bladder attached to the periphery of the mask body. The bladder has a face engaging region for engaging the face of a human and encircling the chamber, and has a plurality of perforations spaced around the face engaging region. The unit also has (b) vacuum means for producing a subatmospheric pressure in the bladder when said mask is in engagement with a human face. The vacuum is preferably created by a battery operated vacuum pump, and optionally may be created and/or augmented by the wearer applying suction to a check valved pipe extending from the bladder to the chamber. Monitoring the level of vacuum within the face seal bladder provides a means for advising the wearer of the unit the status of fit in real-time. This will result in higher, more consistent, and reliable levels of respiratory protection. A method for adhering a face mask is also provided.

Sheet 1
Sheet 1
Sheet 2
Sheet 2

Abstract

A vacuum adherent face mask unit is provided having (a) a face mask for enclosing the nose and mouth of humans. The mask has (i) a mask body having a periphery and defining a chamber from and into which a person may inhale and exhale gases, and (ii) a bladder attached to the periphery of the mask body. The bladder has a face engaging region for engaging the face of a human and encircling the chamber, and has a plurality of perforations spaced around the face engaging region. The unit also has (b) vacuum means for producing a subatmospheric pressure in the bladder when said mask is in engagement with a human face. The vacuum is preferably created by a battery operated vacuum pump, and optionally may be created and/or augmented by the wearer applying suction to a check valved pipe extending from the bladder to the chamber. Monitoring the level of vacuum within the face seal bladder provides a means for advising the wearer of the unit the status of fit in real-time. This will result in higher, more consistent, and reliable levels of respiratory protection. A method for adhering a face mask is also provided.

1. Drawings

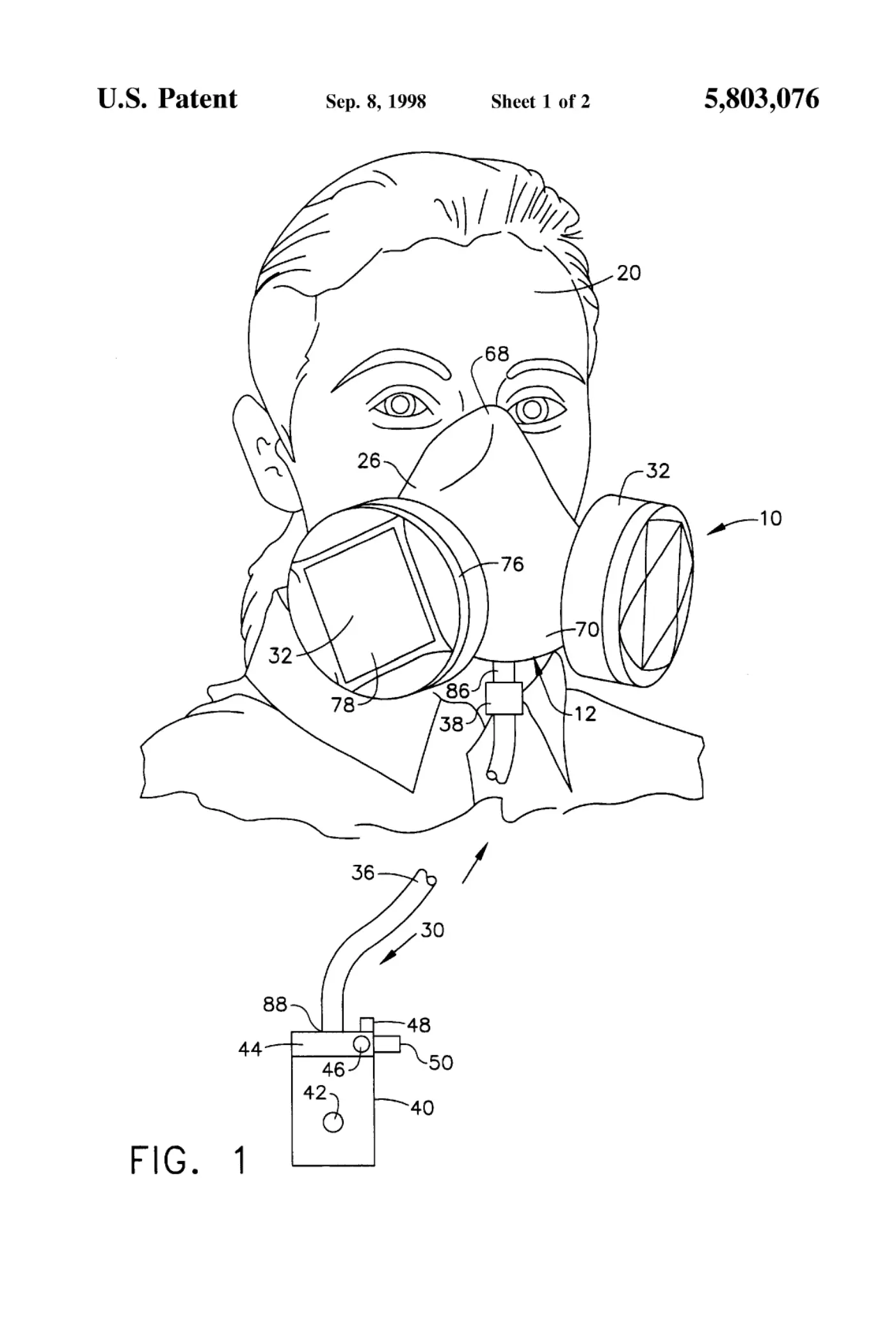

[0001]Sheet 1.

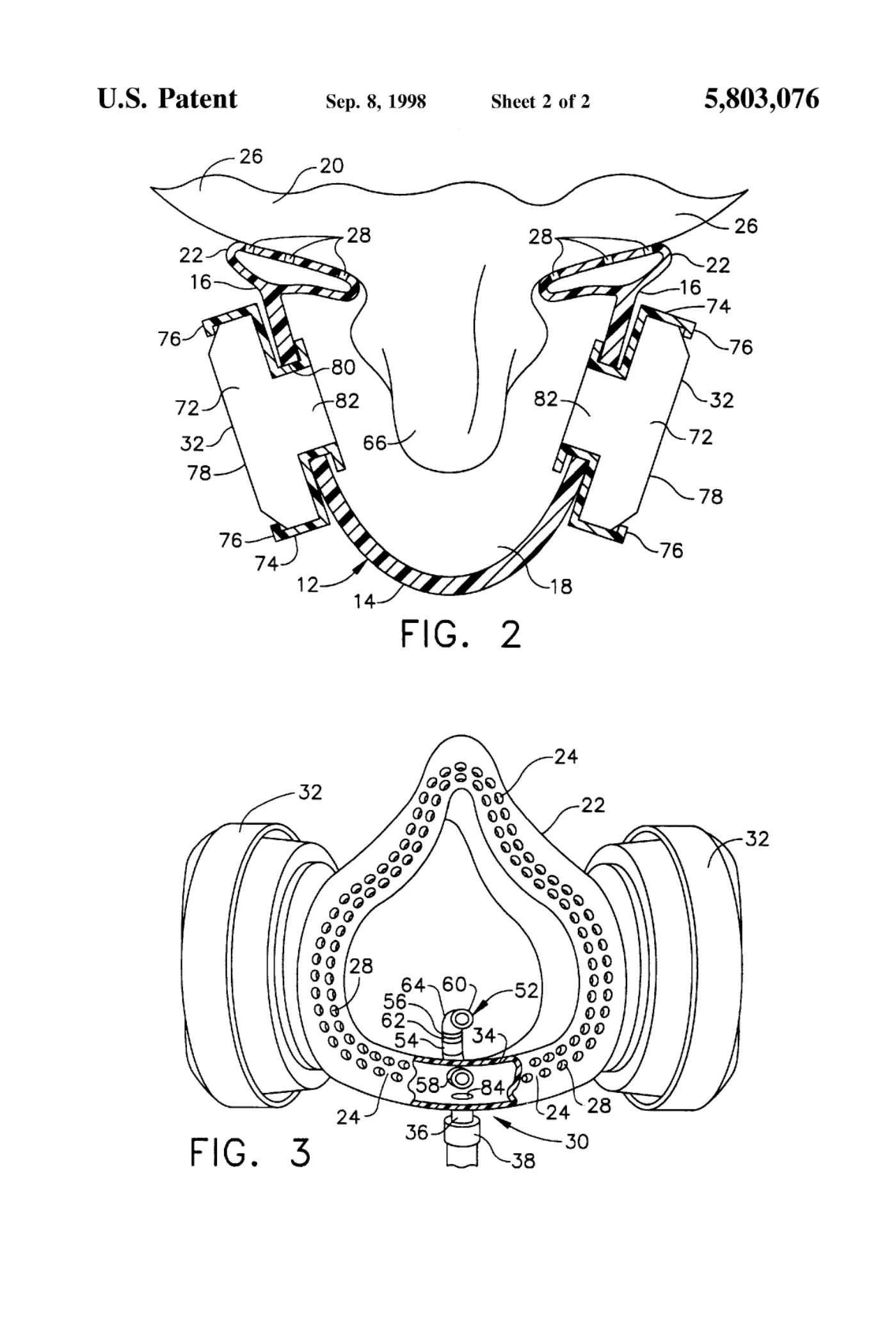

[0002]Sheet 2.
