Oil field converting axial force into torque

Published
Permanent URL
Classification
Tools & Tooling › Fastening Tools
Original source
US-5787981-A, the United States Patent and Trademark Office, 4 August 1998
Document SHA-256
b8e5206054c41e83f513b329b30a53aff144c45c88617dc5c600a7552e477088

The present invention provides a tool for converting axial force into torque comprising a body and set teeth positioned on the body. The tool also has a mandrel positioned to move relative to the body and drive teeth positioned on the mandrel such that there is relative motion between said set teeth and said drive teeth. When the set teeth and drive teeth engage, torque is applied to the mandrel.

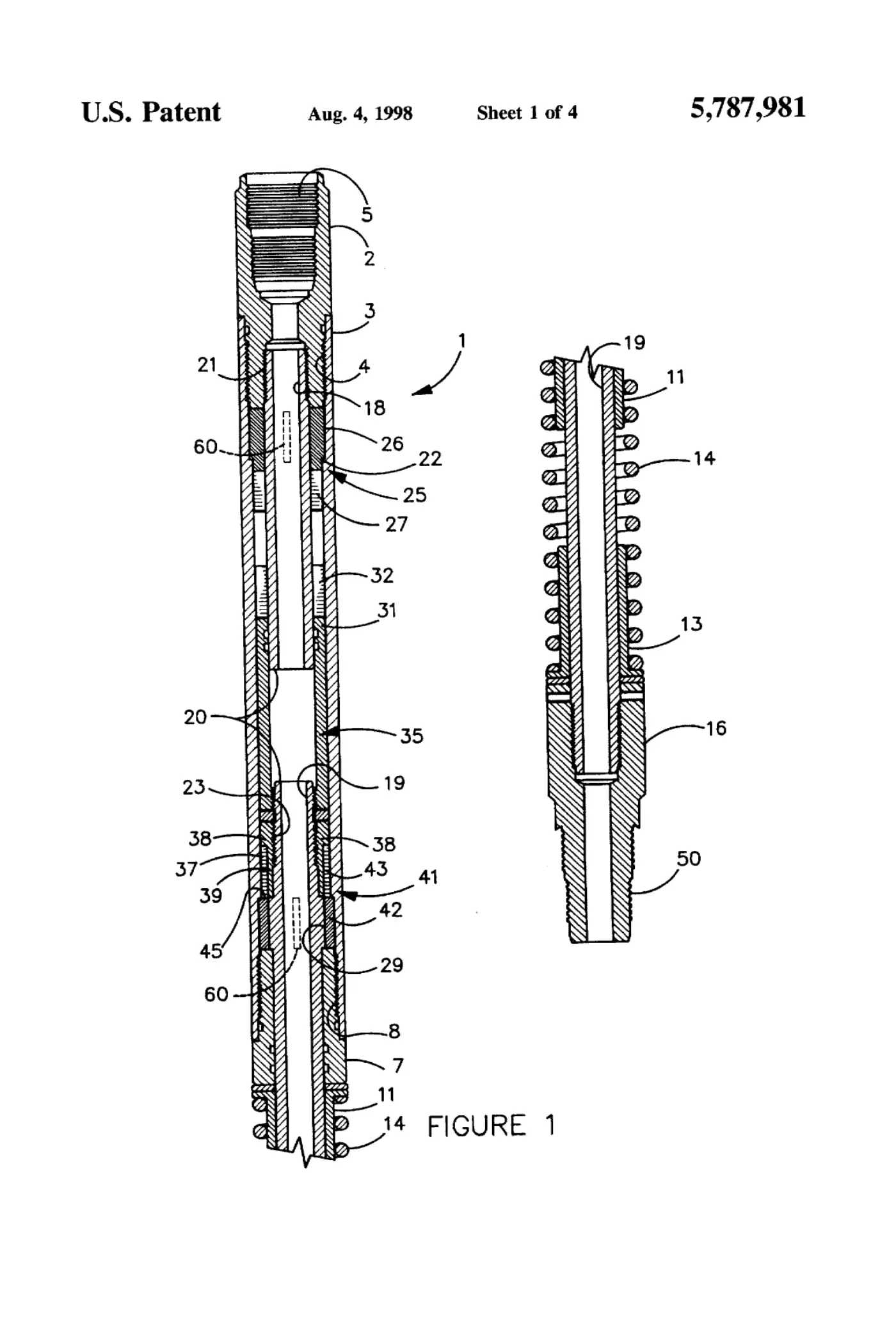

Sheet 1
Sheet 1

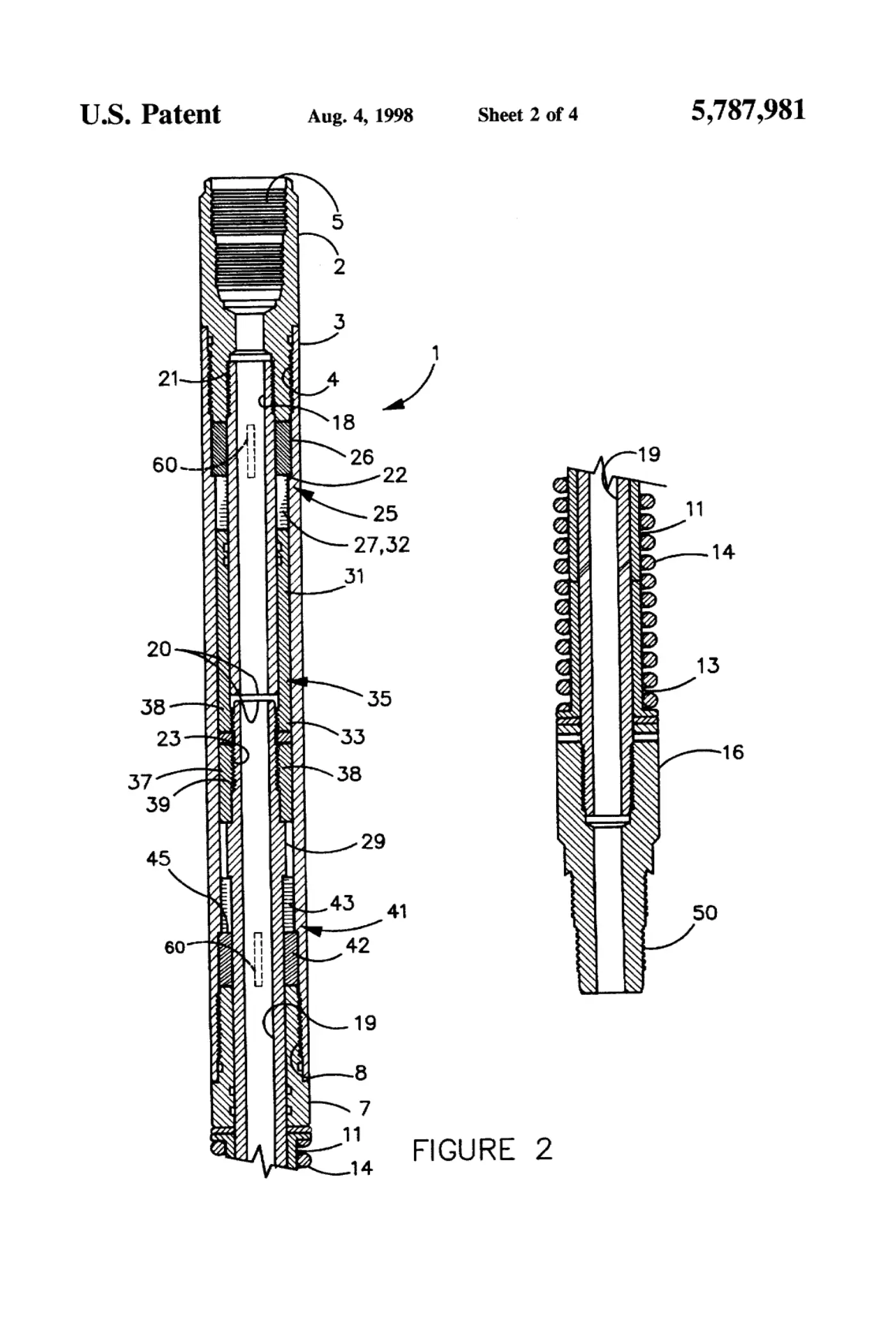

Sheet 2
Sheet 2
Sheet 3
Sheet 3

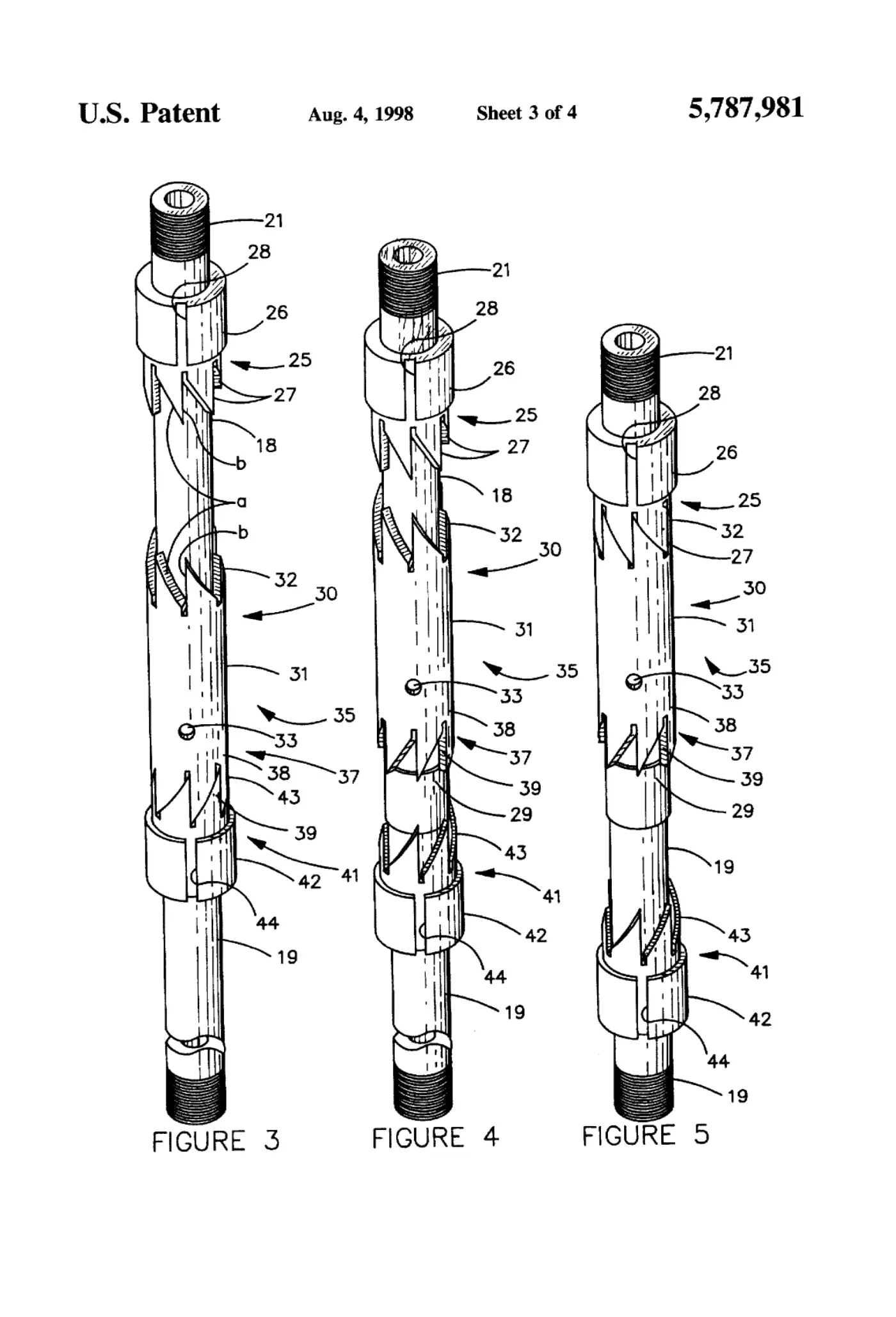

Sheet 4
Sheet 4

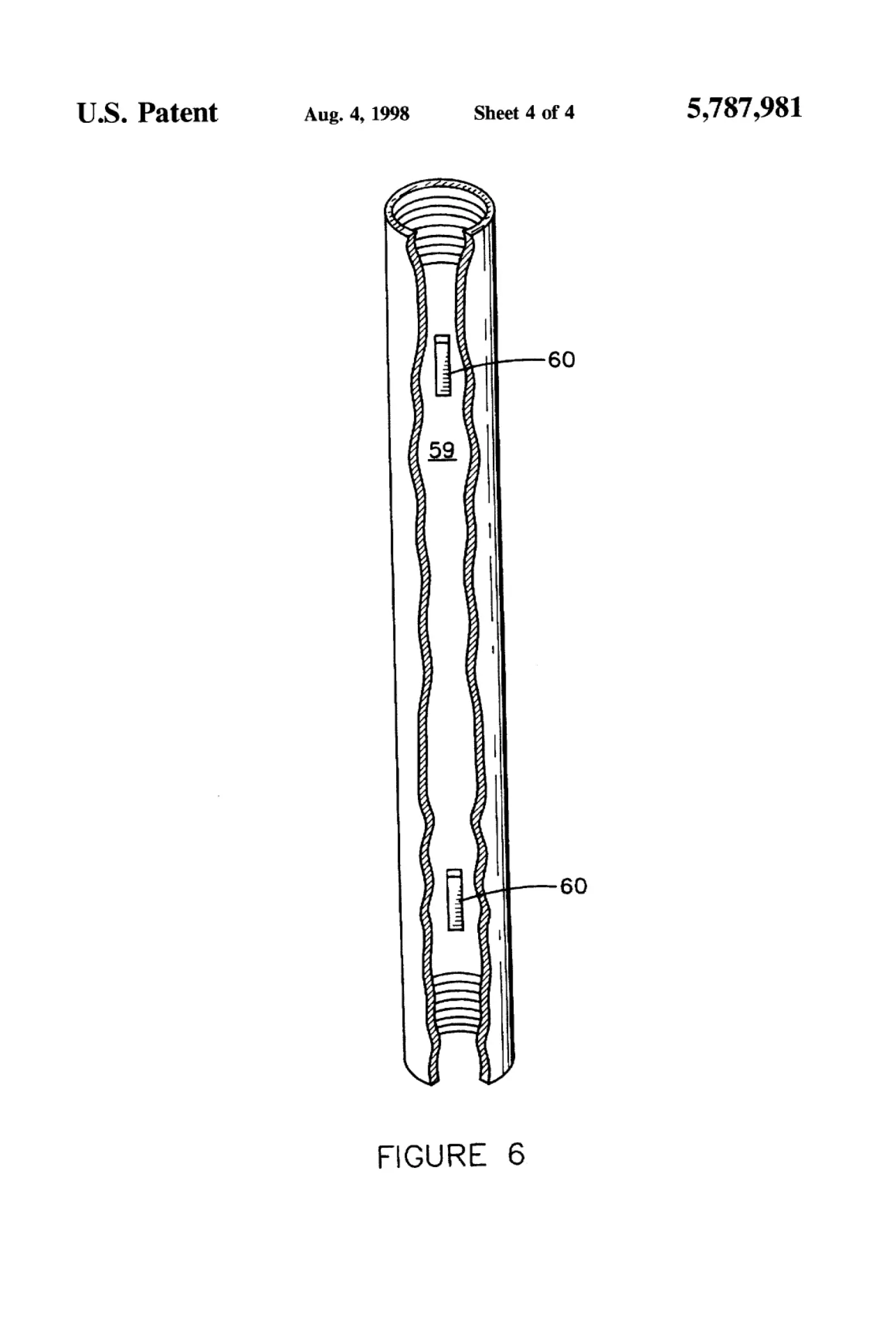

Sheet 5
Sheet 5

Abstract

The present invention provides a tool for converting axial force into torque comprising a body and set teeth positioned on the body. The tool also has a mandrel positioned to move relative to the body and drive teeth positioned on the mandrel such that there is relative motion between said set teeth and said drive teeth. When the set teeth and drive teeth engage, torque is applied to the mandrel.

1. Drawings

[0001]Sheet 1.

[0002]Sheet 2.

[0003]Sheet 3.

[0004]Sheet 4.

[0005]Sheet 5.
