Device for coupling two shafts

Published
Permanent URL
Classification
Industrial Motion & Power Transmission › Rotary Motion
Inventors
AURIAU JACKY, BOUGUERRA AMAR, COURGEON JEAN-CLAUDE
Assignee
LEMFORDER NACAM
Original source
US-5785448-A, the United States Patent and Trademark Office, 28 July 1998
Document SHA-256
7797fa78766d172367a66e8f9f2b8bc03d9f248fb7e3139436bbecfdb4dc6864

A device for coupling two shafts adapted to turn about a common axis includes a rotational coupling system associated with an axial retaining system. The rotational coupling system includes conjugate profiles at the ends of the shafts. The axial retaining system comprises a two-part sleeve coupled axially to the shaft and cooperating with a spring disposed inside the sleeve. The end of each shaft is surrounded by the sleeve. The spring operates after releasing an arming system including studs on the sleeve cooperating with cams at the end of one of the shafts.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3
Sheet 4
Sheet 4
Sheet 5
Sheet 5
Sheet 6
Sheet 6

Abstract

A device for coupling two shafts adapted to turn about a common axis includes a rotational coupling system associated with an axial retaining system. The rotational coupling system includes conjugate profiles at the ends of the shafts. The axial retaining system comprises a two-part sleeve coupled axially to the shaft and cooperating with a spring disposed inside the sleeve. The end of each shaft is surrounded by the sleeve. The spring operates after releasing an arming system including studs on the sleeve cooperating with cams at the end of one of the shafts.

1. Drawings

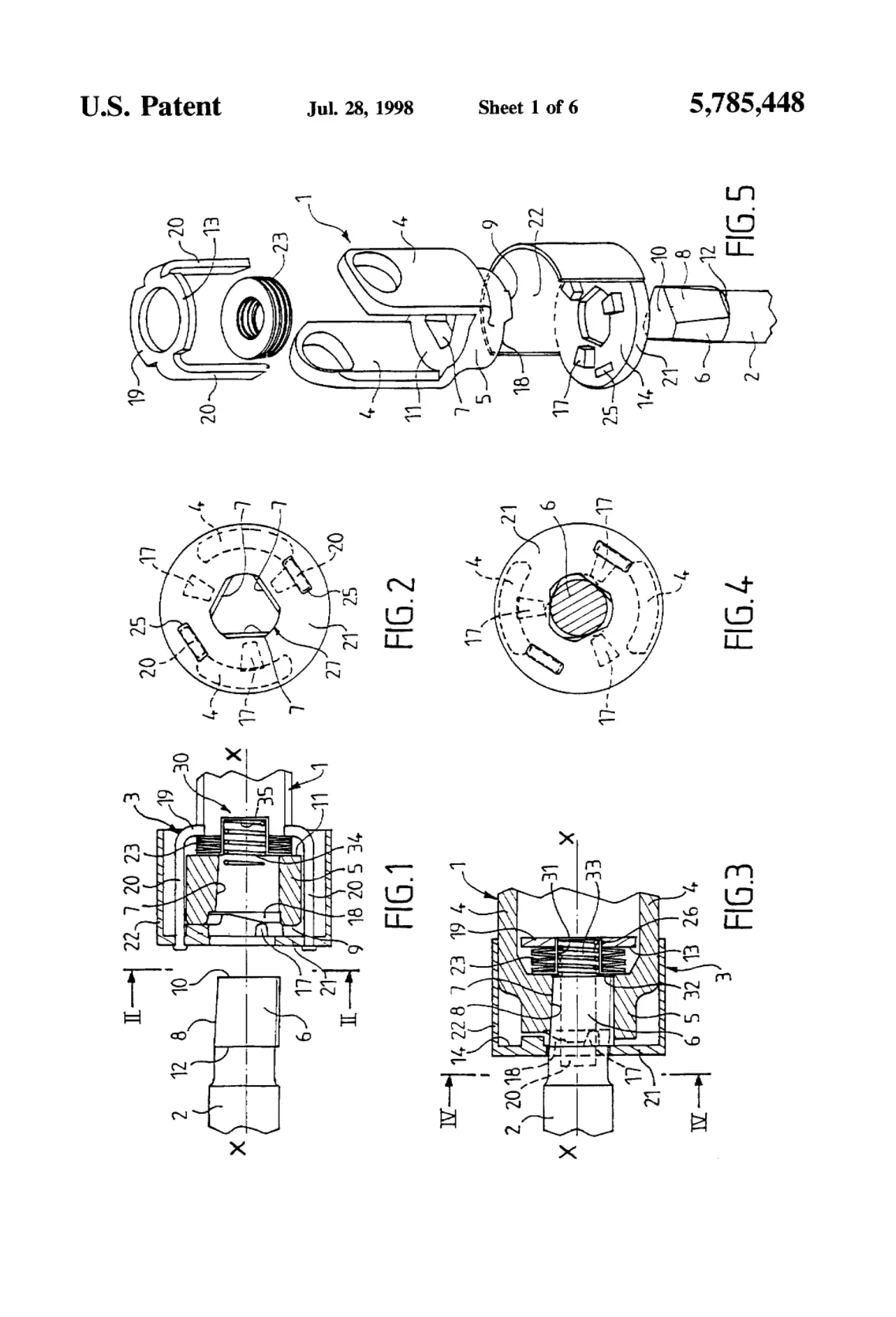

[0001]Sheet 1.

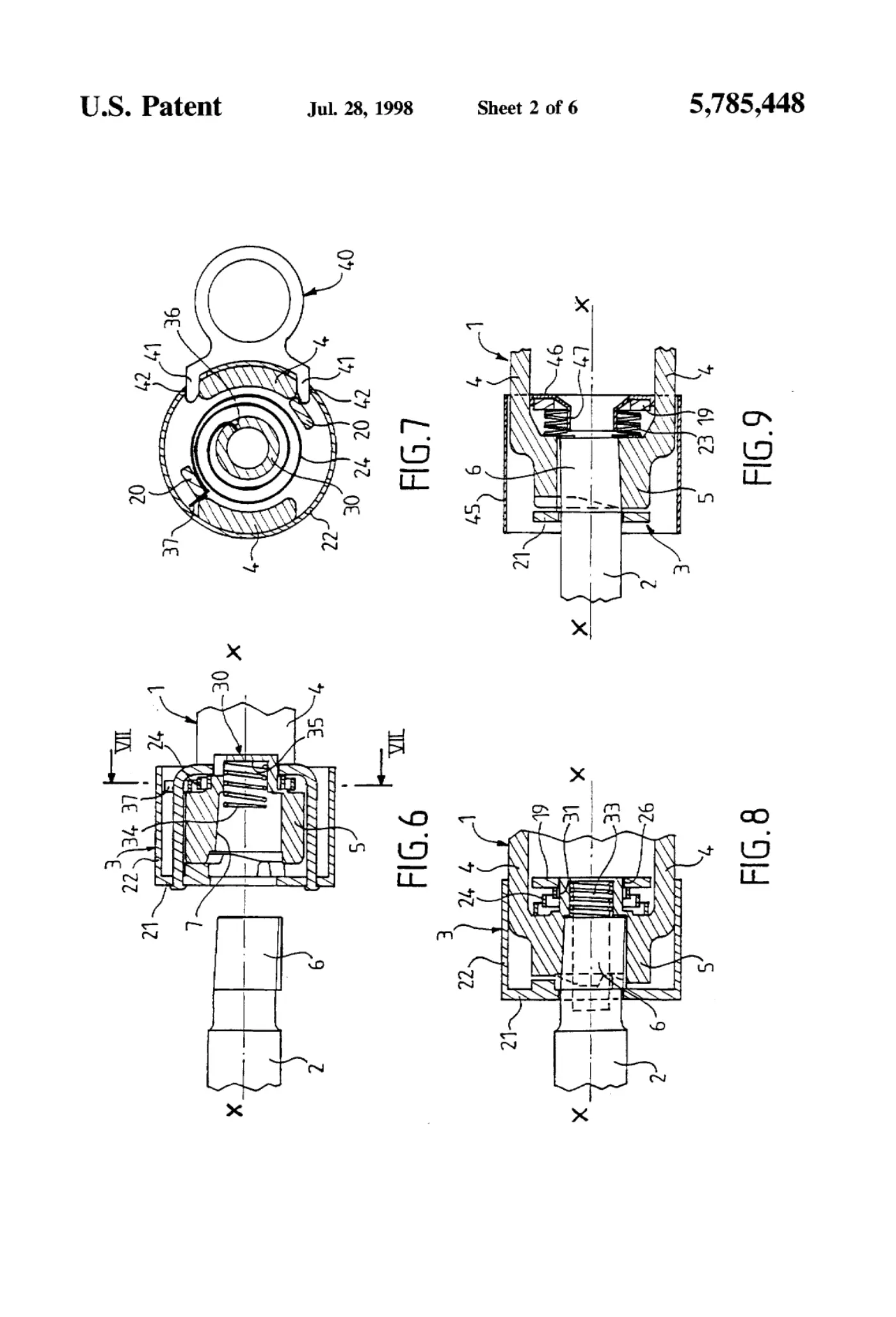

[0002]Sheet 2.

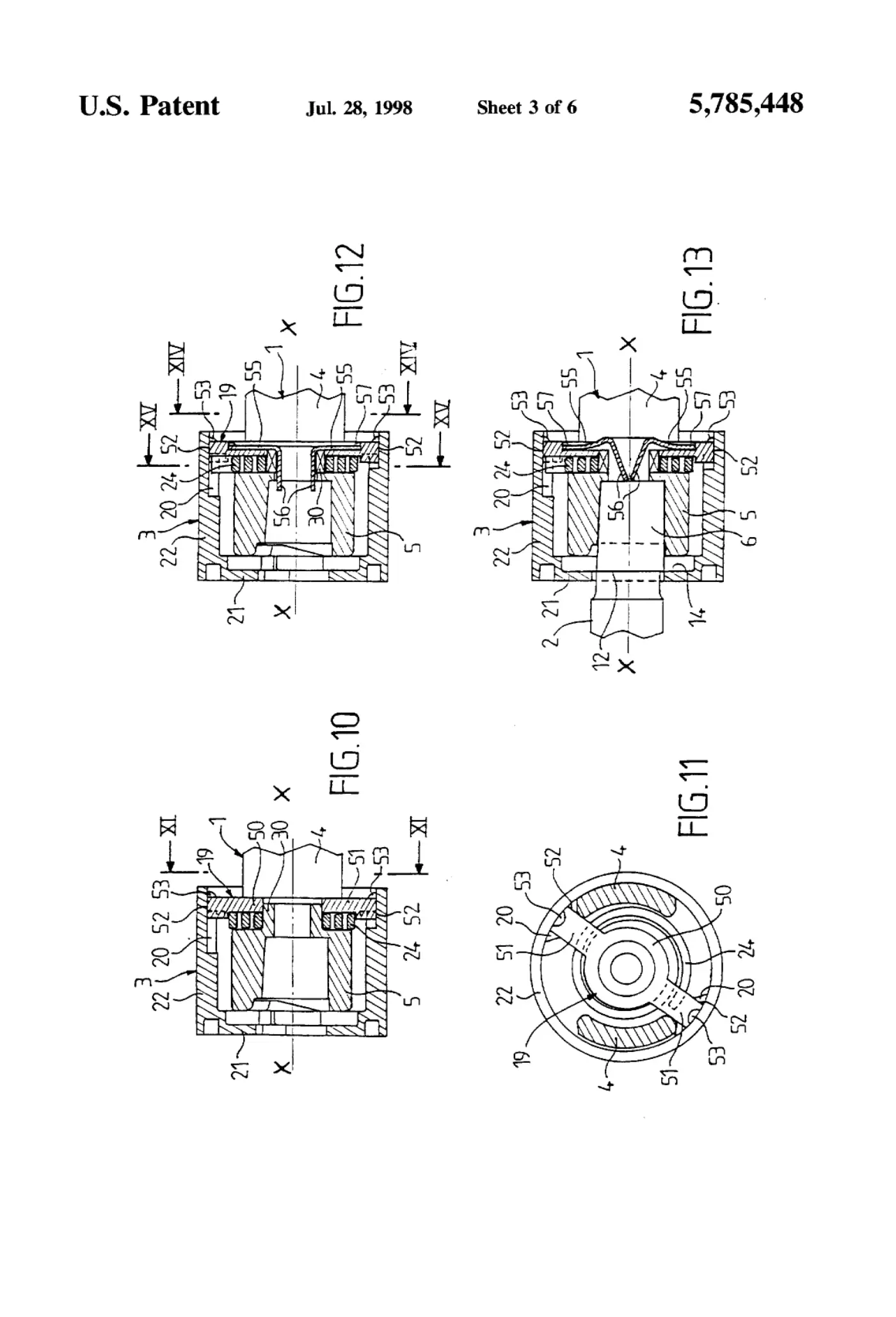

[0003]Sheet 3.

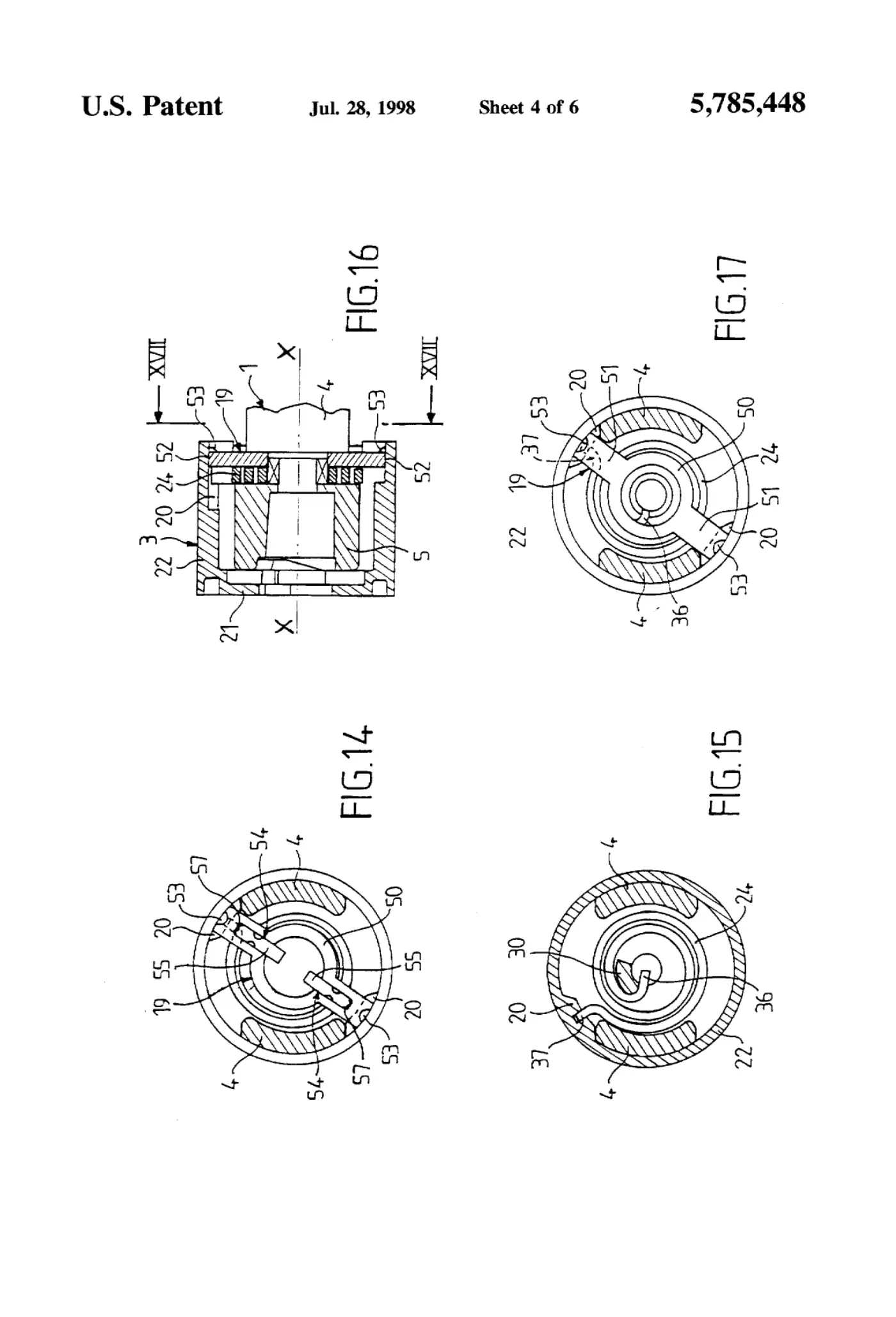

[0004]Sheet 4.

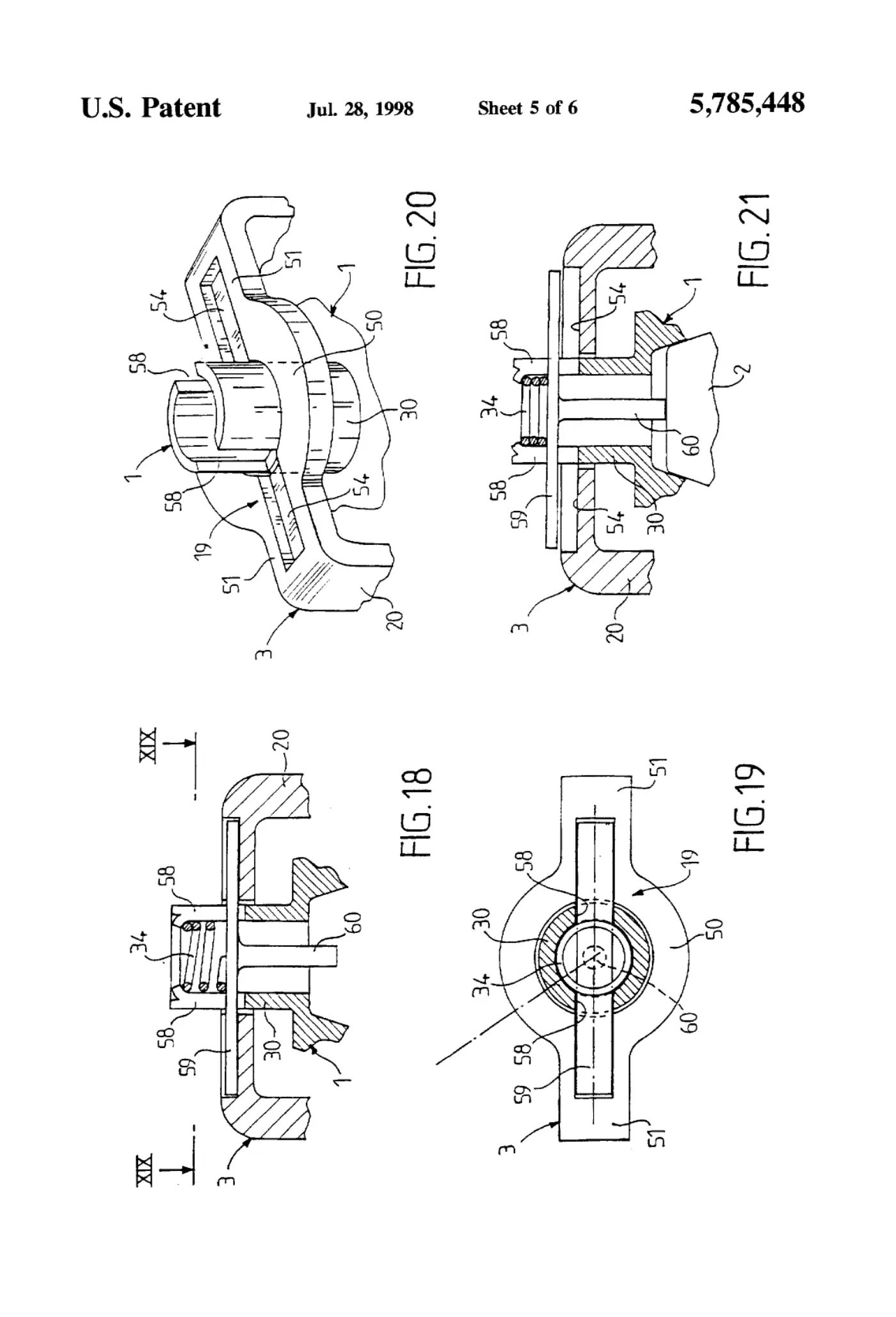

[0005]Sheet 5.

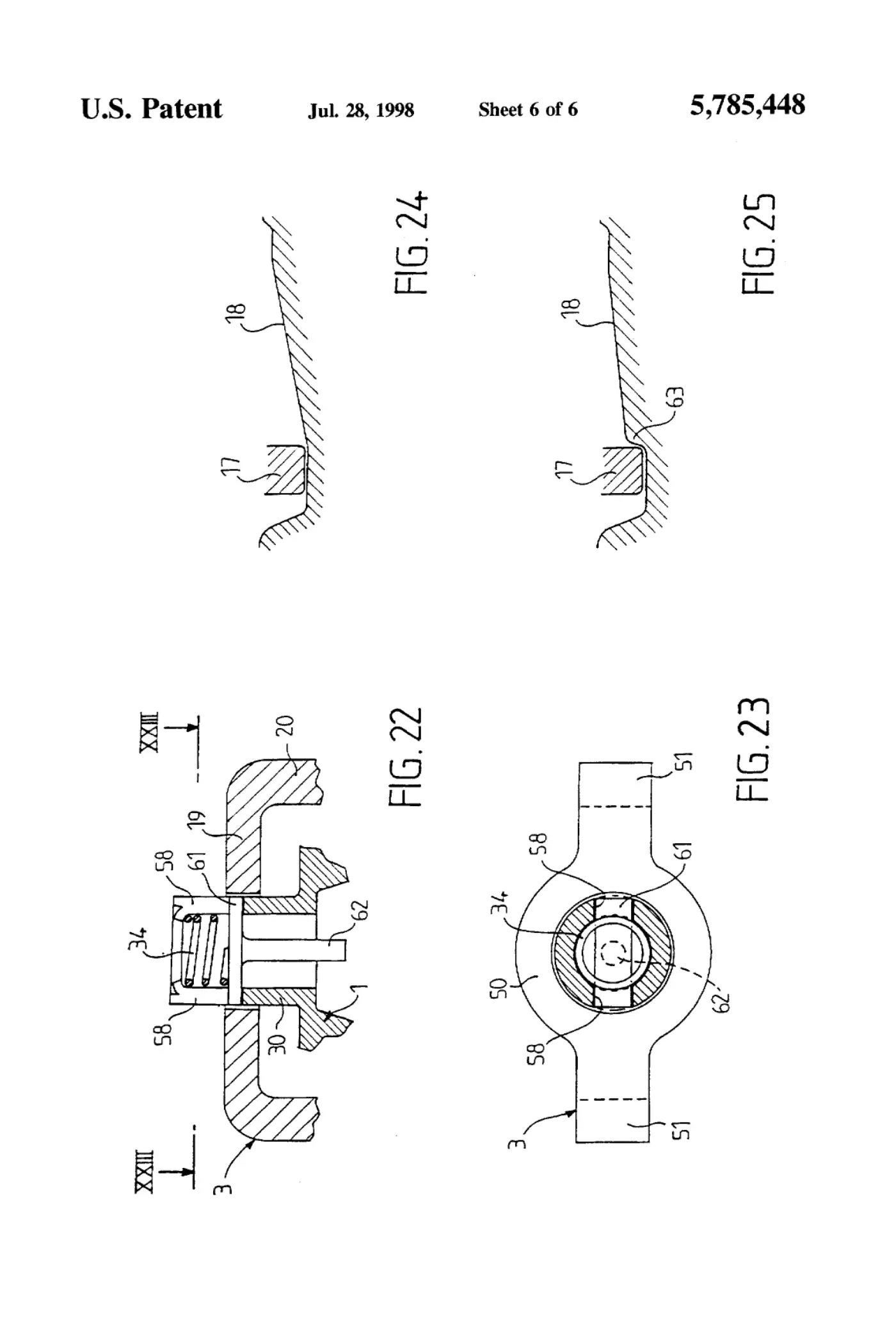

[0006]Sheet 6.
