Connected component assembly having conical clamping sleves

Published
Permanent URL
Classification
Industrial Motion & Power Transmission › Rotary Motion
Inventors
MULLENBERG RALPH
Original source
US-5775831-A, the United States Patent and Trademark Office, 7 July 1998
Document SHA-256
dff076a0e50f05b4164e14613ec6bcff04a0bd7d2555f785fc48649a7ed37f10

The component assembly (100) serves in a free from play connection of two components (1, 2) by a radially-expandable, conical clamping system (10) arranged in aligned bores (5, 6) of the first component (1) and the second component (2). The clamping arrangement (100) is intended to be clamped and released if inserted into a blind bore (5) of the first component (1). For this purpose, the outer sleeve (14) of the conical clamping system (10) has at one end a radial circumferential projection (17) that rests axially against the outside of the second component (2), while the other end of the outer sleeve (14) is cylindrical throughout and has a diameter that corresponds to the diameter of the bore configured as a blind bore (5) in the first component (1), and a coaxial threaded bore (7) is provided in the bottom (8) of the bore (5), the threaded bore having a smaller diameter than a through bore (12) that is present as a through bore (12) in the conical clamping system (10) and receives the clamping bolt (22).

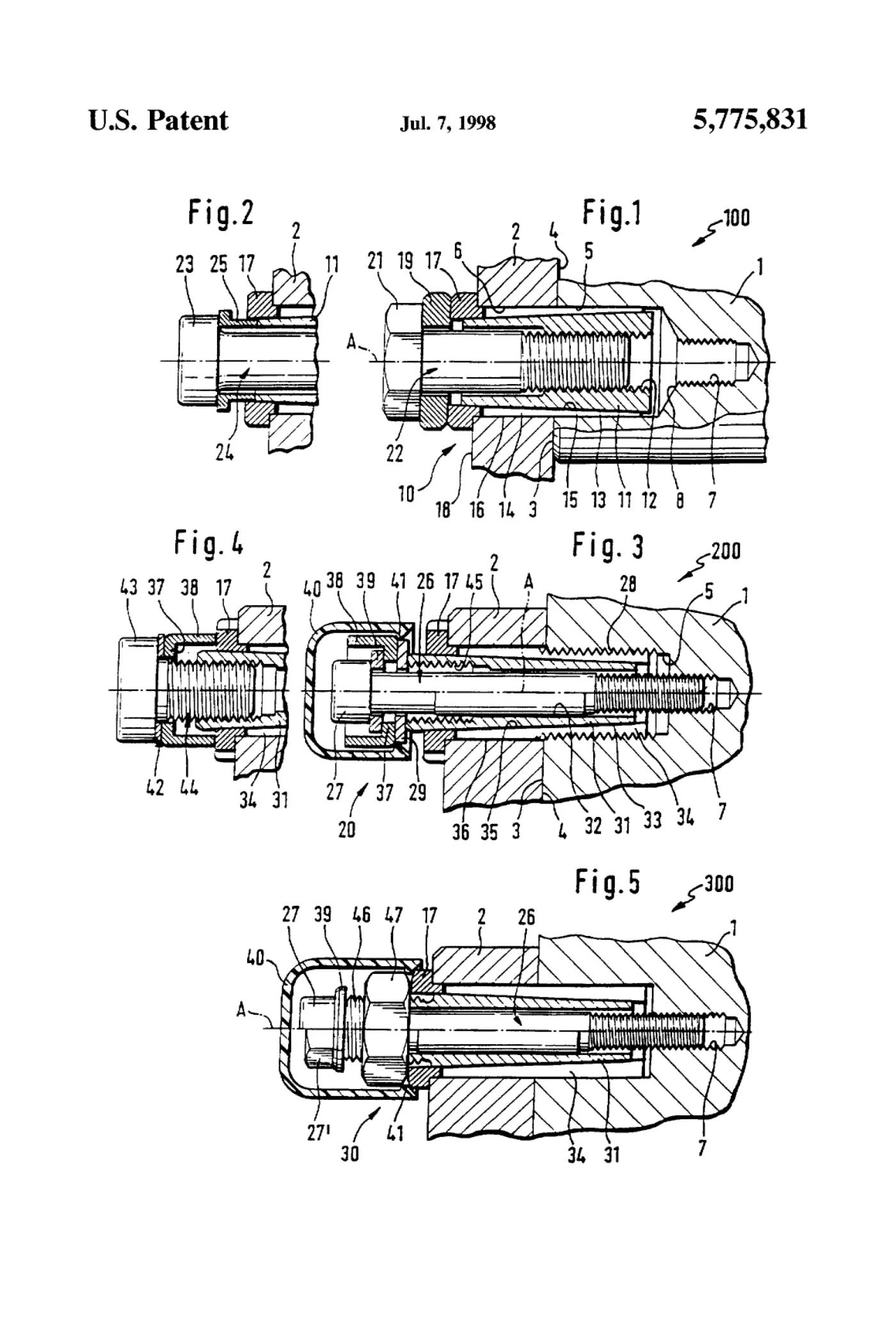

Sheet 1
Sheet 1

Abstract

The component assembly (100) serves in a free from play connection of two components (1, 2) by a radially-expandable, conical clamping system (10) arranged in aligned bores (5, 6) of the first component (1) and the second component (2). The clamping arrangement (100) is intended to be clamped and released if inserted into a blind bore (5) of the first component (1). For this purpose, the outer sleeve (14) of the conical clamping system (10) has at one end a radial circumferential projection (17) that rests axially against the outside of the second component (2), while the other end of the outer sleeve (14) is cylindrical throughout and has a diameter that corresponds to the diameter of the bore configured as a blind bore (5) in the first component (1), and a coaxial threaded bore (7) is provided in the bottom (8) of the bore (5), the threaded bore having a smaller diameter than a through bore (12) that is present as a through bore (12) in the conical clamping system (10) and receives the clamping bolt (22).

1. Drawings

[0001]Sheet 1.
