Device capable of suction-adhering to surface of object and moving therealong

Published
Permanent URL
Classification
Lifting, Positioning & Manipulation › Vacuum Lifting
Assignee
HONDA MOTOR CO LTD, URAKAMI RESEARCH & DEV CO LTD
Original source
US-5752577-A, the United States Patent and Trademark Office, 19 May 1998
Document SHA-256
8e41c22a8234062439f5a062d239ad08bed039c69d8edcce689b9ba443f42b1b

A device capable of suction-adhering to and moving along the surface of an object includes a pressure reduction housing, a suction-adhering seal mounted on the pressure reduction housing and defining a pressure reduction space in cooperation with the pressure reduction housing and the surface of the object, and a vacuum generator for discharging a fluid from the pressure reduction space to the outside of the pressure reduction space. The device suction-adheres to the surface of the object by the pressure of an ambient fluid acting on the pressure reduction housing owing to the difference in fluid pressure between the inside and the outside of the pressure reduction space. The device is moved along the surface of the object by driven wheels which engage the surface. At least that portion of the suction-adhering seal which contacts the surface of the object vibrates in a manner which creates a dynamic friction force to decrease the frictional force between the suction-adhering seal and the surface of the object.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3
Sheet 4
Sheet 4
Sheet 5
Sheet 5
Sheet 6
Sheet 6

Abstract

A device capable of suction-adhering to and moving along the surface of an object includes a pressure reduction housing, a suction-adhering seal mounted on the pressure reduction housing and defining a pressure reduction space in cooperation with the pressure reduction housing and the surface of the object, and a vacuum generator for discharging a fluid from the pressure reduction space to the outside of the pressure reduction space. The device suction-adheres to the surface of the object by the pressure of an ambient fluid acting on the pressure reduction housing owing to the difference in fluid pressure between the inside and the outside of the pressure reduction space. The device is moved along the surface of the object by driven wheels which engage the surface. At least that portion of the suction-adhering seal which contacts the surface of the object vibrates in a manner which creates a dynamic friction force to decrease the frictional force between the suction-adhering seal and the surface of the object.

1. Drawings

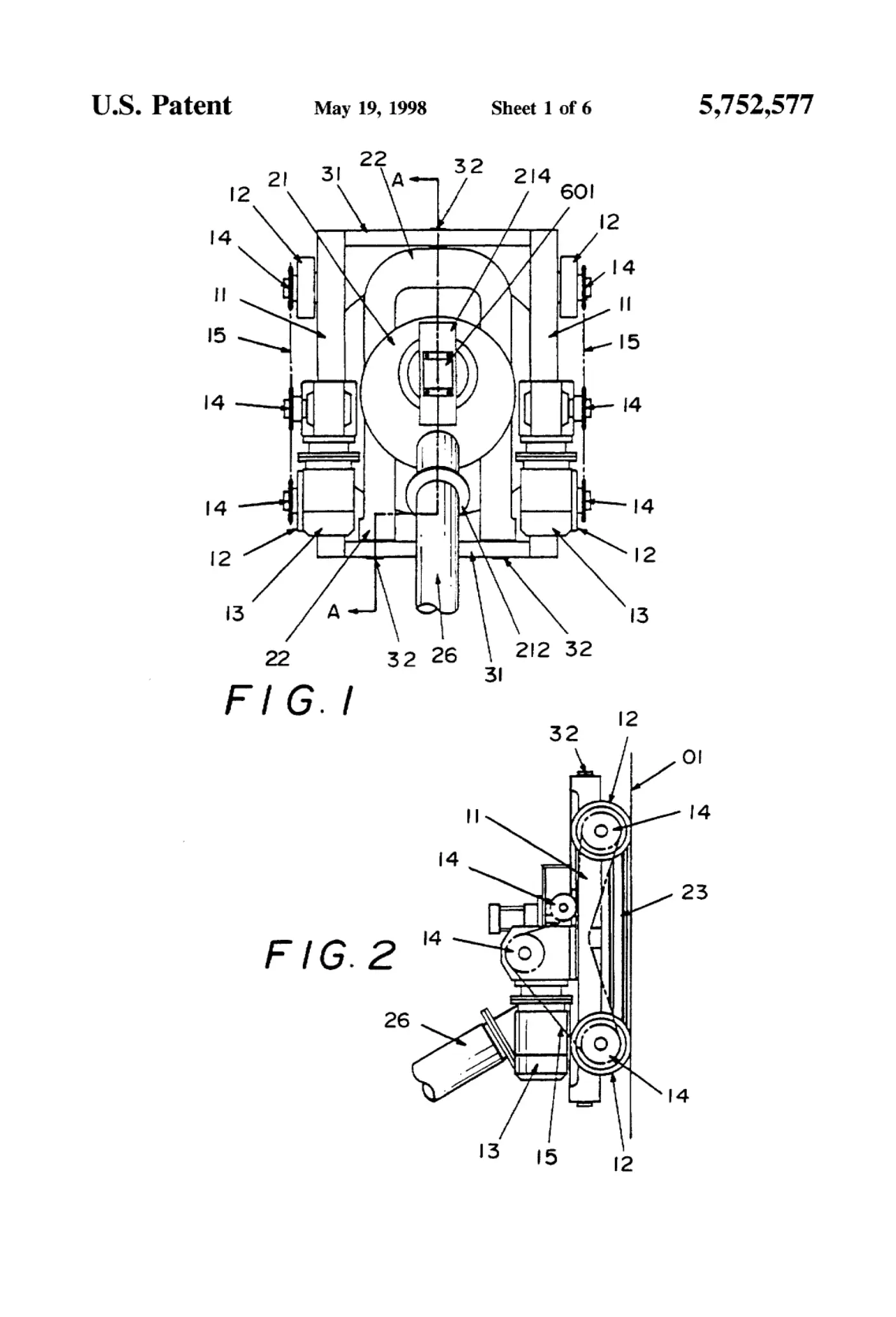

[0001]Sheet 1.

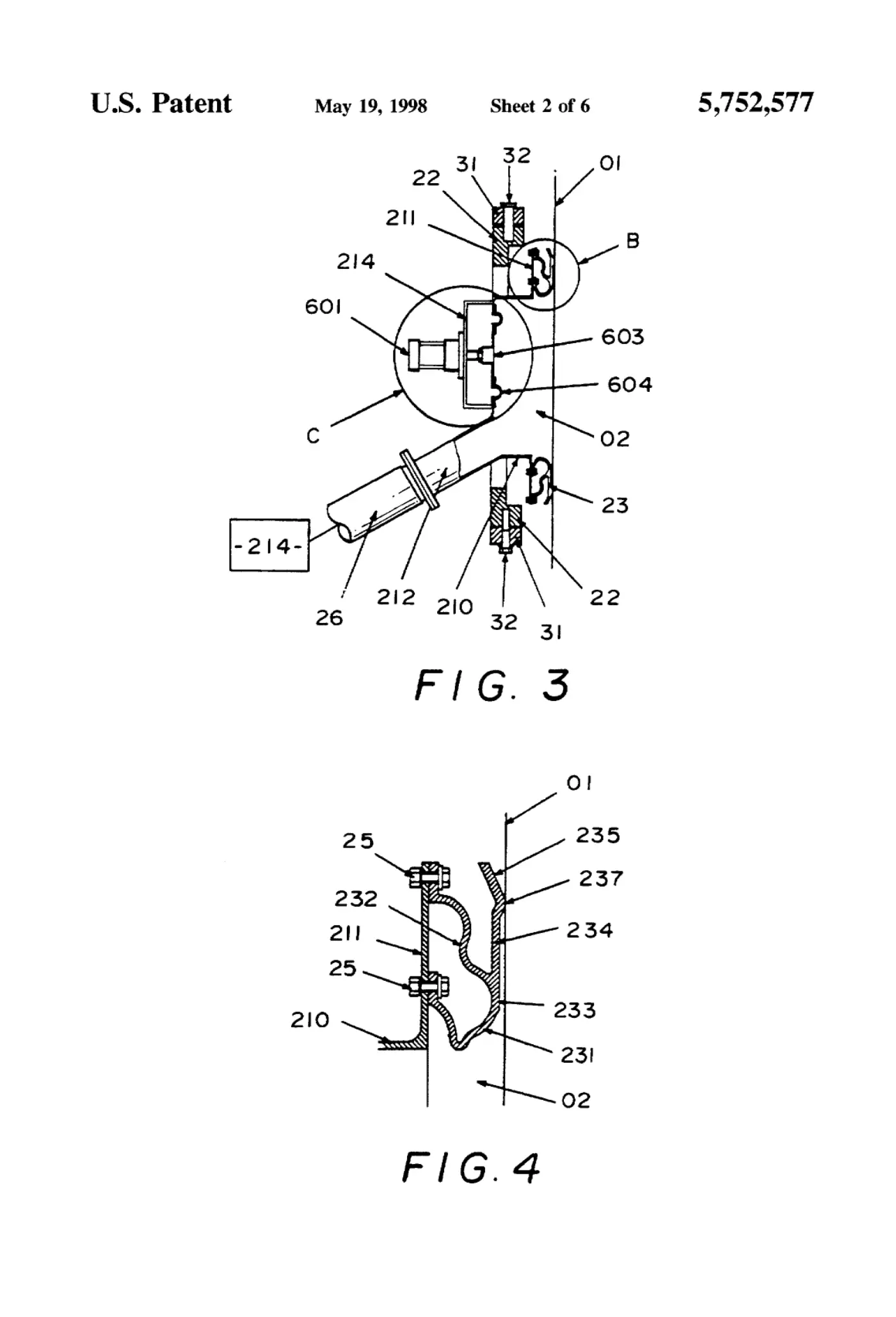

[0002]Sheet 2.

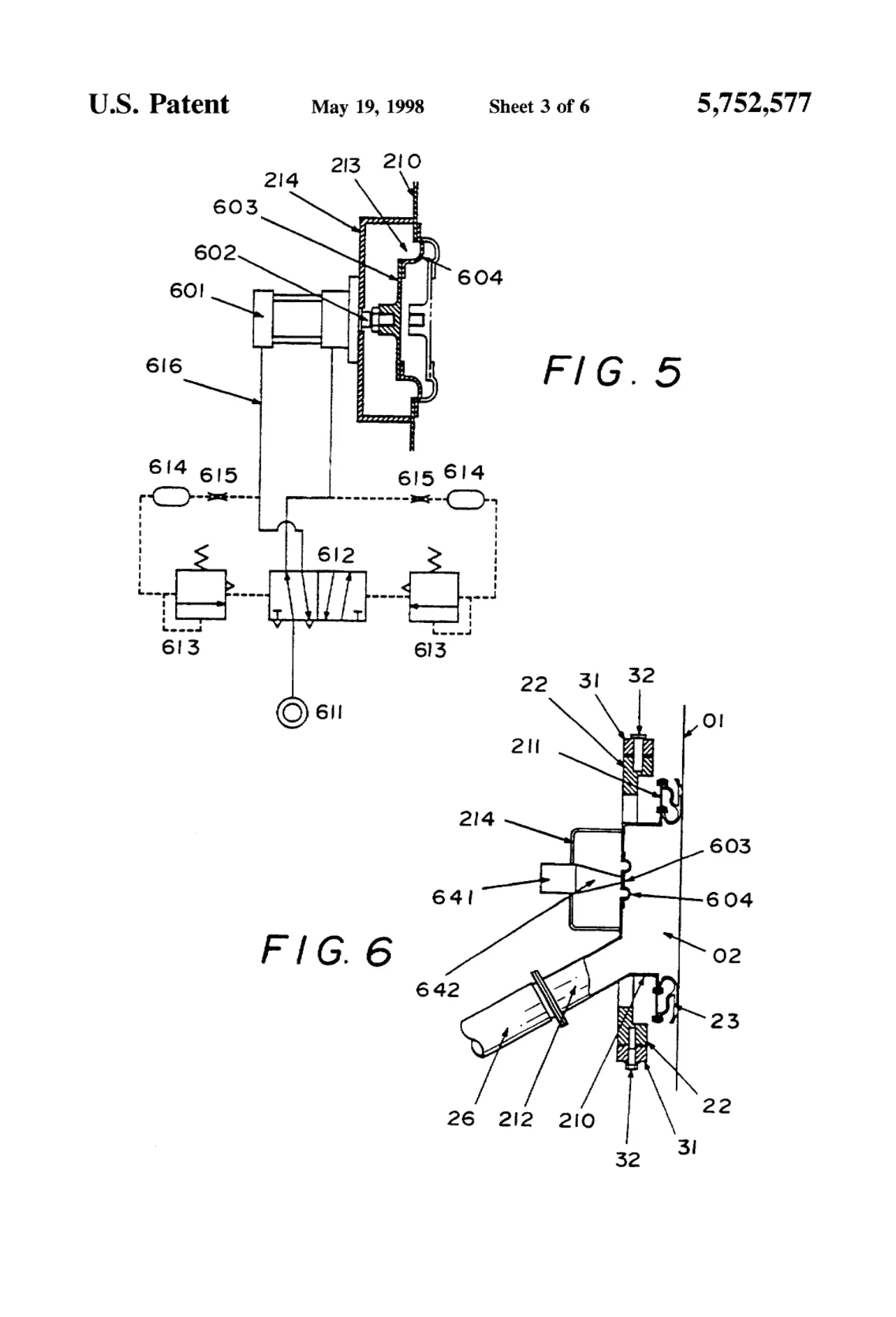

[0003]Sheet 3.

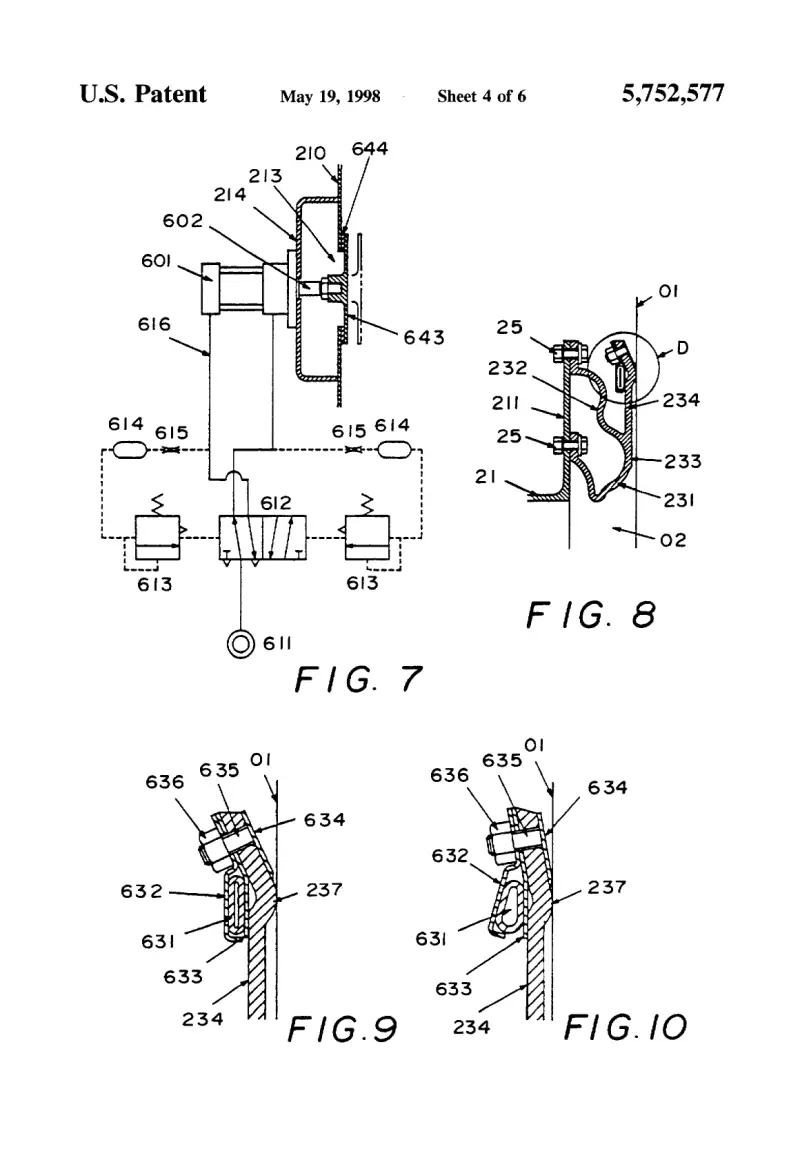

[0004]Sheet 4.

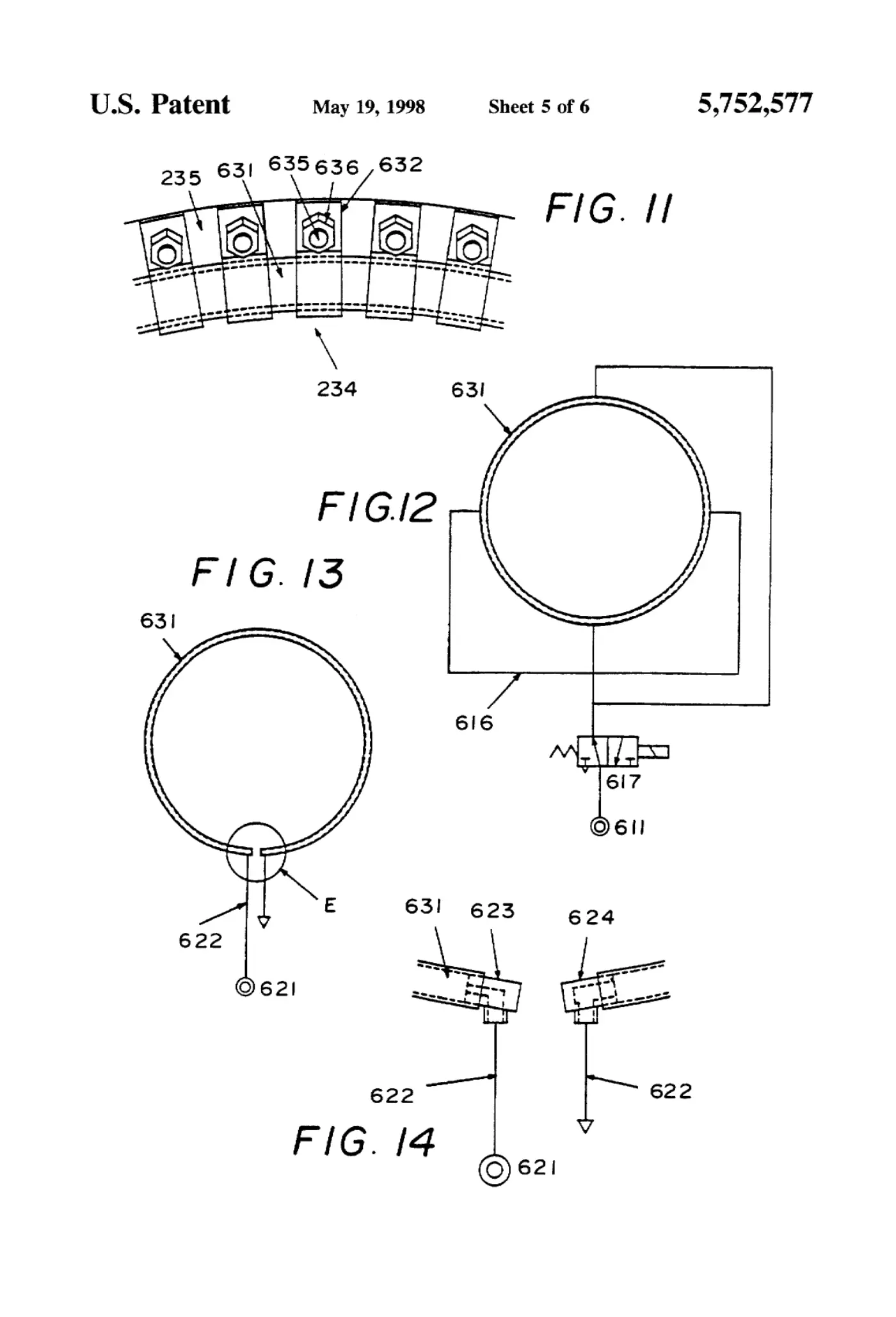

[0005]Sheet 5.

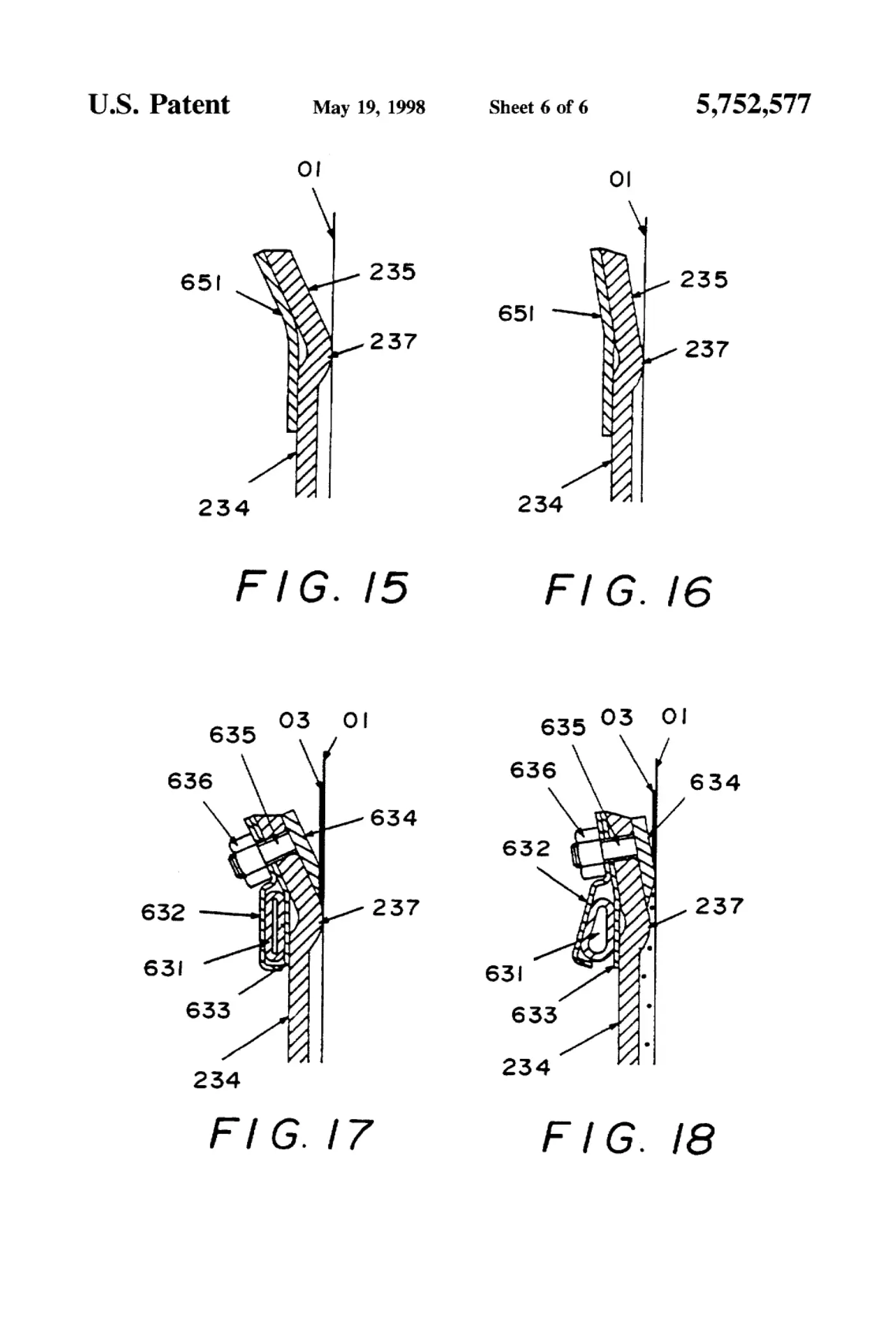

[0006]Sheet 6.
