Hydraulic boom platform leveling system

Published
Permanent URL
Classification
Lifting, Positioning & Manipulation › Lift Tables and Positioners
Inventors
MLAKER JOHN J
Assignee
MAT 3 INC
Original source
US-5746286-A, the United States Patent and Trademark Office, 5 May 1998
Document SHA-256
7b1c0aca9d536865e246a115a793d955f779f57008c0fad82b9a593fc2cfbe7e

A platform leveling system for an aerial lift truck utilizes a master/slave combination of helical hydraulic rotary actuators to automatically level the work platform in response to movements of the boom. For a two-stage aerial lift comprised of a lower boom and an upper boom, a first rotary actuator is coupled to the base of the lower boom, a second rotary actuator is coupled to the elbow where the upper boom is hinged to the lower boom, and a third rotary actuator is coupled directly to the platform and upper boom. Movement of the lower boom relative to the base causes the first rotary actuator to displace a fixed amount of hydraulic fluid, and movement of the upper boom relative to the lower boom caused the second rotary actuator to disperse a fixed amount of hydraulic fluid. The displacement of hydraulic fluid in the first and second rotary actuators (the master units) causes an equal amount of displacement in the third rotary actuator (the slave unit), which results in articulating the platform in direct response to movement of the boom in order to maintain the platform in a level position.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3
Sheet 4
Sheet 4
Sheet 5
Sheet 5

Abstract

A platform leveling system for an aerial lift truck utilizes a master/slave combination of helical hydraulic rotary actuators to automatically level the work platform in response to movements of the boom. For a two-stage aerial lift comprised of a lower boom and an upper boom, a first rotary actuator is coupled to the base of the lower boom, a second rotary actuator is coupled to the elbow where the upper boom is hinged to the lower boom, and a third rotary actuator is coupled directly to the platform and upper boom. Movement of the lower boom relative to the base causes the first rotary actuator to displace a fixed amount of hydraulic fluid, and movement of the upper boom relative to the lower boom caused the second rotary actuator to disperse a fixed amount of hydraulic fluid. The displacement of hydraulic fluid in the first and second rotary actuators (the master units) causes an equal amount of displacement in the third rotary actuator (the slave unit), which results in articulating the platform in direct response to movement of the boom in order to maintain the platform in a level position.

1. Drawings

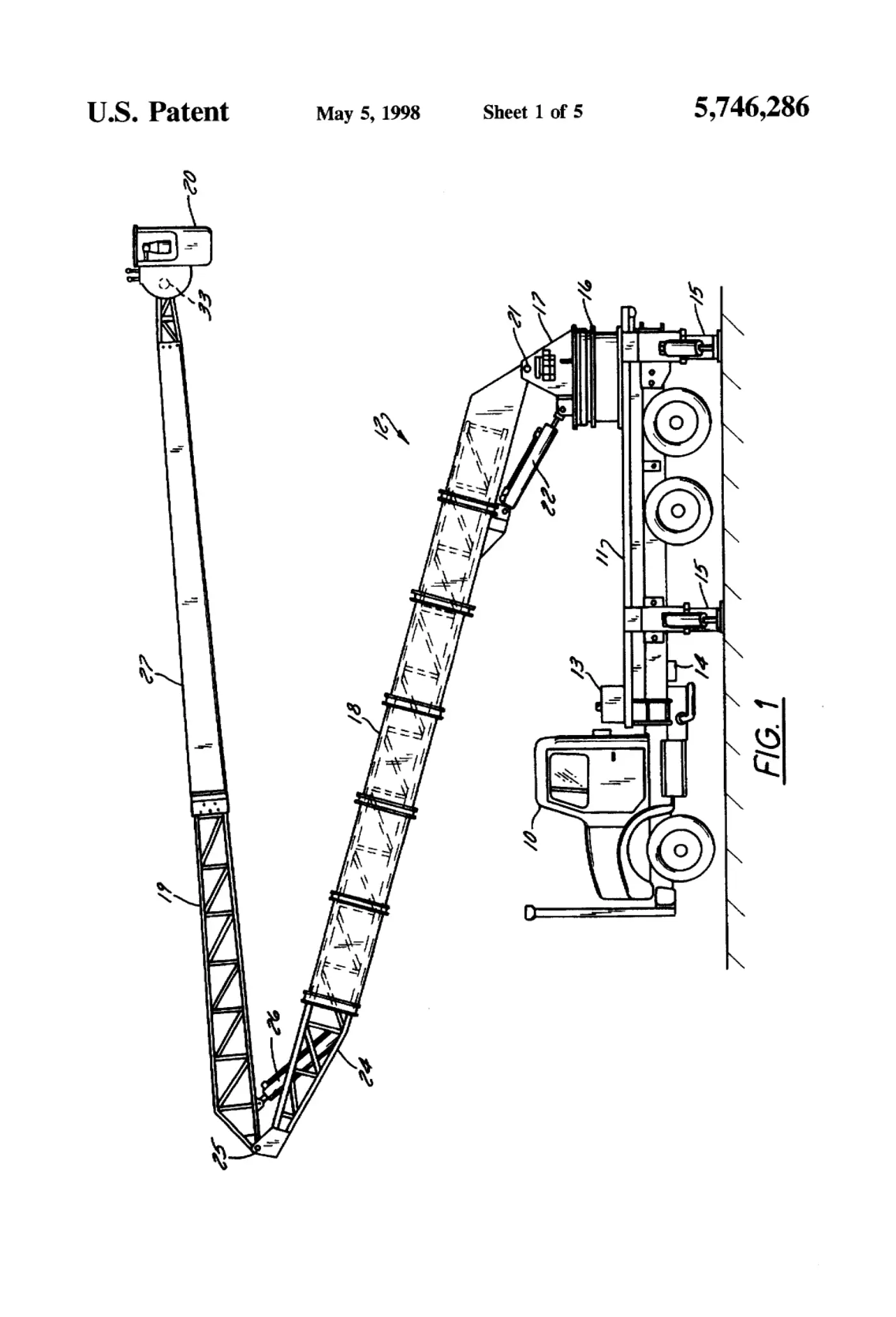

[0001]Sheet 1.

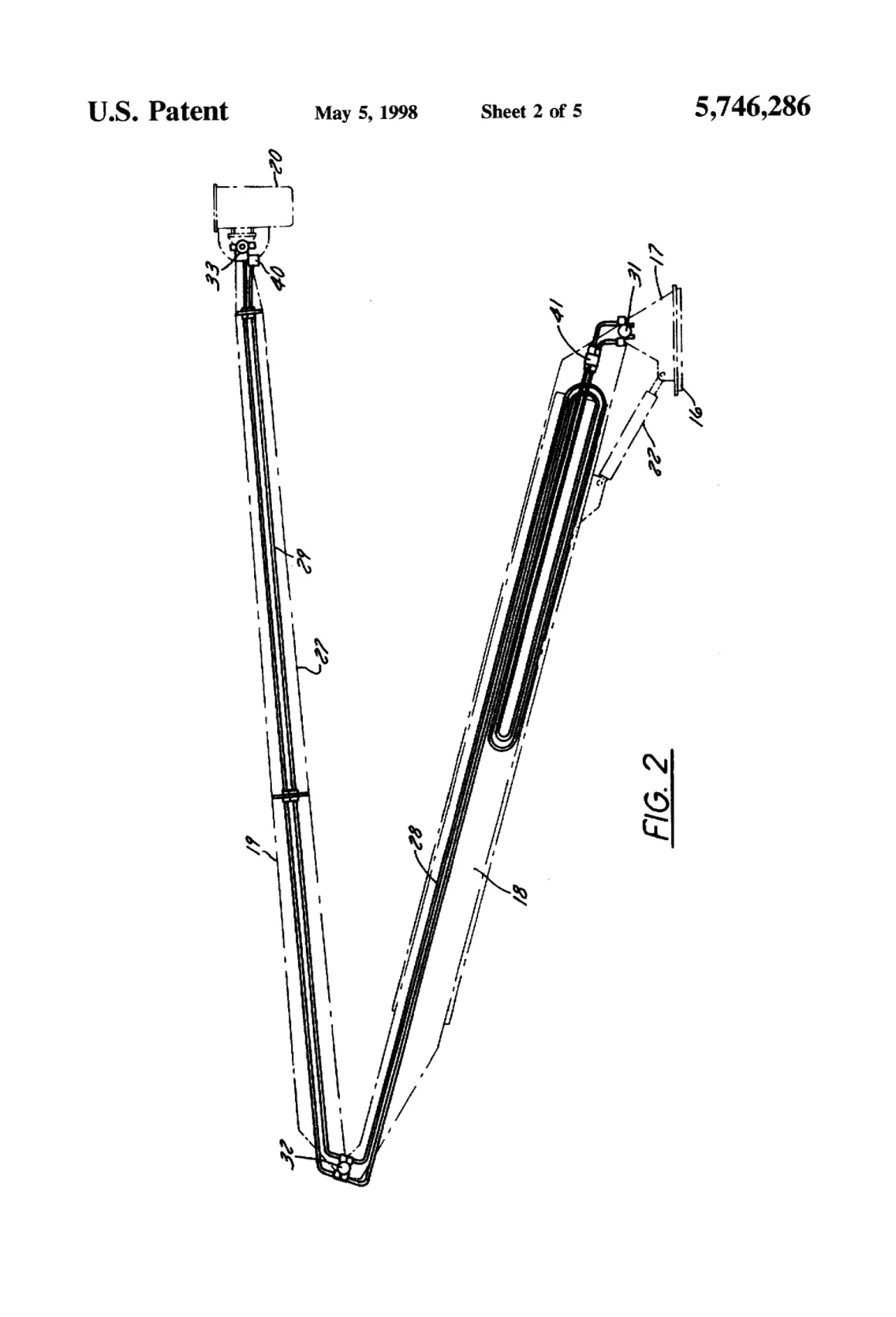

[0002]Sheet 2.

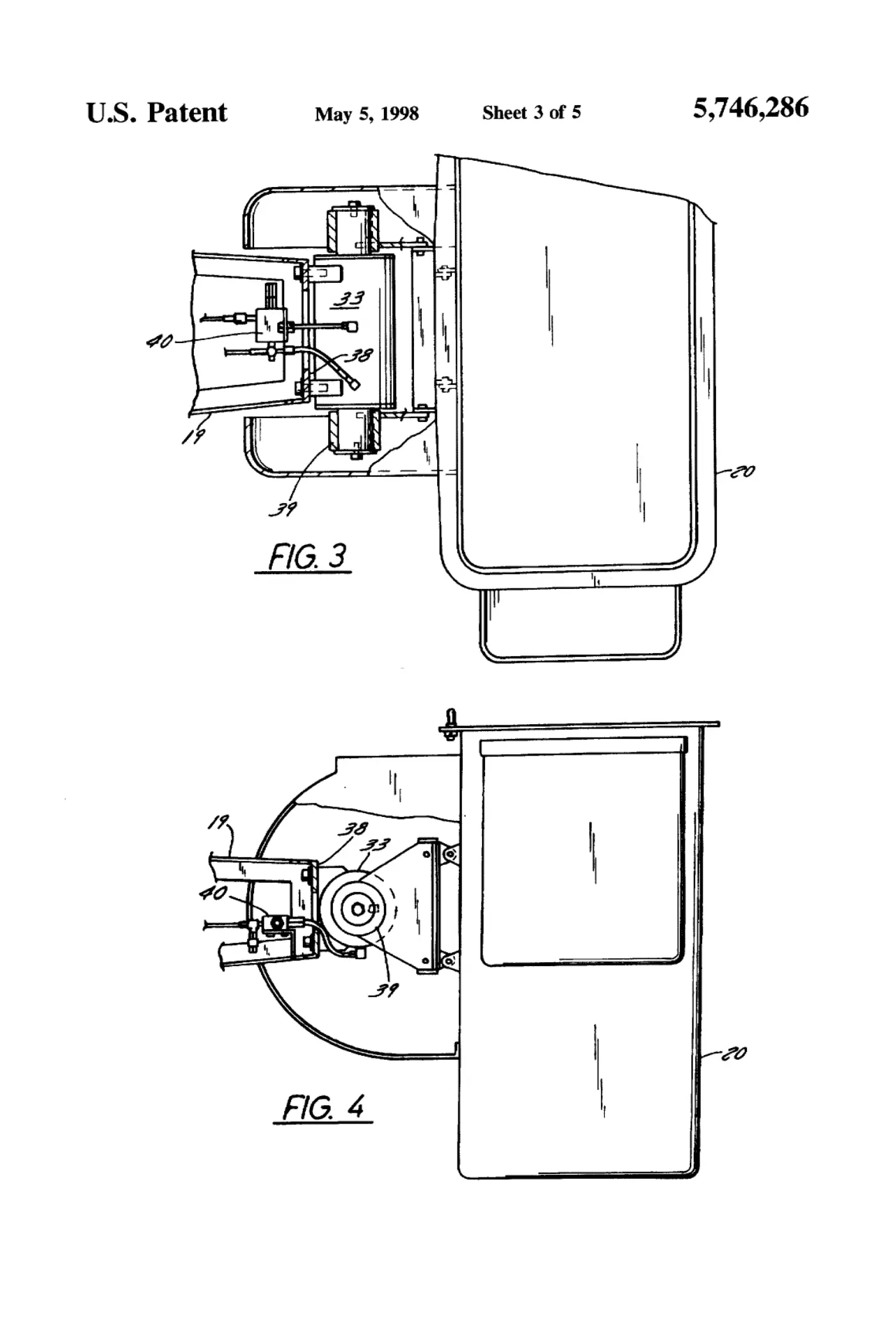

[0003]Sheet 3.

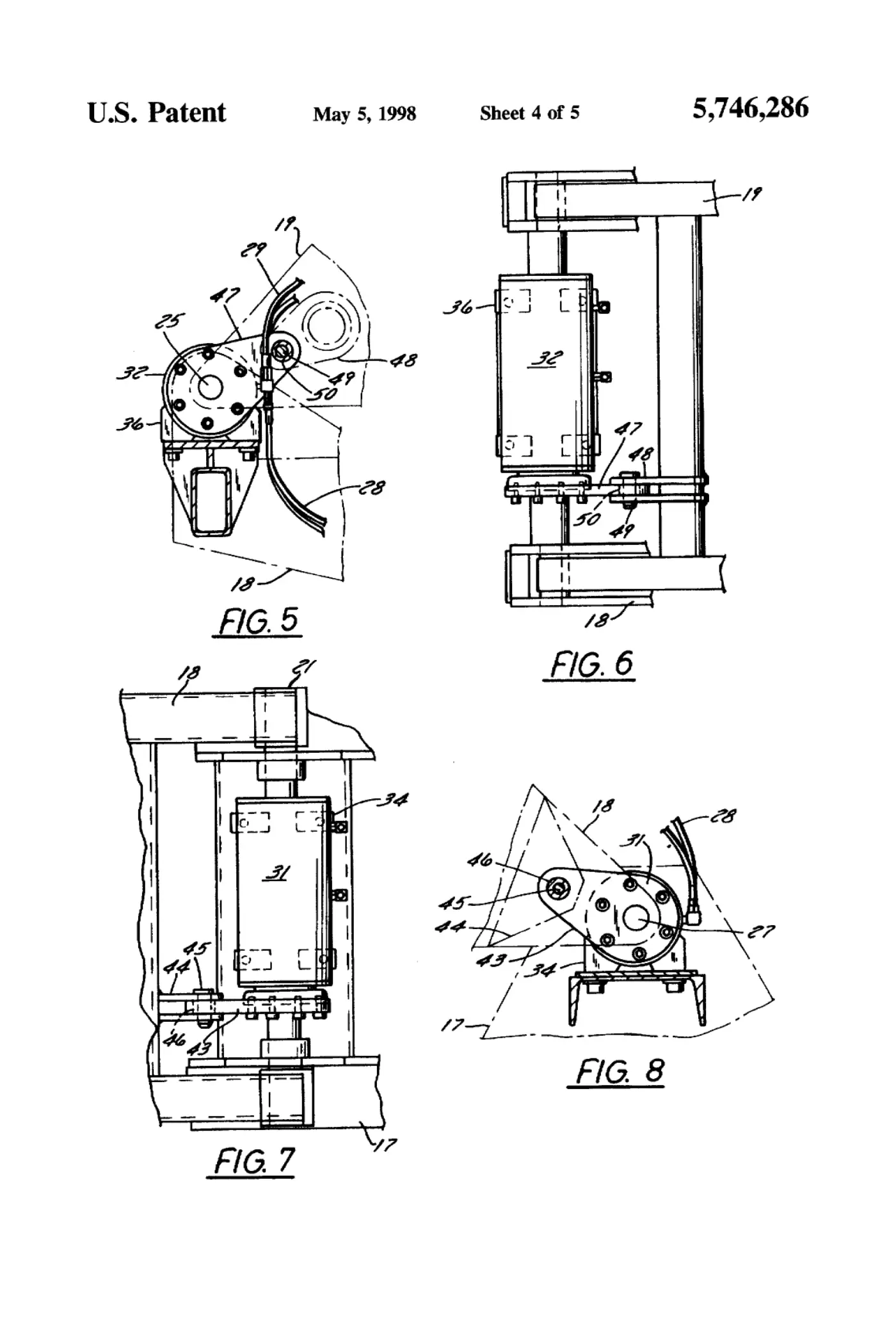

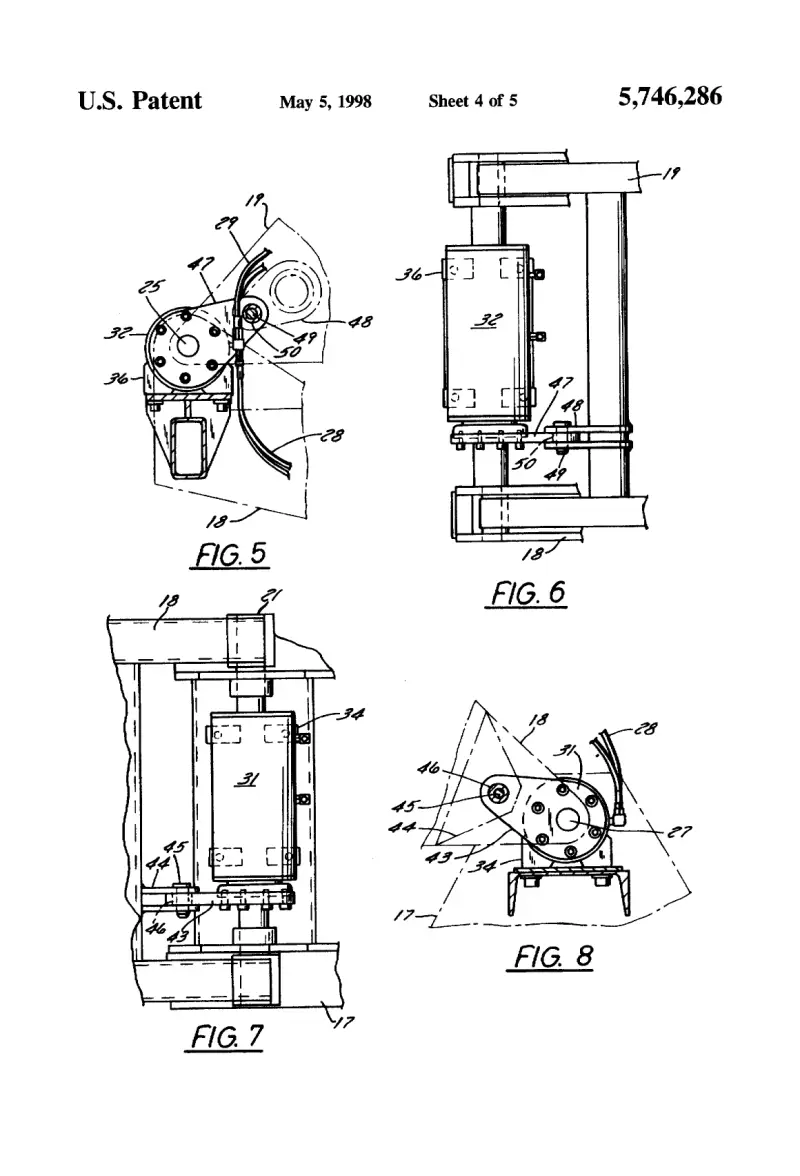

[0004]Sheet 4.

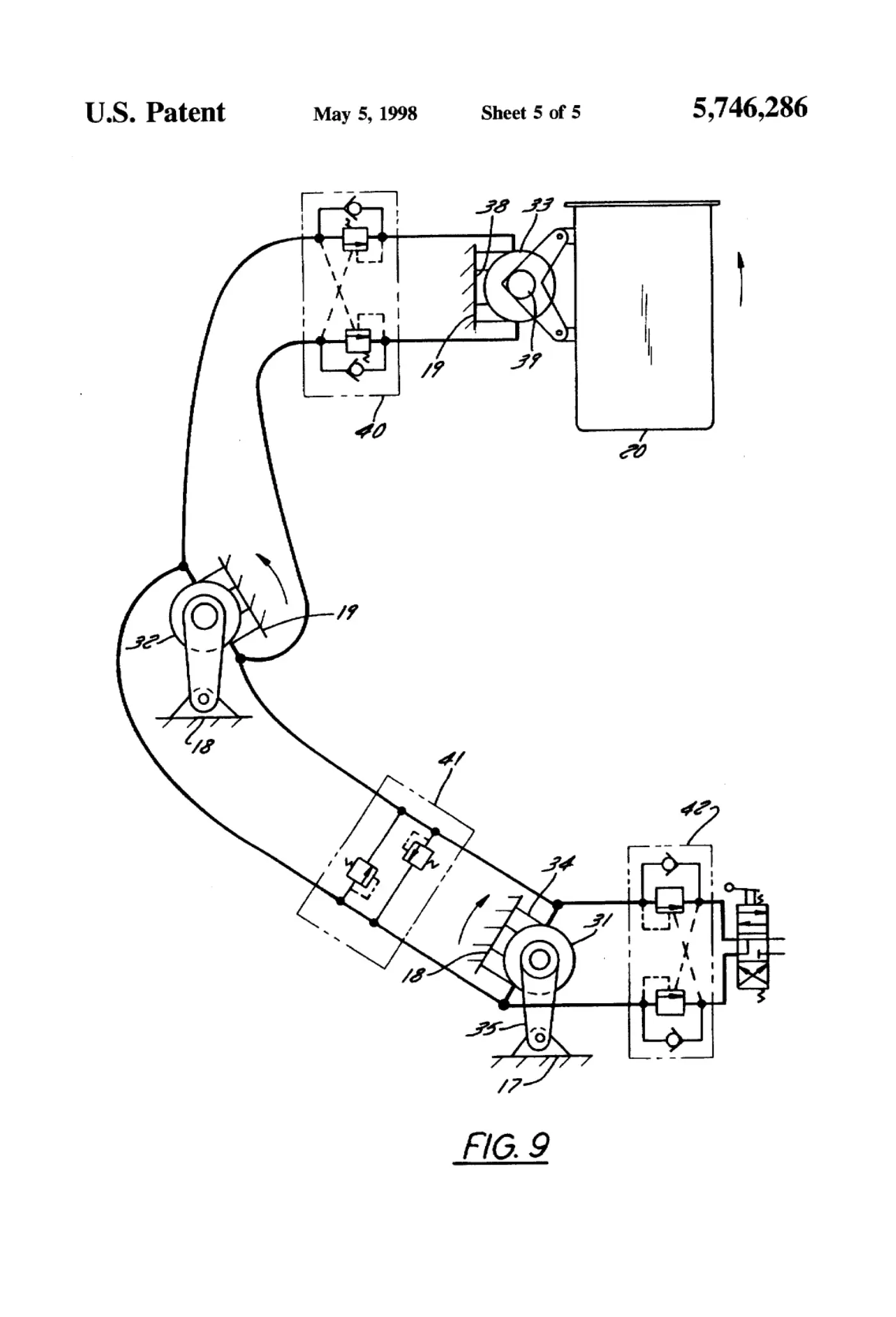

[0005]Sheet 5.
