Dent removing tool

Published
Permanent URL
Classification
Manufacturing & Assembly Equipment › Machining Systems
Assignee
BODY BUDDY INC
Original source
US-5727418-A, the United States Patent and Trademark Office, 17 March 1998
Document SHA-256
51bb2d26c1f6fd11200fdd621975a8456337146c47083cb6654235cfd98bde04

A sheet metal working tool particularly adapted for vehicle body repair comprising a slide hammer assembly attached to a suction cup from which air is drawn through the assembly. The tool incorporates a compressed air-operated vacuum ejector functioning on the venturi principle into a stop on the end of the slide hammer assembly opposite the suction cup. The exhaust stream is effectively muffled and diffused through a collar of hard, rugged, porous material that fits within a channel in the surface of the vacuum ejector/stop and that completely covers the port through which the exhaust exists the vacuum ejector/stop. The suction cup is reinforced by an internally located stiffener, and shock loads that may damage the threaded connections among components of the tool are damped by a shock absorbing hose connected to the vacuum ejector/stop.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3

Abstract

A sheet metal working tool particularly adapted for vehicle body repair comprising a slide hammer assembly attached to a suction cup from which air is drawn through the assembly. The tool incorporates a compressed air-operated vacuum ejector functioning on the venturi principle into a stop on the end of the slide hammer assembly opposite the suction cup. The exhaust stream is effectively muffled and diffused through a collar of hard, rugged, porous material that fits within a channel in the surface of the vacuum ejector/stop and that completely covers the port through which the exhaust exists the vacuum ejector/stop. The suction cup is reinforced by an internally located stiffener, and shock loads that may damage the threaded connections among components of the tool are damped by a shock absorbing hose connected to the vacuum ejector/stop.

1. Drawings

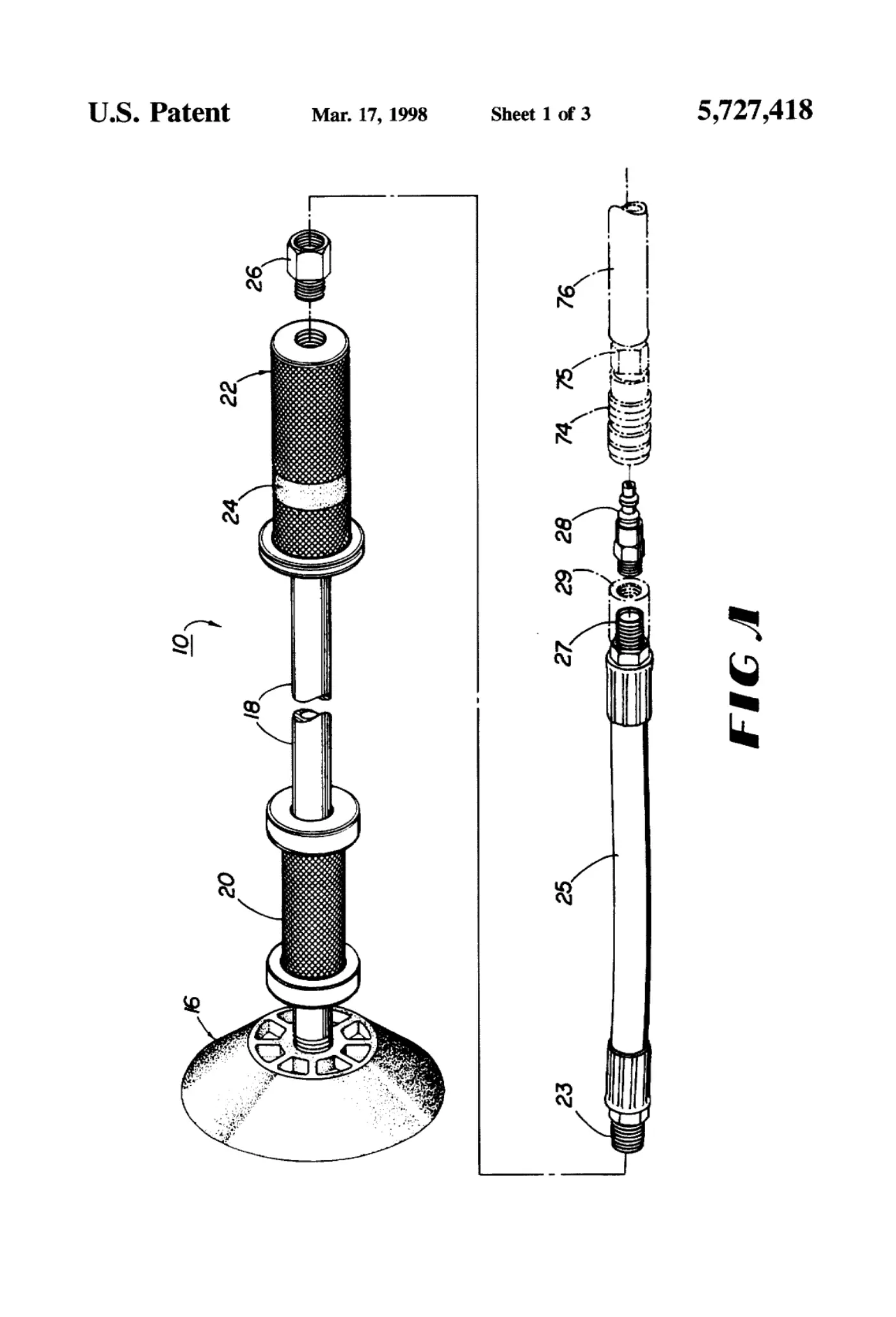

[0001]Sheet 1.

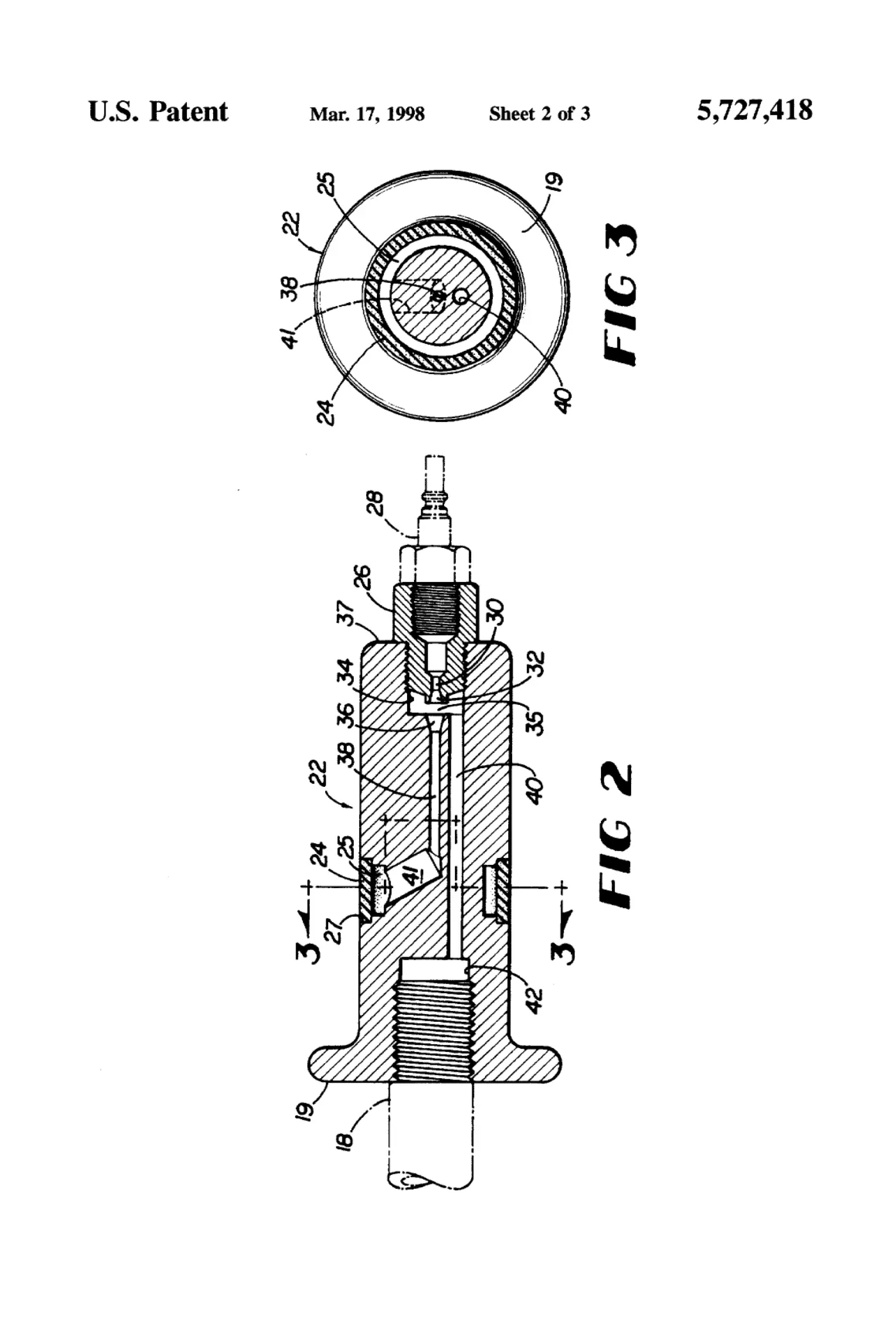

[0002]Sheet 2.

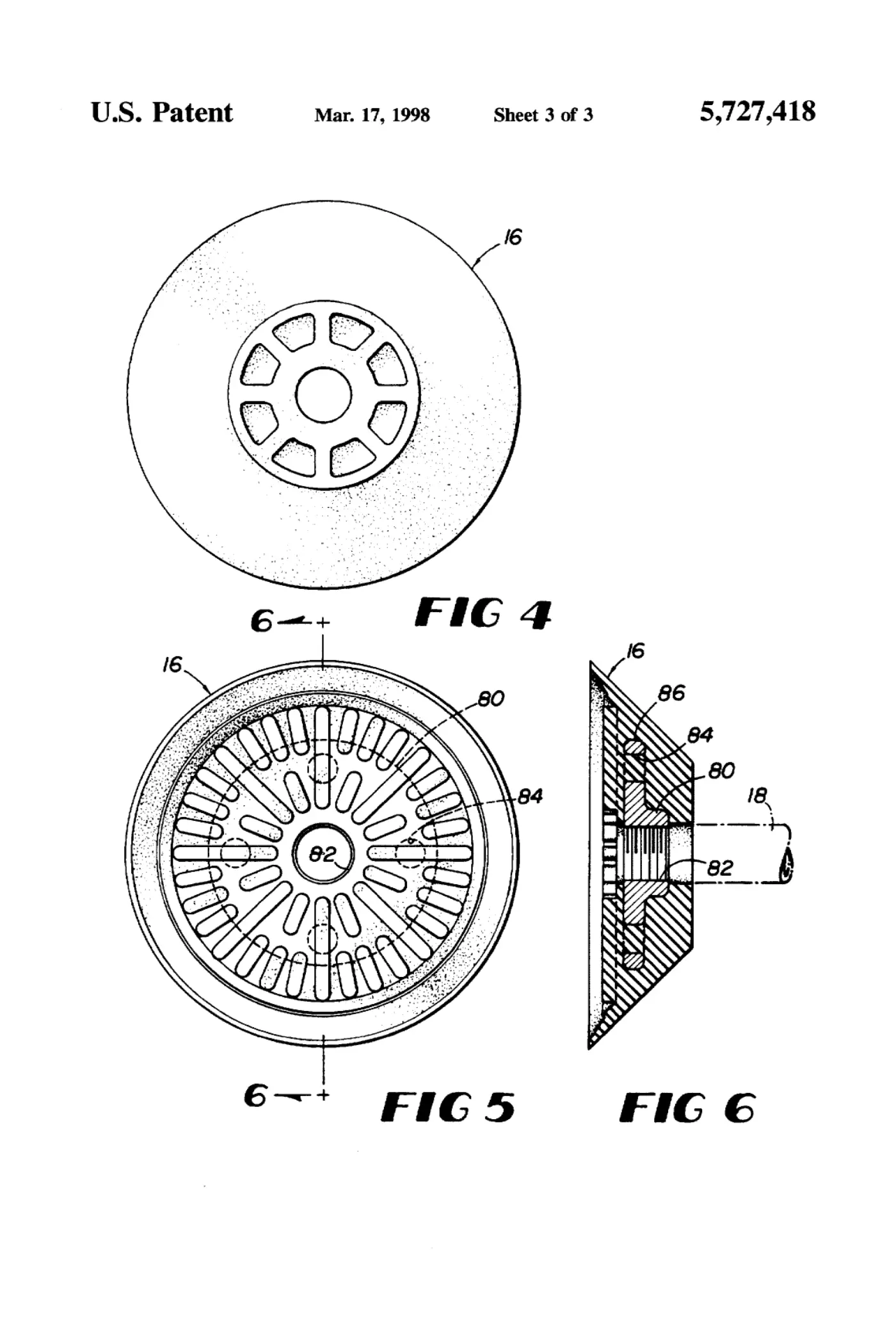

[0003]Sheet 3.
