Linear voice coil retractor

Published
Permanent URL
Classification
Manufacturing & Assembly Equipment › Machining Systems
Assignee
SMC CORP
Original source
US-5726508-A, the United States Patent and Trademark Office, 10 March 1998
Document SHA-256
552db8c1383b956bbece8ecbba5419856a856b55b18608bfa65ad1075b2157ef

An actuator for precisely moving and positioning a manufacturing component includes a housing on which a magnet is mounted. An electromagnetic is slidingly mounted on the housing for movement within the magnetic field generated by the magnet. A rod, having a member for gripping the component, is attached for translational movement with the electromagnetic coil. In the operation of the actuator, a current is selectively applied to the electromagnetic coil. The current in the coil creates a magnetic field that moves the electromagnetic coil and the attached grip within the magnetic field to position the component as desired in translation. A retractor causes the grip to preferentially adopt a predetermined position, or dwell configuration.

Sheet 1
Sheet 1
Sheet 2
Sheet 2

Abstract

An actuator for precisely moving and positioning a manufacturing component includes a housing on which a magnet is mounted. An electromagnetic is slidingly mounted on the housing for movement within the magnetic field generated by the magnet. A rod, having a member for gripping the component, is attached for translational movement with the electromagnetic coil. In the operation of the actuator, a current is selectively applied to the electromagnetic coil. The current in the coil creates a magnetic field that moves the electromagnetic coil and the attached grip within the magnetic field to position the component as desired in translation. A retractor causes the grip to preferentially adopt a predetermined position, or dwell configuration.

1. Drawings

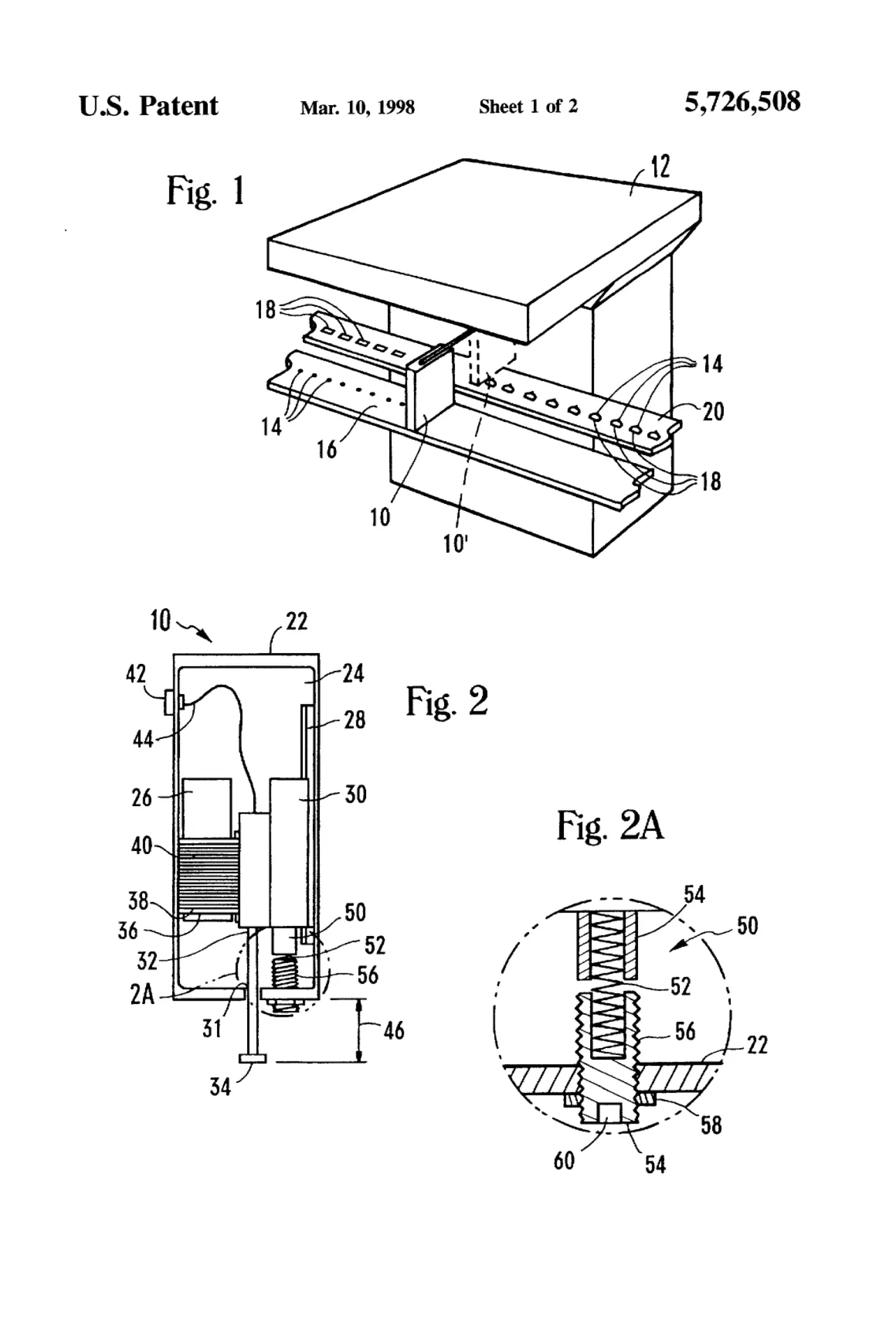

[0001]Sheet 1.

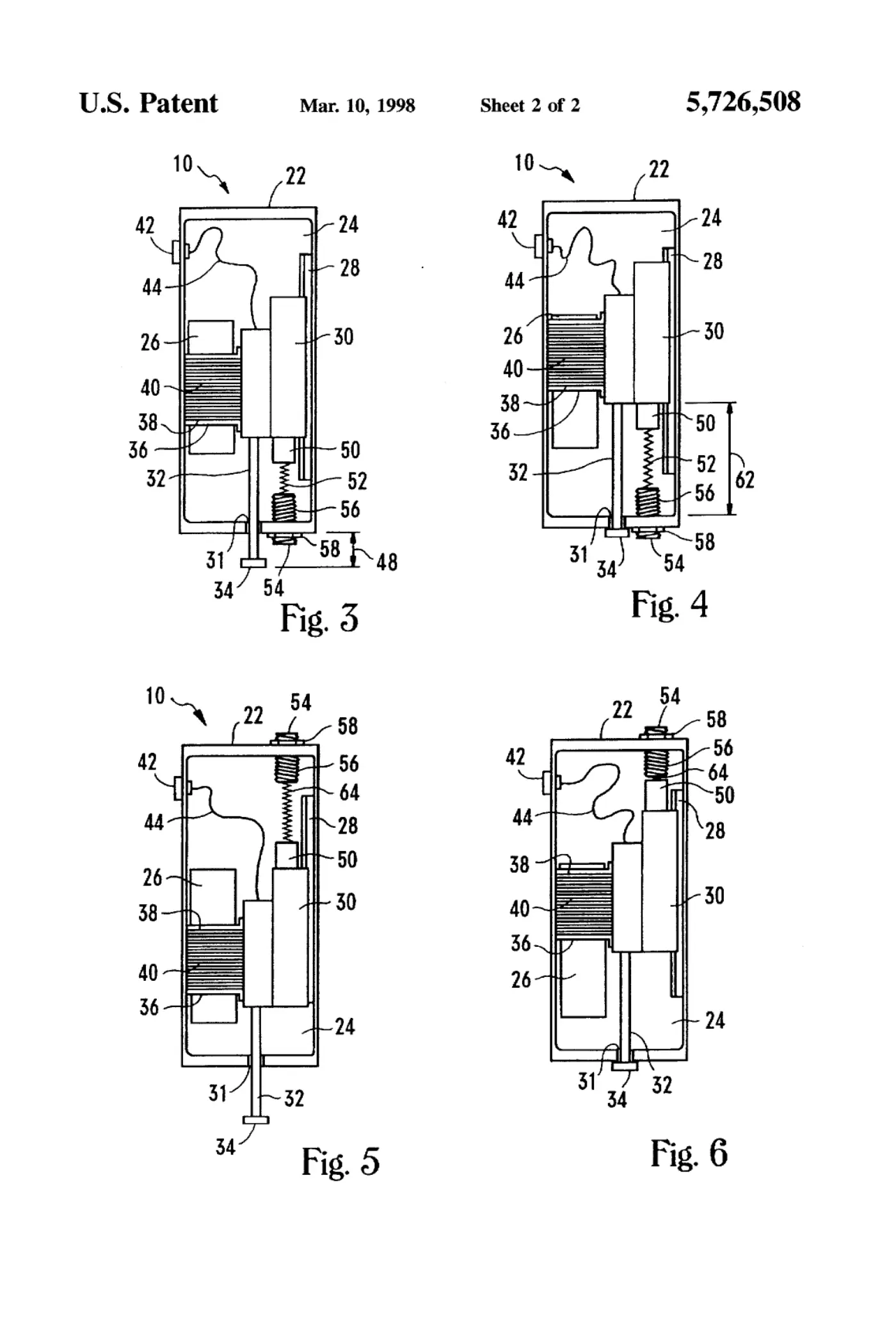

[0002]Sheet 2.
