Clamping device

Published
Permanent URL
Classification
Tools & Tooling › Clamping Tools
Inventors
RANKIN NOEL WILLIAM GEORGE
Original source
US-5681022-A, the United States Patent and Trademark Office, 28 October 1997
Document SHA-256
6a9ee6fc6d2d1b9c9e3fa6965a1cb23e2464f1cba458e6a9b5d1126cb3aa1e07

A clamping device (2) adapted to be used to grasp an article or to clamp a tool to a workpiece, comprising: (a) a substantially flat or curved vacuum chamber (21) having a lower surface contained or comprised in a vacuum body (14, 15); (b) a compressible seal (18) located at or adjacent the perimeter of the vacuum body, the compressible seal being located in a groove (19) in the vacuum body, the groove being so dimensioned that the compressible seal, when pressed against an article or workpiece, expands and/or moves into a space in the groove thus stabilizing the position of the compressible seal and improving its airtight qualities; and (c) a source of vacuum (23) for connection to the vacuum chamber.

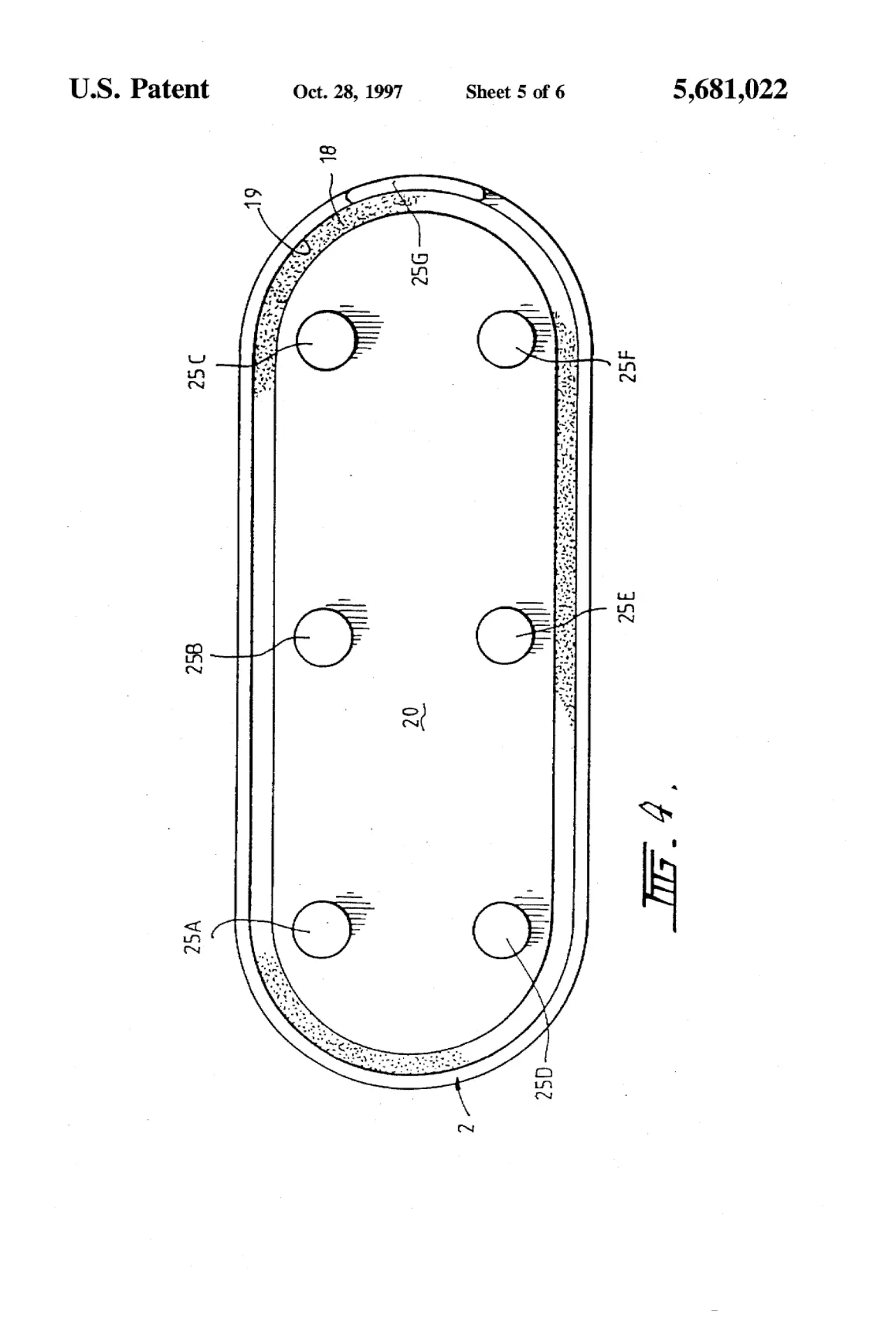

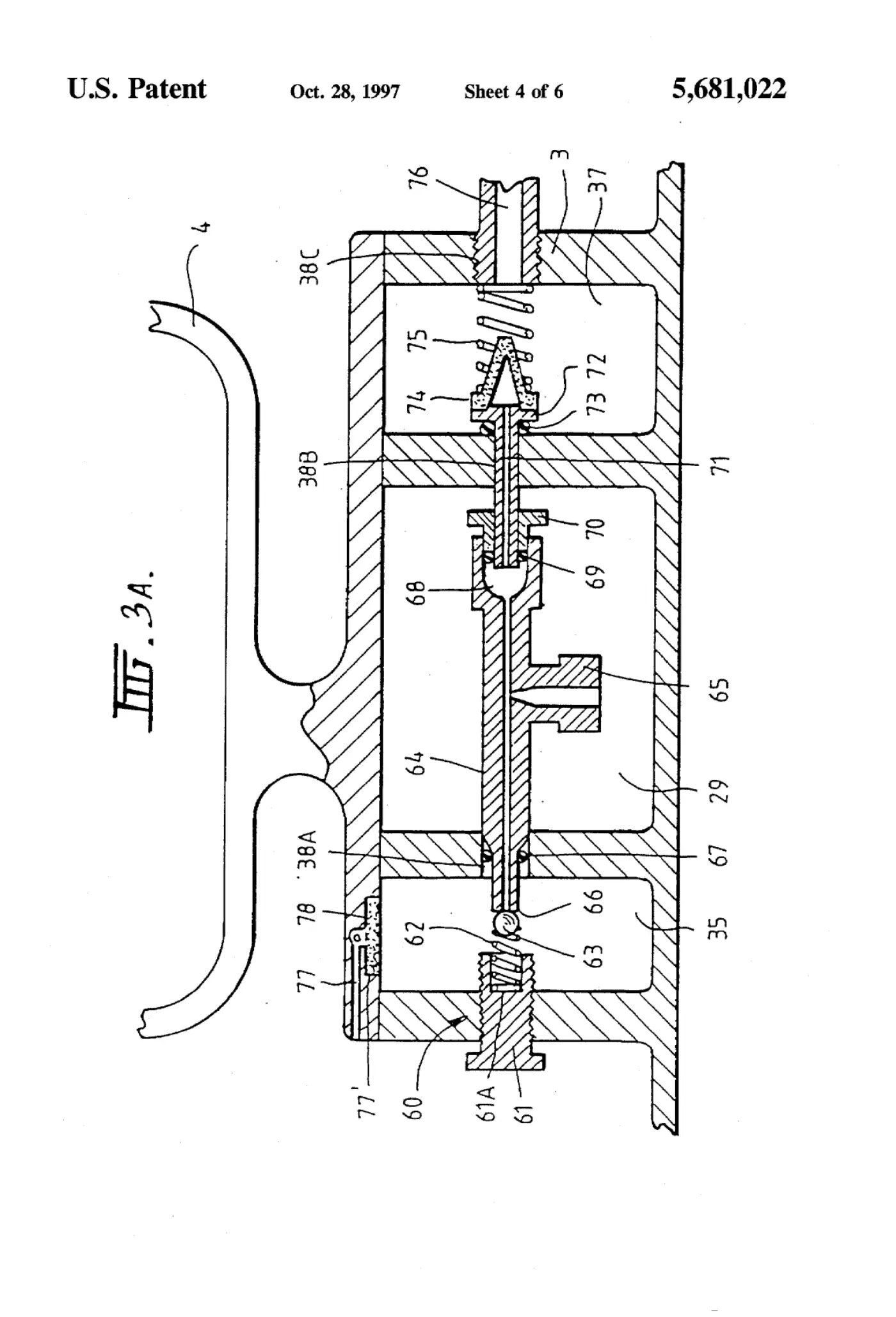

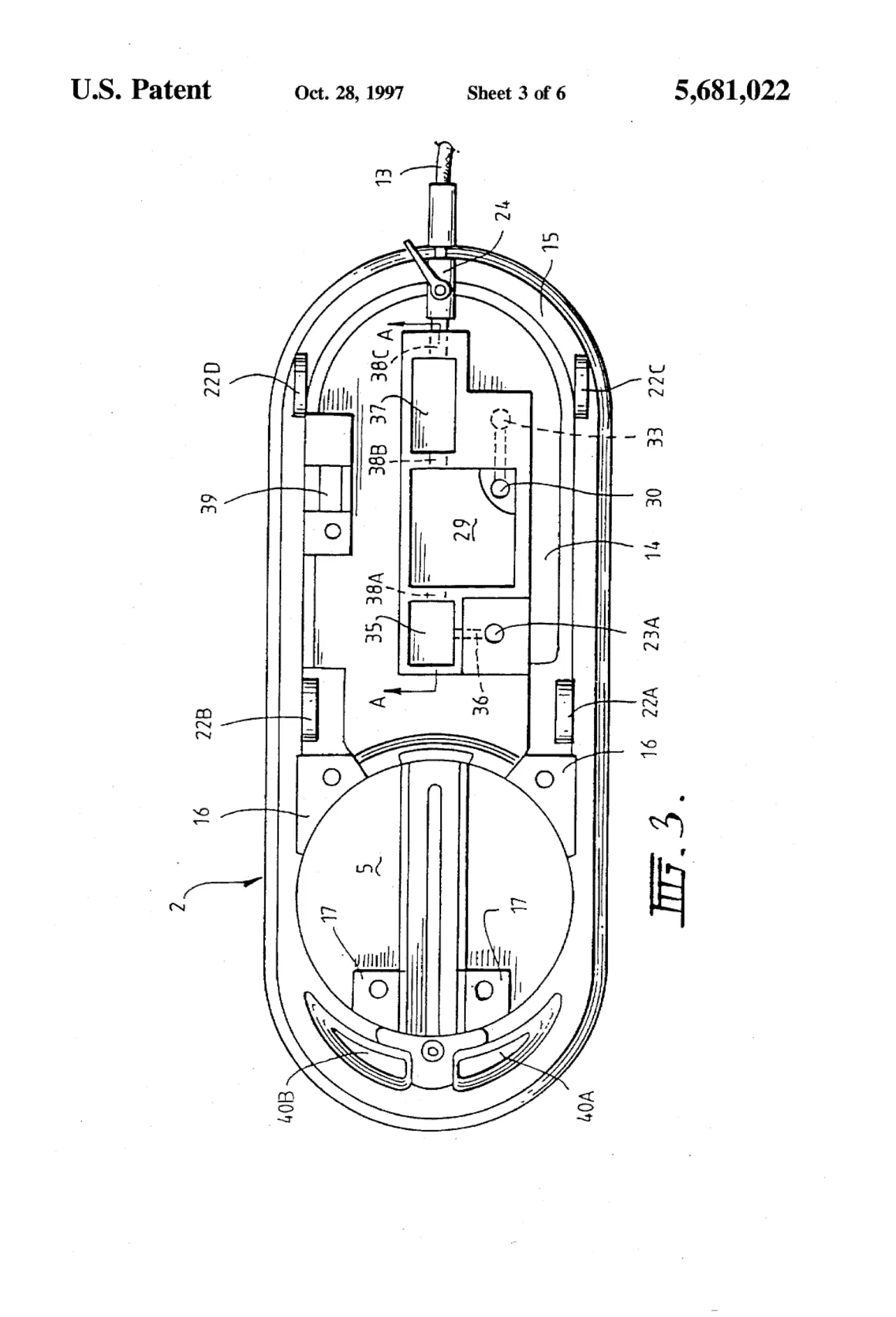

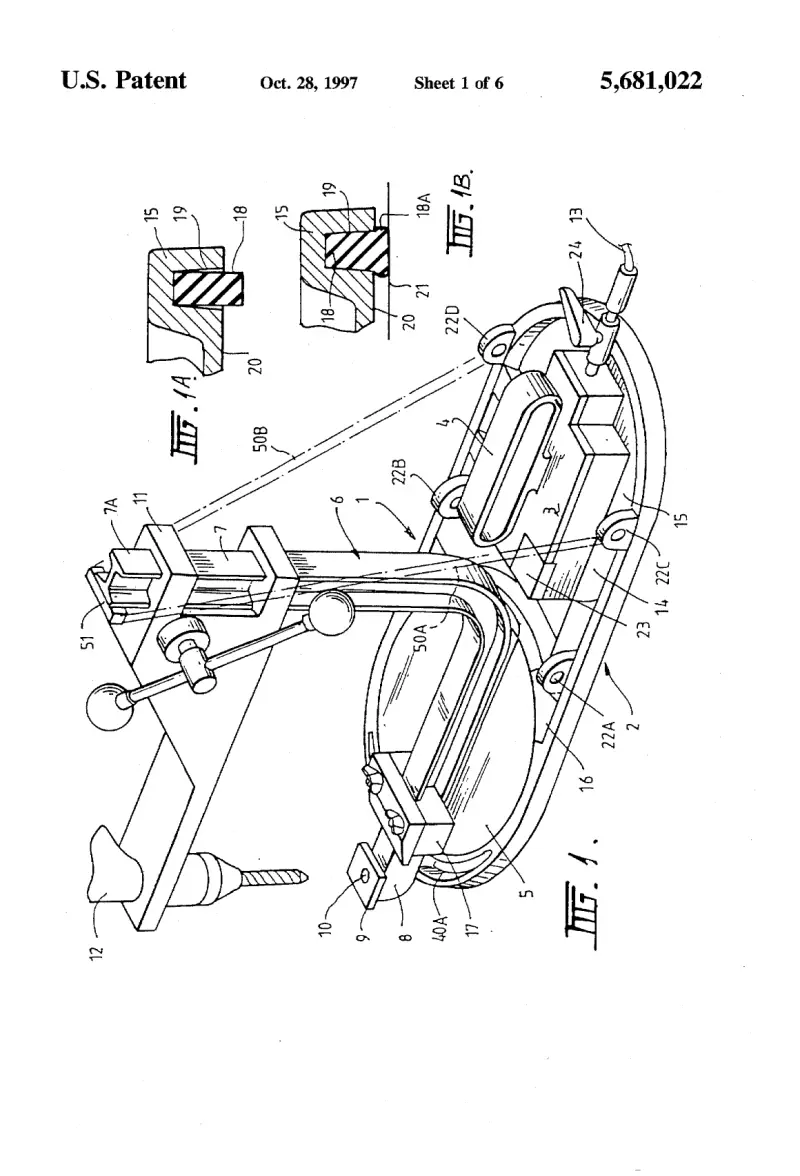

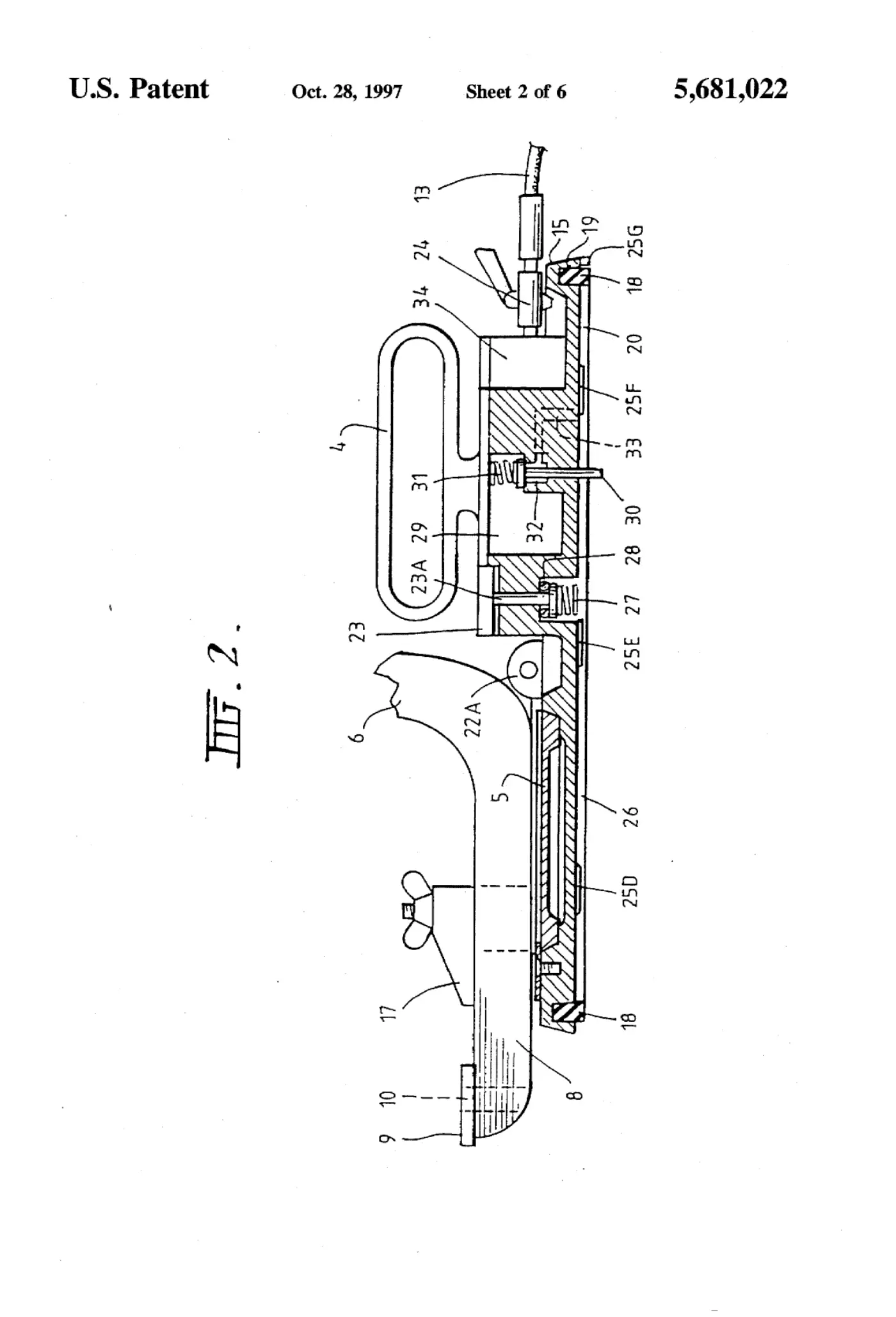

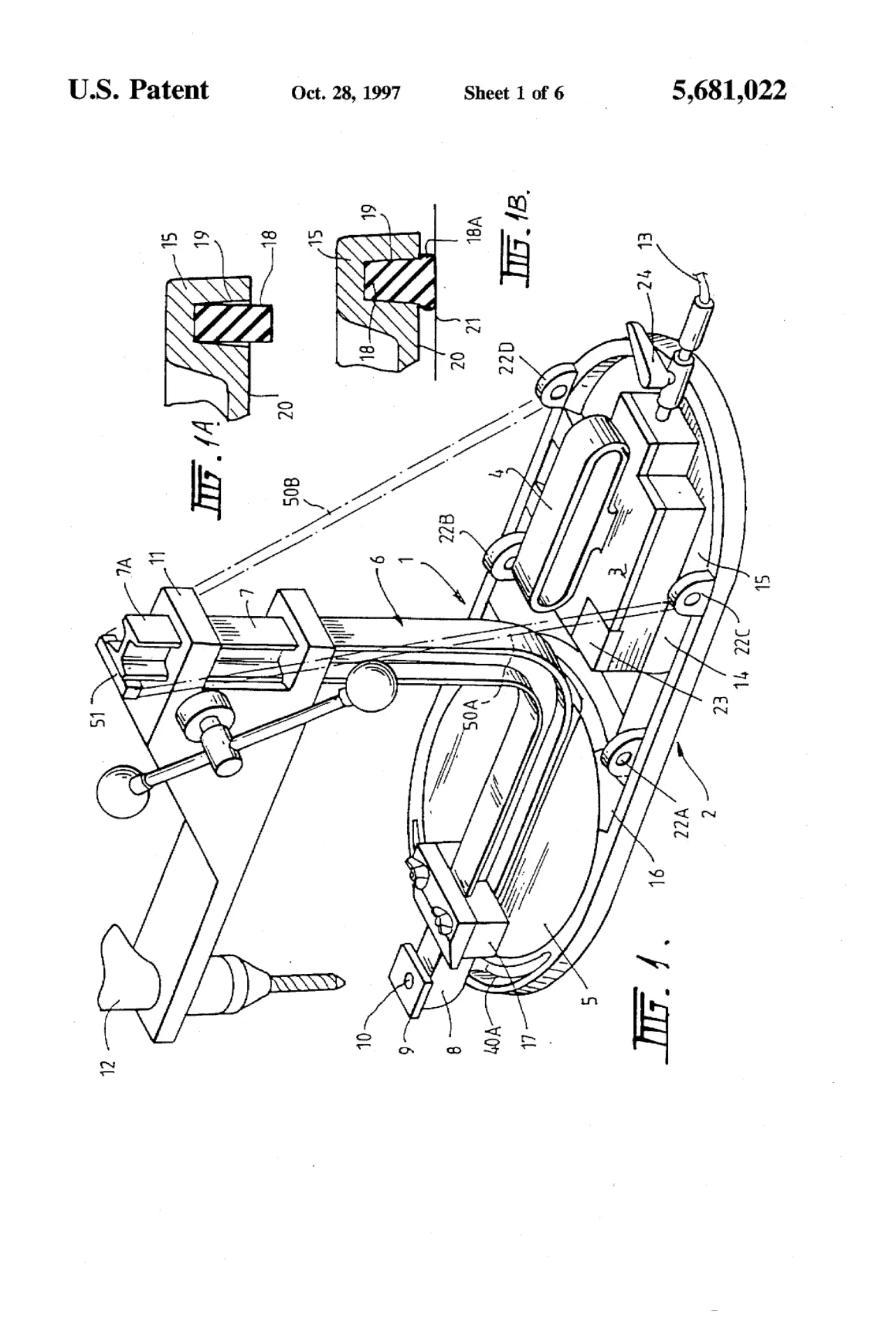

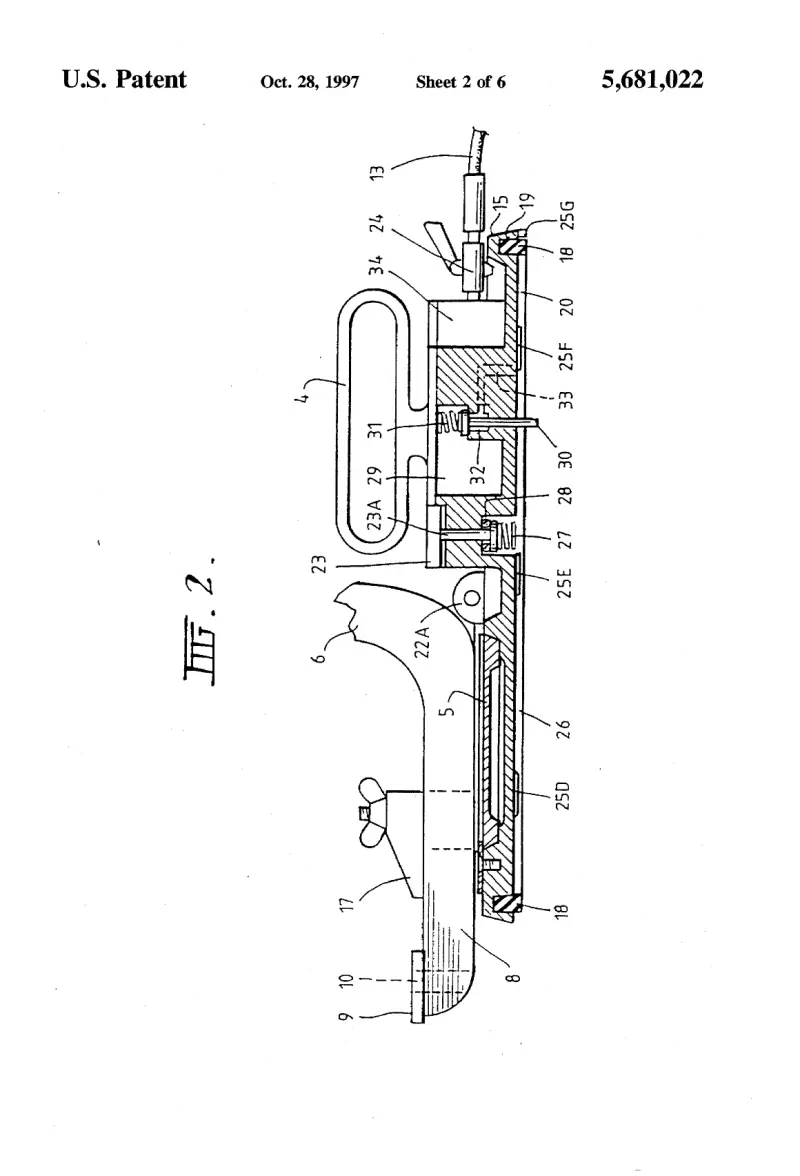

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3
Sheet 4
Sheet 4
Sheet 5
Sheet 5

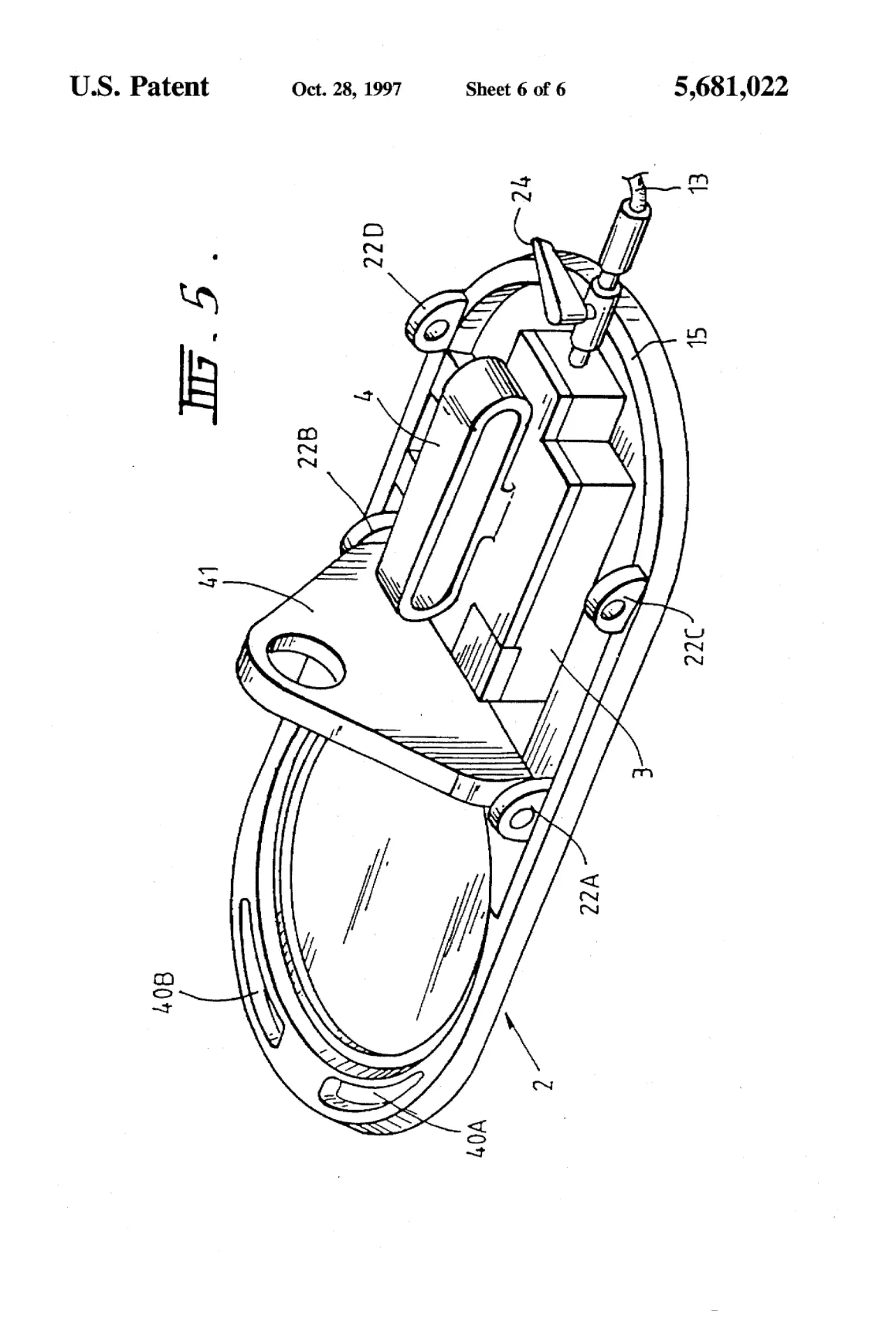

Sheet 6
Sheet 6

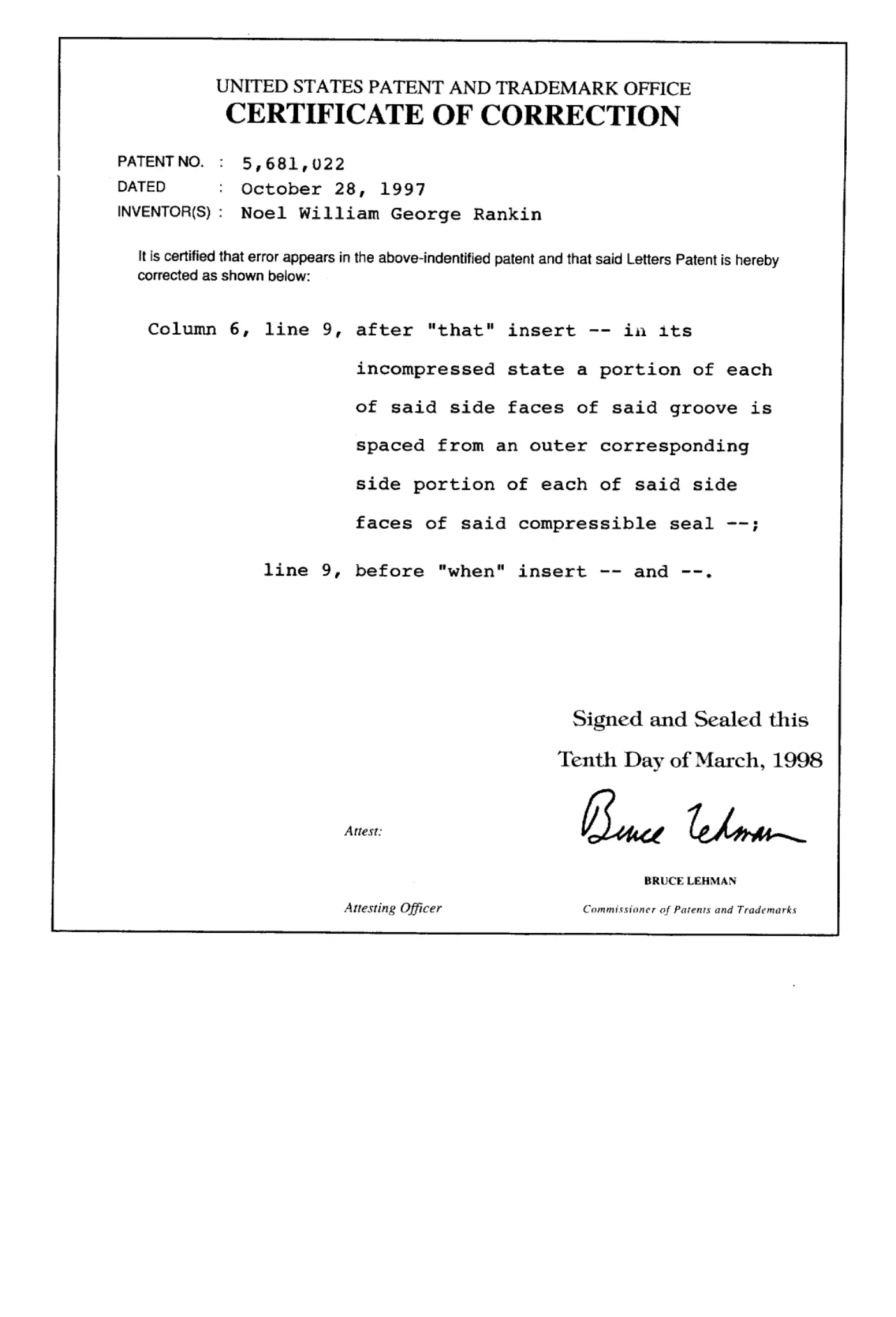

Sheet 7
Sheet 7

Abstract

A clamping device (2) adapted to be used to grasp an article or to clamp a tool to a workpiece, comprising: (a) a substantially flat or curved vacuum chamber (21) having a lower surface contained or comprised in a vacuum body (14, 15); (b) a compressible seal (18) located at or adjacent the perimeter of the vacuum body, the compressible seal being located in a groove (19) in the vacuum body, the groove being so dimensioned that the compressible seal, when pressed against an article or workpiece, expands and/or moves into a space in the groove thus stabilizing the position of the compressible seal and improving its airtight qualities; and (c) a source of vacuum (23) for connection to the vacuum chamber.
