Vacuum plates

Published
Permanent URL
Classification
Tools & Tooling › Clamping Tools
Inventors
DAVIES DAVID, PETRIE LAURENCE R
Assignee
CARNE CHARLES N, CARNE JAMES C, DAVIES DAVID, PETRIE LAURENCE R
Original source
US-5671910-A, the United States Patent and Trademark Office, 30 September 1997
Document SHA-256
d049c1d7bc1c4d2e16cd34413b894aabfbe439ffd87e66ff9c965d7a4095ae3d

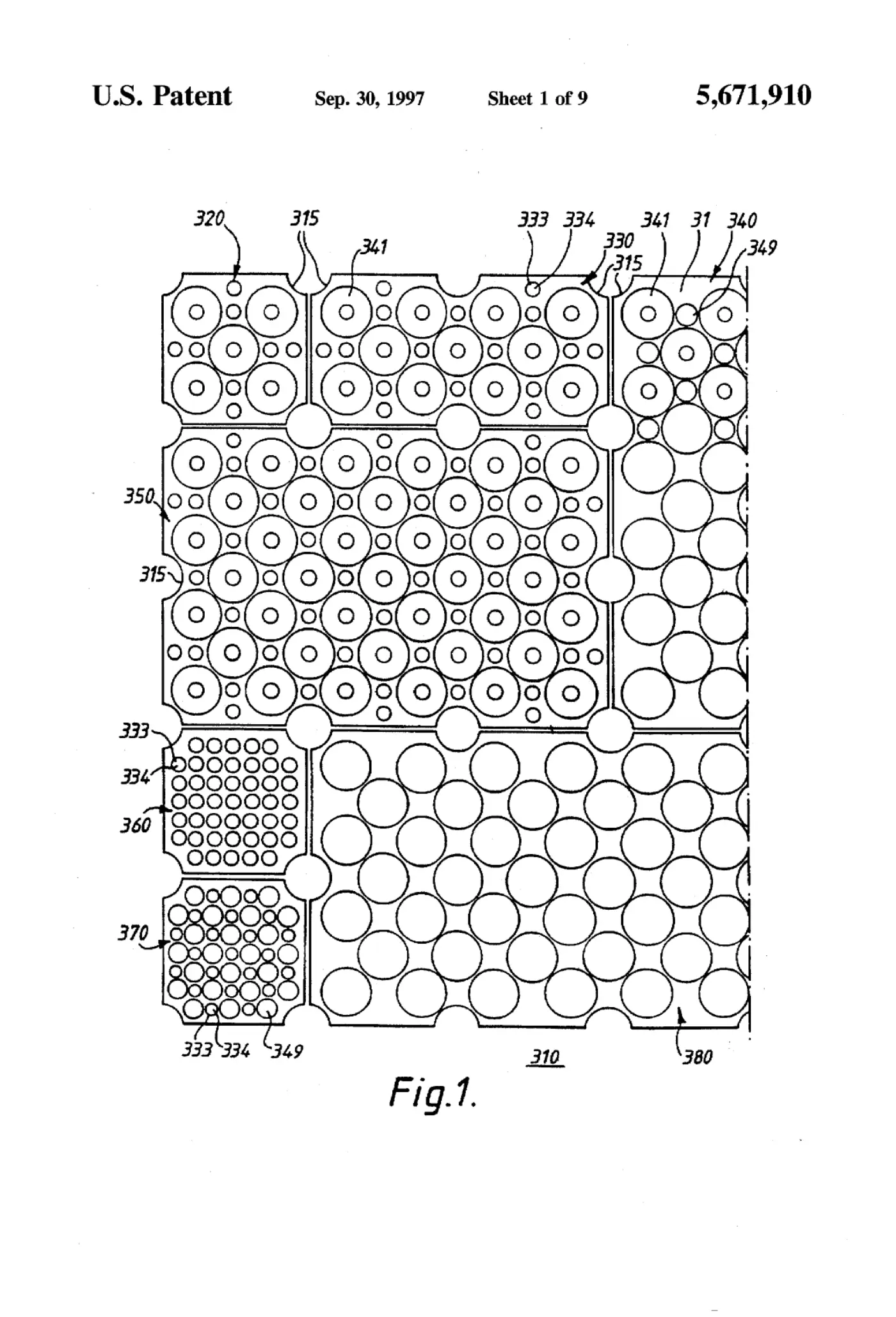

A vacuum plate system comprises a support plate (310) formed of a plurality of support plate modules (320-380) that are supported on a base plate, and serve to transfer vacuum between vacuum apertures in the base plate and a workpiece held on the support plate (310). The support plate module (340) is formed with a plurality of circular lip seals (341) of larger size, and disposed therebetween, a plurality of lip seals (349) of smaller size. The area within each of the lip seals (341, 349) has a small hole extending through the respective support plate module, to transfer vacuum in a restricted manner. The remaining support plate modules are of a similar configuration, but with variations. In machining of a workpiece held on the support plate modules (320-280), the modules may be cut into, without risk of losing the vacuum overall holding effect on the workpiece. The specification discloses various other support plates.

Sheet 1
Sheet 1

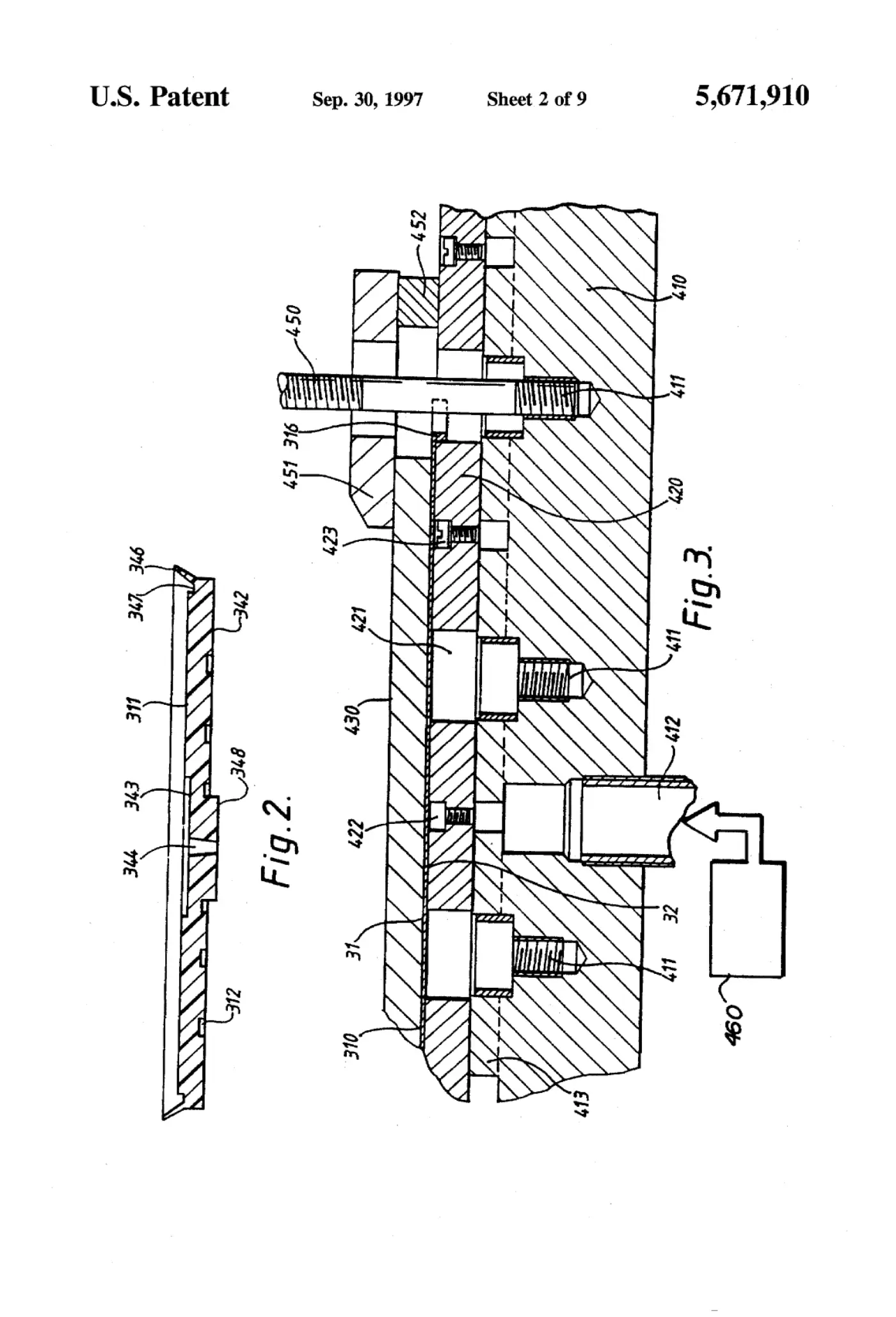

Sheet 2
Sheet 2

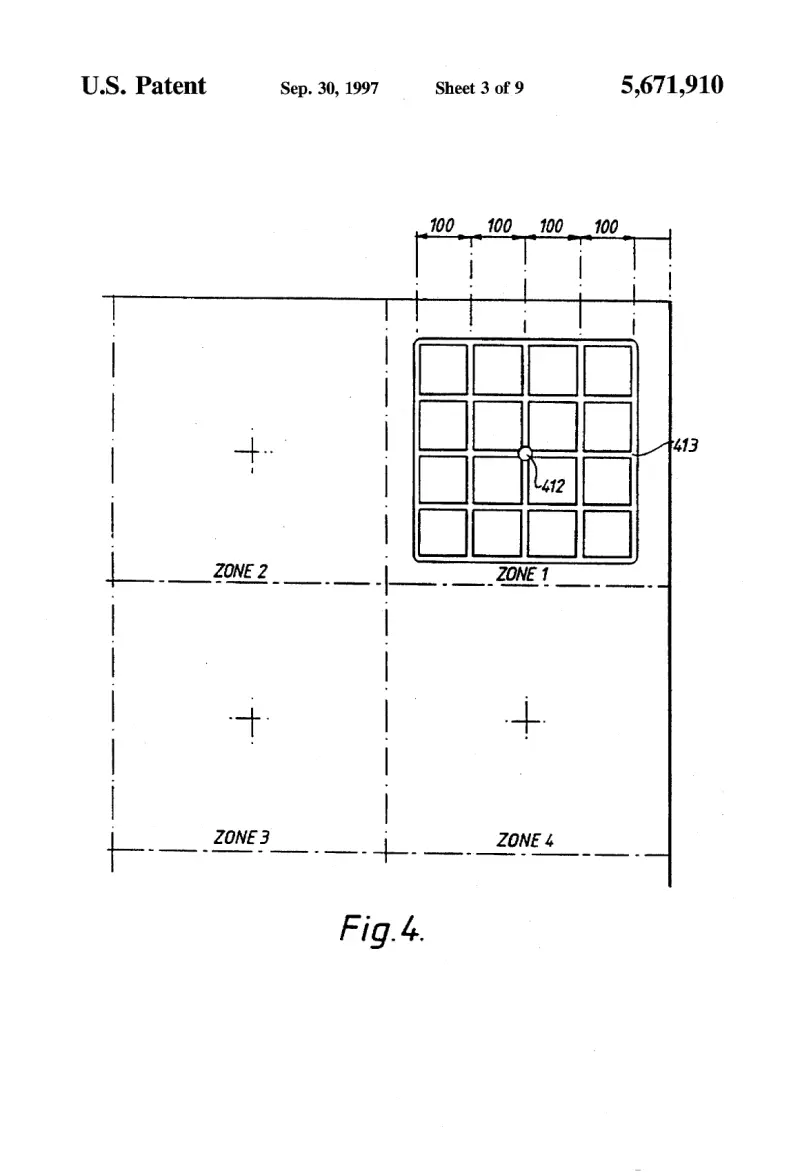

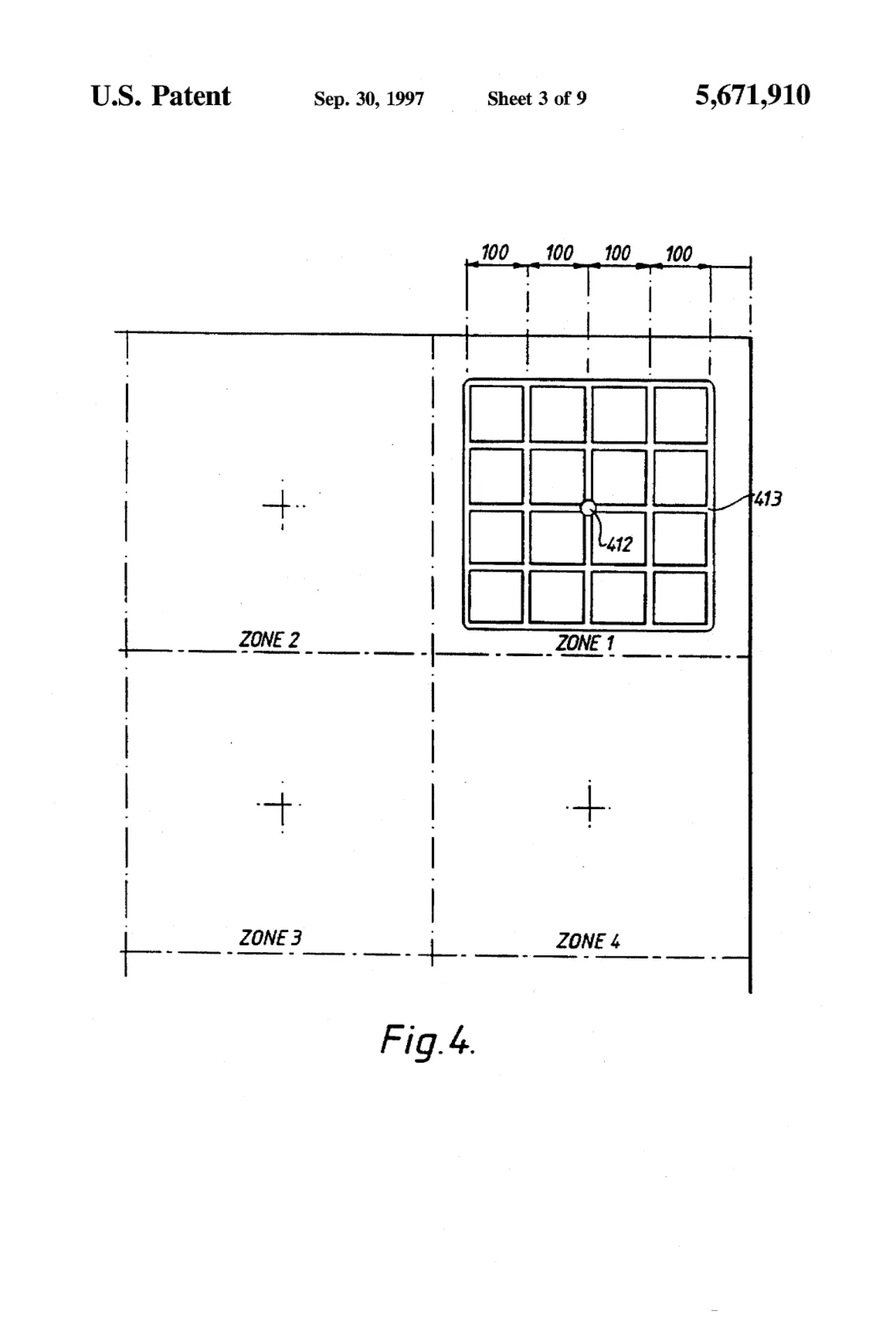

Sheet 3
Sheet 3

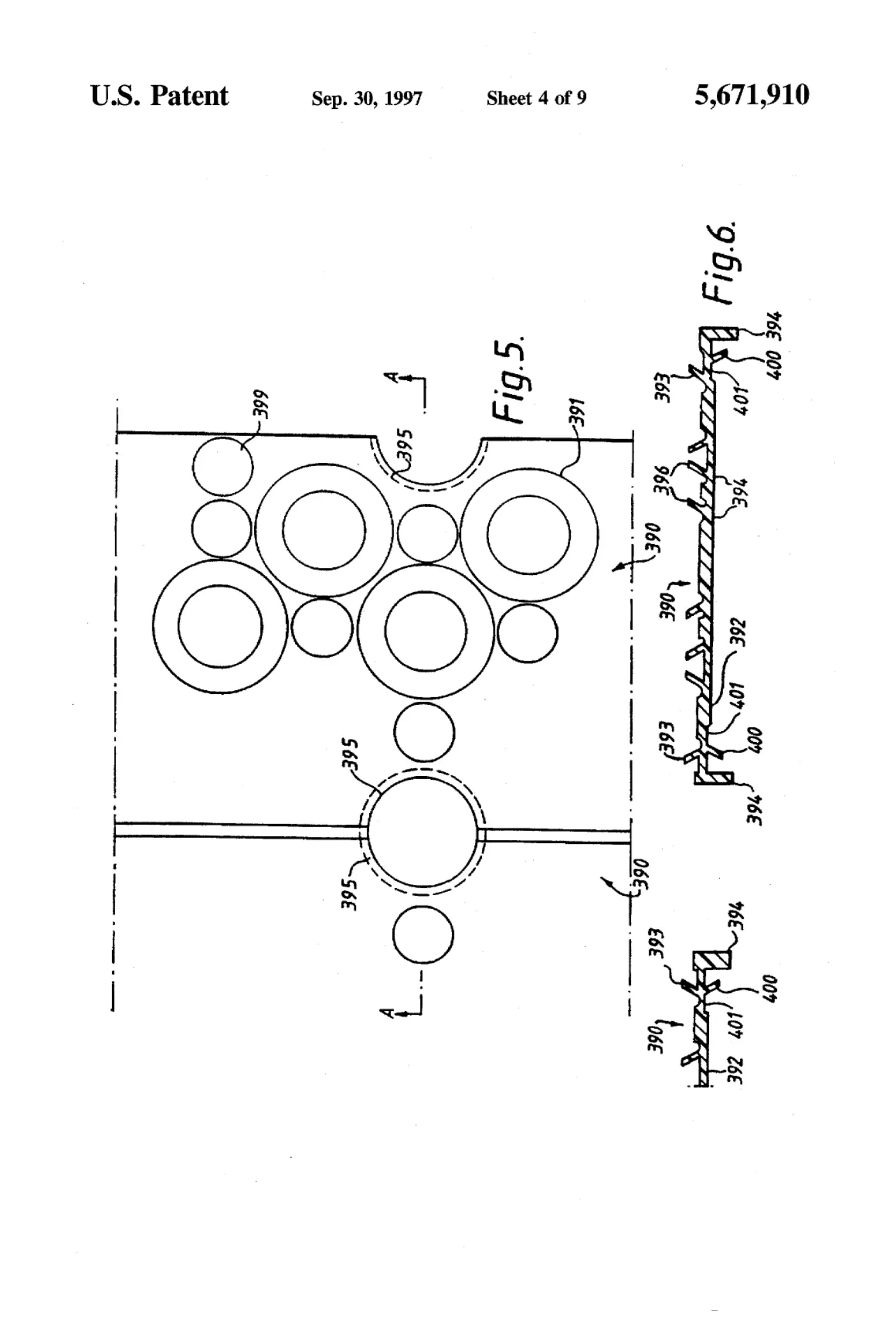

Sheet 4
Sheet 4

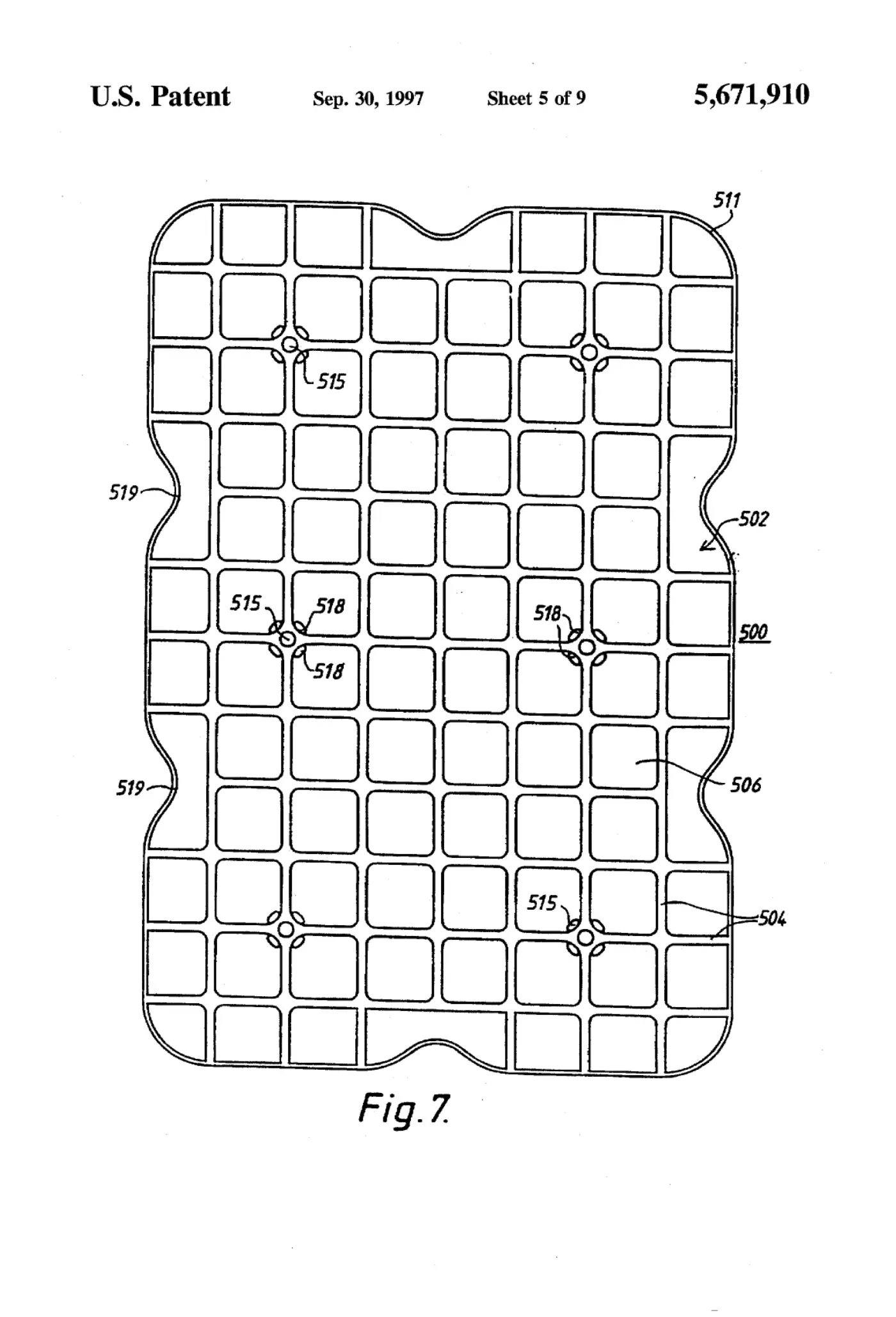

Sheet 5
Sheet 5

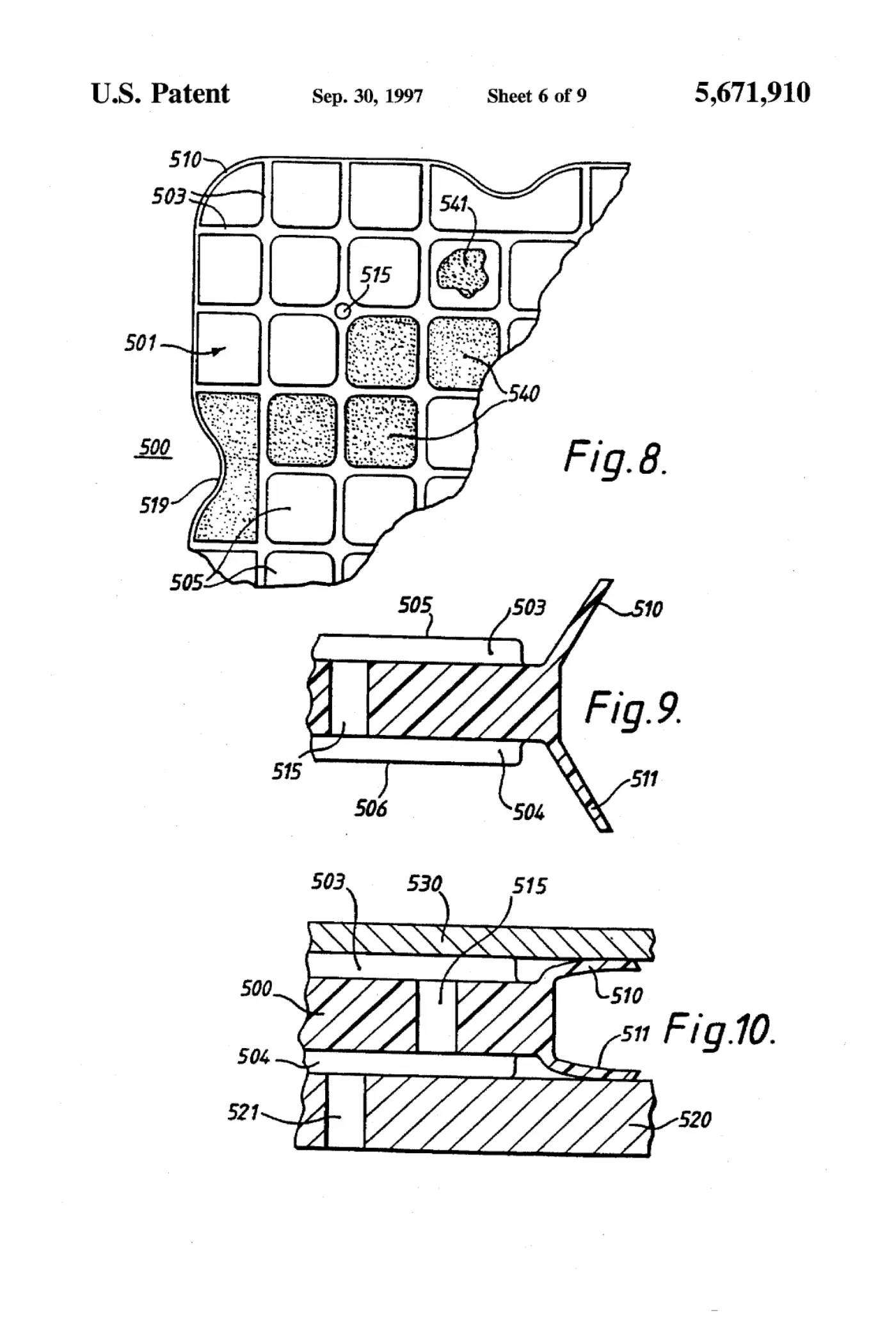

Sheet 6
Sheet 6

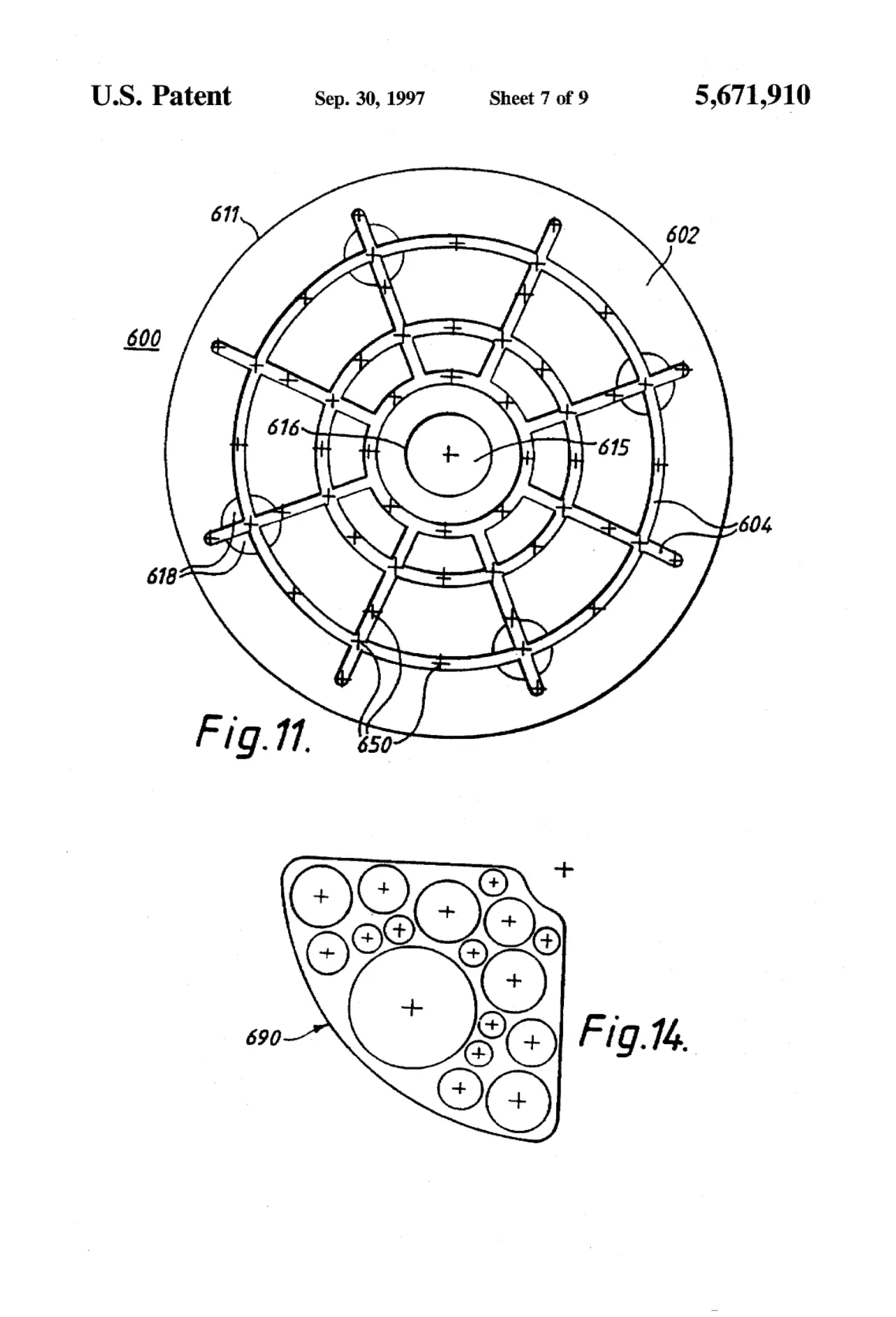

Sheet 7
Sheet 7

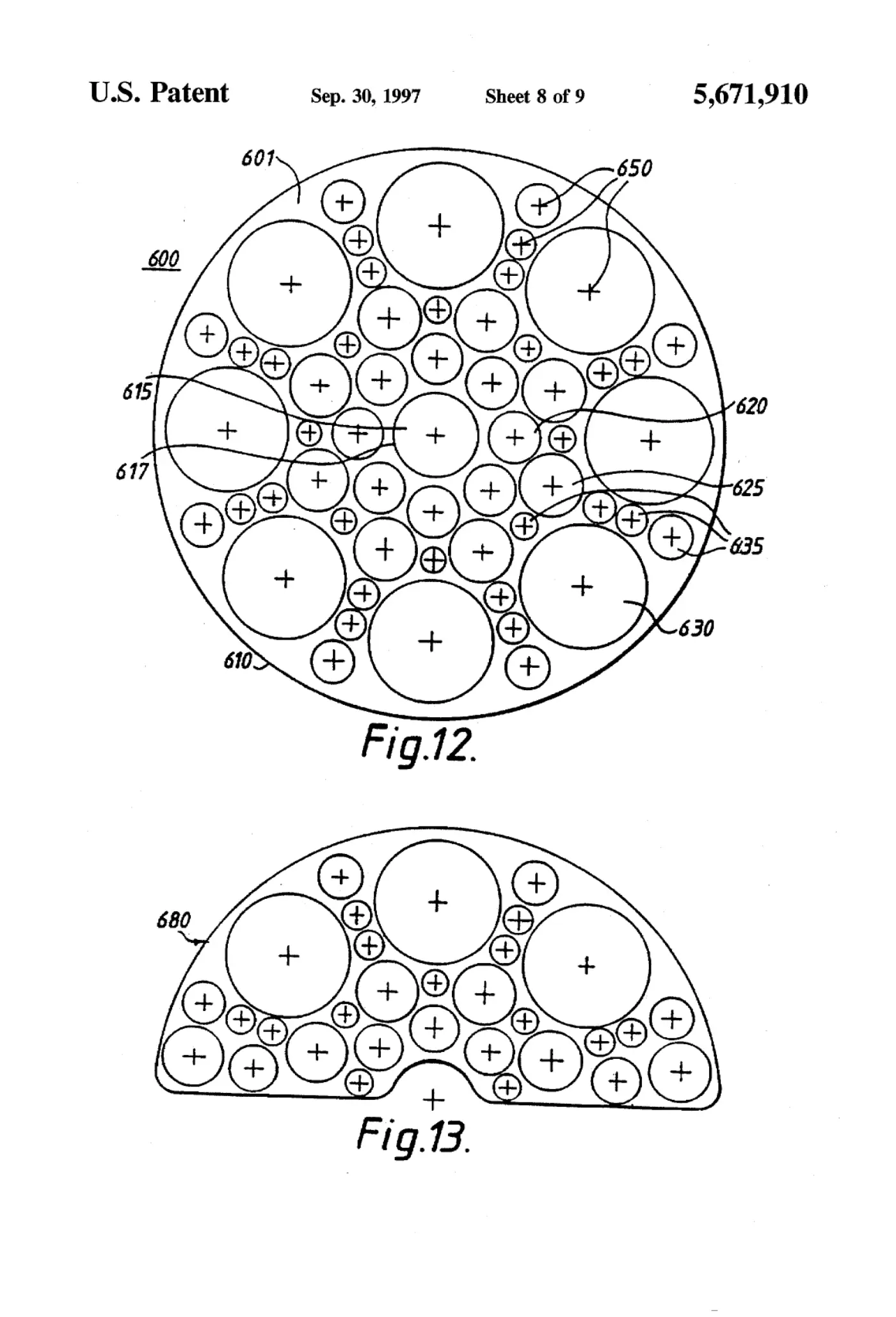

Sheet 8
Sheet 8

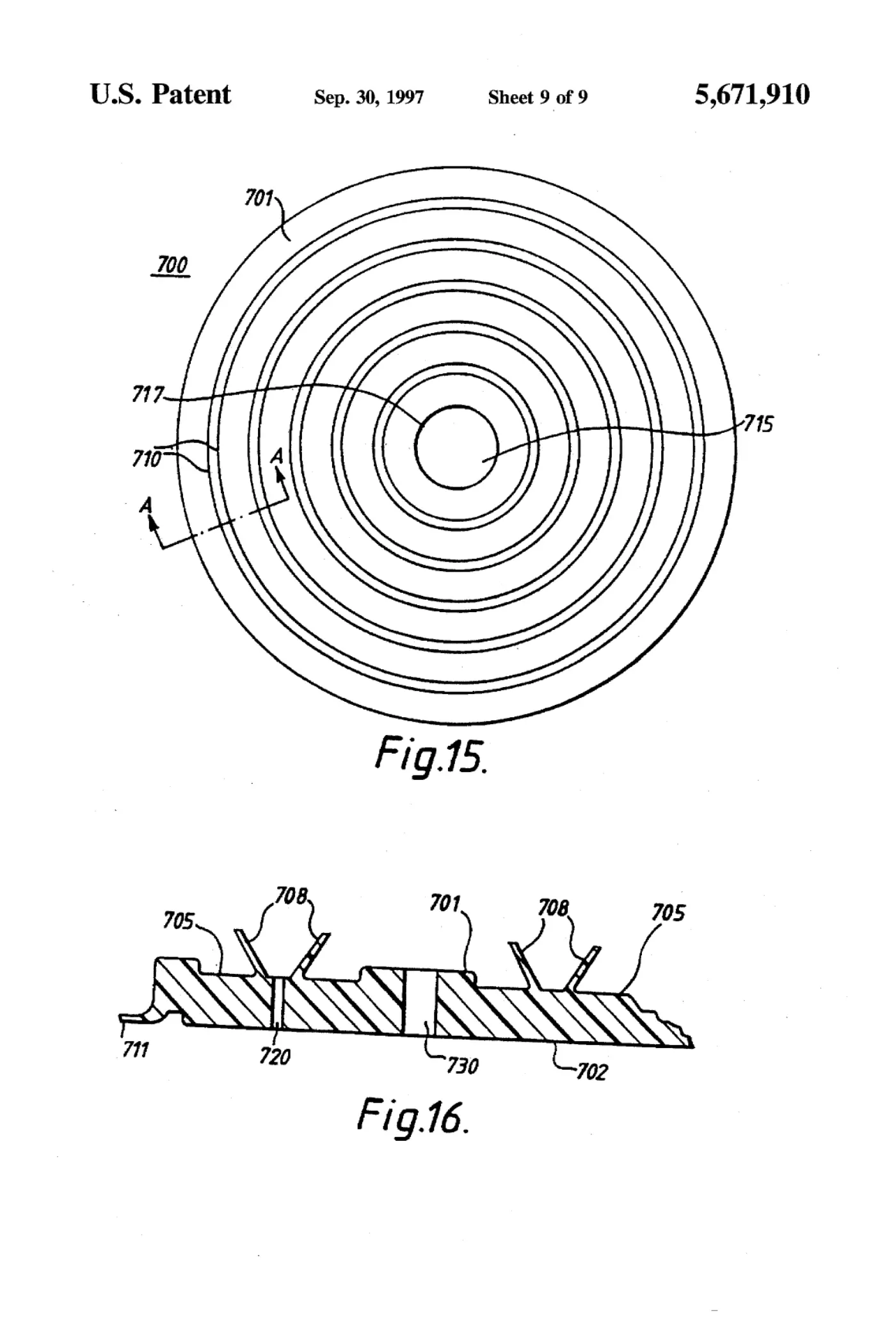

Sheet 9
Sheet 9

Abstract

A vacuum plate system comprises a support plate (310) formed of a plurality of support plate modules (320-380) that are supported on a base plate, and serve to transfer vacuum between vacuum apertures in the base plate and a workpiece held on the support plate (310). The support plate module (340) is formed with a plurality of circular lip seals (341) of larger size, and disposed therebetween, a plurality of lip seals (349) of smaller size. The area within each of the lip seals (341, 349) has a small hole extending through the respective support plate module, to transfer vacuum in a restricted manner. The remaining support plate modules are of a similar configuration, but with variations. In machining of a workpiece held on the support plate modules (320-280), the modules may be cut into, without risk of losing the vacuum overall holding effect on the workpiece. The specification discloses various other support plates.

1. Drawings

[0001]Sheet 1.

[0002]Sheet 2.

[0003]Sheet 3.

[0004]Sheet 4.

[0005]Sheet 5.

[0006]Sheet 6.

[0007]Sheet 7.

[0008]Sheet 8.

[0009]Sheet 9.
