Apparatus for gripping a flat substrate

Published
Permanent URL
Classification
Material Handling › Conveying Systems
Inventors
KEMPF STEFAN, KOENIG MICHAEL, REISING MICHAEL
Assignee
LEYBOLD AG
Original source
US-5669652-A, the United States Patent and Trademark Office, 23 September 1997
Document SHA-256
efa221dee4466ba81c70fd0b641247bfb34e00cf73950578589be649bf536151

Several finger-like grippers (4) are held and guided in openings or holes (21) in the head part (6) of a housing (20) so they can pivot about axes which are in a common plane transverse to the longitudinal axis (L) of the housing (20). Permanent magnets (11, 12) fixed to the inner ends of the grippers (4) cooperate with an electromagnet (13) provided in the housing (20) above the magnets (11, 12), the magnetic field axis of the electromagnet coinciding with the longitudinal axis (L) of the housing (20). The electromagnet moves the inner ends of the grippers (11, 12) back and forth between two stops (16, 17) depending on the polarity of the electromagnet (13).

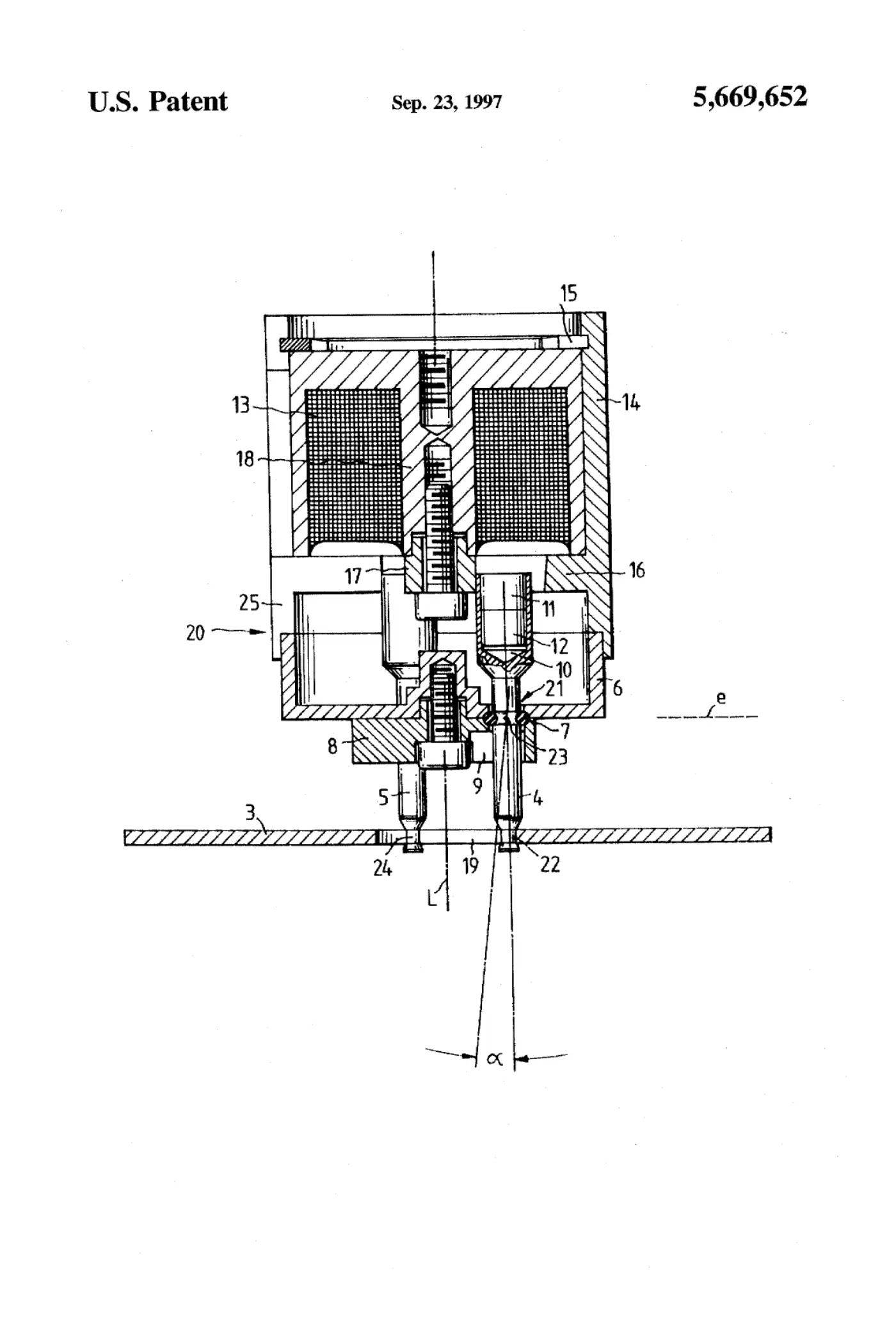

Sheet 1
Sheet 1

Abstract

Several finger-like grippers (4) are held and guided in openings or holes (21) in the head part (6) of a housing (20) so they can pivot about axes which are in a common plane transverse to the longitudinal axis (L) of the housing (20). Permanent magnets (11, 12) fixed to the inner ends of the grippers (4) cooperate with an electromagnet (13) provided in the housing (20) above the magnets (11, 12), the magnetic field axis of the electromagnet coinciding with the longitudinal axis (L) of the housing (20). The electromagnet moves the inner ends of the grippers (11, 12) back and forth between two stops (16, 17) depending on the polarity of the electromagnet (13).

1. Drawings

[0001]Sheet 1.
