Multiposition windshield lifting attachment

Published
Permanent URL
Classification
Tools & Tooling › Clamping Tools
Inventors
RITCHIE JEFFREY L, RUSCH BRADD R
Assignee
AUTO GLASS SPECIALISTS INC
Original source
US-5639134-A, the United States Patent and Trademark Office, 17 June 1997
Document SHA-256
ca09adcd42bb8c264d734737dca171979c034d6ad9ea6d7c29e734578fc50d7d

For replacement of automotive windshields by aftermarket installers, two mirror image grips have a curved tubular handle which is welded to a sheet metal base with two legs which are at an obtuse angle to one another. The curved handle allows smooth repositioning of an installer's hands as the large windshield is shifted into position on the automobile; the obtuse angle base provides sufficient clearance for the full range of hand positions. Each leg of the sheet metal base is positioned to abut against an installer's hand during different stages of windshield lifting, i.e. when the windshield is vertical, and when it is inverted and horizontal. The grips are used to lift and position a windshield with a bead of urethane thereon into the pinch weld of the automobile.

Sheet 1
Sheet 1
Sheet 2
Sheet 2

Abstract

For replacement of automotive windshields by aftermarket installers, two mirror image grips have a curved tubular handle which is welded to a sheet metal base with two legs which are at an obtuse angle to one another. The curved handle allows smooth repositioning of an installer's hands as the large windshield is shifted into position on the automobile; the obtuse angle base provides sufficient clearance for the full range of hand positions. Each leg of the sheet metal base is positioned to abut against an installer's hand during different stages of windshield lifting, i.e. when the windshield is vertical, and when it is inverted and horizontal. The grips are used to lift and position a windshield with a bead of urethane thereon into the pinch weld of the automobile.

1. Drawings

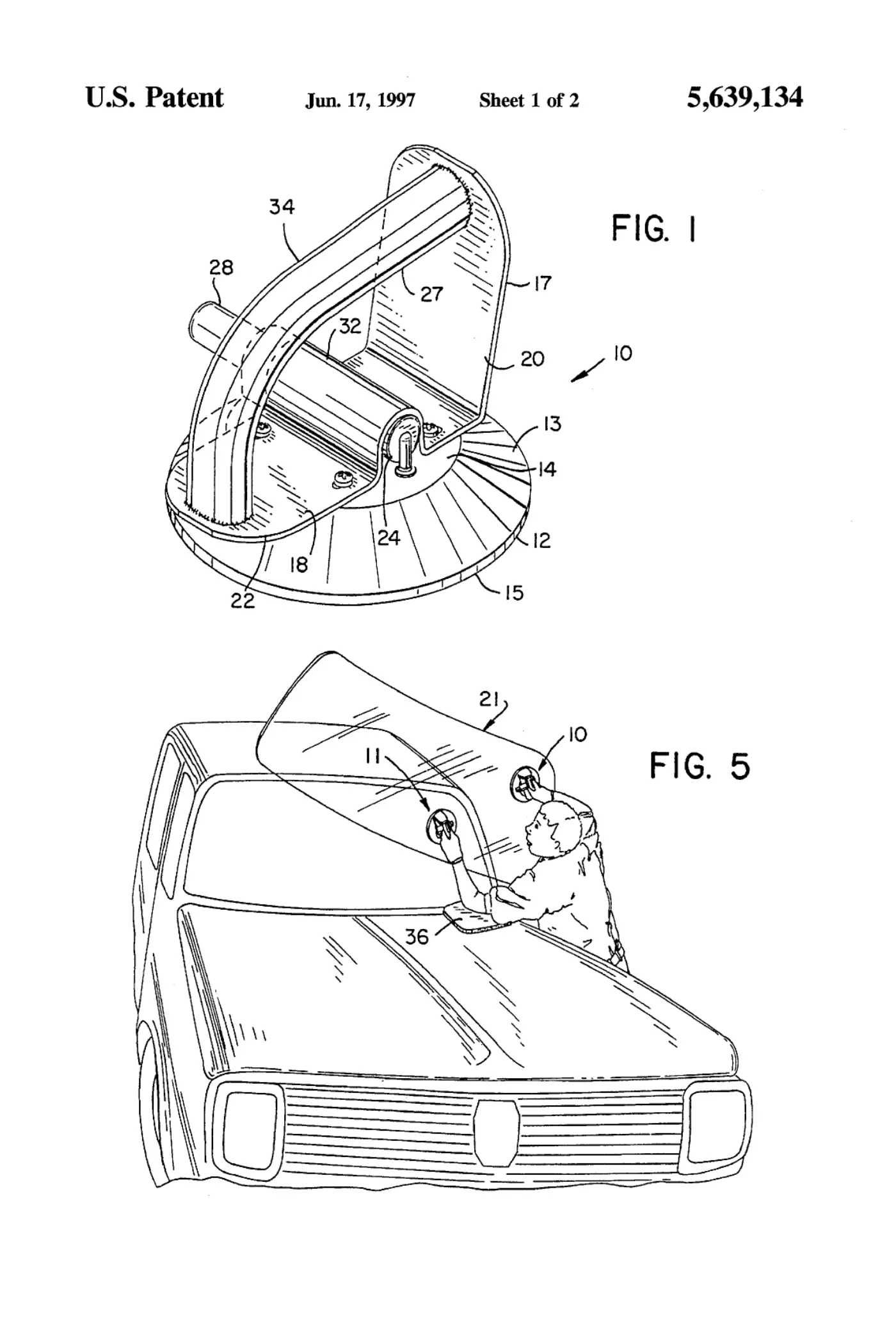

[0001]Sheet 1.

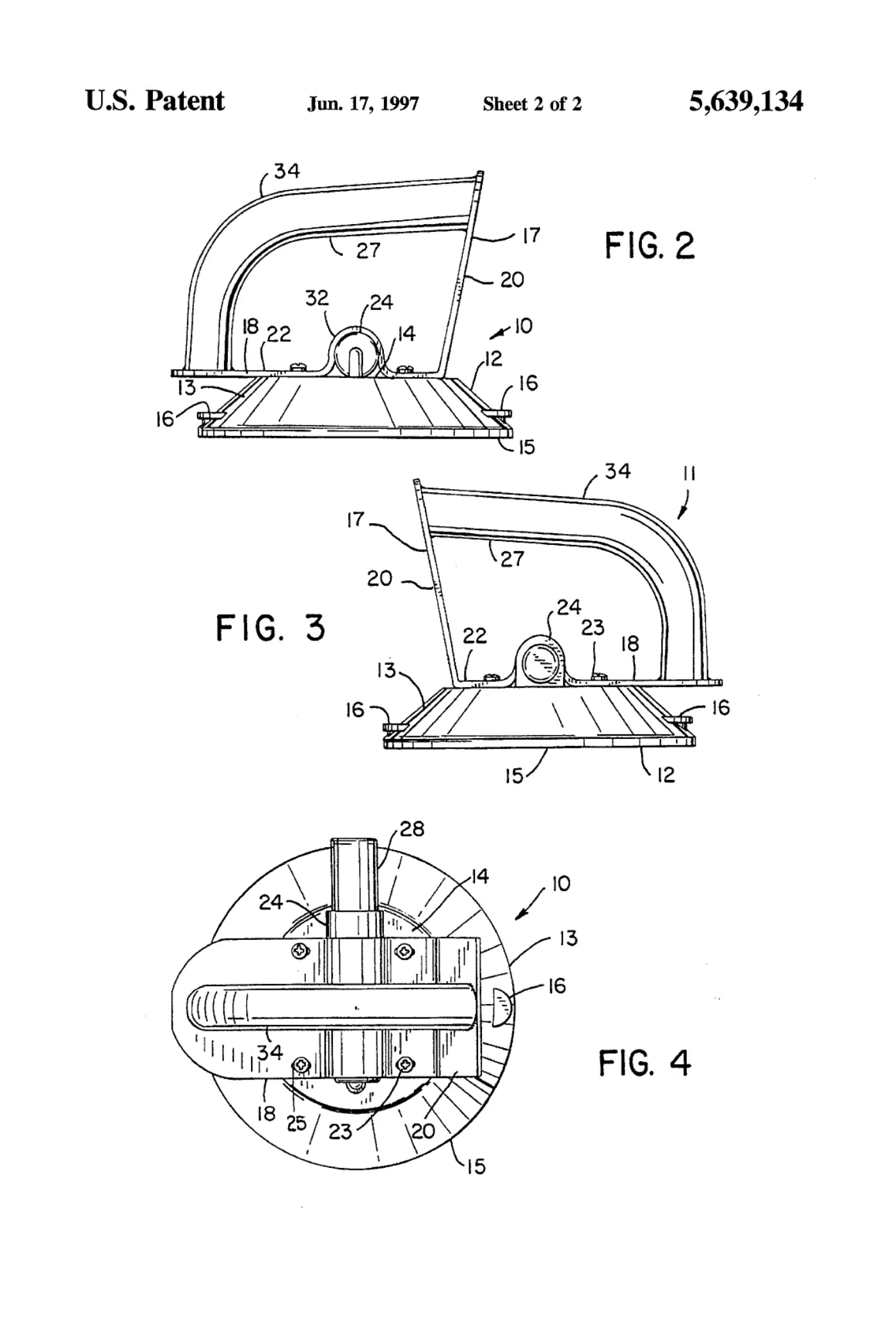

[0002]Sheet 2.
