Vacuum vice for bowling balls

Published
Permanent URL
Classification
Tools & Tooling › Clamping Tools
Inventors
EDIS DAVID, POORT BERT
Assignee
LIEM JERRY
Original source
US-5634749-A, the United States Patent and Trademark Office, 3 June 1997
Document SHA-256
b2b574a113a8923b4770b30cae79b45cc5caaf98e302171b385cfc2a3550deb3

A vacuum vice for holding a bowling ball when drilling holes or engraving the ball includes inner and outer o-rings seals which form inner and outer concentric vacuum chambers that work together to form a seal with a bowling ball having surface imperfections or engraving. The inner vacuum chamber holds the ball against the inner seal and a vacuum passageway applies the vacuum to the outer vacuum chamber which seats the ball against the outer seal.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3
Sheet 4
Sheet 4
Sheet 5
Sheet 5

Abstract

A vacuum vice for holding a bowling ball when drilling holes or engraving the ball includes inner and outer o-rings seals which form inner and outer concentric vacuum chambers that work together to form a seal with a bowling ball having surface imperfections or engraving. The inner vacuum chamber holds the ball against the inner seal and a vacuum passageway applies the vacuum to the outer vacuum chamber which seats the ball against the outer seal.

1. Drawings

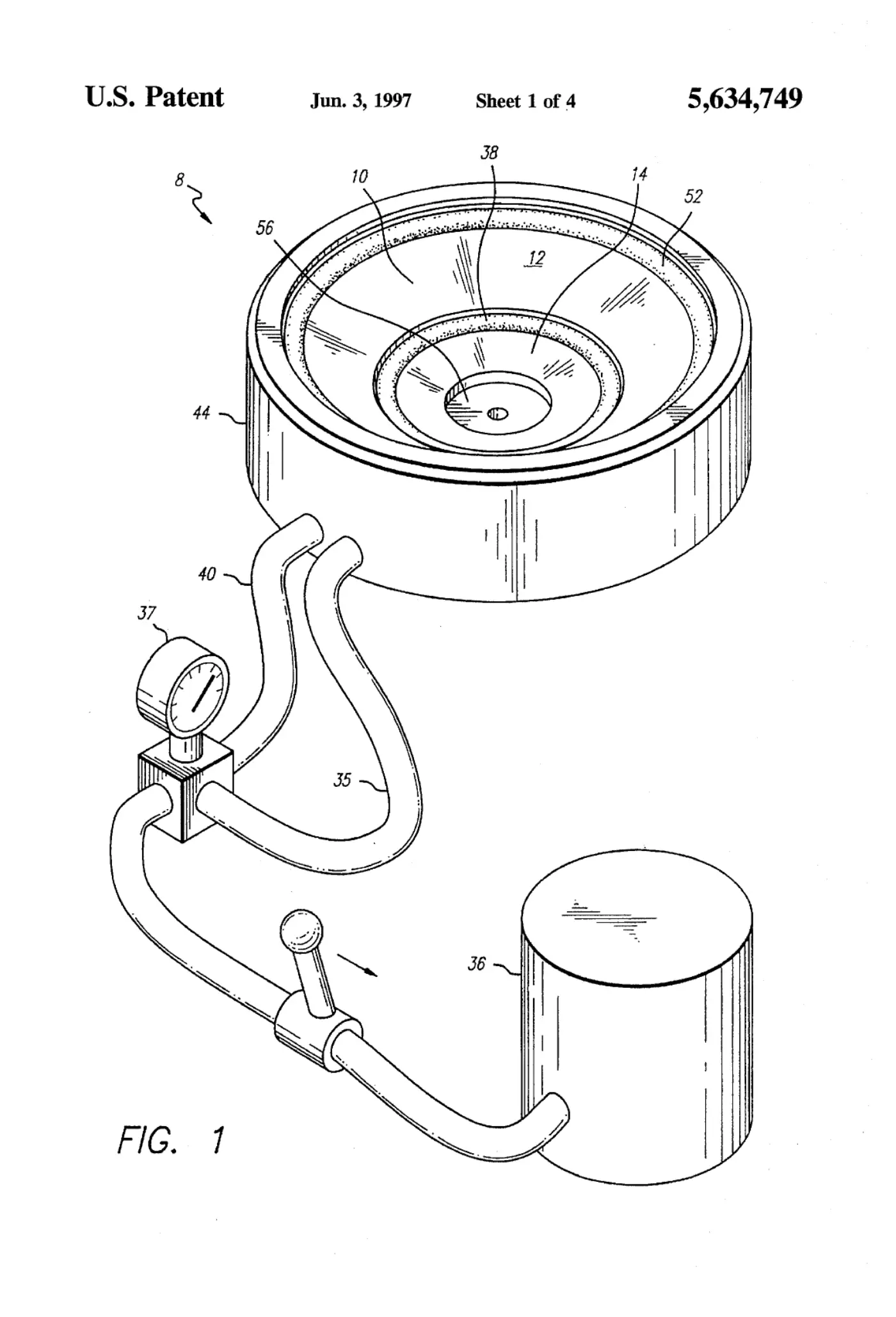

[0001]Sheet 1.

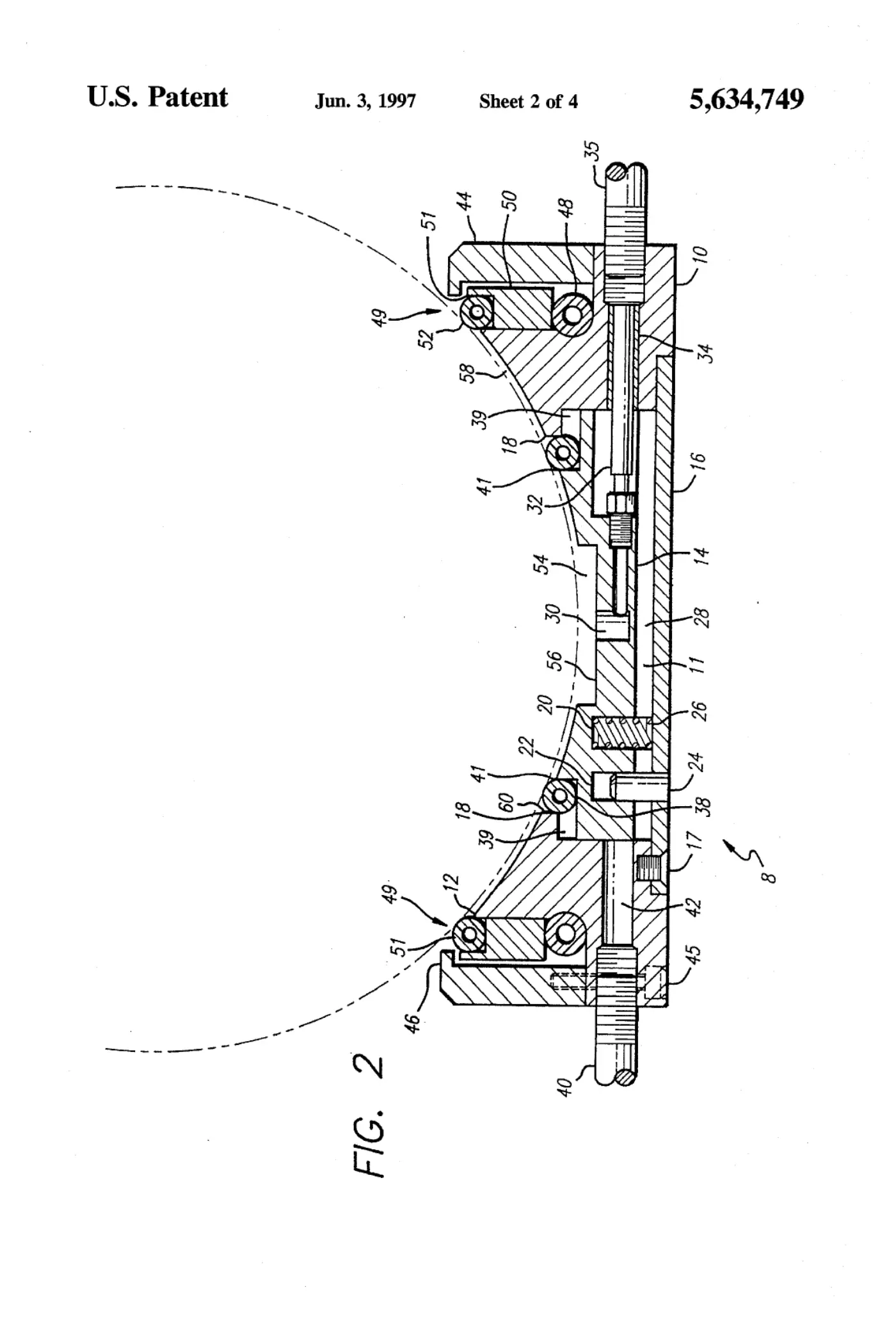

[0002]Sheet 2.

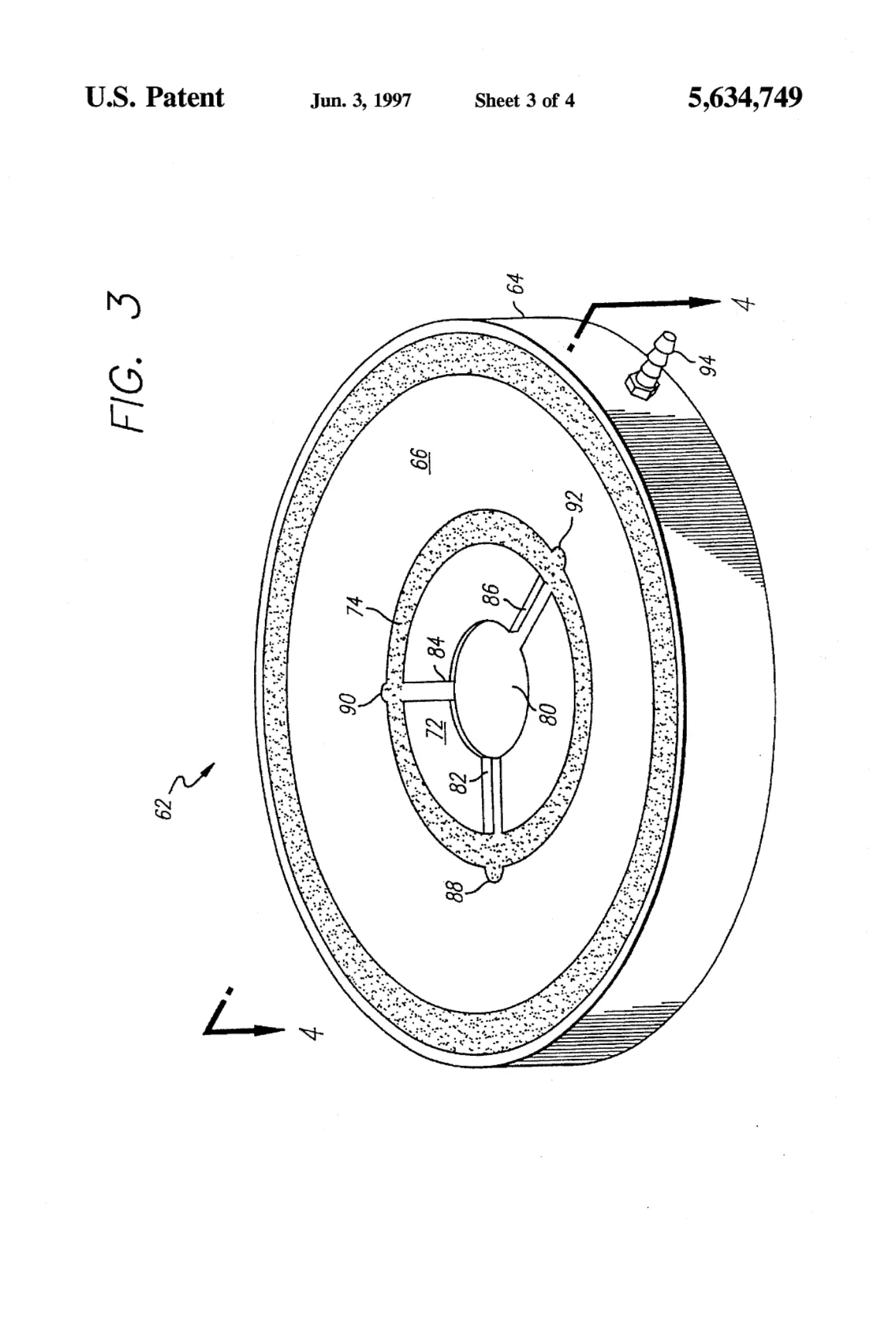

[0003]Sheet 3.

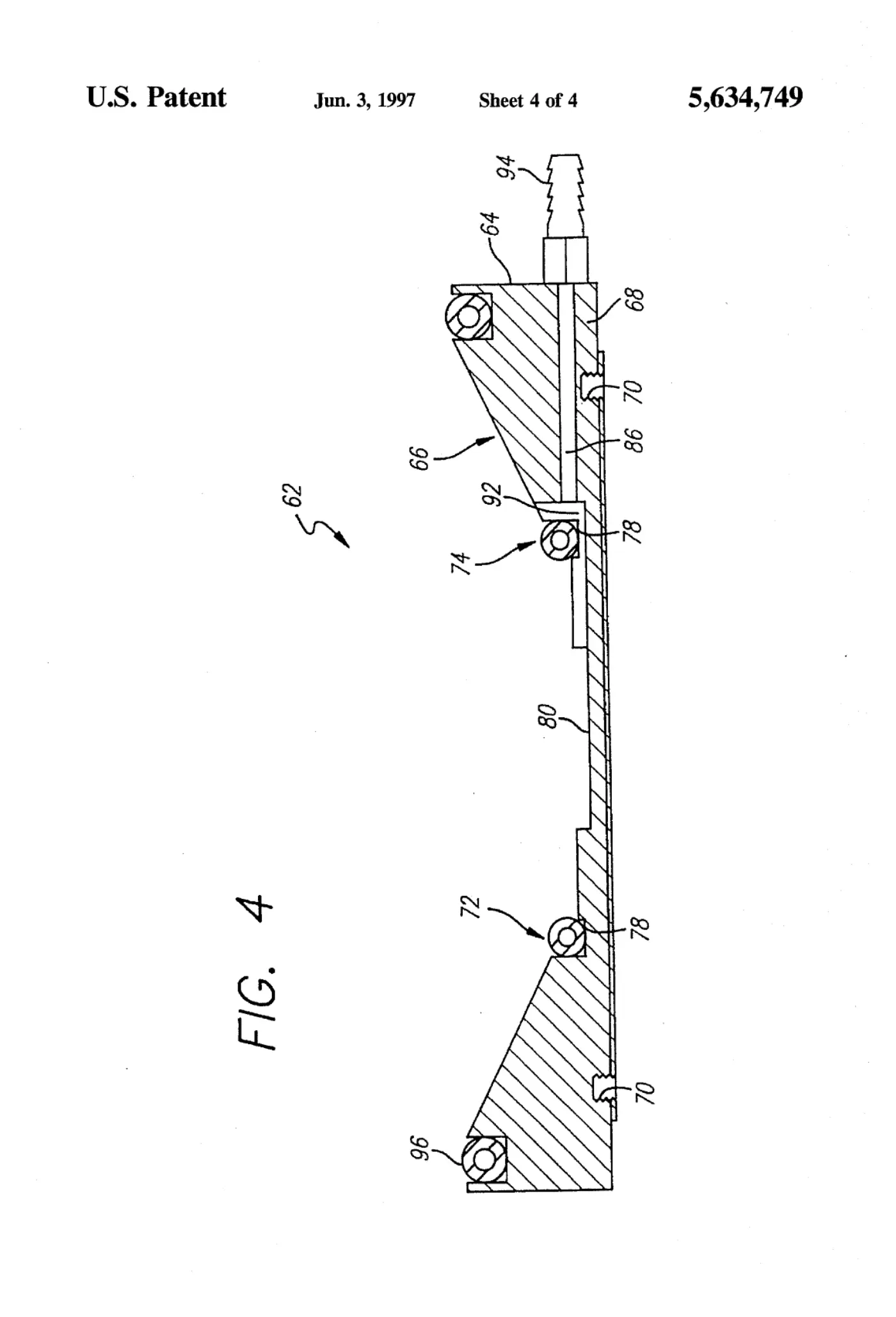

[0004]Sheet 4.

[0005]Sheet 5.
