Device for magnetically engaging objects having variable surface contours

Published
Permanent URL
Classification
Lifting, Positioning & Manipulation › Hoists and Cranes
Inventors
MARTIN CLAIRE T, STOWE MICHAEL W
Assignee
STOWE MICHAEL W
Original source
US-5630634-A, the United States Patent and Trademark Office, 20 May 1997
Document SHA-256
7c1ac712e11af6650446779f3564bf0eb9b20bfab1bf03d94aa35b4dbc1f0fcc

The specification discloses a magnetizable device for engaging articles of varying surface contours. The device is characterized by a number of independently movable magnetizable elements which depend from a slot in the device housing; the elements being retained by element-arresting projections extending from each element's upper-most end. In one embodiment, the slot of the present invention is a bobbin assembly, including first and second halves which join to define a substantially rectangular slot.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3

Abstract

The specification discloses a magnetizable device for engaging articles of varying surface contours. The device is characterized by a number of independently movable magnetizable elements which depend from a slot in the device housing; the elements being retained by element-arresting projections extending from each element's upper-most end. In one embodiment, the slot of the present invention is a bobbin assembly, including first and second halves which join to define a substantially rectangular slot.

1. Drawings

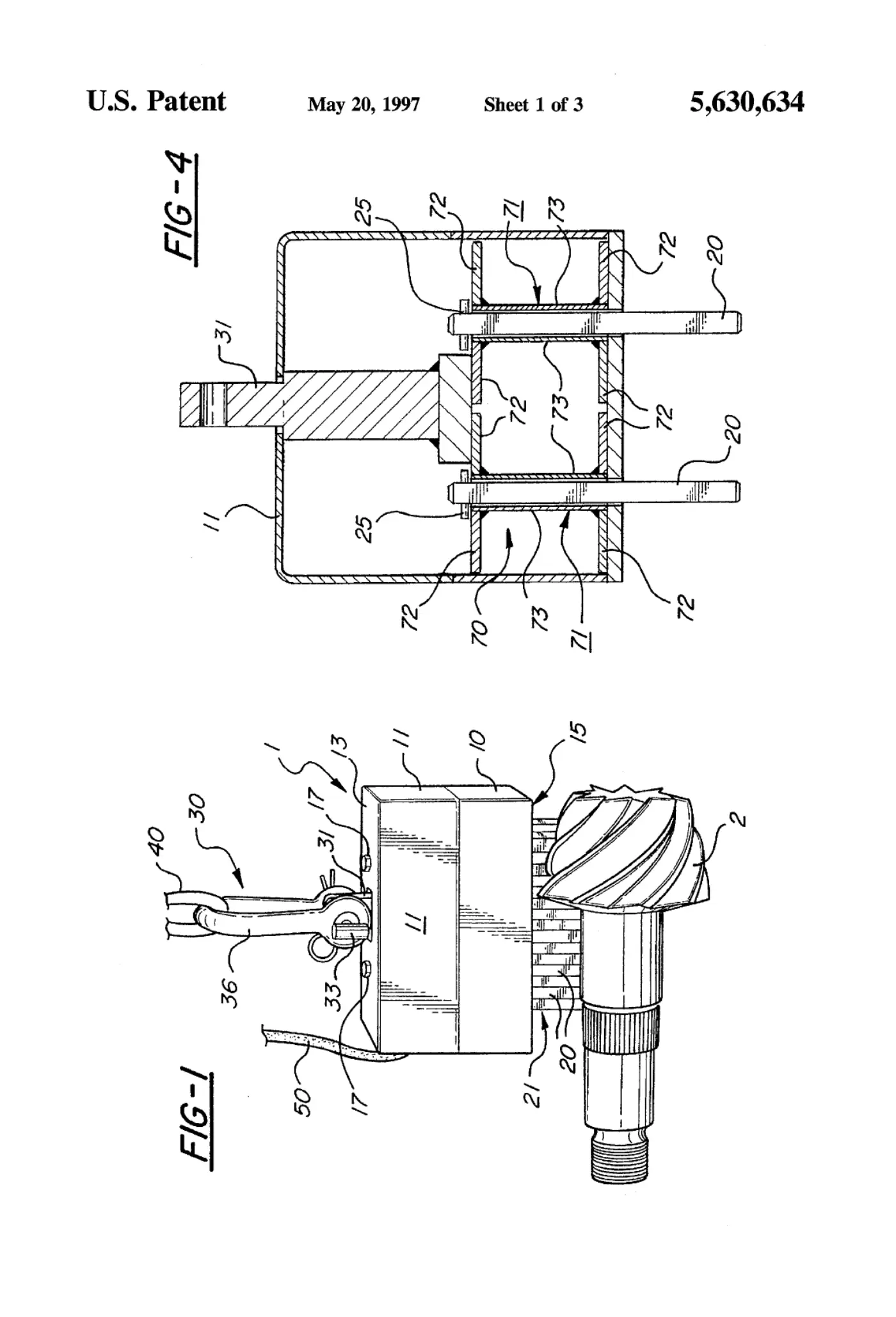

[0001]Sheet 1.

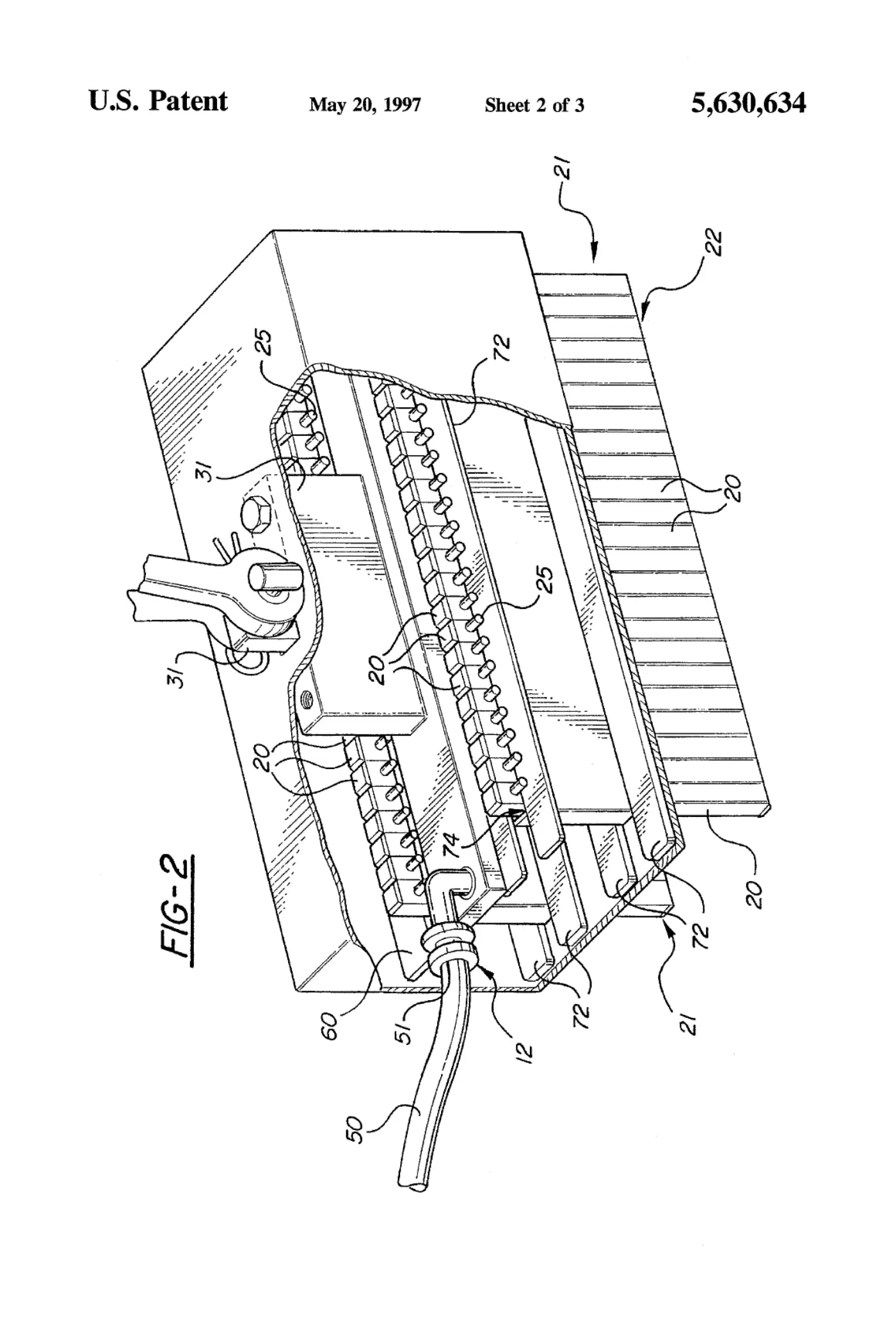

[0002]Sheet 2.

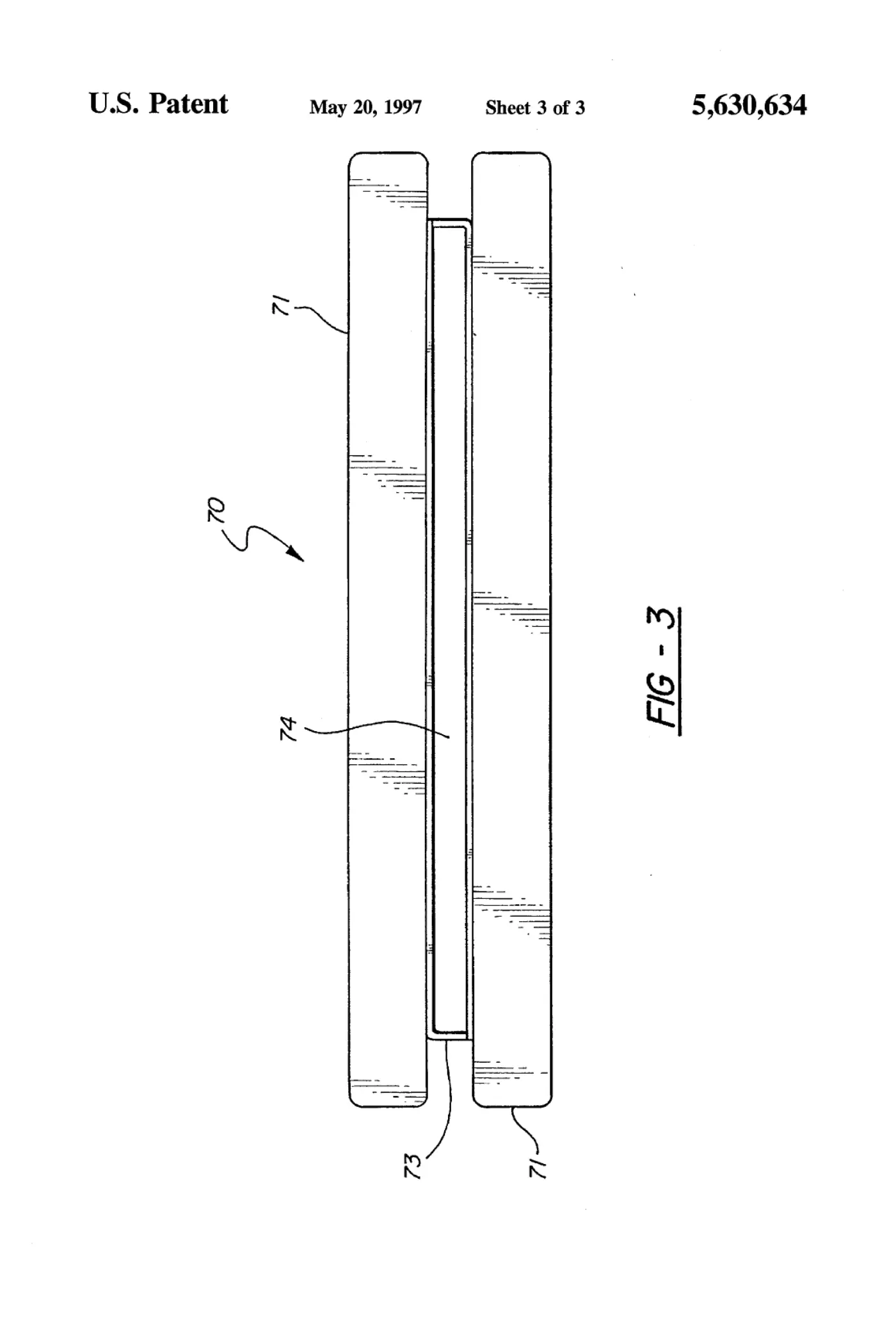

[0003]Sheet 3.
