Transfer device in a press

Published
Permanent URL
Classification
Manufacturing & Assembly Equipment › Machining Systems
Assignee
STYNER & BIENZ AG
Original source
US-5607281-A, the United States Patent and Trademark Office, 4 March 1997
Document SHA-256
822f49d946bd4e4202faa6bf78da063dbb1f680c5d8354935eebcdc96443232e

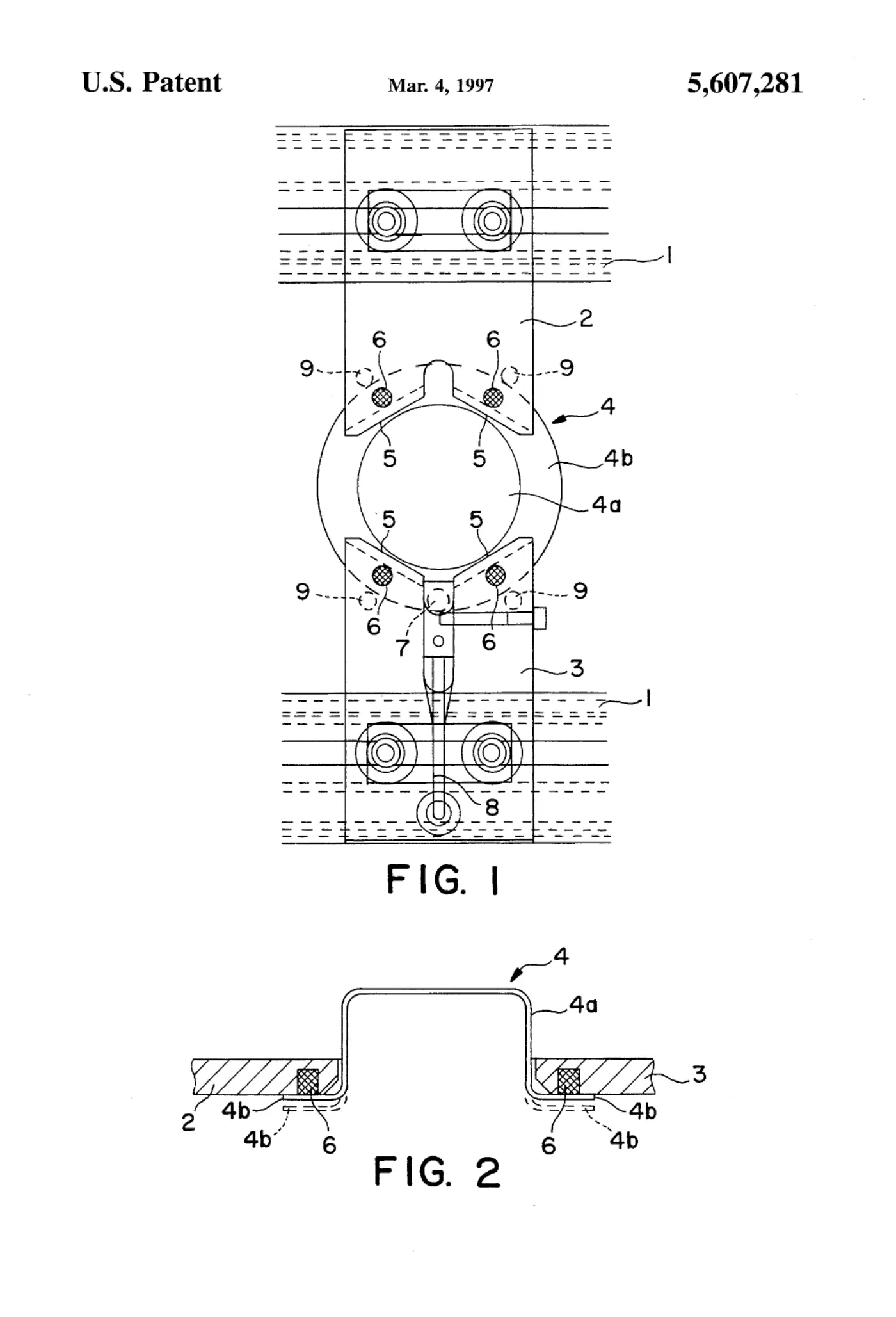

The grippers (2, 3), which are mounted on the transport bars (1), are provided with permanent magnets (6). In order to seize and transfer a workpiece (4), the two grippers are moved toward the workpiece from the outside, while the front surfaces (5) of the grippers position the workpiece and the magnets (6) lift up the workpiece by some distance. It is thus ensured in a very simple manner that the workpiece may safely enter the following processing station of a follow-on tool.

Sheet 1
Sheet 1

Abstract

The grippers (2, 3), which are mounted on the transport bars (1), are provided with permanent magnets (6). In order to seize and transfer a workpiece (4), the two grippers are moved toward the workpiece from the outside, while the front surfaces (5) of the grippers position the workpiece and the magnets (6) lift up the workpiece by some distance. It is thus ensured in a very simple manner that the workpiece may safely enter the following processing station of a follow-on tool.

1. Drawings

[0001]Sheet 1.
