Laser-based dimensioning system

Published
Permanent URL
Classification
Sensors, Controls & Machine Vision › Position and Presence Sensing
Assignee
QUANTRONIX INC
Original source
US-5606534-A, the United States Patent and Trademark Office, 25 February 1997
Document SHA-256
1251f962744a7372e69800b96688f2bb236a5d6223f52bcf078474996c56dc00

A method and apparatus for measuring the dimensions and determining the three-dimensional, spatial volume of objects, particularly small objects. Reflected laser light sensors are employed. A stationary measurement embodiment of the apparatus may be employed to measure regular cuboidal objects. A dynamic or in-motion embodiment may be employed to measure the dimensions of cuboidal objects or a three-dimensional outline of objects of irregular configuration.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3
Sheet 4
Sheet 4
Sheet 5
Sheet 5
Sheet 6
Sheet 6

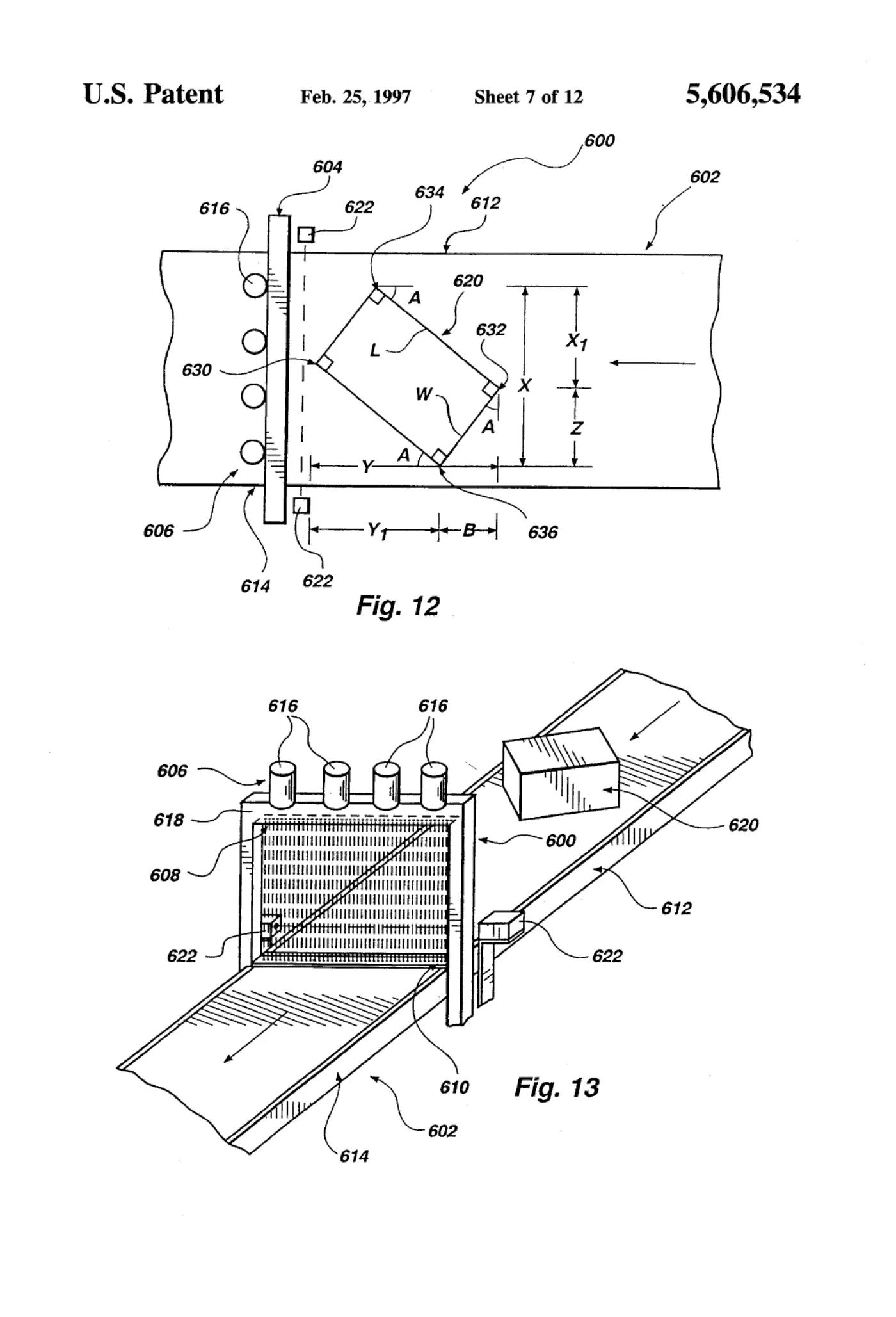

Sheet 7
Sheet 7

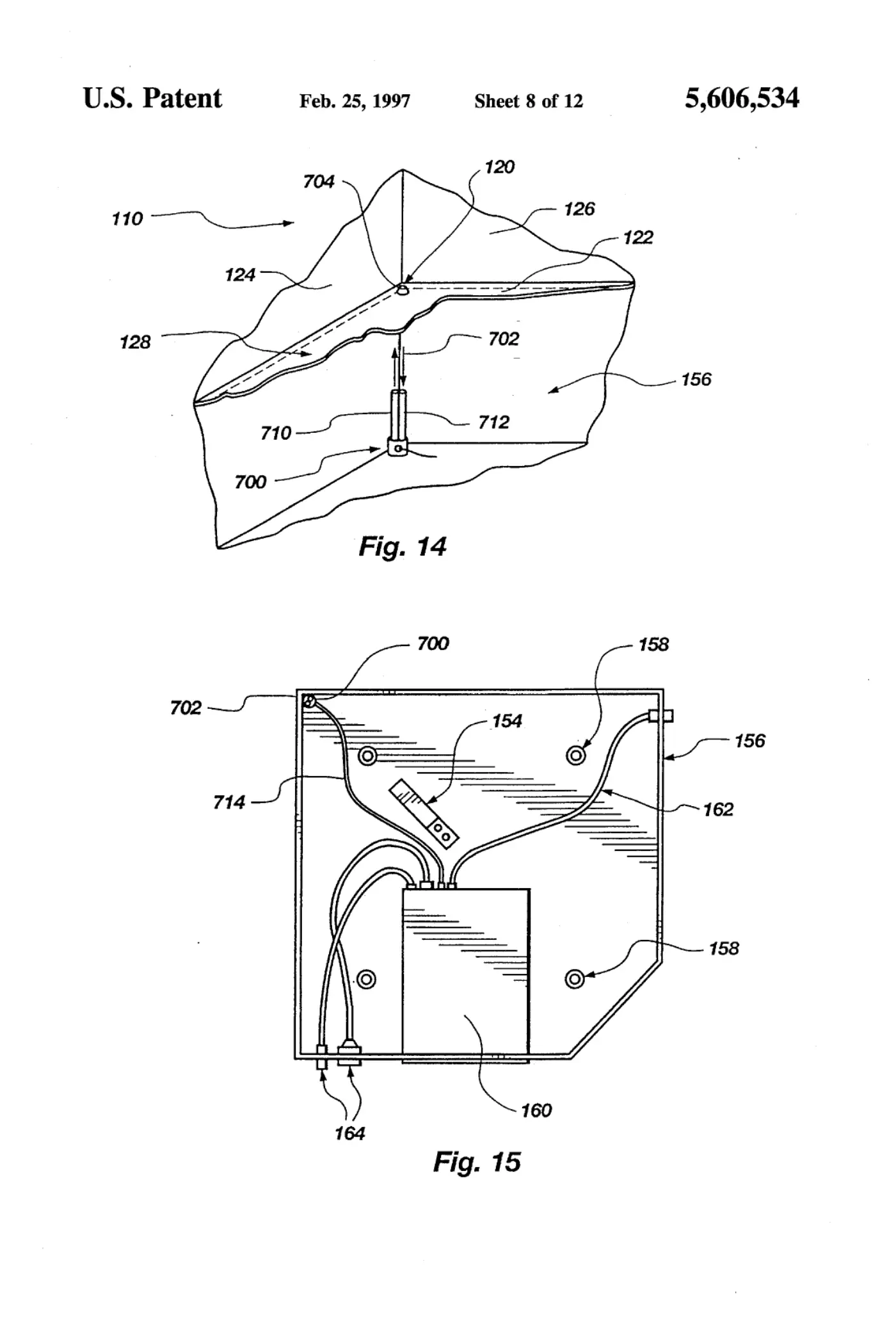

Sheet 8
Sheet 8

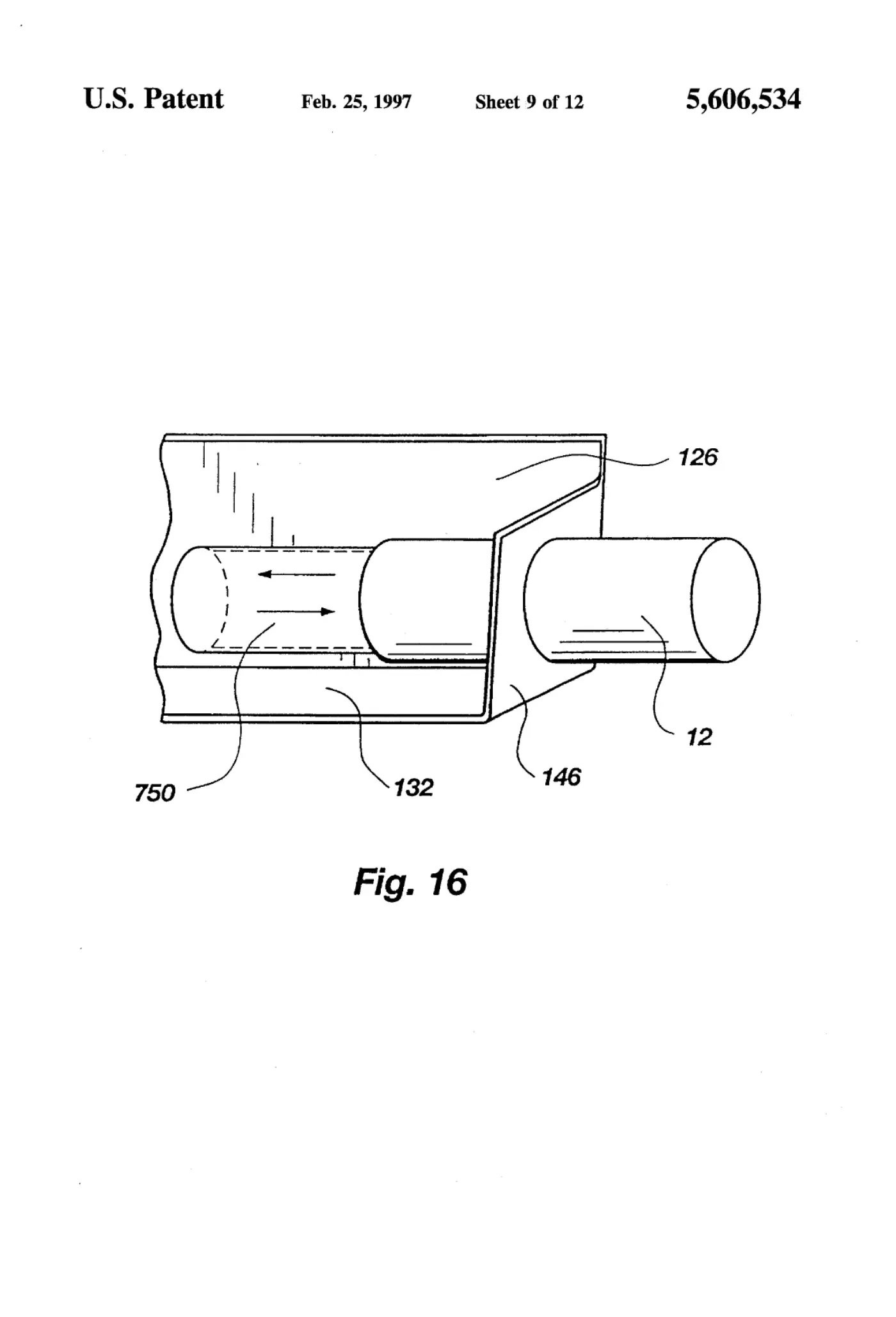

Sheet 9
Sheet 9

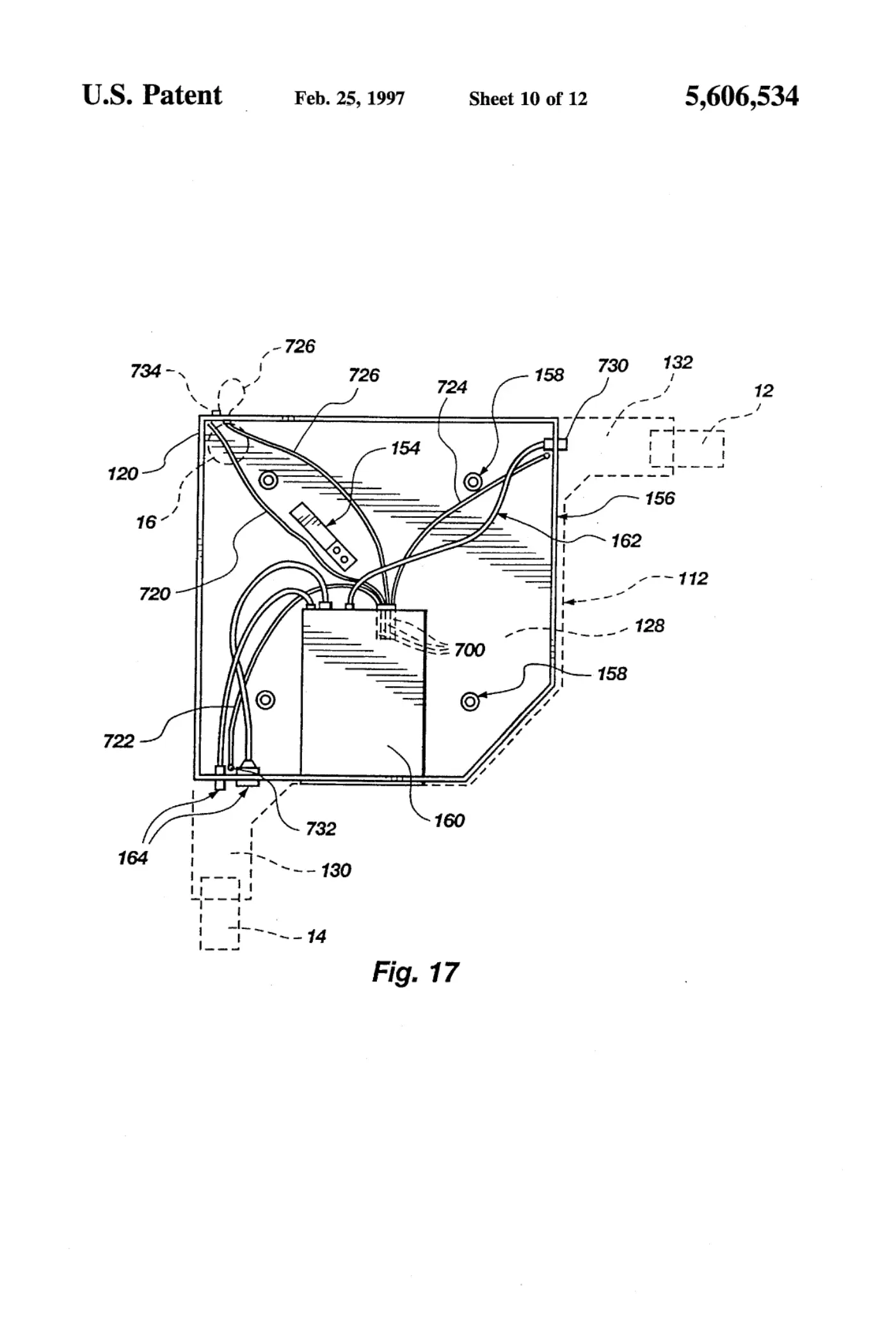

Sheet 10
Sheet 10

Abstract

A method and apparatus for measuring the dimensions and determining the three-dimensional, spatial volume of objects, particularly small objects. Reflected laser light sensors are employed. A stationary measurement embodiment of the apparatus may be employed to measure regular cuboidal objects. A dynamic or in-motion embodiment may be employed to measure the dimensions of cuboidal objects or a three-dimensional outline of objects of irregular configuration.

1. Drawings

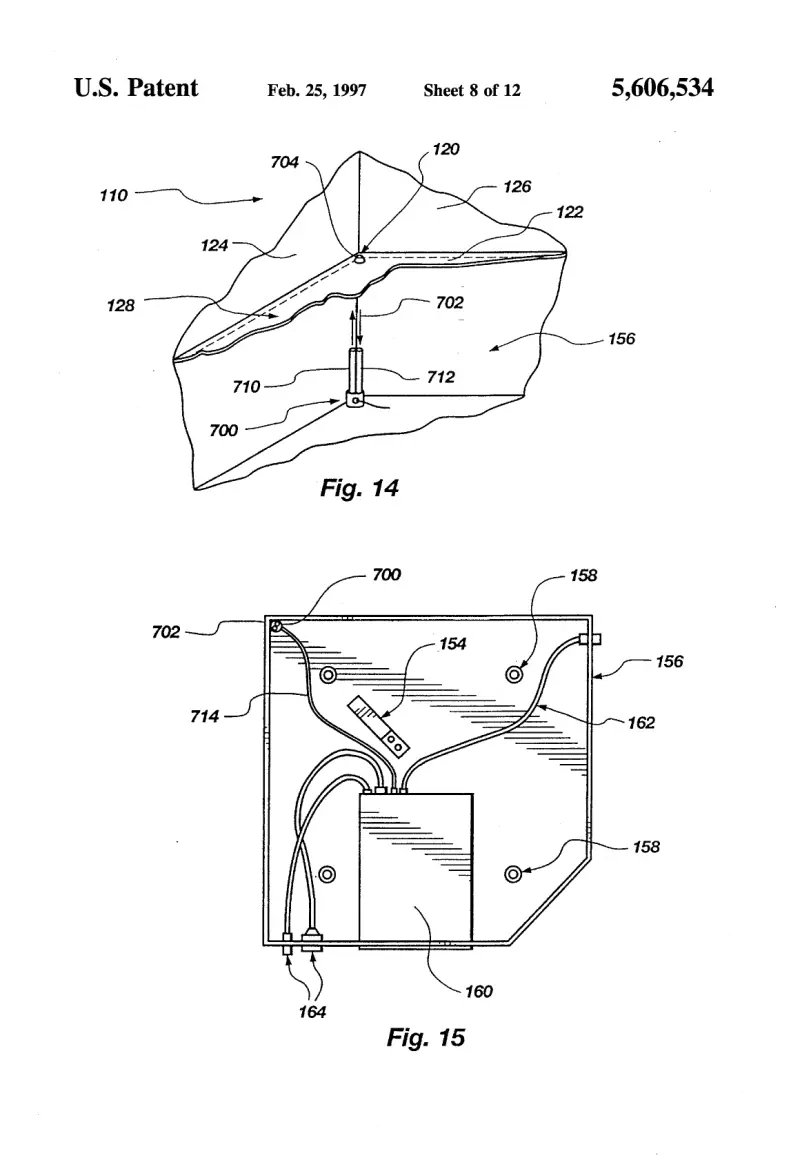

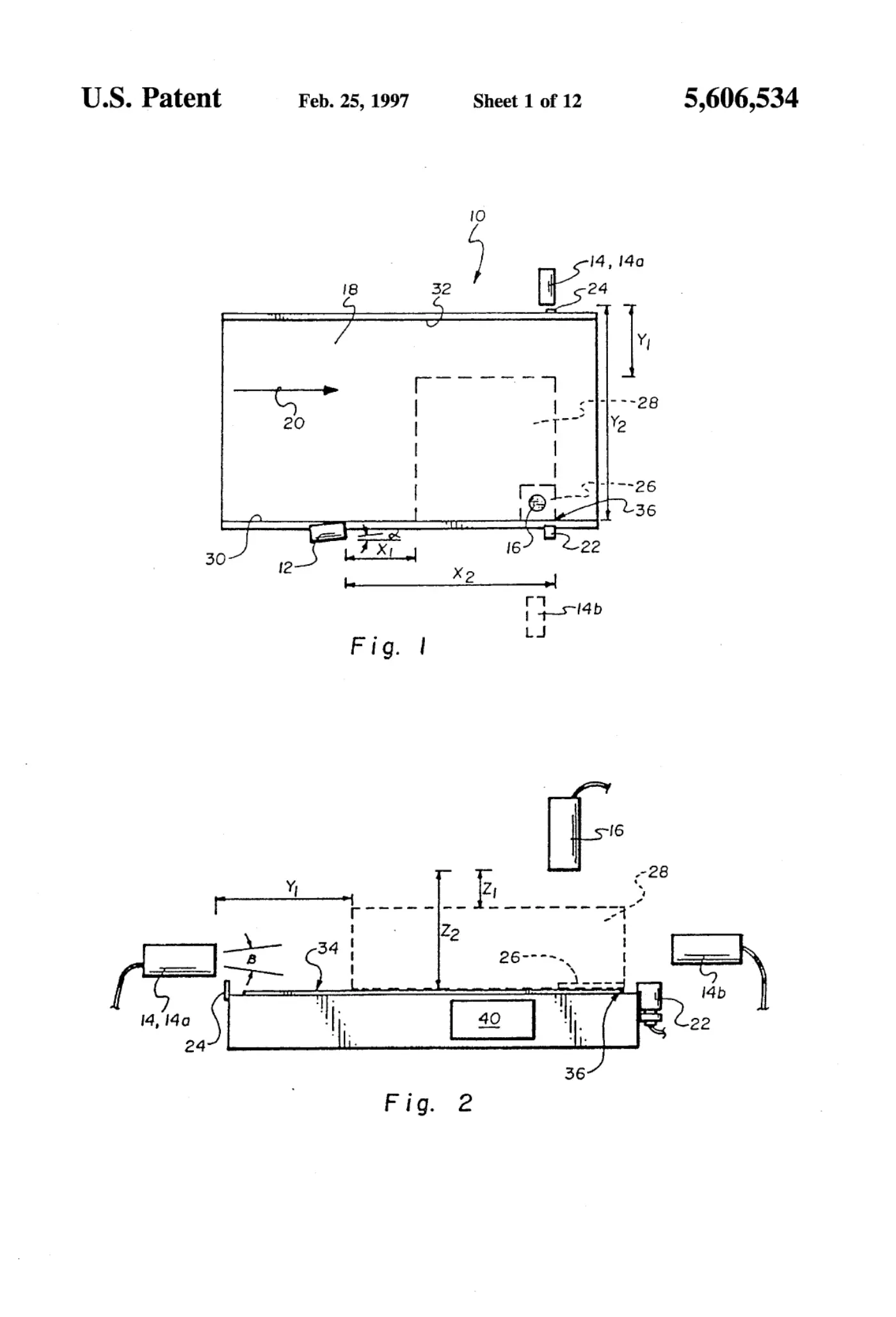

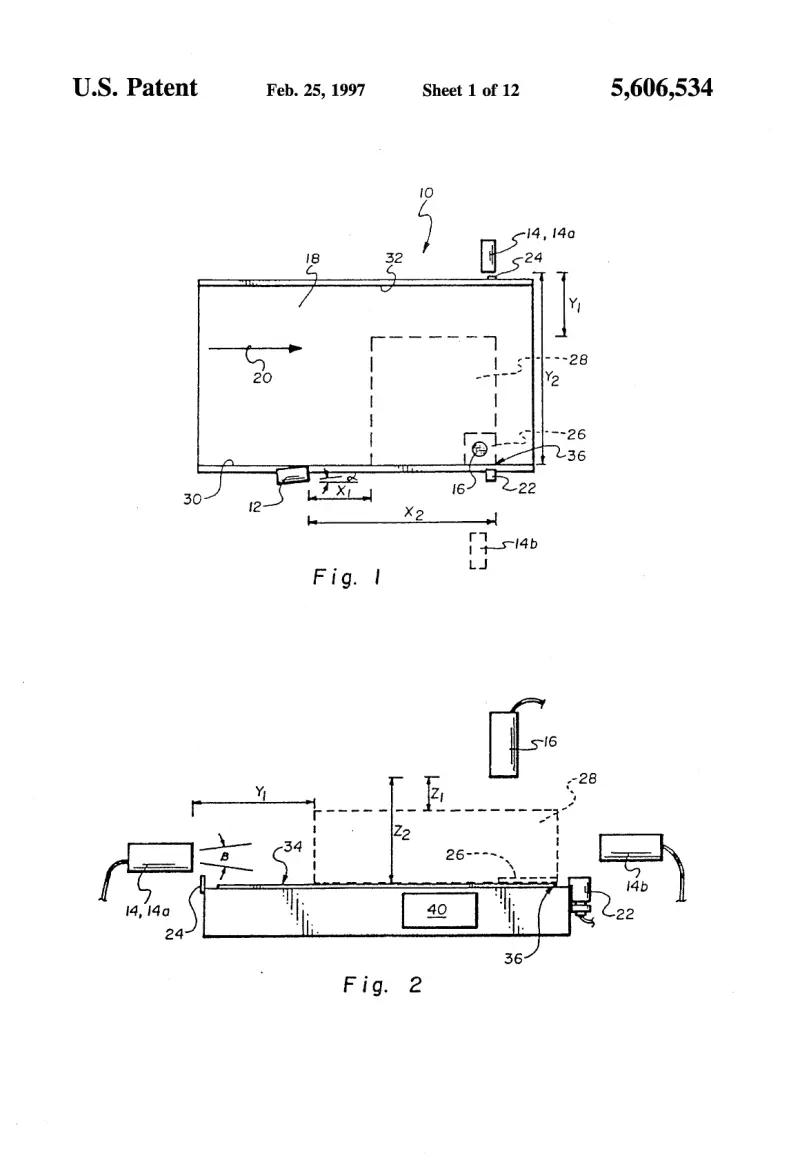

[0001]Sheet 1.

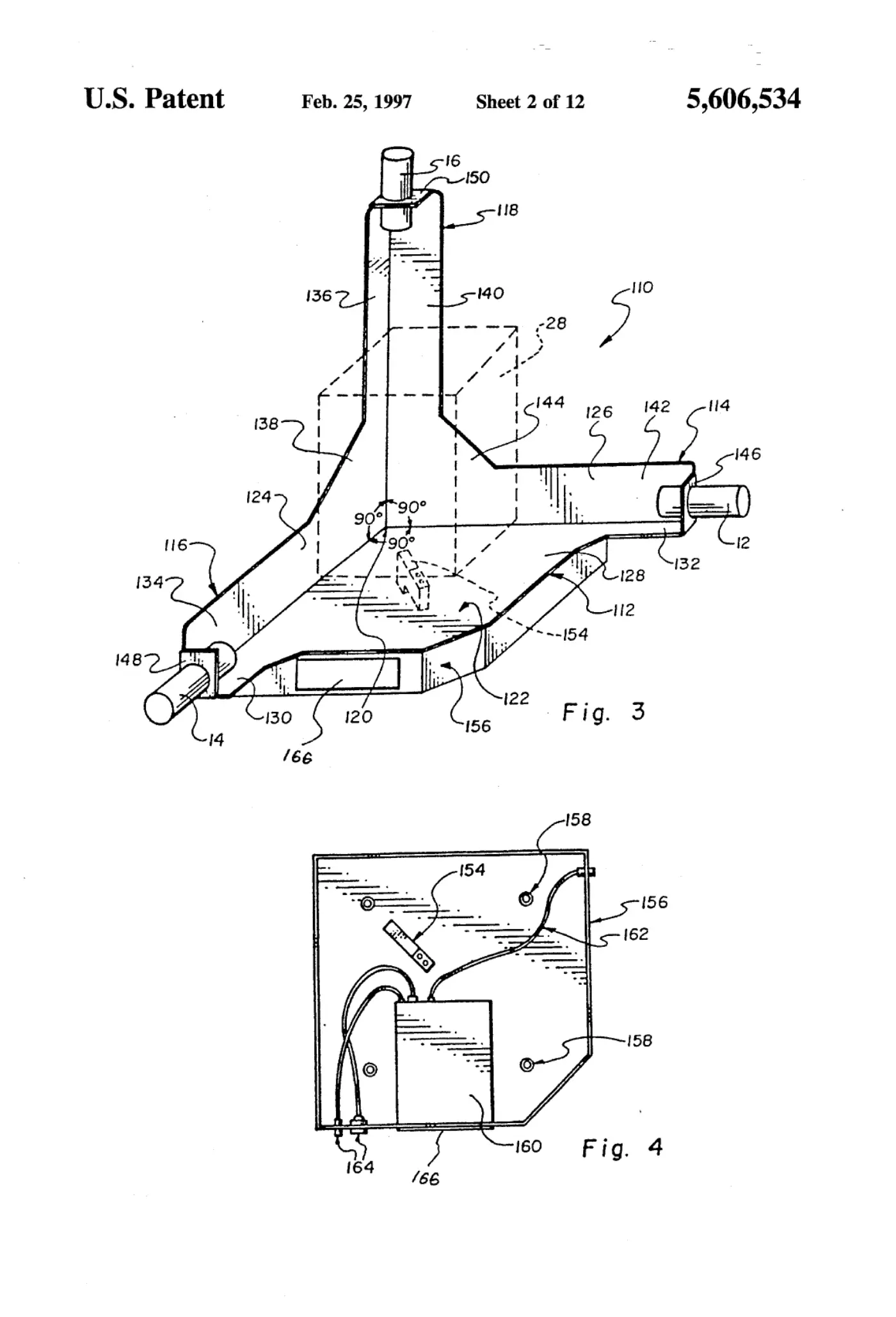

[0002]Sheet 2.

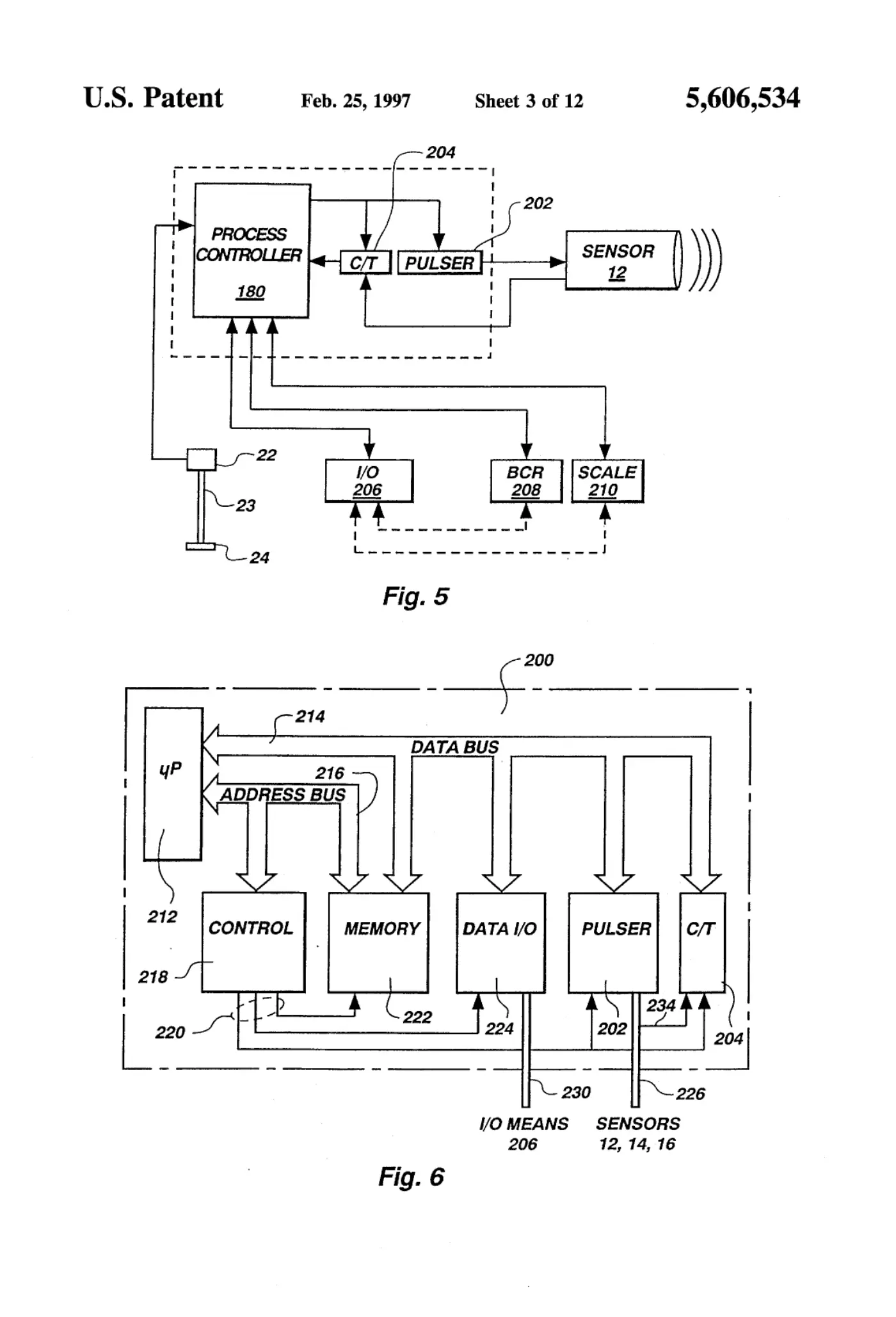

[0003]Sheet 3.

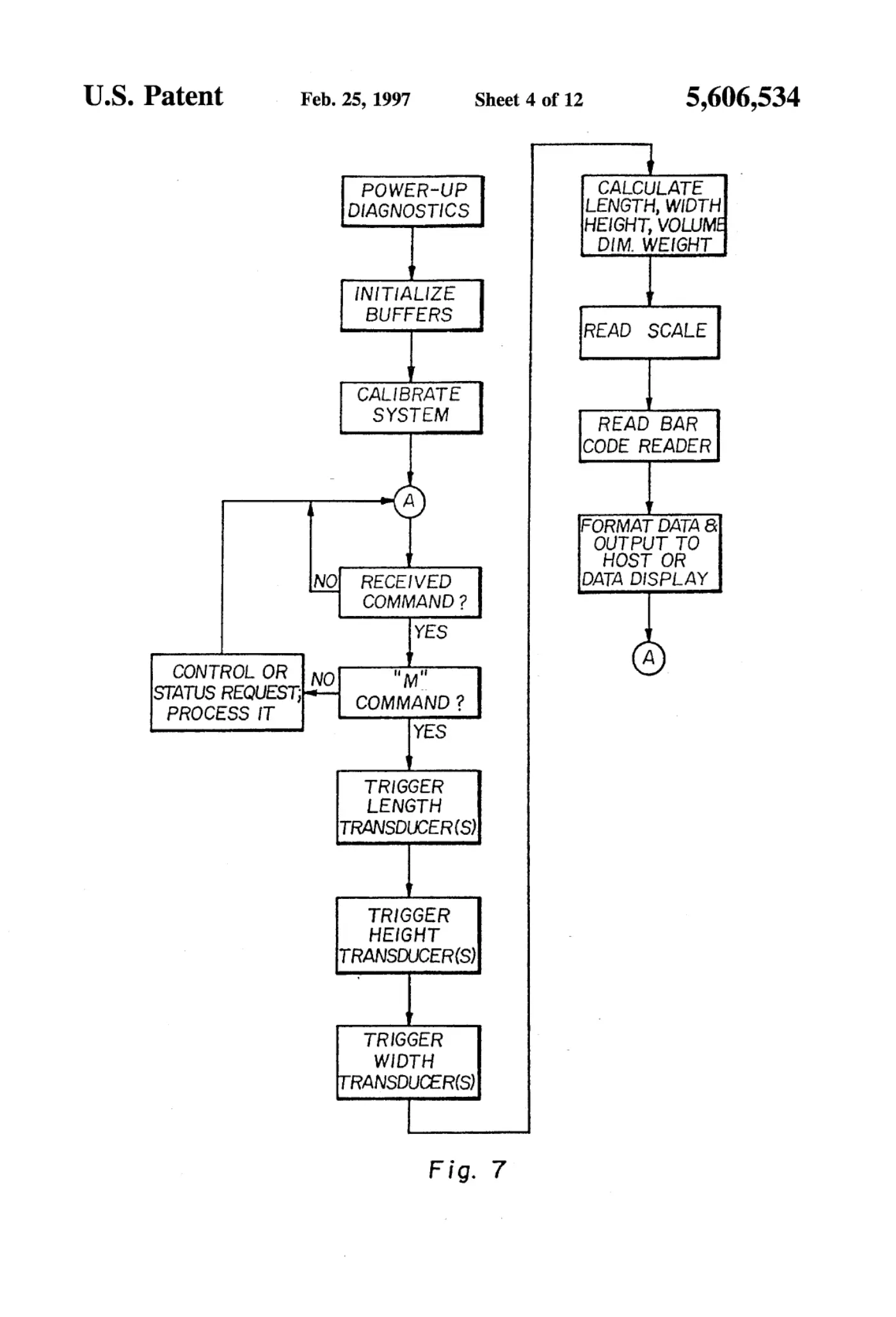

[0004]Sheet 4.

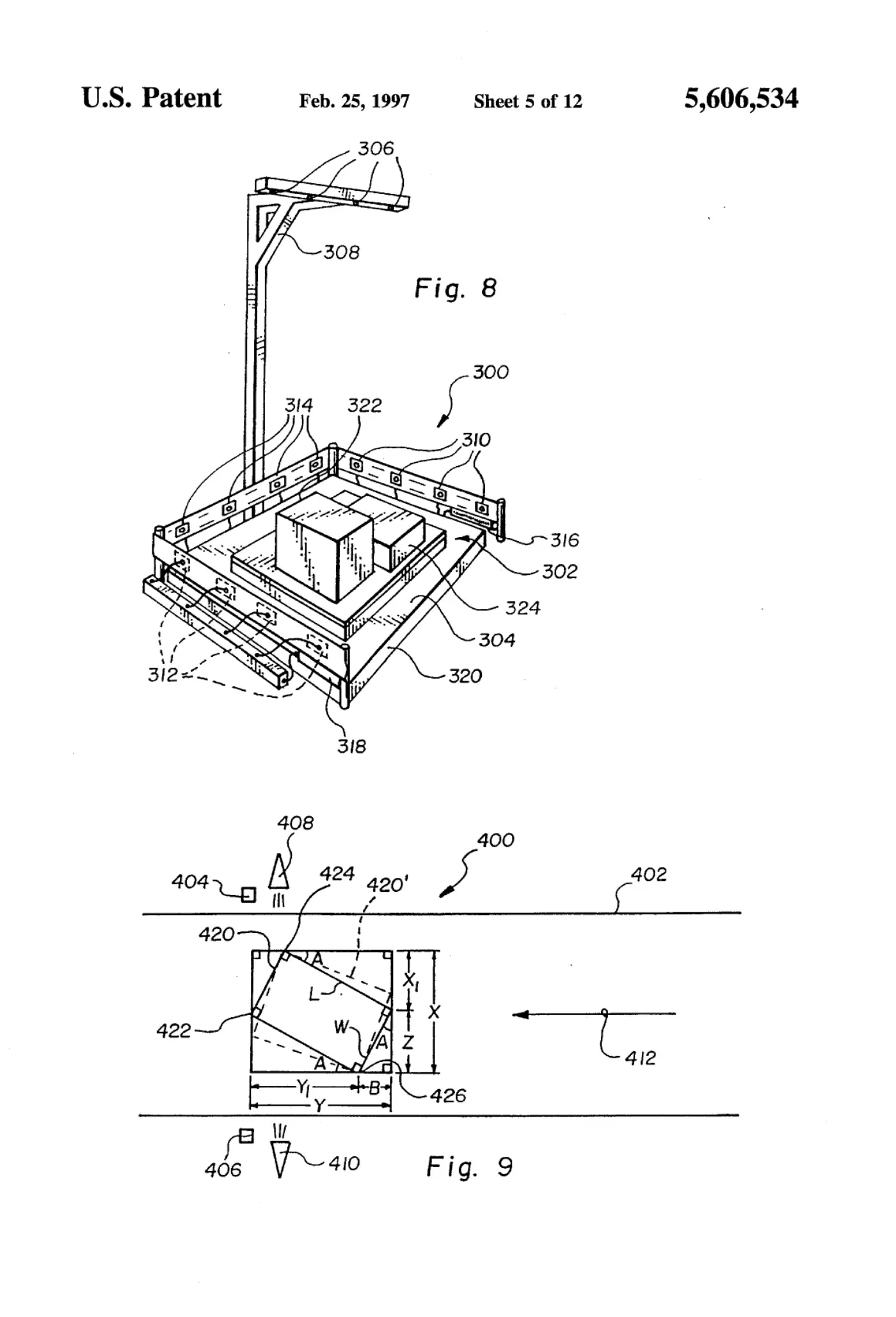

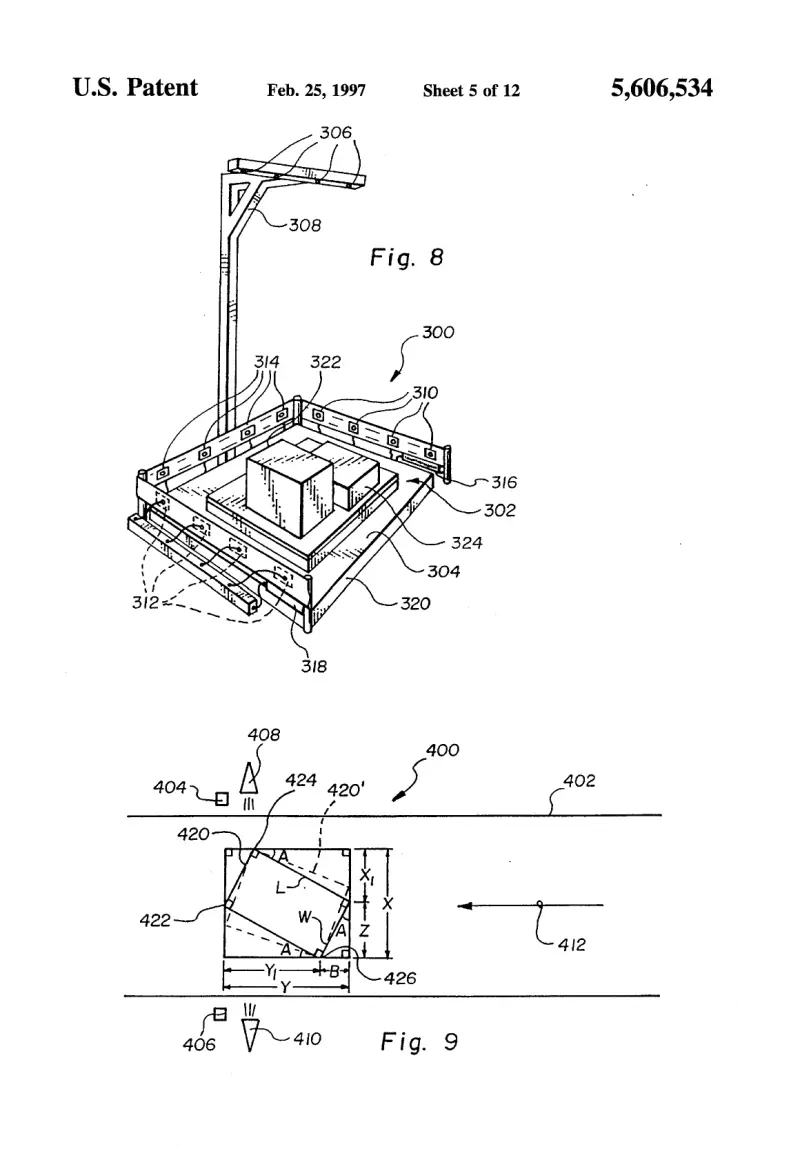

[0005]Sheet 5.

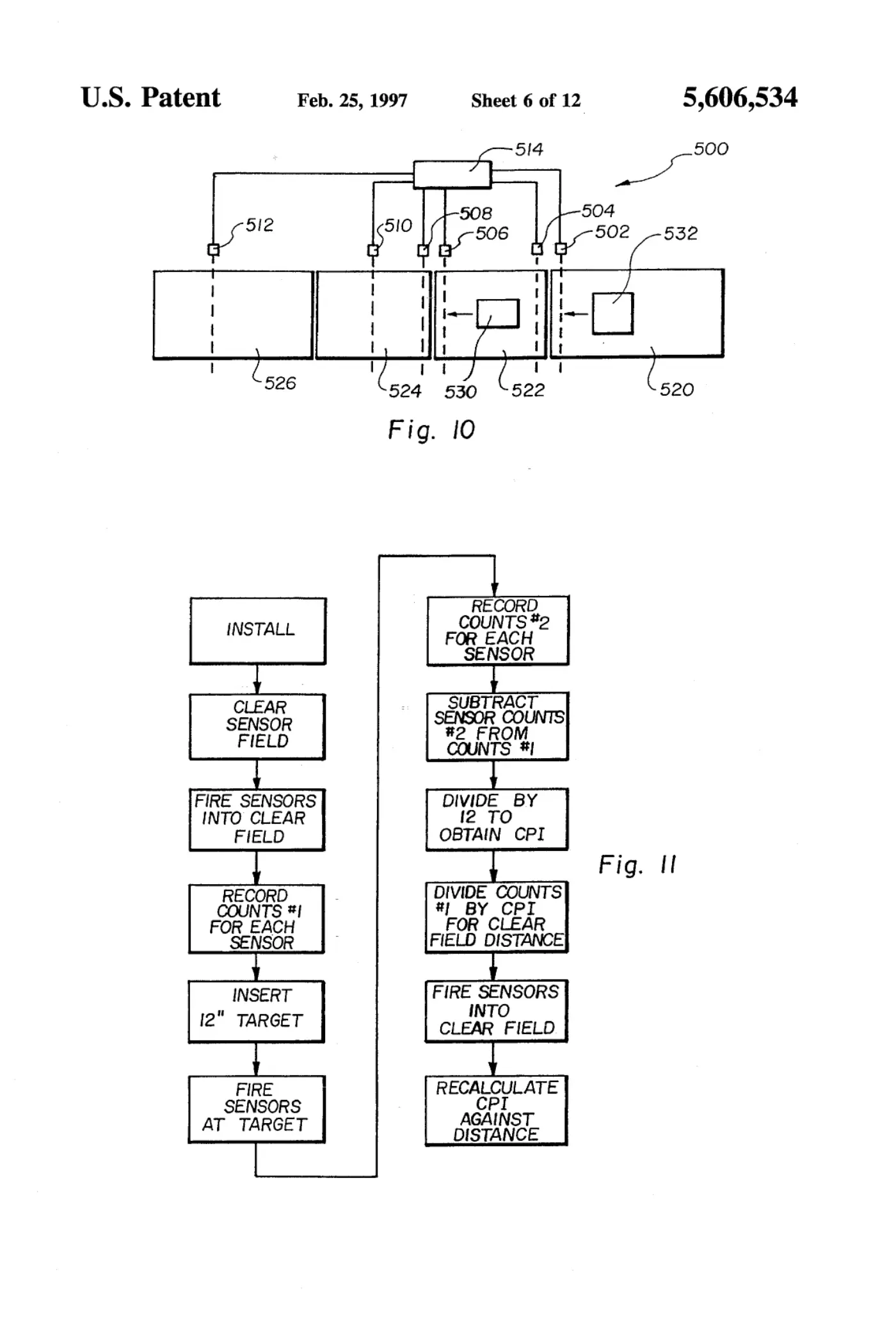

[0006]Sheet 6.
