Actuator for steering rear wheels

Published
Permanent URL
Classification
Industrial Motion & Power Transmission › Rotary Motion
Assignee
AISIN SEIKI, TOYOTA MOTOR CO LTD
Original source
US-5595089-A, the United States Patent and Trademark Office, 21 January 1997
Document SHA-256
1440b7971f093842552ee01c806b76ff4493c3cc8bdd312e639fb718bed96f46

An actuator for steering rear wheels is reduced in size and its construction is simplified while preventing a degradation in the reliability. An electric coil 2 is disposed on the outside while a rotor is disposed on the inside, assisting in heating dissipation. One of bearings 10 which support a rotor and an electric coil 2 are integrally secured to a casing 1 when a resin 3 is molded thereon. At the same time, a ring gear 12 is formed by the molding of the resin 3. In addition, the molding operation of the resin forms one of sun gears, 11a, integrally with a rotor 4. The casing 1 is formed with a recess or projection 1a, 1b, thus preventing a slip of the resin member 3 from occurring. A permanent magnet 13 which is separate from a permanent magnet 5 used for driving is mounted on the rotor.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3
Sheet 4
Sheet 4
Sheet 5
Sheet 5
Sheet 6
Sheet 6
Sheet 7
Sheet 7
Sheet 8
Sheet 8

Abstract

An actuator for steering rear wheels is reduced in size and its construction is simplified while preventing a degradation in the reliability. An electric coil 2 is disposed on the outside while a rotor is disposed on the inside, assisting in heating dissipation. One of bearings 10 which support a rotor and an electric coil 2 are integrally secured to a casing 1 when a resin 3 is molded thereon. At the same time, a ring gear 12 is formed by the molding of the resin 3. In addition, the molding operation of the resin forms one of sun gears, 11a, integrally with a rotor 4. The casing 1 is formed with a recess or projection 1a, 1b, thus preventing a slip of the resin member 3 from occurring. A permanent magnet 13 which is separate from a permanent magnet 5 used for driving is mounted on the rotor.

1. Drawings

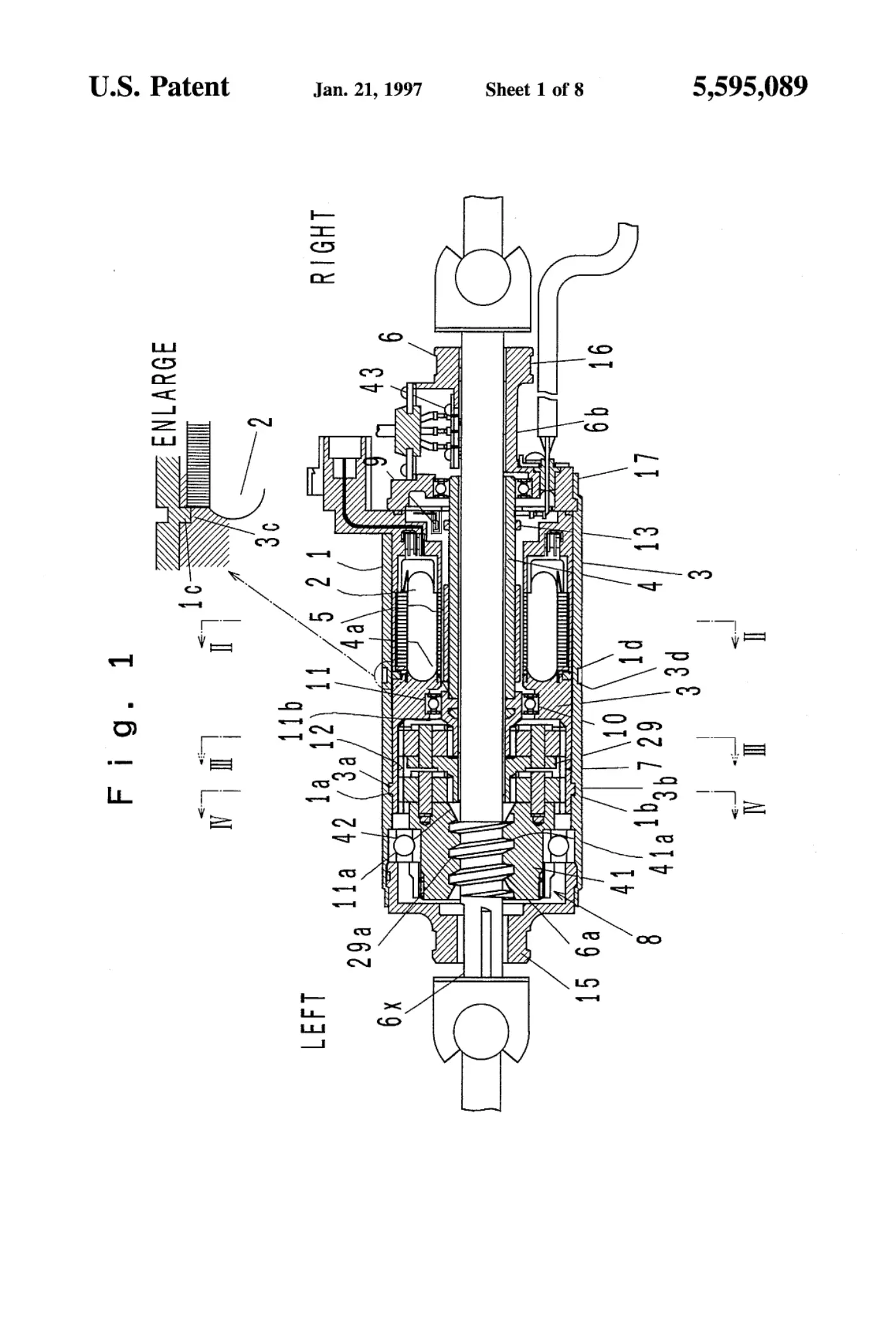

[0001]Sheet 1.

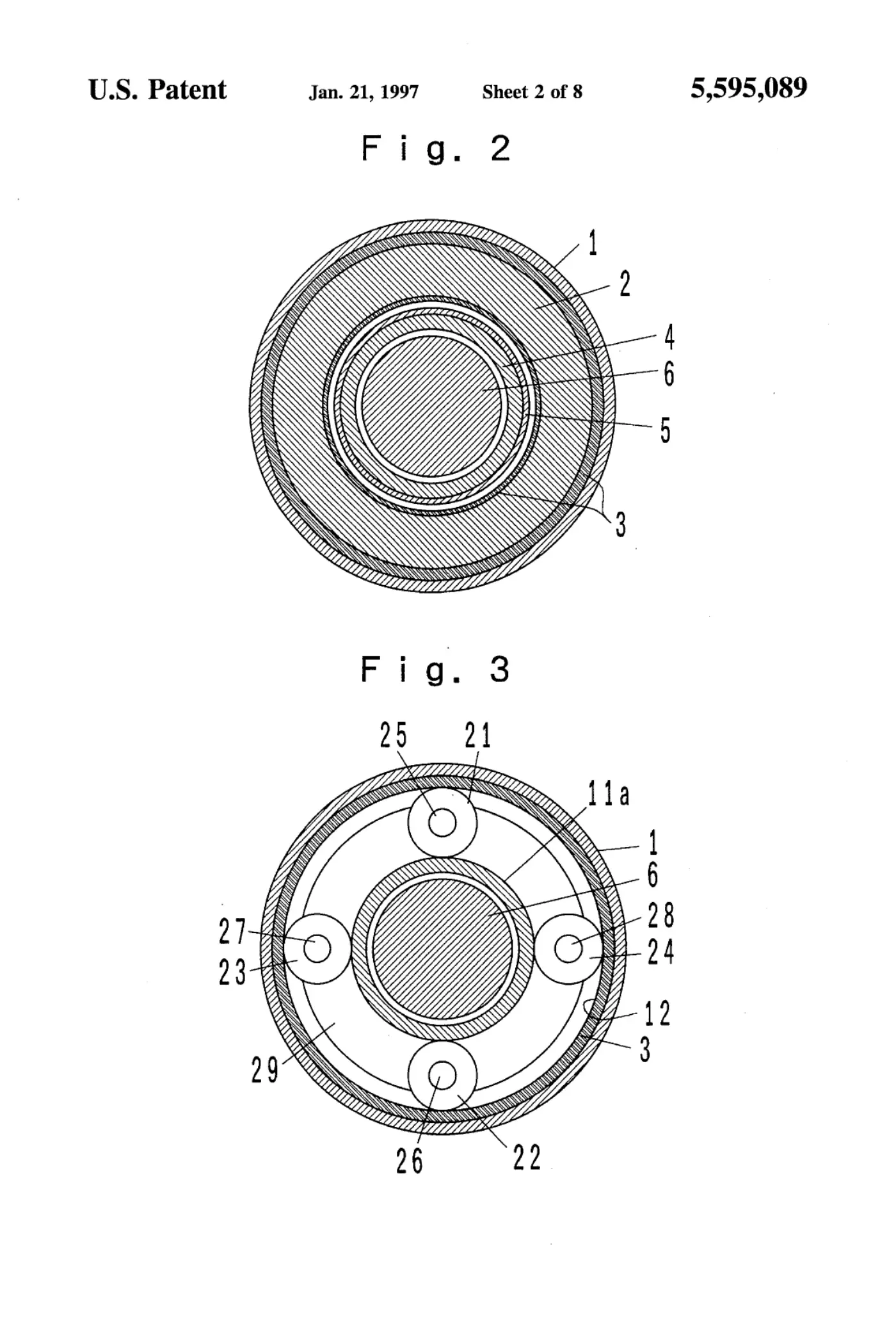

[0002]Sheet 2.

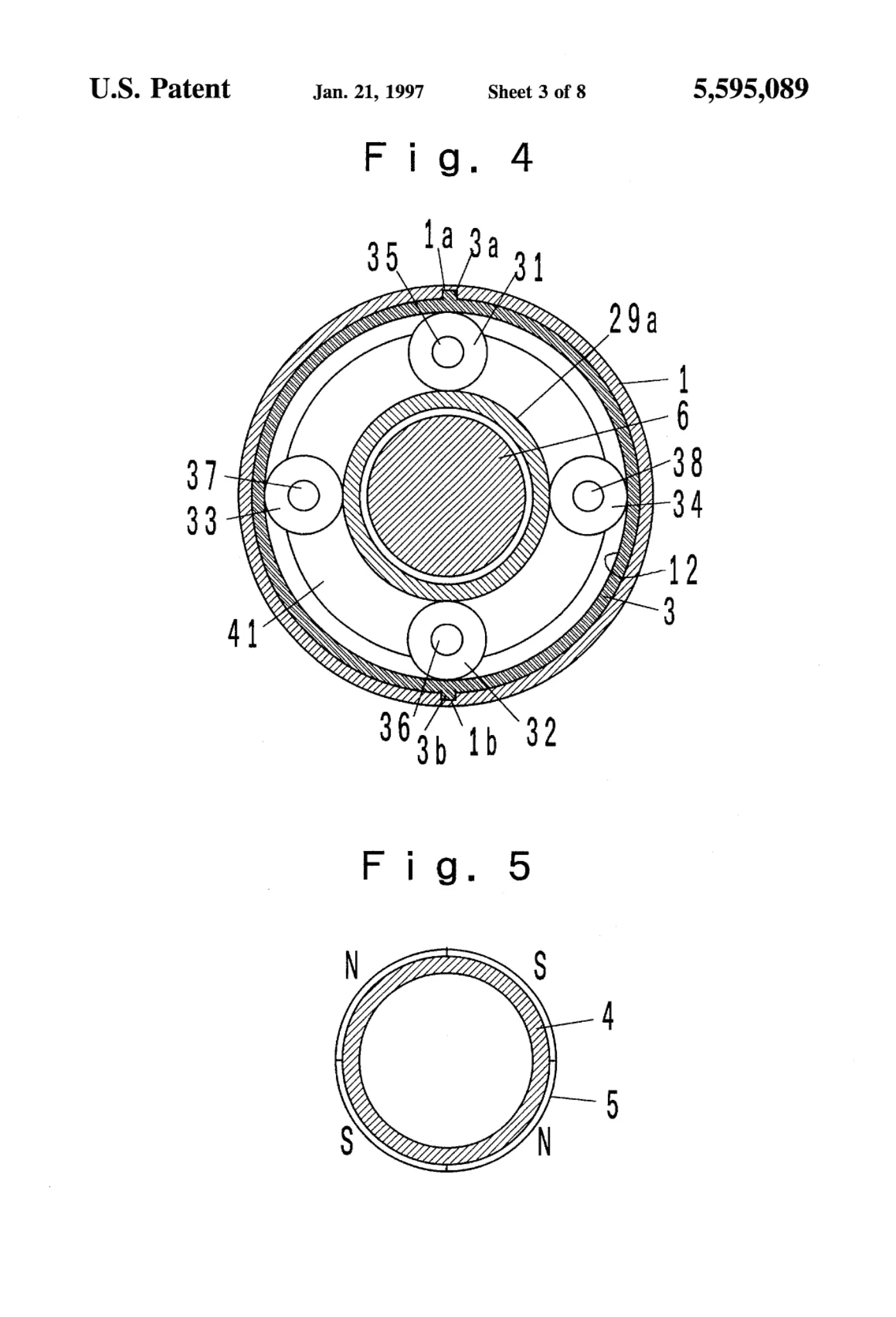

[0003]Sheet 3.

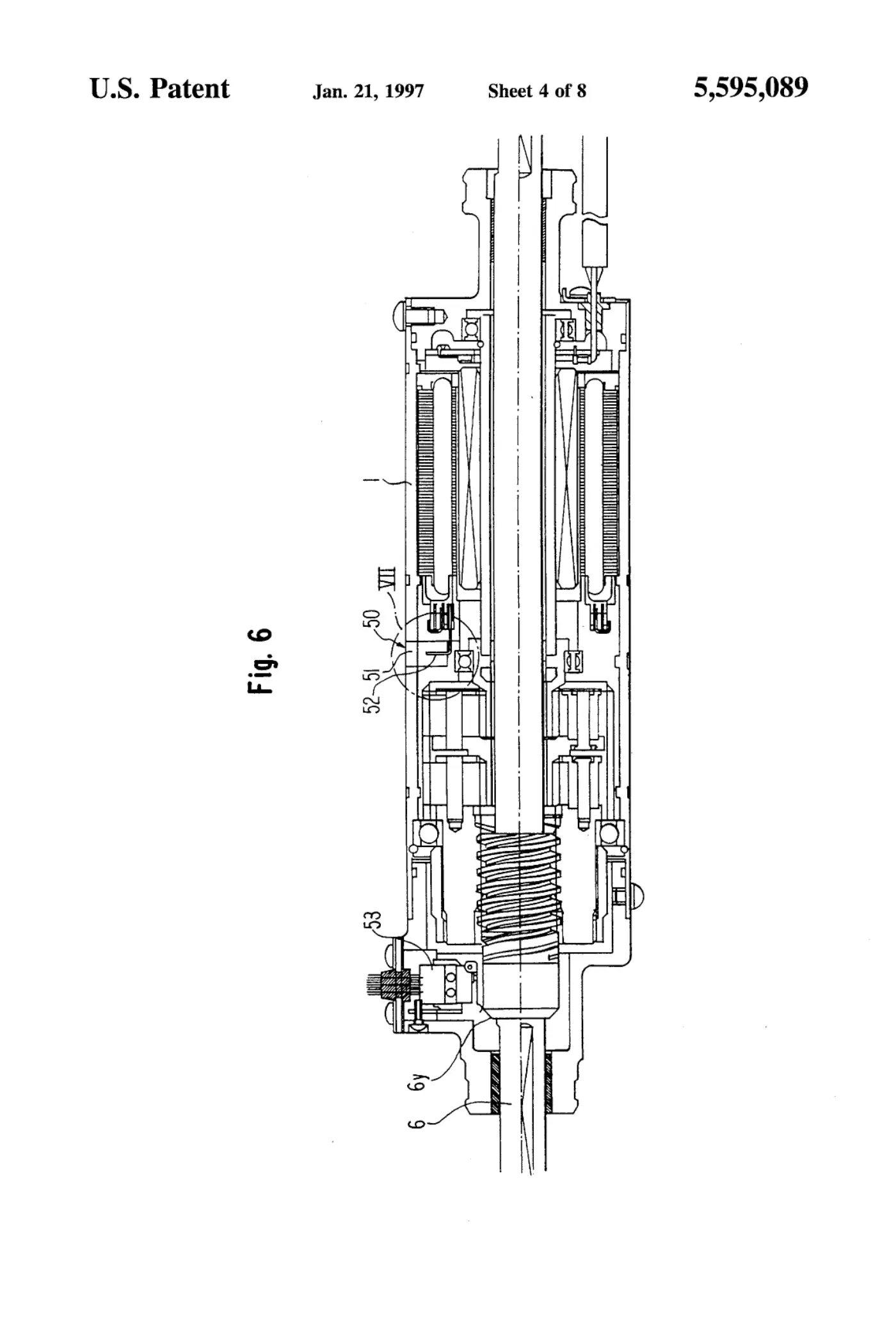

[0004]Sheet 4.

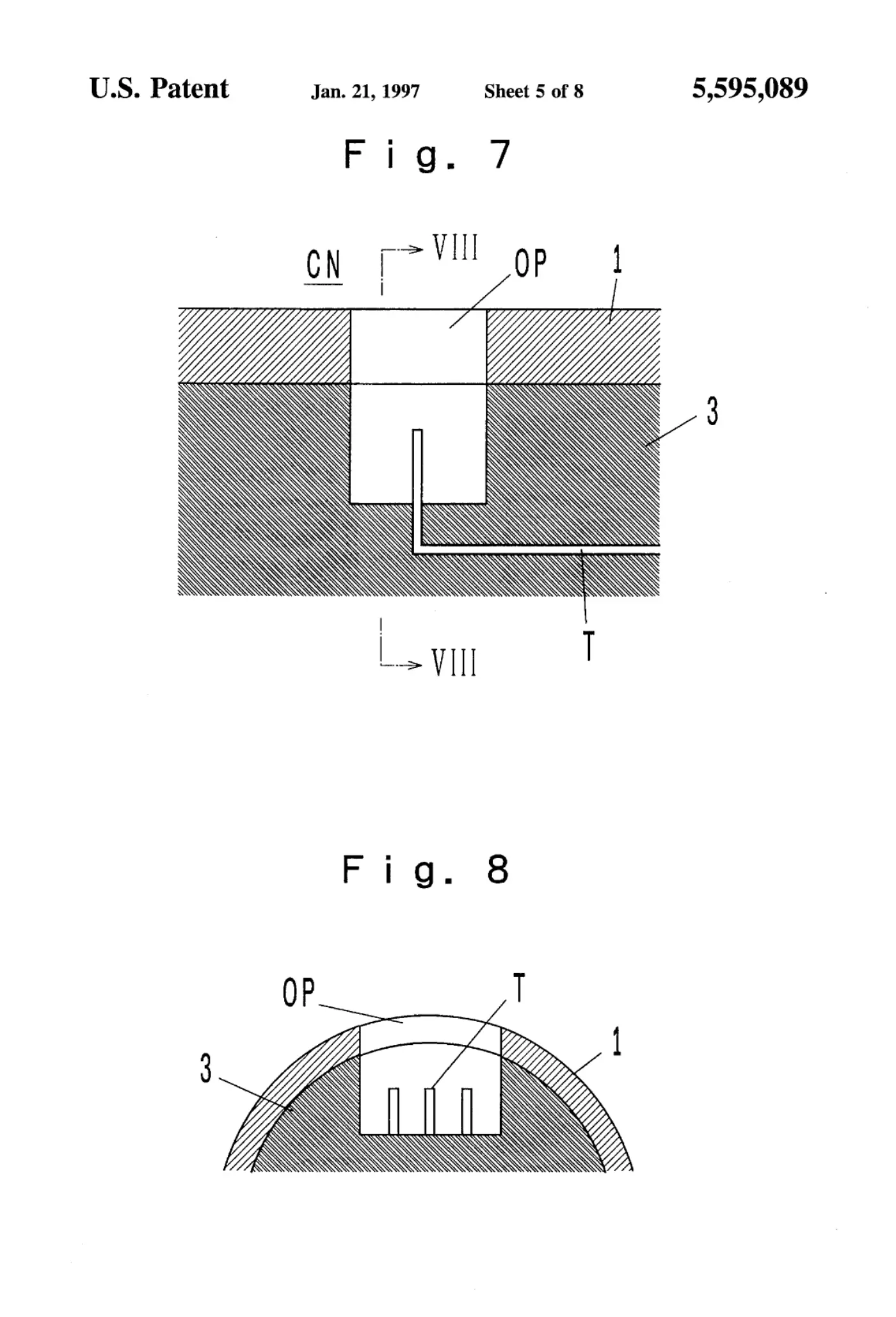

[0005]Sheet 5.

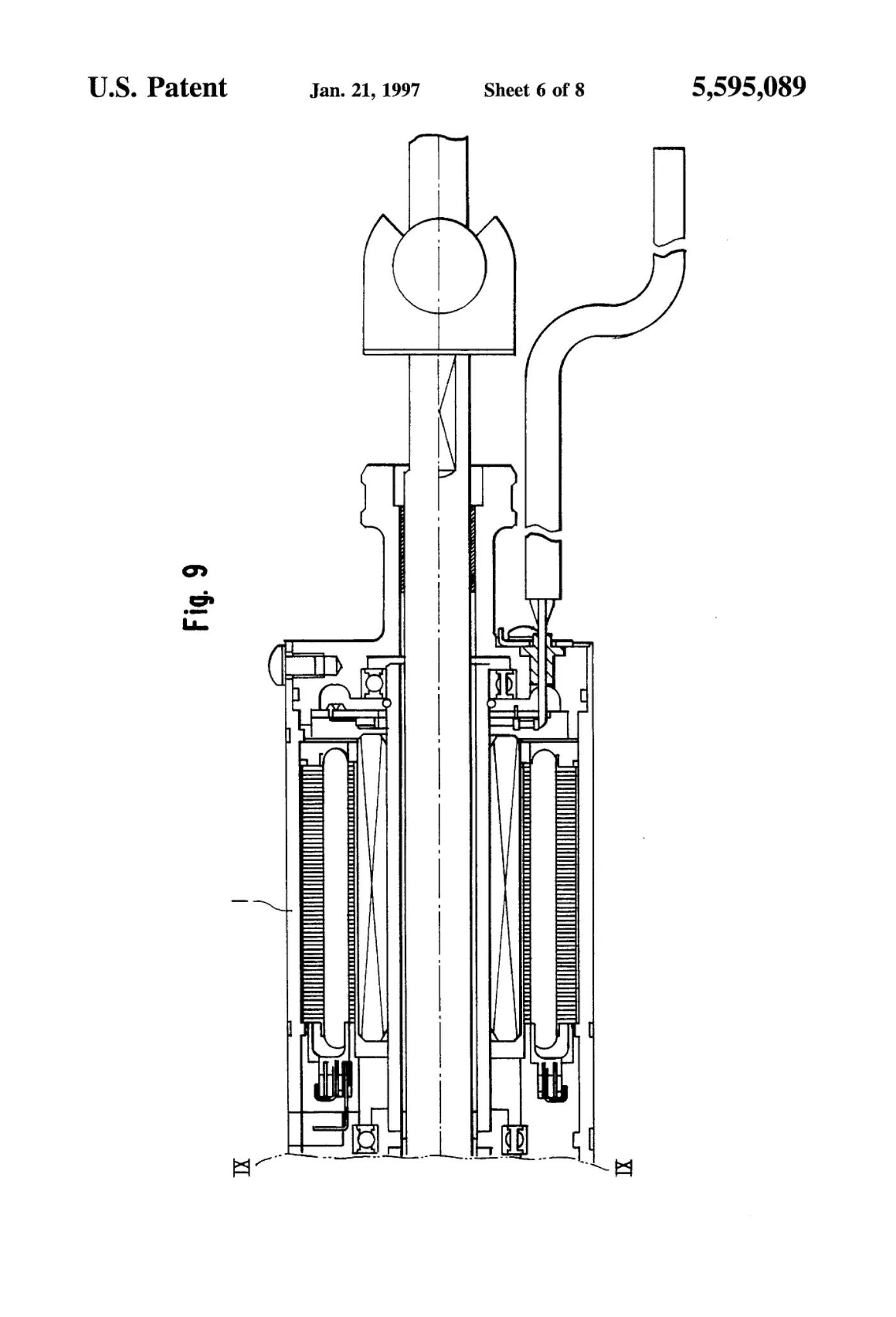

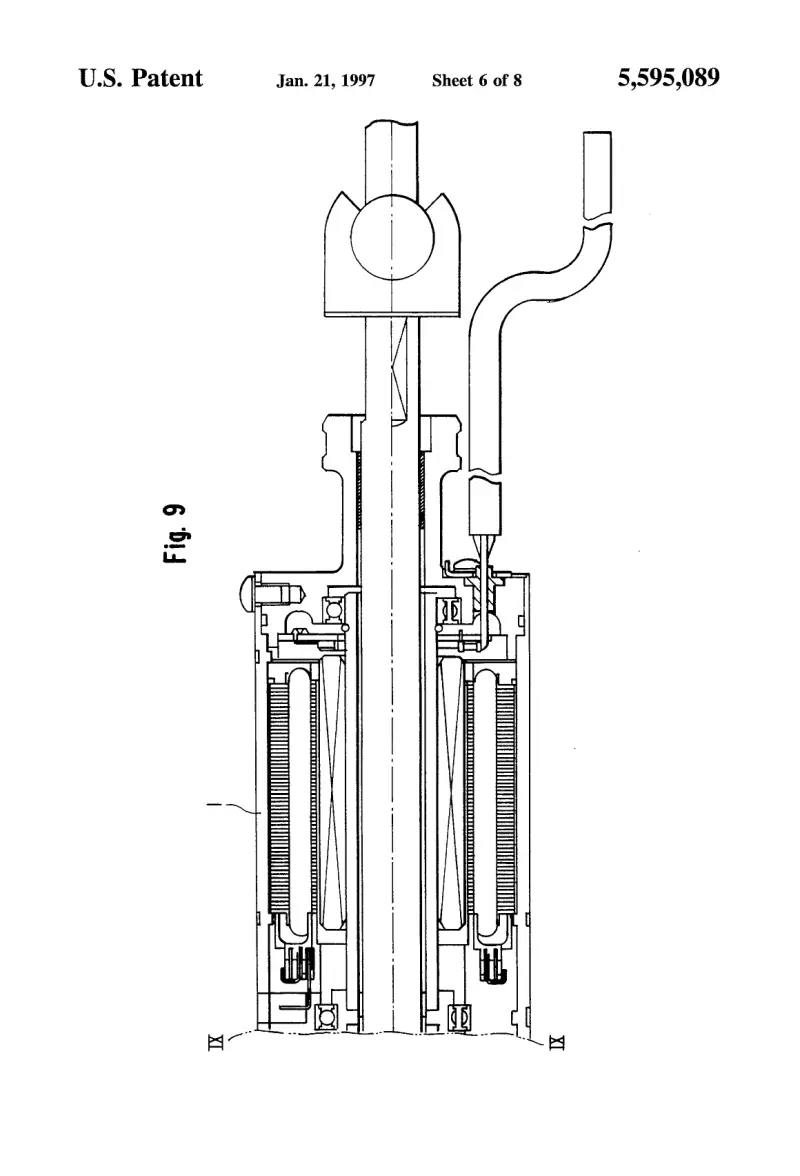

[0006]Sheet 6.

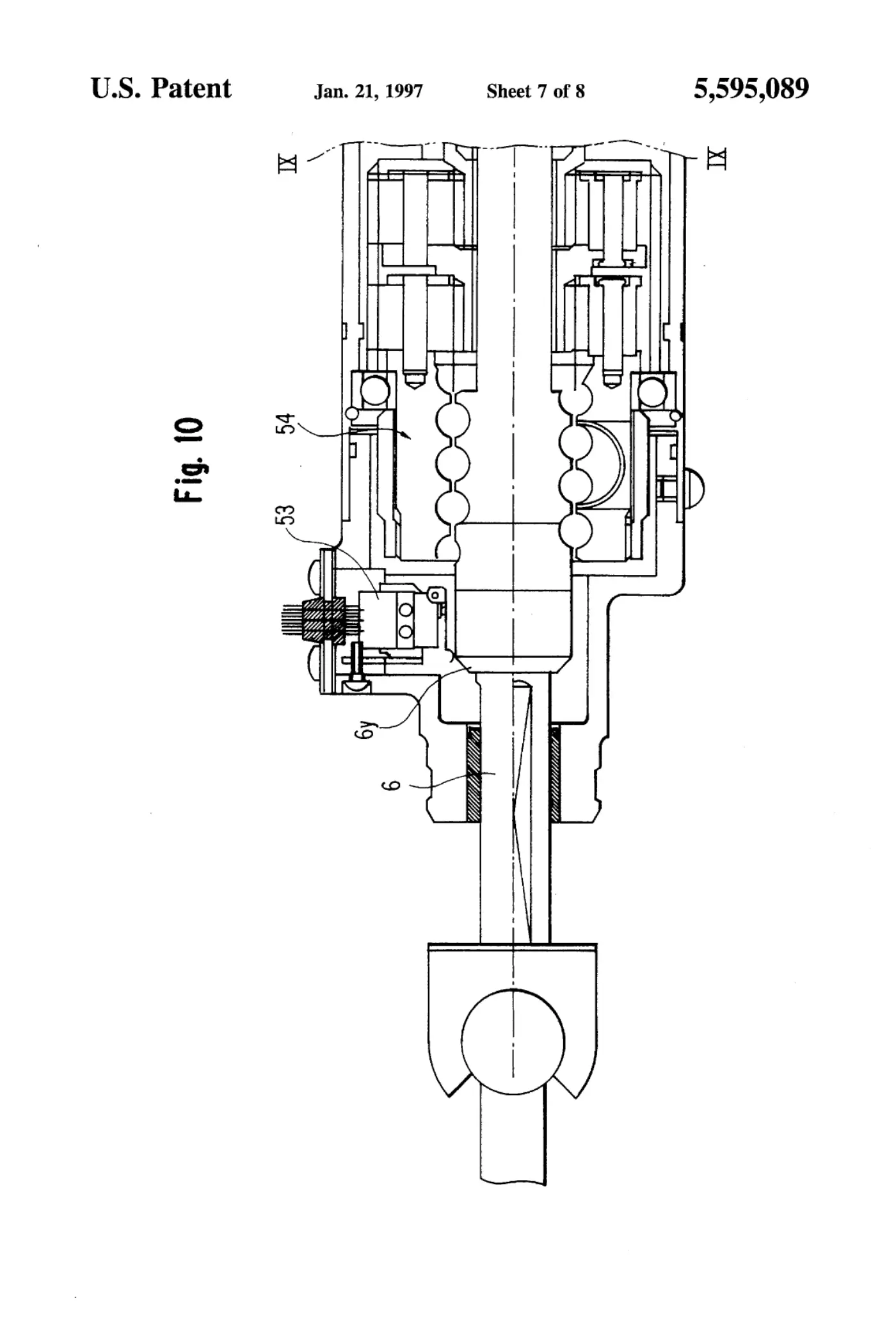

[0007]Sheet 7.

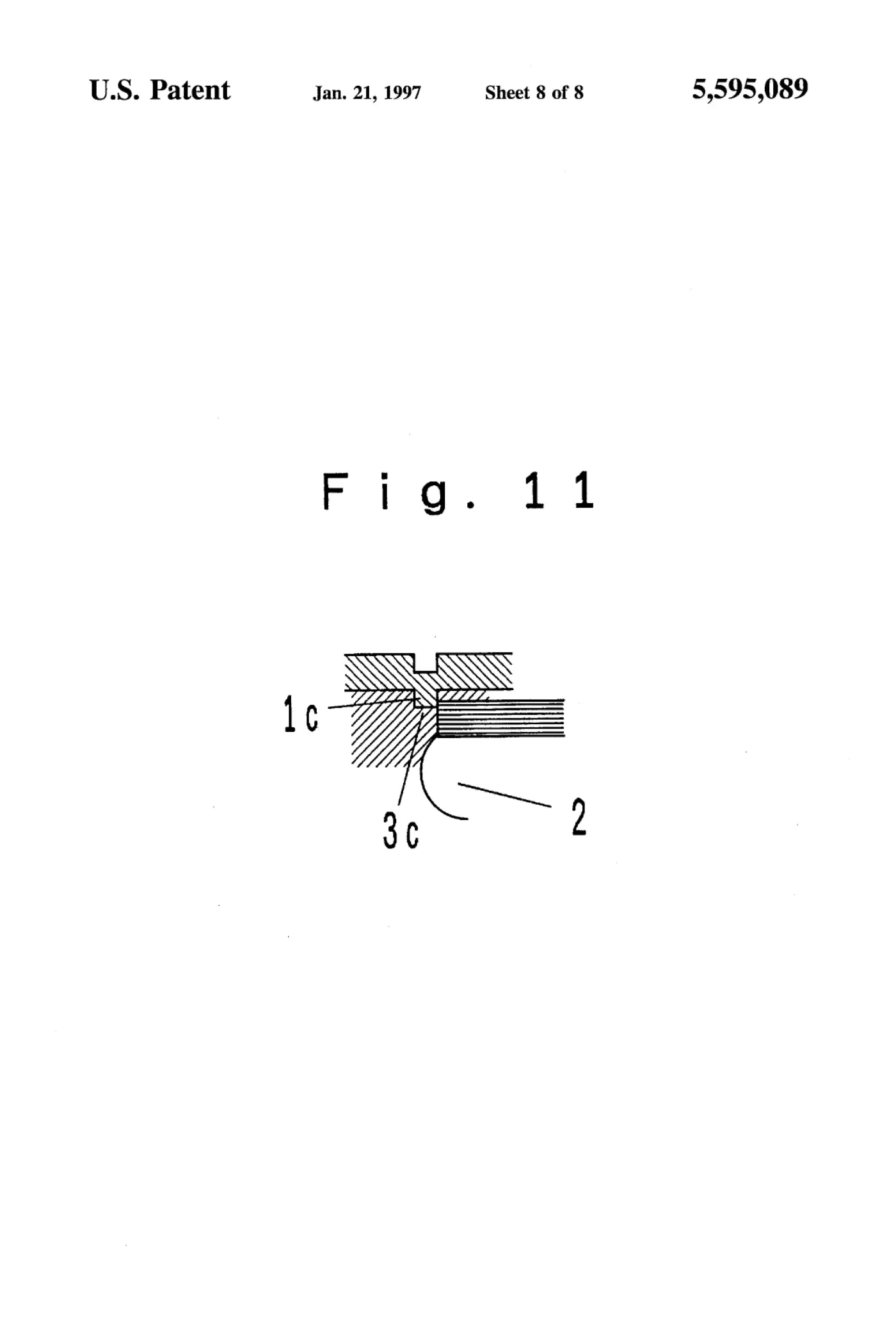

[0008]Sheet 8.
