Boom-mounted manipulating grapple

Published
Permanent URL
Classification
Industrial Components, Safety & Infrastructure › Structural Components
Original source
US-5579816-A, the United States Patent and Trademark Office, 3 December 1996
Document SHA-256
f4220785af0ec87fde9f47d8c0dab12137db76dd638515113e61413b5c232455

A boom-mounted grappling and manipulating apparatus is provided that may be rotatably mounted on a vehicle, comprising an articulated boom with a grappling and manipulating head rotatably and pivotally mounted thereto. The head is provided with opposable jaws comprising jaw members that apply an even pressure to an object being gripped. A drive coupling may be provided to provide a continuous rotary link between hydraulic lines on the boom with lines the head. The coupling comprises a coupling body rotatably housed within a sheath with a groove between the coupling body and the sheath. The groove permits fluid to be transmitted from the body to the sheath while they are rotated relative to each other. The boom may be provided with a link joining two of the segments, provided with dual articulated cylinder mounts on opposing sides and capable of permitting approximately 360 degrees of rotation between the segments.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3
Sheet 4
Sheet 4
Sheet 5
Sheet 5

Abstract

A boom-mounted grappling and manipulating apparatus is provided that may be rotatably mounted on a vehicle, comprising an articulated boom with a grappling and manipulating head rotatably and pivotally mounted thereto. The head is provided with opposable jaws comprising jaw members that apply an even pressure to an object being gripped. A drive coupling may be provided to provide a continuous rotary link between hydraulic lines on the boom with lines the head. The coupling comprises a coupling body rotatably housed within a sheath with a groove between the coupling body and the sheath. The groove permits fluid to be transmitted from the body to the sheath while they are rotated relative to each other. The boom may be provided with a link joining two of the segments, provided with dual articulated cylinder mounts on opposing sides and capable of permitting approximately 360 degrees of rotation between the segments.

1. Drawings

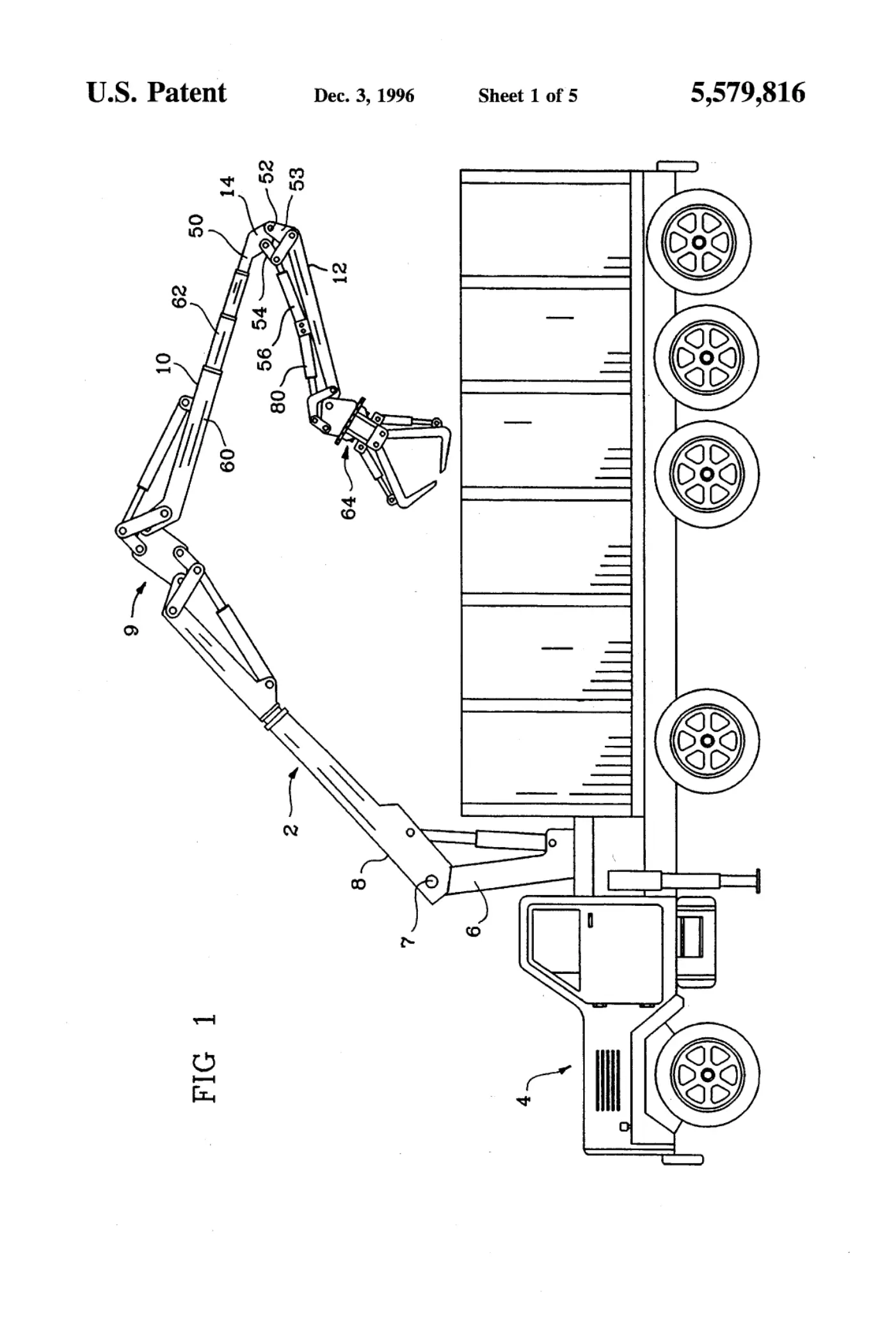

[0001]Sheet 1.

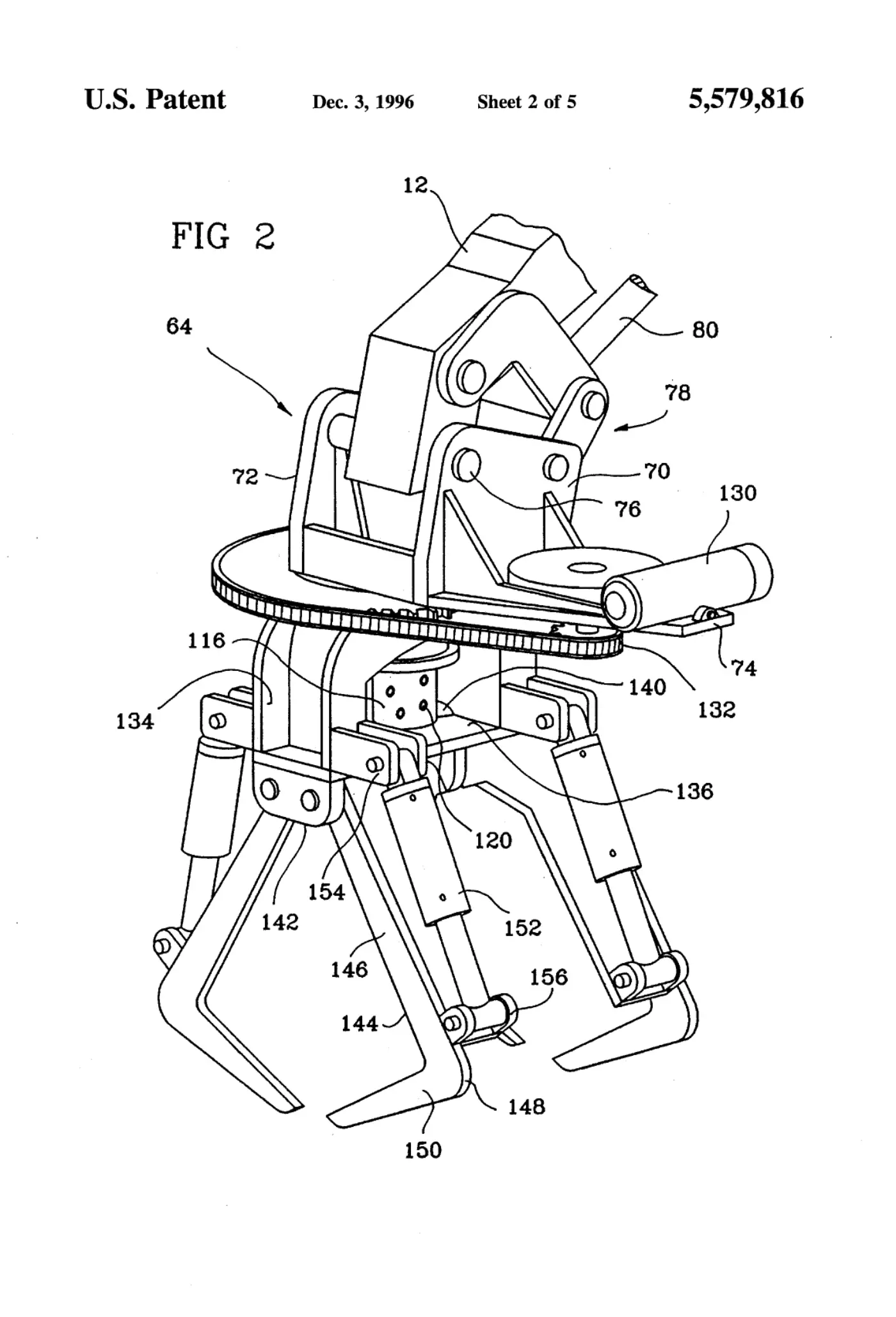

[0002]Sheet 2.

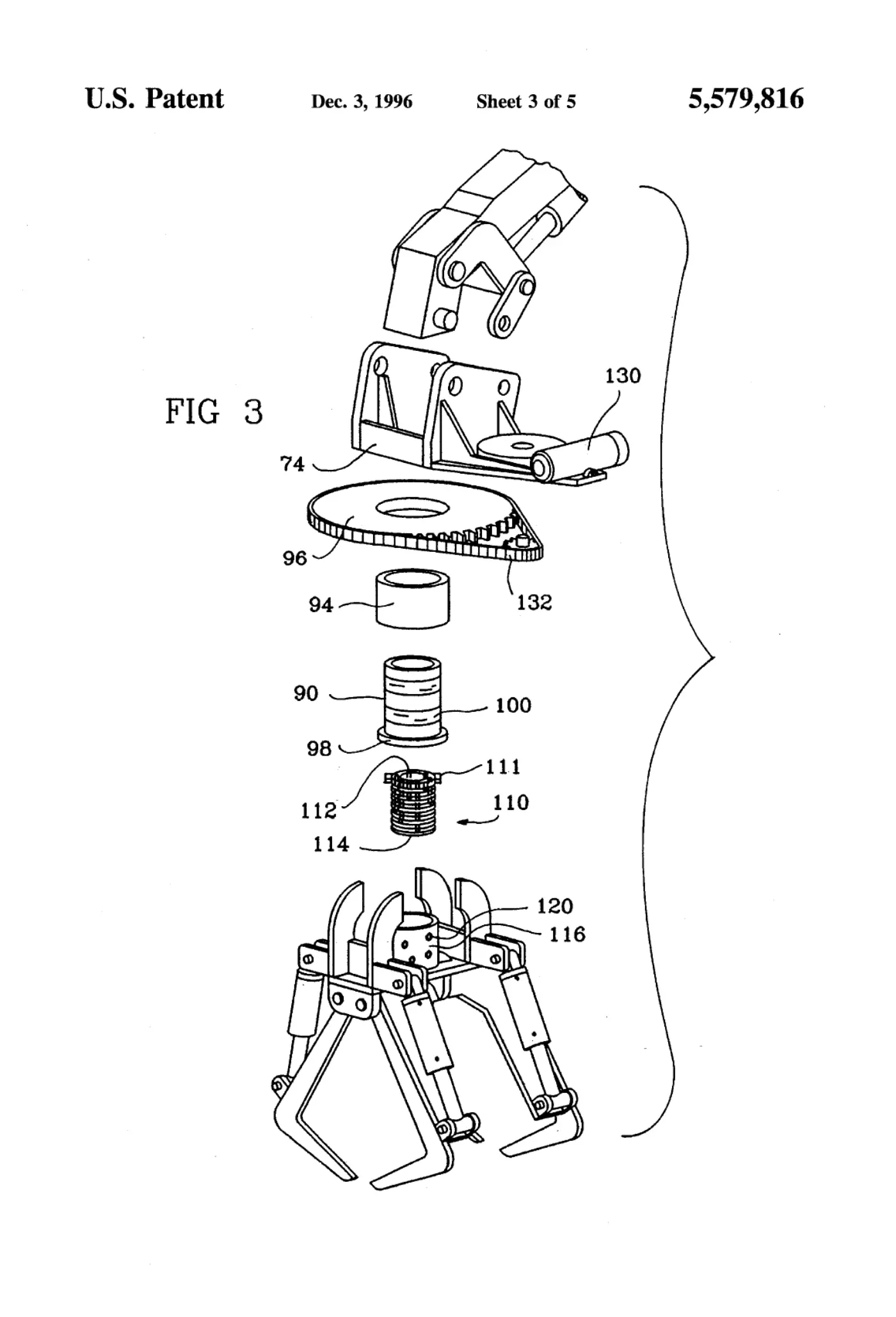

[0003]Sheet 3.

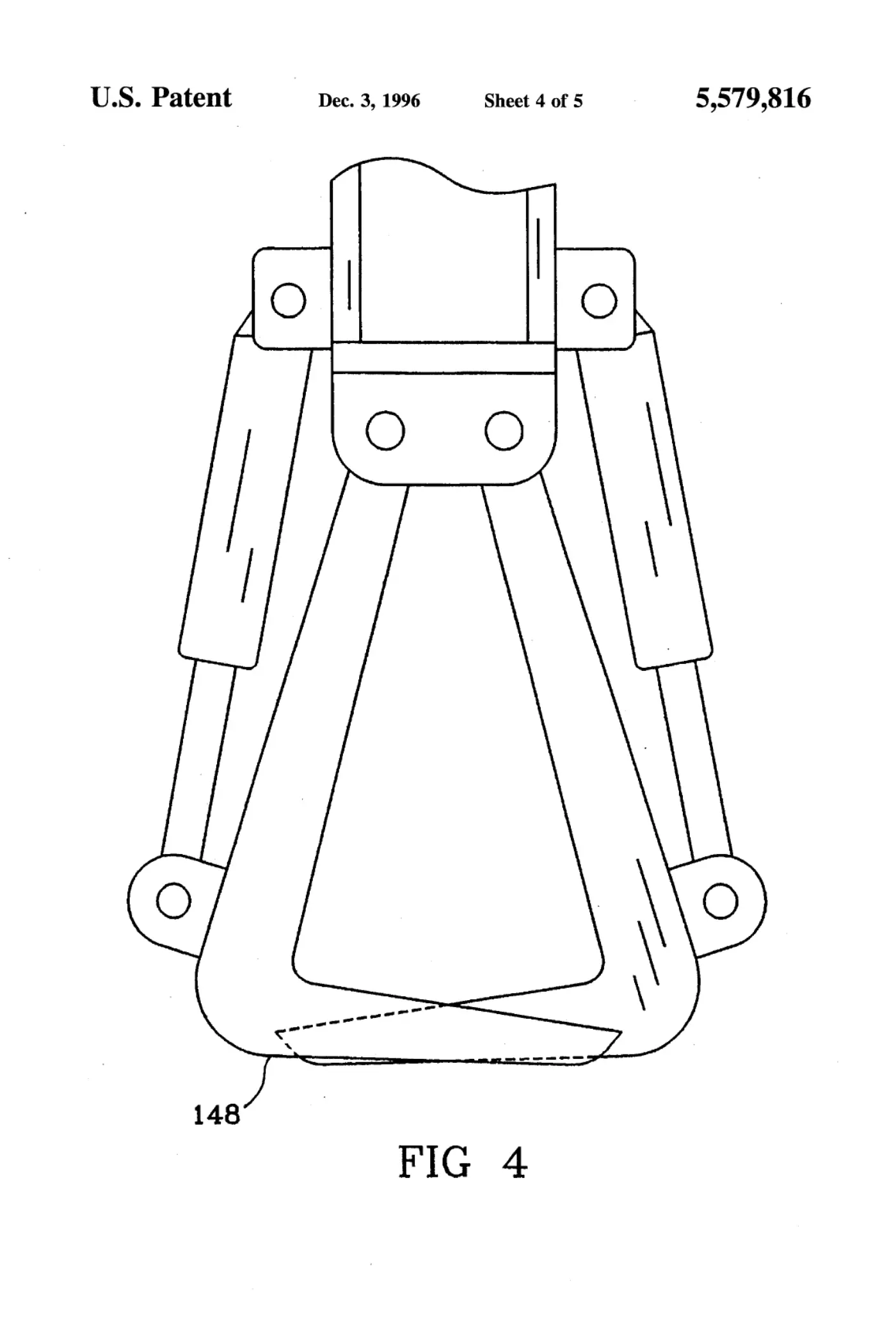

[0004]Sheet 4.

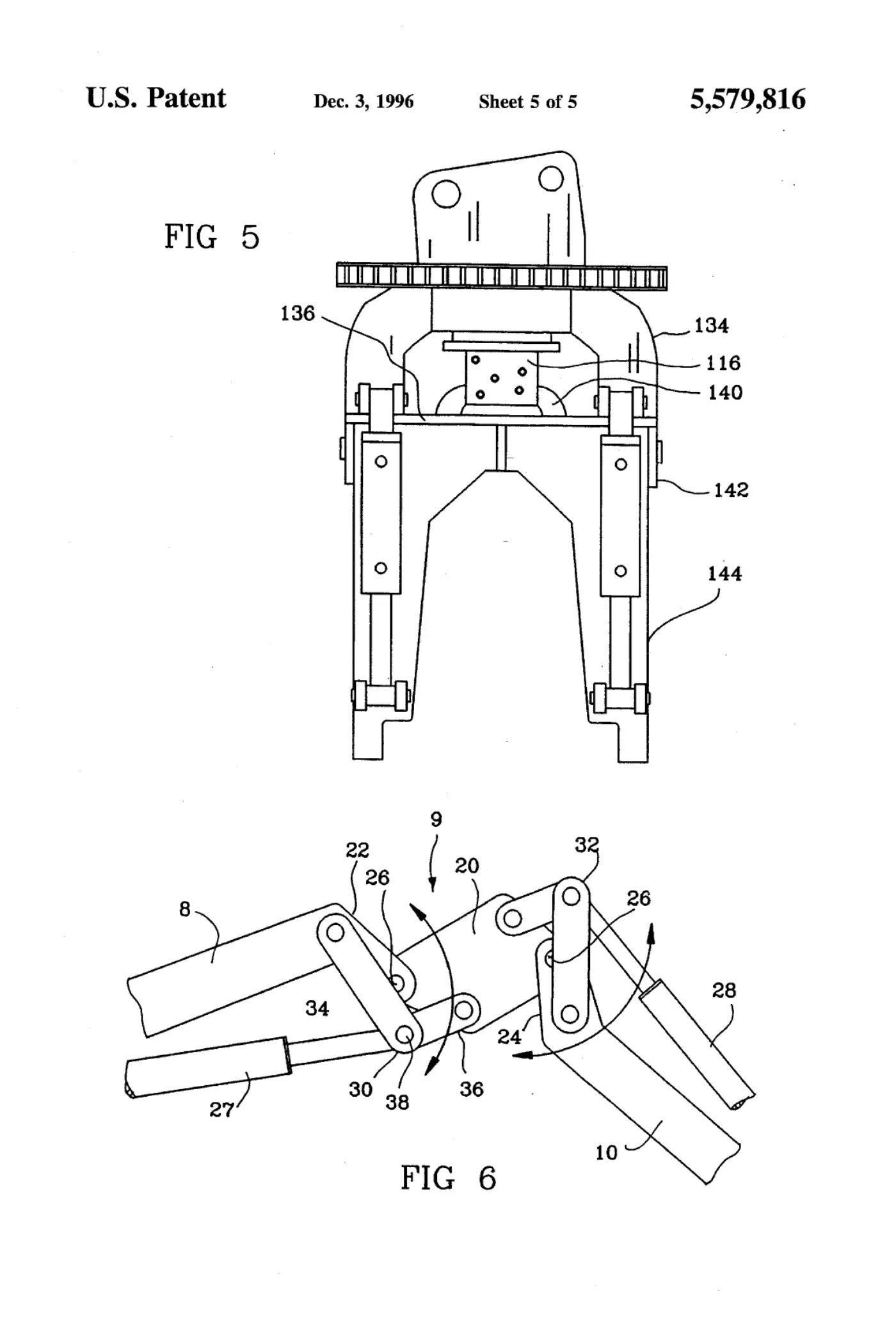

[0005]Sheet 5.
