Control for hydraulically operated construction machine having multiple tandem articulated members

Published
Permanent URL
Classification
Robotics & Automation › Robot Architectures
Inventors
STEENWYK TIMOTHY E, WALSTRA ERIC J
Assignee
LASER ALIGNMENT
Original source
US-5572809-A, the United States Patent and Trademark Office, 12 November 1996
Document SHA-256
184f67cba30fabe07347c63979c1260dfcb8db19e2291ca0186418607c7b645a

An apparatus and method for controlling a hydraulically operated construction machine, having a plurality of tandem articulated members which are controlled in a manner that movement of one of the members is controlled in response to movement of another of the members, in order to move the members in a predetermined pattern. The members are controlled in response to the anticipated future movement of the another member. Anticipated future movement of the another member may be determined, for example, as a function of the present position and velocity of the another member and system delay in movement of the another member. Where the another member is controlled manually by an operator control lever coupled with a manual hydraulic control valve, anticipated future movement may be determined by monitoring actuation of the control lever.

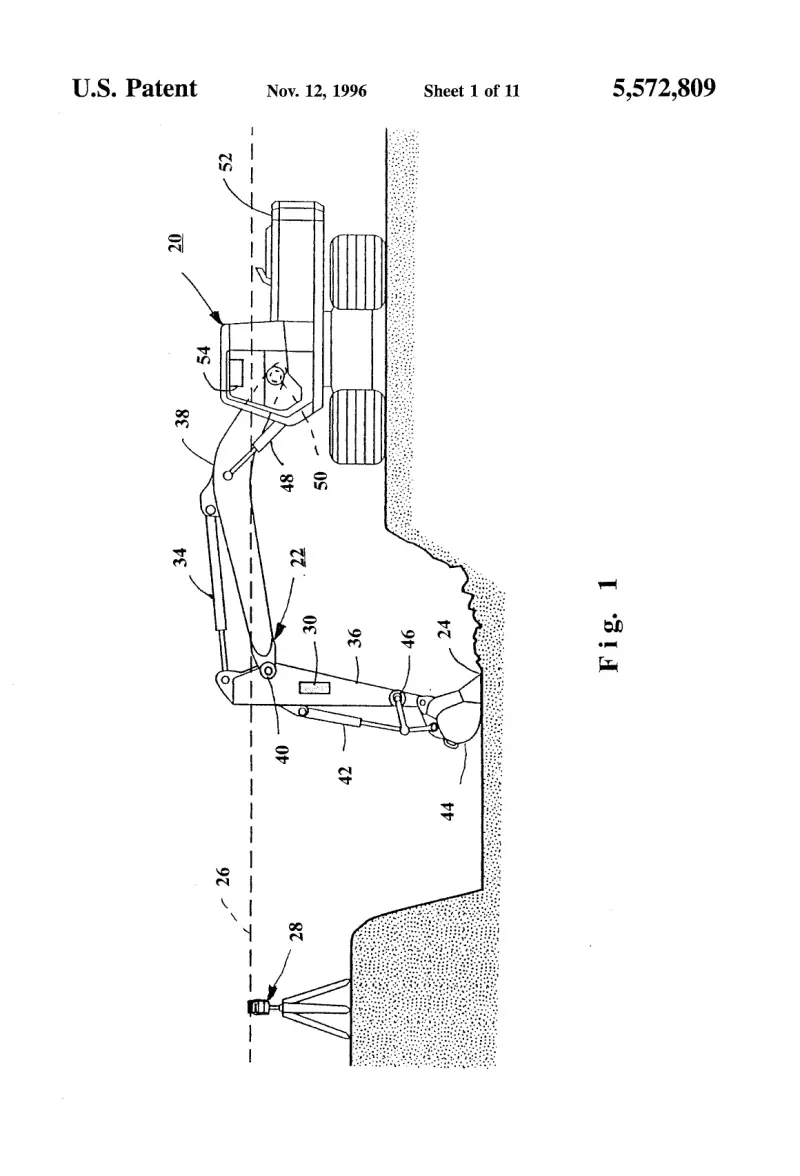

Sheet 1
Sheet 1

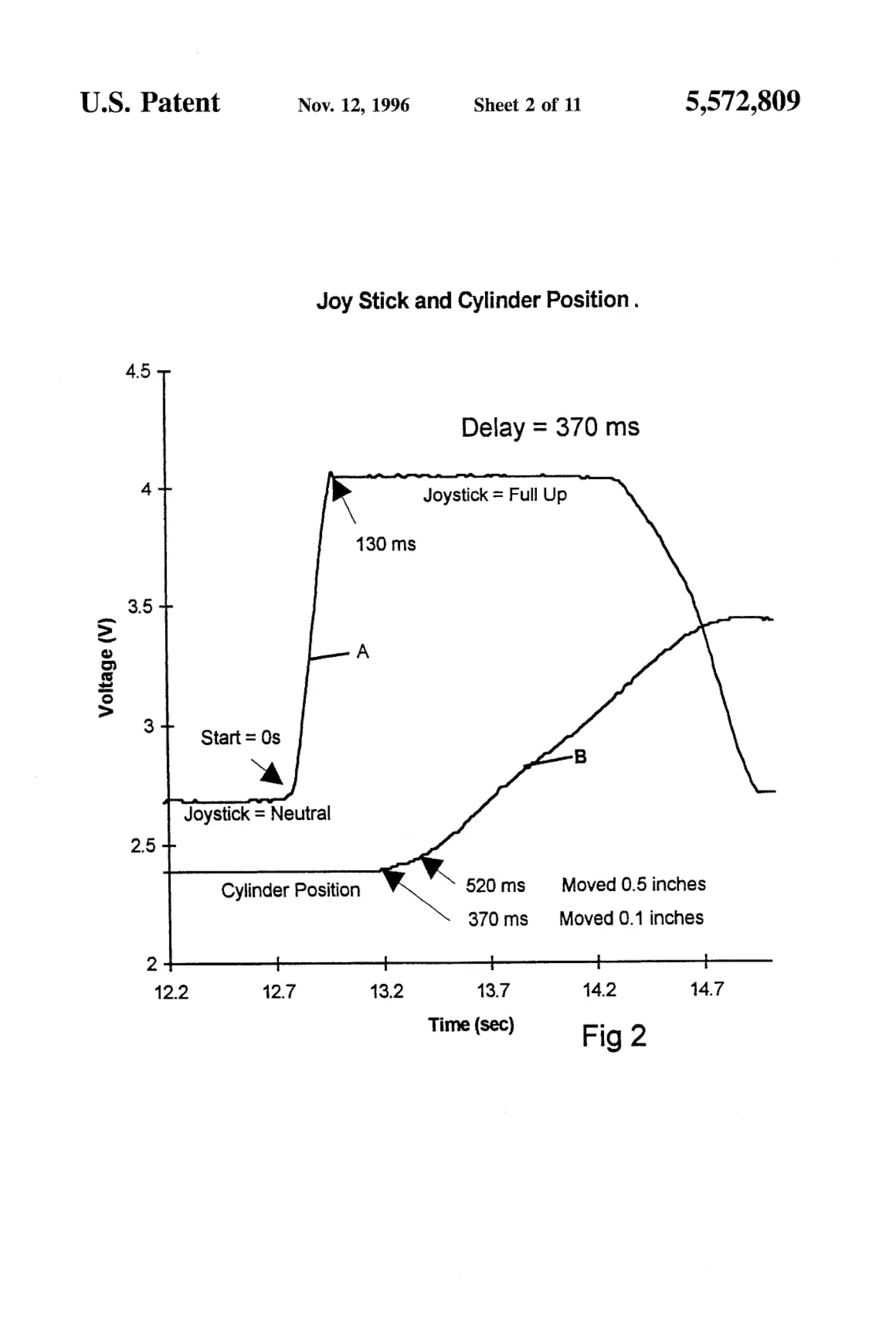

Sheet 2
Sheet 2

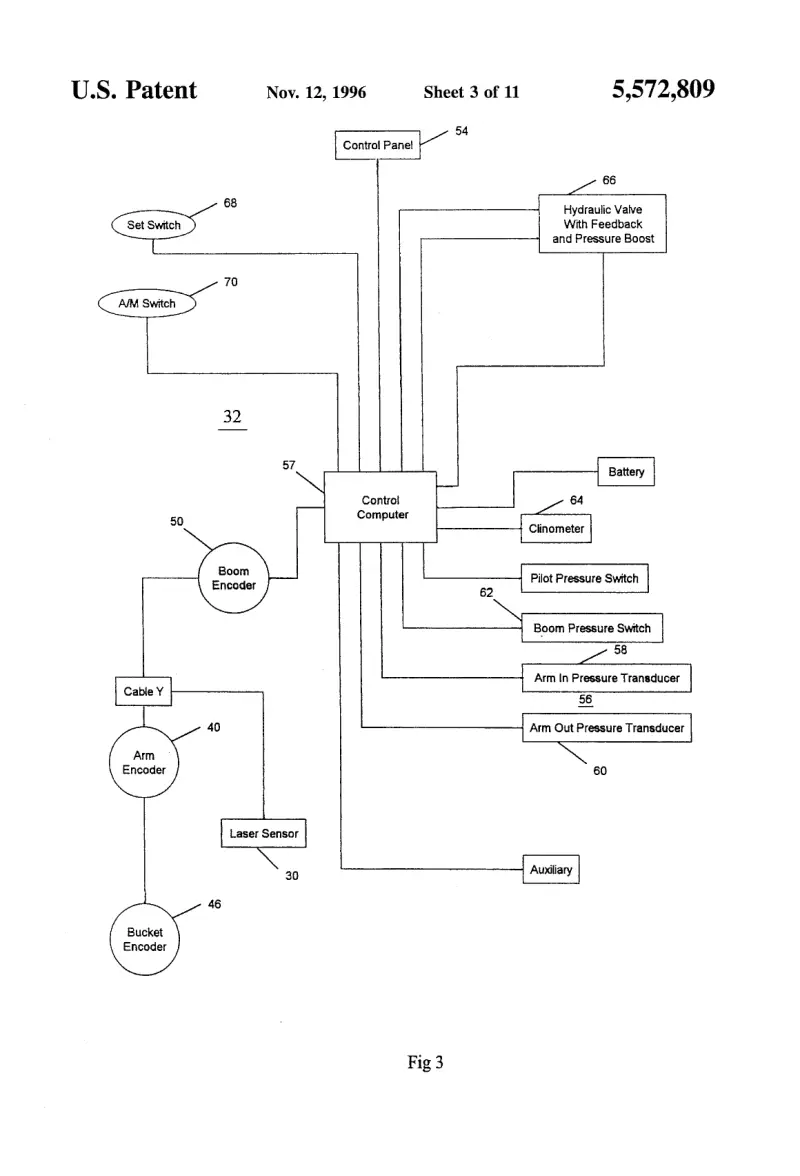

Sheet 3
Sheet 3
Sheet 4
Sheet 4
Sheet 5
Sheet 5
Sheet 6
Sheet 6
Sheet 7
Sheet 7
Sheet 8
Sheet 8
Sheet 9
Sheet 9

Abstract

An apparatus and method for controlling a hydraulically operated construction machine, having a plurality of tandem articulated members which are controlled in a manner that movement of one of the members is controlled in response to movement of another of the members, in order to move the members in a predetermined pattern. The members are controlled in response to the anticipated future movement of the another member. Anticipated future movement of the another member may be determined, for example, as a function of the present position and velocity of the another member and system delay in movement of the another member. Where the another member is controlled manually by an operator control lever coupled with a manual hydraulic control valve, anticipated future movement may be determined by monitoring actuation of the control lever.

1. Drawings

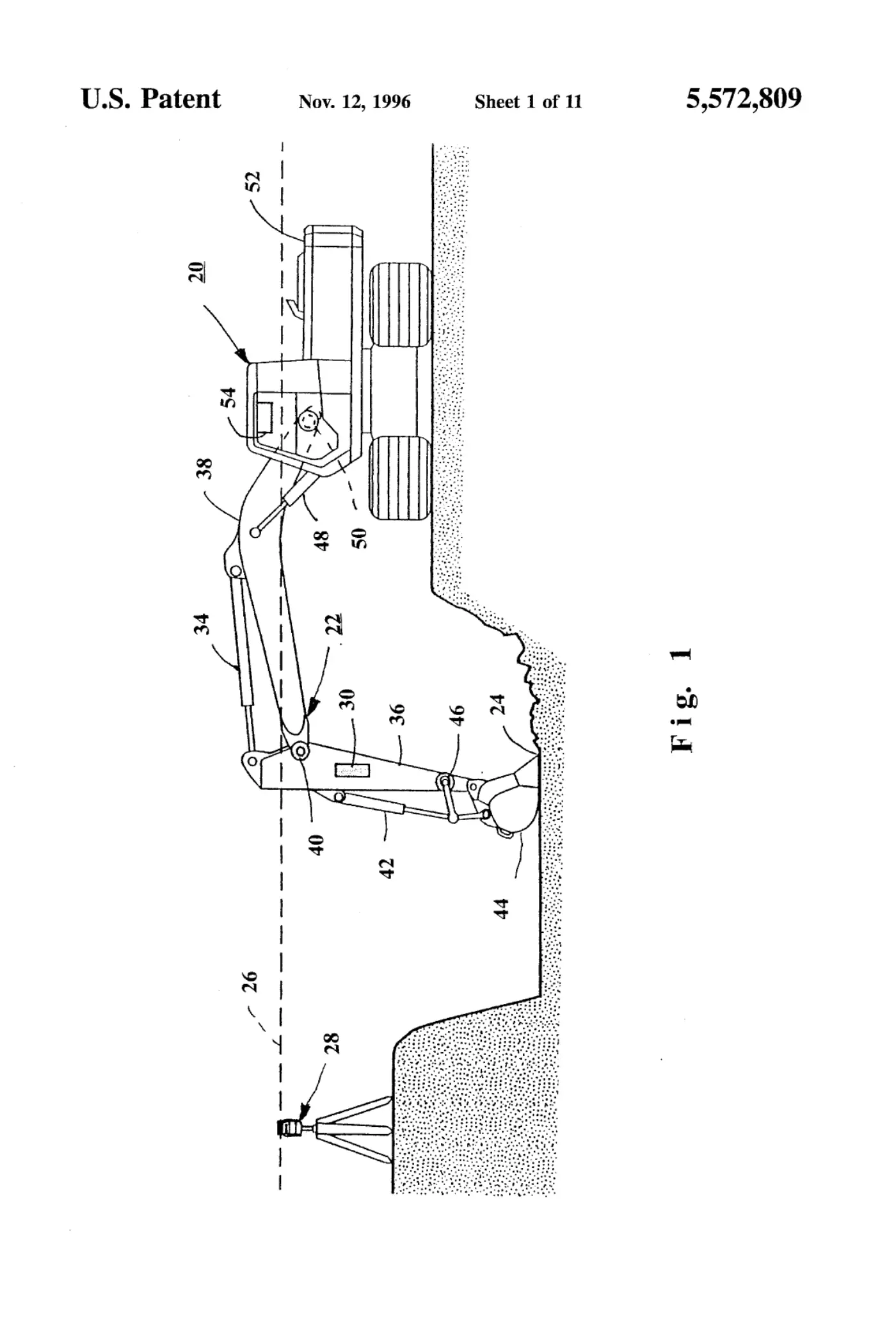

[0001]Sheet 1.

[0002]Sheet 2.

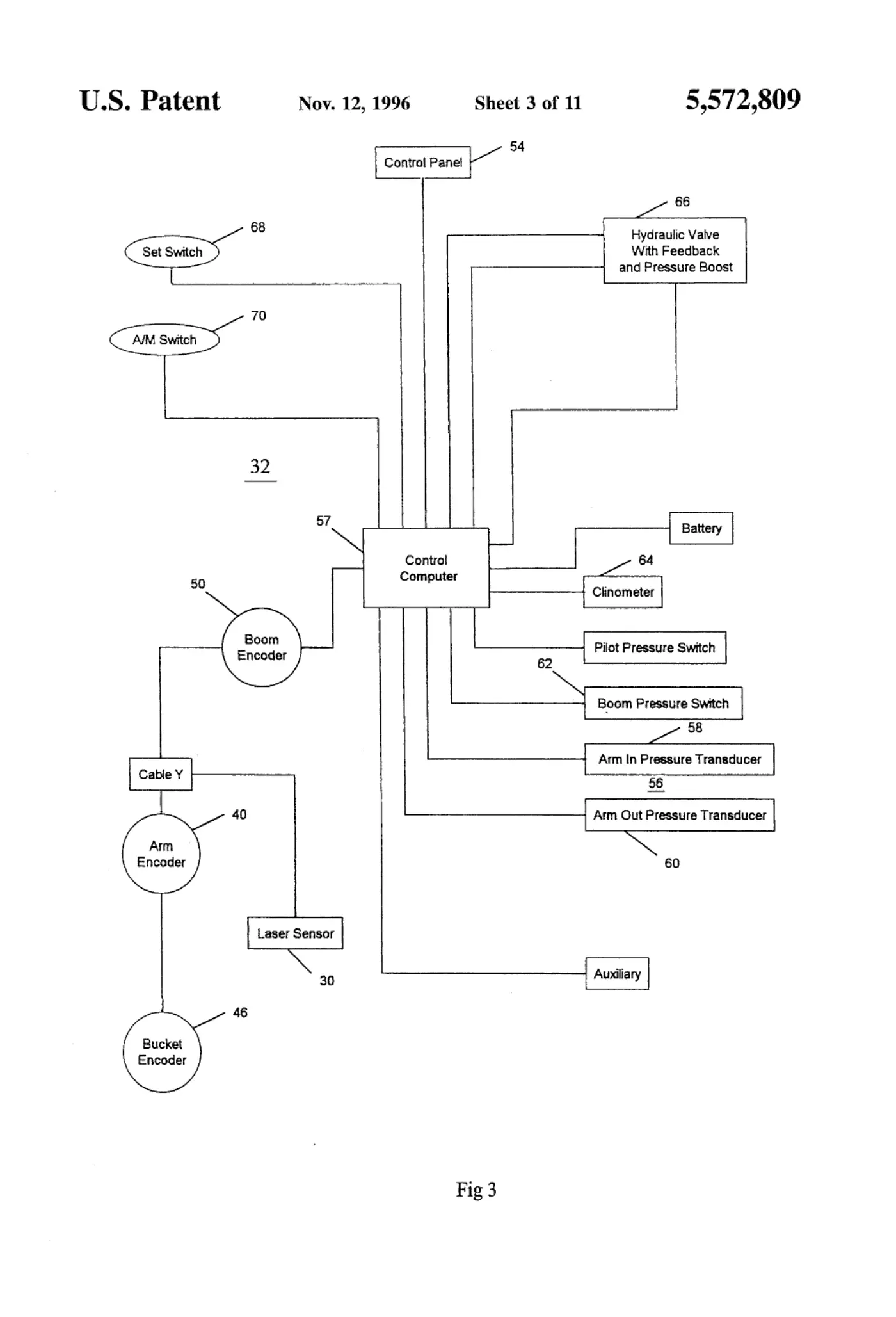

[0003]Sheet 3.

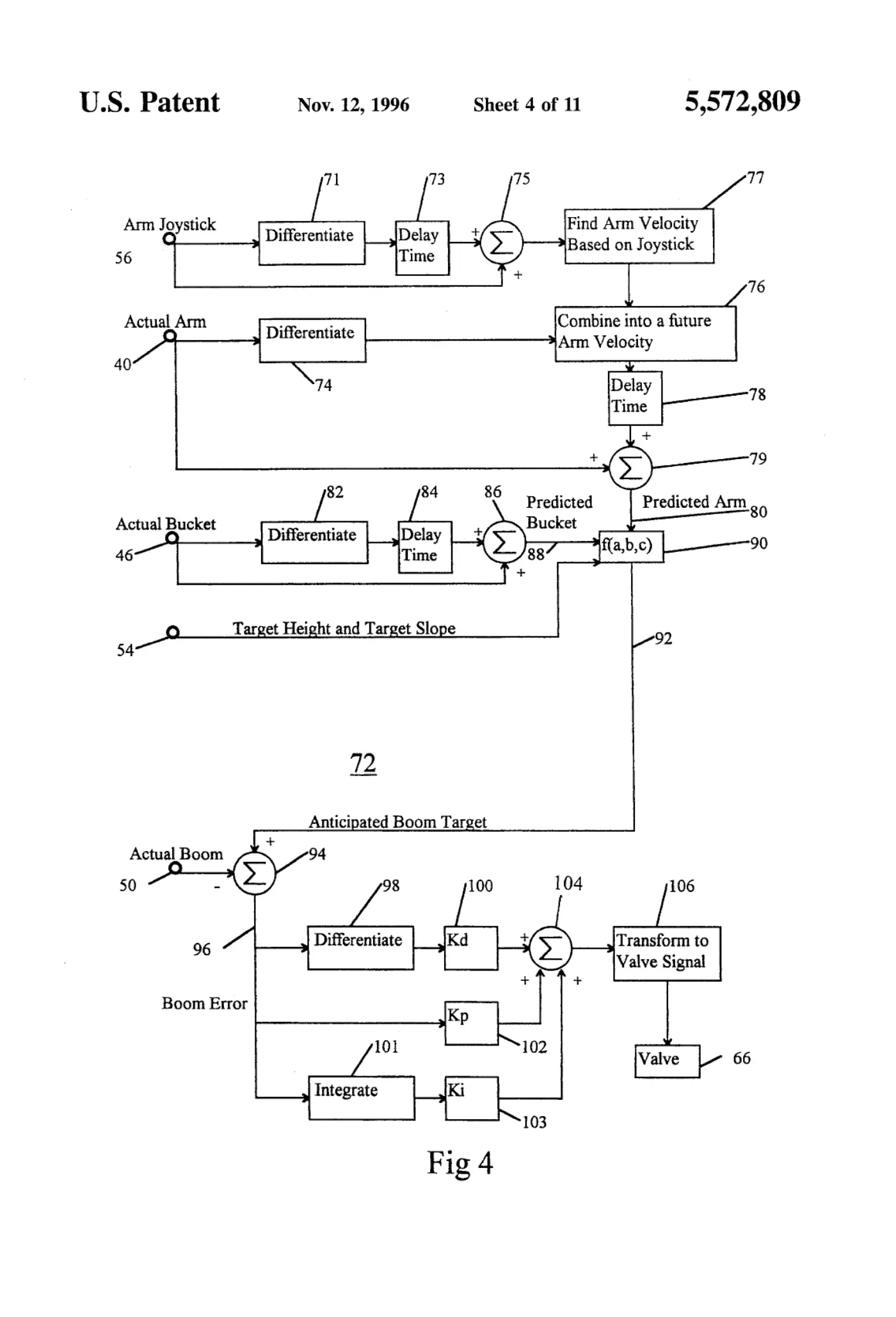

[0004]Sheet 4.

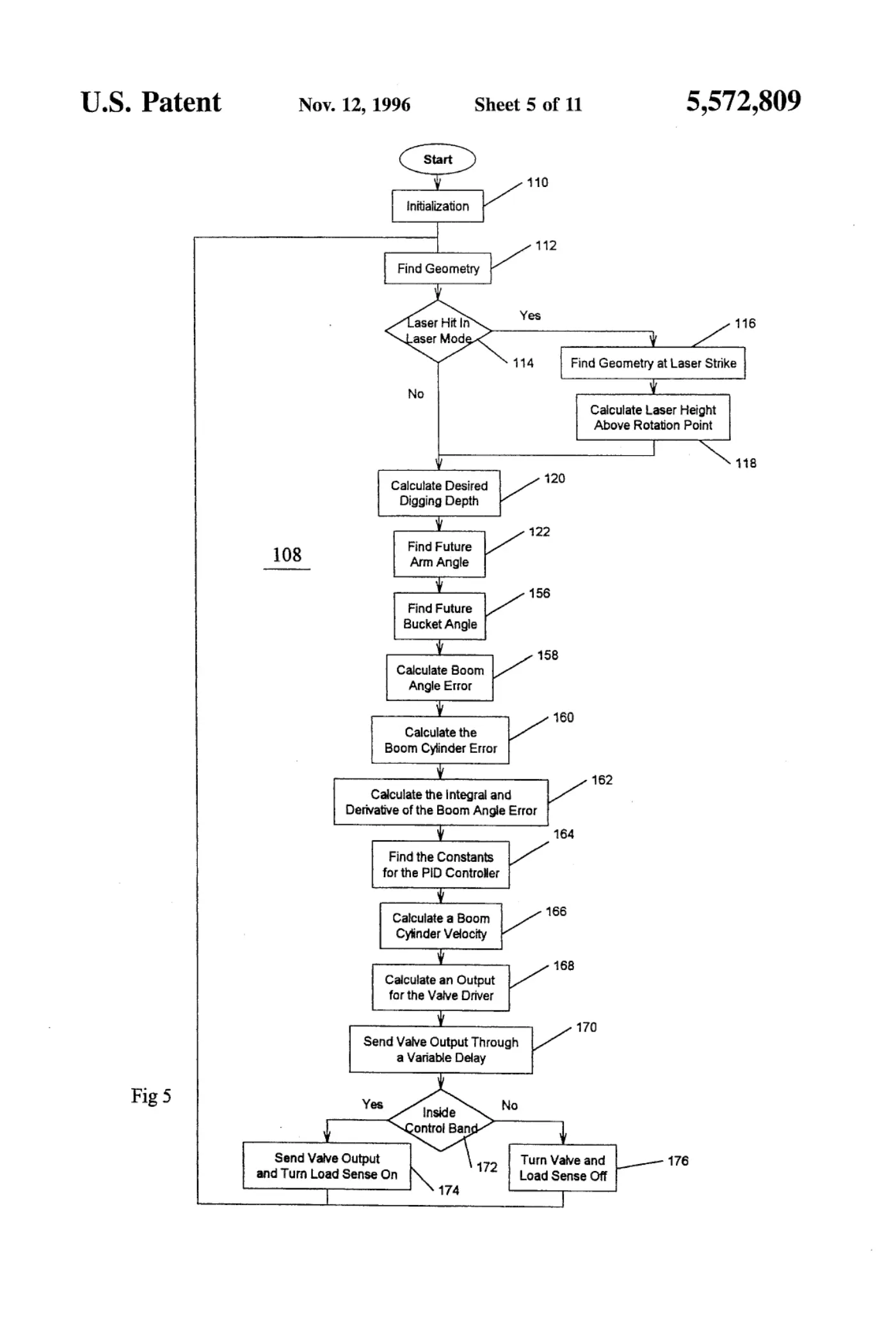

[0005]Sheet 5.

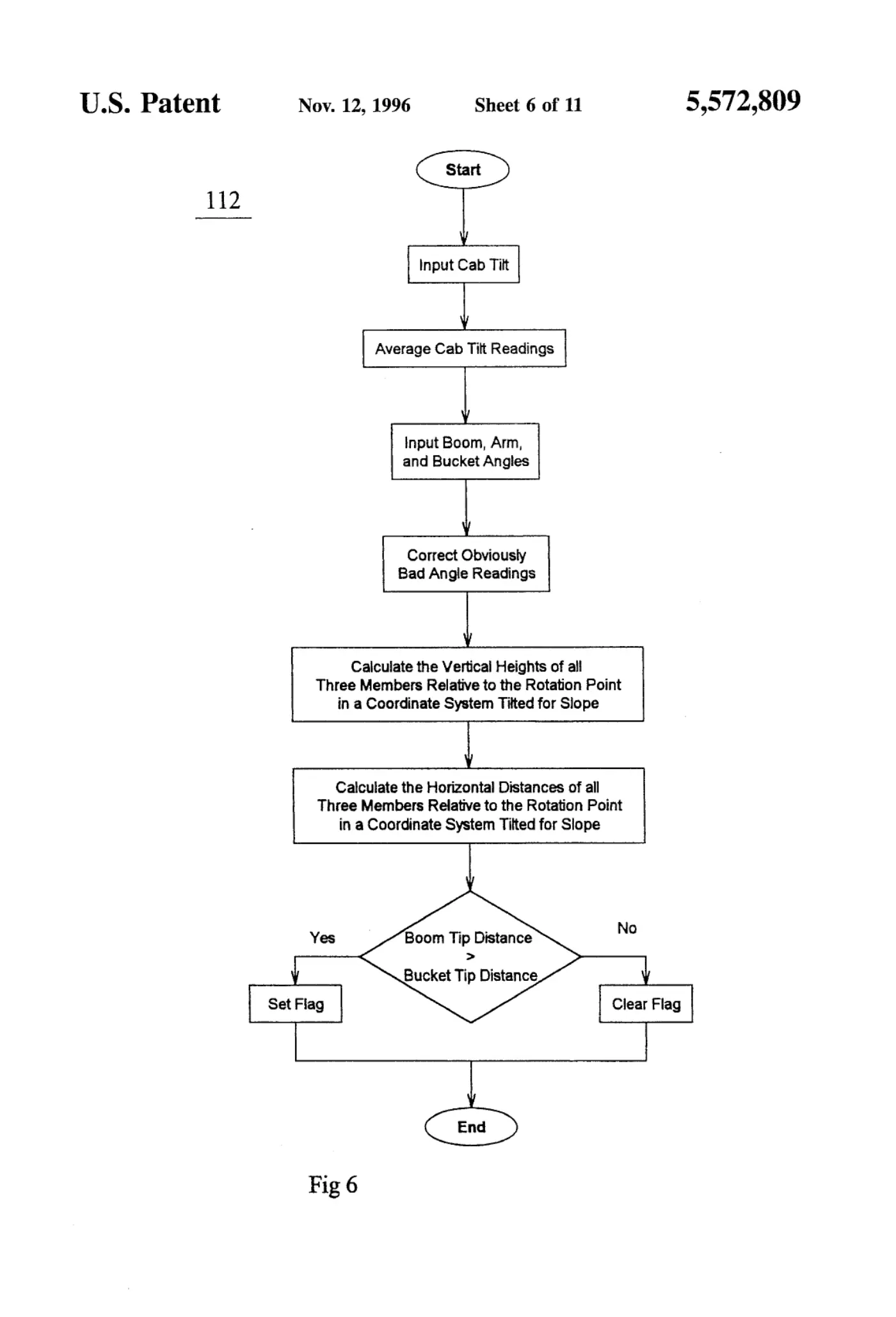

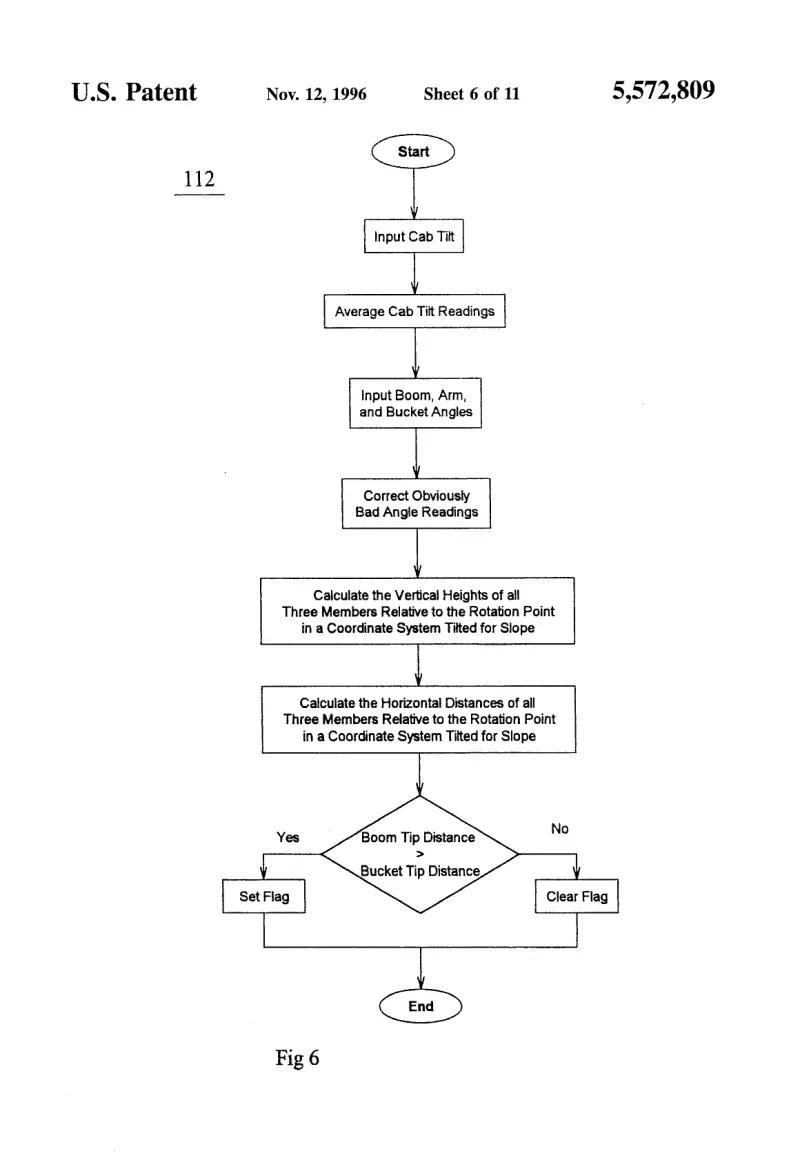

[0006]Sheet 6.

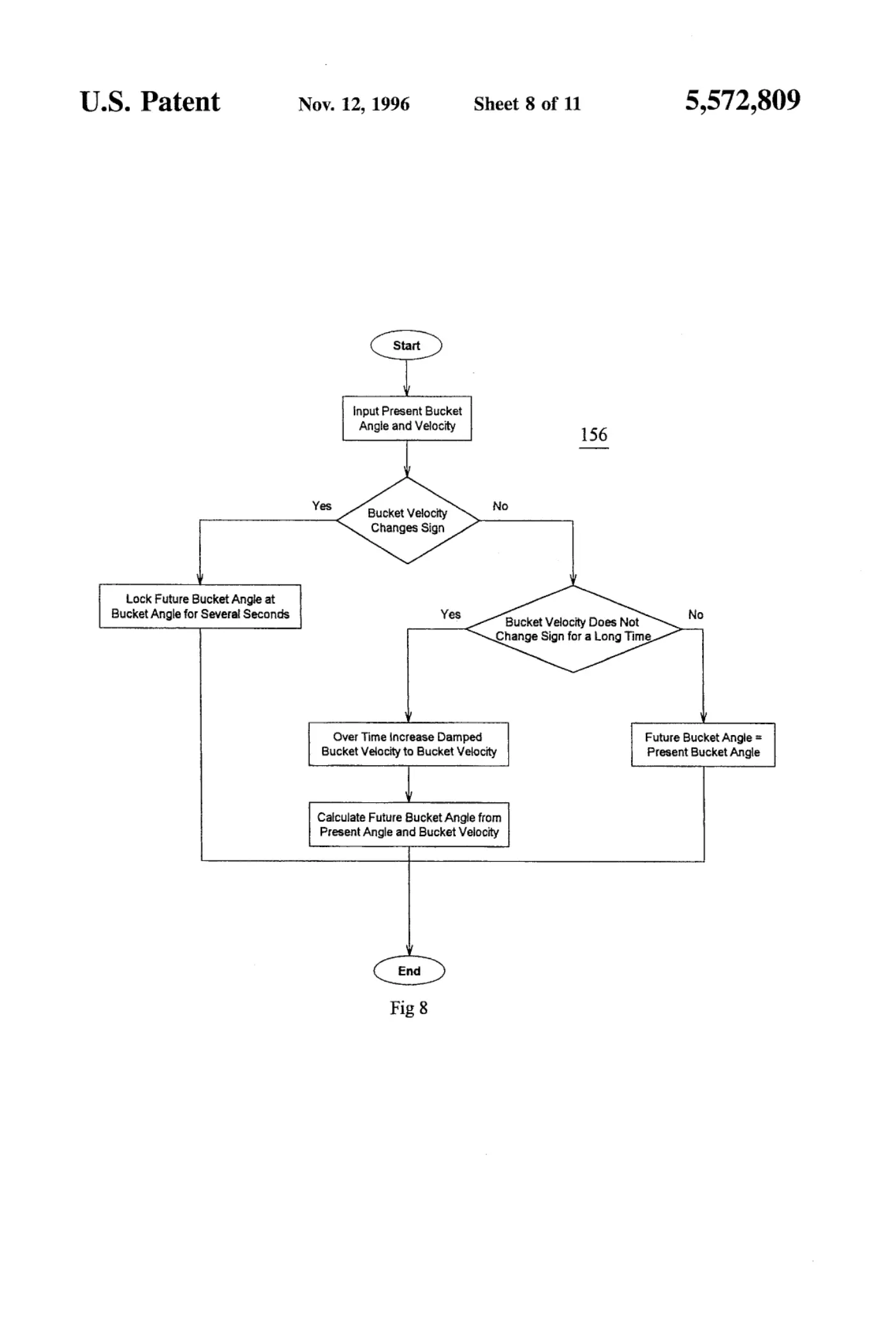

[0007]Sheet 7.

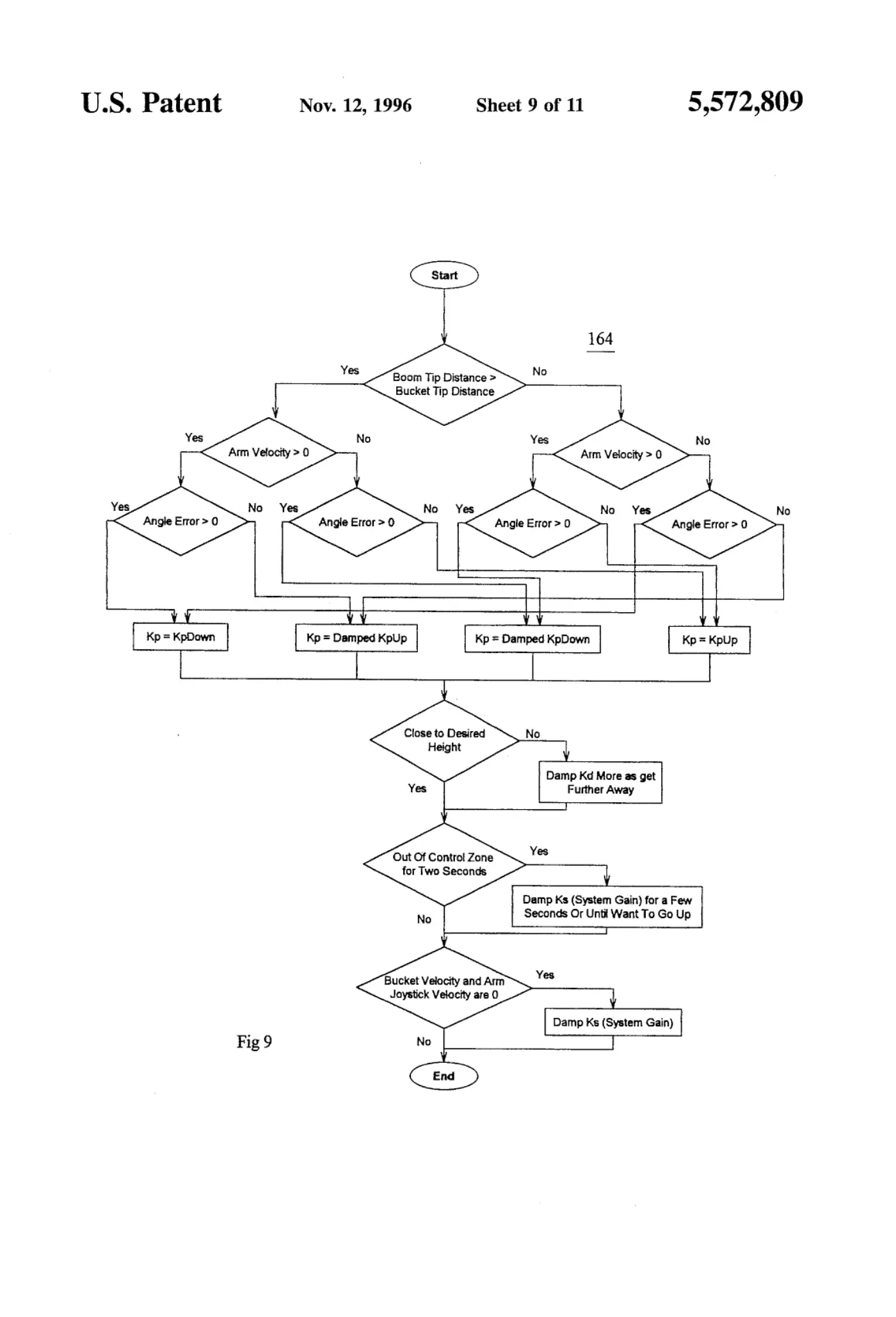

[0008]Sheet 8.

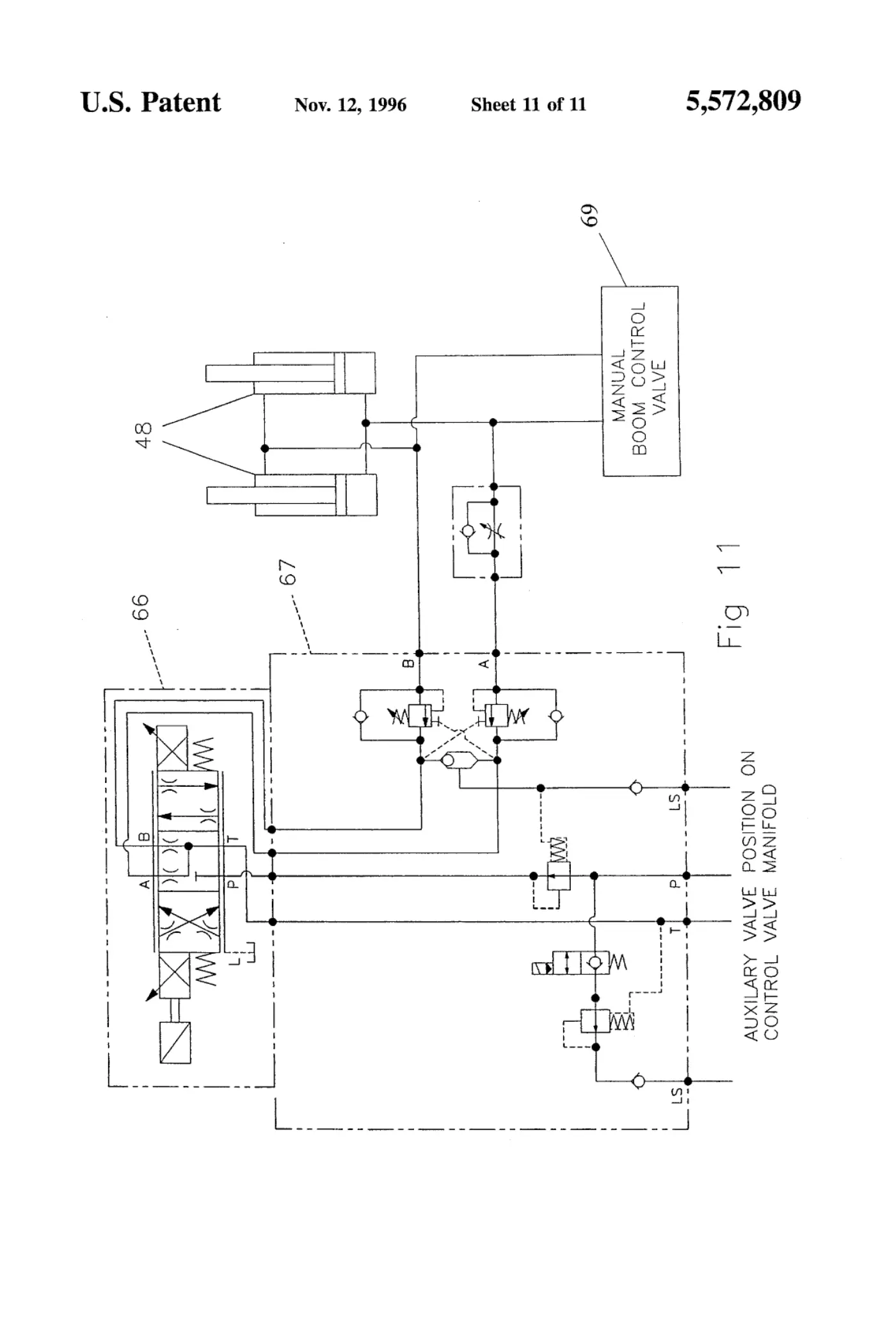

[0009]Sheet 9.
