Ergonomic and easily serviceable vacuum probe

Published
Permanent URL
Classification
Lifting, Positioning & Manipulation › Vacuum Lifting
Assignee
GREATBATCH W LTD
Original source
US-5555601-A, the United States Patent and Trademark Office, 17 September 1996
Document SHA-256
cdb61aea7972686d045bfd61cc54a5580605c7eca6ef215f20d8a16d859795ec

Ergonomic and easily serviceable vacuum probe. The probe for applying a vacuum has a see-through chamber in which a particulate filter is disposed so that the contamination level in the chamber is monitorable for servicing the filter. The probe is vacuum-dependent and sized to be gripped by a person's hand making a fist therearound including around the handle which extends longitudinally of the body. By squeezing the handle toward the body, a valve plunger is pushed radially inwardly to open the valve to apply vacuum. The valve is spring-biased to return to the closed position upon release of the handle.

Sheet 1
Sheet 1
Sheet 2
Sheet 2

Abstract

Ergonomic and easily serviceable vacuum probe. The probe for applying a vacuum has a see-through chamber in which a particulate filter is disposed so that the contamination level in the chamber is monitorable for servicing the filter. The probe is vacuum-dependent and sized to be gripped by a person's hand making a fist therearound including around the handle which extends longitudinally of the body. By squeezing the handle toward the body, a valve plunger is pushed radially inwardly to open the valve to apply vacuum. The valve is spring-biased to return to the closed position upon release of the handle.

1. Drawings

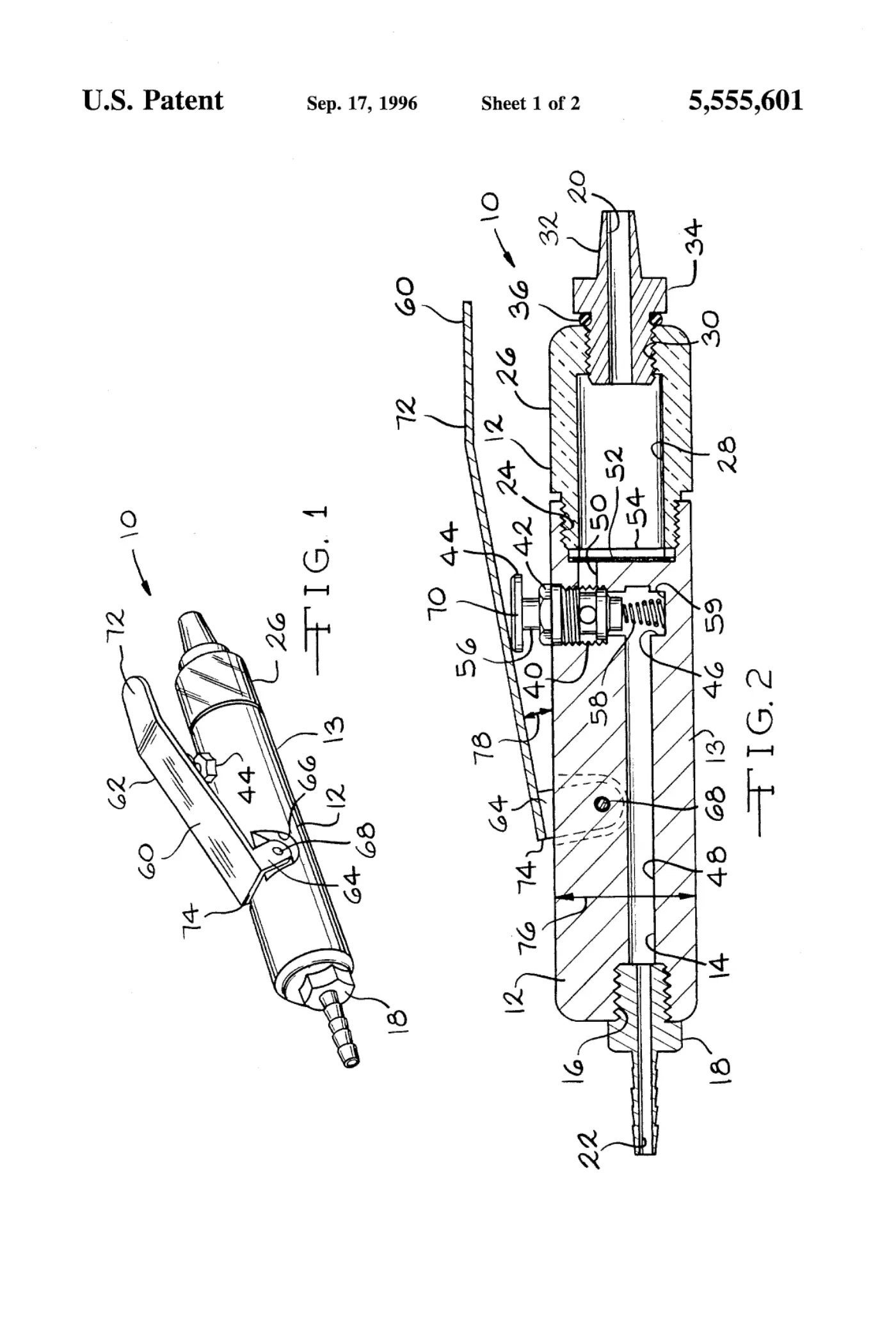

[0001]Sheet 1.

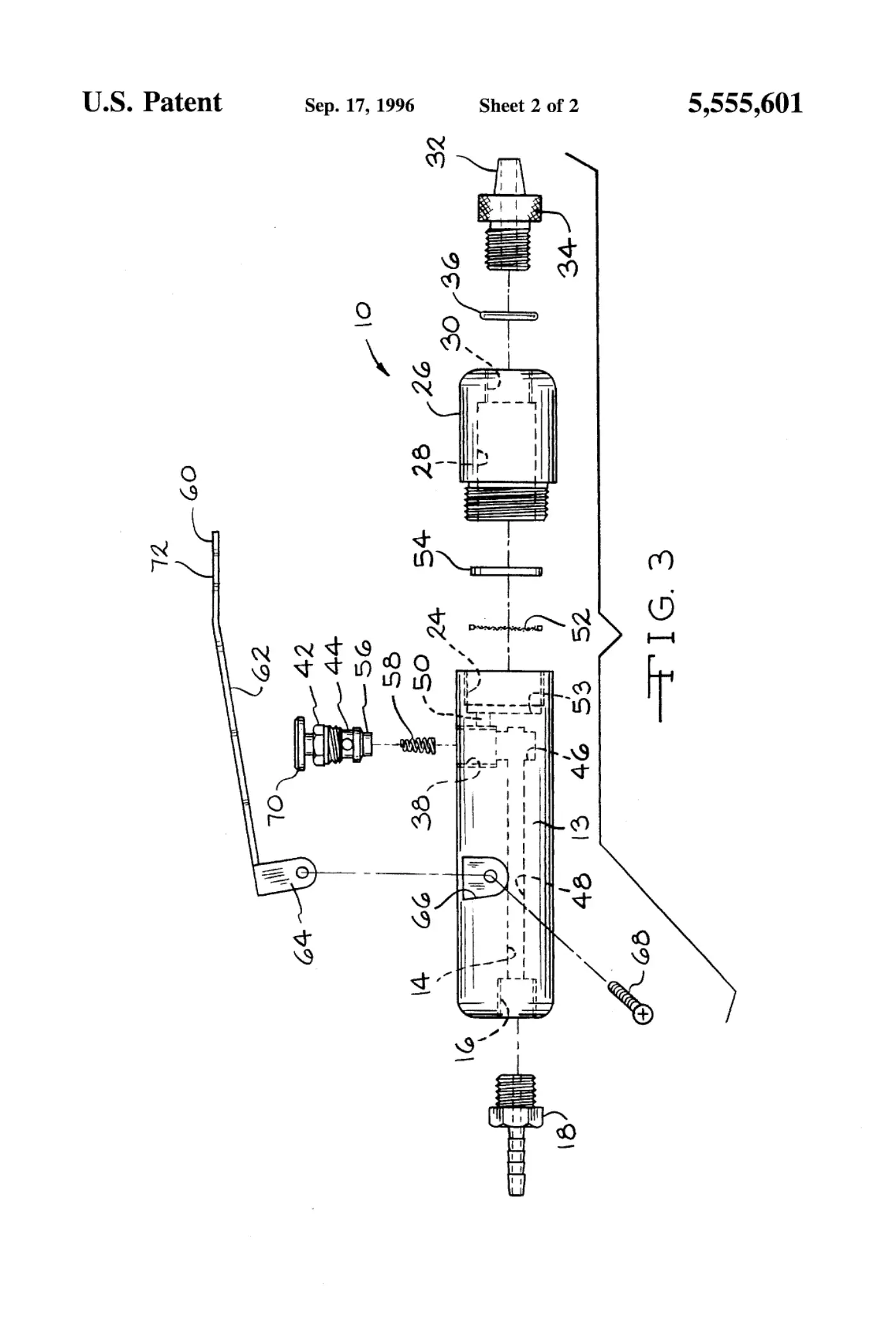

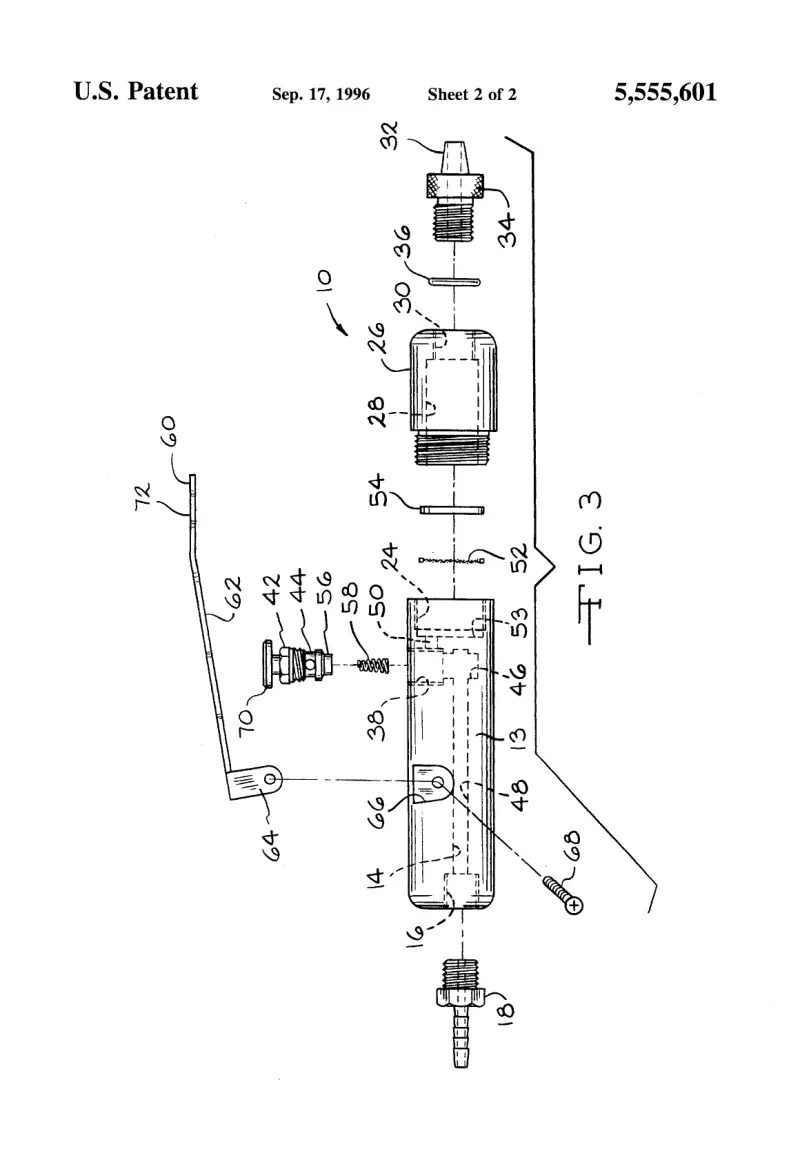

[0002]Sheet 2.
