Osteosynthetic fixation device

Published
Permanent URL
Classification
Tools & Tooling › Clamping Tools
Assignee
SYNTHES USA
Original source
US-5501684-A, the United States Patent and Trademark Office, 26 March 1996
Document SHA-256
edc0ca49e9b1dca925a6f0ebba51fcbee8bab965945c3f7e48f7947183ef23a3

An osteosynthetic fixation device consists of a fixation element 1 which has a conical head section 11 and an anchoring element 12 abutting it which is for attachment into the bone. The fixation device also consists of a spherically formed, layered, slotted clamping piece 2 which has a conical borehole 21 for installation of the conical head section 11, and which is meant for locking within a connecting piece 3 equipped with a spherically shaped layered borehole 31. Fixation piece 1 has an axially arrayed tension element 4, permitting axial displacement and wedging of conical head section 11 in the borehole 21 that corresponds with it. The fixation device is appropriate for use as a plate/screw system, an internal or external fixator, and in particular for spinal column fixation.

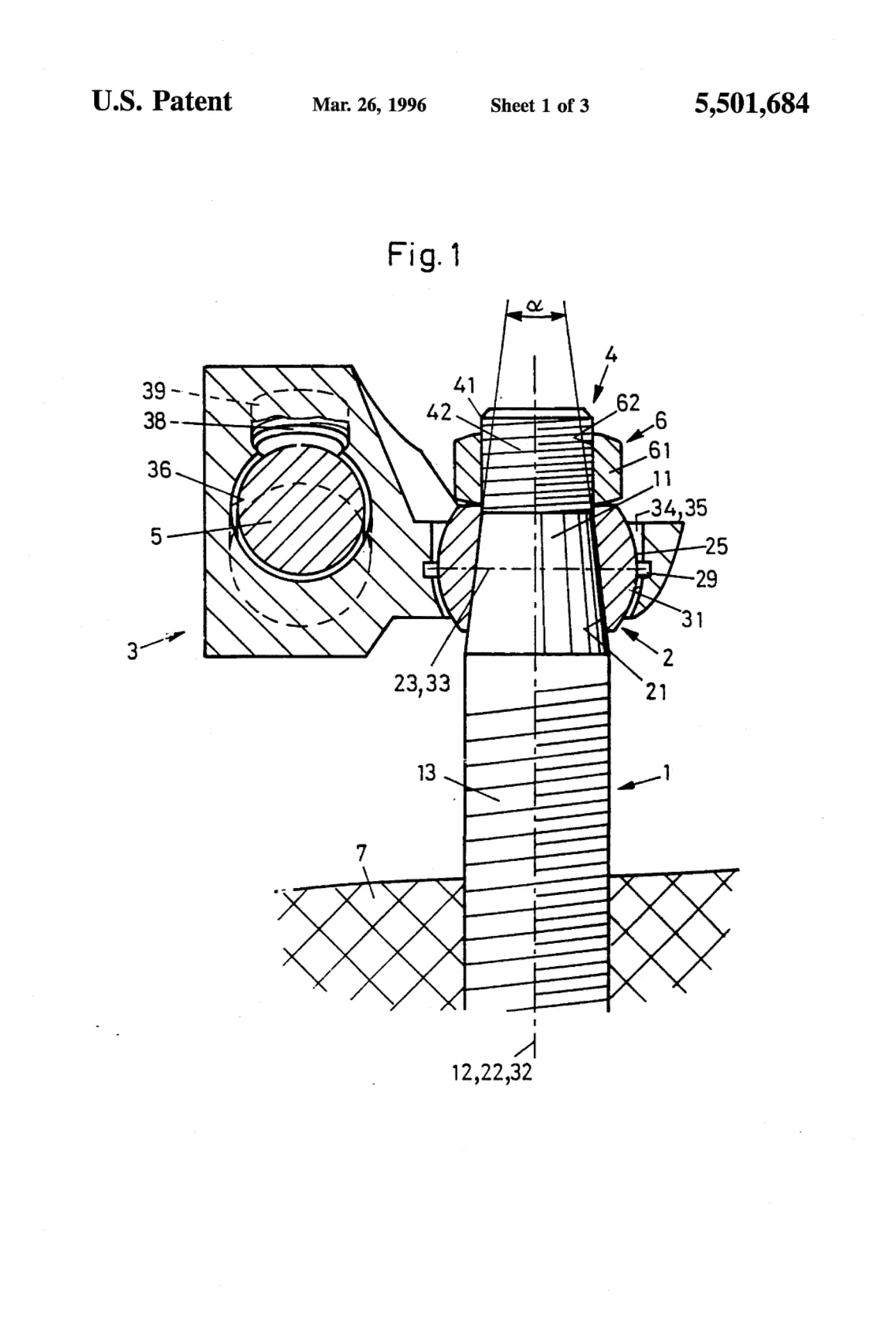

Sheet 1
Sheet 1

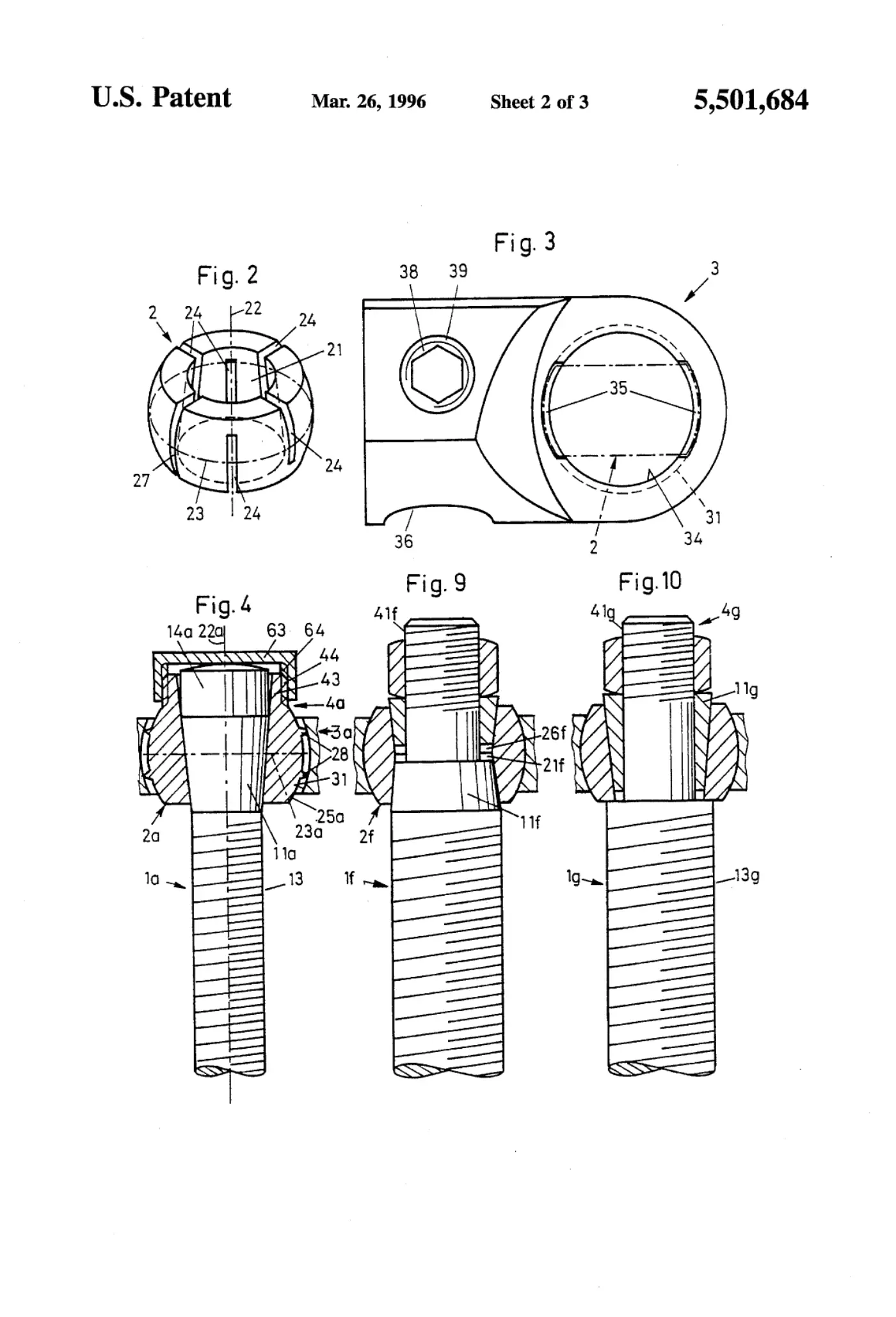

Sheet 2
Sheet 2

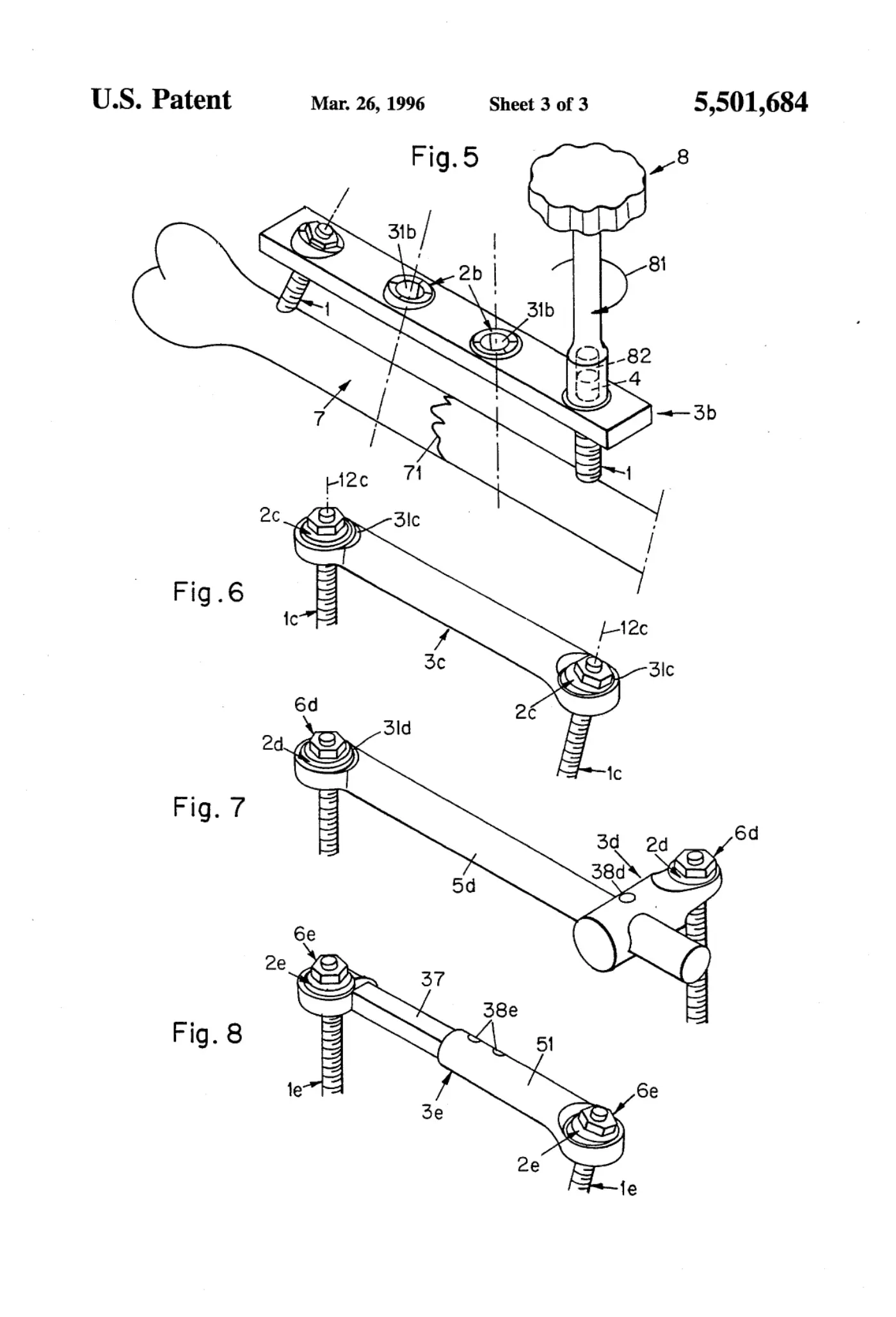

Sheet 3
Sheet 3
Sheet 4
Sheet 4

Abstract

An osteosynthetic fixation device consists of a fixation element 1 which has a conical head section 11 and an anchoring element 12 abutting it which is for attachment into the bone. The fixation device also consists of a spherically formed, layered, slotted clamping piece 2 which has a conical borehole 21 for installation of the conical head section 11, and which is meant for locking within a connecting piece 3 equipped with a spherically shaped layered borehole 31. Fixation piece 1 has an axially arrayed tension element 4, permitting axial displacement and wedging of conical head section 11 in the borehole 21 that corresponds with it. The fixation device is appropriate for use as a plate/screw system, an internal or external fixator, and in particular for spinal column fixation.
