Modular machine tool for machining bars, comprising a frame with four tool supporting units

Published
Permanent URL
Classification
Manufacturing & Assembly Equipment › Machining Systems
Original source
US-5493762-A, the United States Patent and Trademark Office, 27 February 1996
Document SHA-256
597c4eaaa70af5ccbee7700517f425118cb9b1f541cb2292ef9ec814465bb13d

The present invention is for a means for working of elongated objects. These objects can be profiles of wood, plastics or metal, e.g. extruded aluminium profiles. A means comprises sections for feeding in (1) profiles, working (2) and feeding out (4) the worked profiles. Additionally there may be between the working section and the feeding out section a device (3) for cutting of worked profiles to correct length. The means also comprises arrangements for linear movement of the profile through the different sections. A work station position within a working section comprises a frame or similar device which in itself comprises several, preferably four, working units, whereby each working unit may carry one or more working tools (22), e.g. cutting mill or drill, which during the working stages can move with at least three degrees of freedom.

Sheet 1
Sheet 1

Abstract

The present invention is for a means for working of elongated objects. These objects can be profiles of wood, plastics or metal, e.g. extruded aluminium profiles. A means comprises sections for feeding in (1) profiles, working (2) and feeding out (4) the worked profiles. Additionally there may be between the working section and the feeding out section a device (3) for cutting of worked profiles to correct length. The means also comprises arrangements for linear movement of the profile through the different sections. A work station position within a working section comprises a frame or similar device which in itself comprises several, preferably four, working units, whereby each working unit may carry one or more working tools (22), e.g. cutting mill or drill, which during the working stages can move with at least three degrees of freedom.

1. Drawings

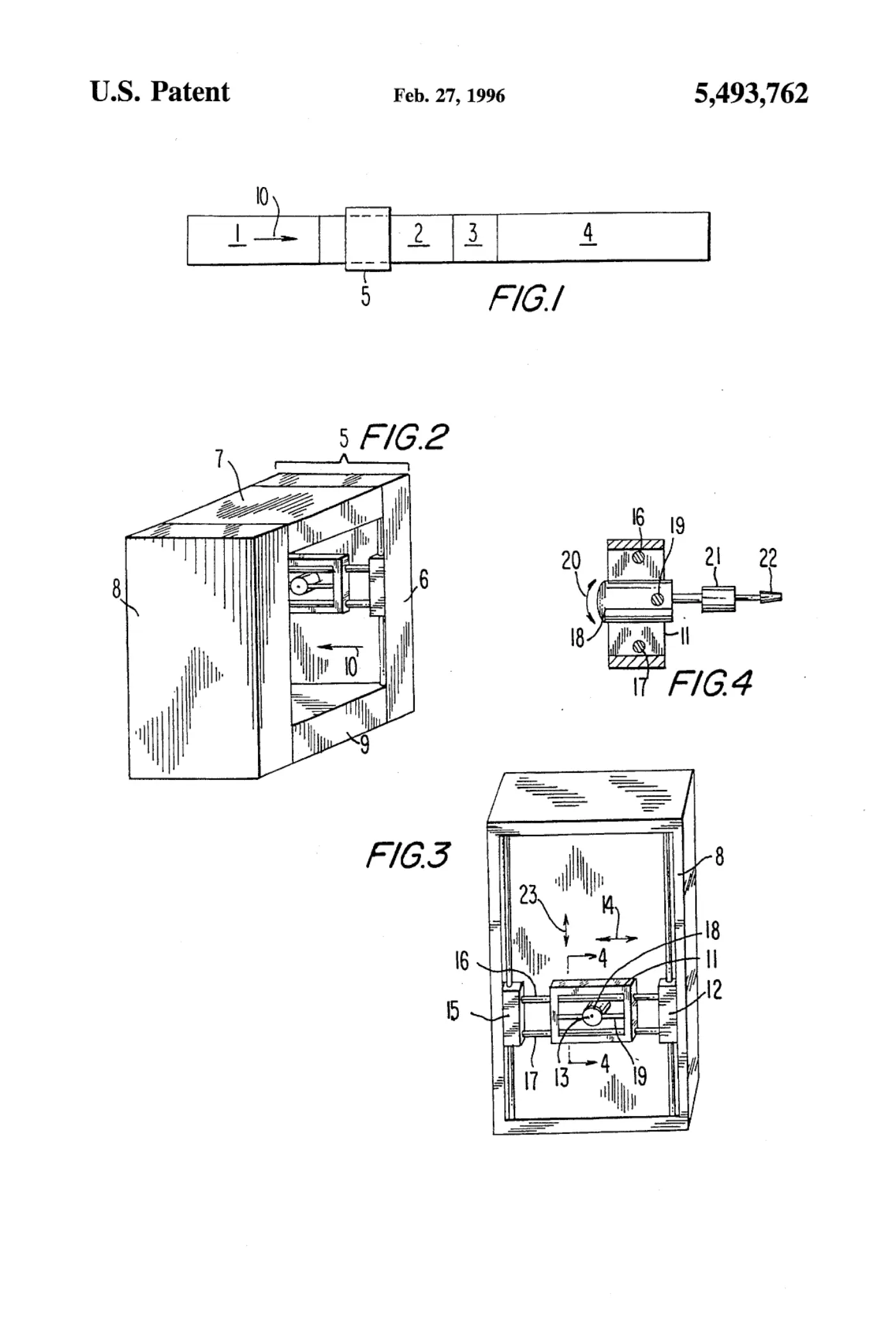

[0001]Sheet 1.
