Method of and apparatus for processing vacuum pressure information

Published
Permanent URL
Classification
Sensors, Controls & Machine Vision › Force and Pressure Sensing
Inventors
ITO YOSHIHARU, NAGAI SHIGEKAZU, SAITO MITSUHIRO, SUGANO SHIGERU, TAKEBAYASHI TAKASHI
Assignee
SMC KK
Original source
US-5475619-A, the United States Patent and Trademark Office, 12 December 1995
Document SHA-256
a1d4dbd806bd268d658a1f8bbfda49bc37d1748a90db1bae01eeb3dc66f40f24

A method and an apparatus for electrically processing vacuum pressure information in a vacuum unit. The apparatus basically comprises a vacuum supply mechanism, a detecting device, a determining device, a failure precognition signal generating device and a pressure setting-up device. In the apparatus, pressure values are first detected, and a desired pressure value lower than the maximum pressure value of the detected pressure values is digitally displayed on a display unit. Then, the desired pressure value is stored in a storage unit, and pressure values relative to vacuum, which are detected from the detecting device held in front of a passage which communicates with a vacuum port, are converted into digital signals. Thereafter, the digital signals thus converted are digitally displayed on the display unit. Further, the desired pressure value stored in the storage unit is compared with each of the detected pressure values. When they coincide with each other within a predetermined range, a predetermined signal is generated.

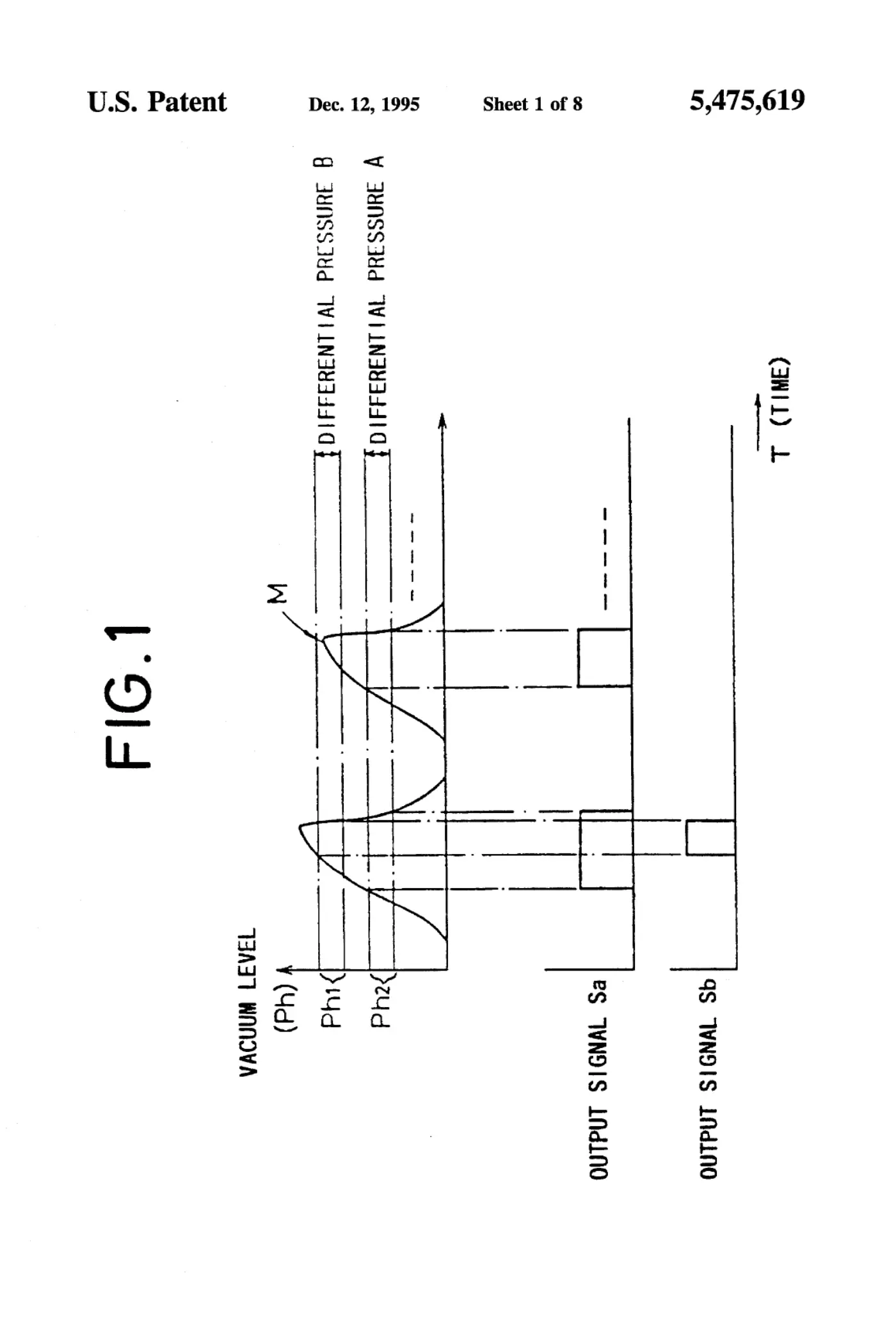

Sheet 1
Sheet 1

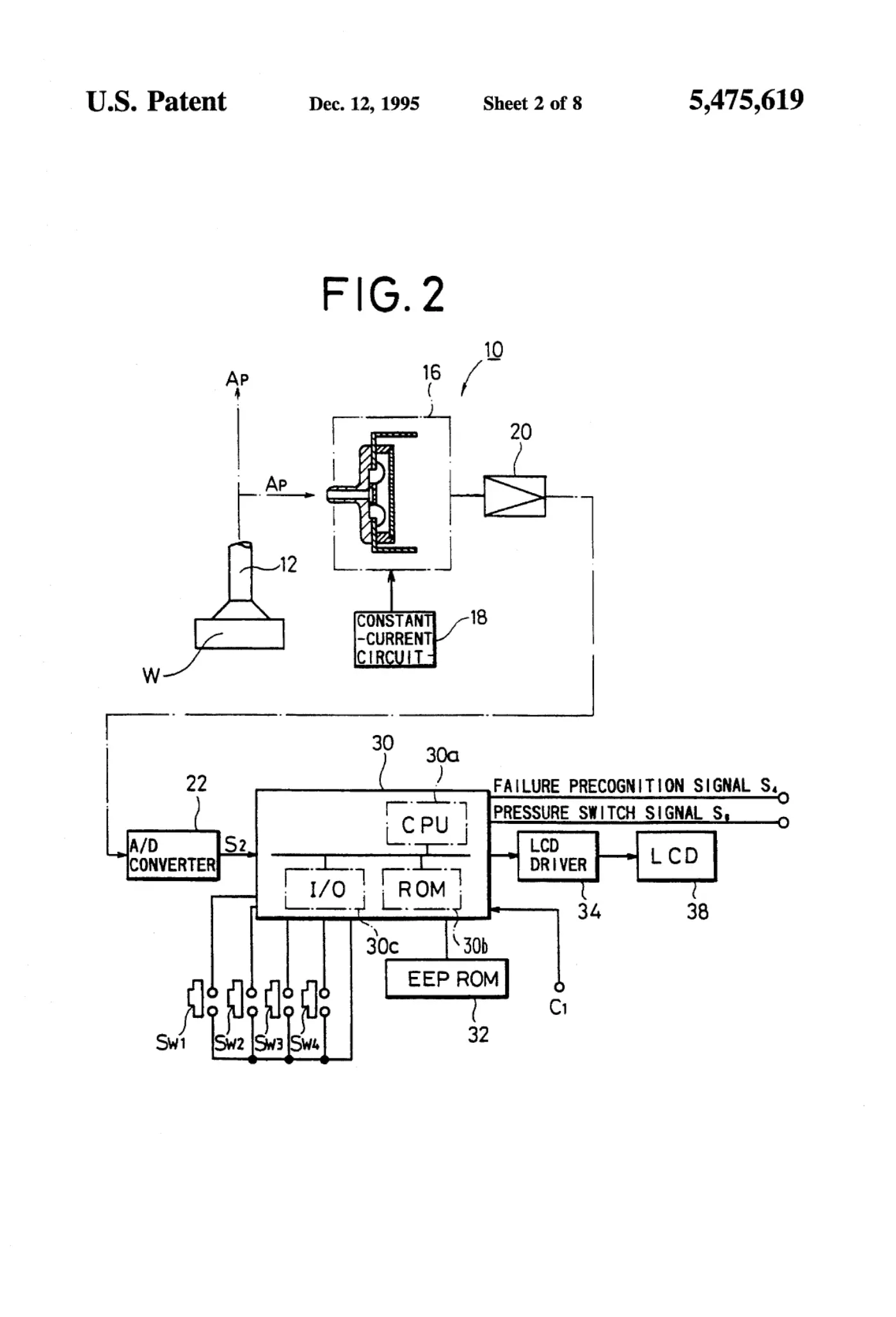

Sheet 2
Sheet 2

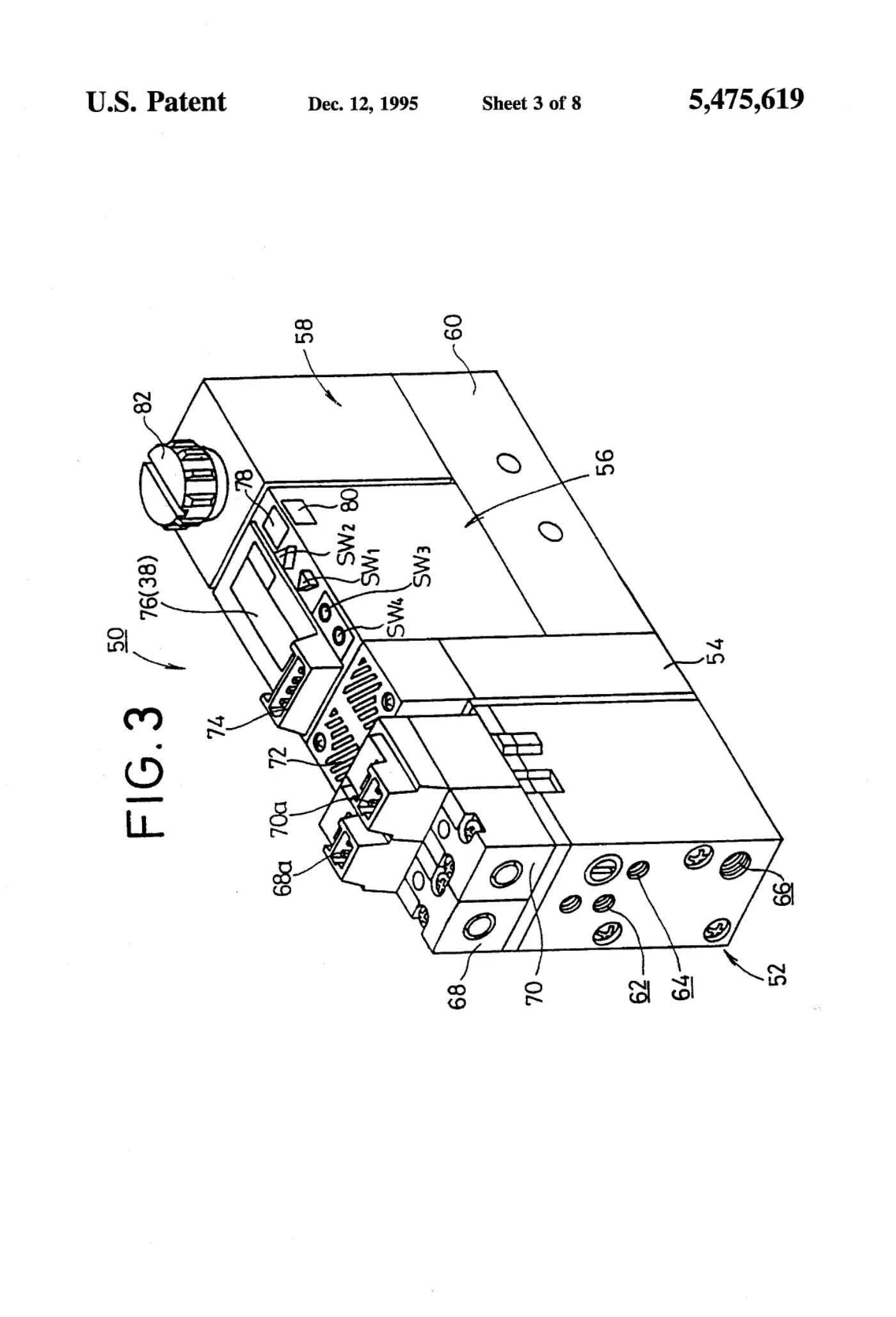

Sheet 3
Sheet 3

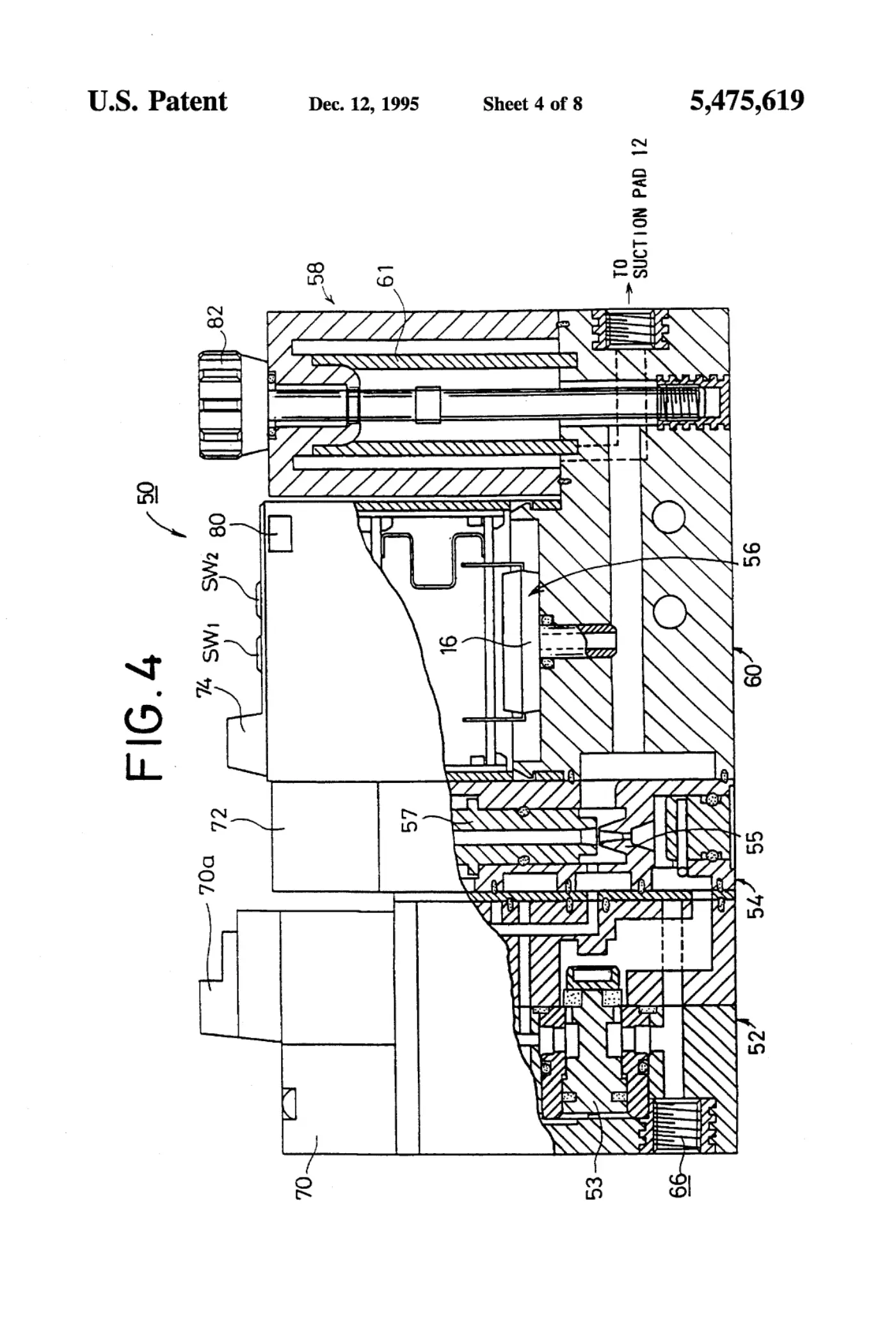

Sheet 4
Sheet 4

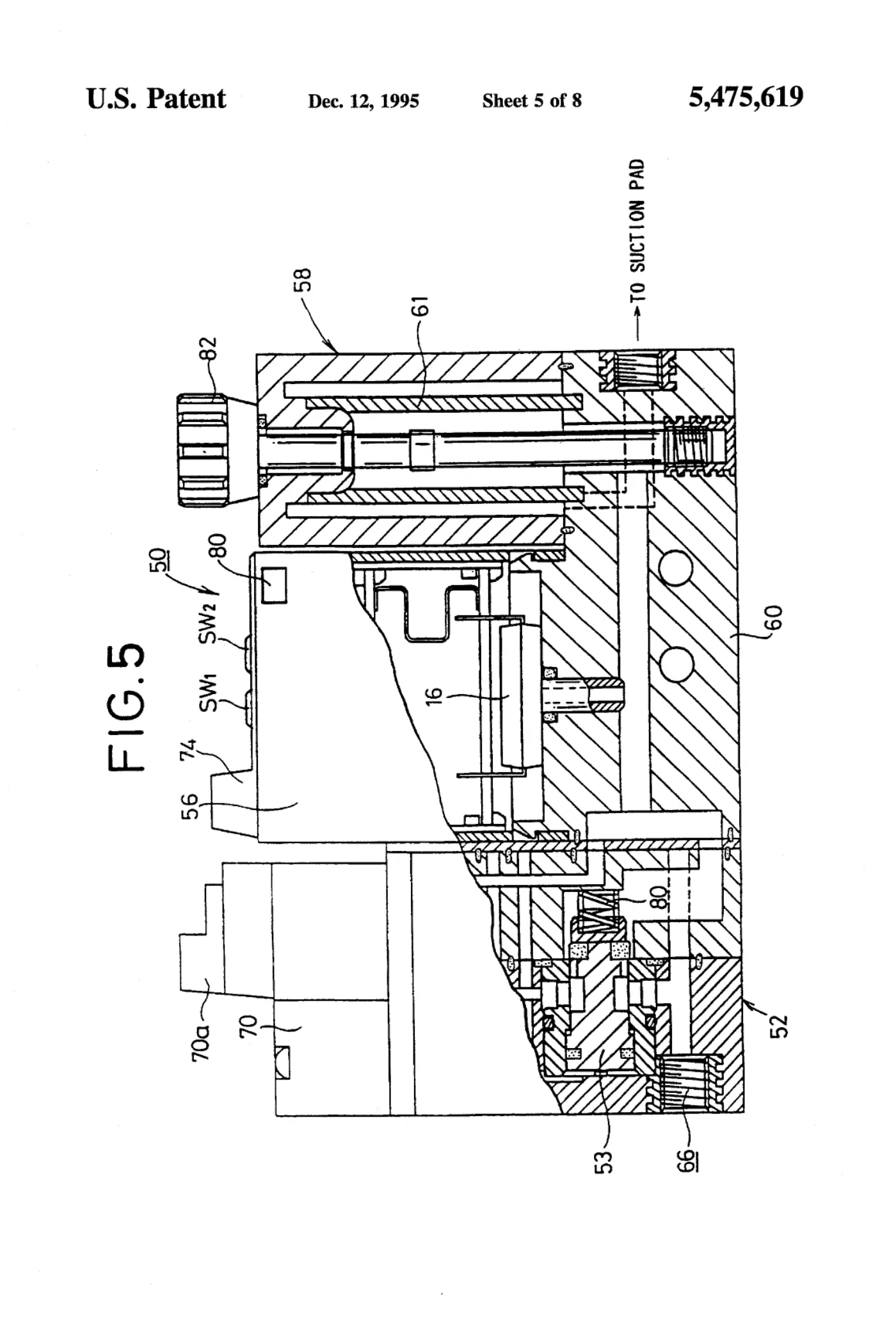

Sheet 5
Sheet 5

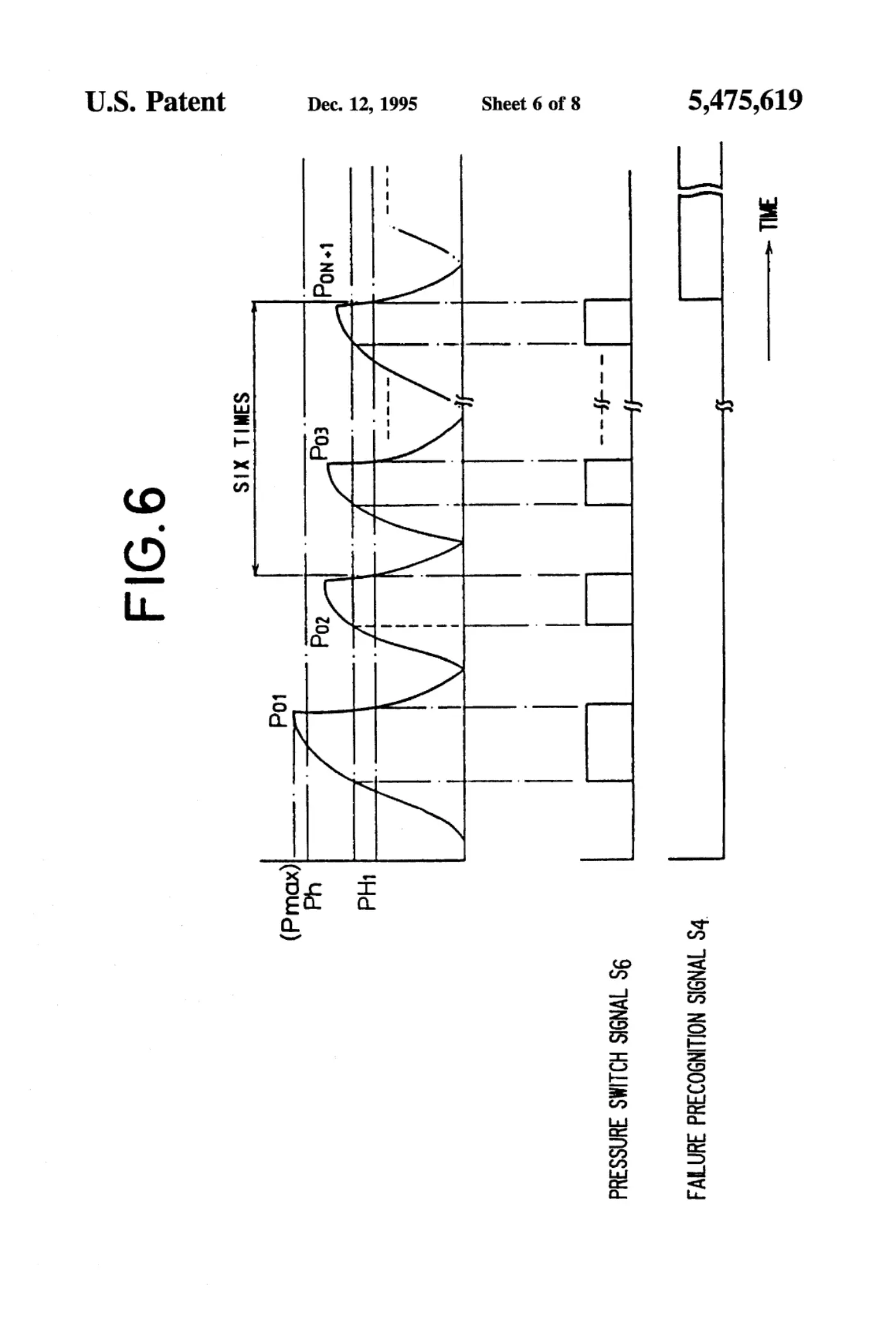

Sheet 6
Sheet 6

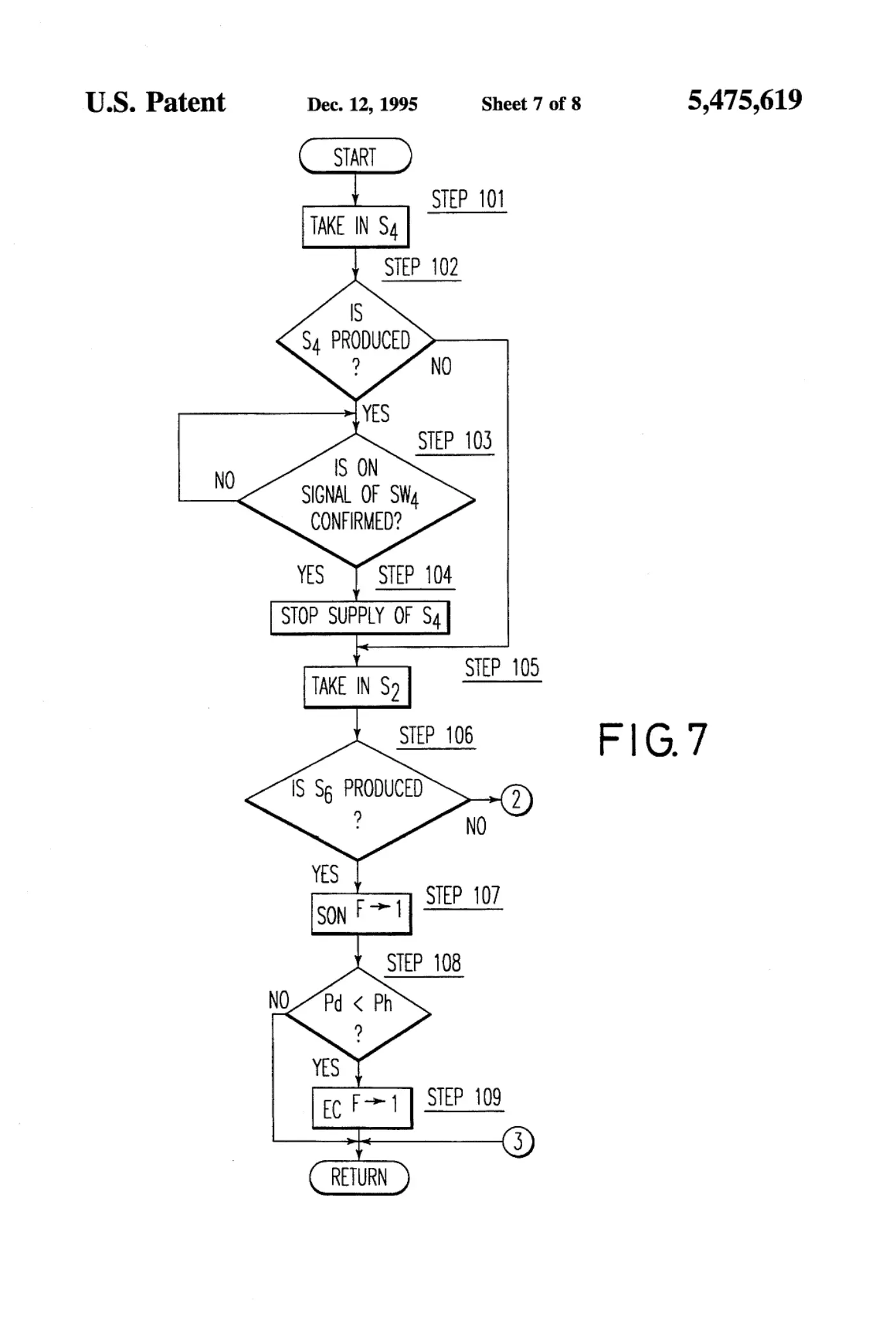

Sheet 7
Sheet 7

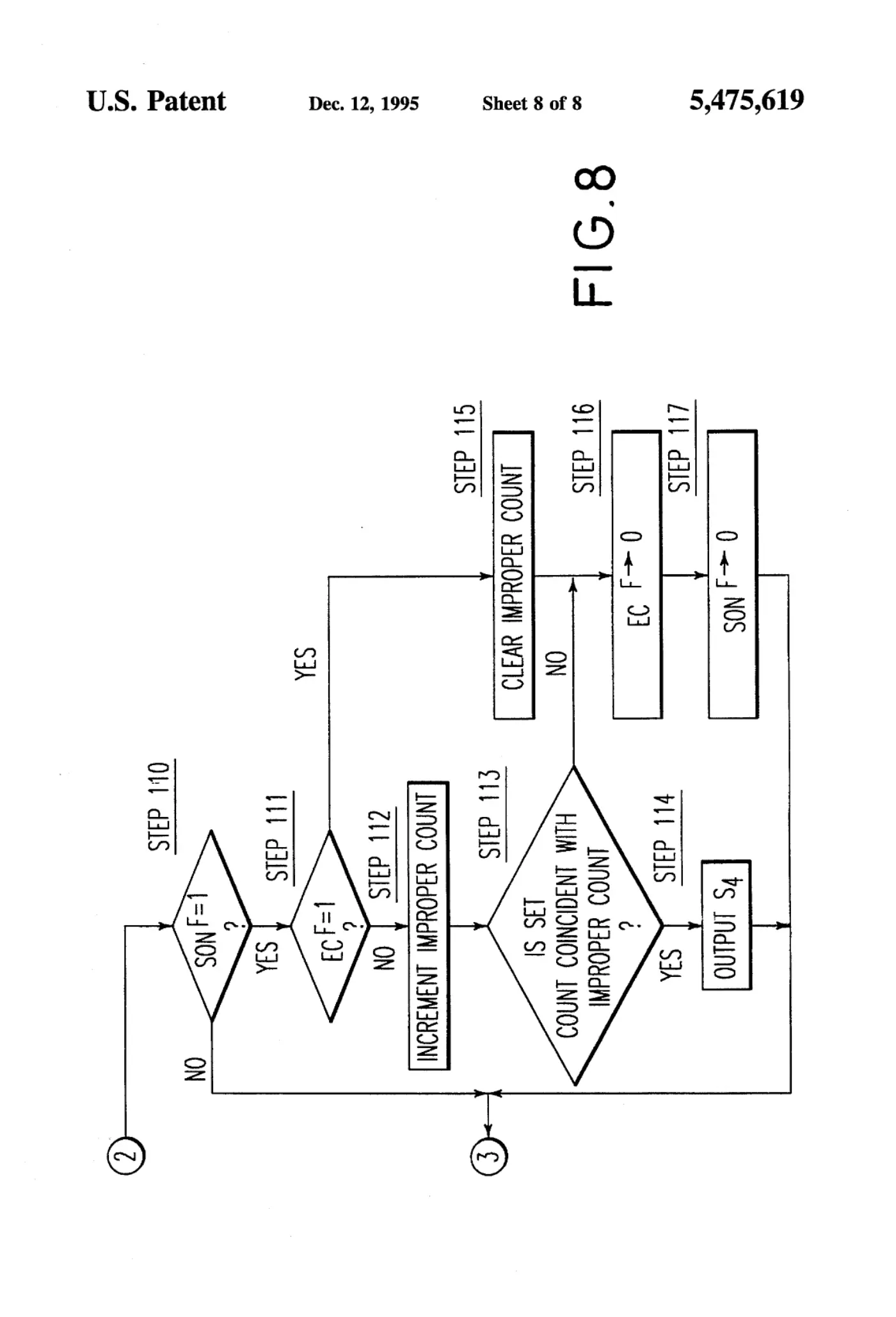

Sheet 8
Sheet 8

Abstract

A method and an apparatus for electrically processing vacuum pressure information in a vacuum unit. The apparatus basically comprises a vacuum supply mechanism, a detecting device, a determining device, a failure precognition signal generating device and a pressure setting-up device. In the apparatus, pressure values are first detected, and a desired pressure value lower than the maximum pressure value of the detected pressure values is digitally displayed on a display unit. Then, the desired pressure value is stored in a storage unit, and pressure values relative to vacuum, which are detected from the detecting device held in front of a passage which communicates with a vacuum port, are converted into digital signals. Thereafter, the digital signals thus converted are digitally displayed on the display unit. Further, the desired pressure value stored in the storage unit is compared with each of the detected pressure values. When they coincide with each other within a predetermined range, a predetermined signal is generated.

1. Drawings

[0001]Sheet 1.

[0002]Sheet 2.

[0003]Sheet 3.

[0004]Sheet 4.

[0005]Sheet 5.

[0006]Sheet 6.

[0007]Sheet 7.

[0008]Sheet 8.
