Vacuum adsorber

Published
Permanent URL
Classification
Lifting, Positioning & Manipulation › Hoists and Cranes
Inventors
HIDETSUGU NISHIGUCHI, KENJI NISHIGUCHI
Assignee
HIDETSUGU NISHIGUCHI
Original source
US-5464263-A, the United States Patent and Trademark Office, 7 November 1995
Document SHA-256
054656f5119dd221dda3a20f512f3d8716348f036028ff9b184c425687326c27

A vacuum adsorber includes a base (4); an adsorption member (3) attached to the base and made from an elastic material so as to have a vacuum cavity (2) with an opening (3a) on a side opposite to the base; a slider (5) having a friction face (7) and a periphery sliding along a side wall of the vacuum cavity; a spring member (15) provided within the vacuum cavity for biasing the slider toward the opening; a vacuum tube (6) for connecting the vacuum cavity to a vacuum source; and a through-hole (8) provided on the friction face for allowing fluids to enter the vacuum cavity.

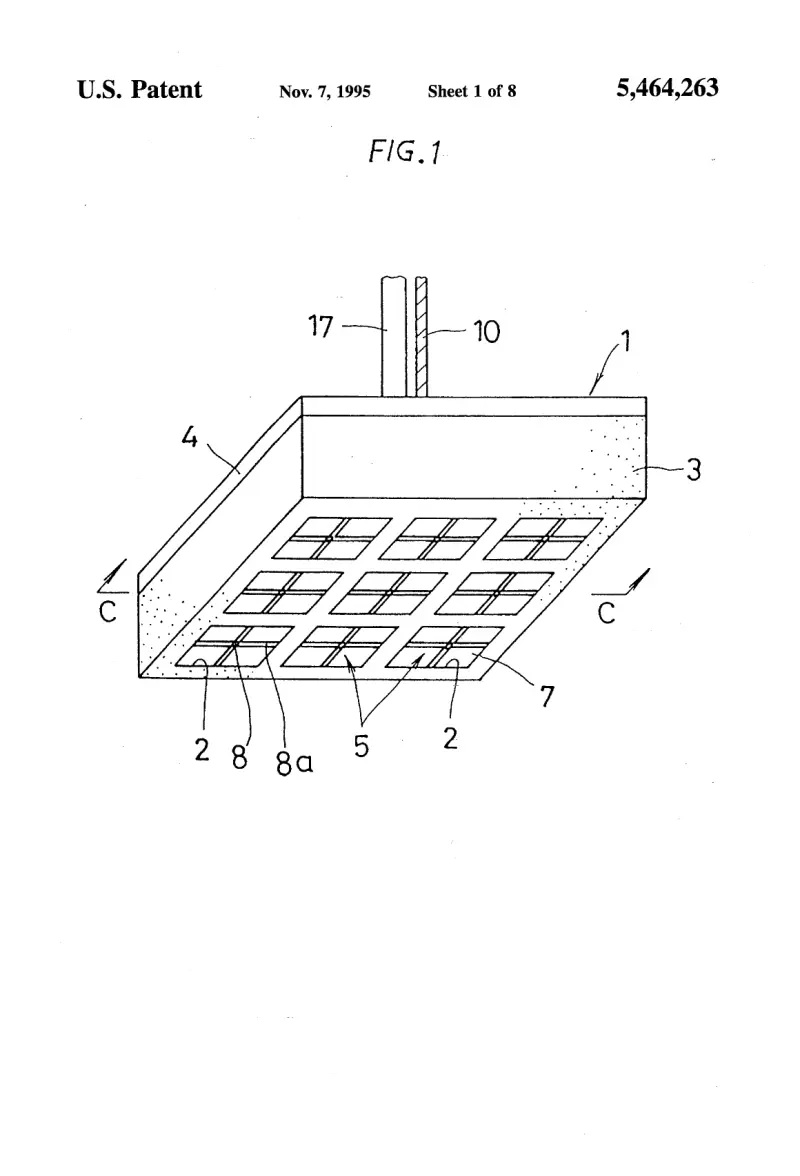

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3
Sheet 4
Sheet 4
Sheet 5
Sheet 5
Sheet 6
Sheet 6
Sheet 7
Sheet 7

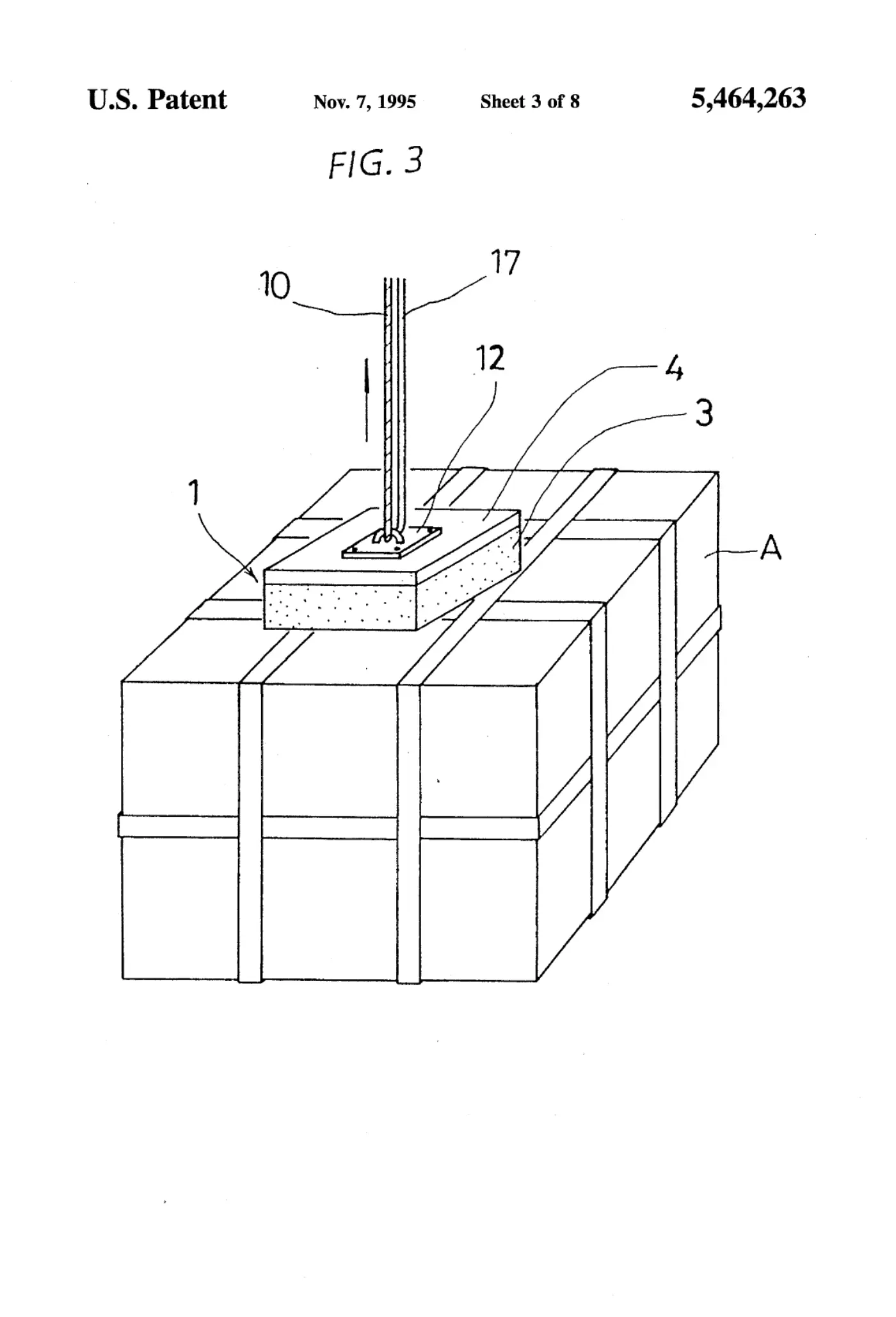

Sheet 8
Sheet 8

Abstract

A vacuum adsorber includes a base (4); an adsorption member (3) attached to the base and made from an elastic material so as to have a vacuum cavity (2) with an opening (3a) on a side opposite to the base; a slider (5) having a friction face (7) and a periphery sliding along a side wall of the vacuum cavity; a spring member (15) provided within the vacuum cavity for biasing the slider toward the opening; a vacuum tube (6) for connecting the vacuum cavity to a vacuum source; and a through-hole (8) provided on the friction face for allowing fluids to enter the vacuum cavity.

1. Drawings

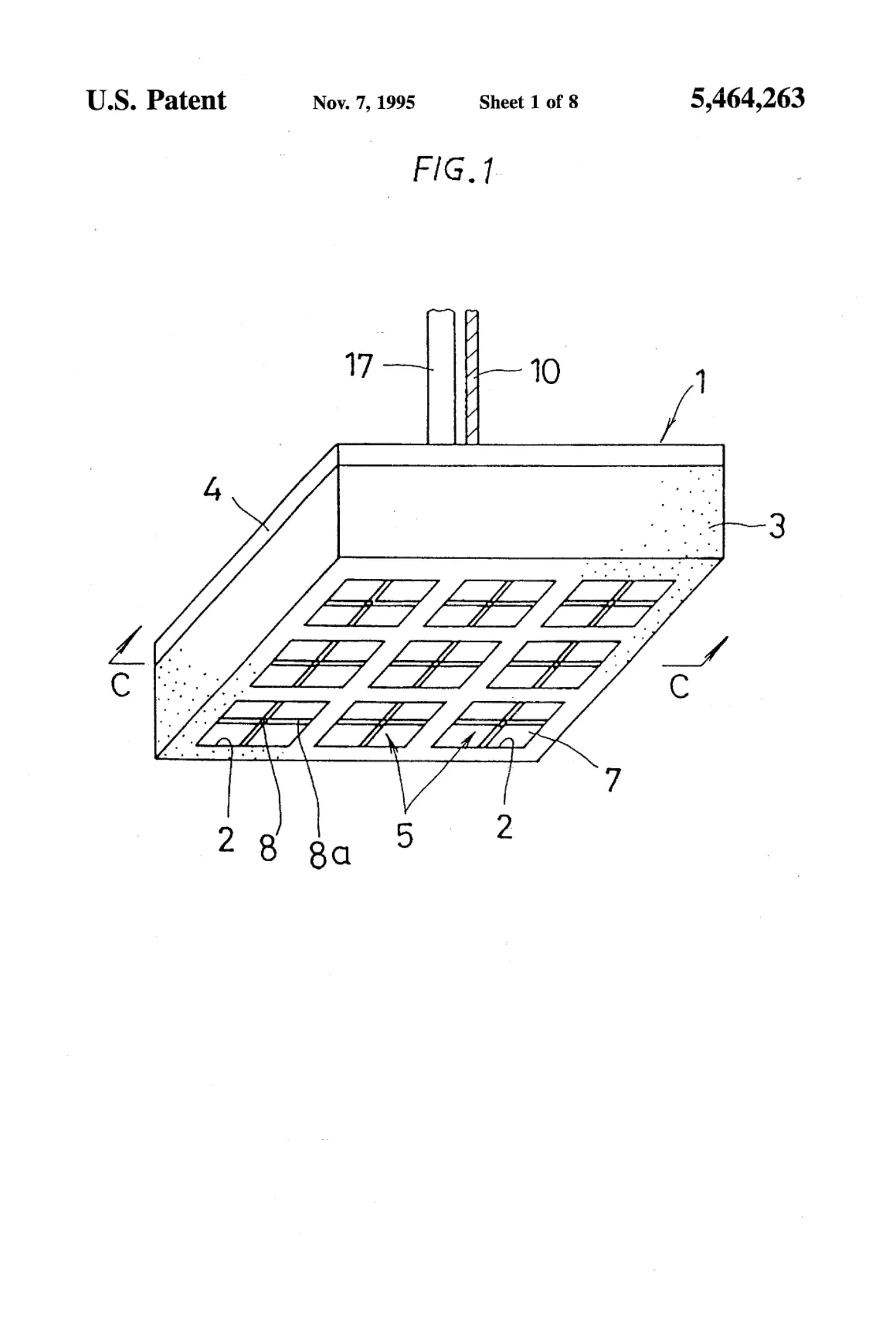

[0001]Sheet 1.

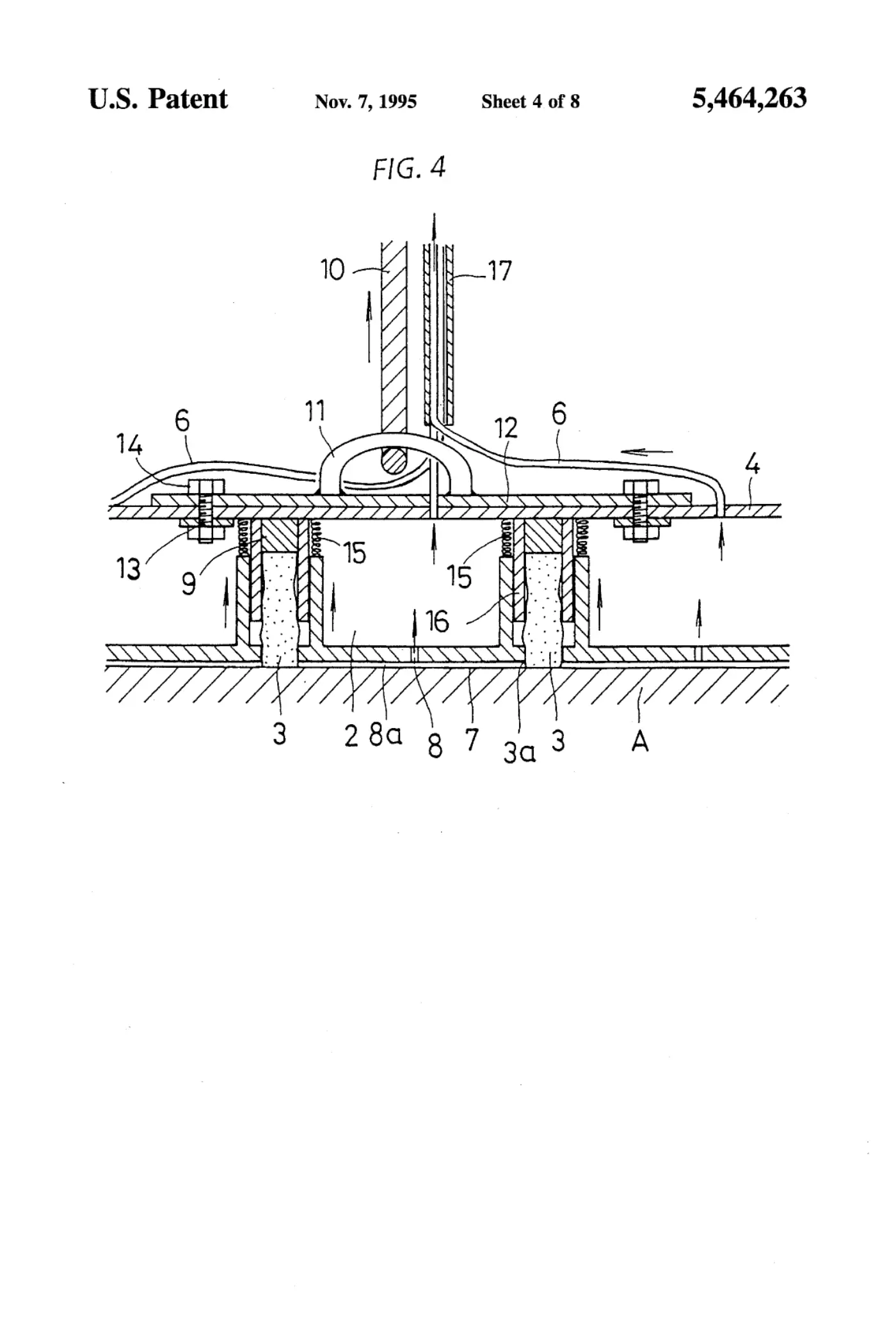

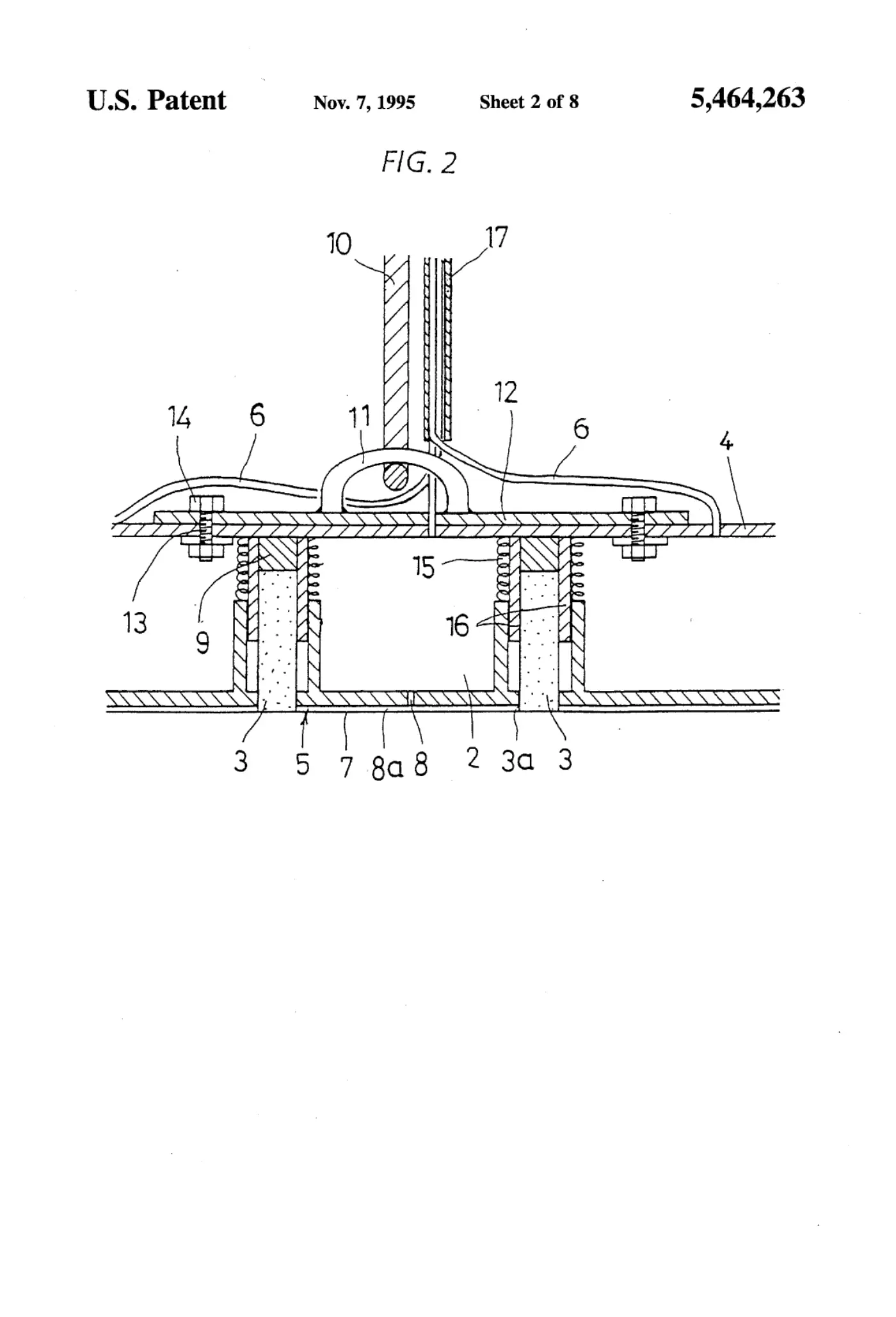

[0002]Sheet 2.

[0003]Sheet 3.

[0004]Sheet 4.

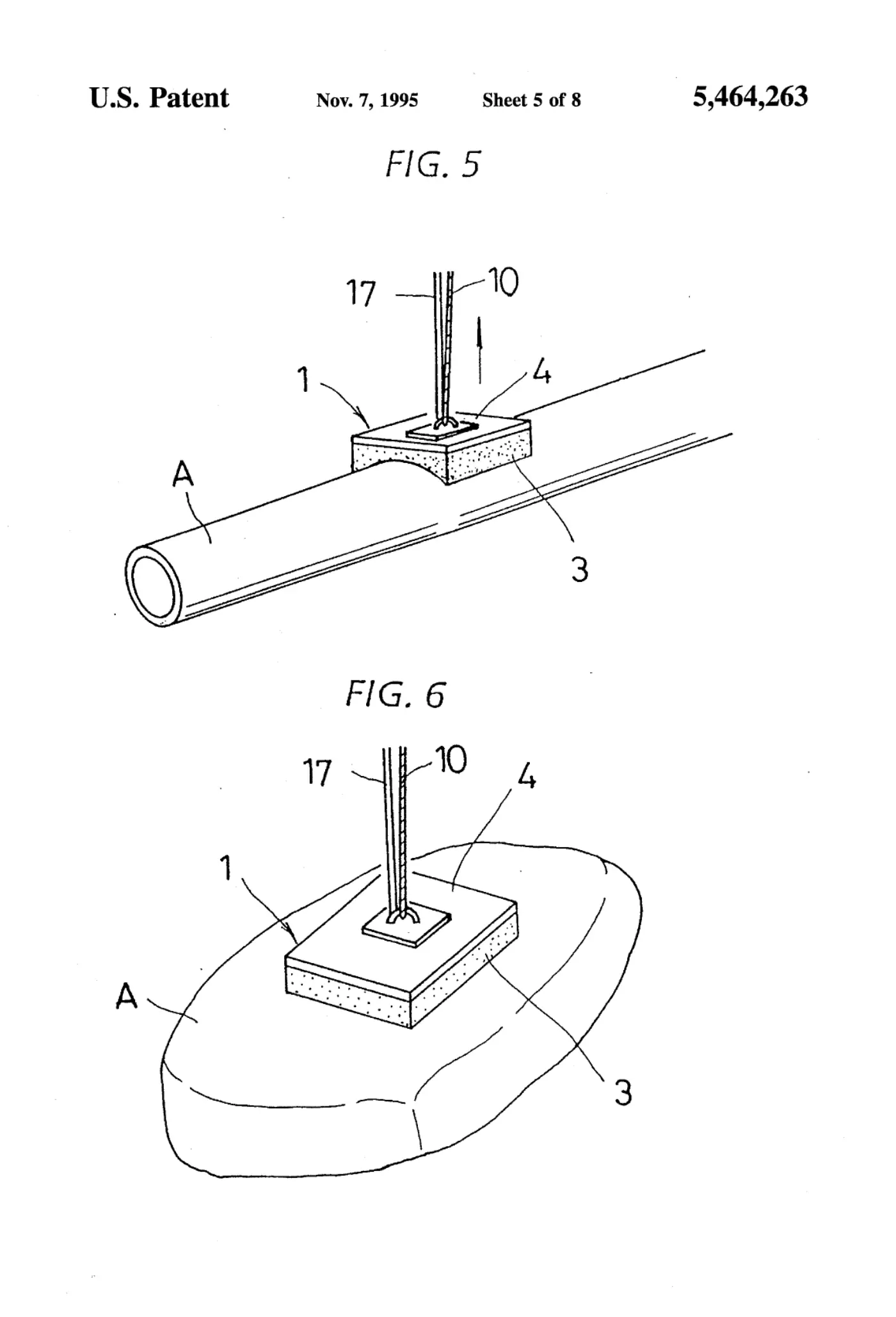

[0005]Sheet 5.

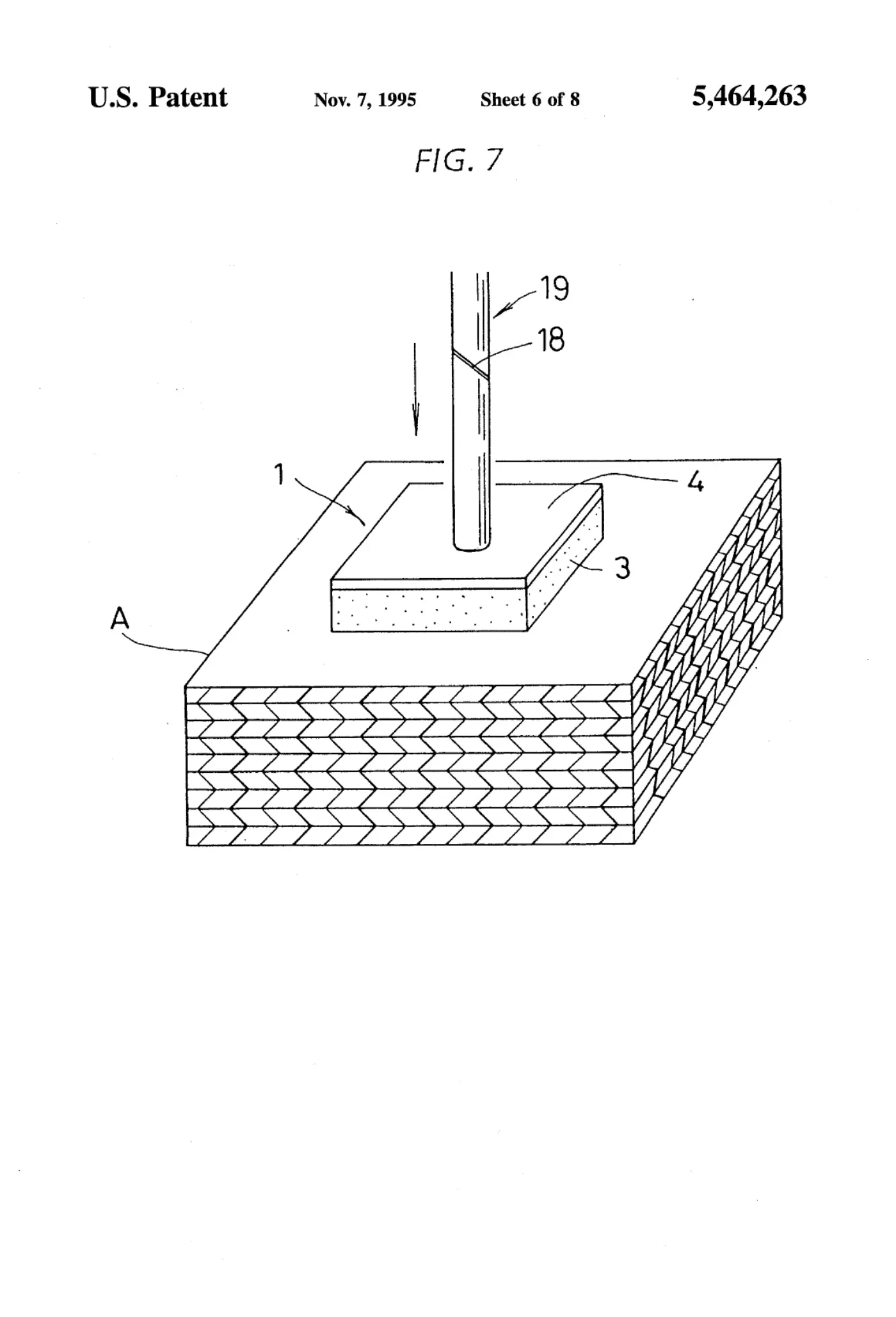

[0006]Sheet 6.

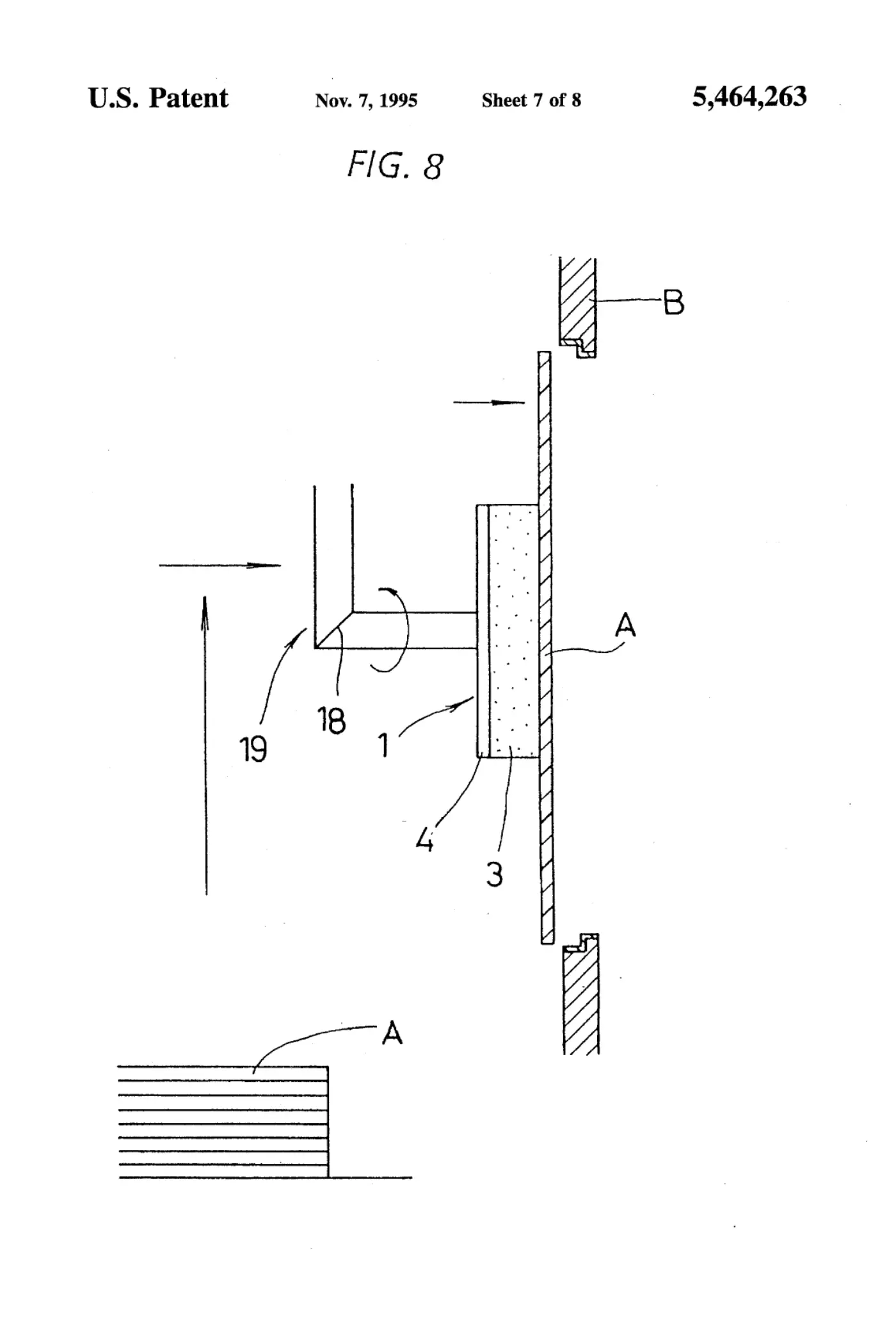

[0007]Sheet 7.

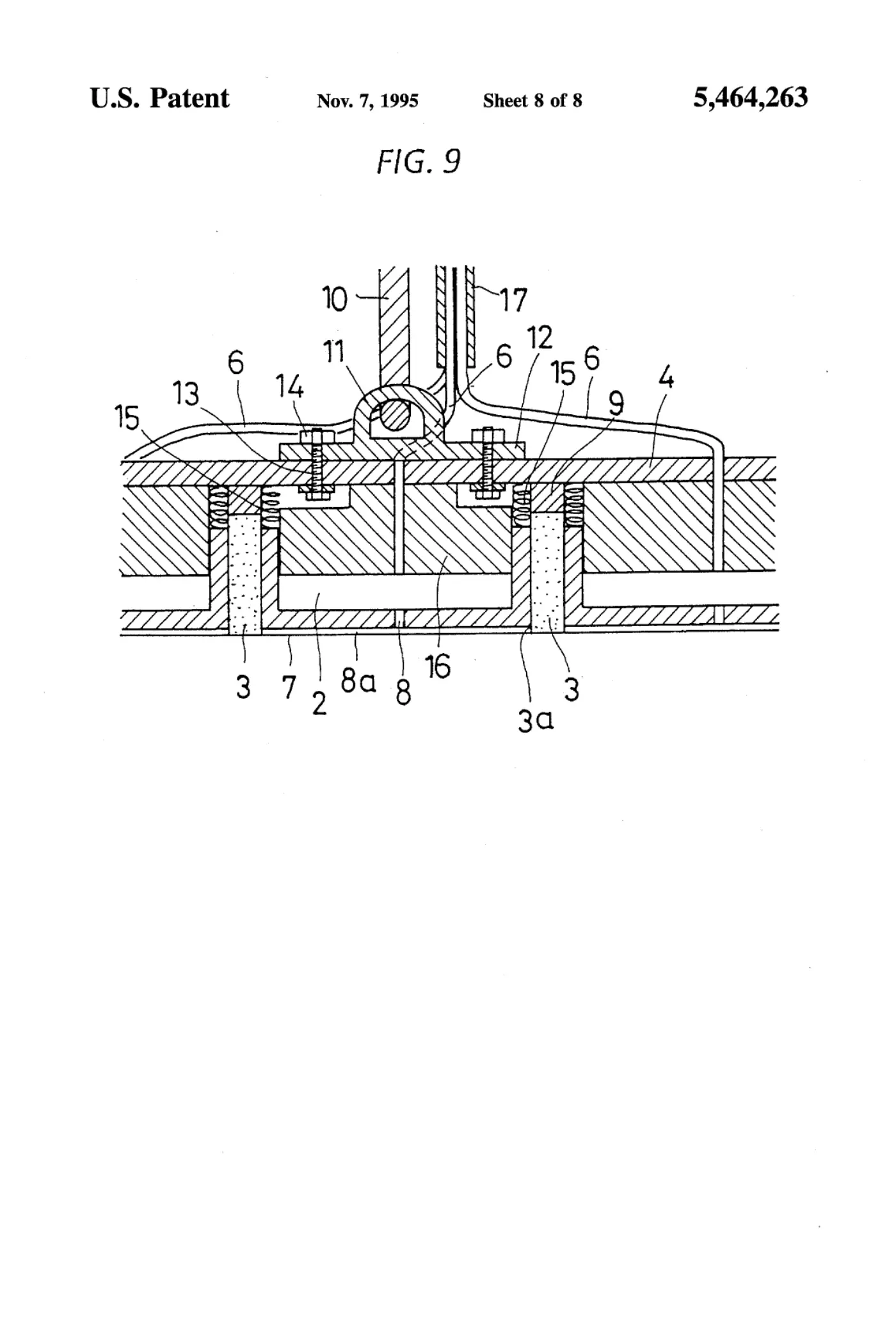

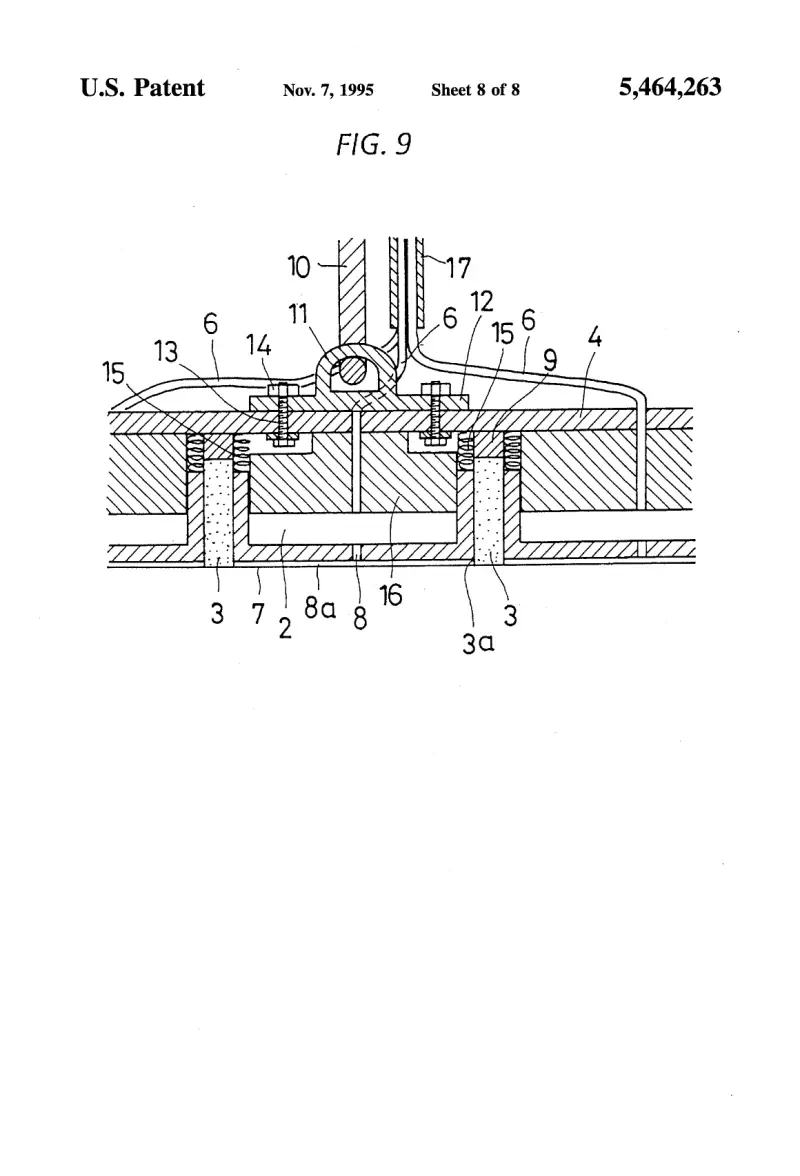

[0008]Sheet 8.
