Machine for cutting a workpiece made of styrofoam or like material

Published
Permanent URL
Classification
Manufacturing & Assembly Equipment › Machining Systems
Original source
US-5429460-A, the United States Patent and Trademark Office, 4 July 1995
Document SHA-256
fcc67d50ec3ada13d854998805ebaddf1c4318ef81dd95f082abed4a18443f1e

A machine is disclosed for cutting a workpiece made of styrofoam or like material. The machine includes a frame having a generally planar base adapted to support the workpiece. A rotary cutter is supported above the workpiece and is rotatably driven about an axis perpendicular to the base of the frame. The rotary cutter is mounted to a carriage which is moveable on a slide in a first direction parallel to the base of the frame. The slide, in turn, is movably mounted to the frame in a second direction which is also parallel to the plane of the base but perpendicular to the first direction. The rotary cutter is also movably mounted to the carriage in a direction generally perpendicular to the plane of the base so that the cutter is moveable along all three or orthogonal axes. The cutter includes a plurality of radial bores which are fluidly connected with an axial bore in the cutter. A source of vacuum is applied to the cutter axial bore so that debris caused during the cutting operation is evacuated by a vacuum source through the cutter and to a debris collection area.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3

Abstract

A machine is disclosed for cutting a workpiece made of styrofoam or like material. The machine includes a frame having a generally planar base adapted to support the workpiece. A rotary cutter is supported above the workpiece and is rotatably driven about an axis perpendicular to the base of the frame. The rotary cutter is mounted to a carriage which is moveable on a slide in a first direction parallel to the base of the frame. The slide, in turn, is movably mounted to the frame in a second direction which is also parallel to the plane of the base but perpendicular to the first direction. The rotary cutter is also movably mounted to the carriage in a direction generally perpendicular to the plane of the base so that the cutter is moveable along all three or orthogonal axes. The cutter includes a plurality of radial bores which are fluidly connected with an axial bore in the cutter. A source of vacuum is applied to the cutter axial bore so that debris caused during the cutting operation is evacuated by a vacuum source through the cutter and to a debris collection area.

1. Drawings

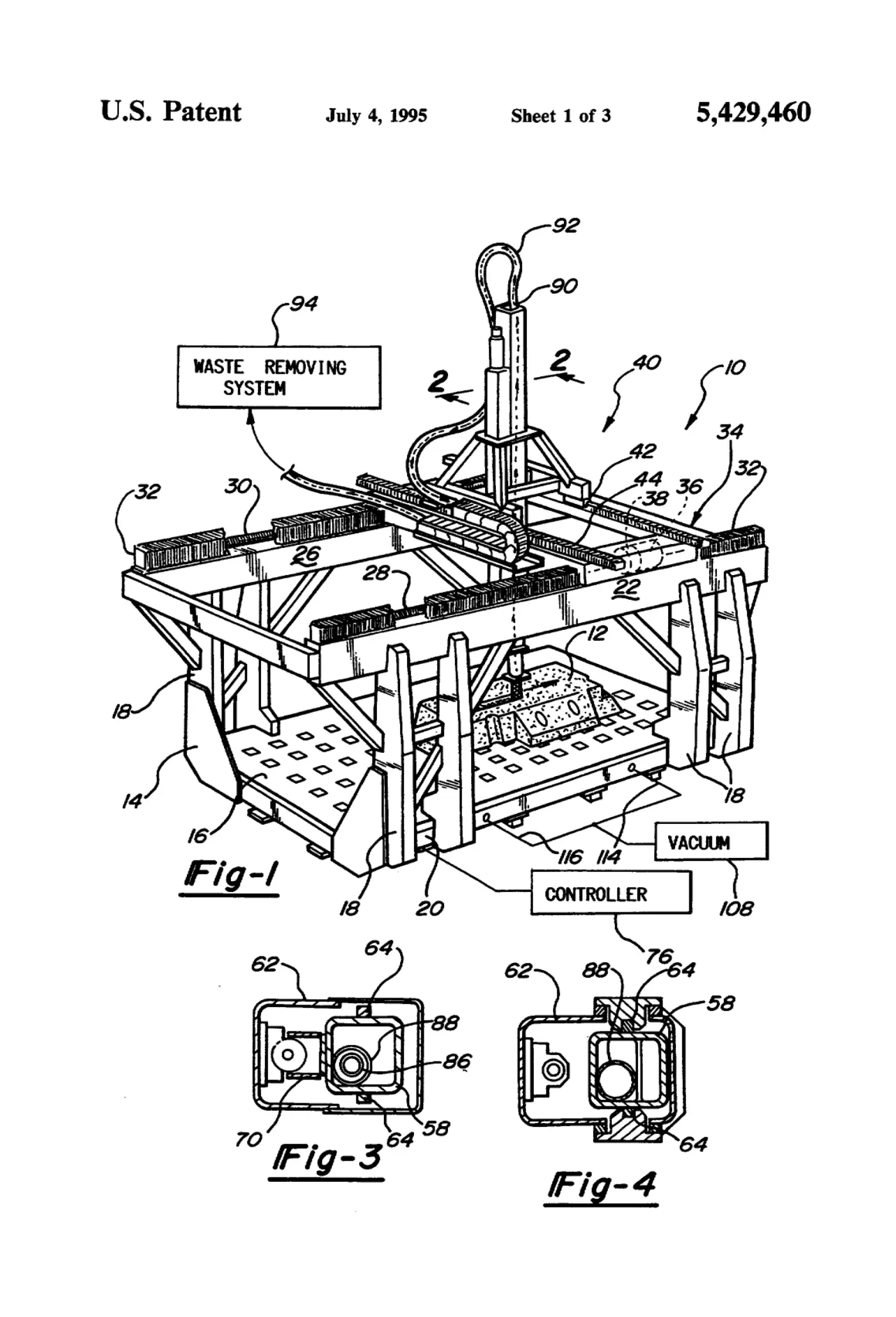

[0001]Sheet 1.

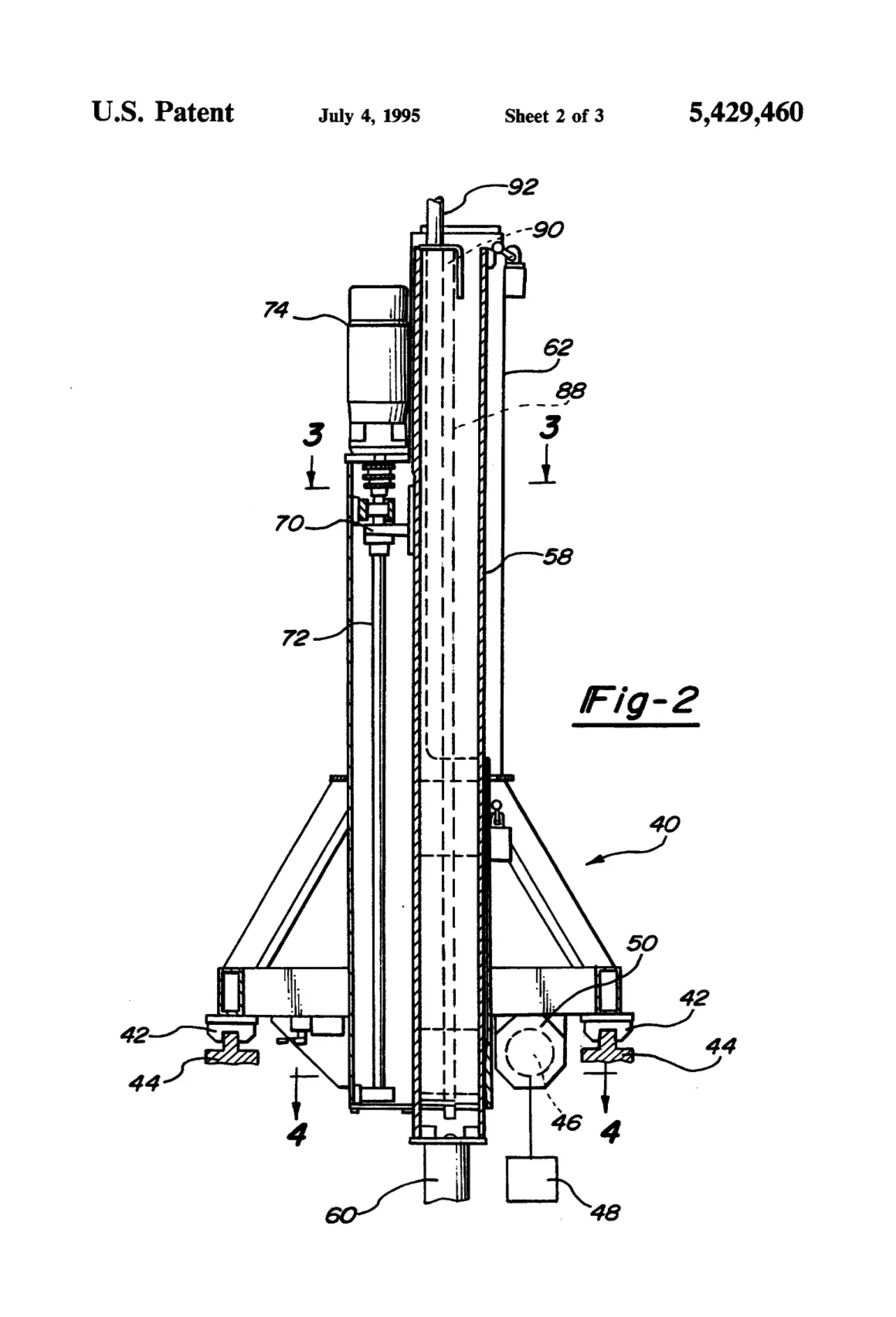

[0002]Sheet 2.

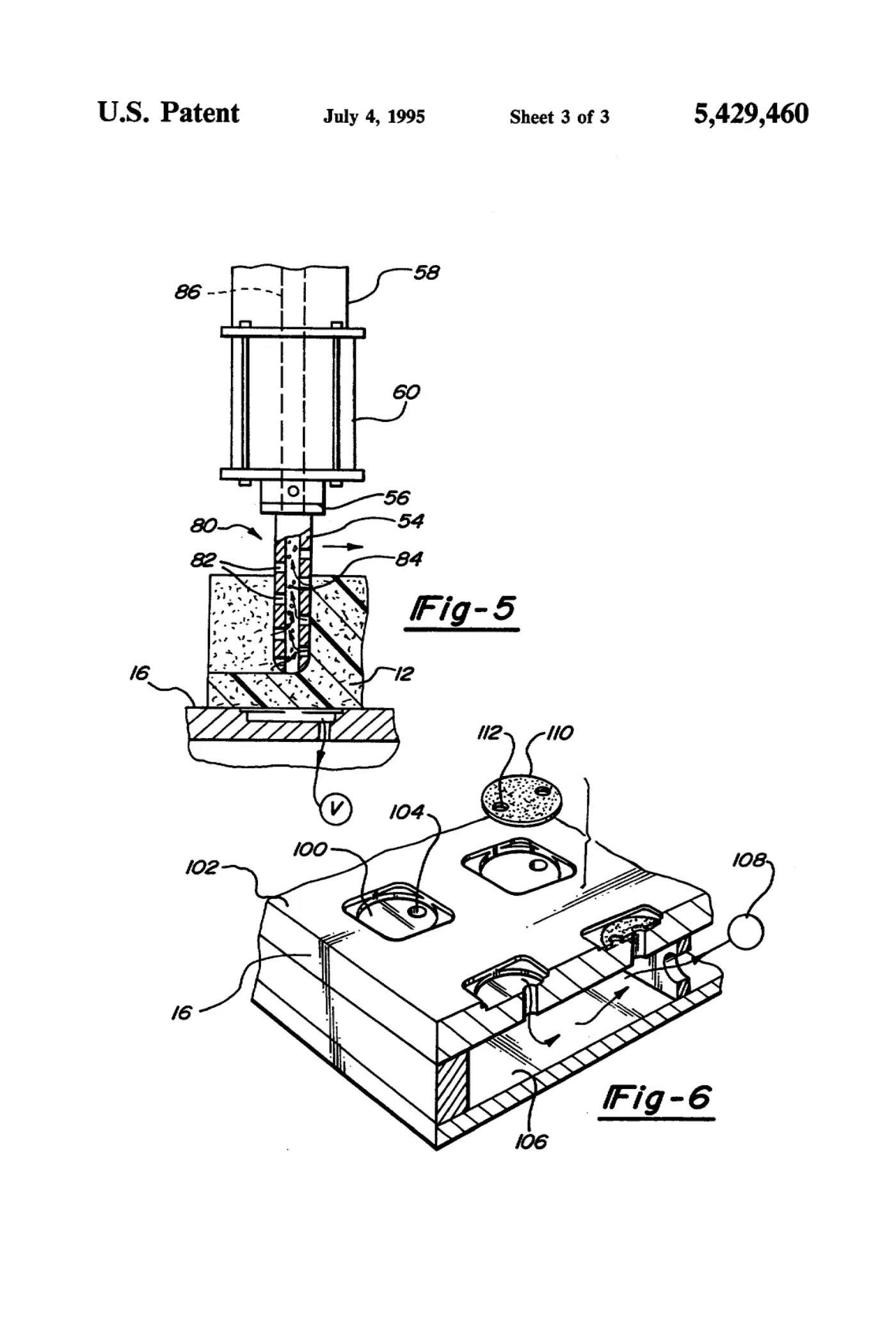

[0003]Sheet 3.
