Frame member for supporting a workpiece in a machine tool

Published
Permanent URL
Classification
Manufacturing & Assembly Equipment › Machining Systems
Assignee
FISCHER AG GEORG
Original source
US-5428199-A, the United States Patent and Trademark Office, 27 June 1995
Document SHA-256
3be28c83b34ec35e28734676ff1409abf1c8b9f61e1a569e5539a792d1edc1f1

A frame member, comprising a pair substantially parallel base members connected by a pair substantially parallel intermediate members extending therebetween, has its base members formed of the same material as the machine bed wherein the material is a cast mineral material comprising a synthetic binder and mineral fillers. It is a particular feature that the base members of the frame member be cast with the machine bed as a unitary structure out of the cast mineral material.

Sheet 1
Sheet 1
Sheet 2
Sheet 2

Abstract

A frame member, comprising a pair substantially parallel base members connected by a pair substantially parallel intermediate members extending therebetween, has its base members formed of the same material as the machine bed wherein the material is a cast mineral material comprising a synthetic binder and mineral fillers. It is a particular feature that the base members of the frame member be cast with the machine bed as a unitary structure out of the cast mineral material.

1. Drawings

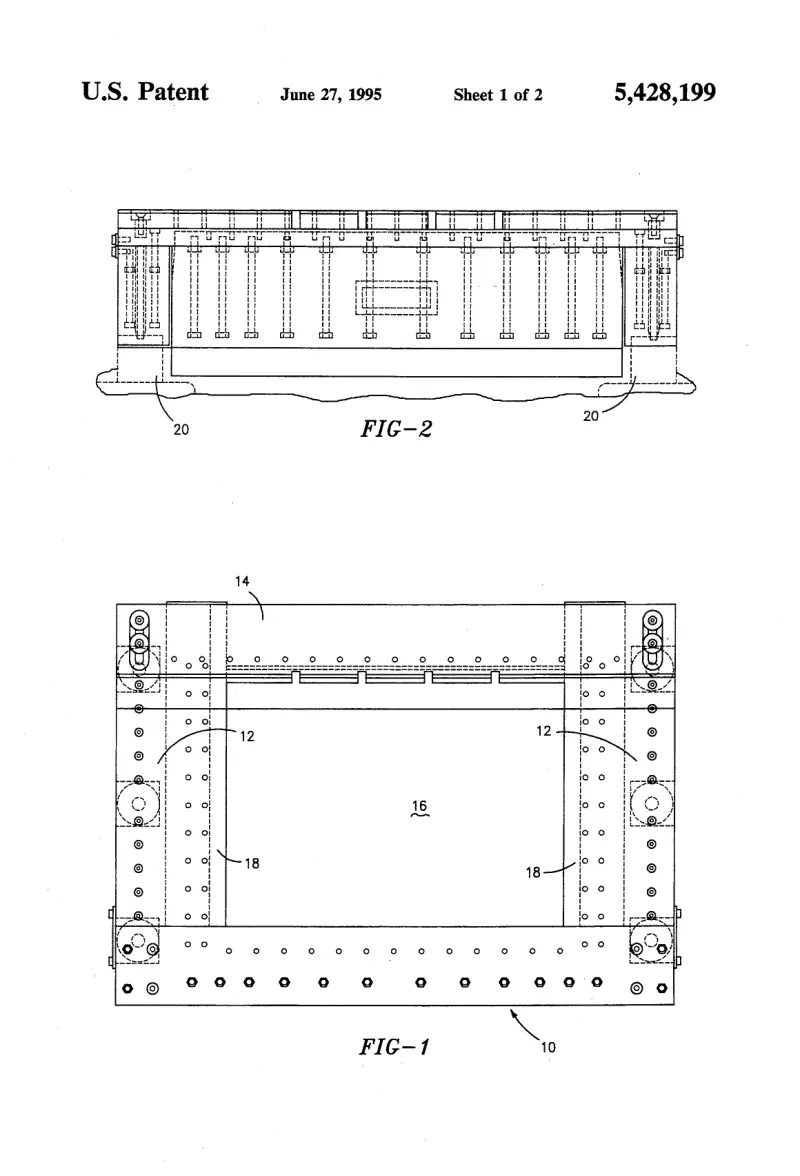

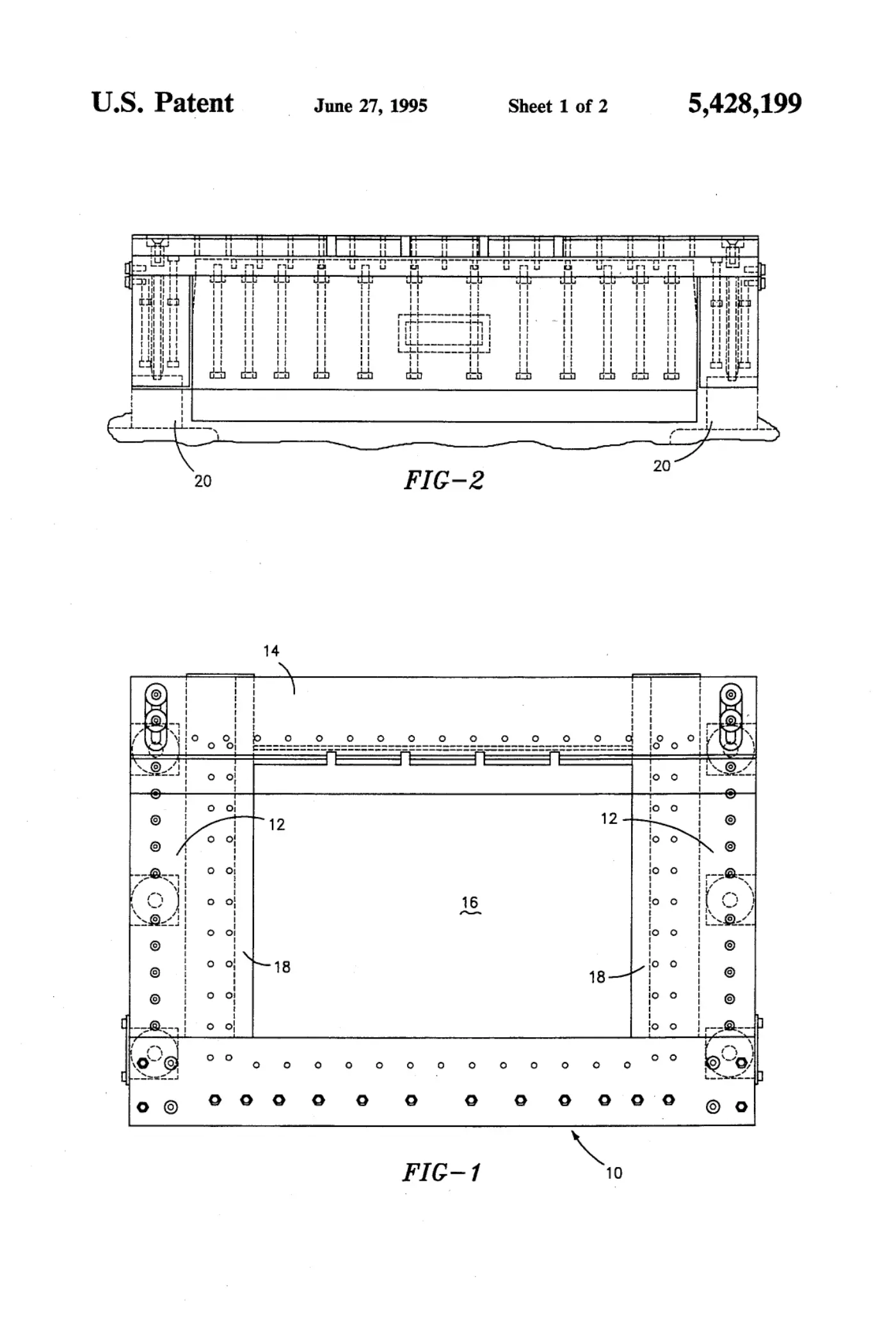

[0001]Sheet 1.

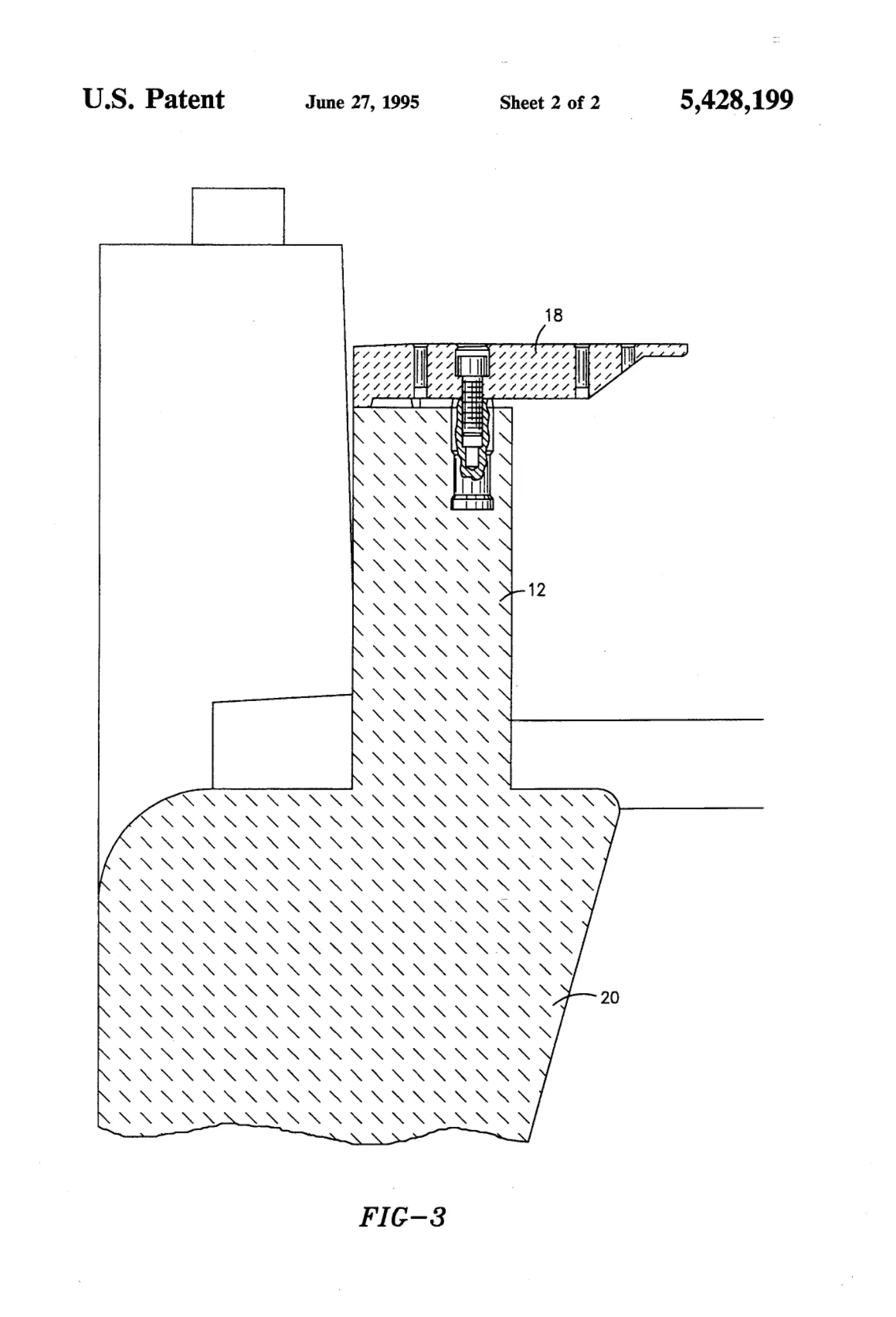

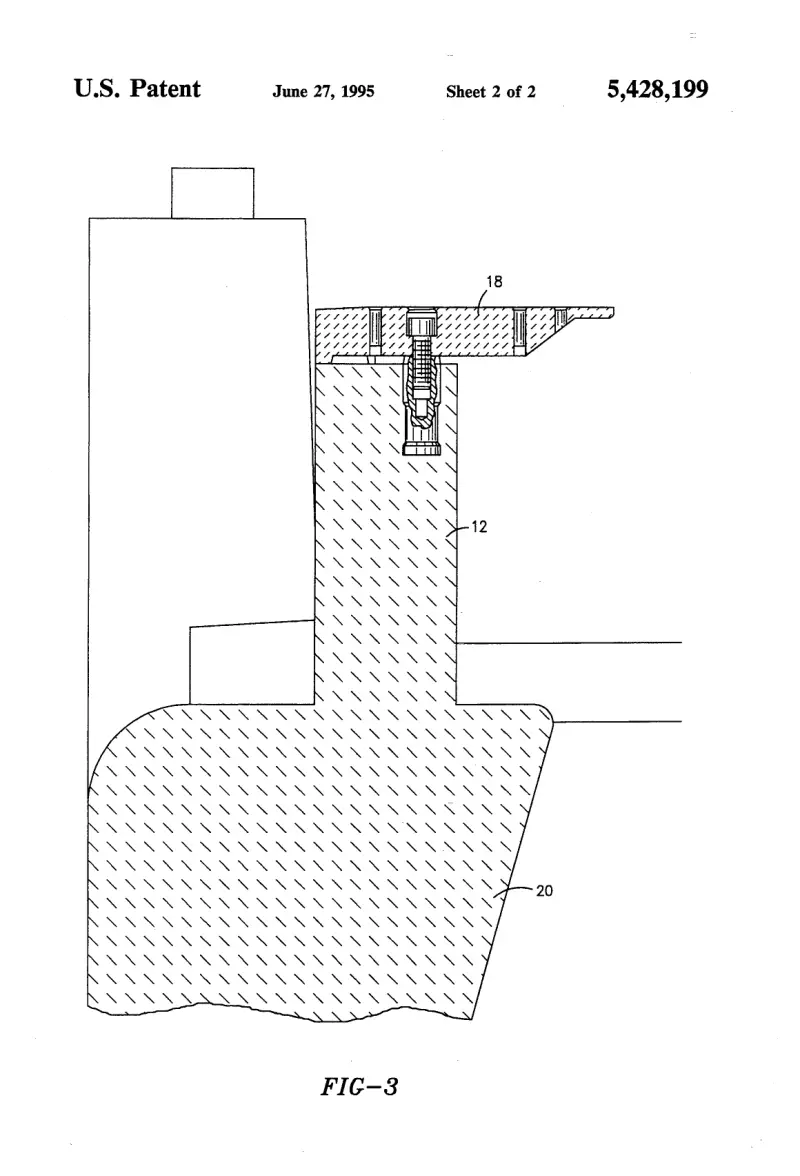

[0002]Sheet 2.
