Method and apparatus for handling extruded green bricks

Published
Permanent URL
Classification
Material Handling › Conveying Systems
Inventors
SIMON HELMUT
Assignee
HANS LINGL GMBH & CO
Original source
US-5417562-A, the United States Patent and Trademark Office, 23 May 1995
Document SHA-256
e99c3fbc5aeb56df0df1671c3d29e2c12ab8071173d7f64a7cef46aaa084f021

After extrusion, cutting, and tilting 90° alternate green bricks are rotated 180° about a vertical axis to form brick pairs with the back (unfinished) sides of both bricks facing each other. These reoriented brick pairs are then gripped and stacked. Conventional grippers, such as a vacuum gripper, may be used to grip only the backs of each brick in the pair. In this way, all of the finished faces of the stacked bricks avoid damage while simultaneously being more uniformly exposed to the kiln drying and firing atmosphere and thus may achieve a more uniform appearance. No special tools are required to handle irregular or specially designed brick faces because the gripper grips only the back of each brick pair.

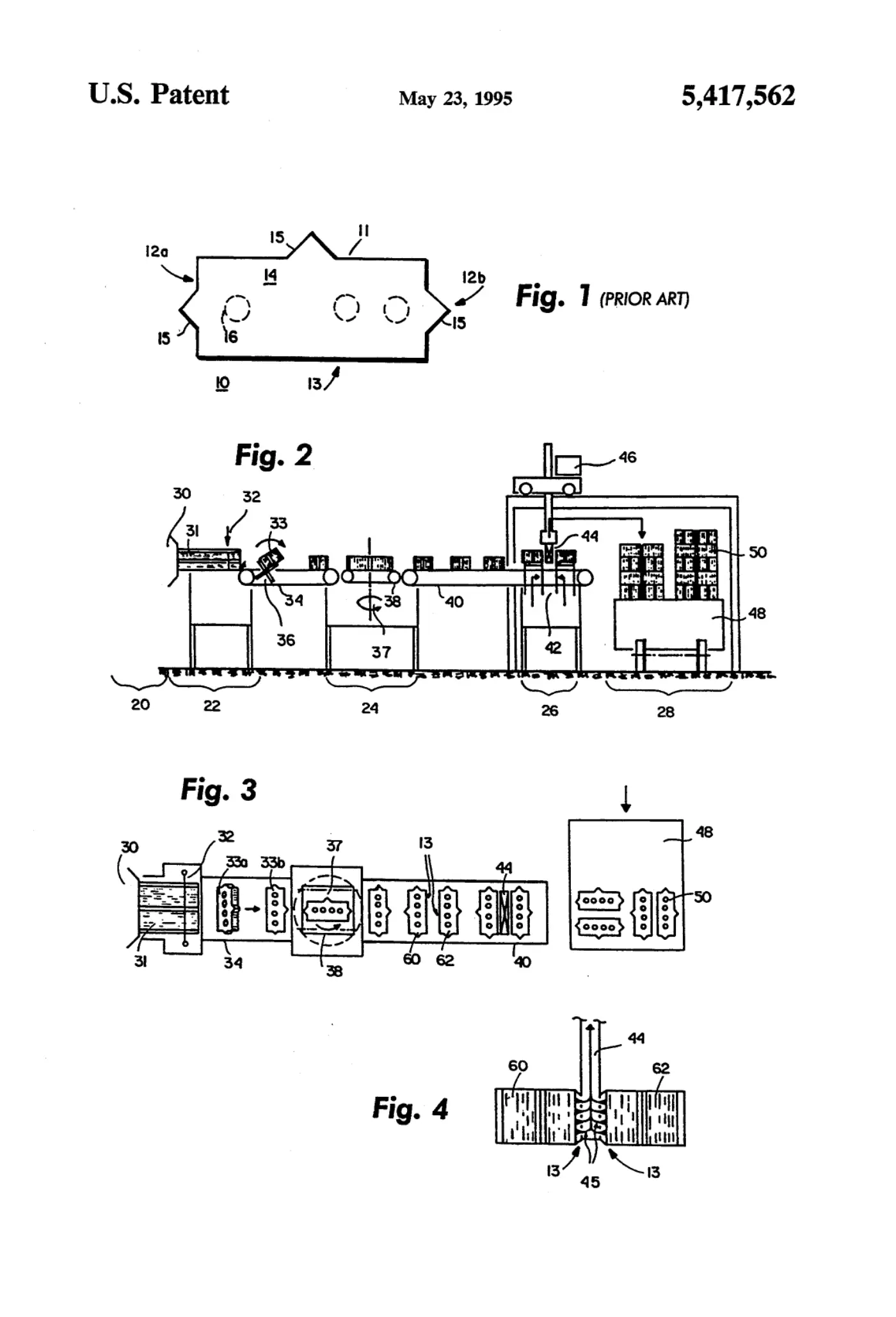

Sheet 1
Sheet 1

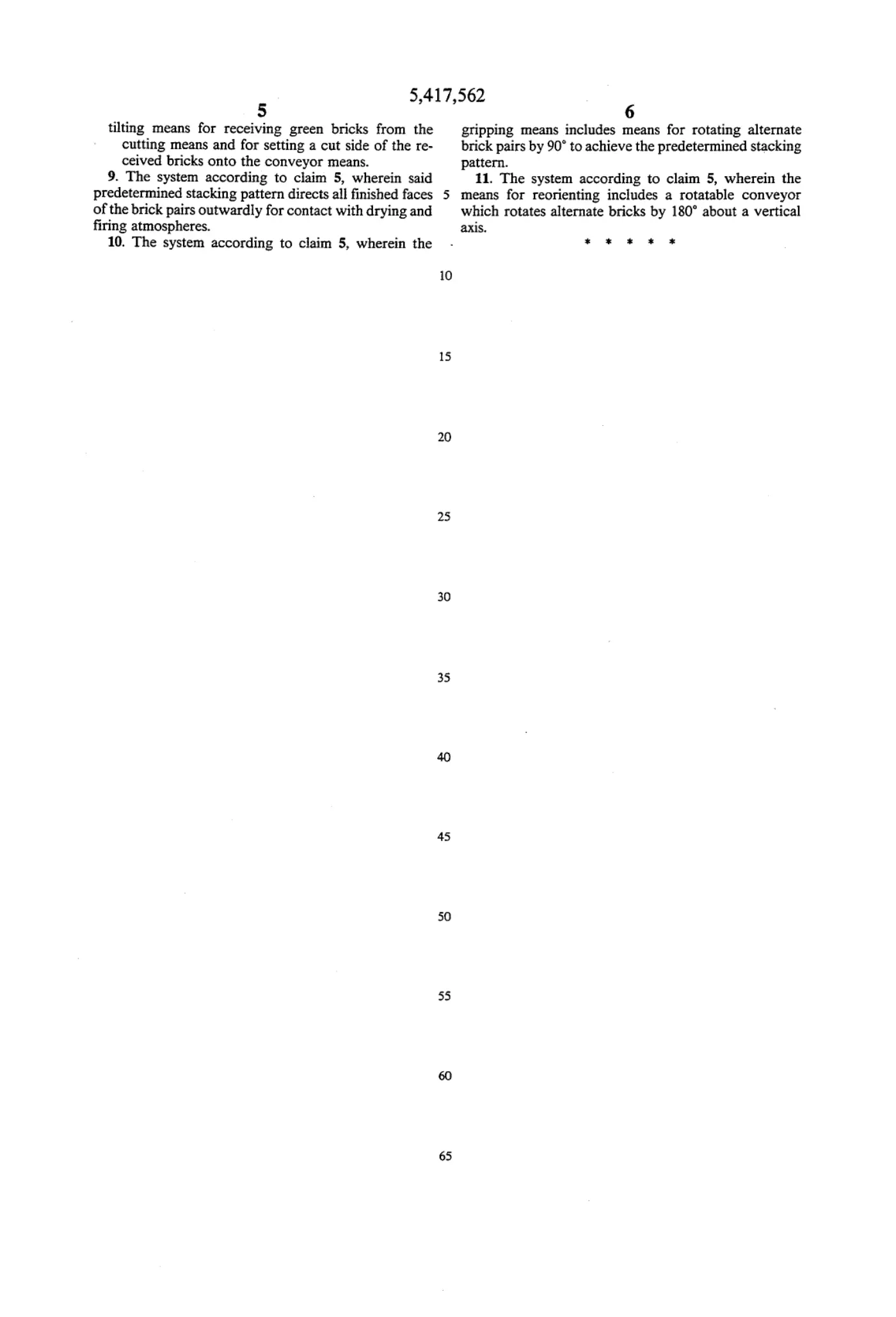

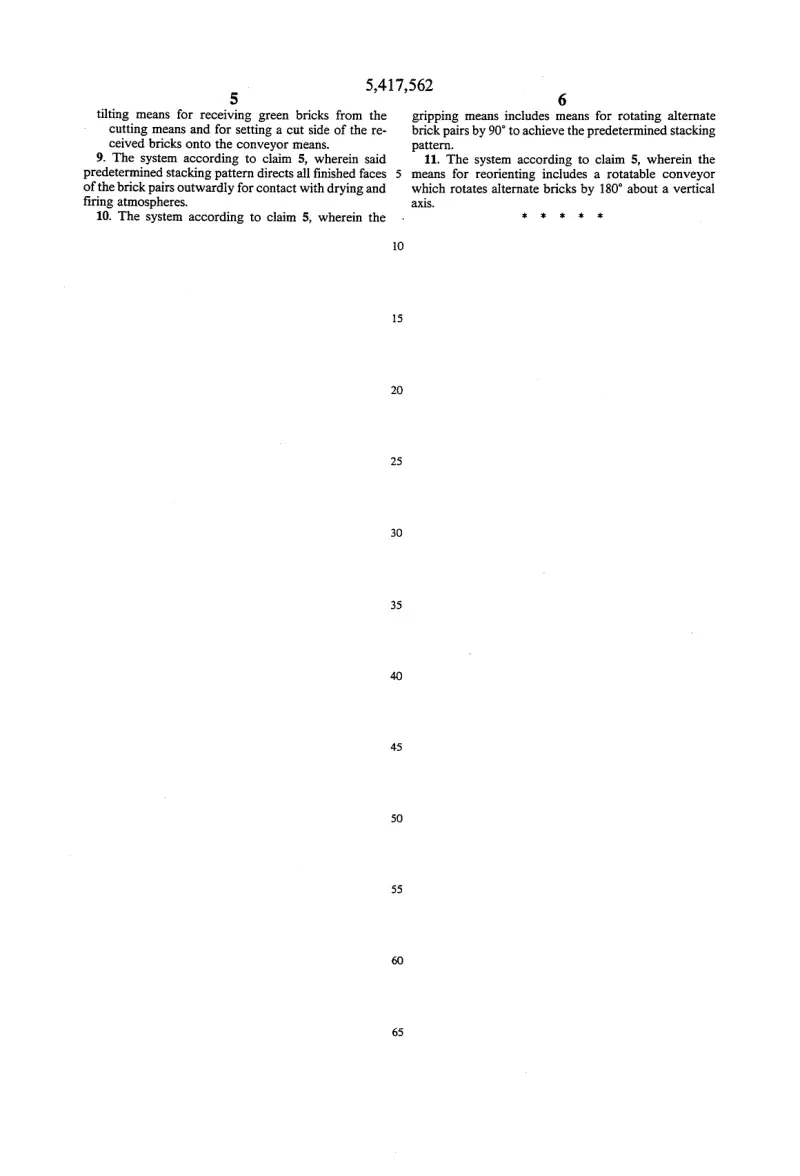

Sheet 2
Sheet 2

Abstract

After extrusion, cutting, and tilting 90° alternate green bricks are rotated 180° about a vertical axis to form brick pairs with the back (unfinished) sides of both bricks facing each other. These reoriented brick pairs are then gripped and stacked. Conventional grippers, such as a vacuum gripper, may be used to grip only the backs of each brick in the pair. In this way, all of the finished faces of the stacked bricks avoid damage while simultaneously being more uniformly exposed to the kiln drying and firing atmosphere and thus may achieve a more uniform appearance. No special tools are required to handle irregular or specially designed brick faces because the gripper grips only the back of each brick pair.

1. Drawings

[0001]Sheet 1.

[0002]Sheet 2.
