Vacuum clamping plate

Published
Permanent URL
Classification
Manufacturing & Assembly Equipment › Machining Systems
Inventors
MIELENZ HEINZ
Assignee
MIELENZ GMBH
Original source
US-5405123-A, the United States Patent and Trademark Office, 11 April 1995
Document SHA-256
e1c92cdcada3b65998676cf2648b21380278d9e9f31526bc937da1610a54bfe8

A vacuum clamp plate is built up from a plurality of clamp plate sections (1, 2), as building blocks. Hexagonal and pentagonal base patterns are provided in the buildingblock structure and on its top, each clamp plate section has a groove grid (18 ). The clamp plate sections (1, 2 ) are connected to each other by coupling elements that also serve to carry the vacuum.

Sheet 1
Sheet 1
Sheet 2
Sheet 2
Sheet 3
Sheet 3
Sheet 4
Sheet 4
Sheet 5
Sheet 5

Abstract

A vacuum clamp plate is built up from a plurality of clamp plate sections (1, 2), as building blocks. Hexagonal and pentagonal base patterns are provided in the buildingblock structure and on its top, each clamp plate section has a groove grid (18 ). The clamp plate sections (1, 2 ) are connected to each other by coupling elements that also serve to carry the vacuum.

1. Drawings

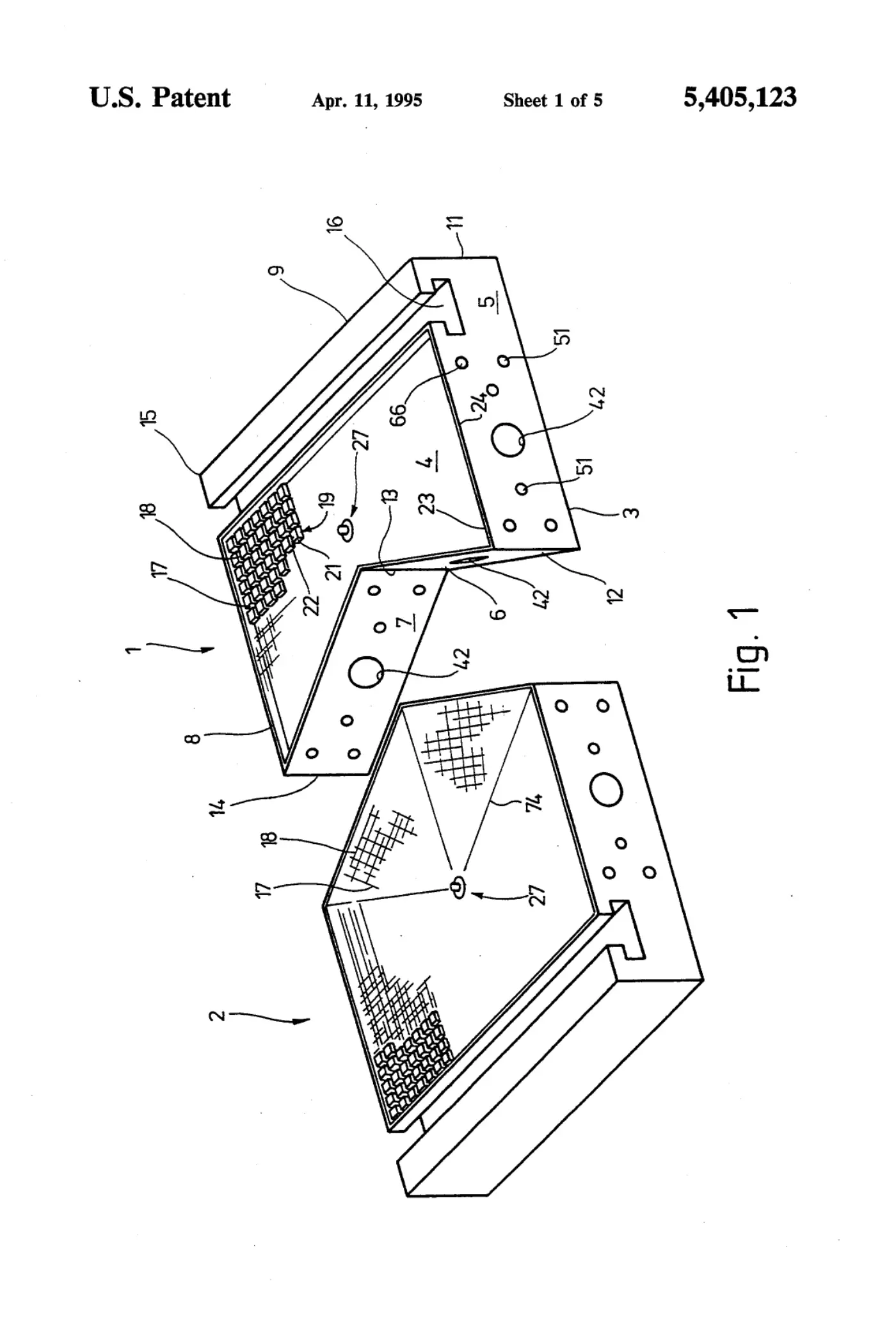

[0001]Sheet 1.

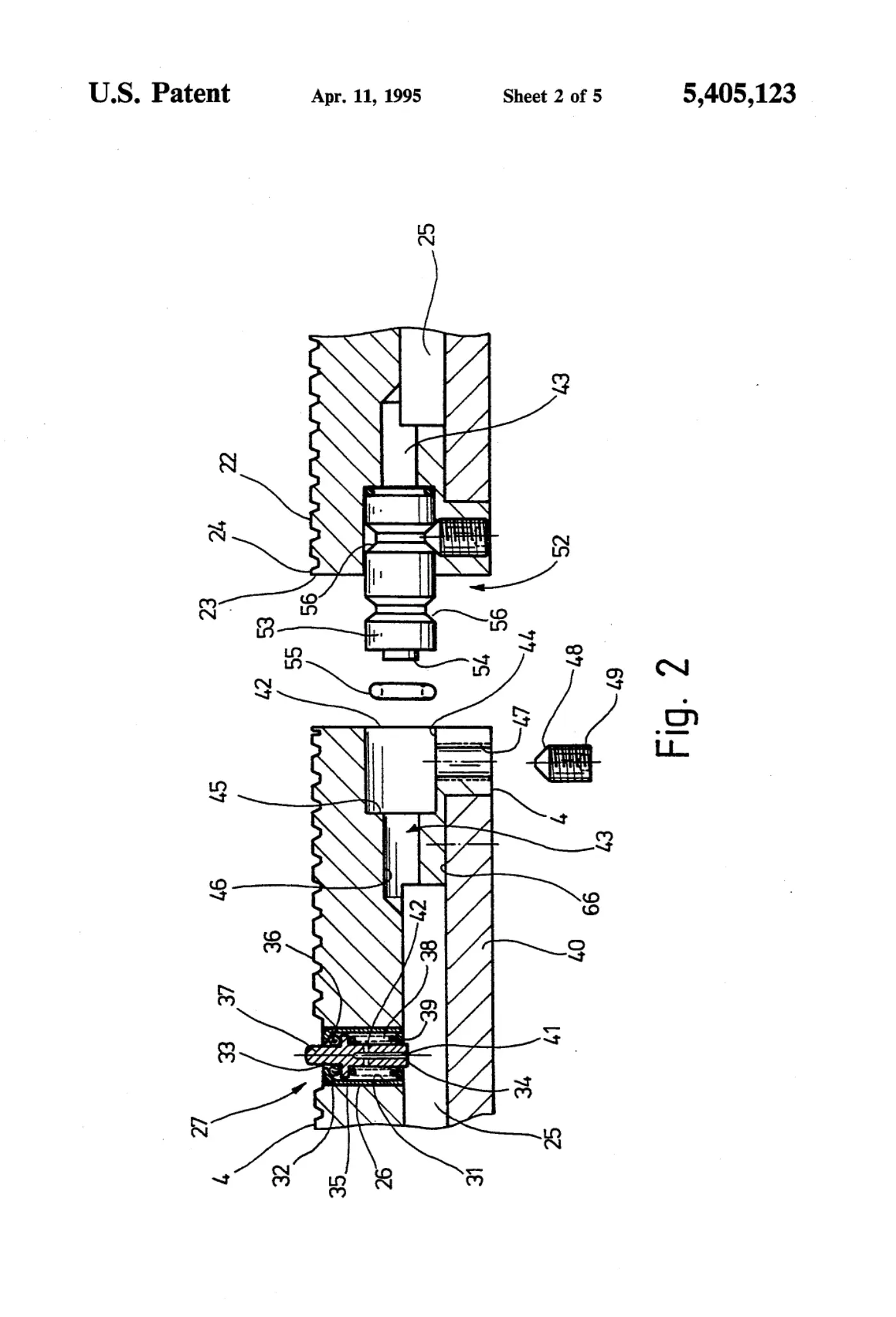

[0002]Sheet 2.

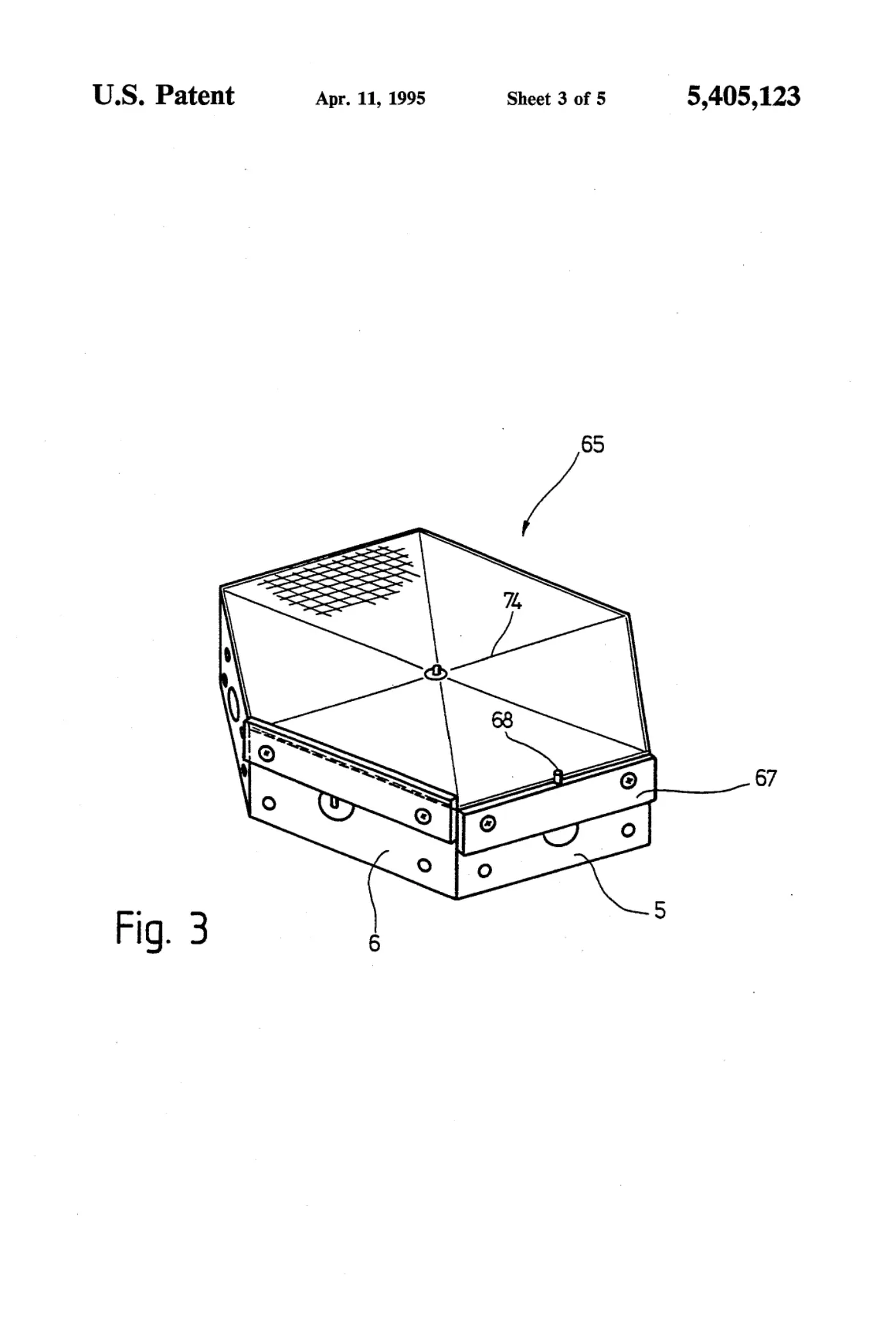

[0003]Sheet 3.

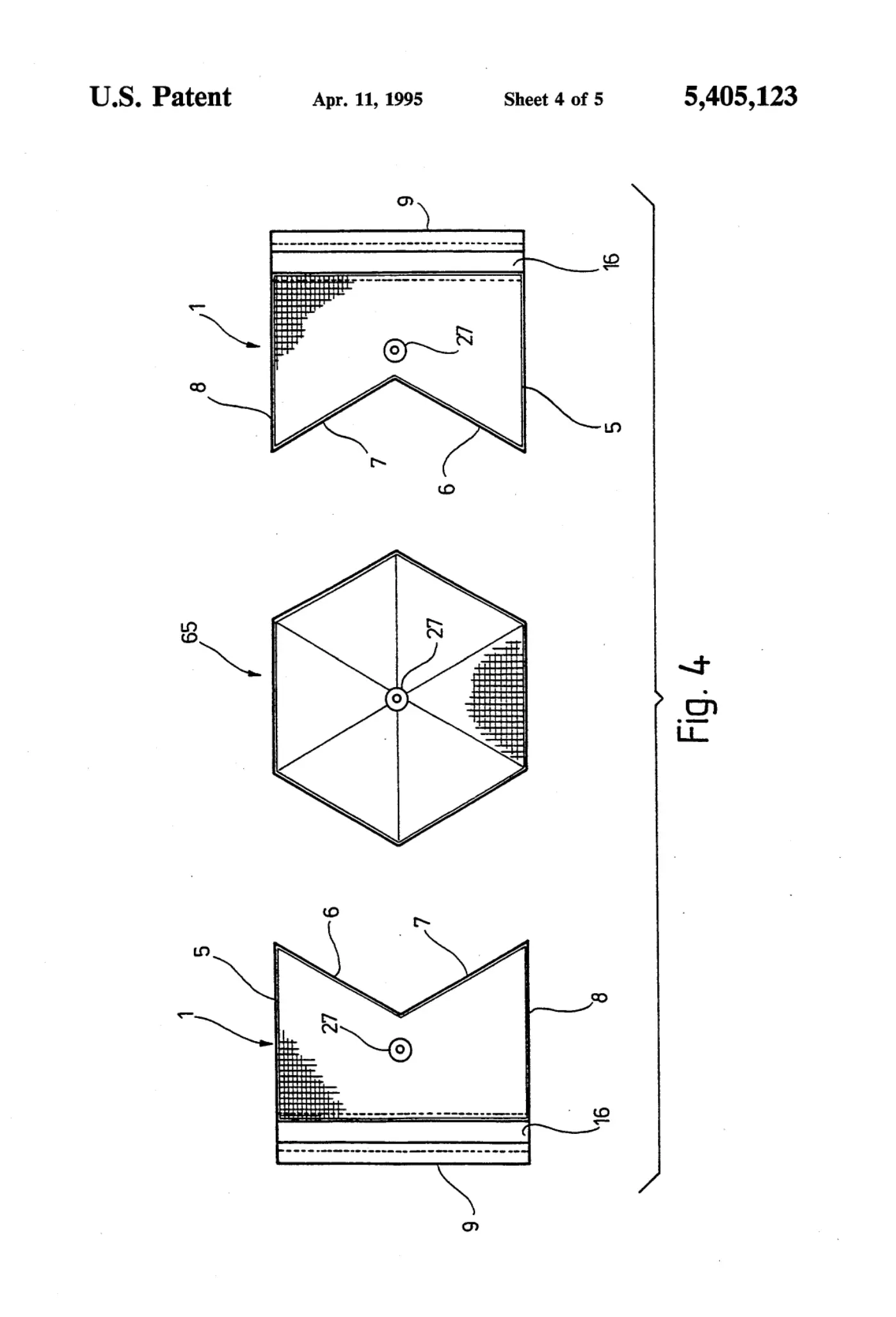

[0004]Sheet 4.

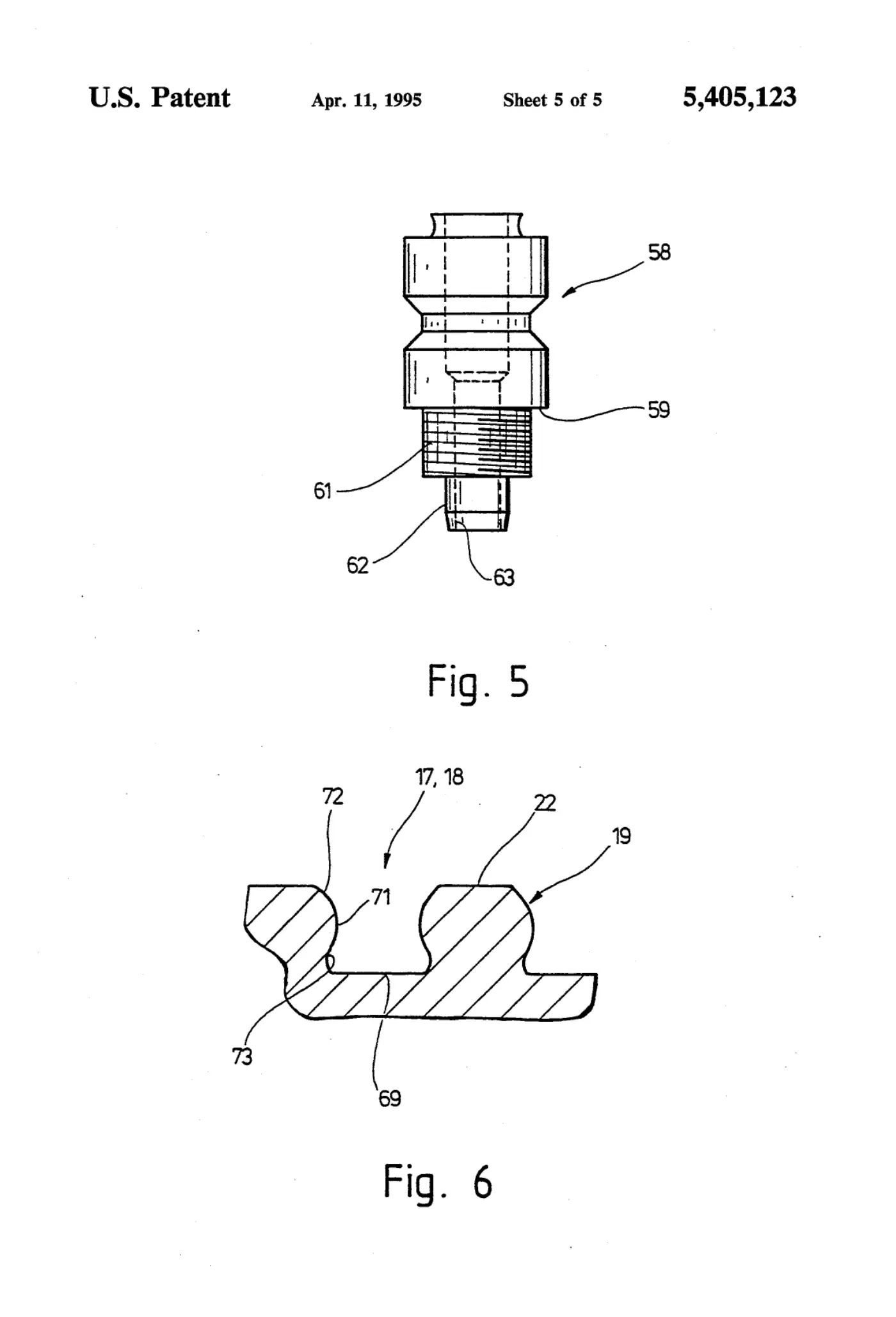

[0005]Sheet 5.
